Manufacturer Price Hand-Held Electric Operating Room Machine Portable Phlegm Suction Unit with Low Noise No Oil

Customization: Available
Type: Vacuum Suction Aspirator
Kind: Vacuum Suction Aspirator

Product Description

Basic Specifications

Model NO.SXT-1A
CertificationCE, ISO13485
GroupAll People
LCD DisplayWithout LCD Display
Max Vacuum≥0.08MPa(600mmhg)
Noise≤60dB(a)
Flow Rate≥22L/Min
Input110va
Power SupplyAC220V 50Hz
Weight (G.W.)6kg
Storage Bottle1000ml (PC)
Specification545mm× 260mm× 375mm

Product Description

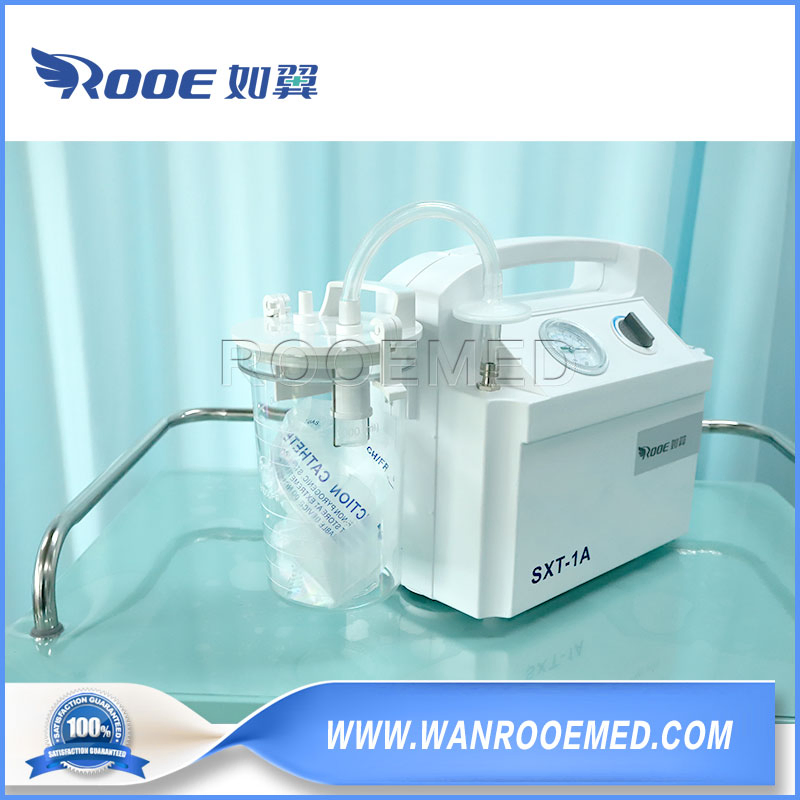

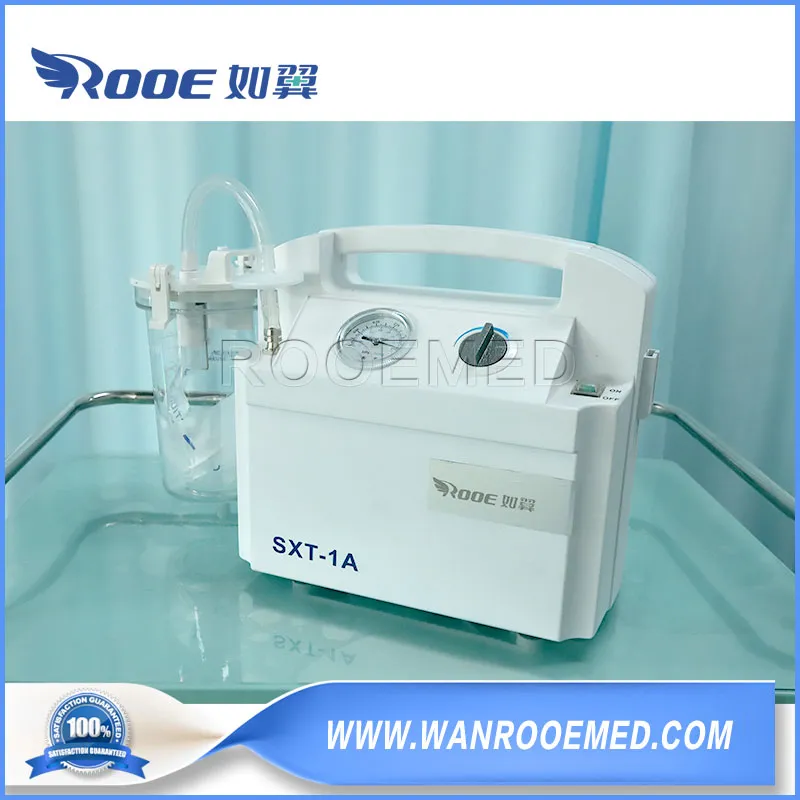

Portable Phlegm Suction Unit

The portable aspirator is a high vacuum suction rate that can suck out thick sputum and mucus to relieve patients of pain caused by sputum choking, especially for those who need first aid to get better and out of danger. It is also small, light and easy to carry, making it an ideal medical device and ideal for home use.

Suitable for sucking out secretions from the patient's upper respiratory tract, it can relieve the pain of sputum obstruction in sick patients, especially in emergency patients, and is an ideal medical device for first aid and care in medical units and at home.

Key Features

  • Adopting one-way oil-free self-lubricating vacuum pump as negative pressure source, no oil mist pollution.
  • Portable design with a plastic case, only 4kg in weight, easy to carry.
  • Manual control switch for precise negative pressure adjustment during attraction.
  • Stepless adjustment system based on the viscosity of sputum and mucus.
  • Transparent hard plastic bottle, easy to disassemble, clean, and carry with a secure cap hook.
  • Overflow protection device prevents liquid inhalation into intermediate pipes.
  • Equipped with a filter to prevent contamination of the negative pressure pump.
  • Particularly suitable for aspirating adult patients in wards or home care settings.

Technical Specifications

ModelSXT-1A
Max Vacuum≥0.08MPa (600mmHG)
Adjustable Vacuum Range0.02MPa(150mmHG) ~ Max. Vacuum
Flow Rate≥22L/min
Noise Level≤60dB(A)
Storage Bottle1000mL×1 (standard configuration)
Power SupplyAC 220V, 50Hz
Input Power110 VA
Net Weight (N.W.)4kg
Dimensions450mm×200mm×320mm

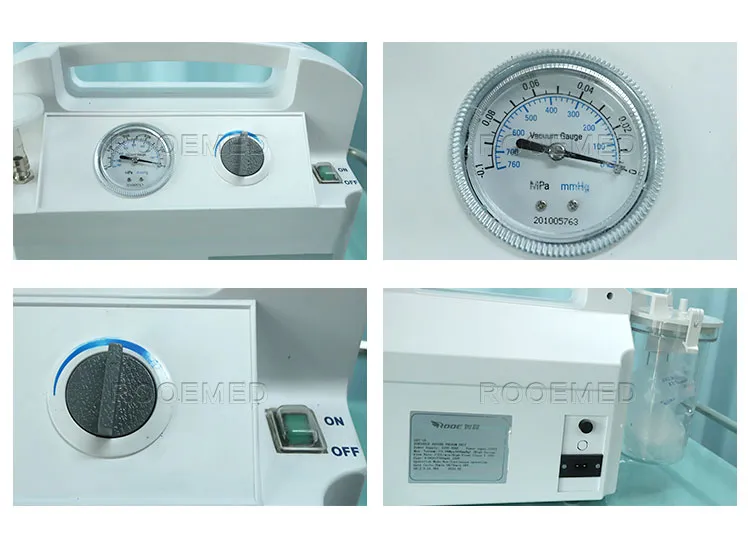

Phlegm Suction Unit Diagram

Frequently Asked Questions

? What is the primary use of the SXT-1A suction unit?
It is primarily used for sucking out thick sputum and secretions from a patient's upper respiratory tract to relieve obstruction and pain.
? Is this device suitable for home use?
Yes, its compact size, light weight (4kg), and ease of operation make it ideal for both medical units and home care.
? Does the vacuum pump require oil maintenance?
No, it uses an oil-free self-lubricating vacuum pump, which eliminates oil mist pollution and reduces maintenance needs.
? How can I adjust the suction strength?
The device features a stepless negative pressure adjustment system, allowing you to set the vacuum level based on the viscosity of the mucus.
? What safety features are included to protect the machine?
It is equipped with an overflow protection device to prevent liquid from entering the pump and a filter to prevent contamination.
? What is the noise level during operation?
The device operates quietly with a noise level of ≤60dB(A), ensuring a comfortable environment for the patient.
