Medical Vacuum Pump Portable Suction Unit Low Pressure Suction Unit

1 / 5

Medical Vacuum Pump Portable Suction Unit Low Pressure Suction Unit

Customization:	Available
Type:	Suction Unit
Transport Package:	Carton

Send Inquiry

Product Description

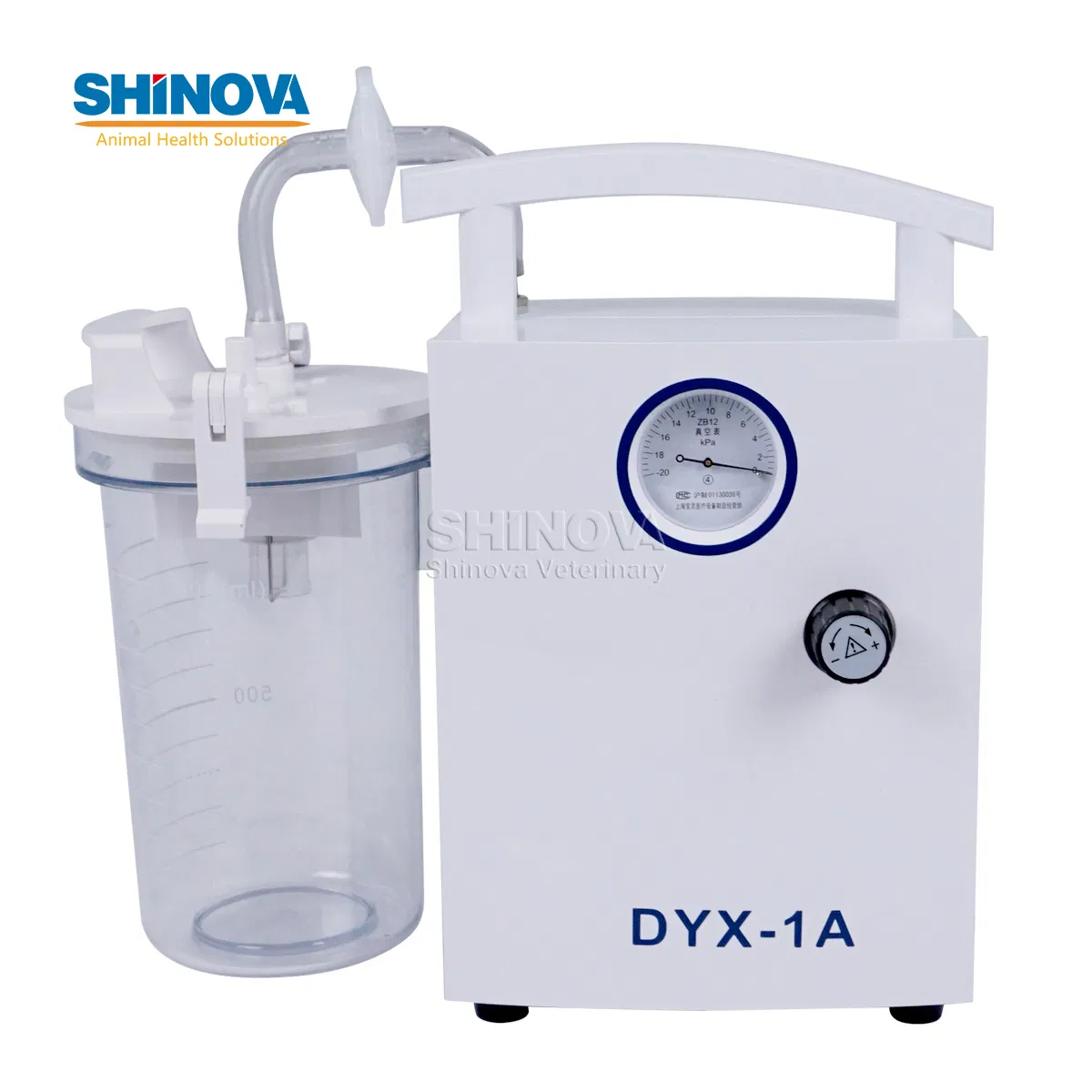

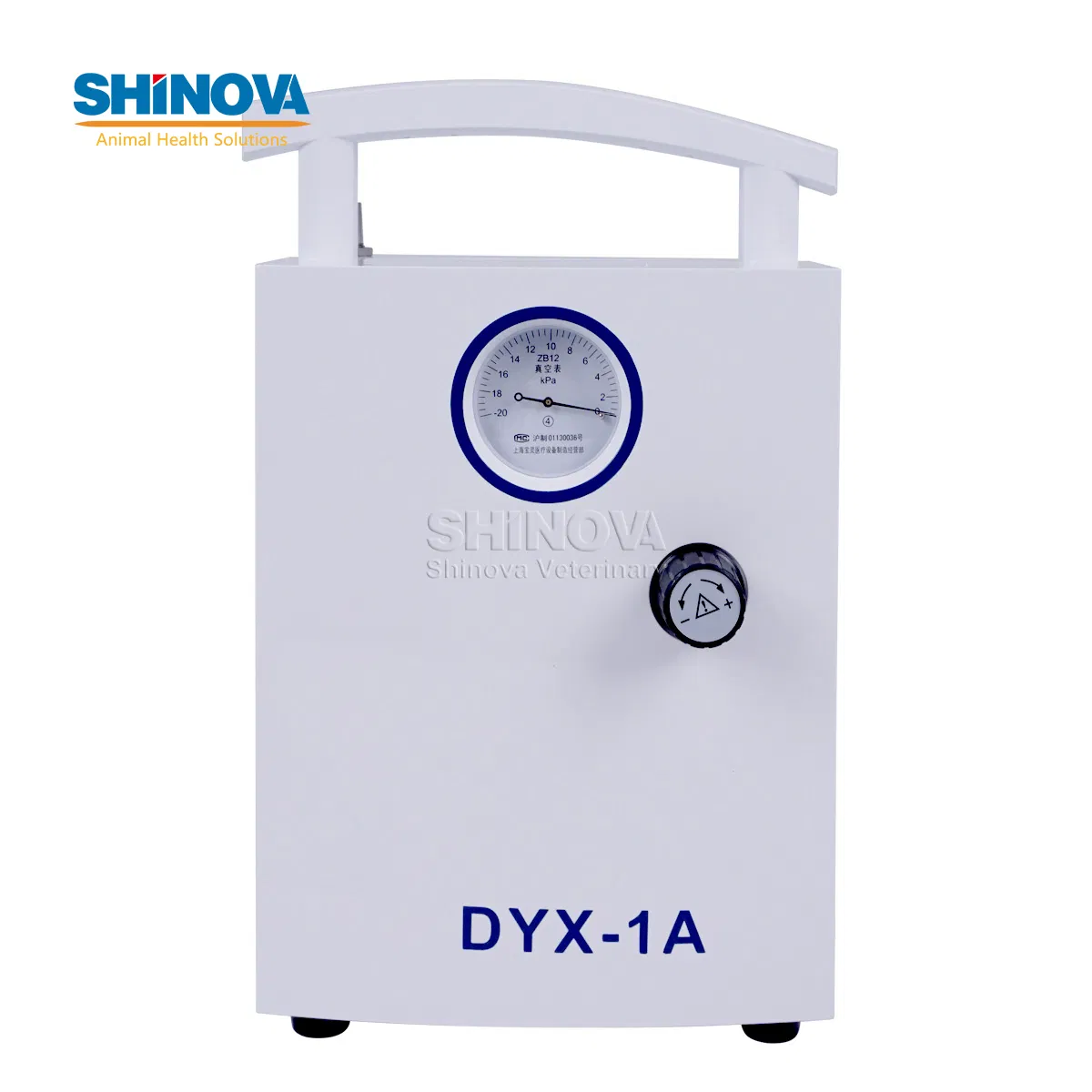

Veterinary Low-Vacuum Suction Unit View 1

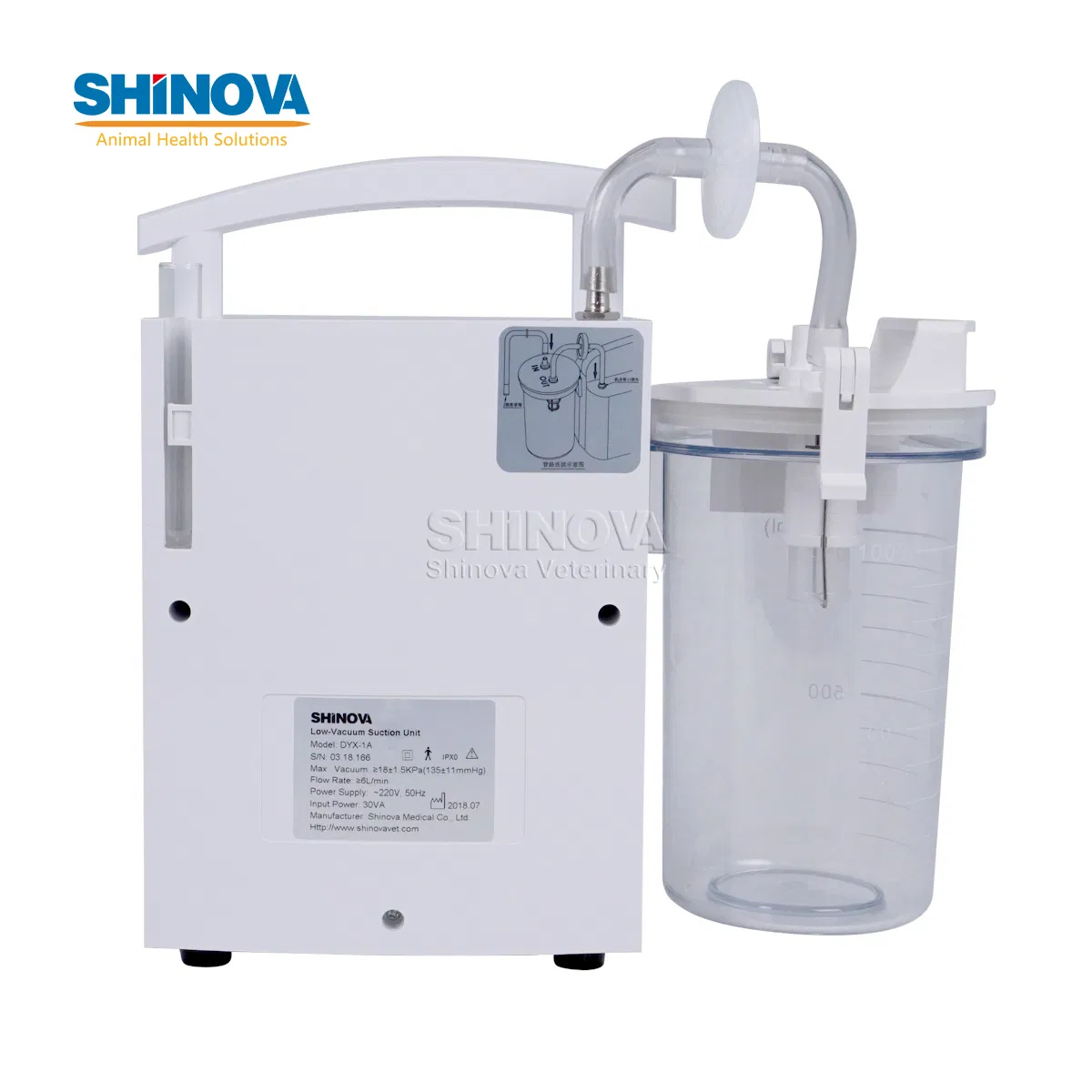

Veterinary Low-Vacuum Suction Unit View 2

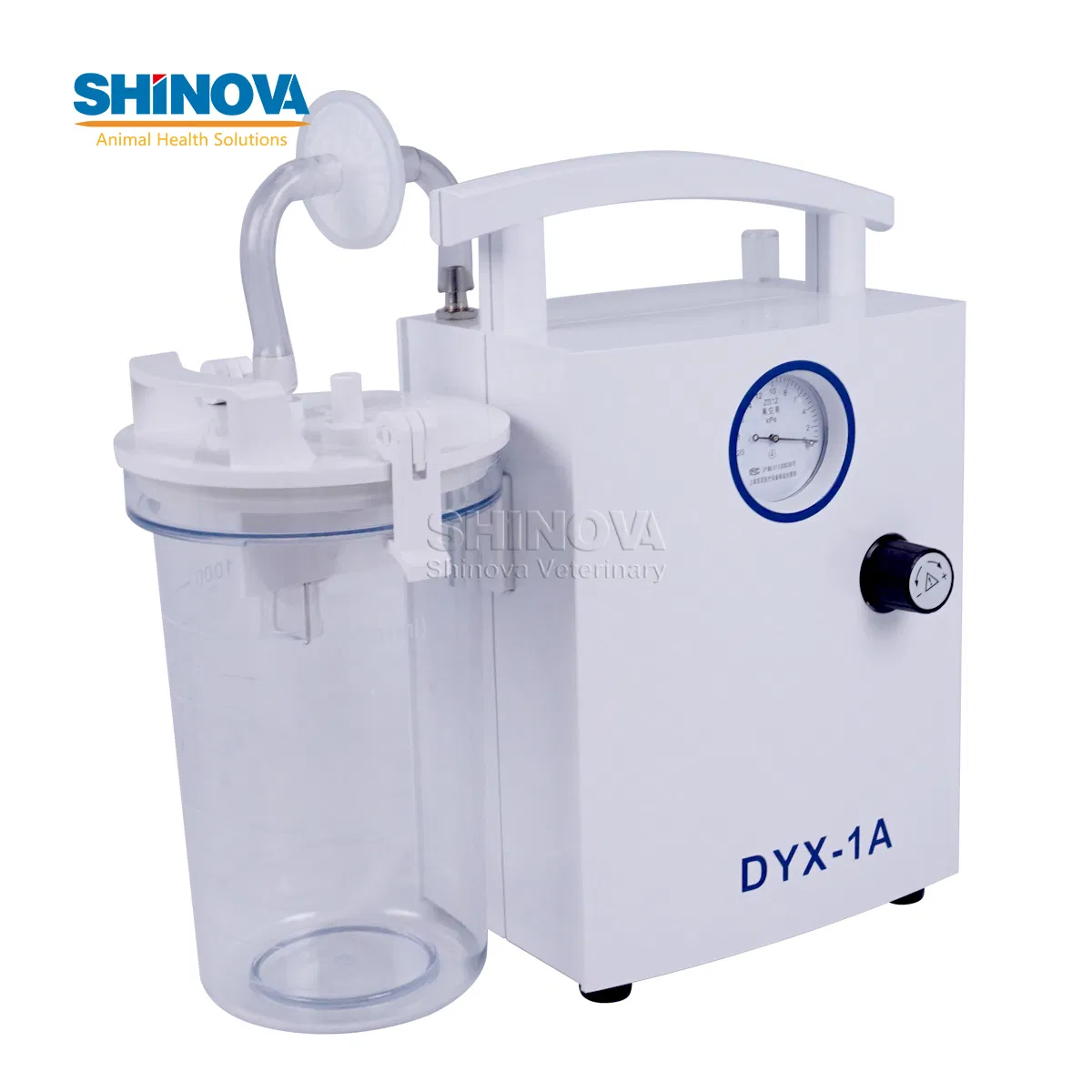

Veterinary Low-Vacuum Suction Unit View 3

Core Specifications

Model NO. DYX-1A

HS Code 9018909919

Production Capacity 10000 PCS/Year

Package Size 1.00cm * 1.00cm * 1.00cm

Package Gross Weight 1.000kg

Product Features

Veterinary Low-Vacuum (Amniotic Fluid) Suction Unit - Model DYX-1A

A specialized apparatus designed for suctioning amniotic fluid and phlegm from neonates and infants, particularly those born via cesarean section. Highly versatile, it is also suitable for postoperative suction in gastroenteric, thoracic, and celiac cavities.

Electromagnetic Pump
Safely powered by an electromagnetic pump, ensuring no positive pressure is produced during operation.

Bacterial Filtration
Equipped with a bacterial filter for emitted air, providing an effective barrier against environmental contamination.

Adjustable Vacuum
Includes a vacuum regulator with a locked set, allowing precise control according to clinical requirements.

Durable PC Bottle
Transparent plastic jar with overflow prevention; available in 1000mL or 2000mL capacities and fully sterilizable.

Technical Parameters

Max. Vacuum	≥ 18± 1.5KPa (135± 11mmHg)
Vacuum Range	2kPa (15 mmHg) to Max. Vacuum
Flow Rate	≥ 6L/min
Noise Level	≤ 55dB(A)
Jar Capacity	1000mL (Polycarbonate)
Power Supply	AC 220V± 10%, 50Hz
Power Input	30VA
Net/Gross Weight	2.5kg / 3.5kg
Dimensions	40cm × 19cm × 33cm

Product Detail Gallery

Frequently Asked Questions

● What is the primary clinical application of the DYX-1A?

It is specifically designed for suctioning amniotic fluid and mucus from newborns, especially during C-section births, as well as for general postoperative suction in internal medicine and surgery.

● Is the suction pressure adjustable?

Yes, the device features a vacuum regulator with a locked setting that allows the operator to adjust the pressure between 2kPa and the maximum vacuum level (18kPa) based on clinical needs.

● How does the overflow protection work?

The collection jar is equipped with an overflow preventive valve that automatically stops the suction process if the liquid reaches a certain level, protecting the pump from damage.

● Is the device loud during operation?

No, the unit operates quietly with a noise level of ≤ 55dB(A), making it suitable for sensitive environments like neonatal wards.

● Can the collection jars be sterilized?

Yes, the jars are made of high-quality transparent polycarbonate (PC) plastic which is designed to be sterilized for hygienic reuse.

● How portable is the DYX-1A unit?

With a net weight of only 2.5kg and a compact plastic body, the unit is lightweight and very convenient to carry and operate across different hospital departments.
