| Model NO. | GU-GTB-10 |
| Max Diameter of Workpiece | 3200mm |
| Mass Scope of Workpiece | 1000kg |
| Type | Compression Testing Machine |
| Max Capacity | >1000KN |
| Accuracy Grade | 0.5 |
| Load Way | Gas Pressurized Filling |
| Control Method | Manual Control |
| Power Source | Pneumatic Air Driven |
| Driven Pressure Range | Compressed Air of 3-10 Bar |
| Maximum Output Pressure | 800bar Output Pressure |
| Pump Type | Pneumatic Pump |
| Structure | Stainless Steel Frame |

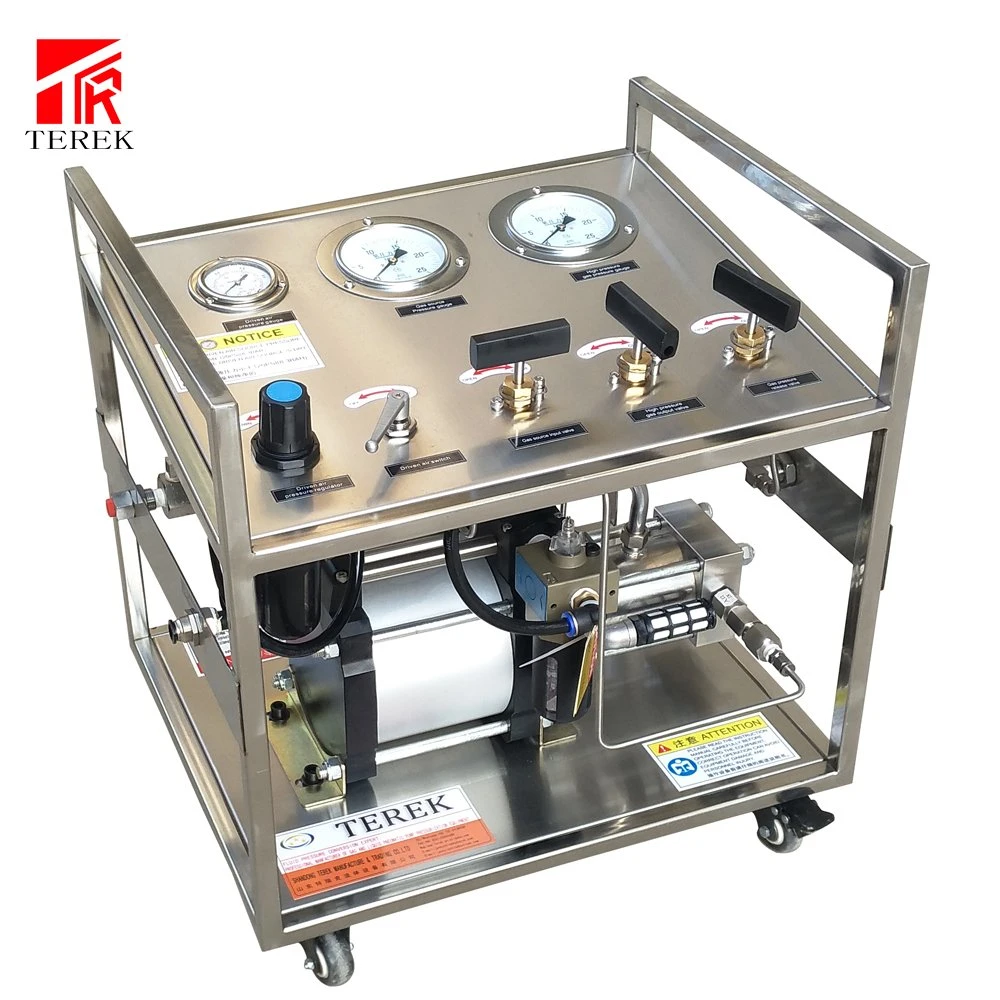

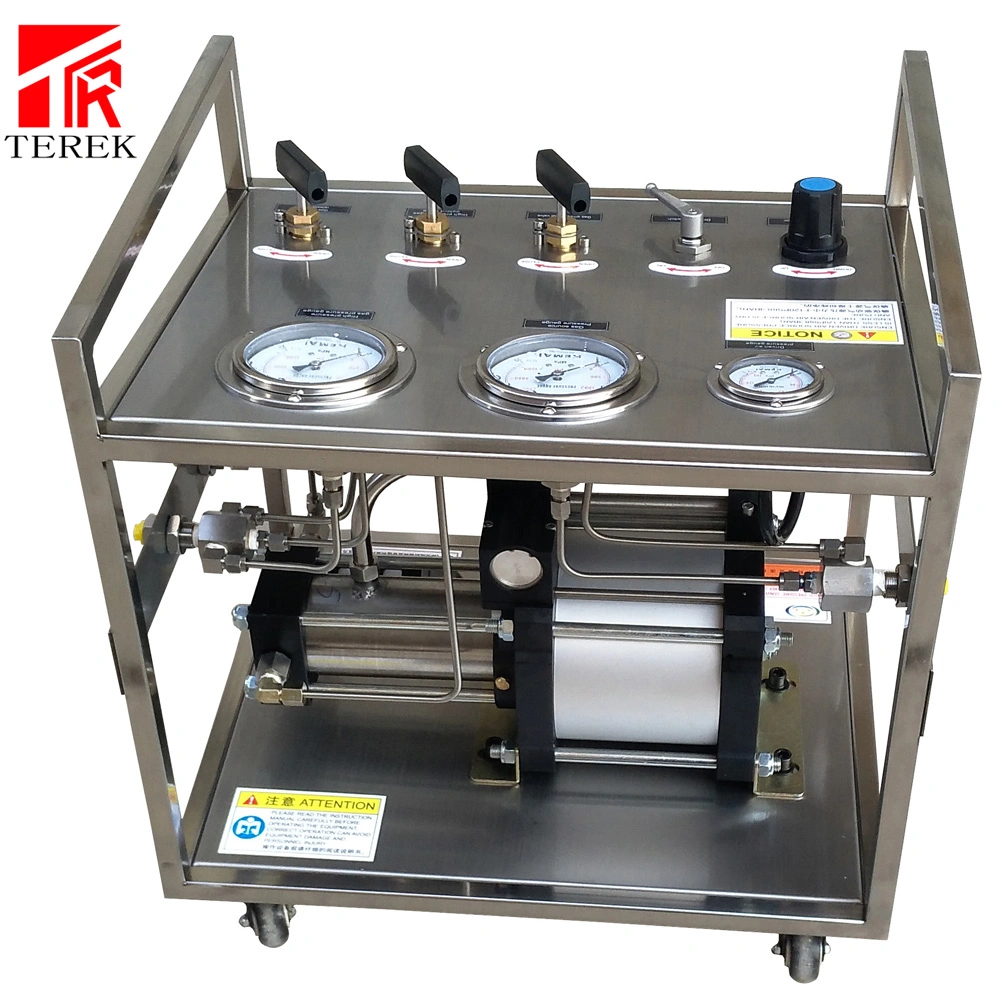

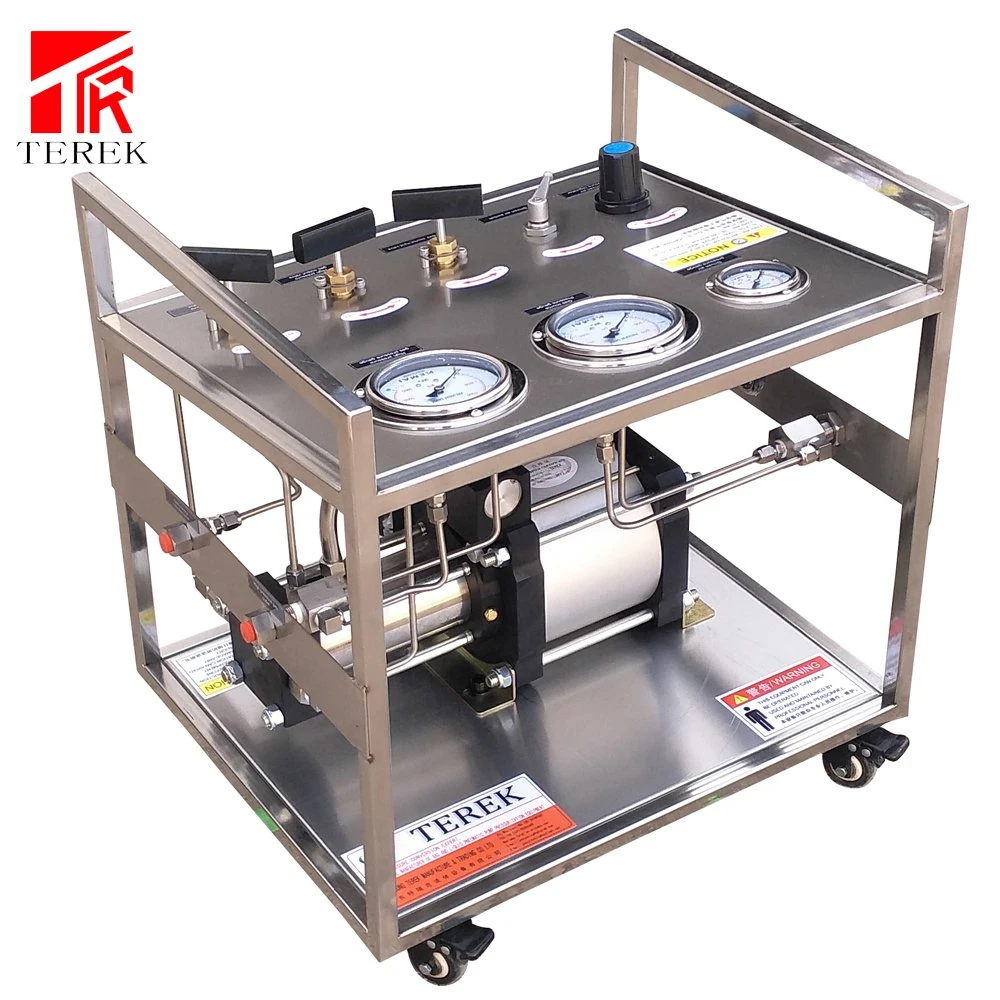

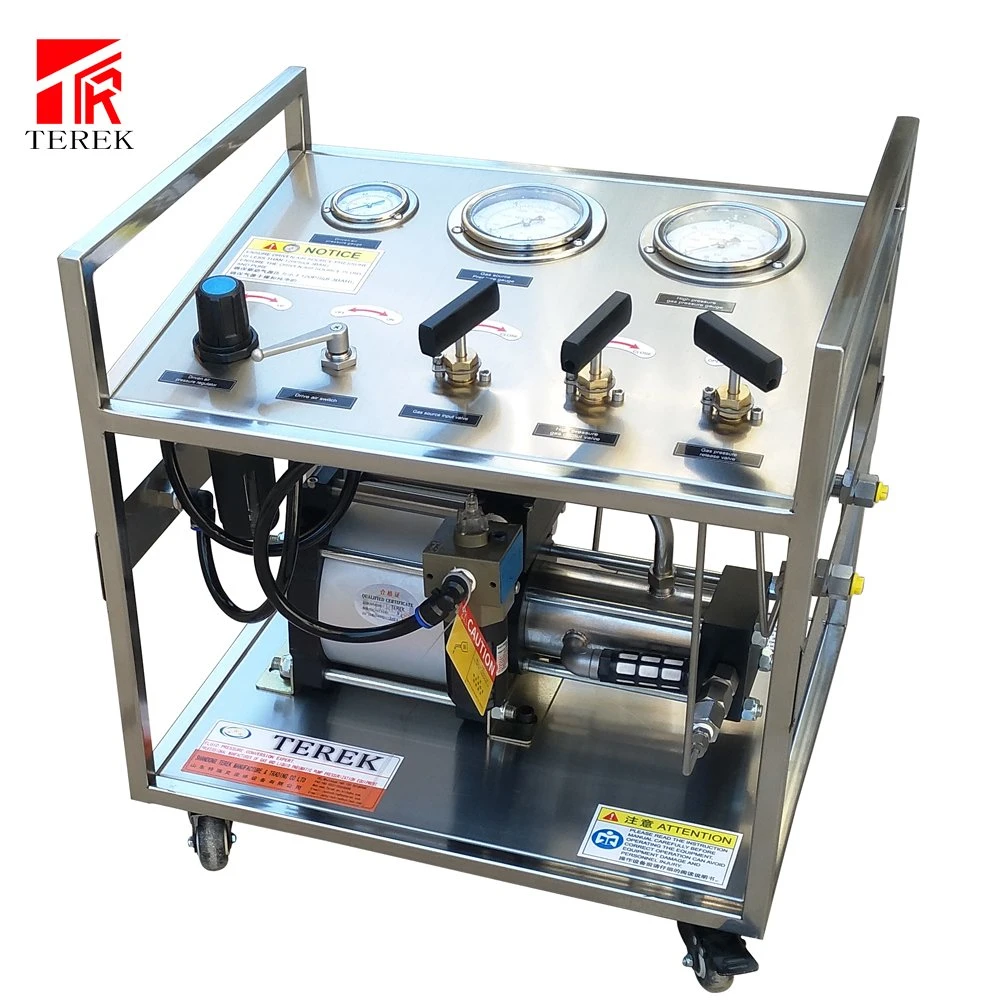

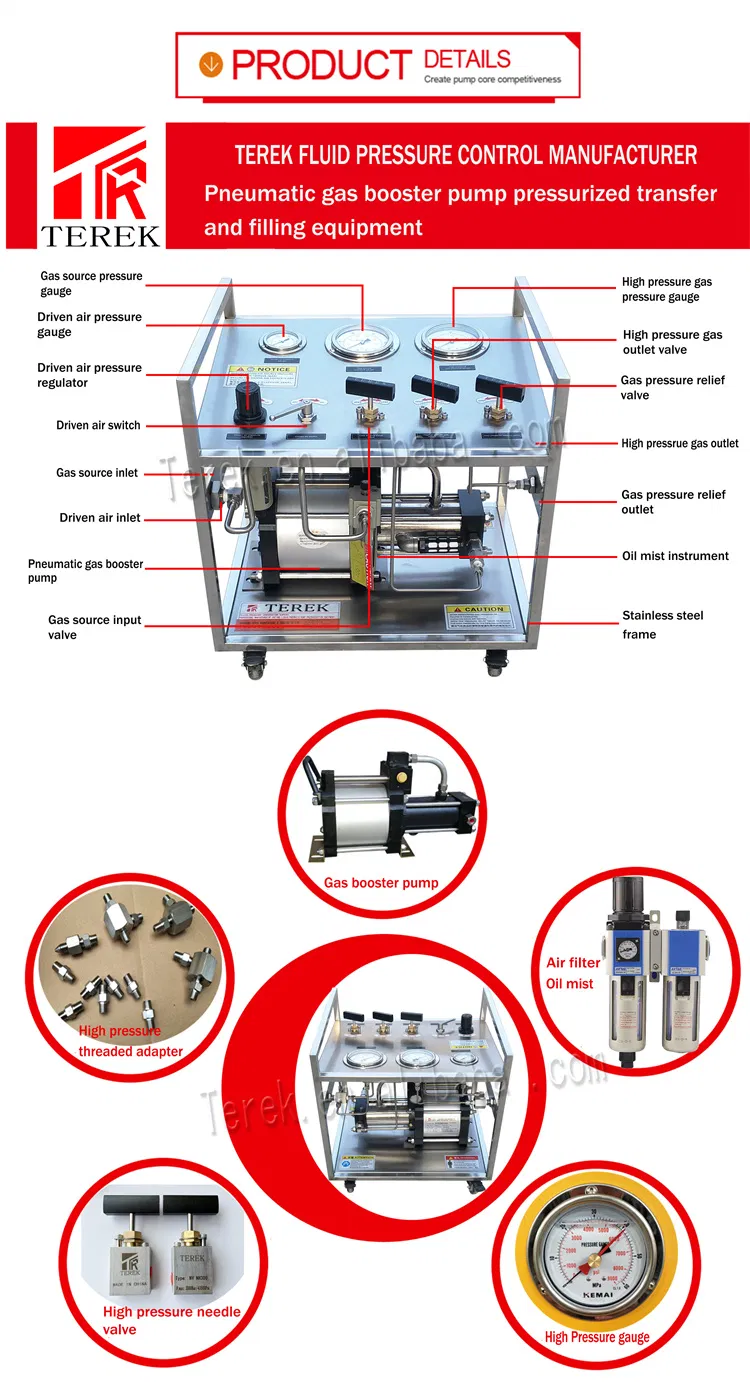

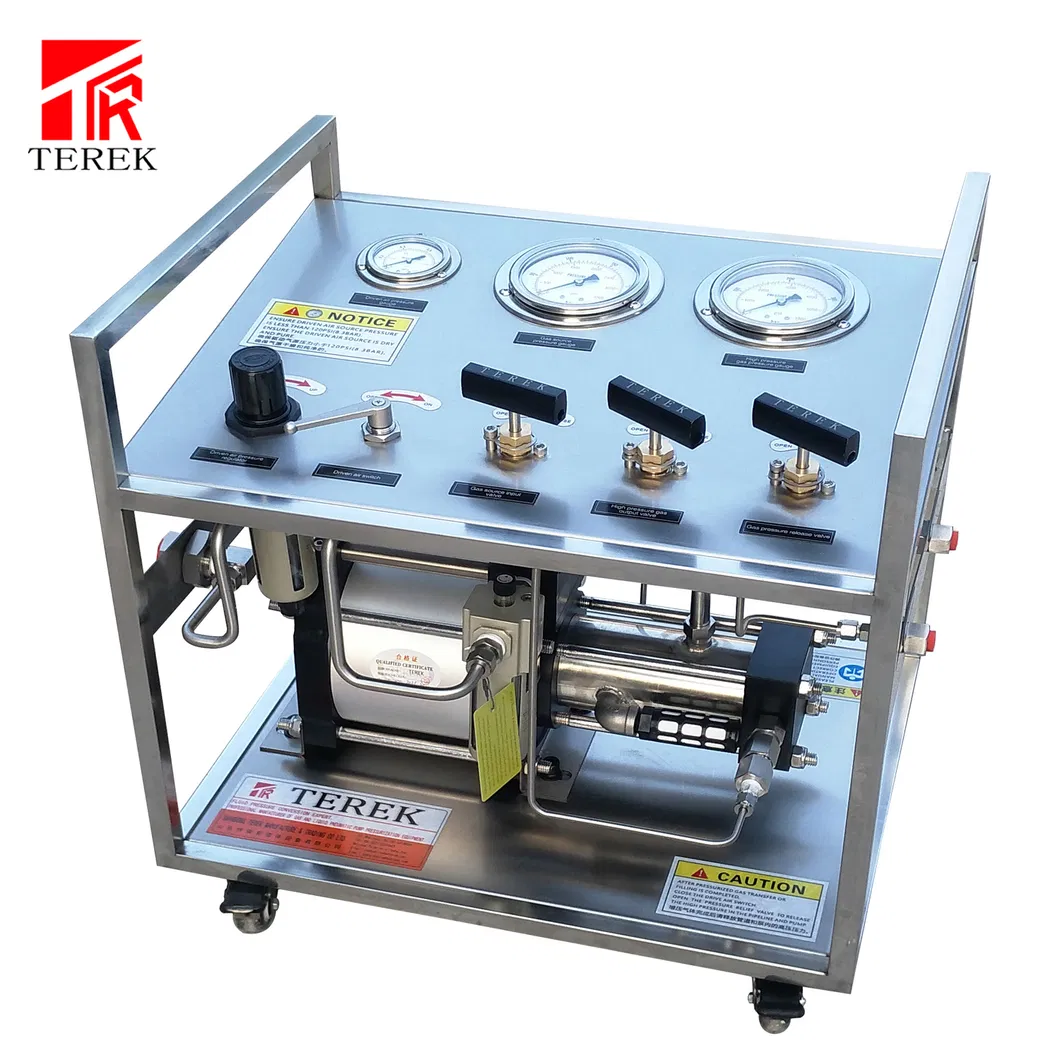

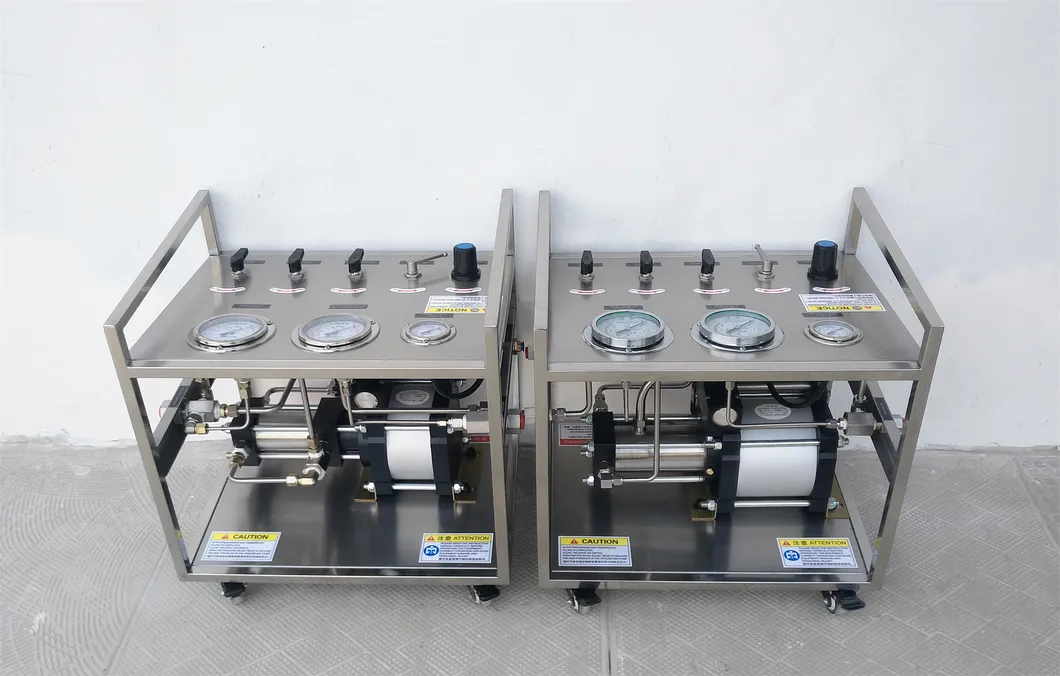

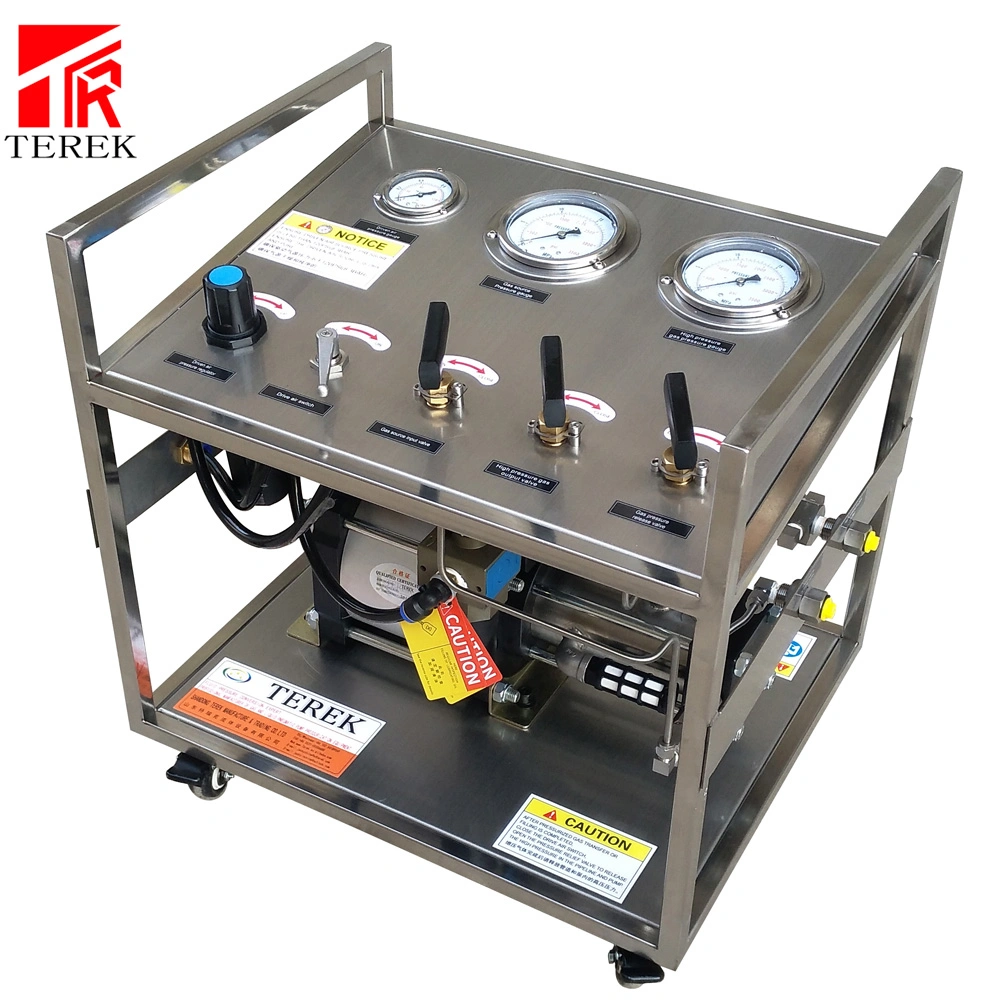

The gas booster equipment uses pure compressed air as the driving power source, utilizing a gas booster pump to pressurize mediums such as Hydrogen, Nitrogen, Oxygen, Helium, N2O, Argon, CO2, and other gases. The output pressure is directly proportional to the driving gas pressure.
By adjusting the driving gas source, precise pressurized gas levels can be achieved. When the balance is met, the pneumatic booster pump stops automatically, stabilizing the output at the preset pressure. This ensures an explosion-proof, energy-saving, and environmentally friendly operation.

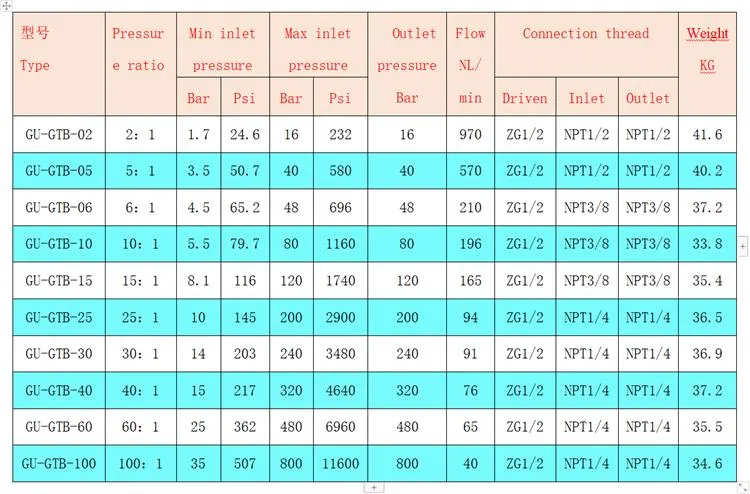

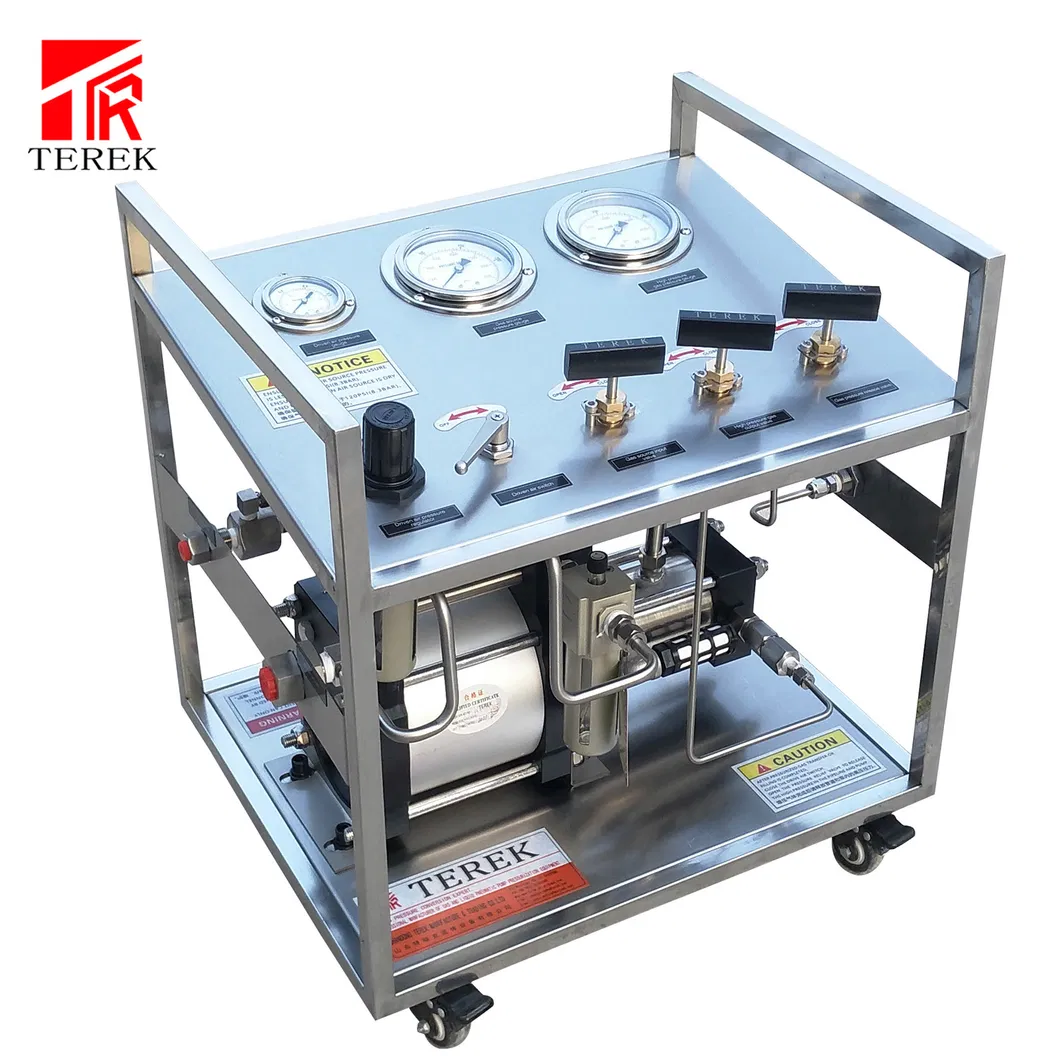

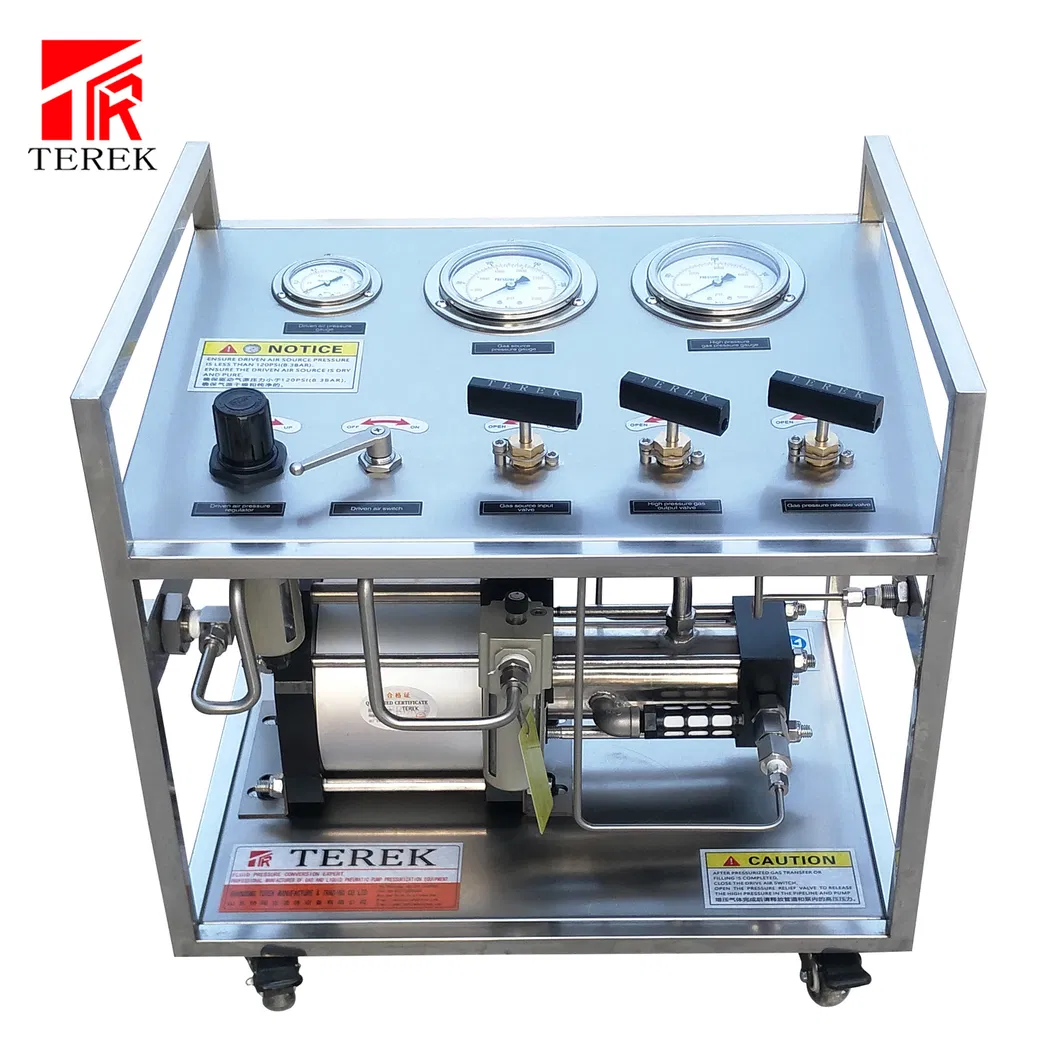

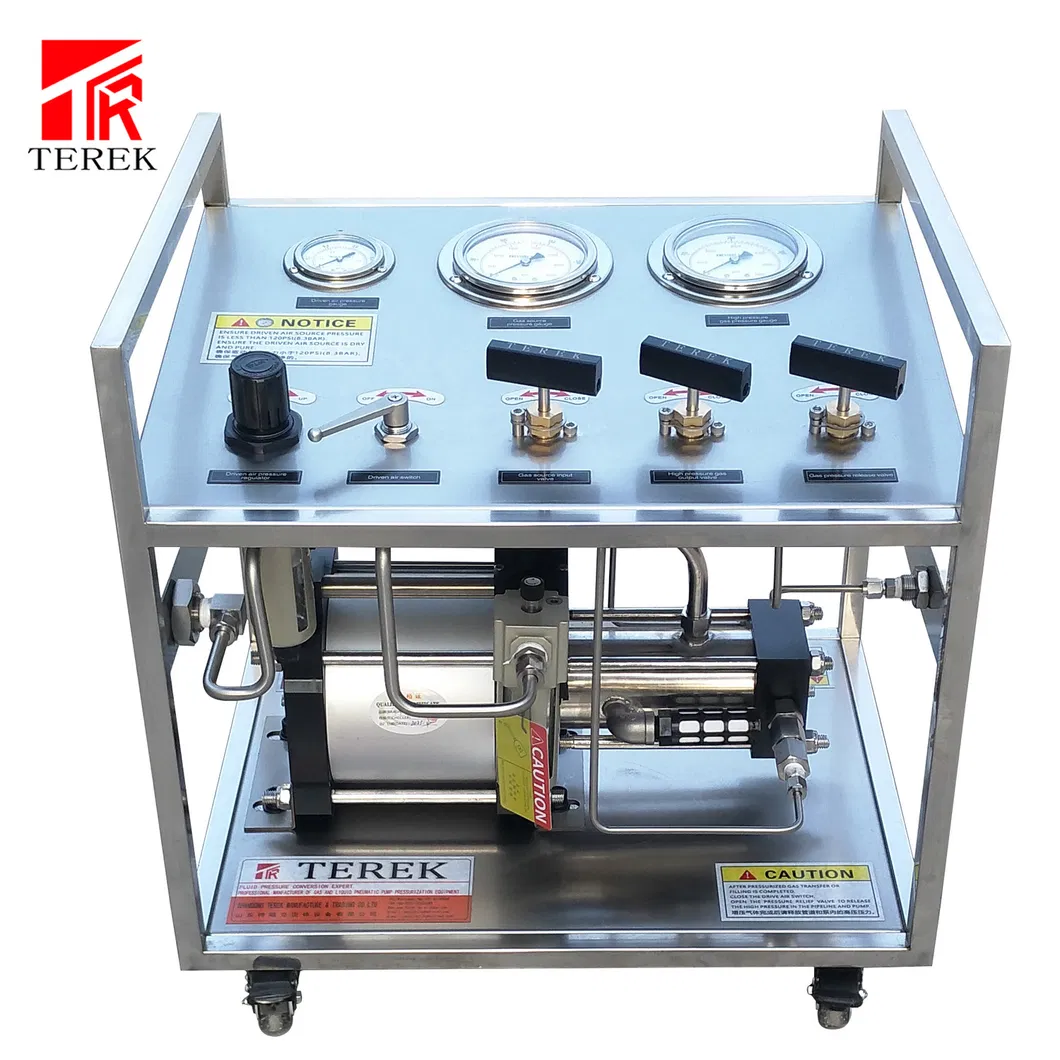

| Product Name | Pneumatic Air Driven Gas Booster Pump |
| Model | GU-GTB-40 |
| Pressure Ratio | 40:1 |
| Drive Air Source Pressure | 3-8 bar |
| Maximum Outlet Pressure | 320 bar (46400 psi) |
| Pressure Control Accuracy | Less than 1% F.S |
| Weight | 38 KG |
| Equipment Dimension | 580*450*570 mm |
| Connection Size | NPT1/4 (Inlet & Outlet) |
Yes, we are a dedicated manufacturer focused on R&D, production, and quality control of high-pressure fluid transfer solutions.
Absolutely. The output gas pressure can be precisely controlled by adjusting the drive air regulator valve.
Yes, the unit is air-driven with no electrical components, meaning there are no sparks or flames, making it ideal for hazardous oil and gas fields.
It is compatible with most gases, including Nitrogen, Oxygen, Helium, Argon, Hydrogen, CO2, and many others.
Standard production time is generally 10-15 working days after the deposit is confirmed, depending on the order size.
Yes, we provide a one-year warranty on all equipment and accessories, along with permanent technical advice.
