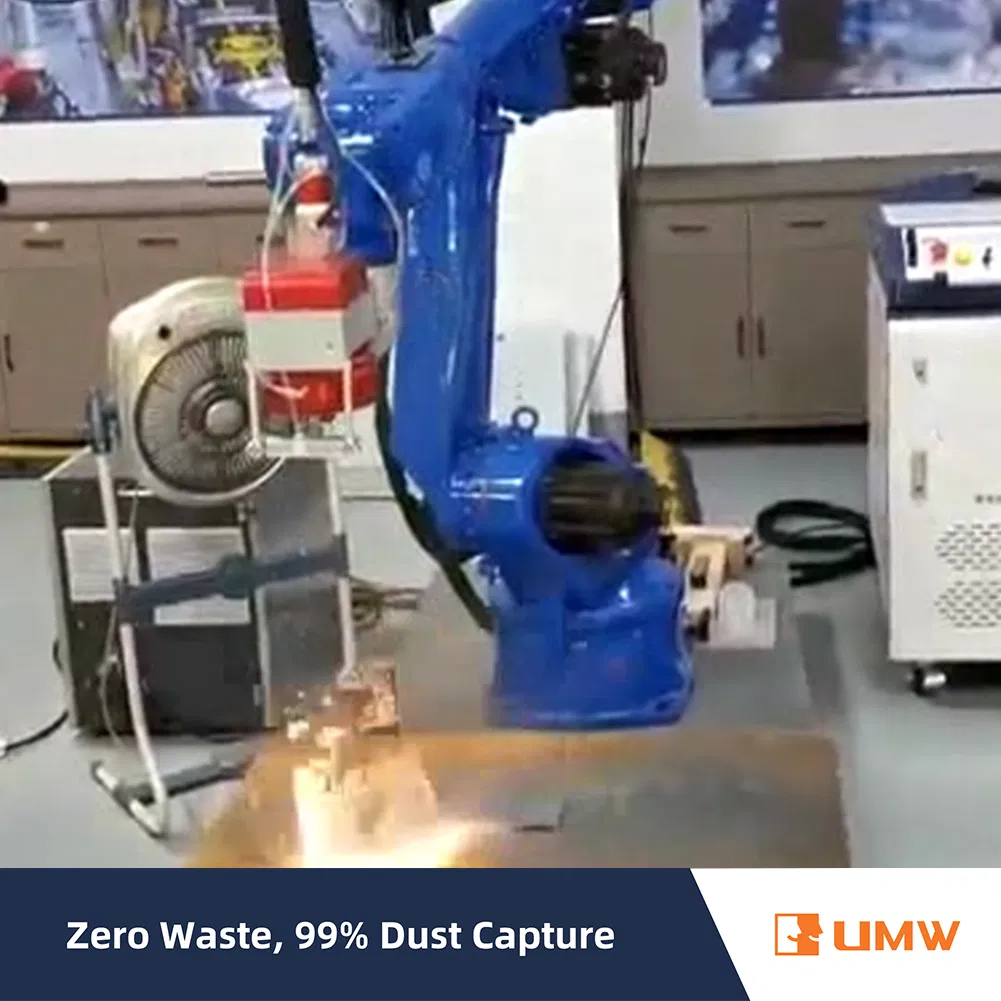

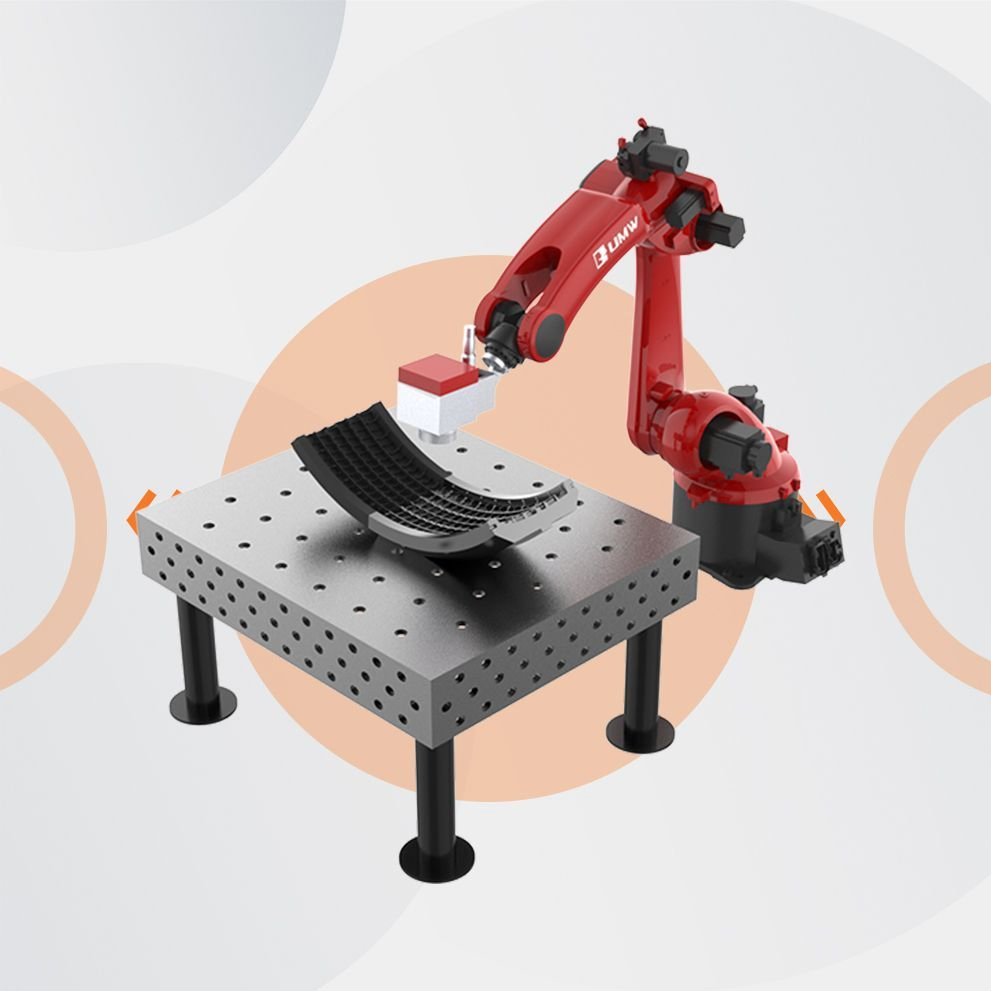

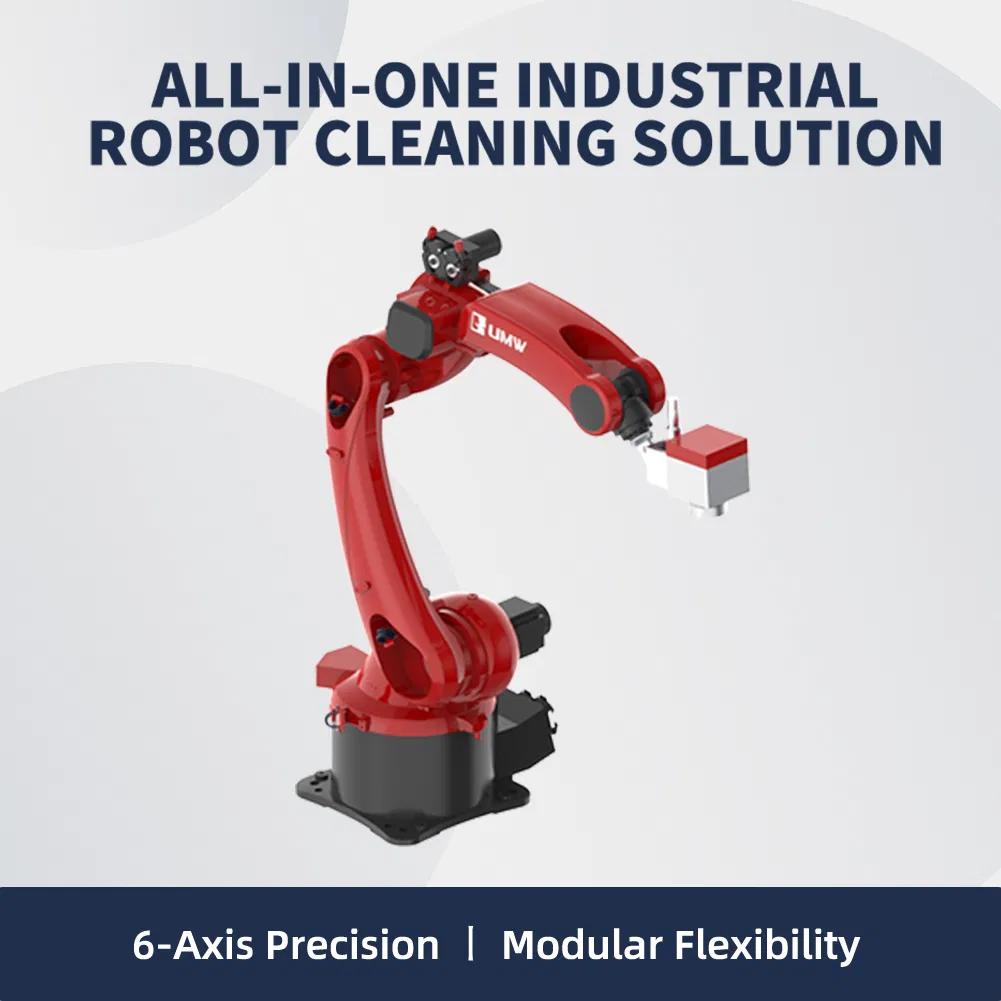

Advanced Fibre Laser Cleaning System with 6-Axis Robotic Arm

ℹ️

Basic Specifications

Model NO.

UA-AC

Degrees of Freedom

6-axis

Drive Mode

Electric

Type

Articulated Robot

Product Model

6-Axis Robot Laser Cleaning

Payload

25-50kg (Configurable)

Reach

1803-2158mm

Power Supply

380V AC, 50/60Hz

Capacity

100sets/Month

HS Code

8479509090

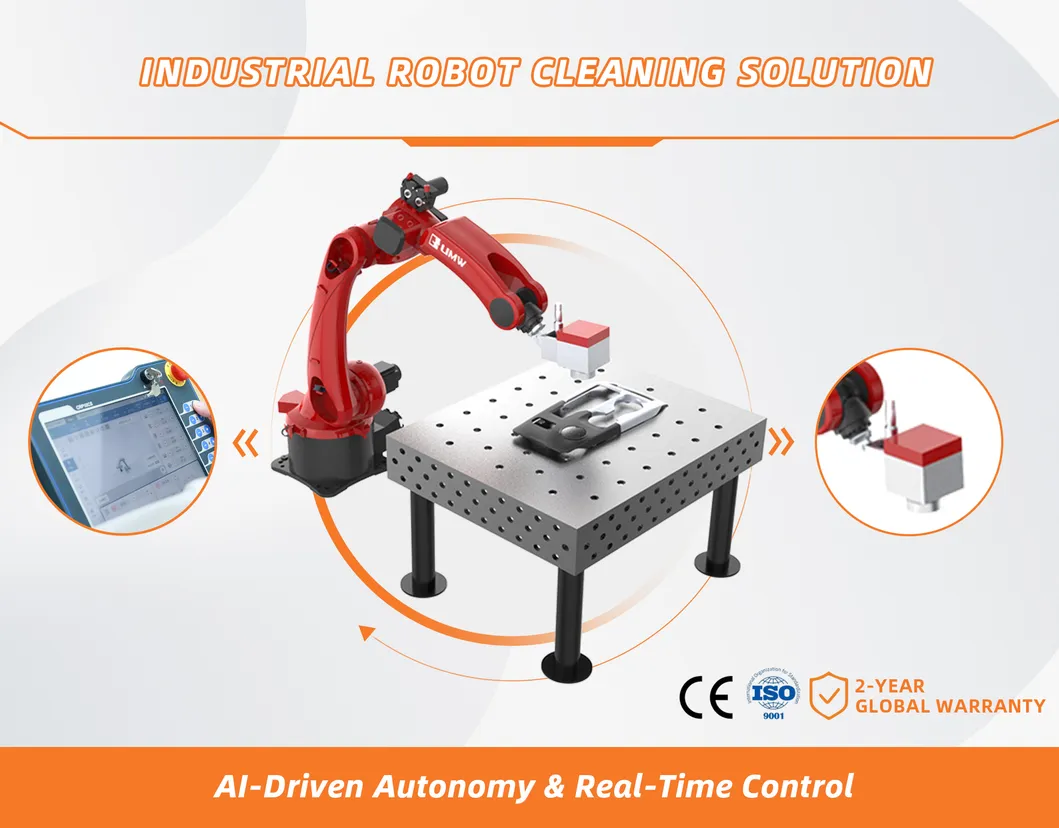

Automated Robot Laser Cleaning Solutions

Break through traditional limitations with the Robot Laser Cleaning Workstation, a 100% customizable, automated solution designed for high-efficiency industrial cleaning. Featuring modular design, AI-powered precision, and industry-leading adaptability, this 6-axis robotic system integrates seamlessly into factory lines.

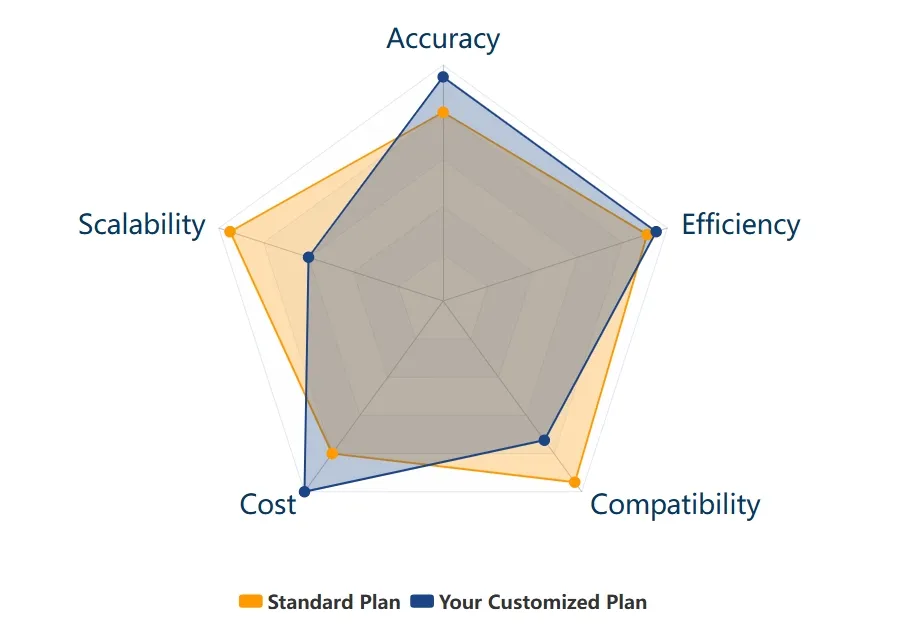

Core Advantages

🎯 Accurate adaptation for all scenarios
⚙️ Free control of technological sovereignty
📈 Double breakthrough in cost efficiency
🛡️ Zero-risk service commitment
🌐 Global agile delivery

📊

Handheld vs. Robotic Laser Cleaning

Category	Handheld	Robotic
Power Range	100W-500W	300W-1000W
Precision	±0.1mm (Manual)	±0.02mm (Auto)
Mobility	Portable 3-axis	6-axis + Rail system
Best For	Small parts / Field work	Mass production / Factory lines
Workpiece Size	<1m³	>1m³ (Frames/Metal sheets)
Automation	Manual operation	CAD/PLC programming
Energy Use	1.5kW/h	8kW/h (Industrial)

✨

Key Features

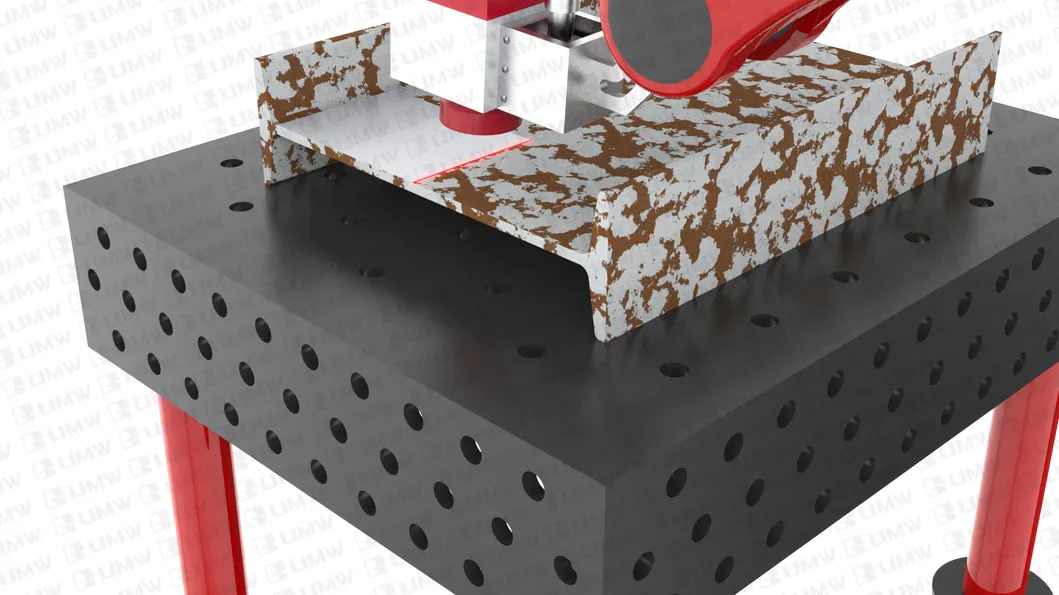

Substrate-Safe Precision

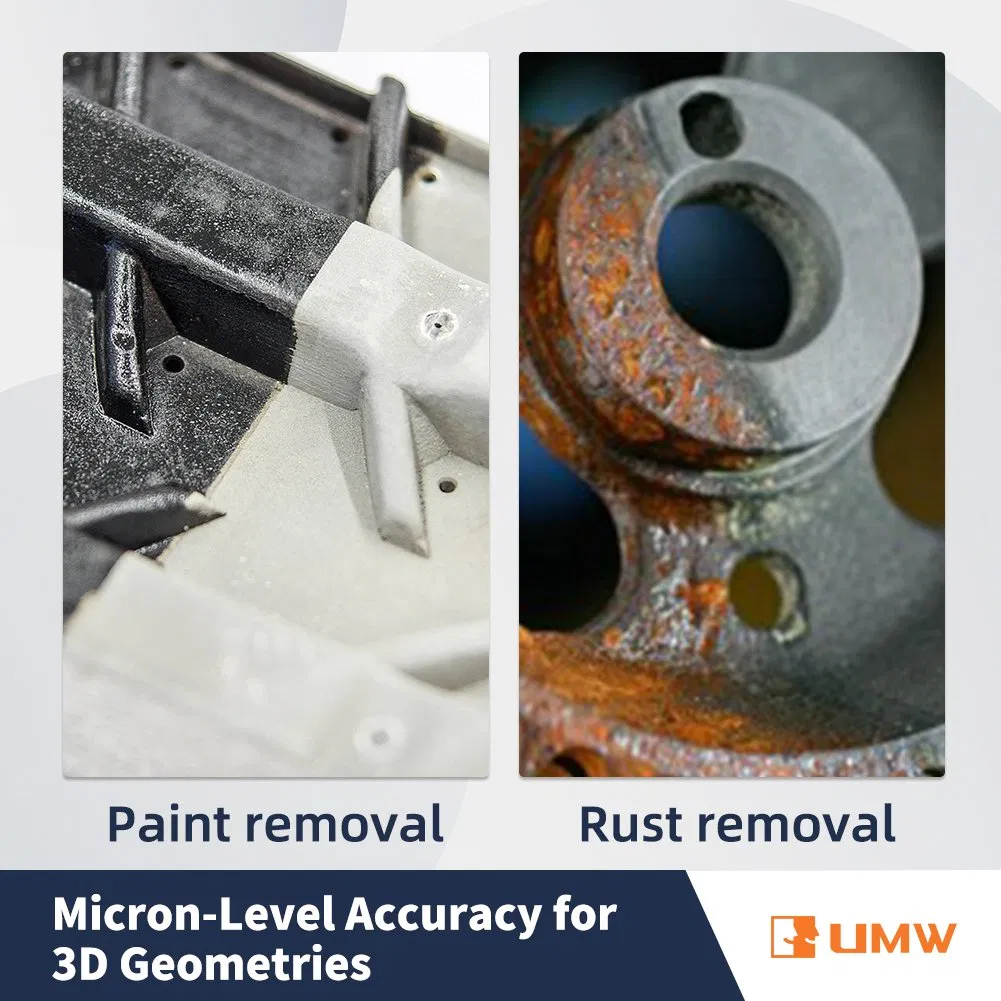

Non-Contact Cleaning: Laser energy controlled below material damage thresholds. Micron-Level Accuracy: ±5μm depth control for delicate surfaces.

Unmatched Efficiency

3× Faster Cleaning: Achieve 500m²/day on 2mm rust layers. 24/7 Operation: Equivalent to 20 workers' annual output.

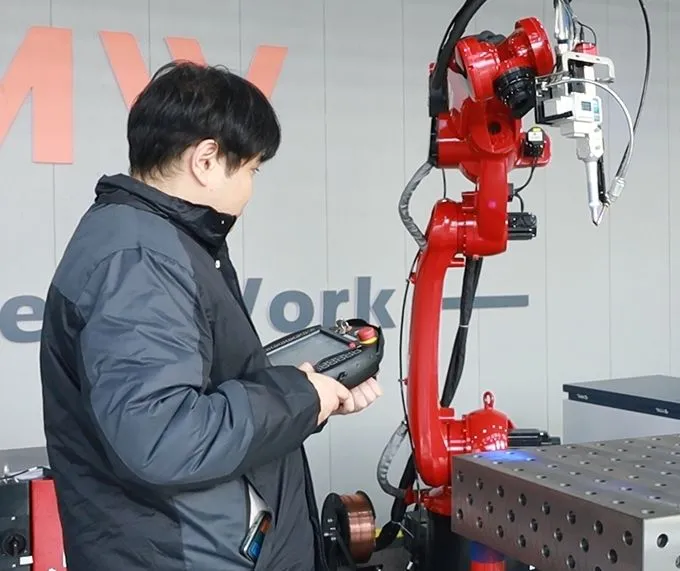

Smart Autonomy

AI-Driven Optimization: Auto-detects contaminants and adjusts parameters. Remote Monitoring: Track progress in real-time via PC/mobile devices.

🖼️

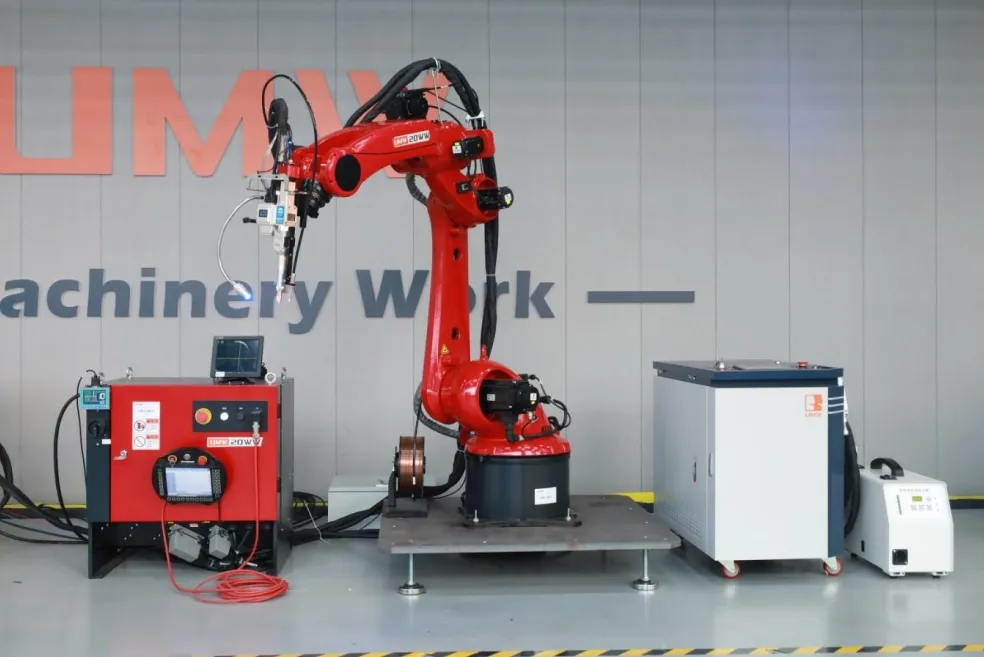

Product Display

🛠️

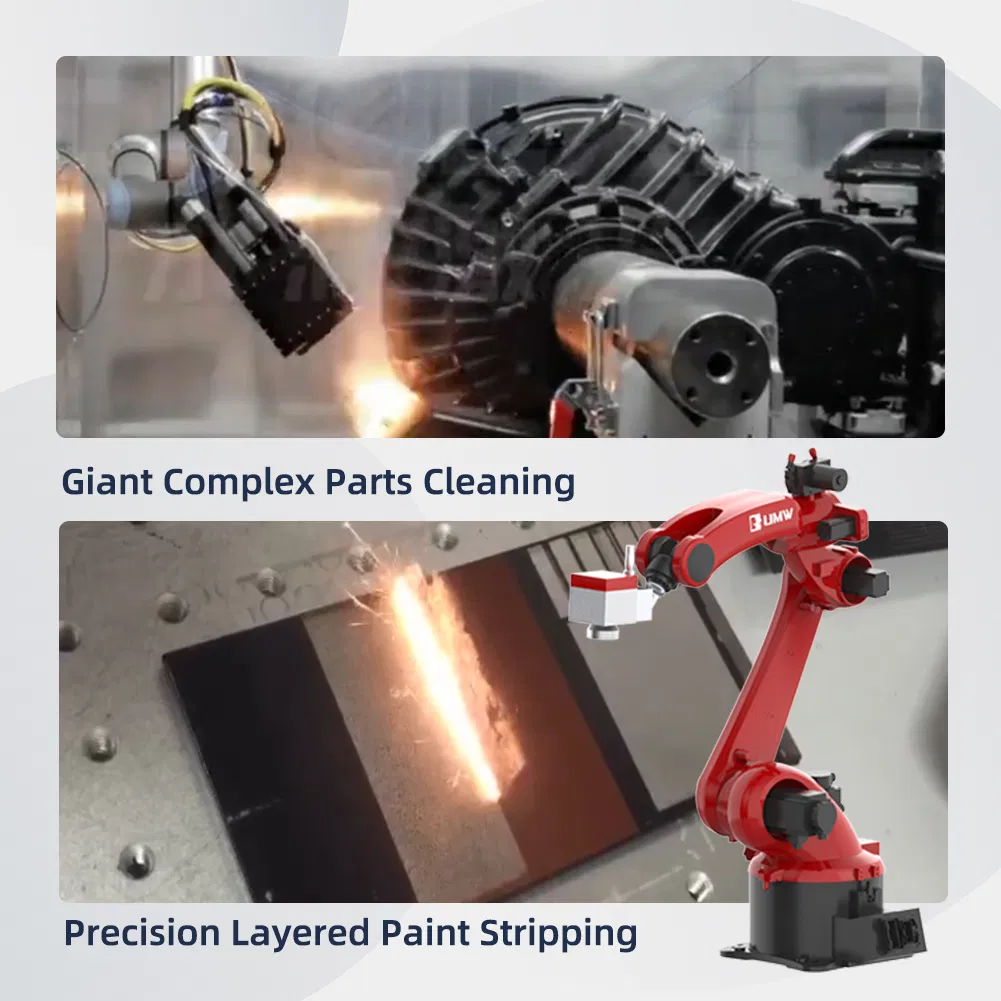

Application Solutions

1. High-Speed Rail Gearbox Cleaning

Challenge: Manual cleaning took 8-12hrs/unit with <80% yield.
Solution: Gantry system + 6-axis robotic arm. 2000W CW + 500W pulsed laser combo. Zero pollution with dual air-knife system.

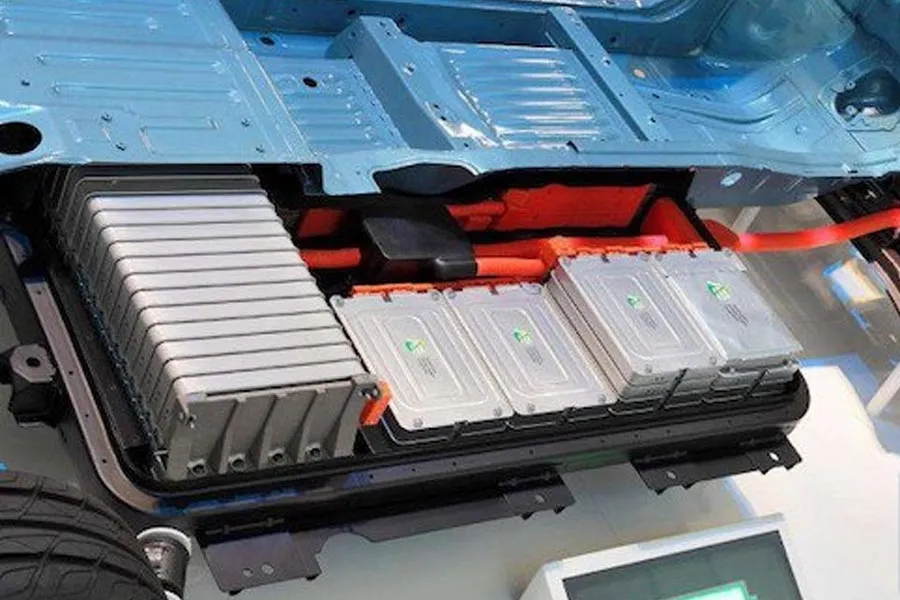

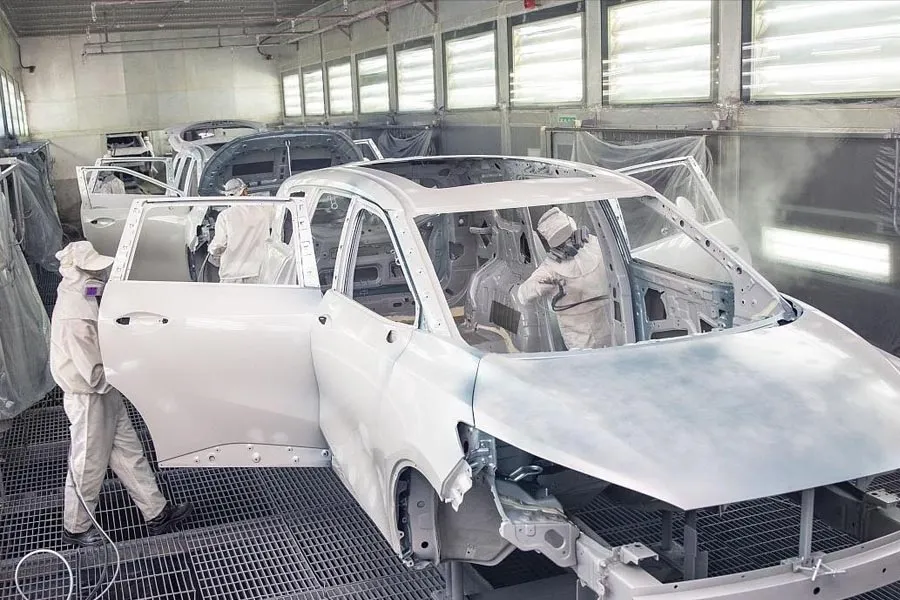

2. EV Battery Cover Cleaning

Challenge: Manual coating removal damages zinc layers.
Solution: 0.02mm precision robotic positioning. HEPA filtration for zero emission.

3. Auto Body-in-White System

Challenge: Manual grinding takes 2hrs/body with dust hazards.
Solution: 2000W fiber laser with 200mm width. AI path planning cuts process to 20mins/car.

🚢

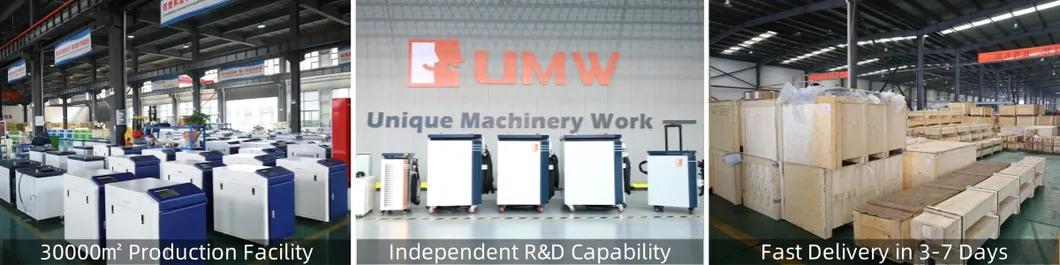

Shipment & Service

Shipment Method: Sea Freight, Land Freight, Air Freight, International Express.
Package: International Standard Wooden Cases.
After-Sales: Comprehensive technical support and stability maintenance to ensure maximum production efficiency.

❓

Frequently Asked Questions

Q: What is the minimum order quantity (MOQ)?

A: The minimum order is 1 unit. This applies to standard models and customized logos. For exterior color modifications, the MOQ is 5 units.

Q: What trade terms and payment methods do you accept?

A: We offer EXW, FOB, CFR, CIF, DAP, DDP, etc. Accepted payments include Bank Transfer (T/T), Credit/Debit Cards, L/C, and Trade Assurance Orders.

Q: How can I get a sample testing service?

A: We offer free testing for stock materials. We provide video/photo reports within 5 working days. If you need samples returned or special materials tested, express fees or material costs may apply.

Q: How do I choose the most suitable model?

A: Please provide the material type, maximum thickness, factory voltage, and required delivery time. Our specialists will recommend the best configuration for your needs.

Q: Can the robot be customized for specific processes?

A: Yes! We offer tailored end-effectors, specific software settings, and integration support for unique industrial requirements.

Q: What technical training is provided?

A: We provide comprehensive on-site or remote training covering operation, path programming, and daily maintenance.
