Compact Portable Laser Cleaner Machine 100W Pulse Laser Cleaner System for Metal

1 / 5

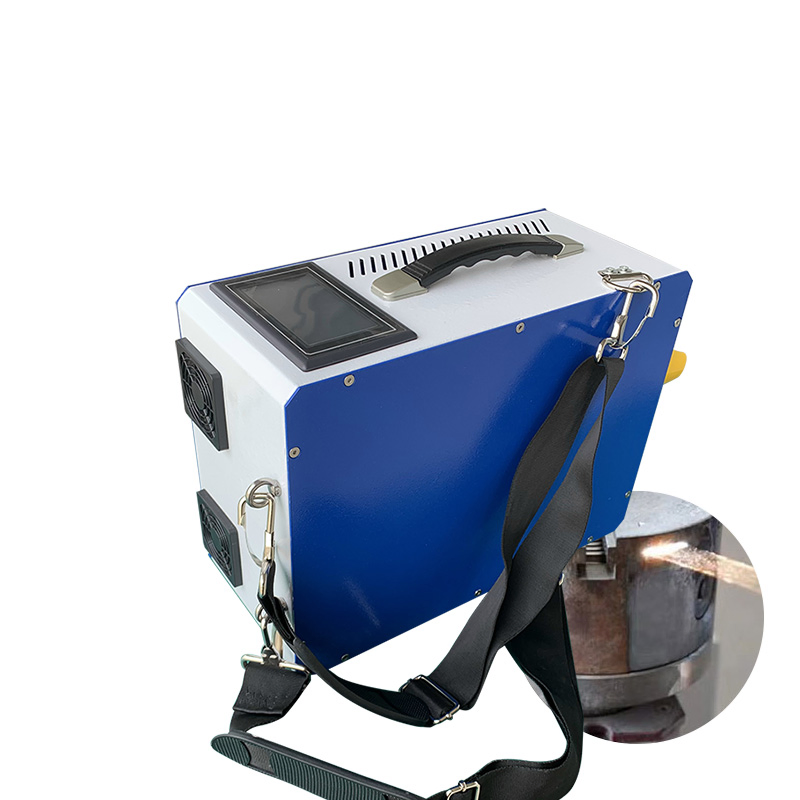

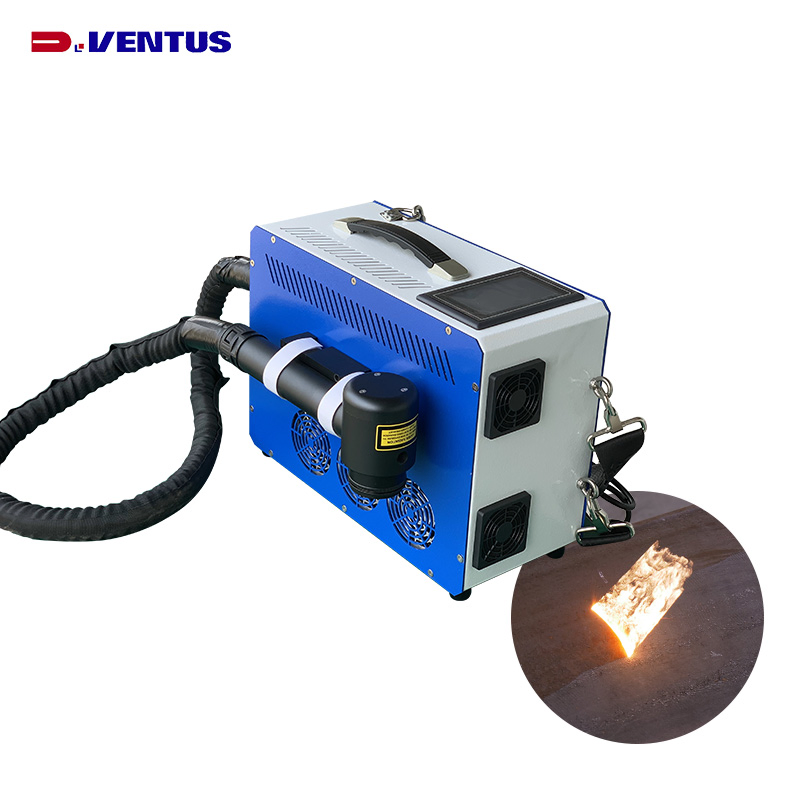

Compact Portable Laser Cleaner Machine 100W Pulse Laser Cleaner System for Metal

Customization:	Available
After-sales Service:	Online Support and Overseas Support Available
Power:	100w

Send Inquiry

Product Description

📦 Basic Info.

Model NO.

DV-LCB

Control Type

Automatic

Warranty

2 Years

Working Temp.

5-40 Degree

Laser Type

Pulse Laser

Cooling Mode

Air Cooling

Power Supply

220V, 50/60Hz

Weight

12kg

Machine Type

Handheld / Backpack

Laser Source

Max Mopa / Jpt Mopa

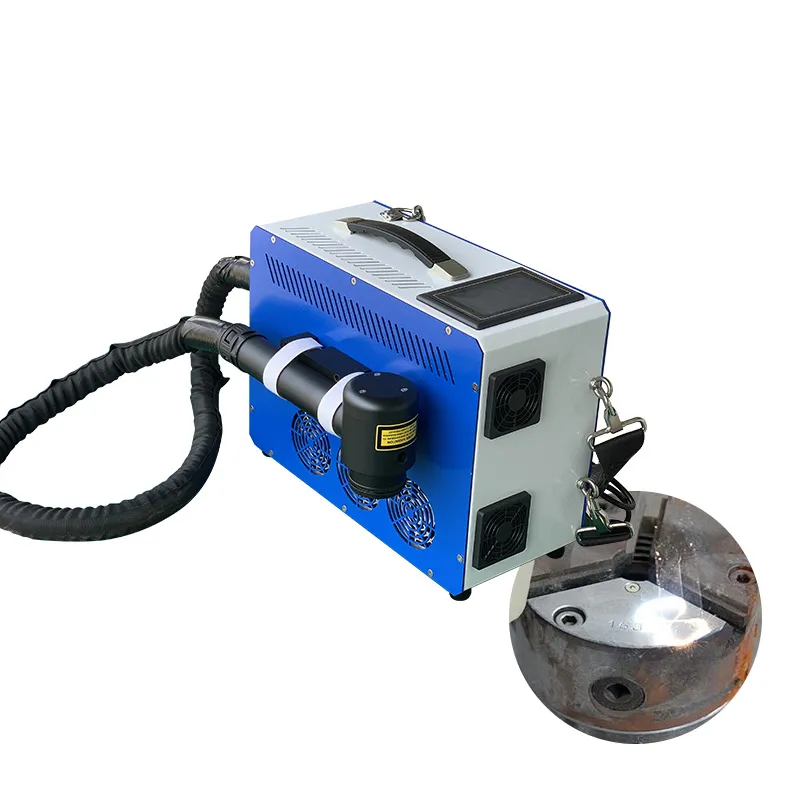

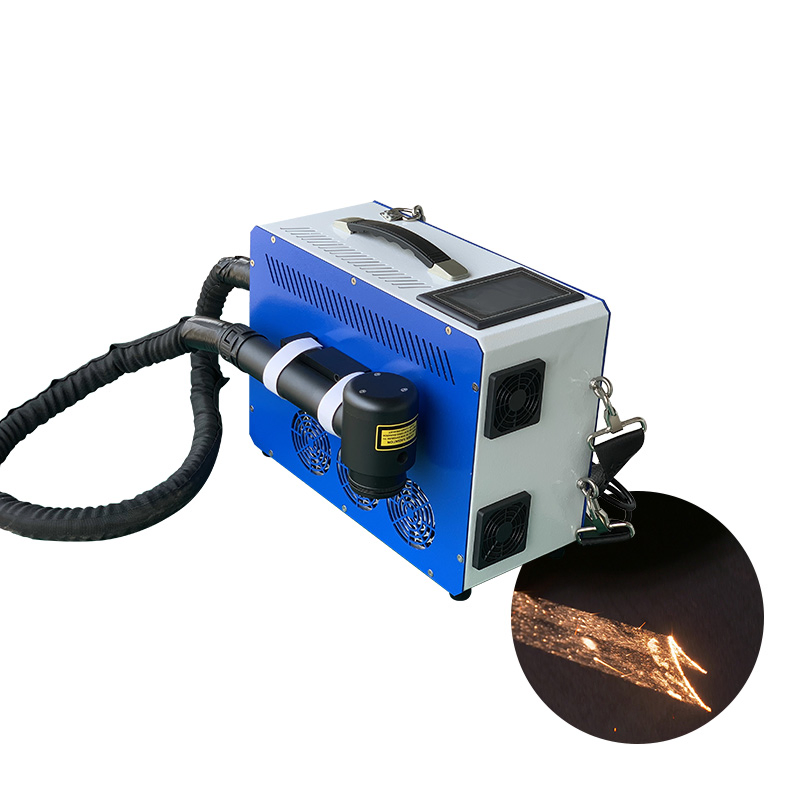

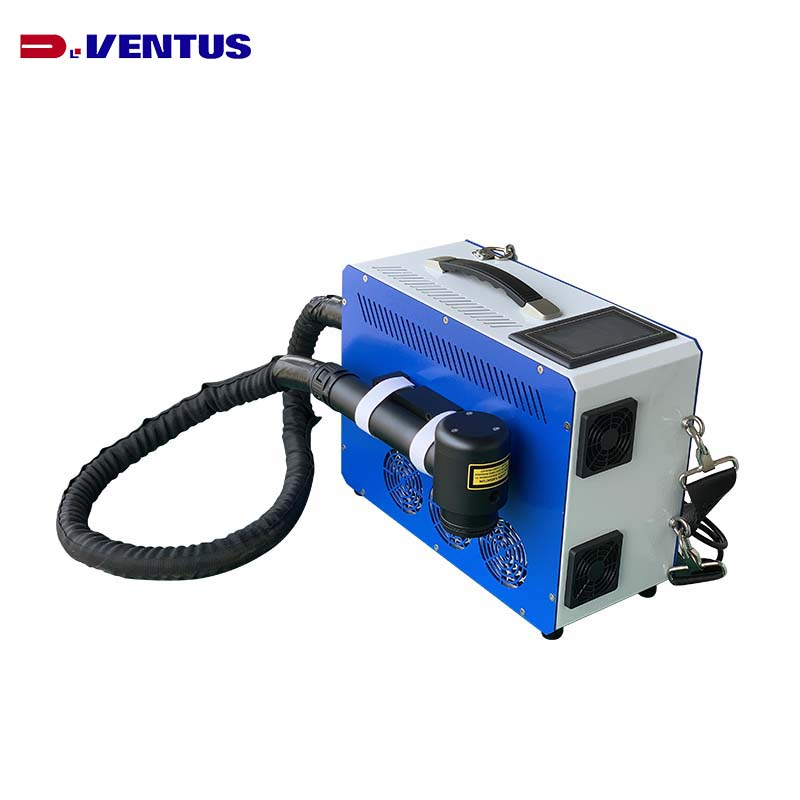

The Compact Pulse Laser Cleaner System for Metal is an innovative solution designed for efficient paint and rust removal. Available in 100W and 200W options, this portable backpack machine provides a precise, non-contact cleaning method for various industrial applications.

🚀 Key Features & Advantages

Non-contact cleaning: Protects the matrix of the parts without physical damage.
High Precision: Accurate cleaning for specific positions and size-selective tasks.
Eco-Friendly: No chemical cleaning liquids or consumables required.
Easy Operation: Ergonomic design for user comfort and simple handheld control.
Zero Maintenance: Stable laser cleaning system with minimal upkeep costs.
High Efficiency: Significant time and cost savings compared to traditional methods.
Versatile Application: Capable of clearing particles below the nanometer level.

📋 Technical Specifications

Operating Environment & Optical Parameters
Model	DV-LCB
Supply Voltage	Standard AC220V±10%, 50/60Hz (Output DC48V)
Battery Option	100W continuous work for 80-90min
Power Consumption	≤300W
Average Laser Power	≥100W
Pulse Width	150-190ns
Max Monopulse Energy	1.7mJ
Repeat Frequency	20-200 kHz (Adjustable)
Cooling Mode	Air Cooling
Scan Range	0mm - 100mm (8 scanning modes)

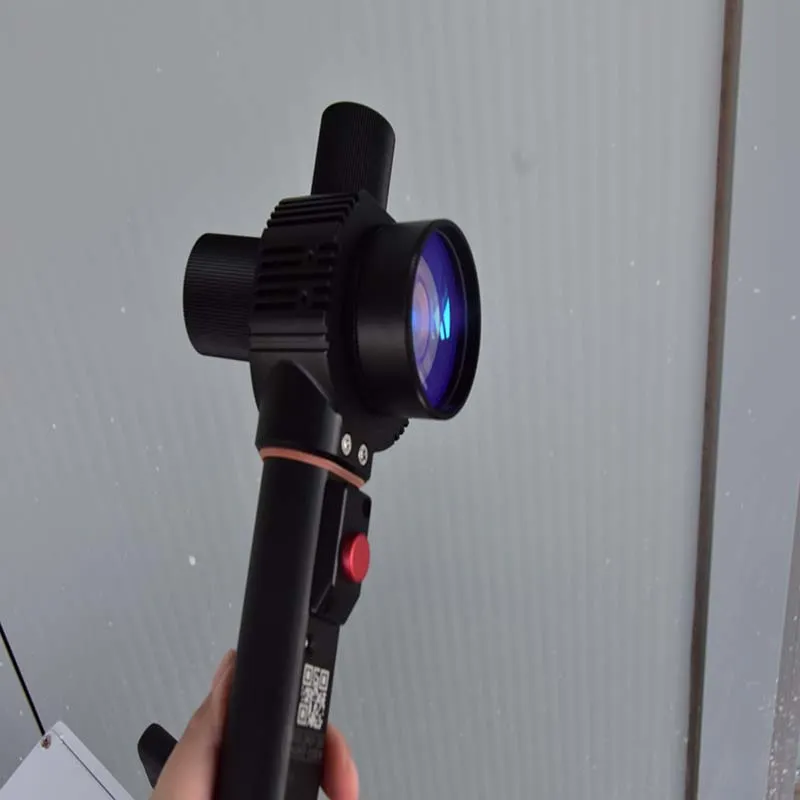

Cleaning Head Weight	<0.8kg

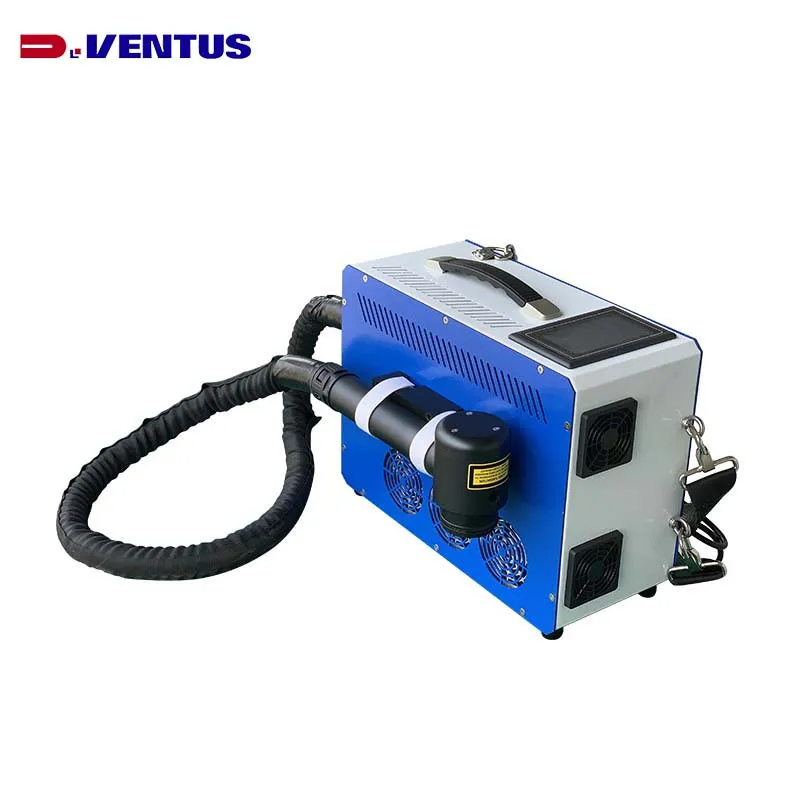

📸 Product Display

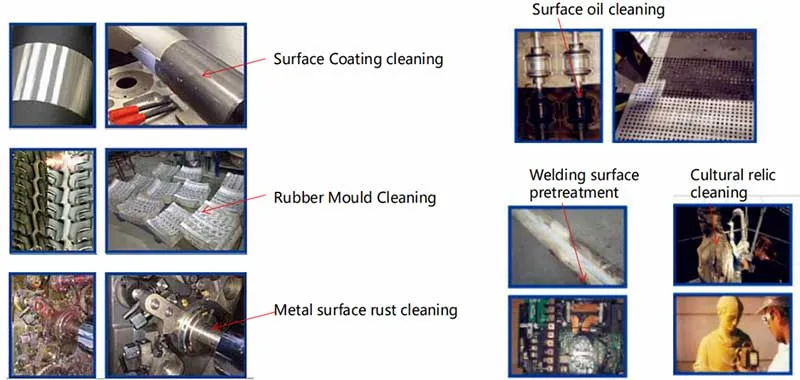

🛠️ Wide Range of Applications

Designed for industries requiring high cleanliness and surface treatment without damaging the base material.

Metal surface derusting and paint removal.
Surface cleaning of dirt, stains, and contaminants.
Oxide layer and oil stain cleaning.
Welding and spray surface pretreatment.
Stone figure surface dust and attachment cleaning.
Rubber, plastic, and metal mold residue cleaning.

🛡️ Reliable After-Sales Services

Full machine assembly, testing, and checking before shipment.
Comprehensive pre-sales advisory and operational training provided.
Free repair for main spare parts within the warranty period.
Lifetime technical maintenance and software system upgrades.
Spare parts provided at market price after the warranty period.

❓ Frequently Asked Questions

Q1: What materials can the pulse laser cleaner handle? A1: It is highly effective on metal surfaces for removing rust, paint, oxide layers, oil, tar, and putty. It can also be used on wood and stone surfaces.

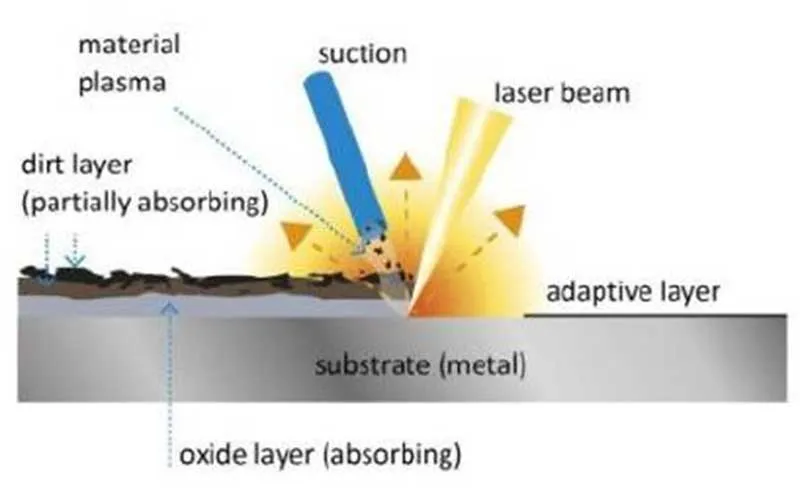

Q2: Will it damage the surface of the workpiece? A2: No, it uses non-contact pulse laser technology, which allows for precise cleaning without causing thermal or mechanical damage to the substrate.

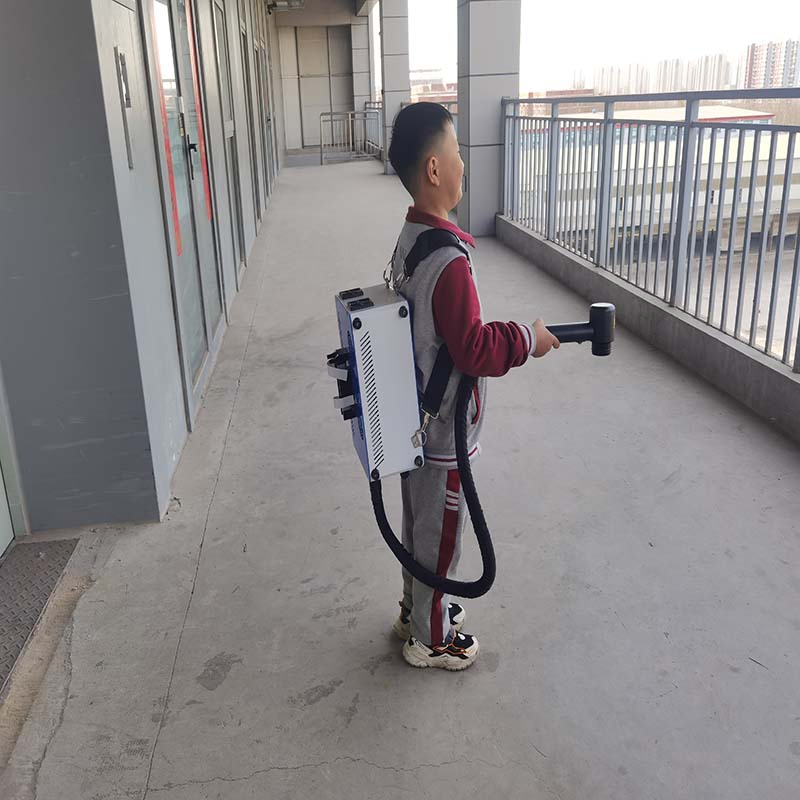

Q3: How portable is the machine? A3: The machine is designed as a handheld or backpack type, weighing only 12kg, making it very easy to transport and use in tight or hard-to-reach areas.

Q4: Does the laser cleaner require any consumables? A4: No, the system does not require chemical liquids, gases, or other consumables, making it an environmentally friendly and cost-effective solution.

Q5: What is the warranty and service policy? A5: We provide a 2-year warranty on the machine. Services include pre-sales training, free repairs for main parts during the warranty, and lifetime technical support.
