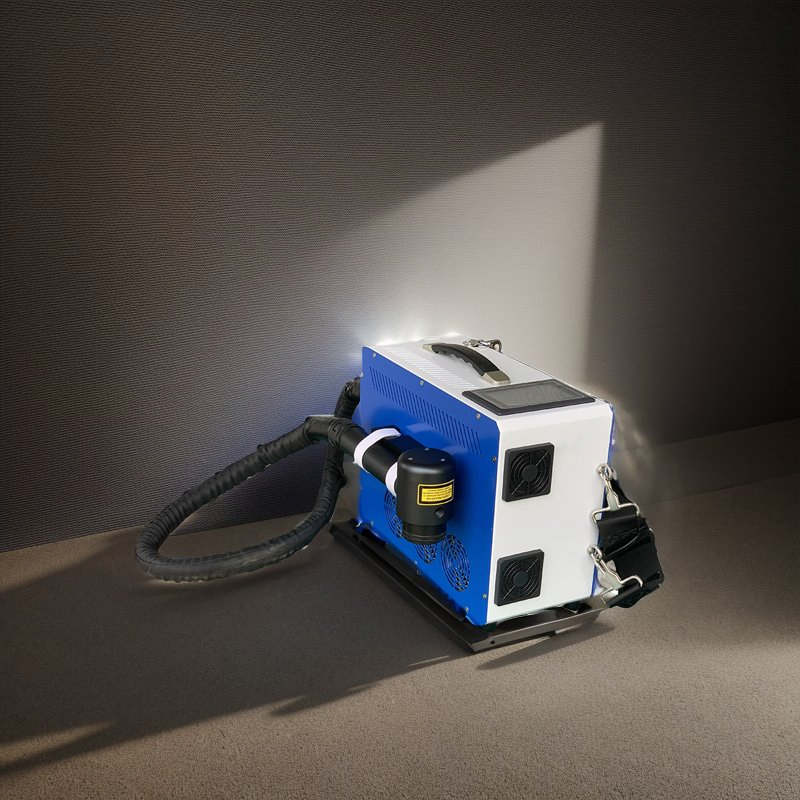

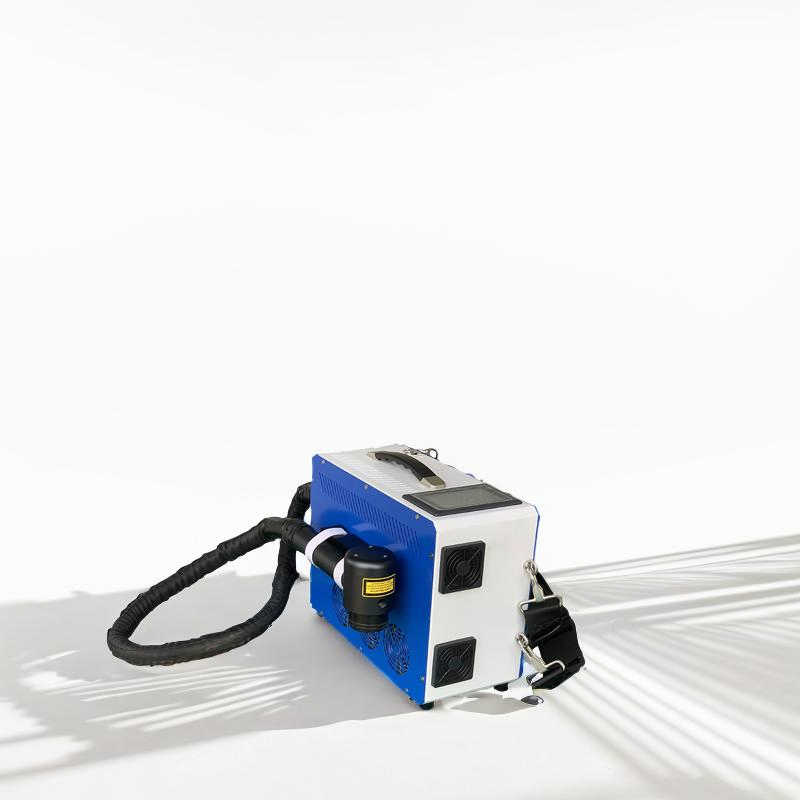

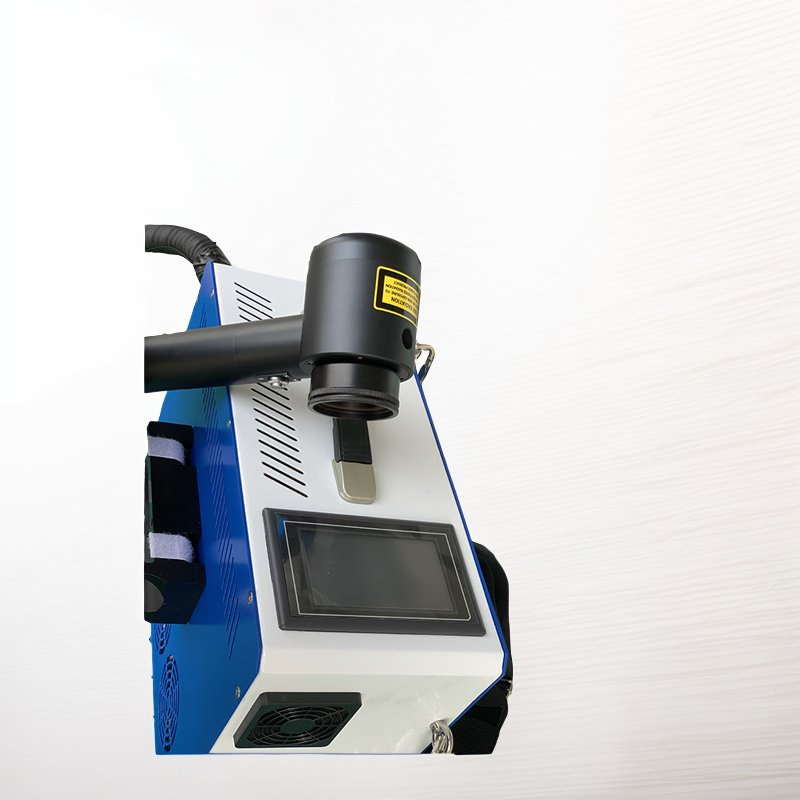

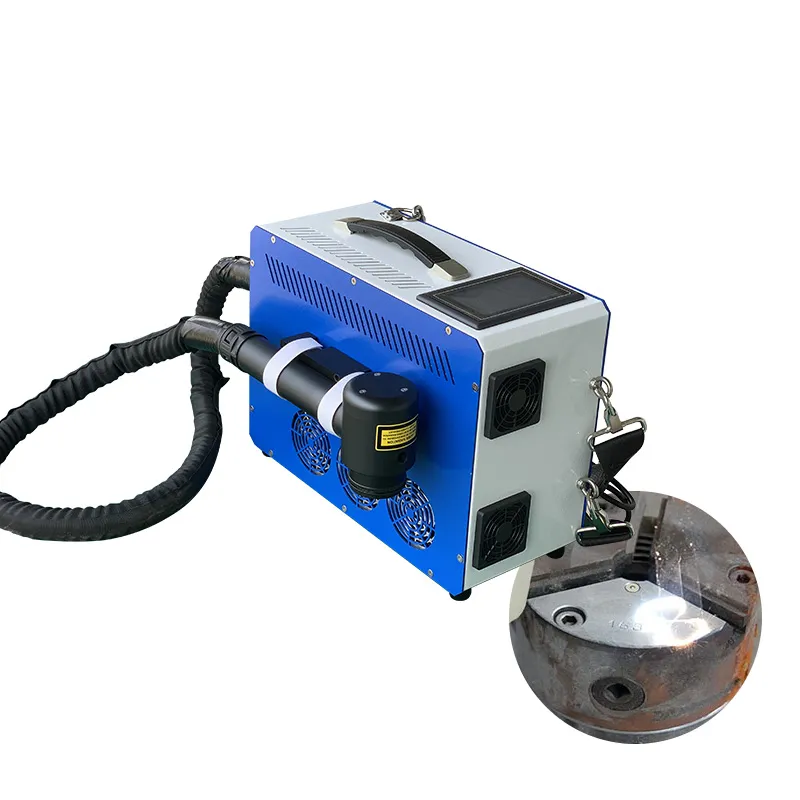

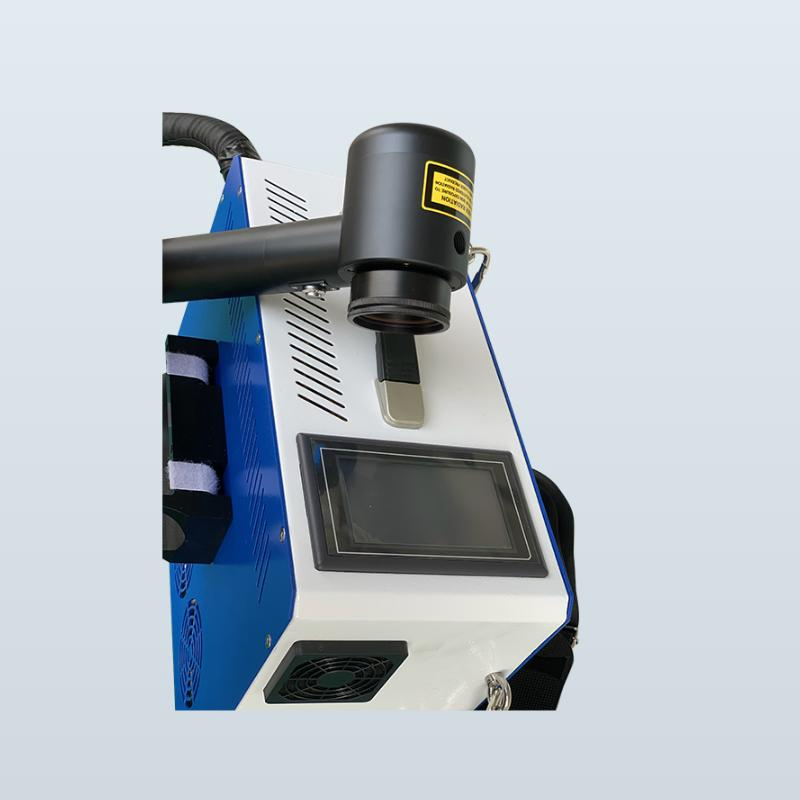

Efficient Backpack Pulse Laser Cleaning System (200W)
This portable backpack laser cleaner offers industrial-grade rust removal and surface cleaning capabilities. Designed for efficiency, it provides a non-contact cleaning solution that preserves the integrity of the base material while ensuring high-precision results.
📊 Basic Info & Technical Data
Model NO.:DV-LCB
Control Type:Automatic
Laser Type:Pulse Laser
Laser Power:200W / 100W
Cooling Mode:Air Cooling
Weight:12kg (Portable)
Warranty:2 Years
Application:Metal Surface / Mould Repair
🌟 Key Features

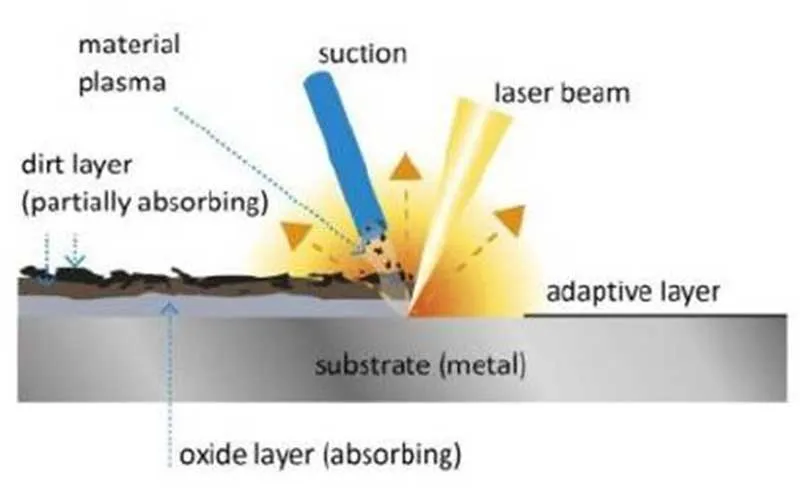

- Non-contact cleaning; prevents damage to the parts' matrix.
- Accurate cleaning for precise positioning and selective sizing.
- No chemical liquids or consumables required; eco-friendly and safe.

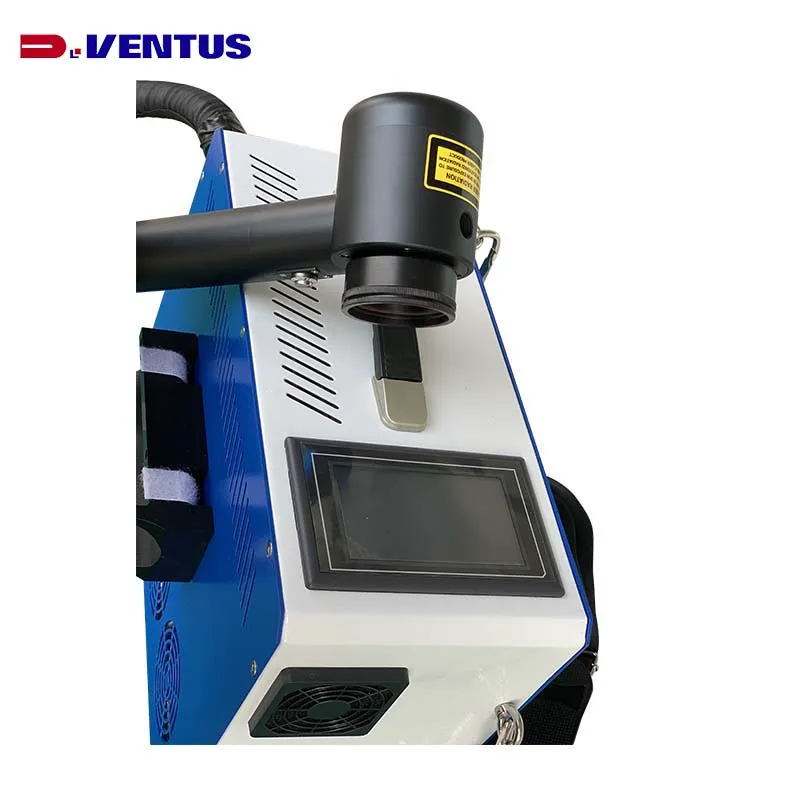

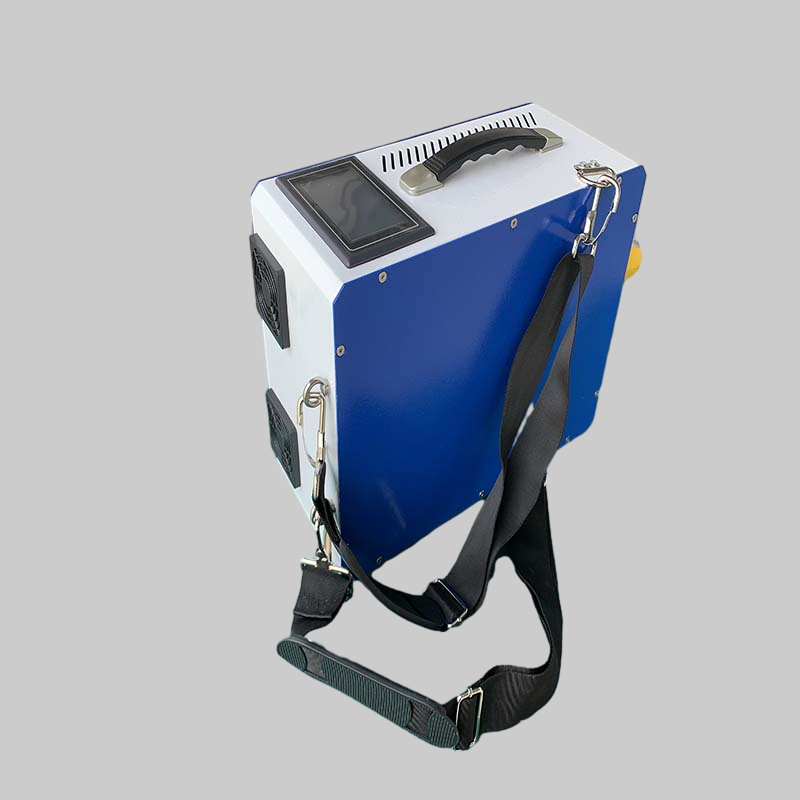

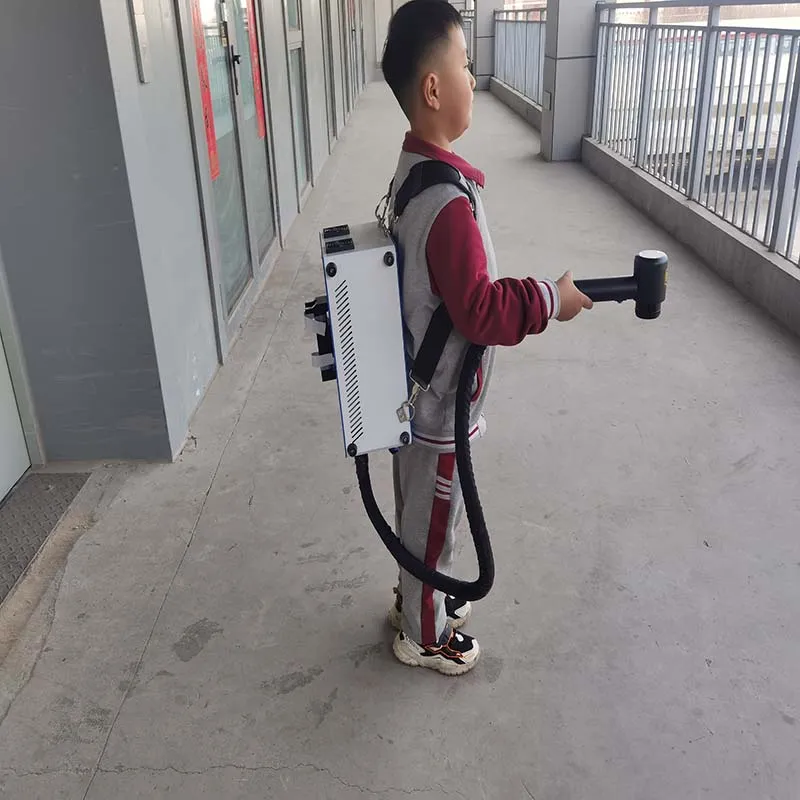

- Simple operation with an ergonomic backpack design.
- High cleaning efficiency significantly reduces time and labor costs.
- Stable performance with minimal maintenance requirements.
⚙️ Detailed Specifications
| Operational & Optical Parameters |
| Model | DV-LCB |
| Supply Voltage | Optional Battery (80-90min) or AC220V±10% Adapter |
| Power Consumption | ≤300W |
| Working Temperature | 5ºC ~ 40ºC |
| Average Laser Power | ≥100W |
| Laser Working Mode | Pulse |
| Pulse Width | 150-190ns |
| Scanning Range | 0mm - 100mm (Continuously Adjustable) |
| Scanning Frequency | 10Hz - 300Hz |
| Cleaning Head Weight | <0.8kg |

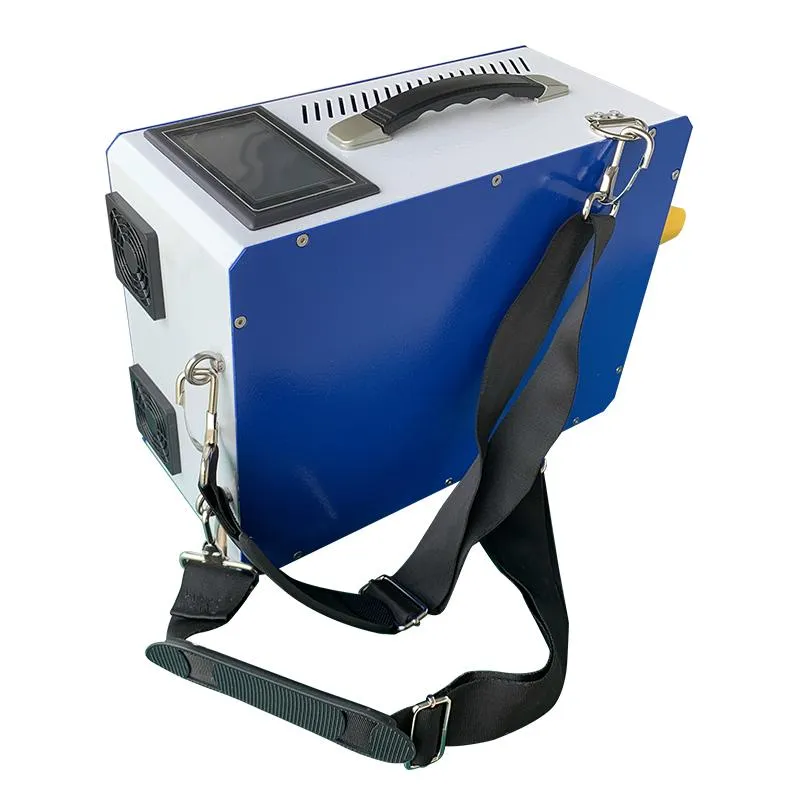

📷 Product Showcase
🚀 Advantages & Applications
Why Choose This System?
- High cleanliness even at nanometer particle levels.
- Zero maintenance cost and high energy savings.
- Fiber optic transmission for hard-to-reach areas.
- Suitable for wide material application scope.

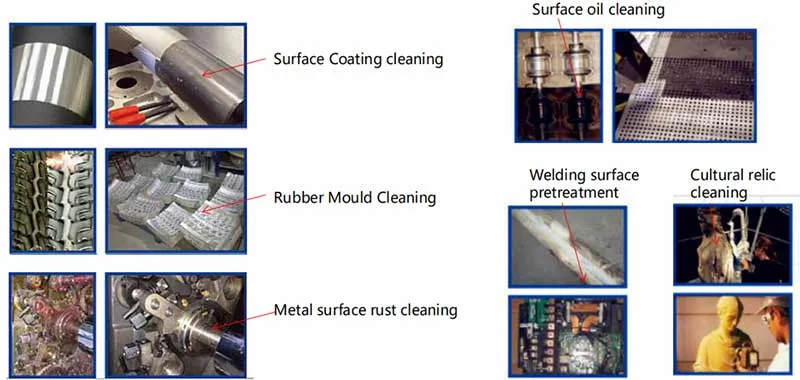

Primary Applications:

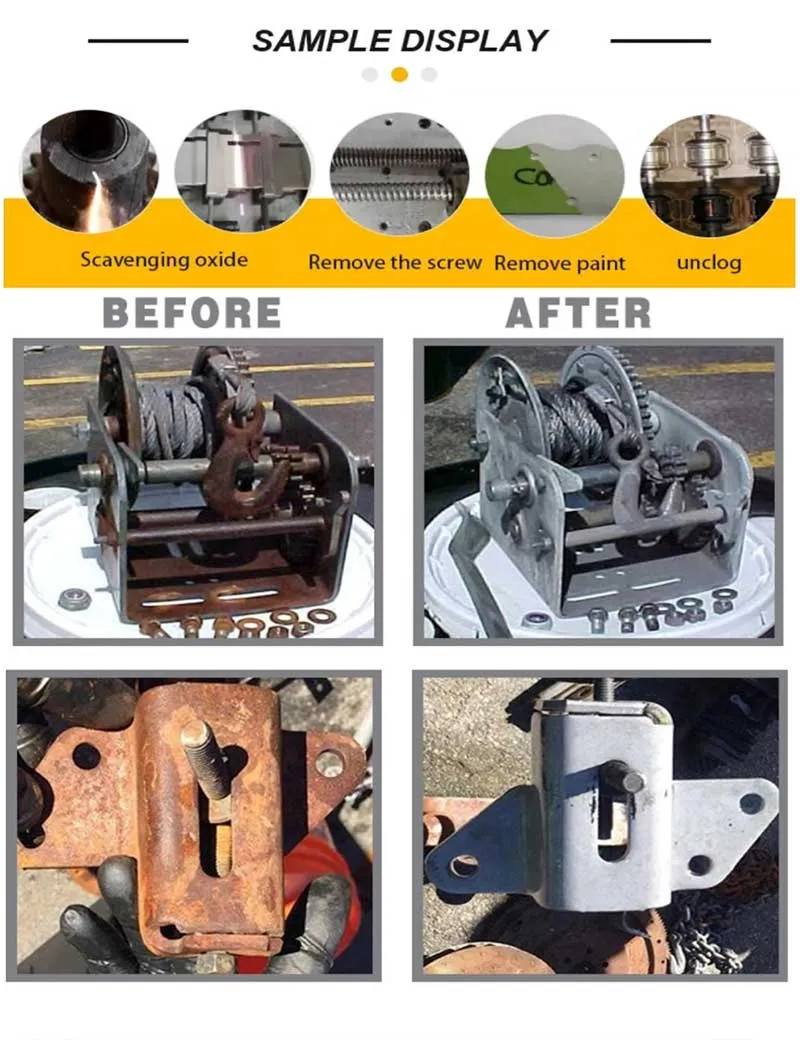

- Metal surface derusting and paint removal.
- Oil stain and oxide layer contaminant cleaning.
- Welding and spray surface pretreatment.
- Rubber, plastic, and metal mold residue cleaning.
🛠️ Reliable Services
• All machines are fully assembled, tested, and checked before shipment.
• Pre-sales technical advisory and operational training included.
• Free repair for main components within the 2-year warranty period.
• Lifetime maintenance support with preferential pricing for spare parts.
Frequently Asked Questions
Q1: Can this laser cleaner damage the surface of my metal parts?
No. The system uses non-contact cleaning technology, which removes contaminants like rust and paint without damaging the underlying matrix of the material.
Q2: How portable is the DV-LCB model for field work?

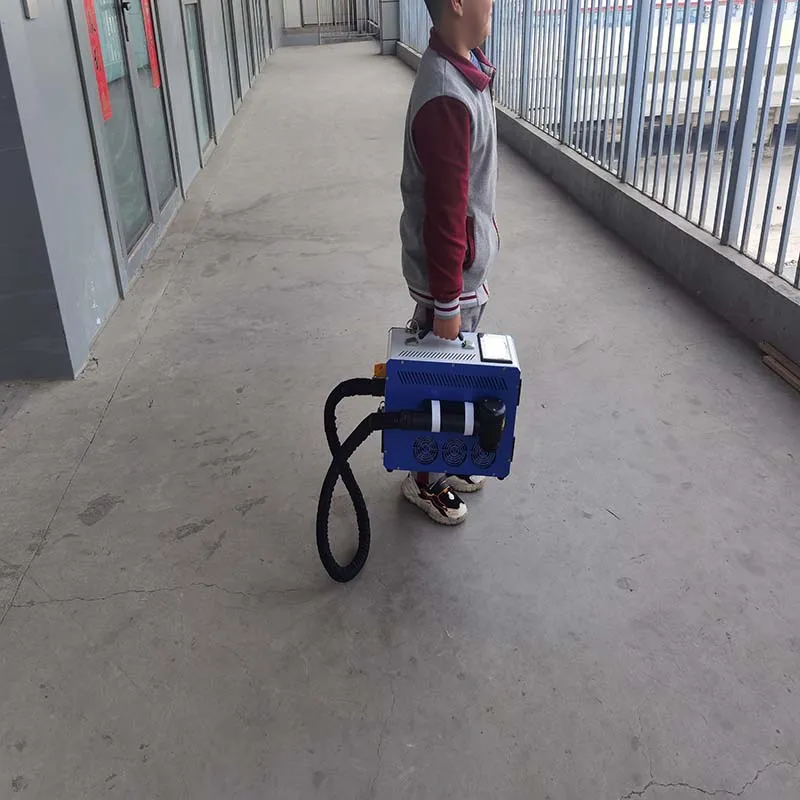

The machine features an ergonomic backpack design and weighs only 12kg, making it highly portable and suitable for cleaning in hard-to-reach or outdoor areas.
Q3: Does the system require any chemical consumables?
No, the laser cleaning process requires zero chemical cleaning liquids or consumables, making it an environmentally friendly and cost-effective solution.
Q4: What is the warranty period for this machine?
We provide a comprehensive 2-year warranty on the system, along with lifetime maintenance support and software updates.
Q5: What materials can be cleaned with this pulse laser?
It is effective on a variety of materials including metals (rust/oxide removal), wood, stone figures, and various molds (rubber/plastic/metal).
Q6: How long does the optional battery last?
The optional single battery allows for continuous 100W cleaning work for approximately 80 to 90 minutes.
