Flexible Pulse Laser Cleaning System for Curved Automotive Body Panels

Customization:	Available
After-sales Service:	Online Services
Power:	500w

Product Overview

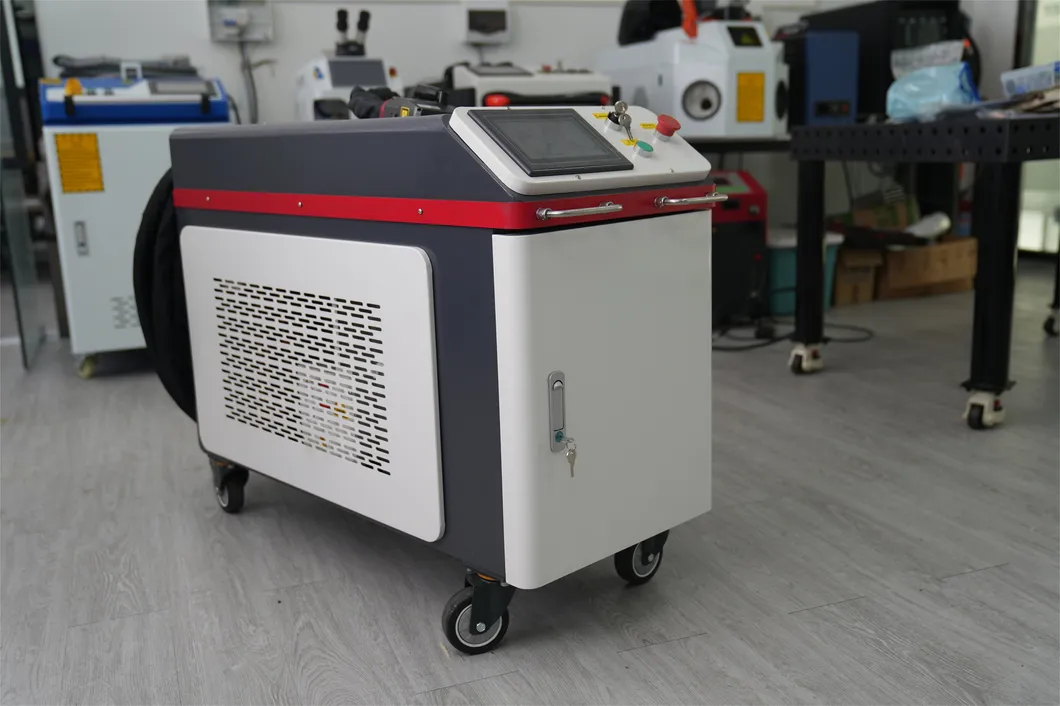

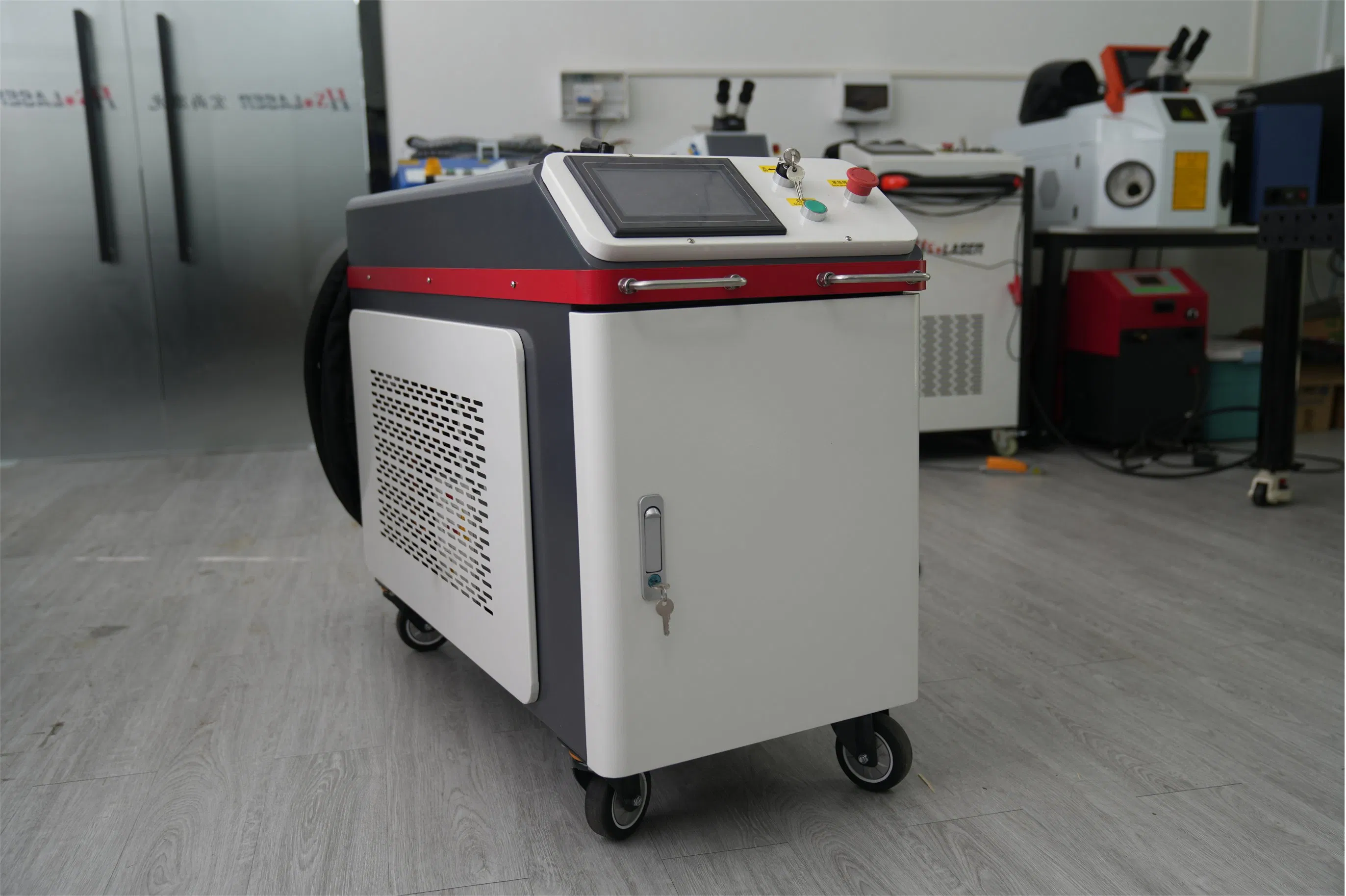

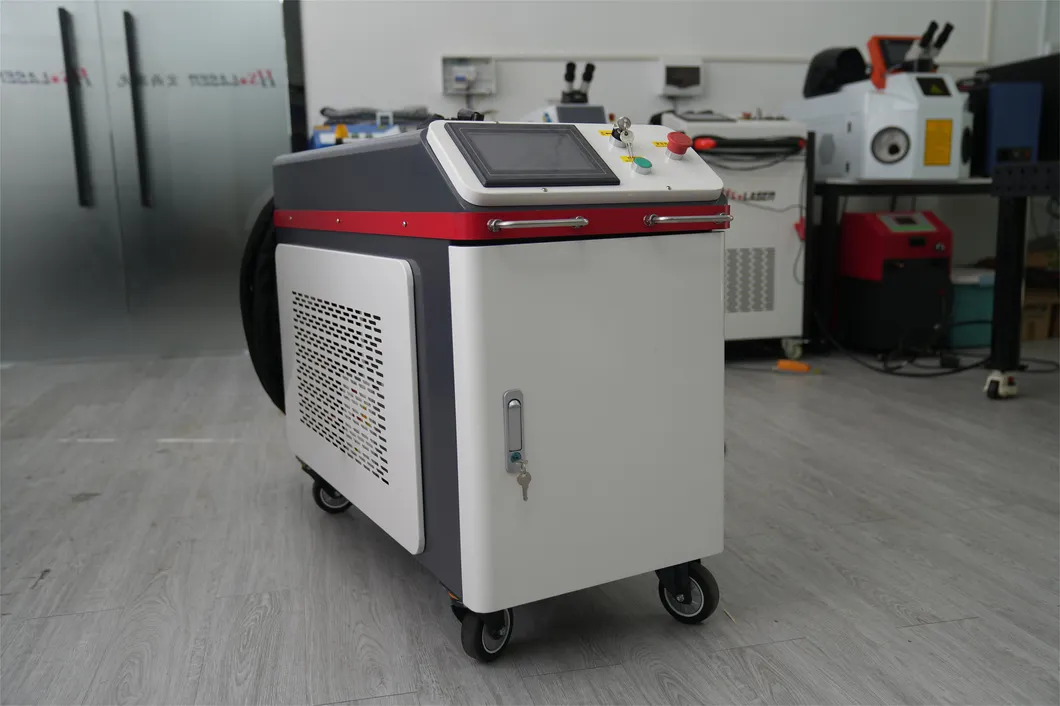

500W / 1000W Pulse Laser Cleaning Machine

High-power JPT pulse laser source with water cooling system. Designed for precision rust removal, paint stripping, and industrial surface cleaning without damaging the substrate.

Model NO.	HS-LC500 / HS-LC1000	Control Type	Handheld
Laser Power	500W / 1000W	Warranty	2 Years
Laser Source	JPT Pulse	Cooling System	Water Cooling
Pulse Width	10-500 ns	Delivery Cable	10m
Machine Size	990mm458mm791mm	Package Weight	200kg - 275kg

Cleaning Performance

Effective for heavy rust, black rust removal, and paint stripping on large cruise ships, steel mills, heavy machinery, and aircraft airstrips.

Technical Specifications

500W Pulse Series Parameters:

Laser Power	500W	Beam Type	Flat-top laser beam
Pulse Energy	15mJ / 50mJ	Wavelength	1064±5 nm

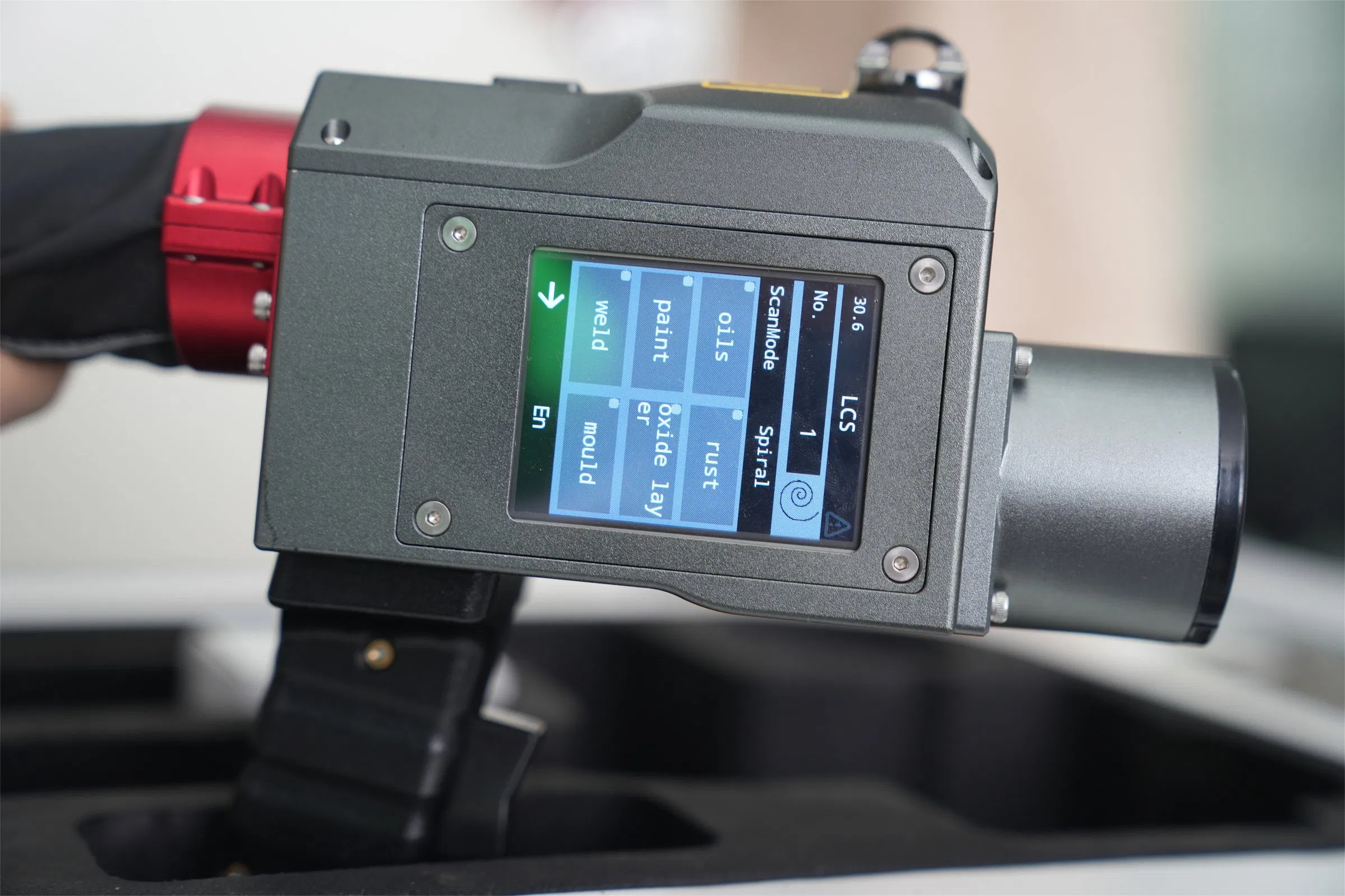

Frequency	1-4000 kHz	Scan Modes	8 Multimode scan modes

1000W Pulse Series Parameters:

Average Power	≥1000W	Pulse Width	10-500ns
Max Pulse Energy	50mJ	Power Range	0-100% Adjustable
Supply Voltage	Single Phase 220V±10%	Scan Range	0mm - 145mm

Core Advantages

🛡️

Eco-Friendly: No chemical reagents or consumables; waste is solid powder for easy collection.

⚙️

Non-Contact: Cleaning substrate damage remains below 0.5μm.

🔄

High Flexibility: Handheld operation or integration with robotic/automation platforms.

🌐

Multi-Material: Cleans metals (rust, oil, coating) and non-metals (ceramics, glass, composites).

Application Scenarios

Industrial Fields: Automobile manufacturing (sheet metal refurbishment), Rail transportation (weld cleaning), and Mold maintenance.

Specialized Fields: Aerospace high-precision component pretreatment and Cultural relics surface restoration.

Packaging & Quality Assurance

Each machine undergoes 100% inspection before shipping. Products are secured in professional wooden boxes to ensure safety during international transport via FOB, CIF, or DDP terms.

FAQ

What is the difference between 500W and 1000W pulse lasers?

The 1000W model offers higher cleaning efficiency and faster speeds for heavy-duty industrial rust and thick paint removal, while the 500W is suitable for most standard industrial cleaning tasks.

Will the laser damage the base metal?

No, pulse laser cleaning is a non-contact process. When parameters are correctly set, the substrate damage is negligible (≤0.5μm), making it safe for delicate molds and high-precision parts.

What materials can be cleaned?

It can clean a wide range of materials including steel, aluminum, copper, ceramics, glass, and various composite materials.

How long is the delivery time?

Standard production and delivery time is approximately 10 working days, depending on customization requirements.

What after-sales support is provided?

We provide a 2-year warranty and remote technical support for parameter adjustments and system troubleshooting.

Is the system easy to operate for beginners?

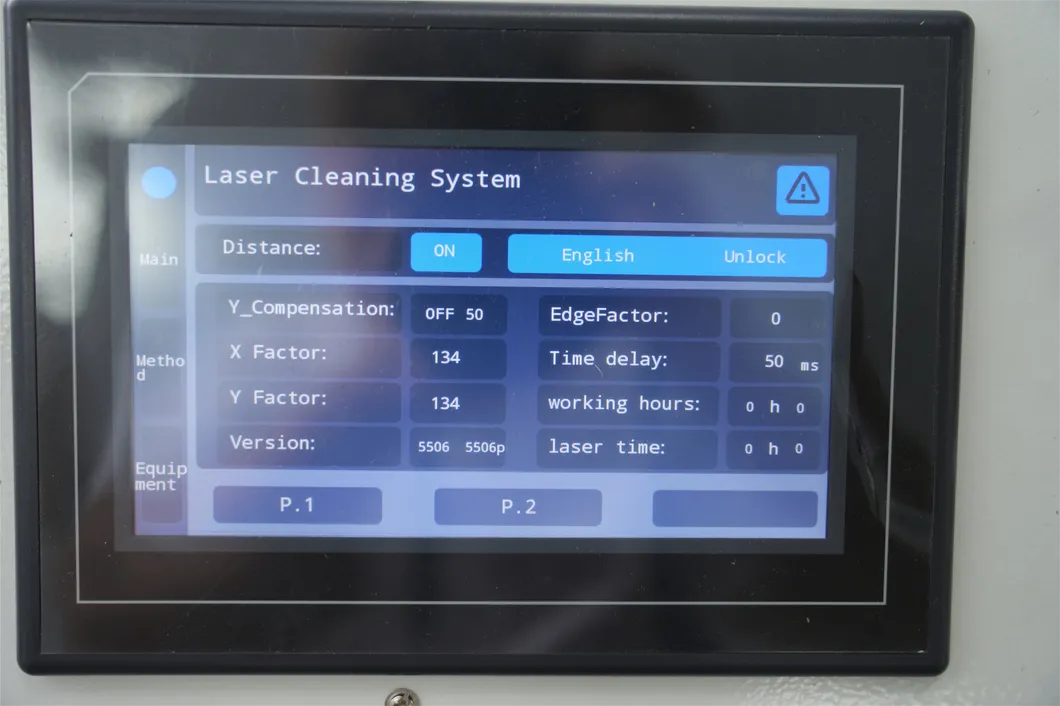

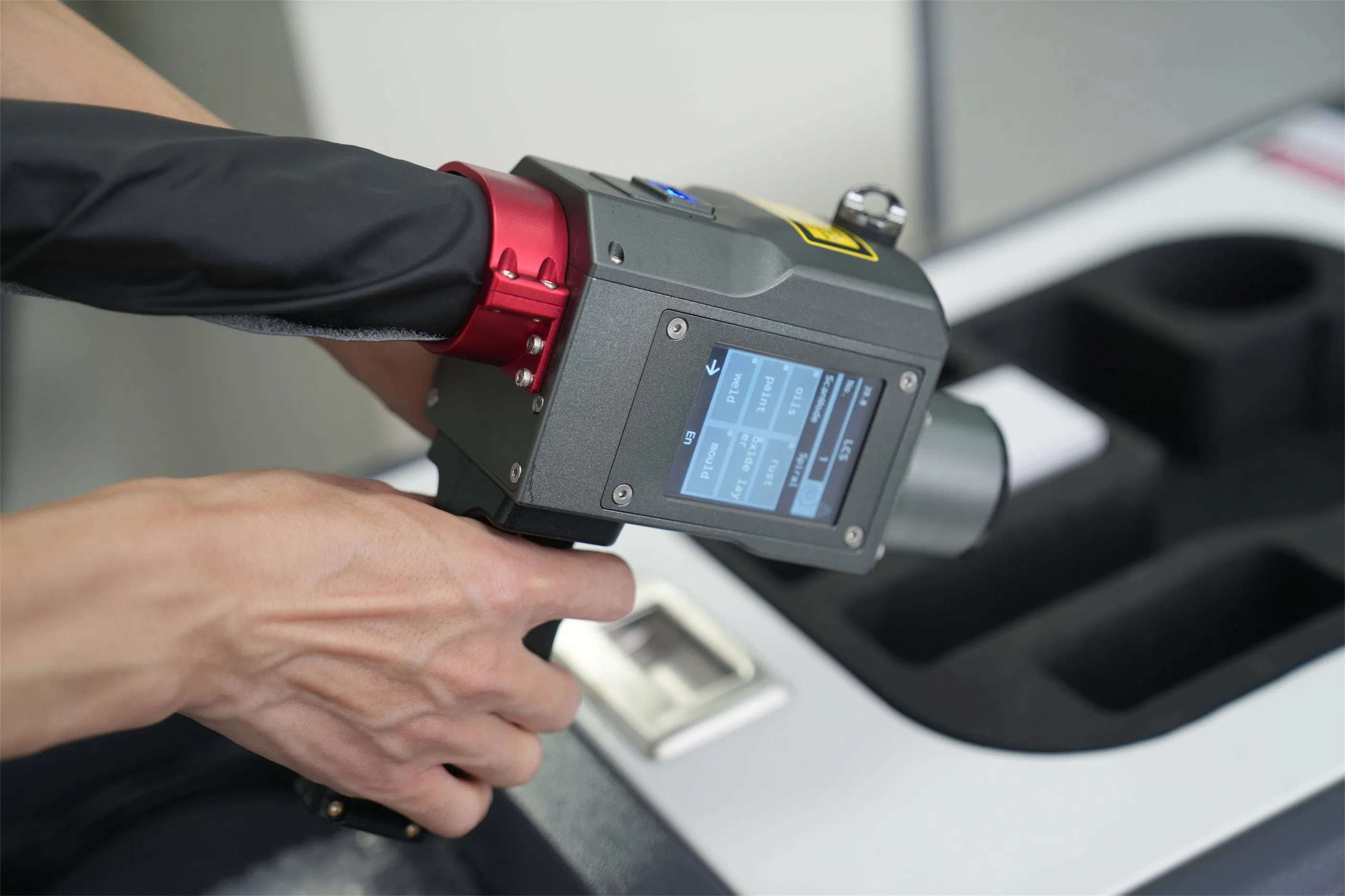

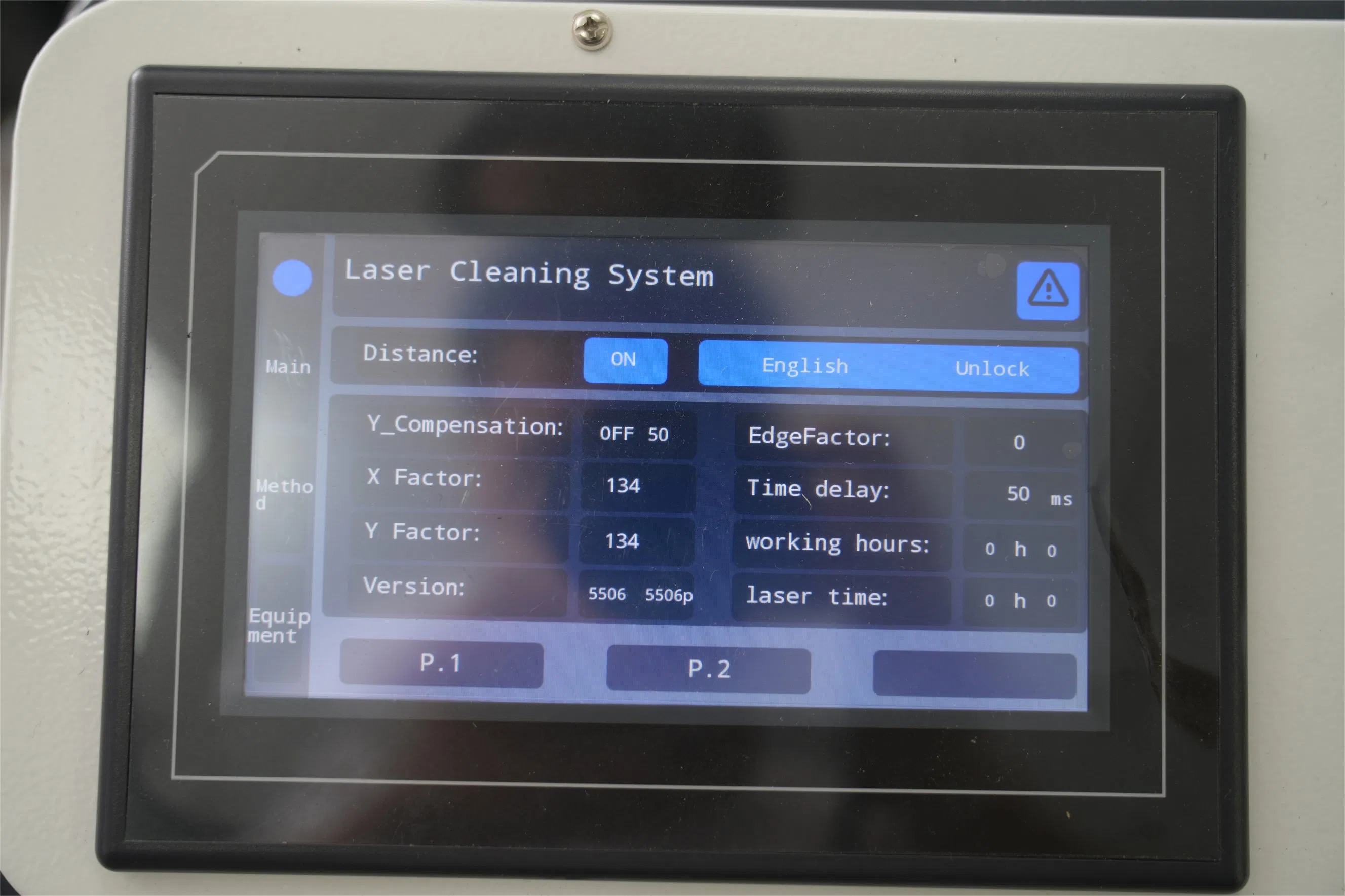

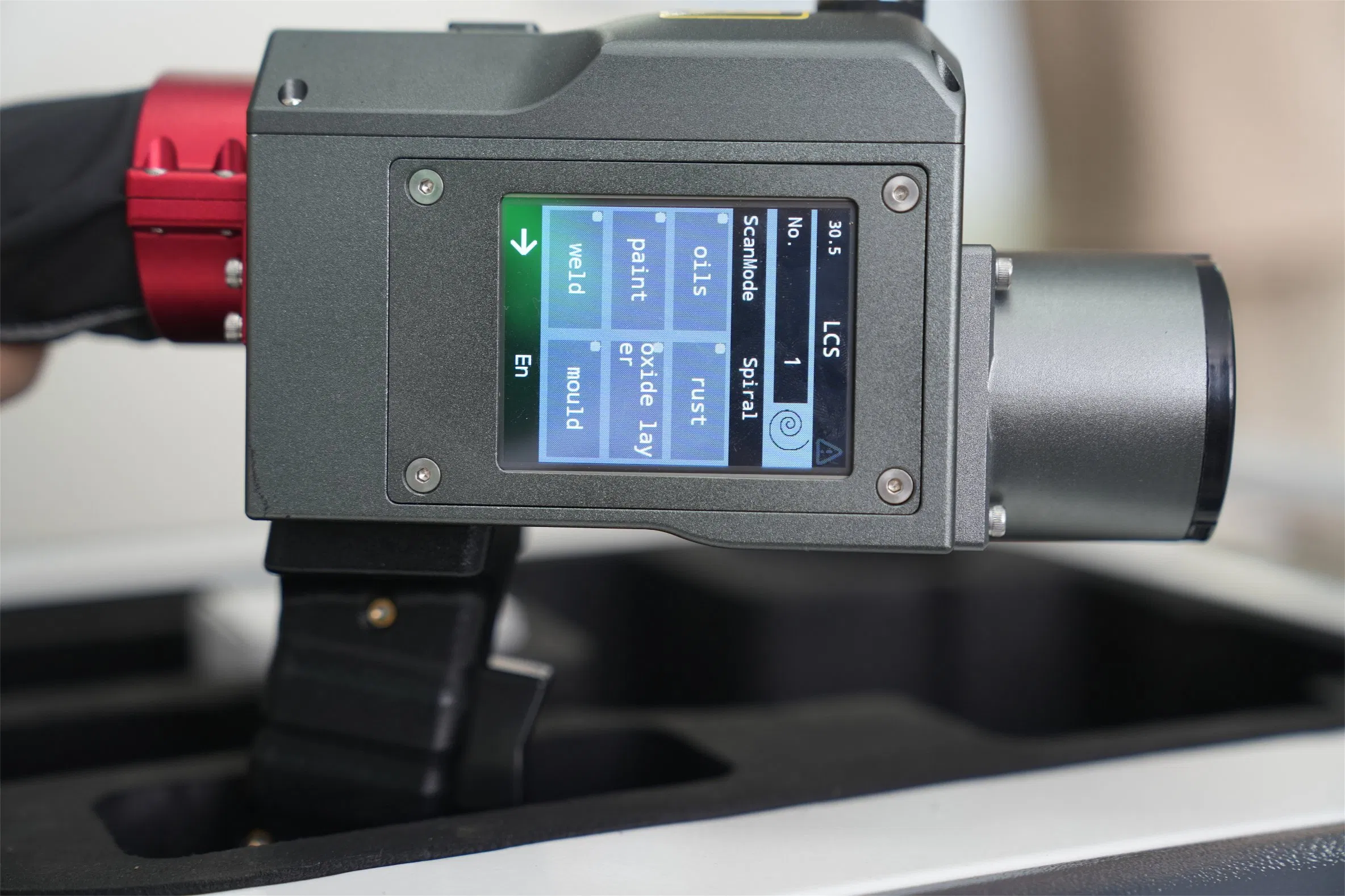

Yes, the handheld head is lightweight (approx. 1.5kg) and the system supports multi-language interfaces, making it user-friendly with minimal training.
