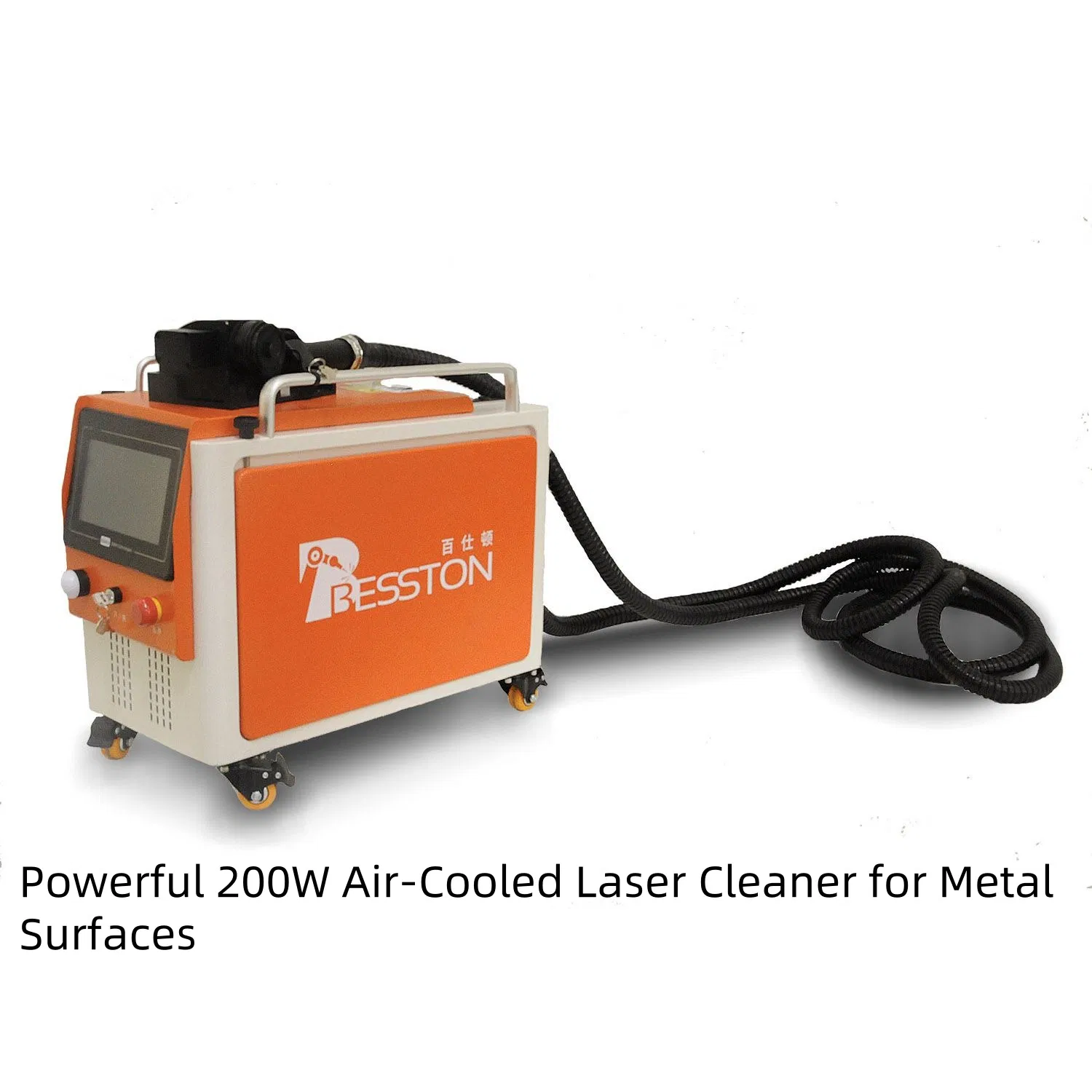

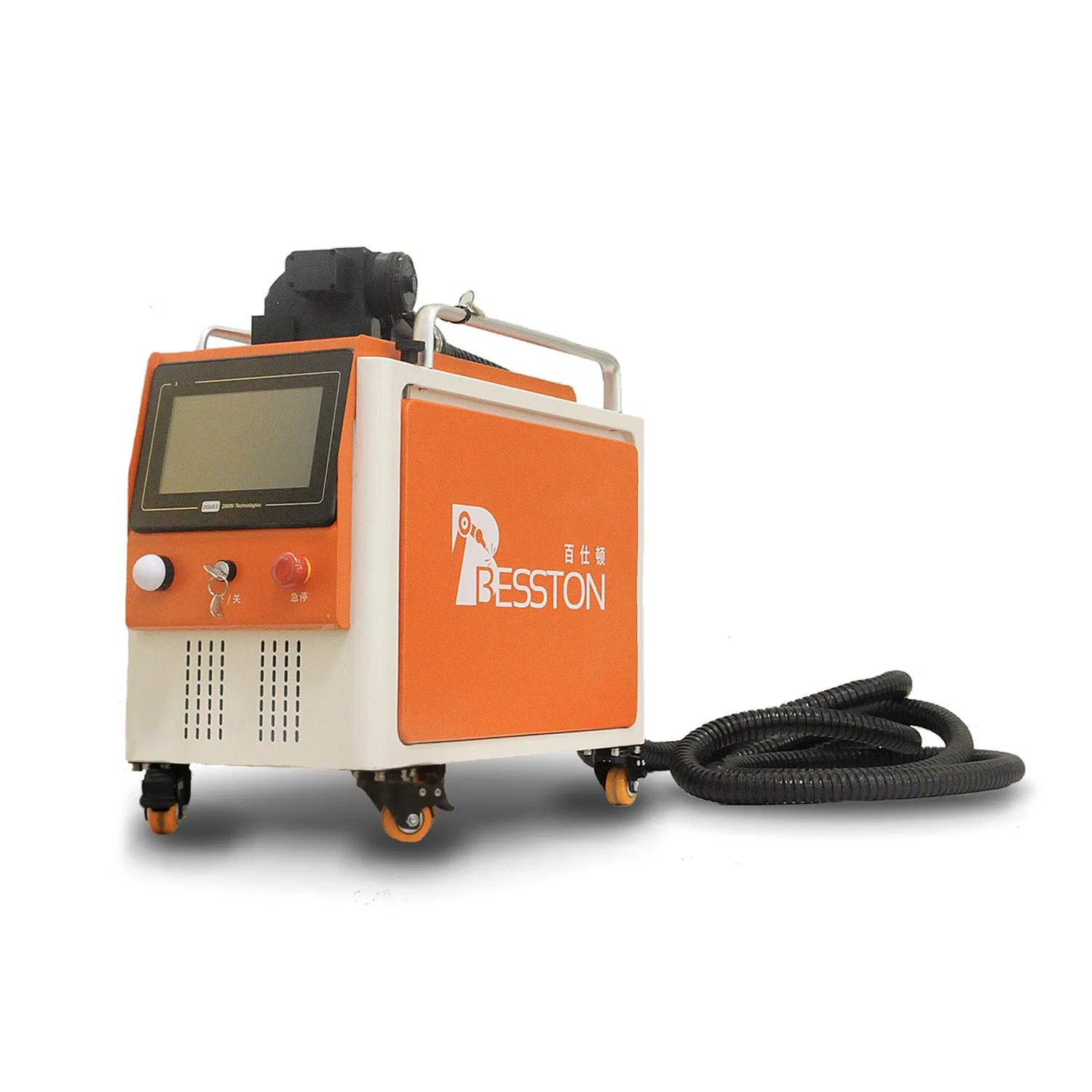

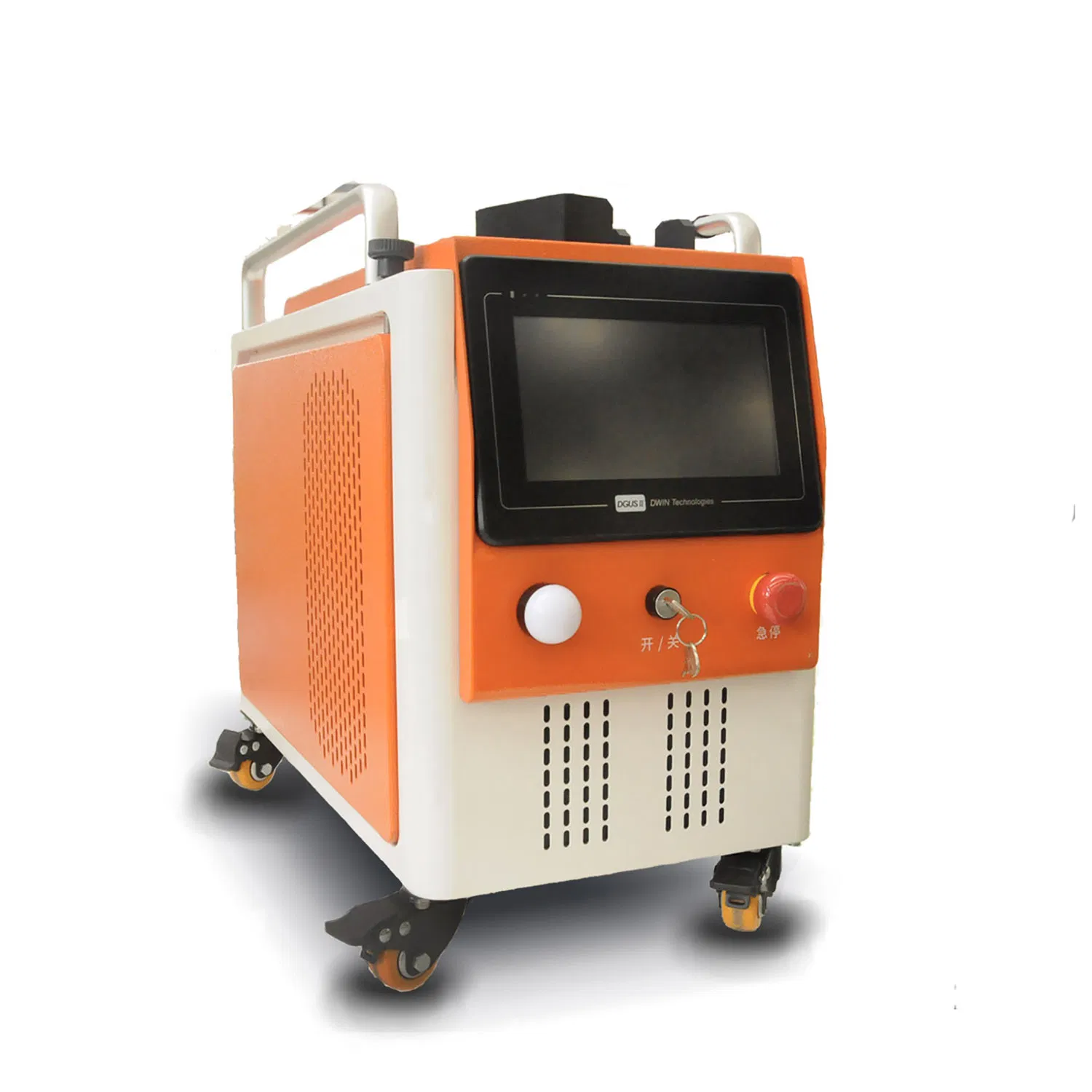

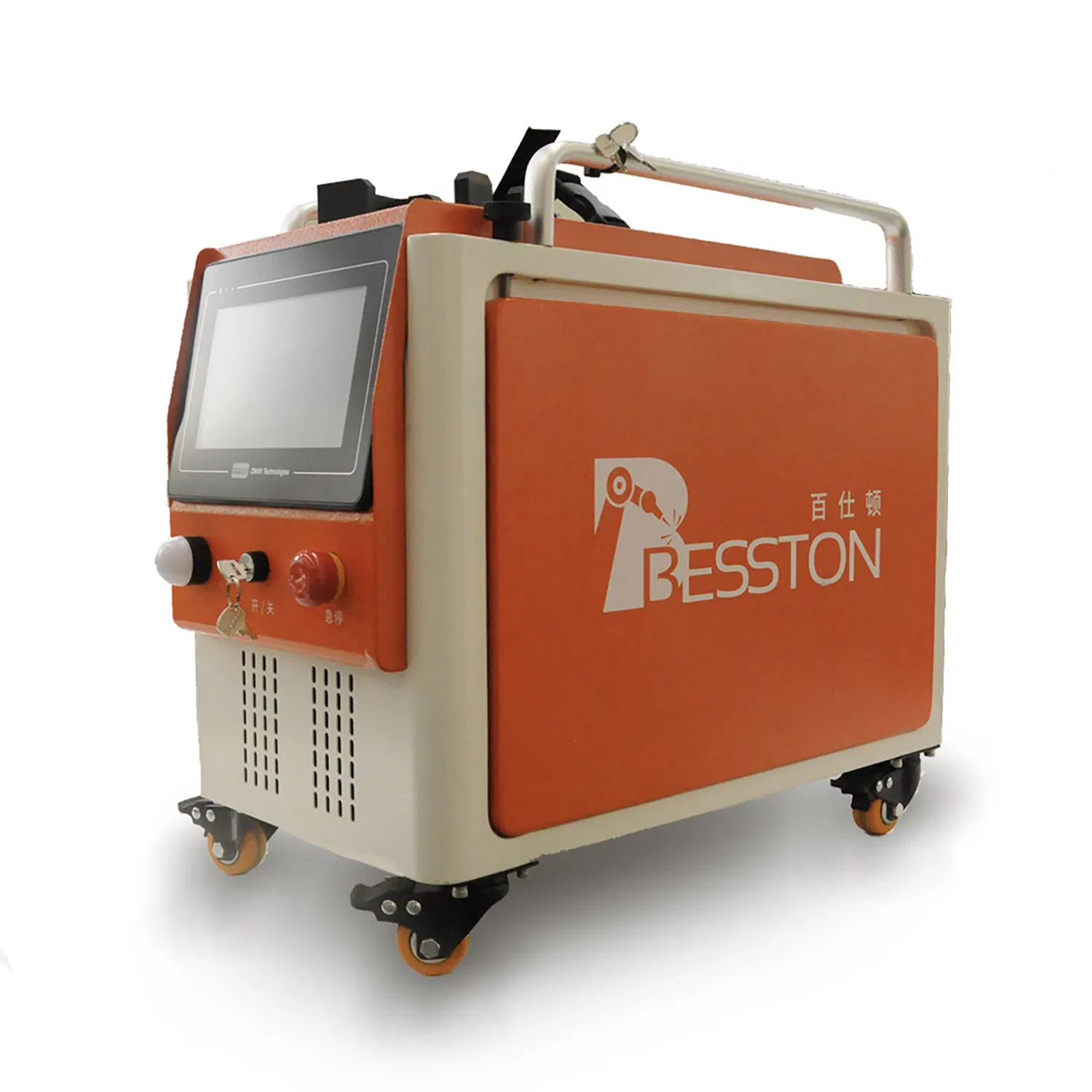

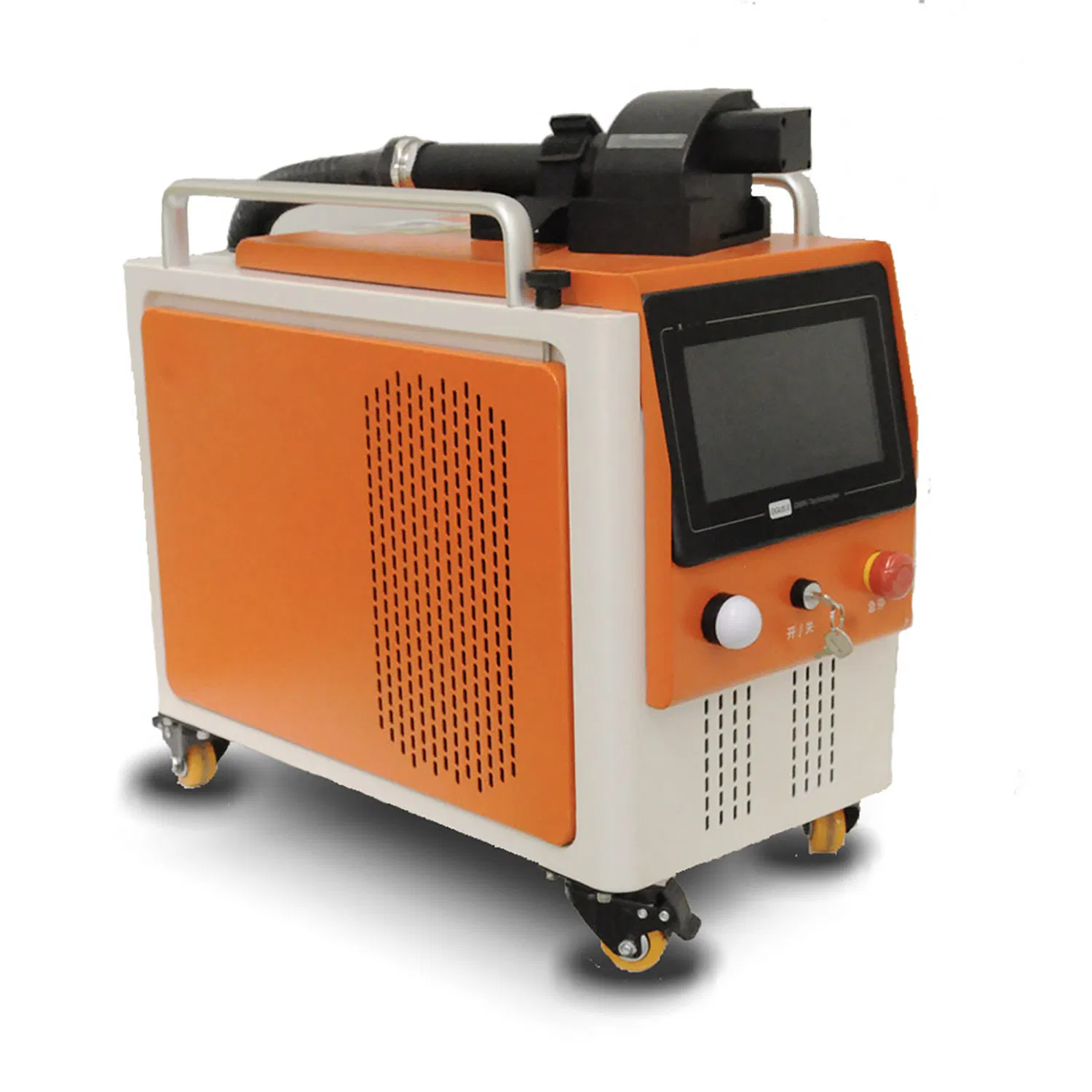

🔍 Product Description
As a medium to high power industrial grade equipment, the technical parameters of the 200W laser cleaning machine directly determine the cleaning efficiency and scope of application. For instance, high-performance models utilize a 1064nm wavelength fiber laser, with a single pulse energy up to 5mJ, achieving stable heat dissipation through advanced air cooling systems. Pulse widths are adjustable from 2-500ns, supporting various scanning modes with widths ranging from 5-100mm.
In terms of hardware design, these machines adopt a modular structure including laser generation units, optical transmission systems, and intelligent control. Modern compact designs can weigh as little as 18.8kg, integrating distance and temperature measurement functions to support 48 hours of continuous operation.

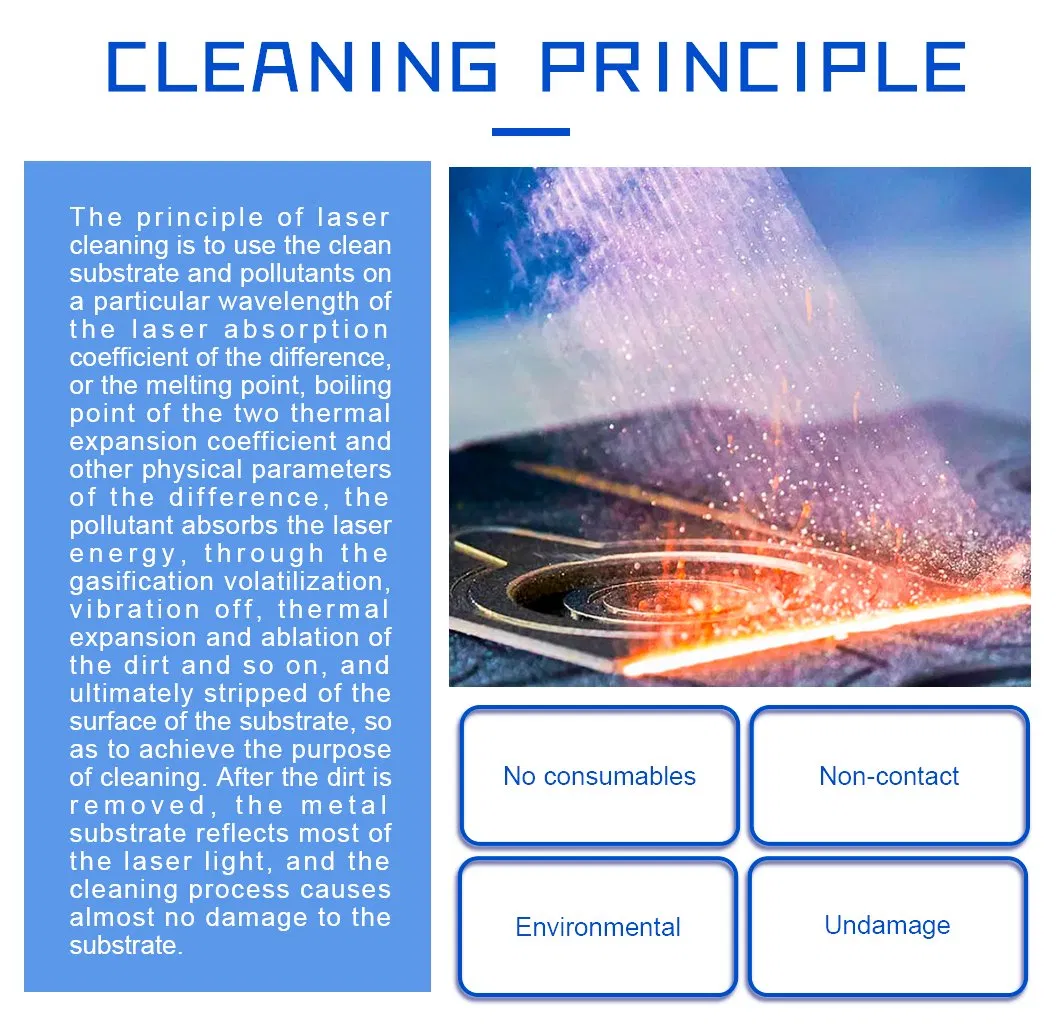

⚙️ Working Principle and Mechanism
1. Thermal evaporation effect: Pollutants instantly heat up to vaporization temperature (e.g., rust at 1538 ºC), converting to gas and detaching from the substrate. Heat affected zones are controlled within 10 μm.
2. Shock wave peeling: Energy released in nanoseconds generates shock waves up to 10^9 Pa, causing thick coatings or oxides to peel off via stress fracture.
3. Photochemical decomposition: For oil and organic stains, photon energy breaks molecular bonds, decomposing them into small molecule gases.

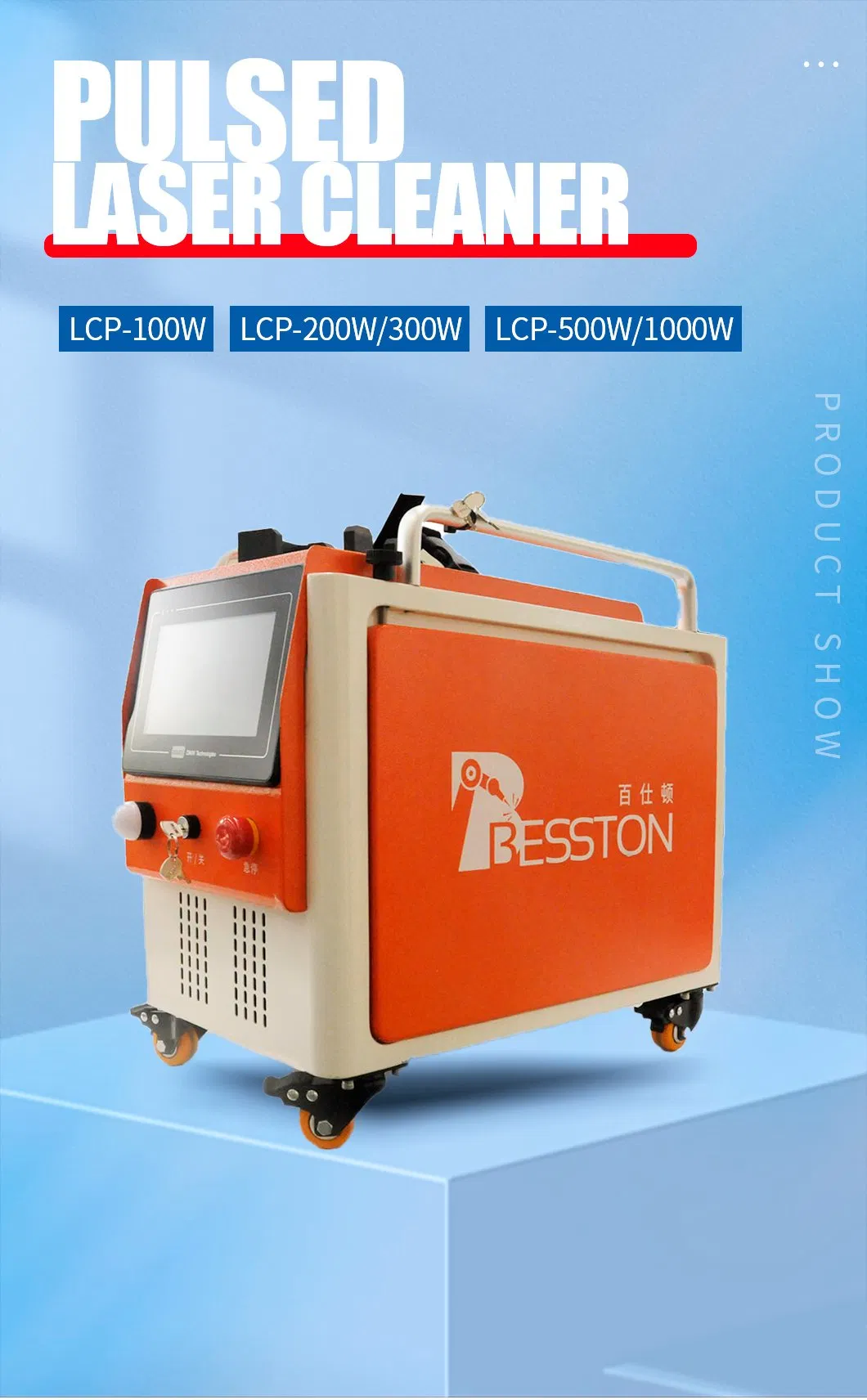

| Model Specification |
LCP-100W |
LCP-200W/300W |
LCP-500W/1000W |
| Average Power |
100W |
200W/300W |
500W/1000W |
| Scanning Width |
5mm to 150mm |
5mm to 150mm |
5mm to 150mm |
| Cooling |
Air-cooled |
Air-cooled |
Water-cooled |
| Weight (Head) |
1.3kg |
1.3kg |
2kg |
| Power Consumption |
<500W |
<1500W |
<6000W |
❓ Frequently Asked Questions
What materials can be cleaned with a 200W laser cleaning machine?

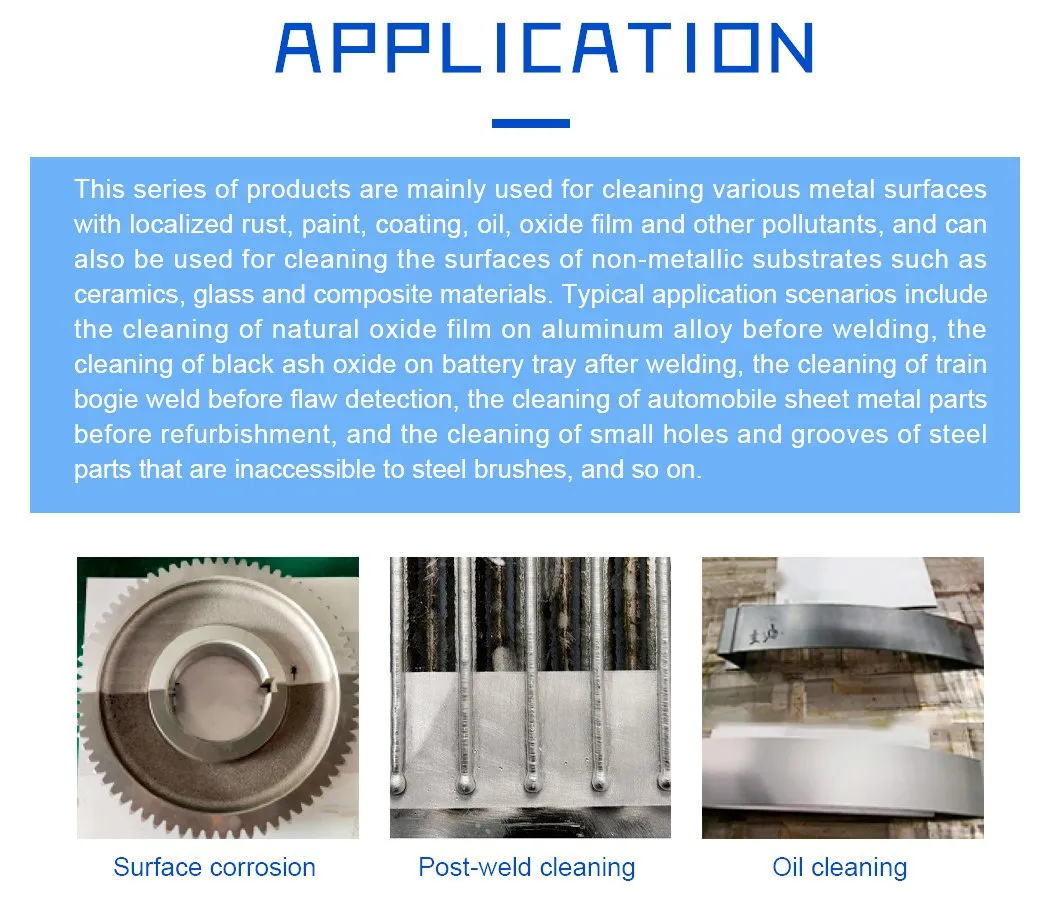

It is highly effective for removing rust, oxides, oil stains, KTL coatings, and paint from various metal surfaces like steel, aluminum, and galvanized sheets.
Will the laser damage the base metal?
No. The laser cleaning process is selective. By adjusting the parameters, the energy is absorbed by the pollutants while the substrate remains unaffected, maintaining original surface integrity.
Does this machine require water for cooling?
The 200W and 300W models are typically air-cooled, making them more portable and easier to maintain. Higher power models like the 500W+ versions use water cooling.
Is the operation safe for the user?
Yes, but standard safety protocols must be followed, such as wearing laser safety goggles. The equipment also includes intelligent monitoring for temperature and distance.
What is the cleaning efficiency?
Efficiency depends on the coating thickness. For KTL coatings, it can reach 4-6 square meters per hour, while for thin oxide layers, cleaning can happen within fractions of a second.
How portable is the device for on-site work?
The modular and air-cooled designs allow some 200W models to weigh under 20kg, making them highly portable for industrial maintenance and field applications.
