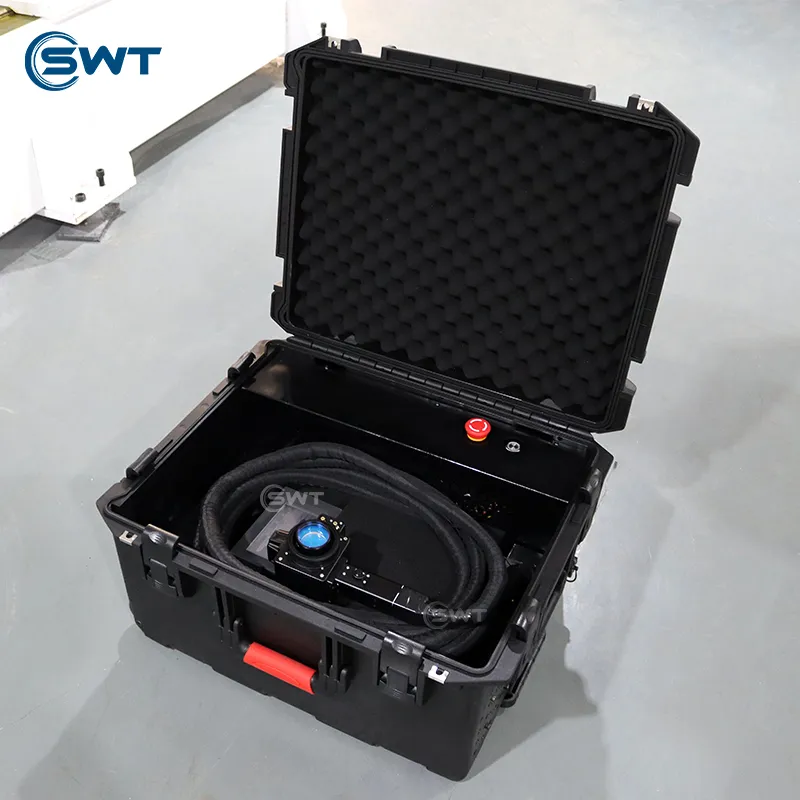

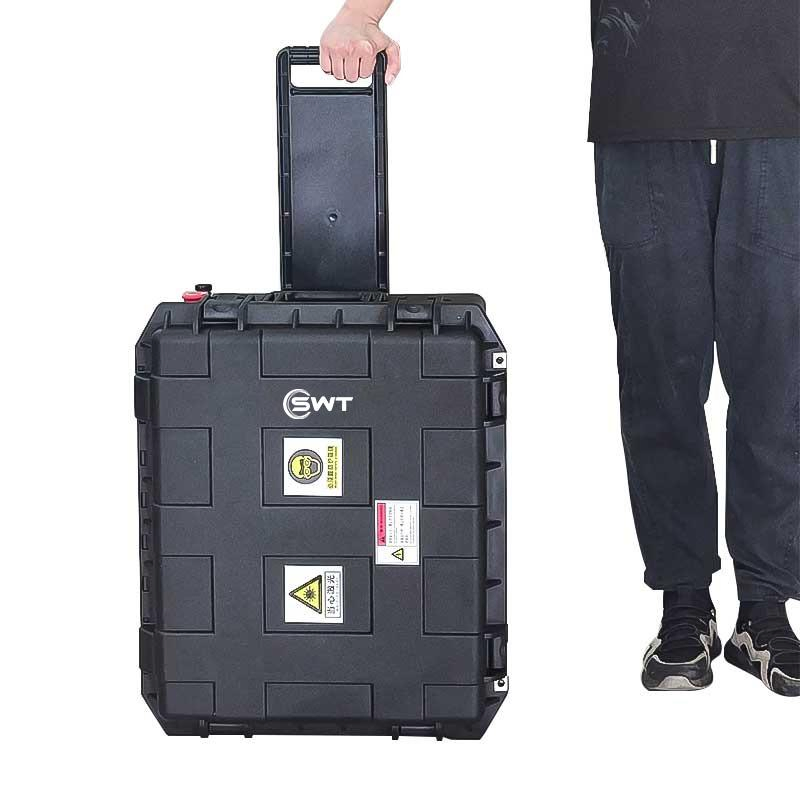

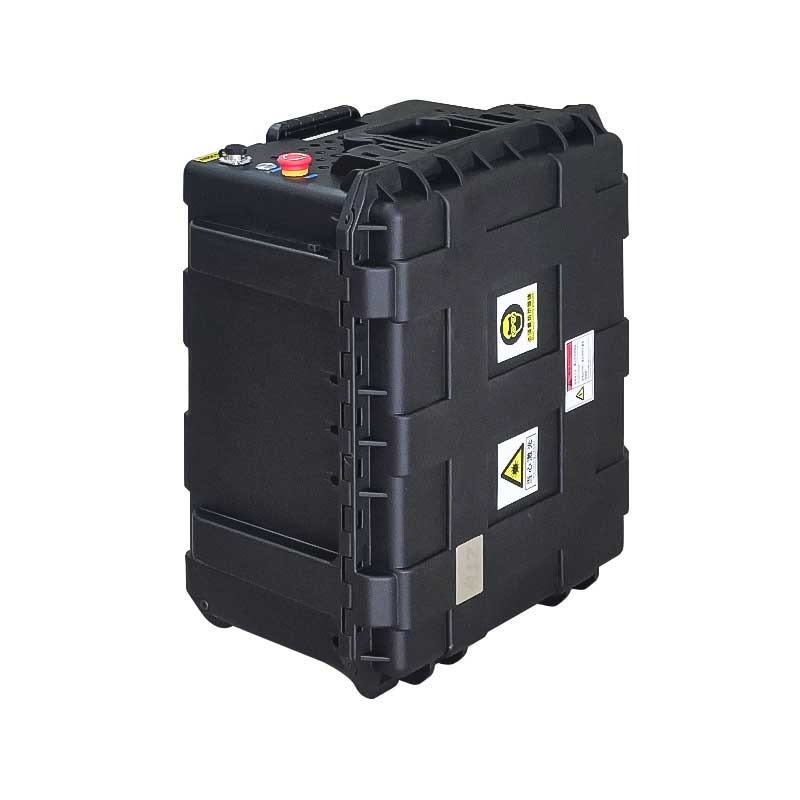

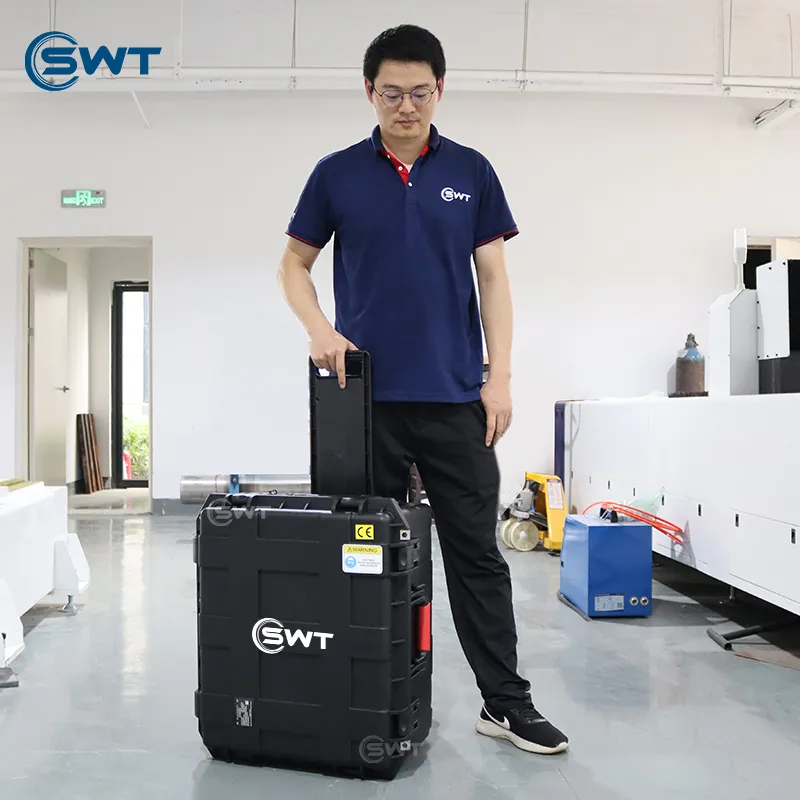

Portable Luggage Pulse Laser Cleaning Machine
Laser cleaning machine has the advantage of high cleaning speed, no pollution to the environment, non damage to the substrate, easy operation and low operation cost. It will just use some electricity. The maintenance is free, the laser source has long lifetime up to 100,000 hours. If use 8 hours per days, you can use the machine for 30-40 years. That is why laser cleaning is taking place of many traditional cleaning methods like dry ice cleaning, mechanical grinding, chemical cleaning and high-pressure water cleaning.
| Model | SWT-QX-100 | SWT-QX-200 | SWT-QX-300 |
|---|---|---|---|
| Laser Source | Pulse Fiber | Pulse Fiber | Pulse Fiber |
| Laser Power | 100W | 200W | 300W |
| Pulse Energy | 1.5 mJ | 1.5 mJ | 1.5 mJ |
| Pulse Width | 2-500ns | 2-500ns | 2-500ns |
| Cleaning Speed | ≤ 8 M²/Hr | ≤ 10 M²/Hr | ≤ 20 M²/Hr |
| Weight | 34 Kg | 45 Kg | 50 Kg |

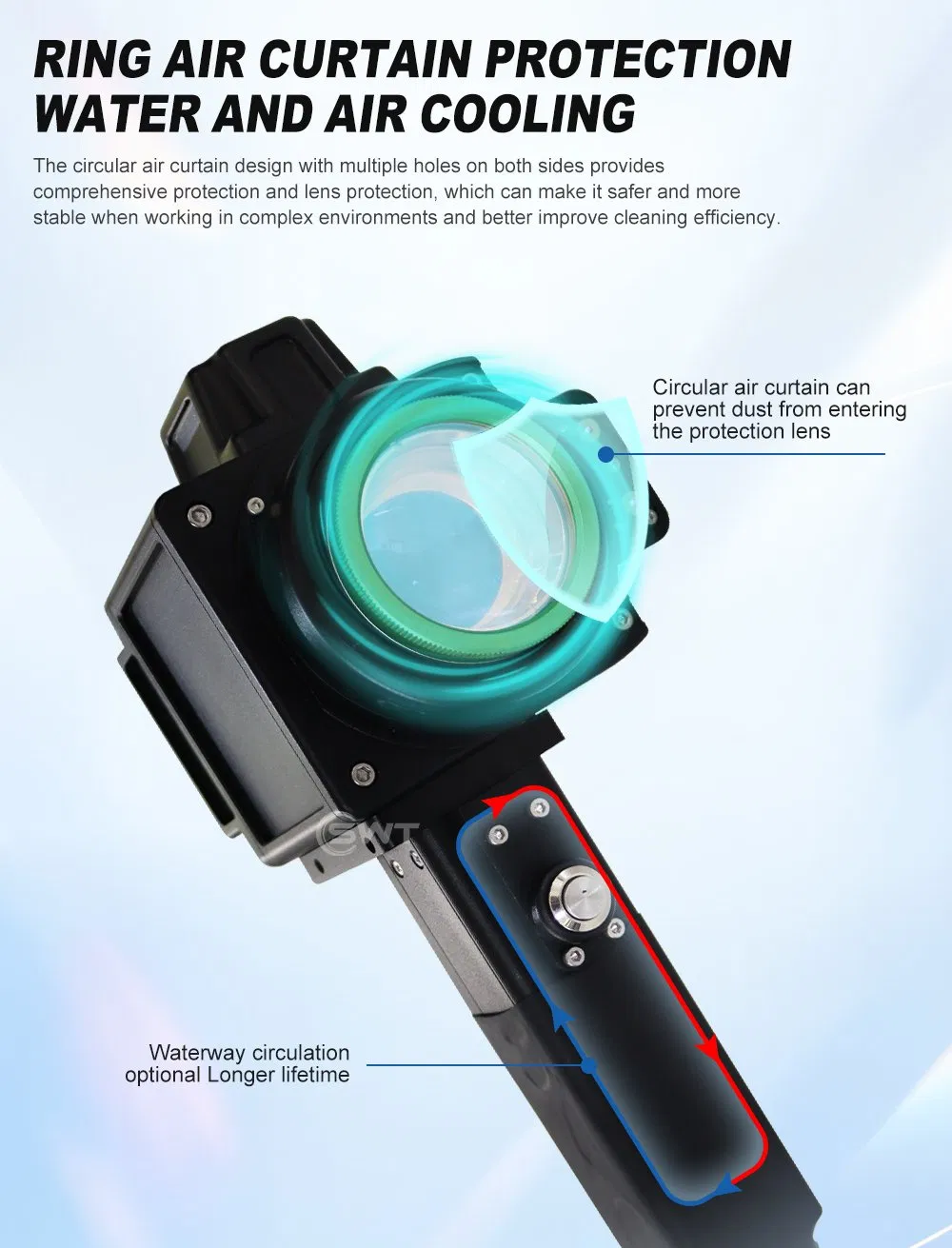

| Cooling | Air Cooling | ||
| Voltage | Single Phase 110V/220V, 50-60HZ | ||
Metal workpiece laser derusting, surface oil removal, paint and coating removal, welding surface cleaning, mold cleaning, cultural relics restoration. Widely used in: aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical etc.
| Feature | Laser Cleaning | Chemical | Mechanical | Dry Ice |
| Harm to Base | None | Yes | Yes | None |
| Efficiency | High | Low | Low | Medium |
| Consumables | Power | Chemicals | Abrasives | Dry Ice |
| Pollution | None | High | Dust | None |
