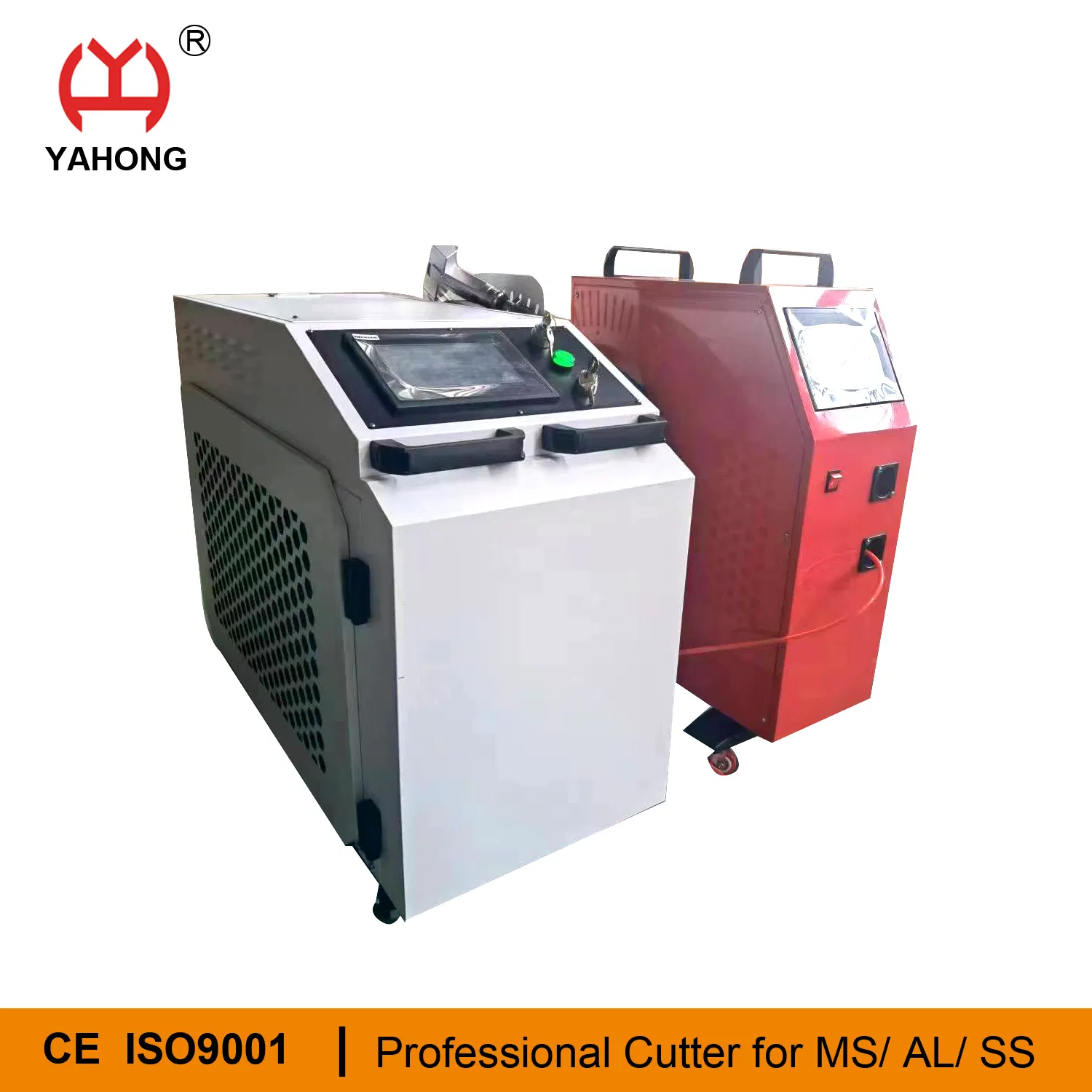

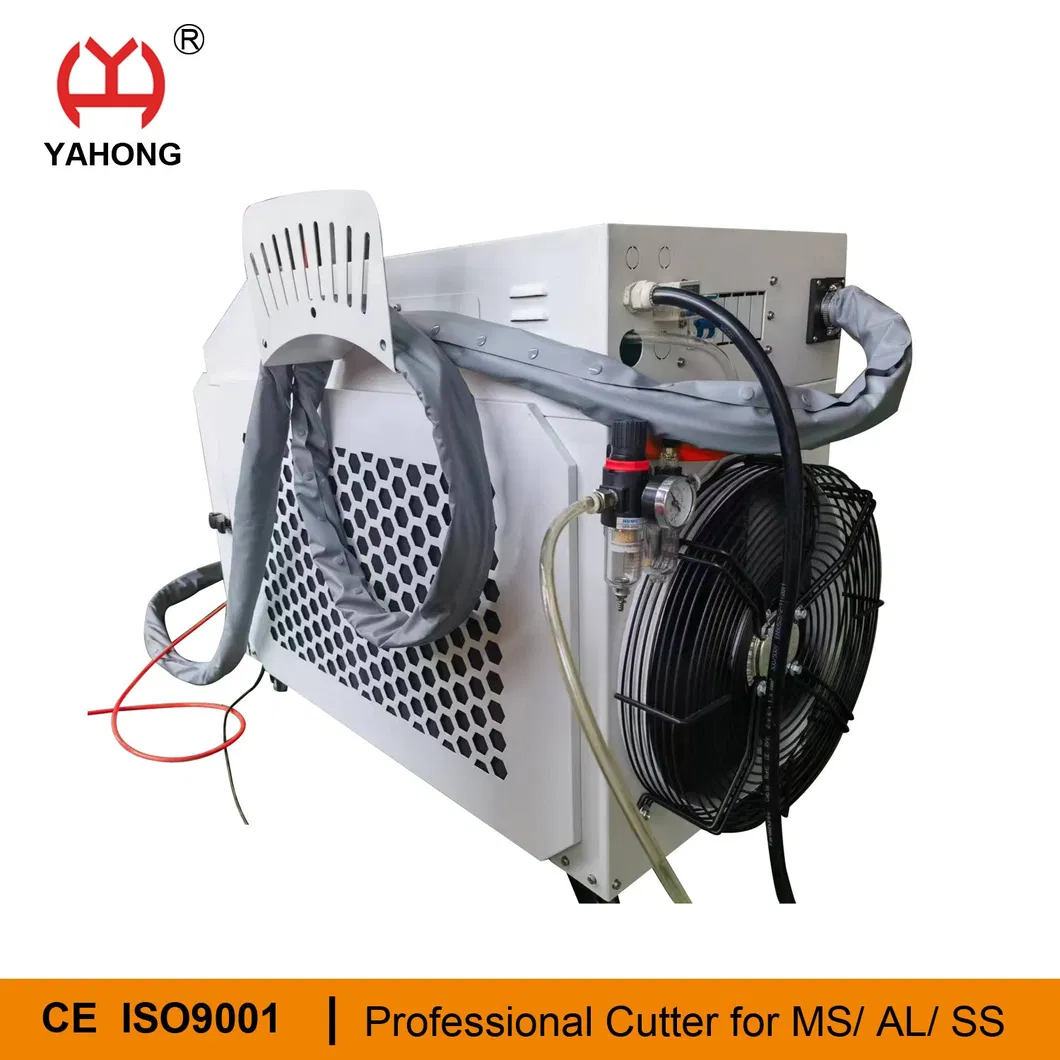

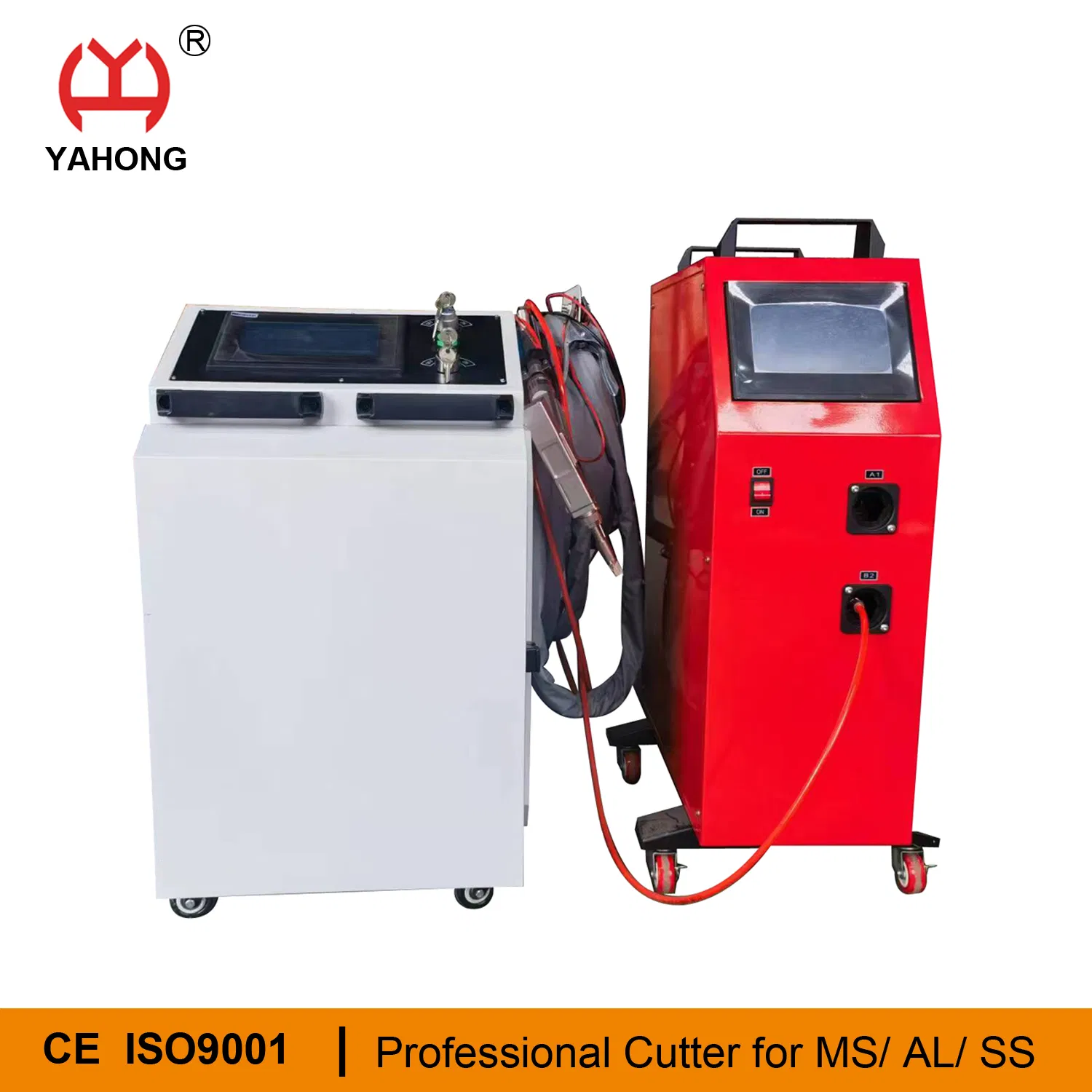

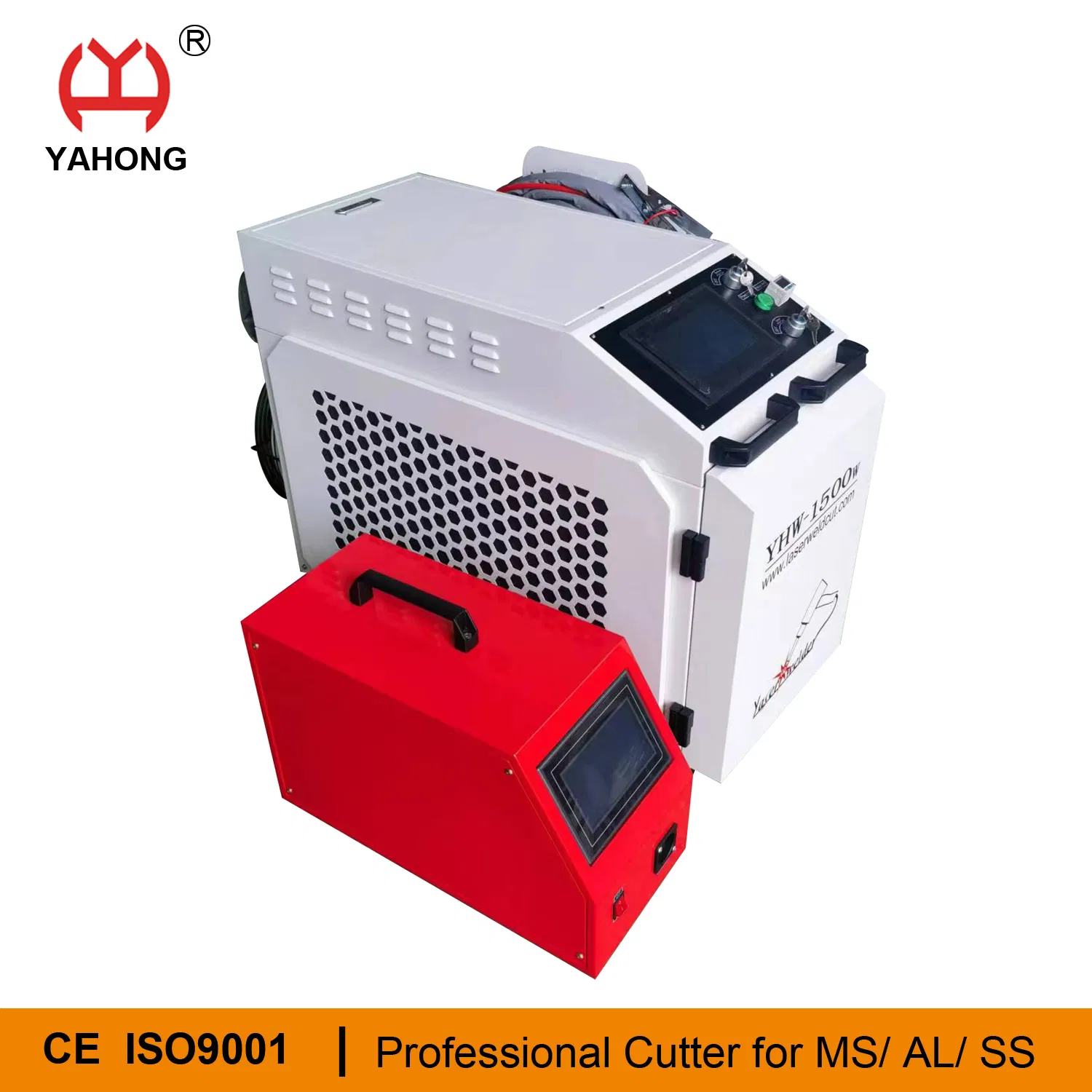

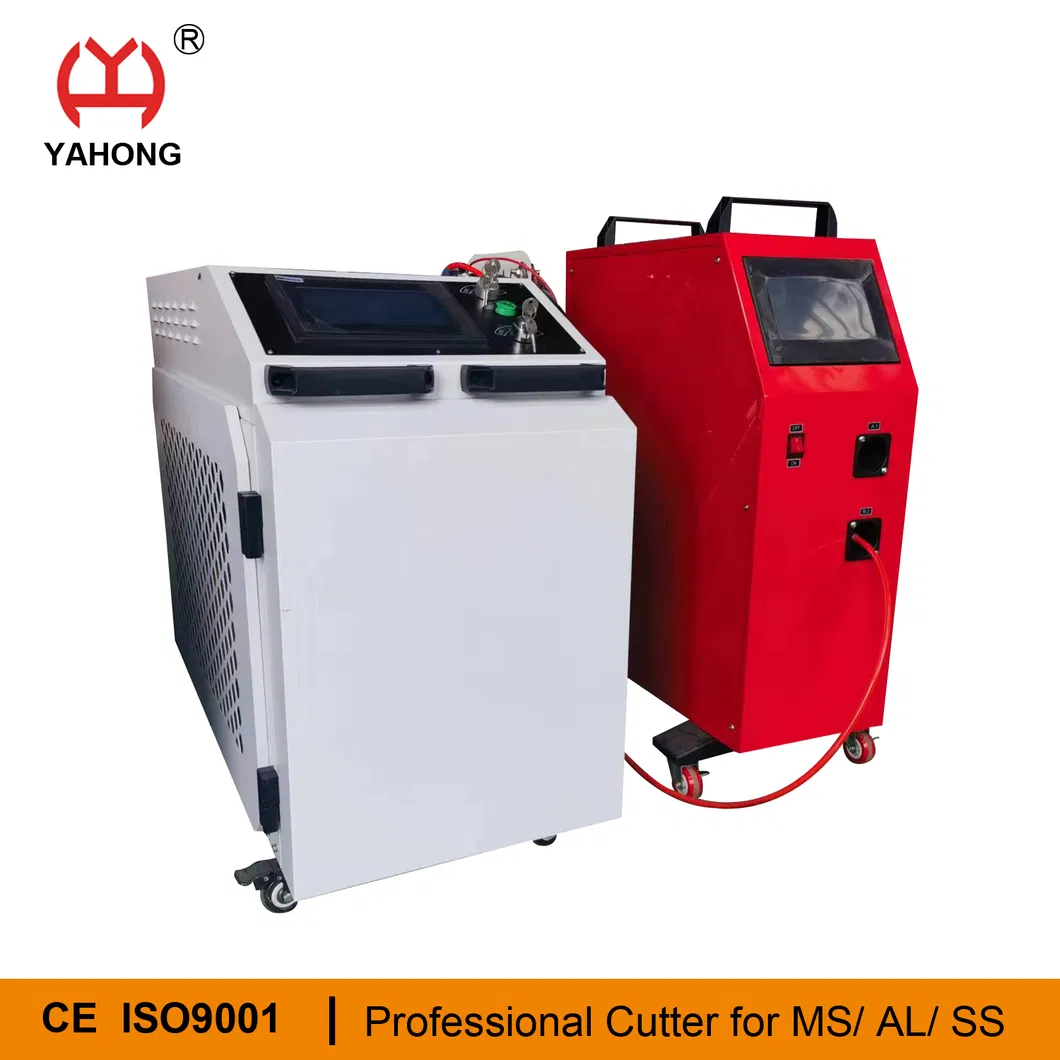

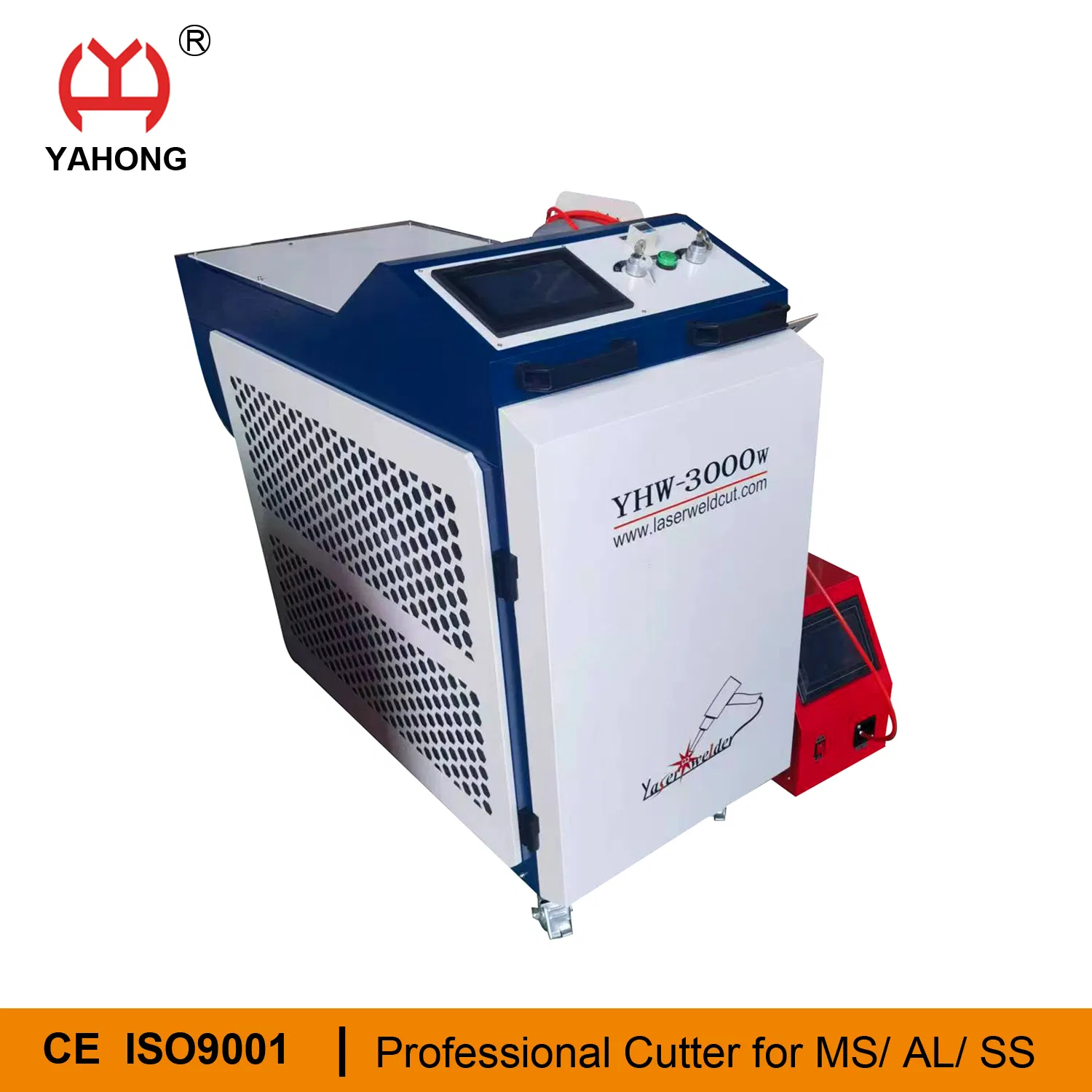

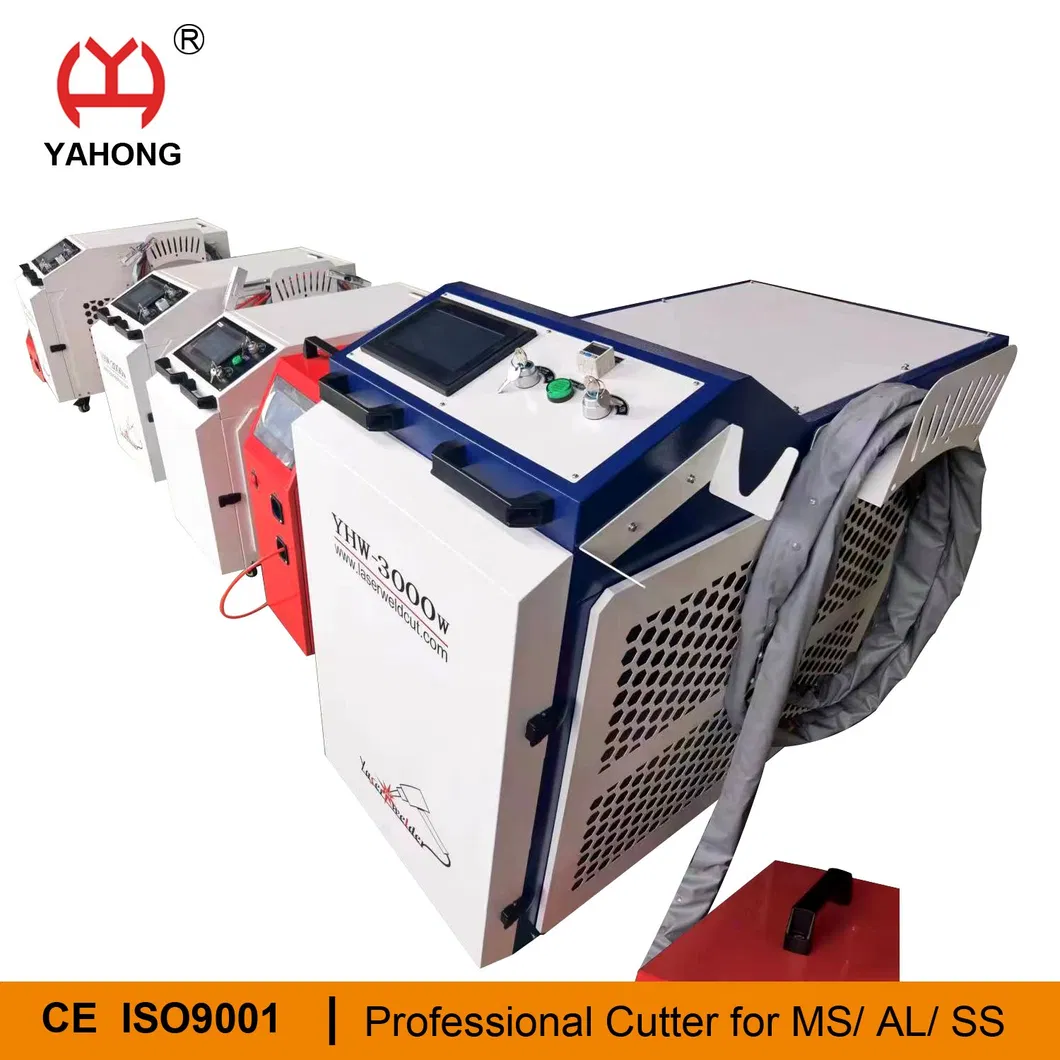

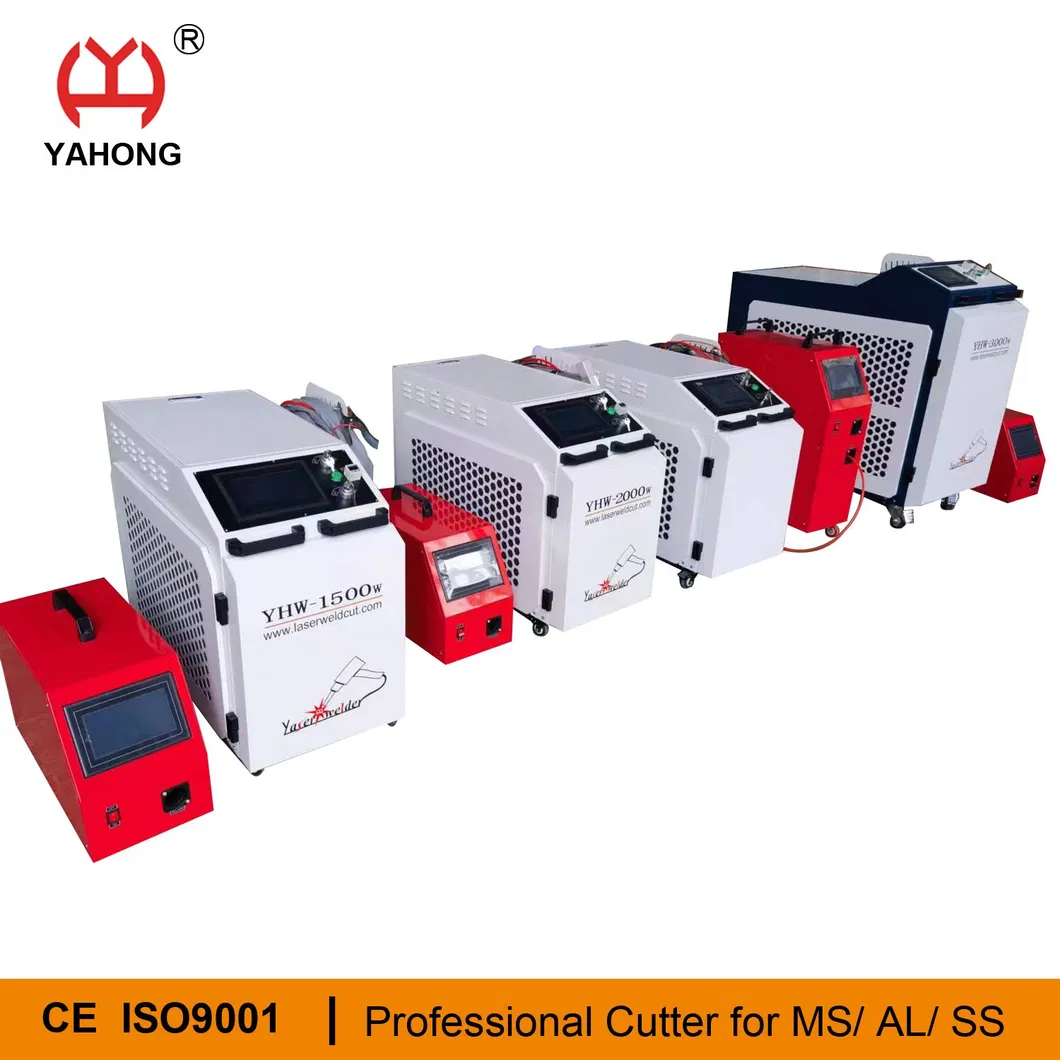

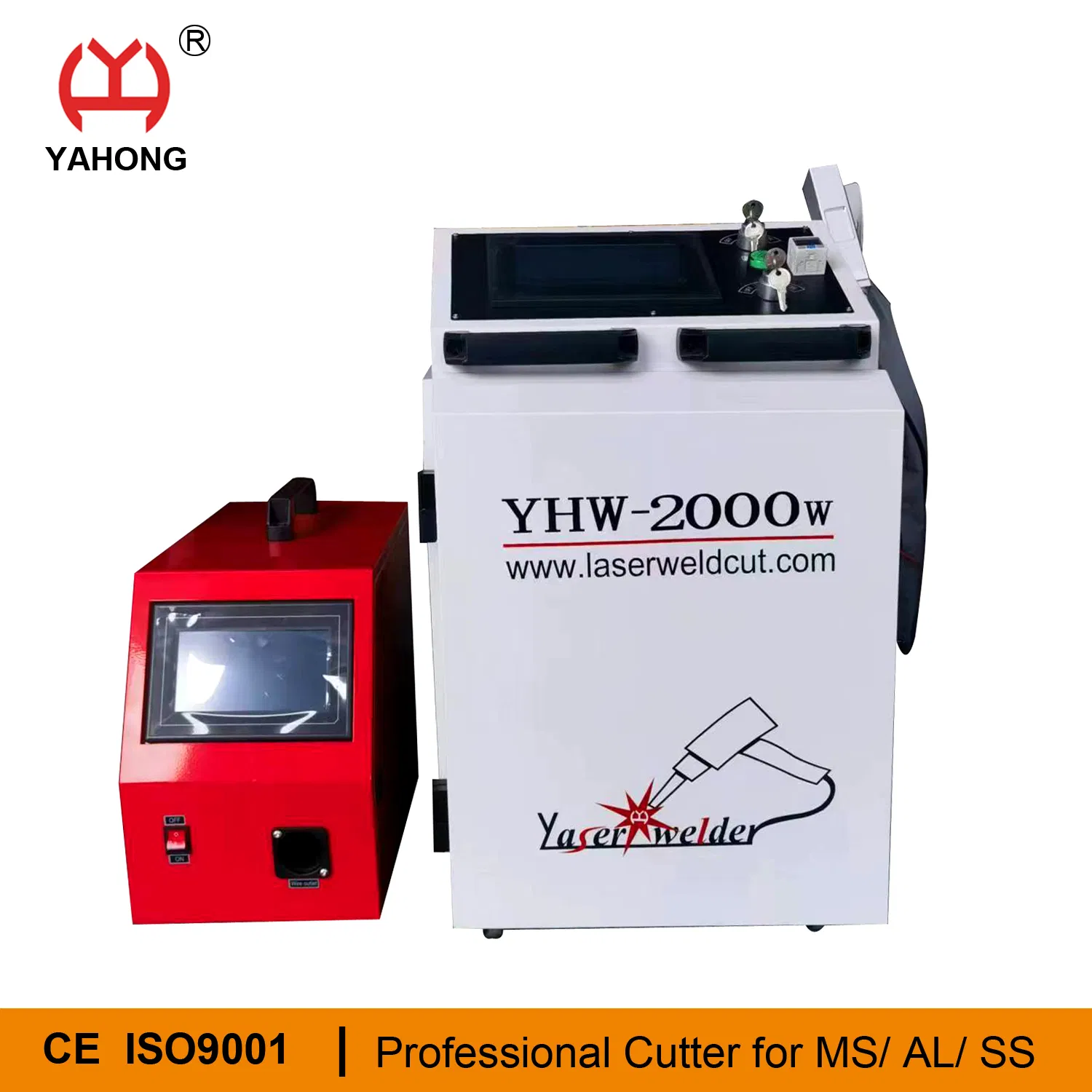

3 in 1 Handheld 1500W Laser Welding-Weldable Cutting and Cleaning

1000W / 1500W / 2000W Handheld Fiber Laser Welding Machine for Carbon Steel, Stainless Steel, Aluminum, and Copper

📊

Basic Specifications

Model

YH1500W

Application

Electronic, Automotive, Manufacturing

Laser Type

Continuous Wave Fiber Laser

Control Mode

Automatic

Welding Material

Ms / Ss / Al

Protective Gas

Nitrogen

Function

Welding and Cutting

Welding Speed

2-10 Times Faster than Traditional

Wire Feeder

Available (0.8-1.6mm)

Power Options

1000W / 1500W / 2000W

Origin

China

Production Cap.

100 sets / Month

📦

Packaging & Delivery

Package Size

120.00cm * 60.00cm * 110.00cm

Gross Weight

260.000kg

Package Type

Plywood Case

💡

Product Advantages

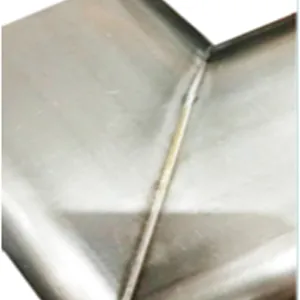

Beautiful, uniform welding seams with no discoloration or scars; no post-polishing required.
High welding strength, often exceeding the base metal itself.
High efficiency: 2-10 times faster than traditional argon arc welding.
Easy operation: master the machine in just 5 minutes with no specialized foundation required.
Low cost: Power consumption is only one-tenth of traditional gas shielded welding.
Red light positioning for highly accurate welding placement.
Environmentally friendly with significantly less gas and dust.

⚙️

Key Features

3-in-1 Modes: Supports self-fusion welding, wire feeding, and cutting.
Versatile Welding: Tailor, fillet, stitch, straight, and arc welding capabilities.
Ergonomic Design: Lightweight welding head (0.8KG) for long-term comfort.
Intelligent Control: Support for process library storage and digital wire feeder parameter settings.
Multiple Modes: 6 types of light emission modes with adjustable spot size (0-5mm).

📐

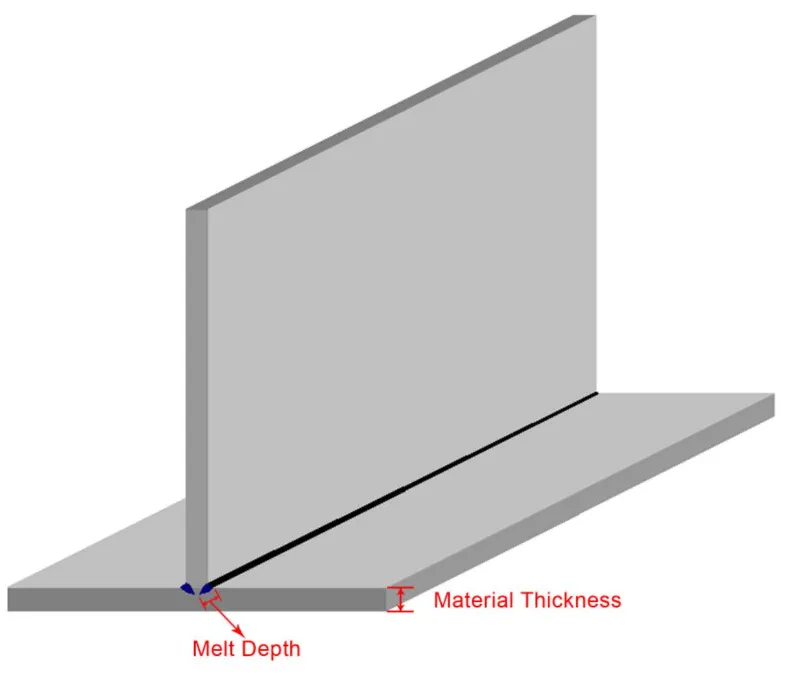

Weld Melt Depth Table

Model	Carbon Steel	Stainless Steel	Aluminum	Red Copper
1000W	2.06mm	2.68mm	2mm	---
1500W	2.77mm	3.59mm	3mm	0.2mm
2000W	3.59mm	4.57mm	4mm	0.3mm

Note: Actual welding thickness depends on specific demands and penetration requirements.

🔥

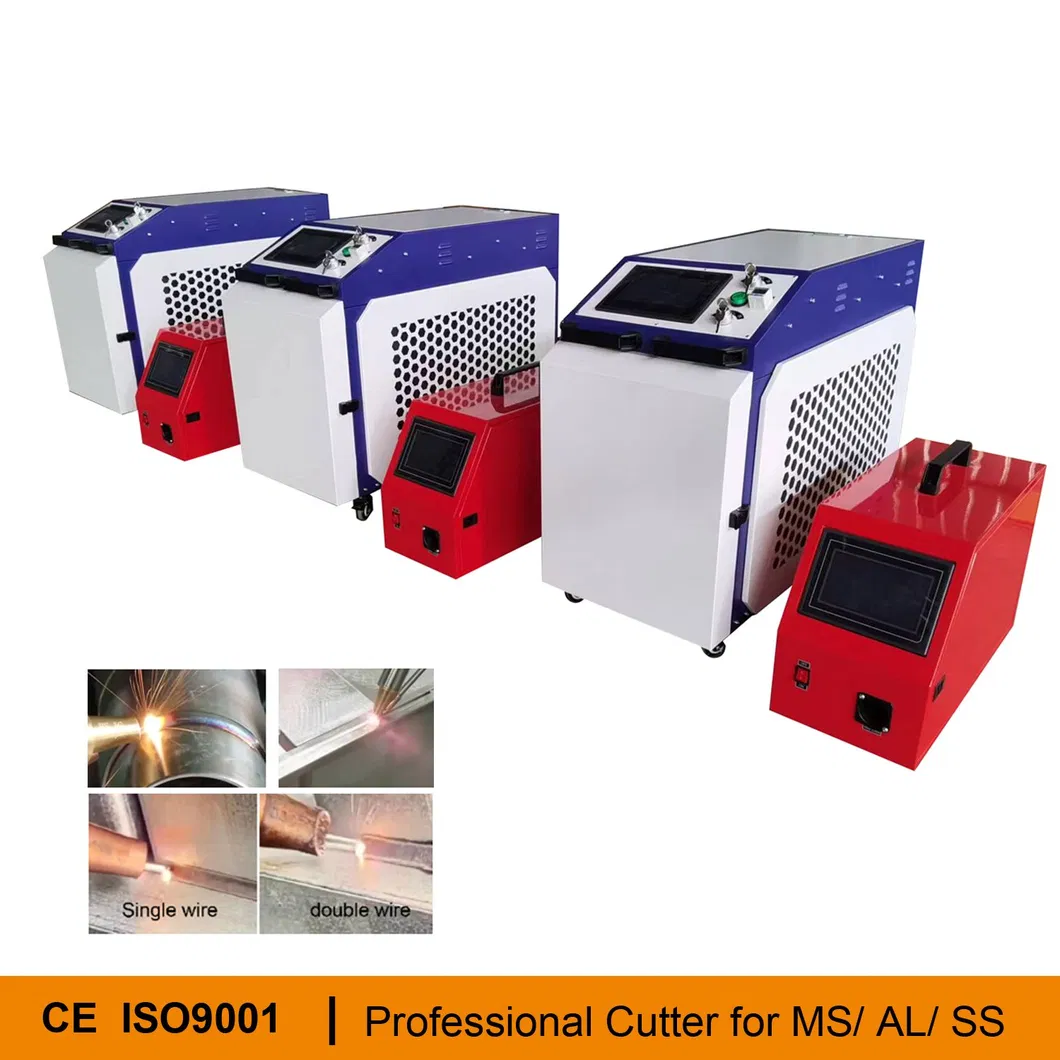

Welding Types & Effects

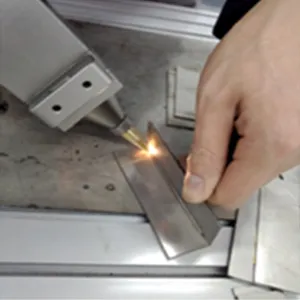

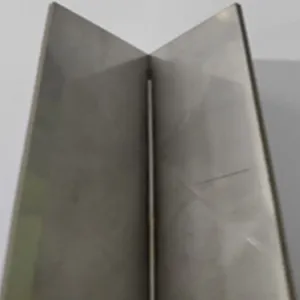

Fillet Vertical Welding

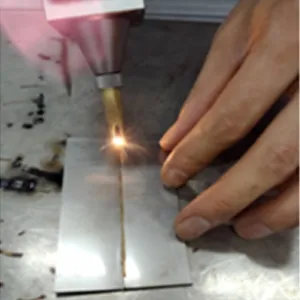

Tailor Flat Welding

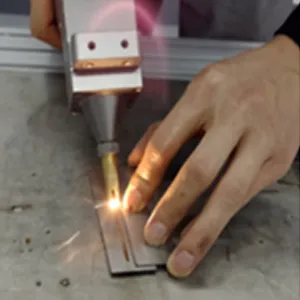

Overlap Welding

💎

Why Choose Us?

Over 10 years of professional production experience.
Dedicated after-sales support to solve technical issues promptly.
Direct manufacturer with ample stock of spare parts and consumables.
Supports customized OEM/ODM services.

📜

Certificates

❓

Frequently Asked Questions

Q1: Which materials can be welded with this machine? A: It is suitable for stainless steel, carbon steel, aluminum plate, copper, and other metal alloys.

Q2: How much faster is laser welding compared to traditional methods? A: Laser welding is 2 to 10 times faster than traditional argon arc or electric welding.

Q3: Is the machine difficult to operate for beginners? A: No, it is designed for ease of use. Most users can master the basic operation within 5 minutes without prior welding experience.

Q4: Does the machine require a wire feeder? A: A wire feeder is available and supports wire diameters of 0.8mm, 1.0mm, 1.2mm, and 1.6mm for gap filling.

Q5: What is the maintenance requirement for the laser source? A: Fiber lasers require very low maintenance, have a long service life, and use minimal consumables compared to traditional welding.

Q6: Can this machine be used for cutting as well? A: Yes, this is a 3-in-1 system that supports self-fusion welding, wire feeding, and cutting functions.
