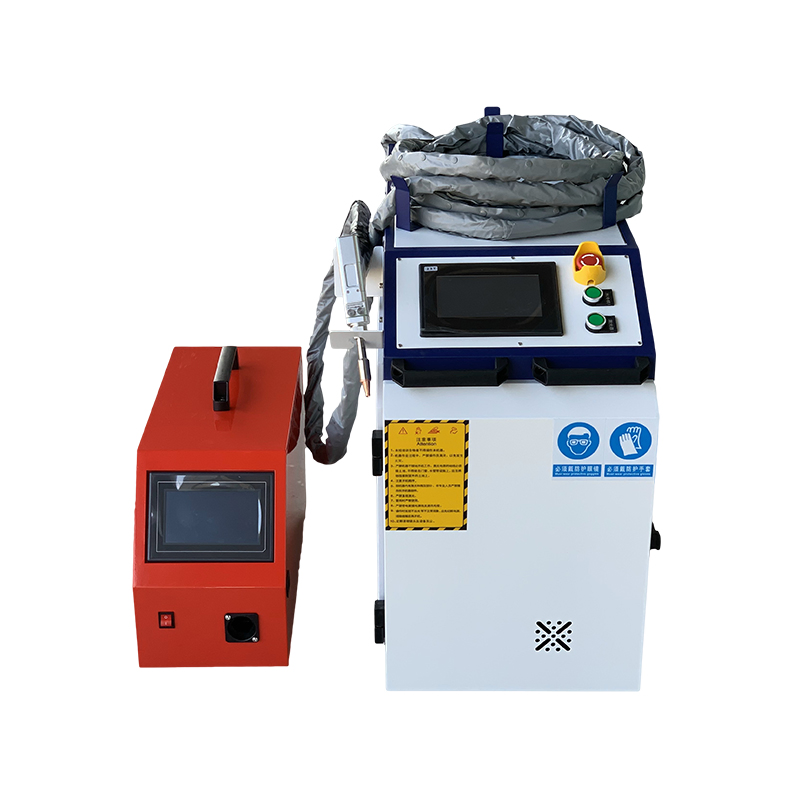

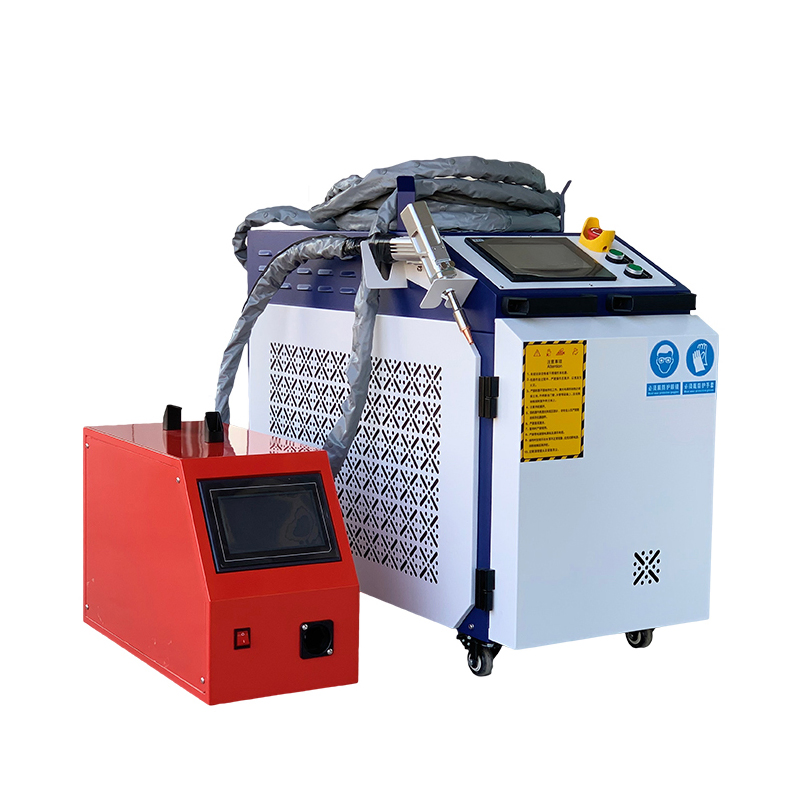

High-Power Handheld Laser Welding Gun for Metal Fabrication
High-Power Handheld Laser Welding Gun for Metal Fabrication
High-Power Handheld Laser Welding Gun for Metal Fabrication
High-Power Handheld Laser Welding Gun for Metal Fabrication
High-Power Handheld Laser Welding Gun for Metal Fabrication
1 / 5
High-Power Handheld Laser Welding Gun for Metal Fabrication
High-Power Handheld Laser Welding Gun for Metal Fabrication
High-Power Handheld Laser Welding Gun for Metal Fabrication
High-Power Handheld Laser Welding Gun for Metal Fabrication
High-Power Handheld Laser Welding Gun for Metal Fabrication

High-Power Handheld Laser Welding Gun for Metal Fabrication

Customization: Available
After-sales Service: Online Service
Warranty: 2 Years
Send Inquiry

Product Description

Handheld Laser Welding System

1500w 2000w 3000w High-Power Laser Welding Gun for Stainless Steel & Aluminum

Laser Welding System
Basic Info
Model
OM-W2000P
Power Density
2000W
Laser Type
Fiber Continuous Wave
Functions
4-in-1 (Welding, Cutting, Cleaning)
Wavelength
1080nm
Delivery Info
Dimensions
1120*530*1320mm
Gross Weight
170kg
Package
Plywood Case
Production
200 Units / Month

Product Specifications

Parameter Details
Laser Source2 kw (1kw, 1.5kw, 3kw optional)
Wire FeederIncluded (Standard for metal; special aluminum tube optional)
Fiber Length8m (Standard)
Cooling MethodIndustrial Water Cooling
Module Life100,000 Hours
Power Supply220V Single Phase

Recommended Power Settings:

1000W Stainless/Carbon steel 0-2mm, Aluminum 0-1.5mm
1500W Stainless/Carbon steel 0-3mm, Aluminum 0-2mm
2000W Stainless/Carbon steel 0-4mm, Aluminum 0-3mm
3000W Stainless/Carbon steel 0-6mm, Aluminum 0-4mm

Core Components & Features

Machine Detail 1

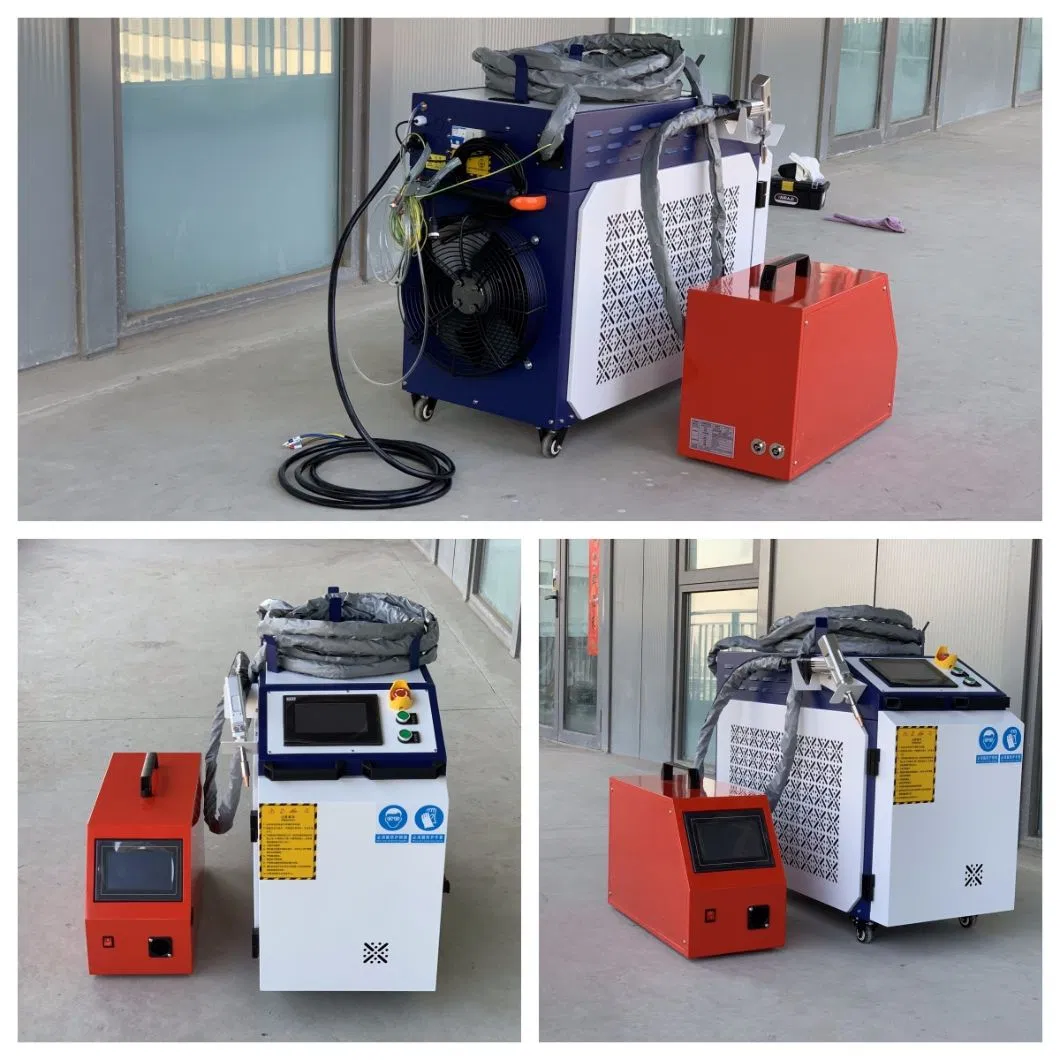

Machine Detail 2
  • Multifunction 4-in-1: Seamlessly switch between welding, cutting, cleaning, and weld seam cleaning.
  • High-Stability Laser Source: Utilizes premium brands like MAX, Raycus, or JPT for long-term reliability.
  • HD Smart Interface: Clear touch-enabled screen supporting 16+ languages for global accessibility.
  • Industrial Water Chiller: Integrated Hanli cooling system for high-efficiency and low-noise operation.
  • Precision Laser Head: Lightweight design (0.75kg) for flexible manual operation in complex areas.

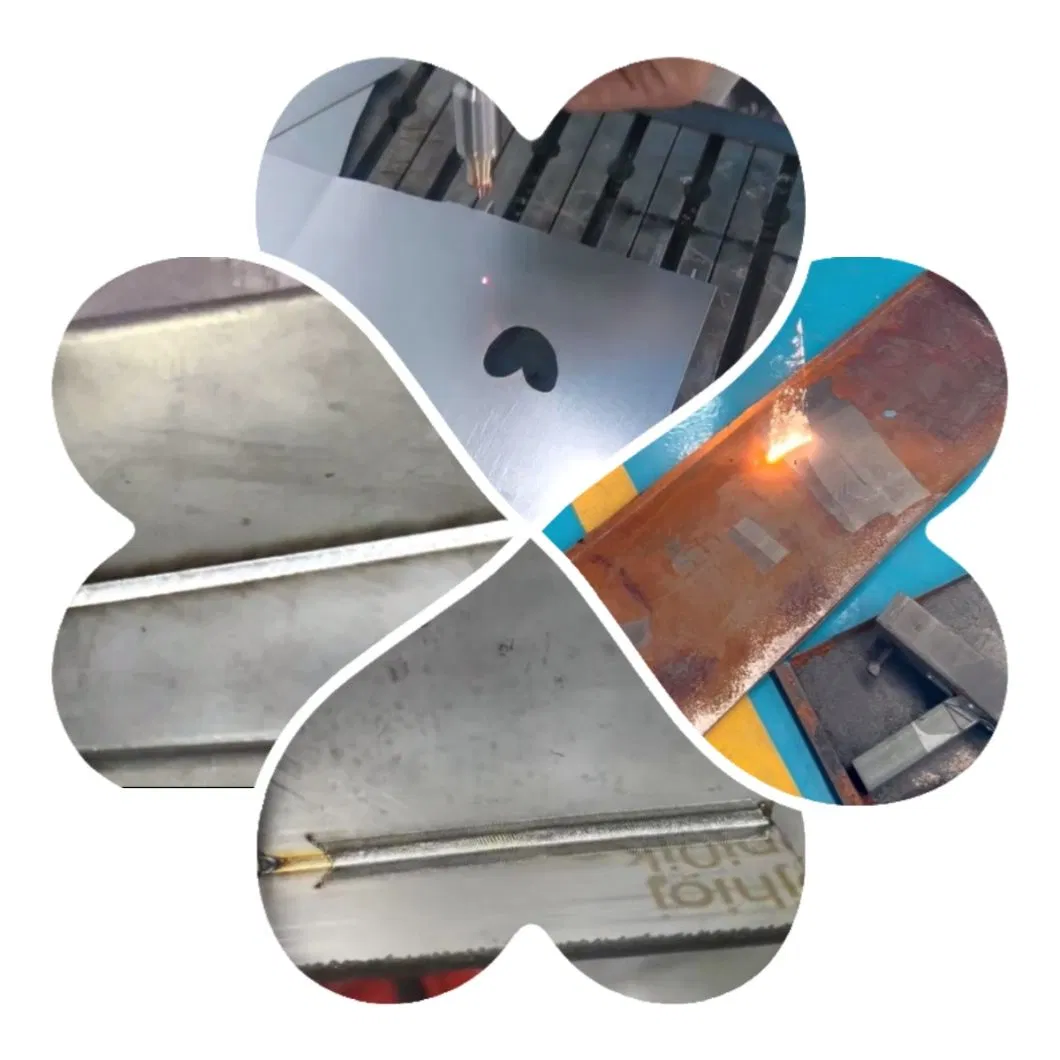

Process View

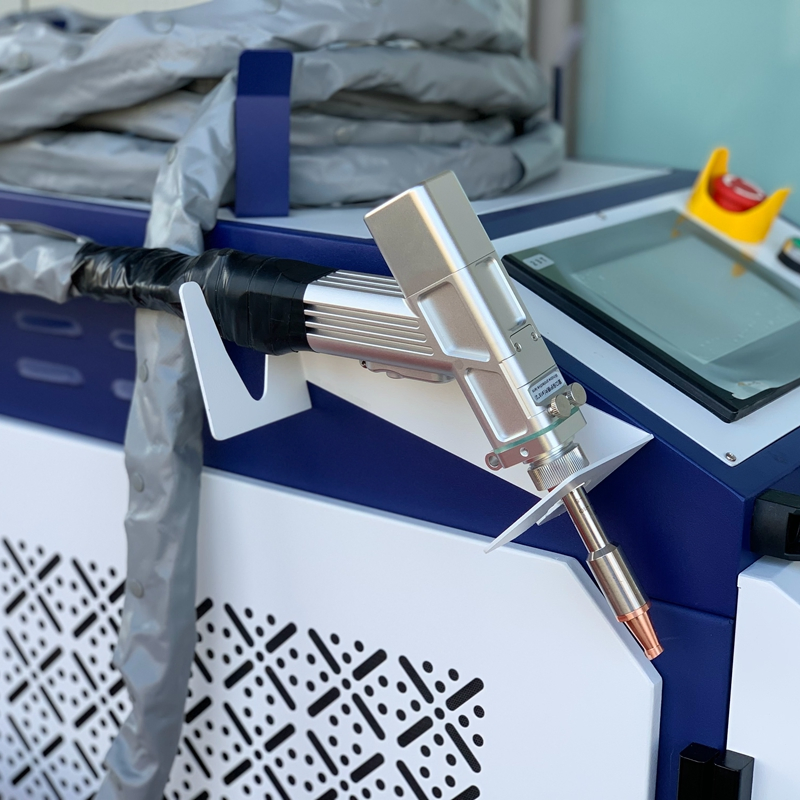

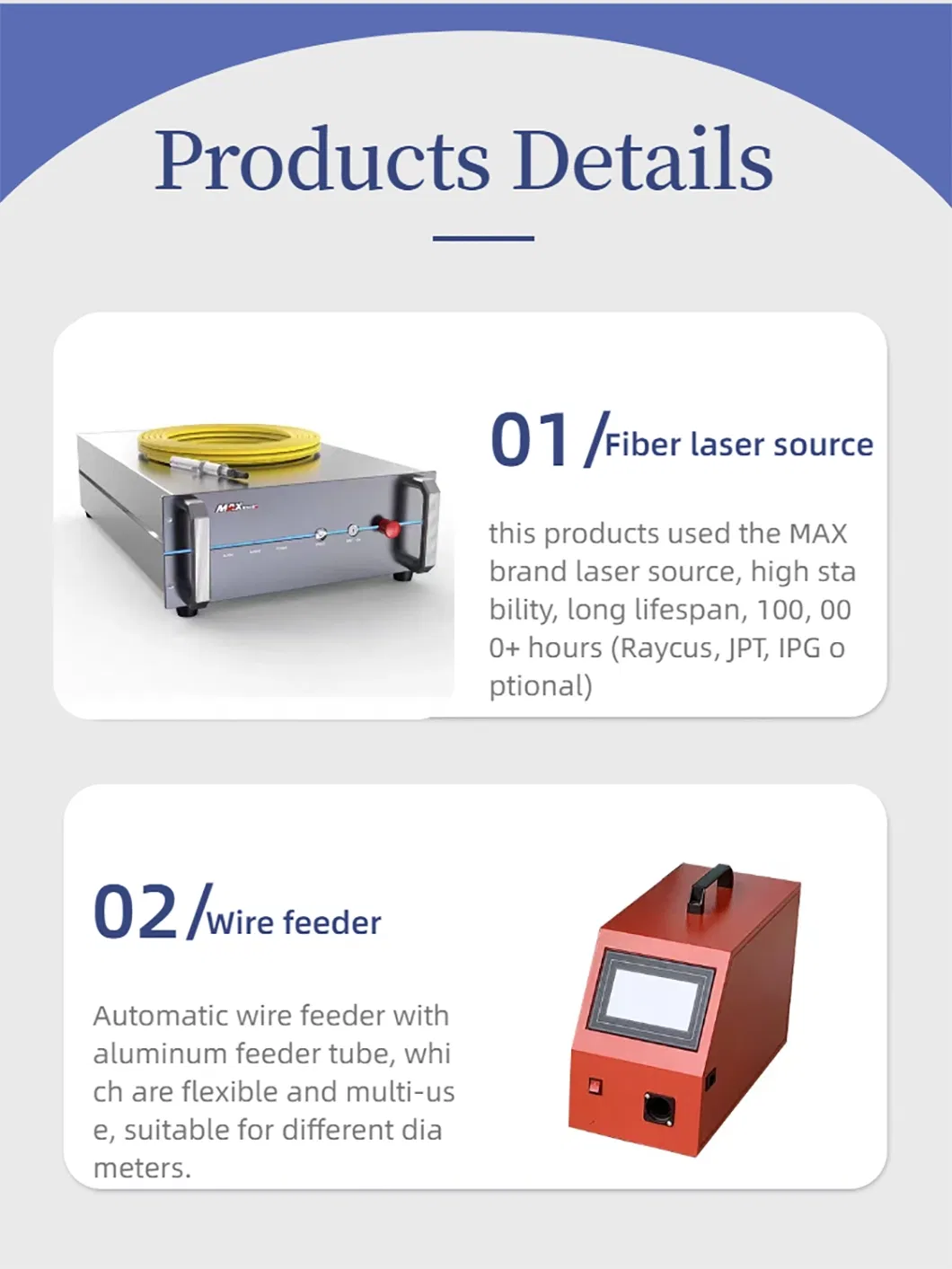

Laser Head Details

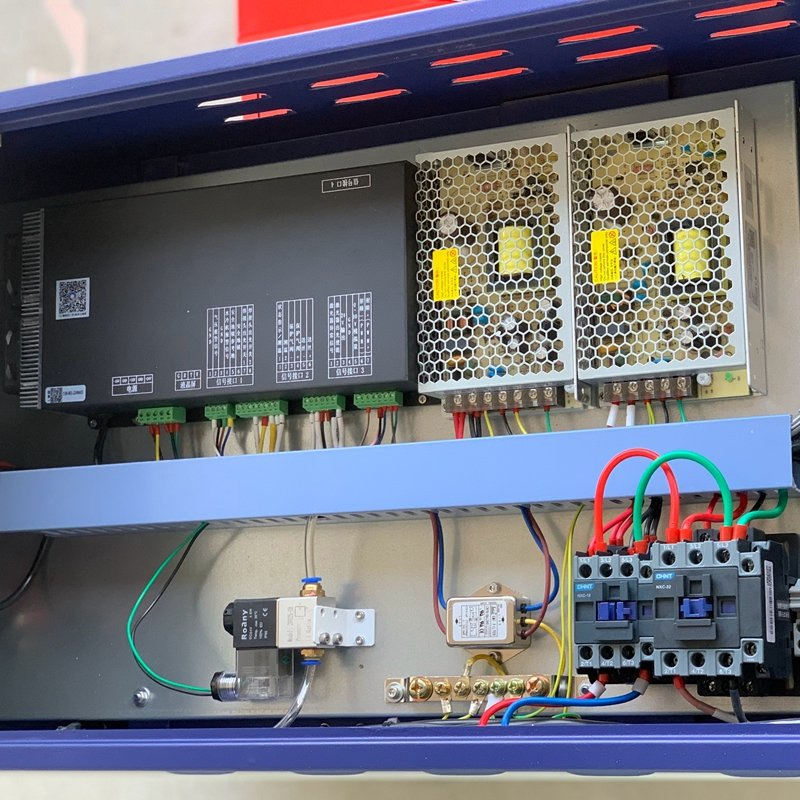

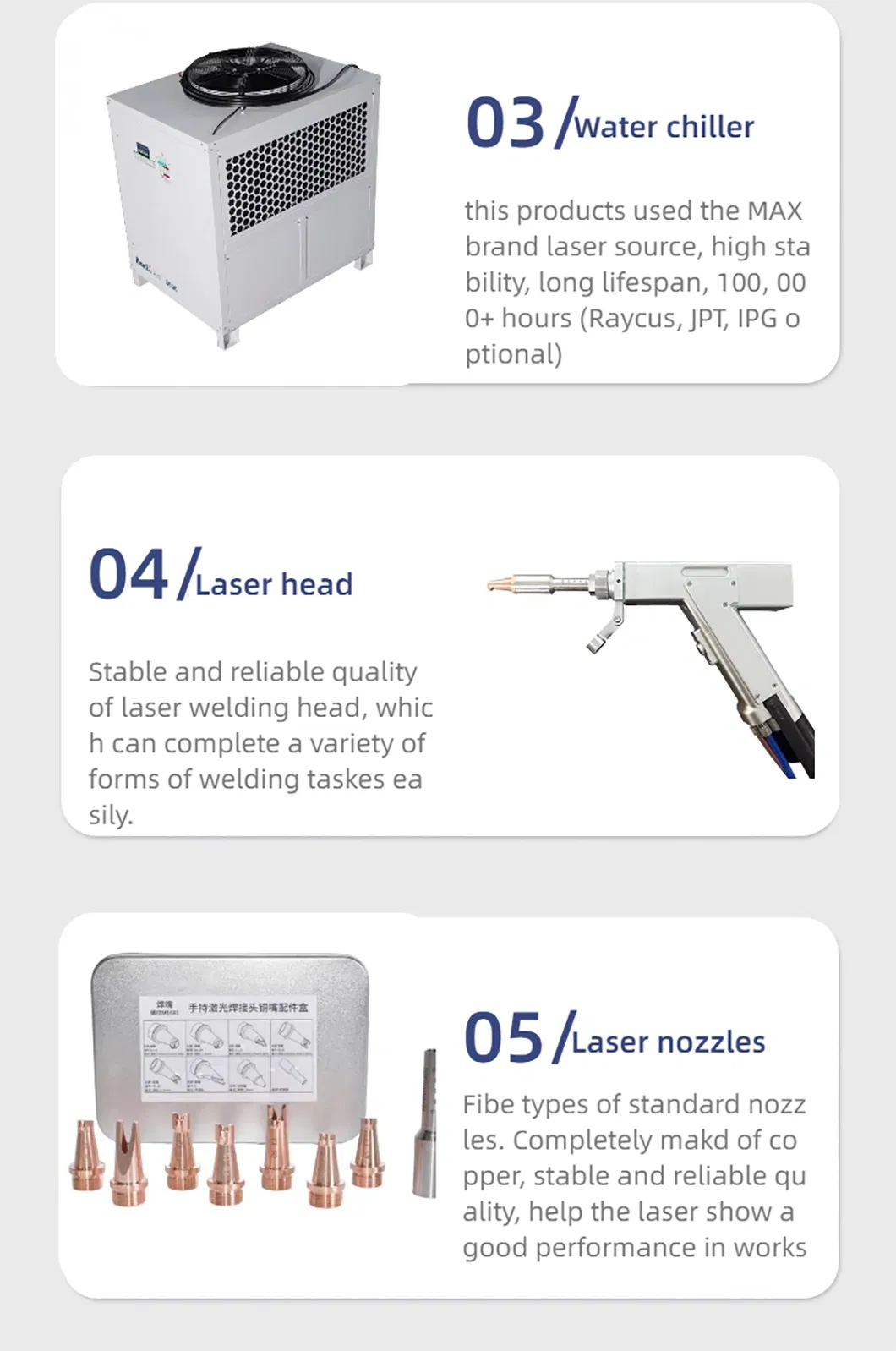

Components

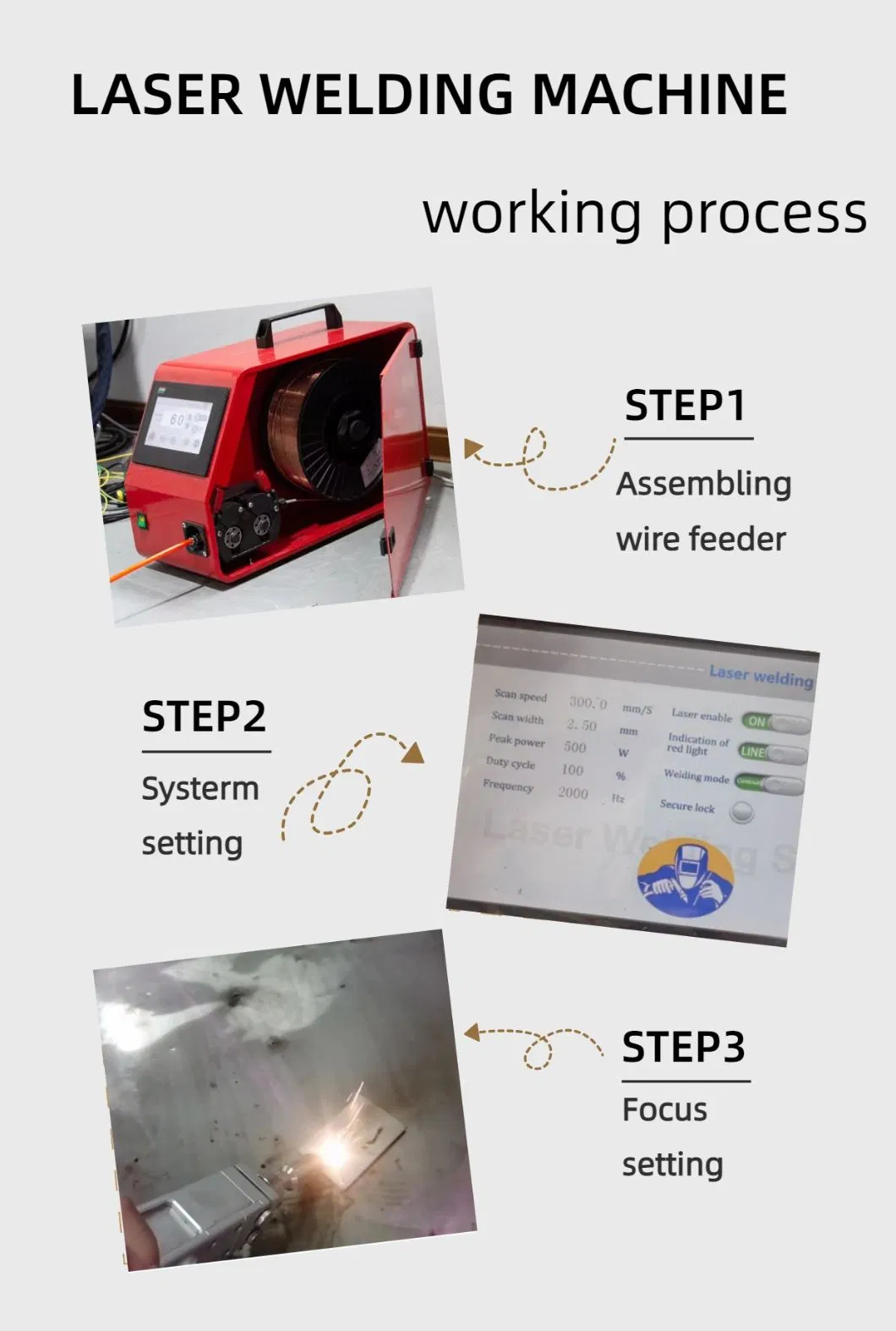

Installation & Operation

Step 1: Safety Setup
Wear PPE (goggles/gloves) and ensure a well-ventilated work area.

Step 2: Machine Alignment
Position on a flat surface and connect to a 220V single-phase power supply.

Step 3: Parameter Adjustment
Set laser power and frequency on the HD screen based on material thickness.

Step 4: Material Prep
Clean surfaces of rust or oil. Use the automatic wire feeder for gaps.

Step 5: Execution
Initiate welding via the control button. Monitor the weld pool for penetration.

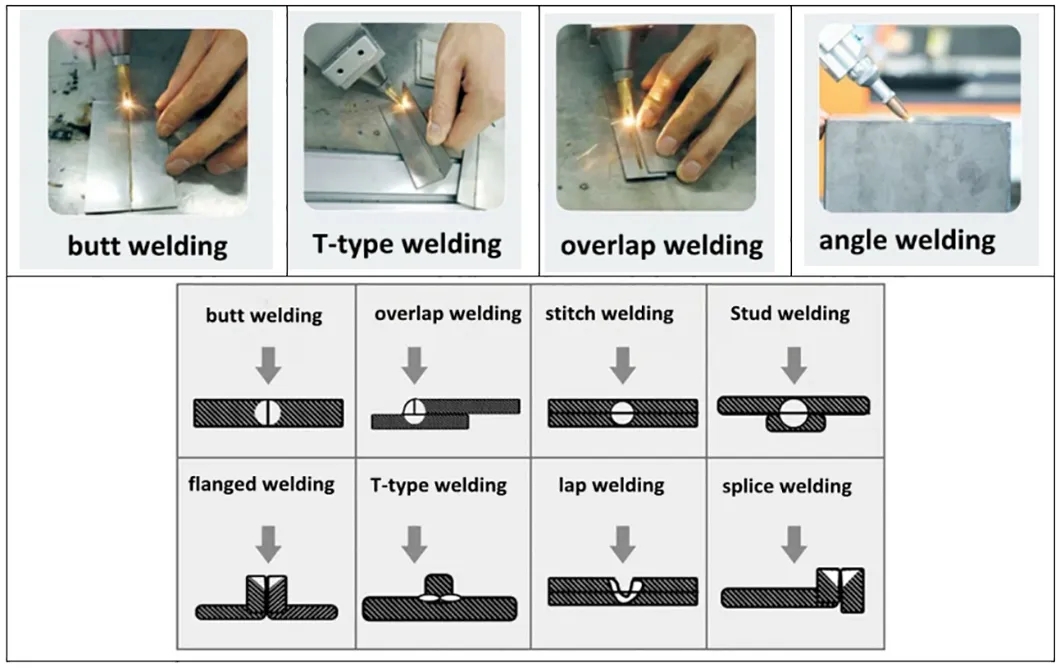

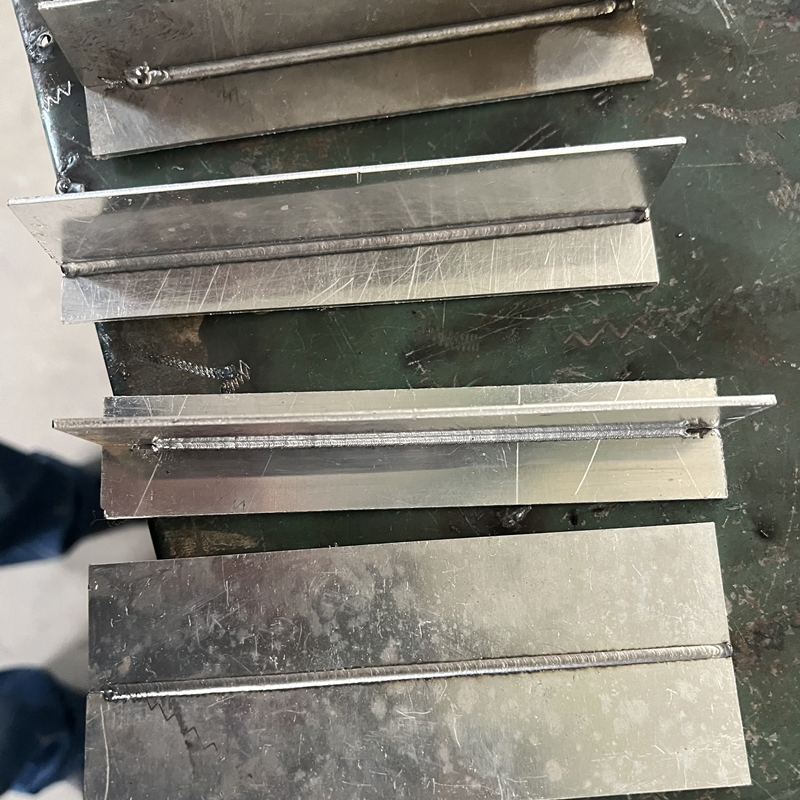

Welding Application Samples:

Butt welding, overlap welding, stitch welding, stud welding, flanged welding, T-type welding.

Welding Sample 1
Welding Sample 2

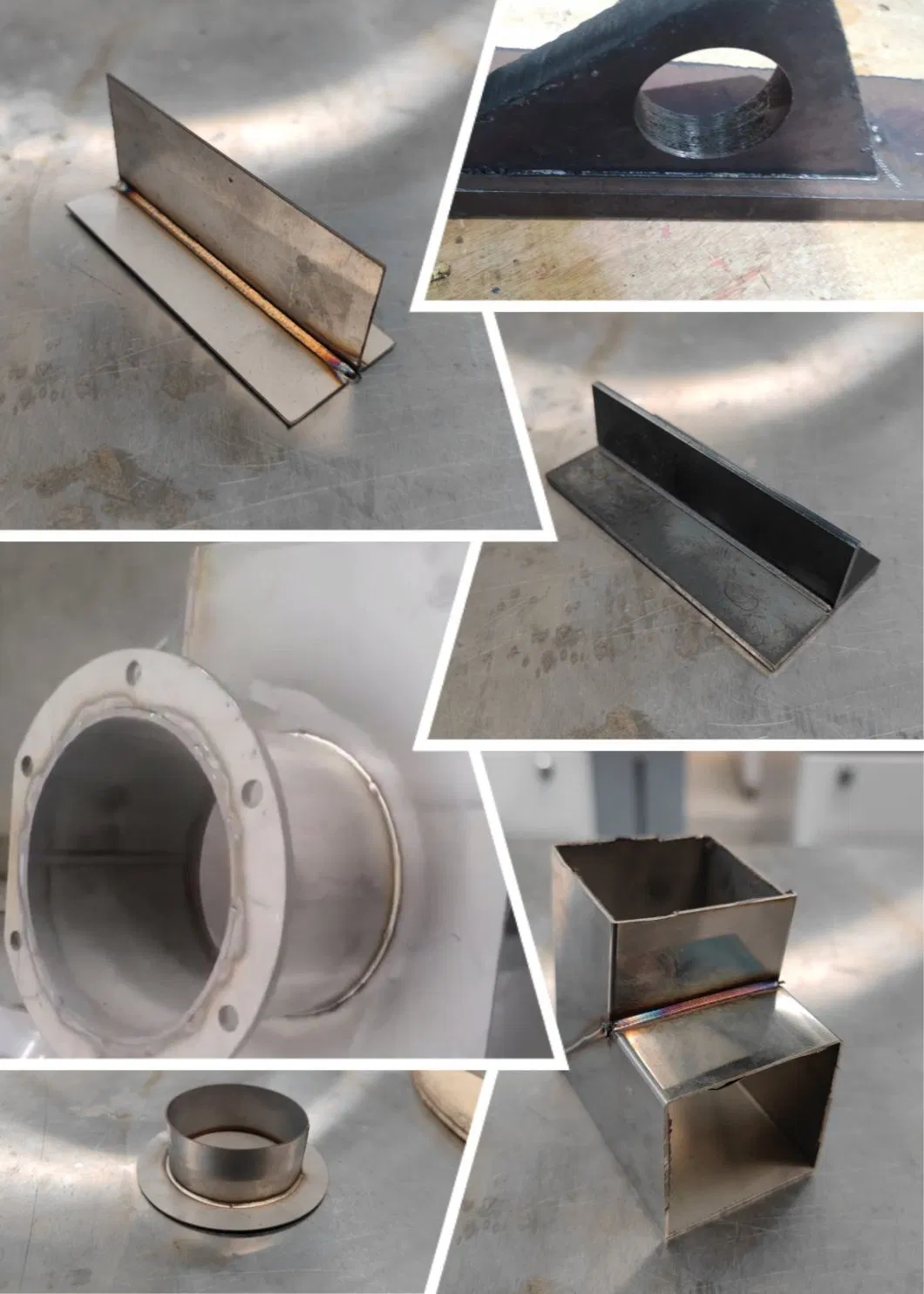

Welding Sample 3

Service & Support

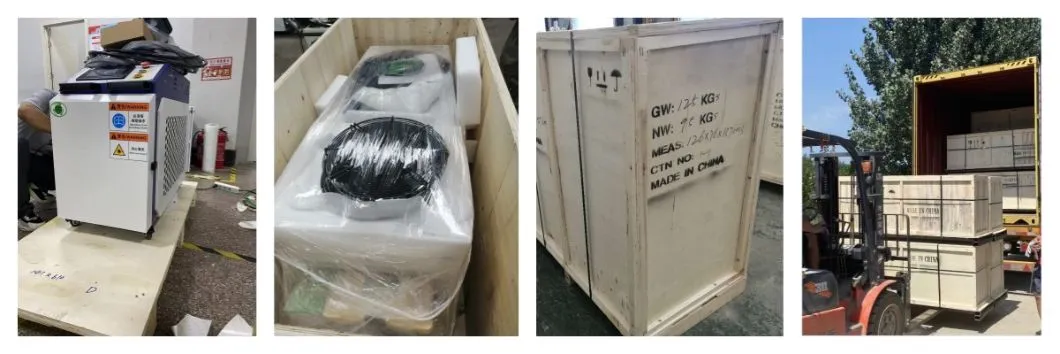

Packaging
  • 2-Year Warranty: Comprehensive coverage for the whole machine including the laser source.
  • Lifetime Technical Support: Expert assistance for troubleshooting and maintenance via online messages.
  • Instructional Materials: Detailed user manuals and step-by-step videos provided with every unit.
  • On-Site Service: Overseas training and installation assistance available.
Feedback
Certification

Frequently Asked Questions

What should I do if something goes wrong with the laser?
We provide a two-year warranty and offer free replacement parts for non-human-caused issues. Additionally, we provide free lifetime technical support.
How long does it take to learn the operation?
The system includes an English manual and videos. Most users grasp the basics within a few hours and become proficient within a few days.
Can the machine be customized?
Yes, we offer customization for machine appearance and branding to meet specific customer requirements.
What materials can this machine weld?
It is highly effective for stainless steel, carbon steel, galvanized sheet, and aluminum. Performance varies by power (1kW to 3kW).
What is included in the 4-in-1 function?
The machine is equipped to perform high-quality welding, precision cutting, surface cleaning (rust/paint removal), and weld seam cleaning.
What shipping options are available?
We offer shipping by sea, air, or express. We support various trade terms including FOB, CIF, EXW, and DDU.
