Au3lech Original Hc500p Handheld Laser Cleaning Head 500W Clean Gun

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
HC500P
Type
Laser Cleaning Head
Laser Gun Power
500W
Laser Gun Function
Cleaning
Customized
Non-Customized
Standard Component
Standard Component
Shipping
by Sea or Air
After-Sales
Online Support
Specification
0.8KG
HS Code
8481909000
D

Product Description

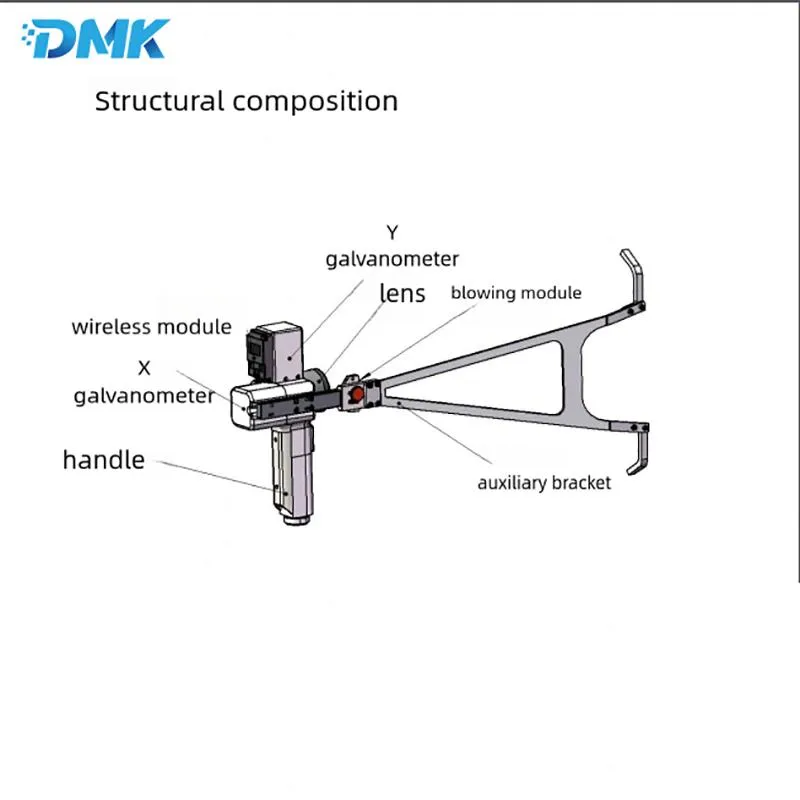

The HC500P is a dual mirror pulsed laser cleaning head that can be handheld or used in automated cleaning applications. It supports up to 500 watts of pulsed laser power and is available with QBH, QCS24 and QCS17 connectors. Excellent control, optics and gas circuit design allow for extremely fine cleaning results and significantly increased cleaning efficiency.
Parameters HC500P-QCS HC500P-QBH
Power Supply24V24V
Laser Power≤300W≤500W
Laser Adjustment10%-100% adjustable10%-100% adjustable
PWM Range1KHz-1MHz1KHz-1MHz
Fiber SocketQCS17/QCS24QBH with collimating lens
Focus Length210mm(160/254/330/420)210mm(160/254/330/420)
Head Weight≤0.8kg≤1.0kg
Scan Width0mm-180mm0mm-180mm
Max Scan Speed30m/s@FL420mm30m/s@FL420mm
Optics-materialsquartzquartz
Gas Screenequippedequipped
Cable Length5m10m
P

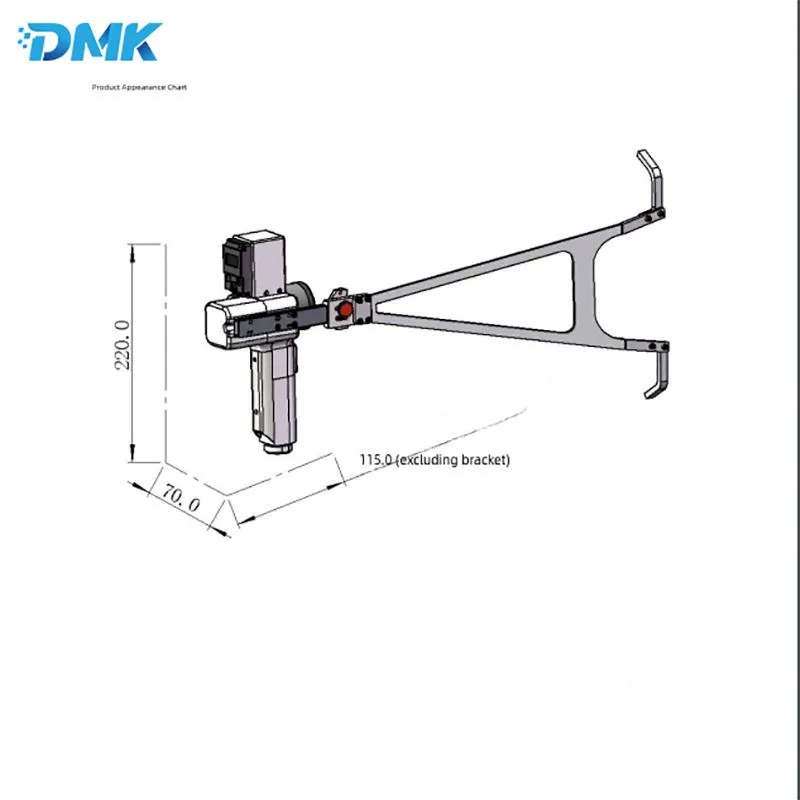

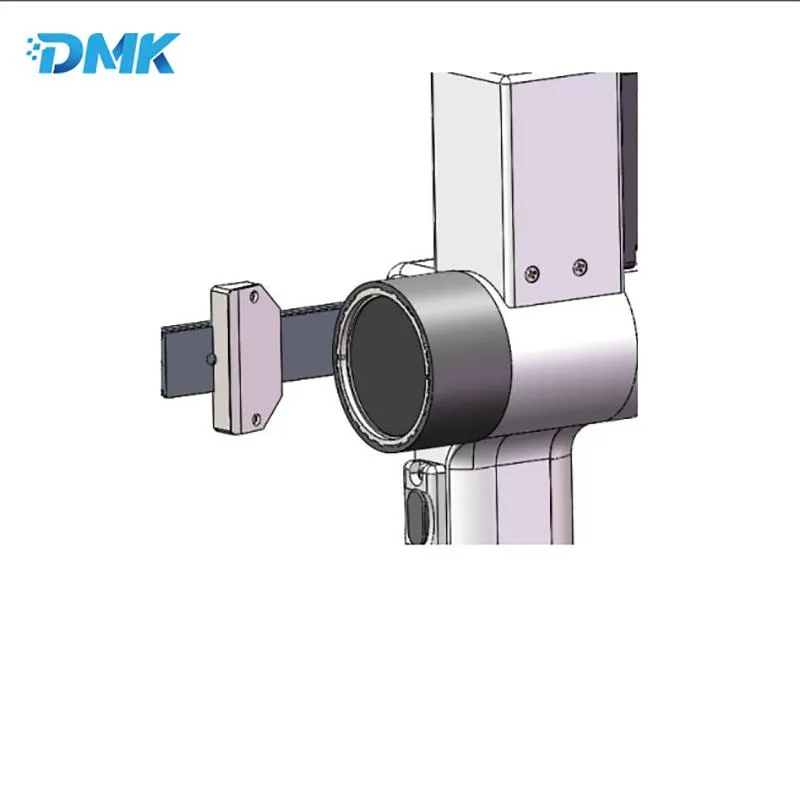

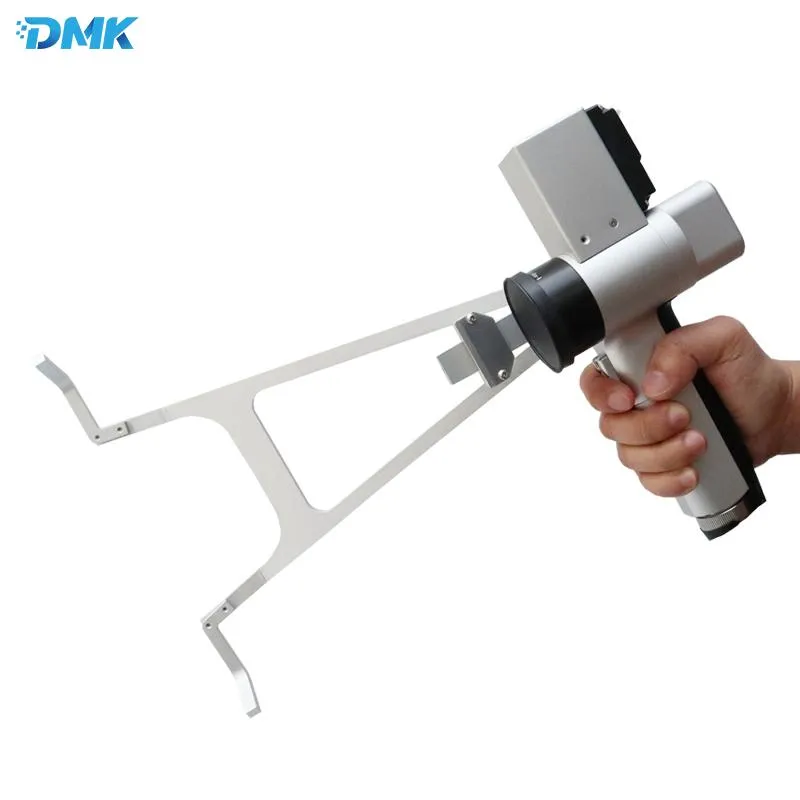

Detailed Photos

S

Packaging & Shipping

Package Size30.00cm * 30.00cm * 35.00cm
Package Gross Weight2kg
Lead Time15 Days
A

Our Advantages

Superior Finish: Provides a smooth and flat cleaning surface for high-precision results.
Versatile Control: Features a variety of oscillating light spots to suit different cleaning tasks.
Compact Integration: Equipped with an integrated controller for streamlined operation.
User-Friendly: Simple and friendly operation interface designed for efficiency.
?

FAQ & Safety Guidelines

1. What power requirements are necessary for operation?
Ensure reliable grounding before supplying power to the unit to prevent electrical damage or hazards.
2. How should the laser output head be maintained?
Check the laser output head carefully for dust or contamination. Use special lens paper for cleaning to protect the optics.
3. What are the consequences of improper equipment use?
If the equipment is not used according to the User's Manual, it may operate abnormally and cause permanent damage.
4. What precaution should be taken when replacing the protective lens?
Always ensure the environment is clean and the lens is properly protected during the replacement process.
5. What should I do during the first-time setup if no red light appears?
When using the unit for the first time, if the red light fails to emit from the copper nozzle, ensure that the light is not coming out before proceeding.
6. Is the HC500P compatible with automated systems?
Yes, the HC500P is designed to be versatile, supporting both handheld manual use and integrated automated cleaning applications.
