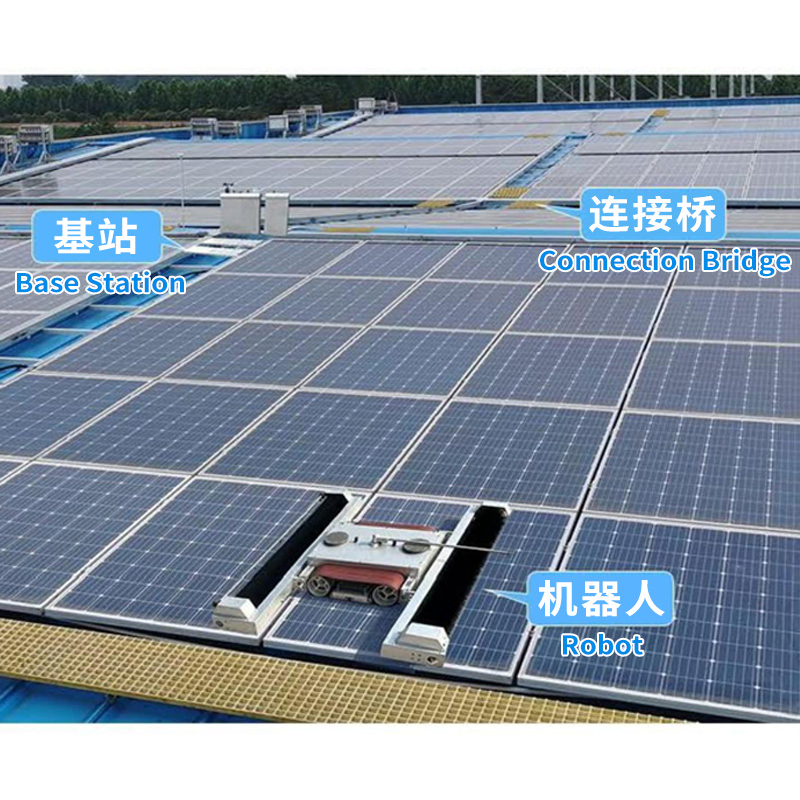

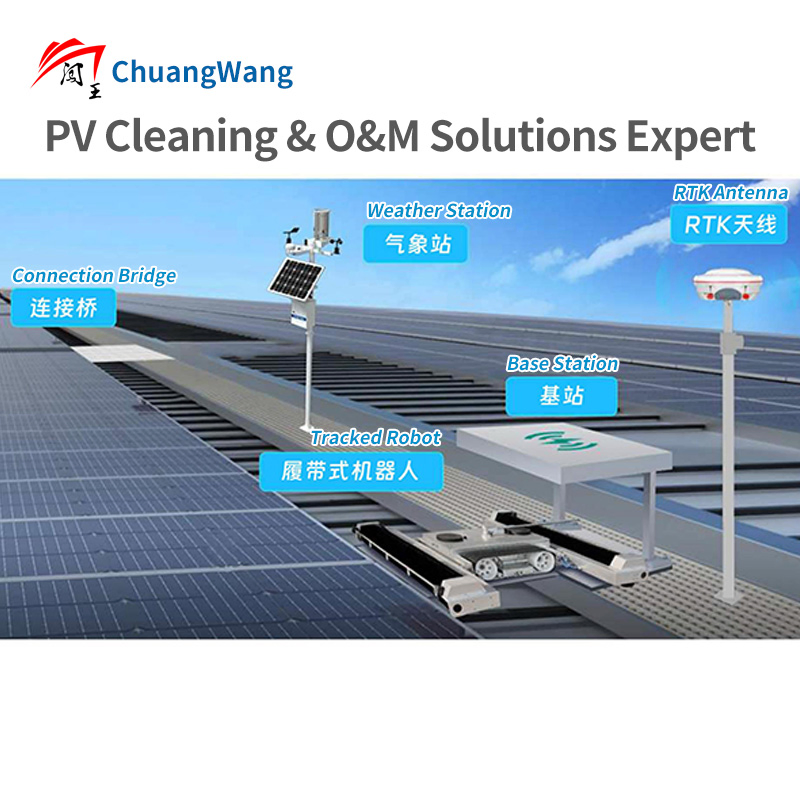

Crawler-Type Remote-Controlled Solar PV Panel Cleaner Cleaning Machine Robot with IP65 Protection Class

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Information

Model NO.
CW-PV-LDA
Clean Type
Clean-In-Place
Cleaning Process
Roller Brush Dry Cleaning
Control
Long-Range Control
Style
Crawler Style
Product Size
1180*1300*260mm
Battery Life
6-8 H
Battery Capacity
30ah
Cleaning Speed
0.2-0.3m/S (Adjustable)
Positioning Method
Rtk Differential Positioning
Cleaning Efficiency
600-800m/H
Design Lifespan
More Than 8 Years
Weight
36kg
Protection
IP65 / Ultrasonic Radars
Trademark
chuangwang
Origin
China
🤖

Product Description

Fully Automatic Tracked Photovoltaic Cleaning Robot
A high-quality solution for professional photovoltaic cleaning and operation and maintenance. Designed with the core concept of "unmanned, intelligent, safe and efficient".
Equipped with Beidou RTK differential positioning technology, the robot can achieve centimeter-level autonomous path planning and intelligent navigation, with a positioning accuracy of ±2cm. It supports APP-customized tasks and can operate unattended for 24 hours. The cleaning speed is adjustable between 0.2~0.3m/s, with efficiency as high as 600-800 square meters per hour.

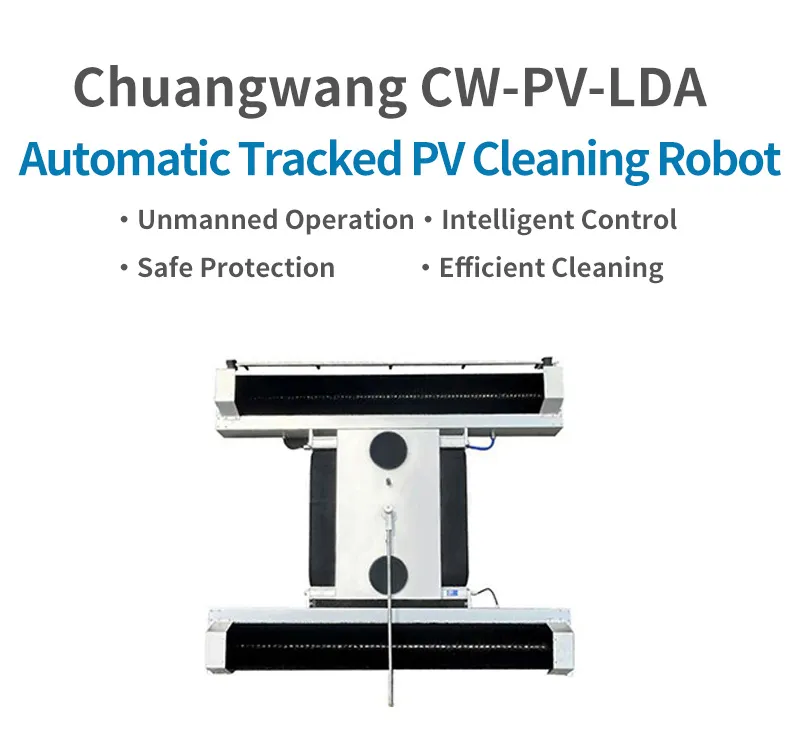

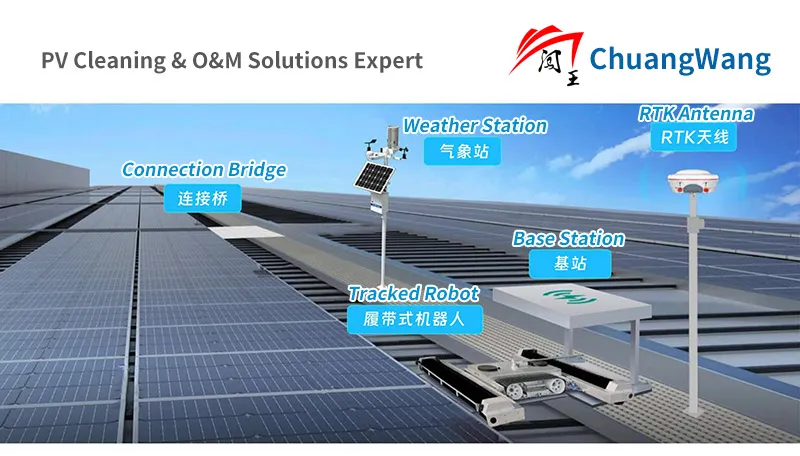

Photovoltaic Cleaning Robot Overview Cleaning Robot Technical Detail

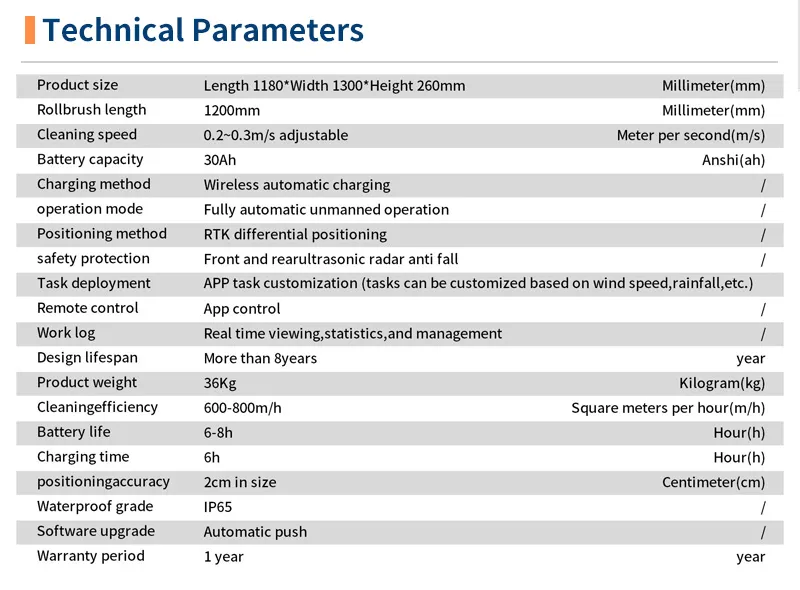

Operation View Tracked System
In terms of safety protection, the robot is equipped with front and rear ultrasonic radars, which can intelligently identify the edges of power stations and prevent the risk of falling. Its all-aluminum alloy body and IP65 dustproof/waterproof design allow it to adapt to complex scenarios like rooftops, deserts, mountains, and fishery-solar projects.
🏗️

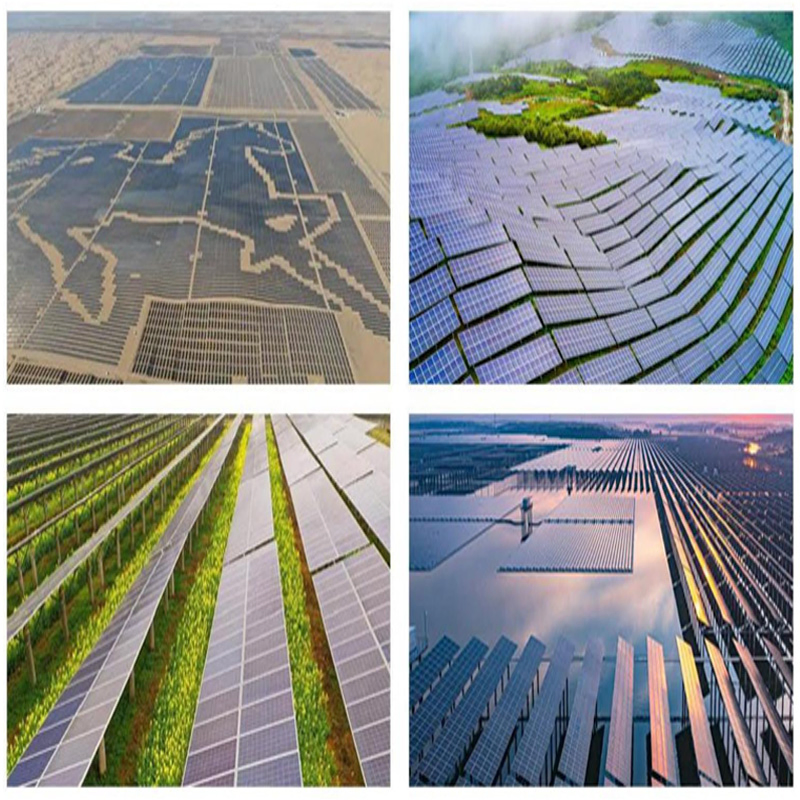

Project Cases

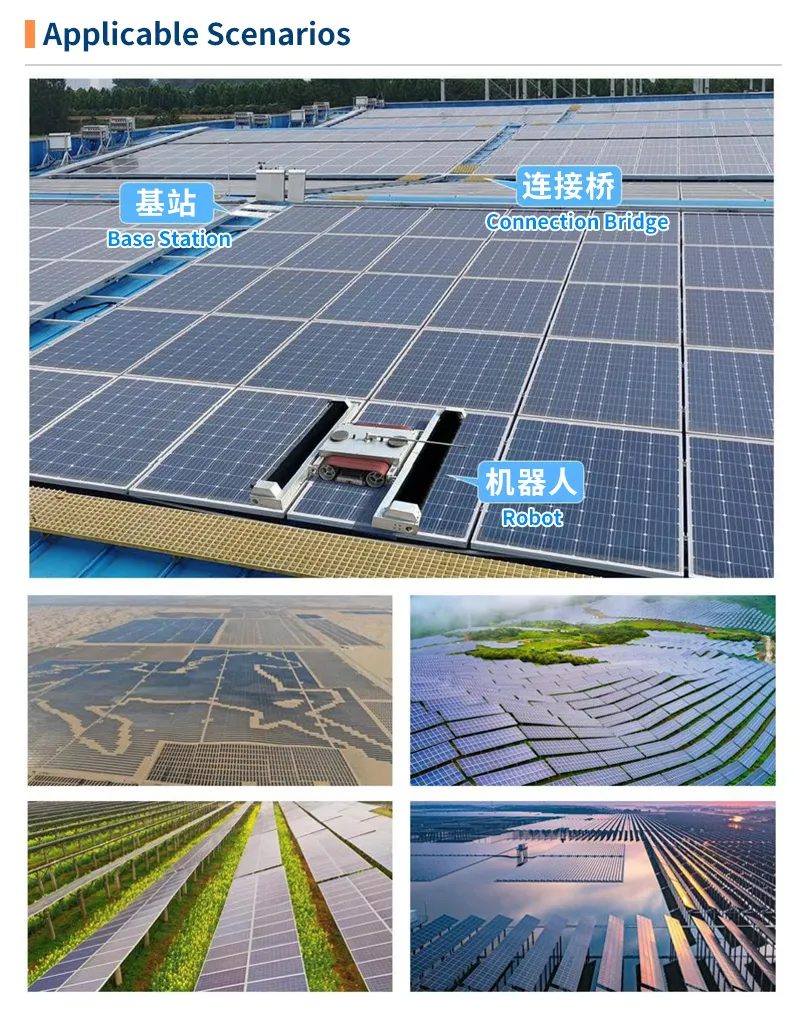

Field Project Case
The robot features a 30Ah battery and wireless automatic charging. It can automatically recharge when the battery is low and realize breakpoint resume cleaning. The single-charge battery life is 6-8 hours, with a 6-hour charging time. Users can manage work logs and deploy tasks via a dedicated APP.
🖼️

Product Display

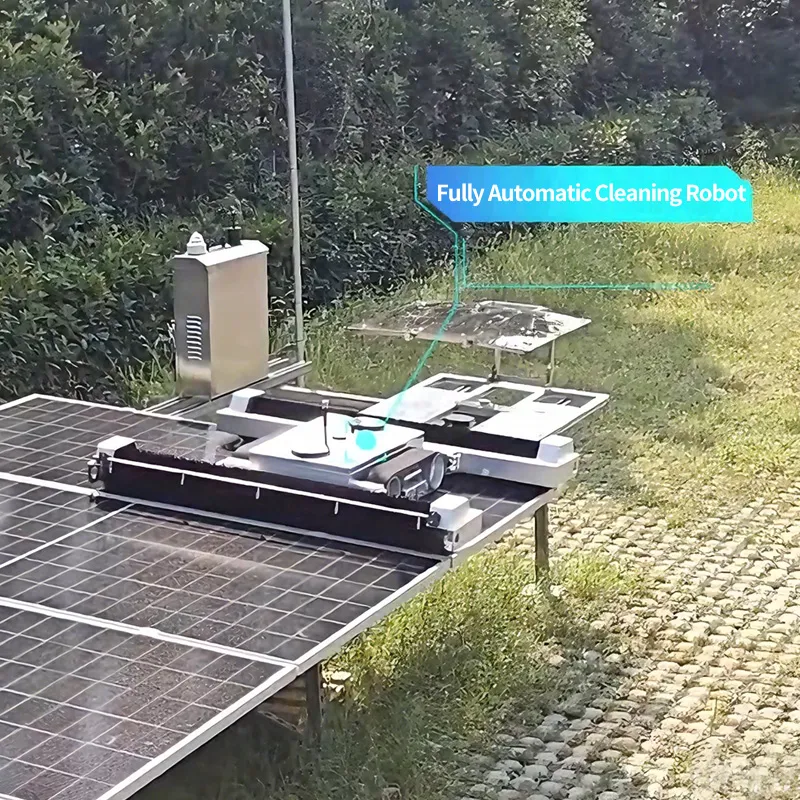

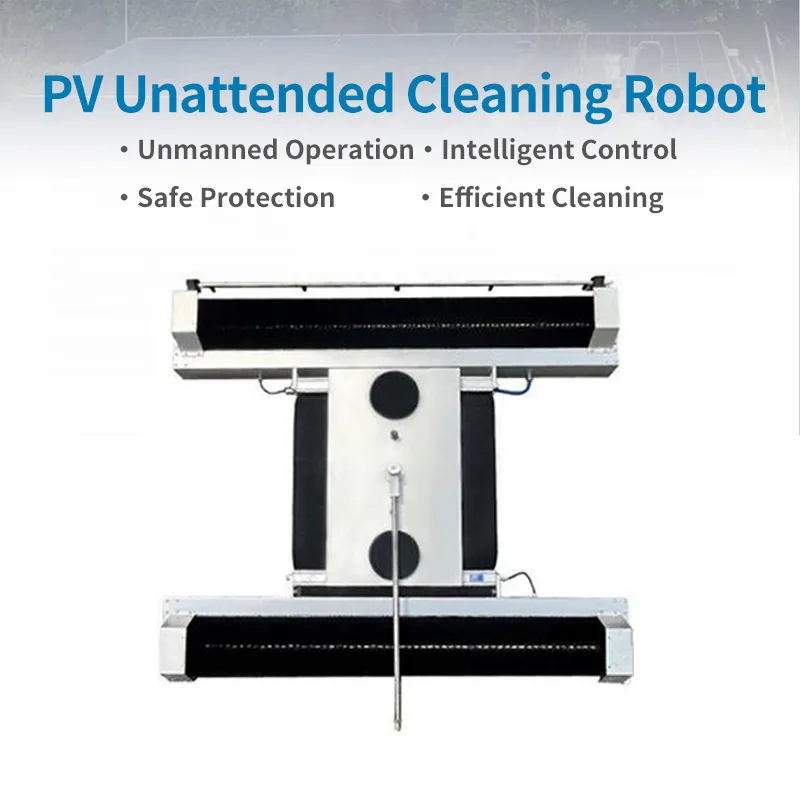

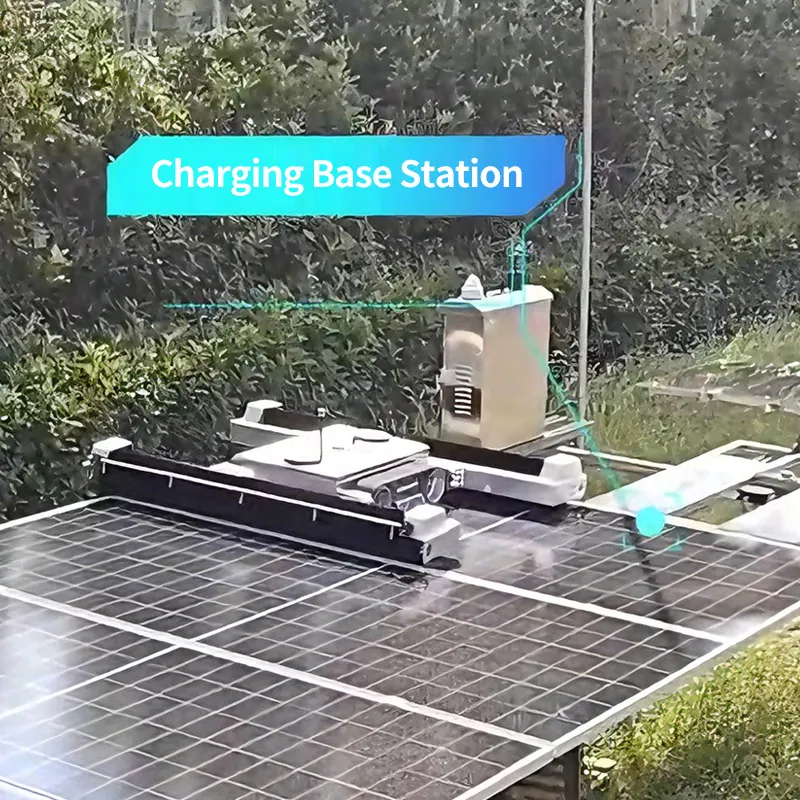

Product Display 1 Product Display 2 Product Display 3

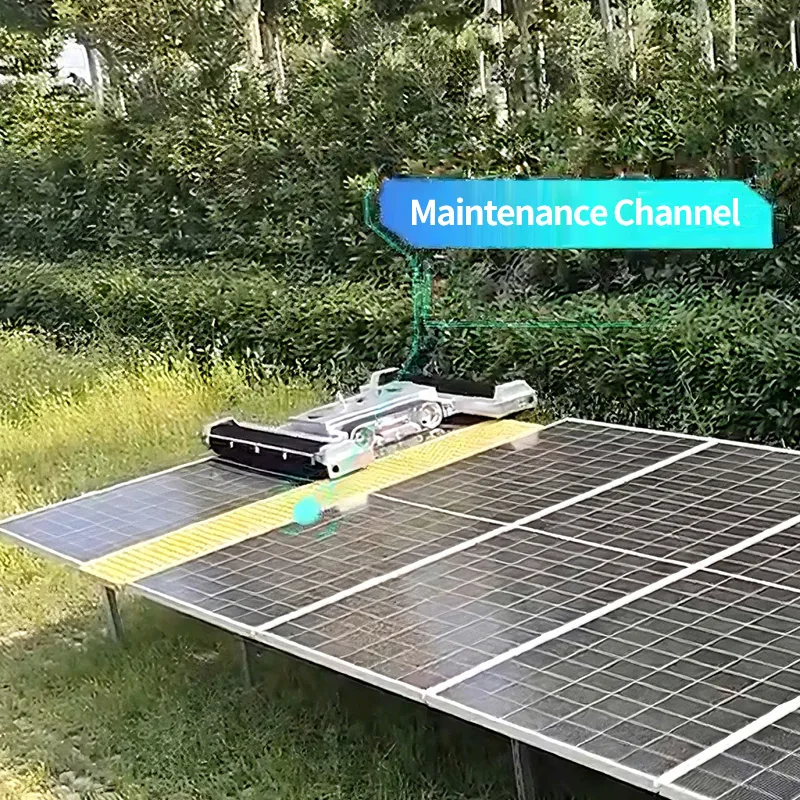

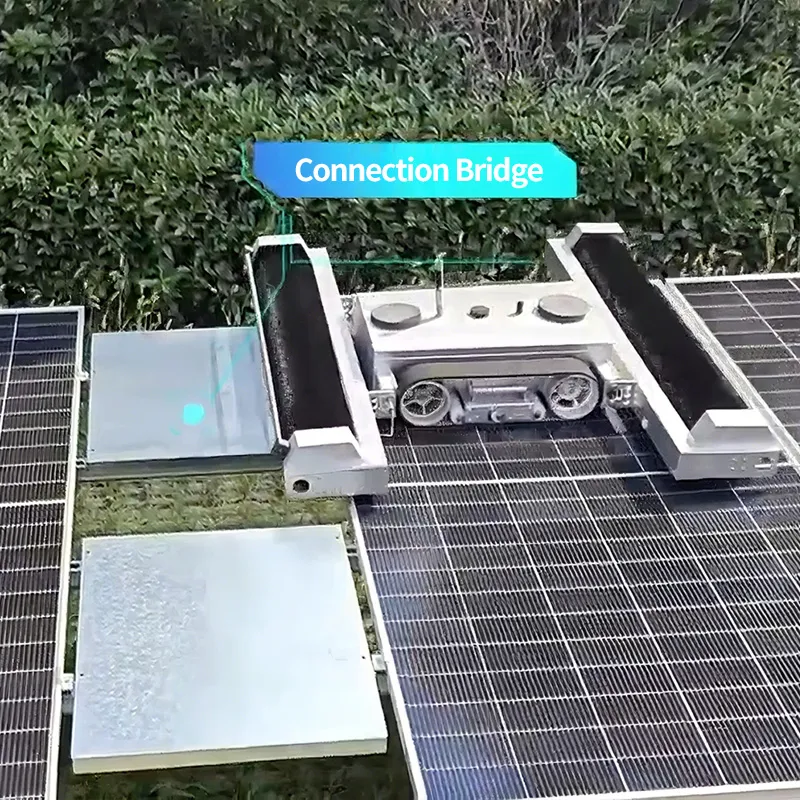

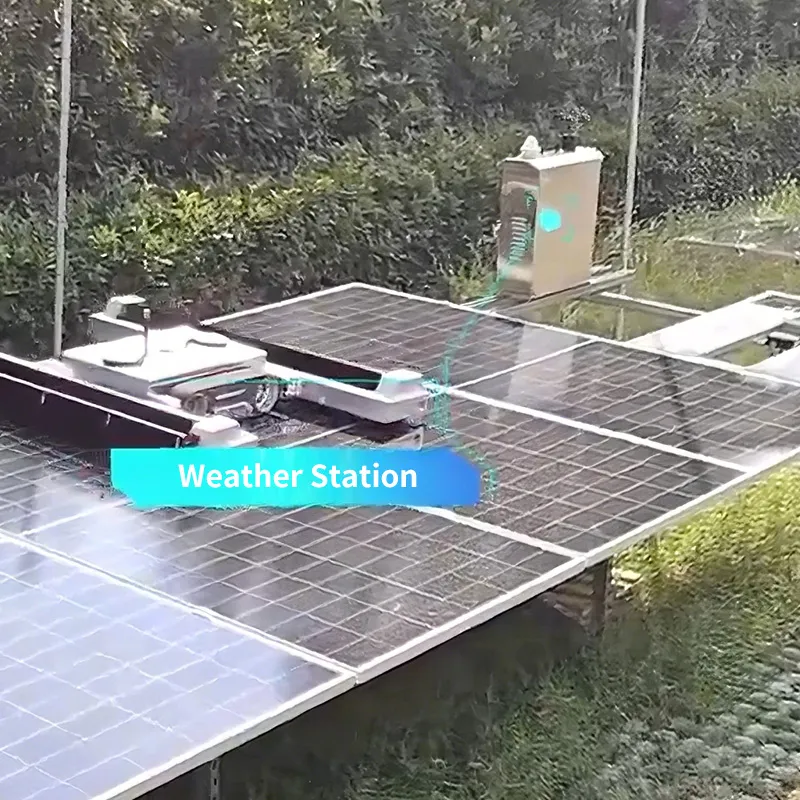

Product Display 4 Product Display 5 Product Display 6

Frequently Asked Questions

How long is the warranty period?
The warranty period is 2 years, providing comprehensive support for your operations.
Do you accept customized logos?
Yes, we provide both OEM and ODM services to meet customer branding requirements.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set, allowing for flexible adoption for projects of any size.
What are the accepted payment terms?
We accept payment via T/T (Telegraphic Transfer) and Western Union.
What is the typical lead time for an order?
Generally, the lead time is 20-30 days, depending on the specific order quantity.
What packaging standards do you follow?
We use export standard wooden boxes or special packaging according to the customer's specific requirements to ensure safe transport.
