Mobo Robot
1 / 5

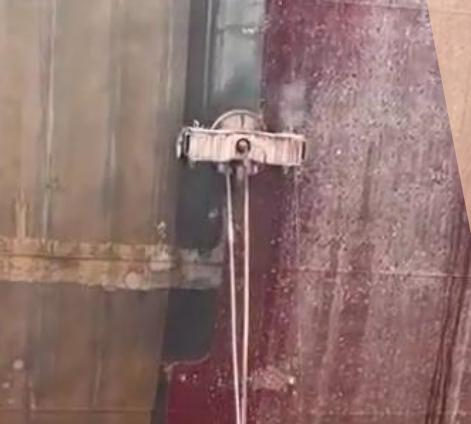

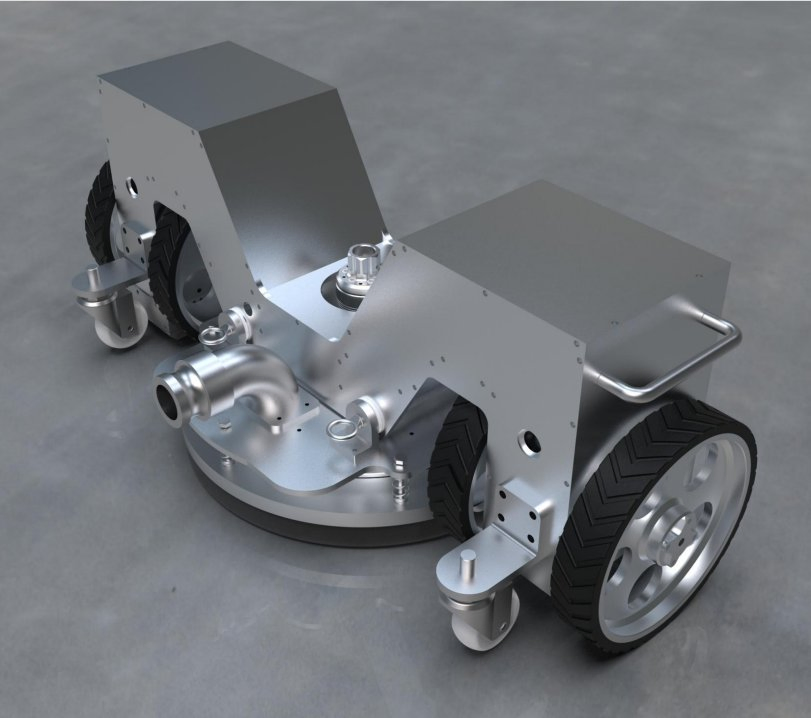

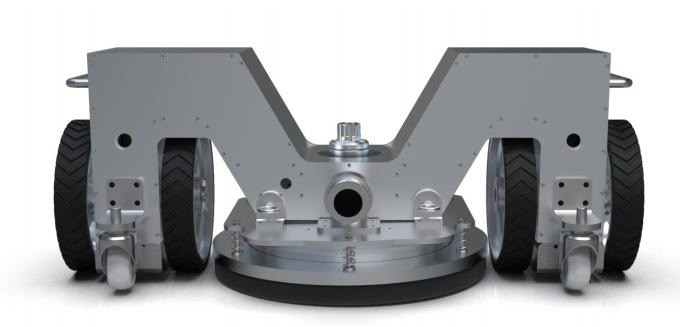

This robot is a new product developed with high efficiency and easy operation for cleaning hull, which crawls through the hull by the suction of strong magnets. A total of 16 nozzles are integrated into the chassis, delivering pressure up to 40,000psi. It enables comprehensive mobile robot cleaning in all directions.

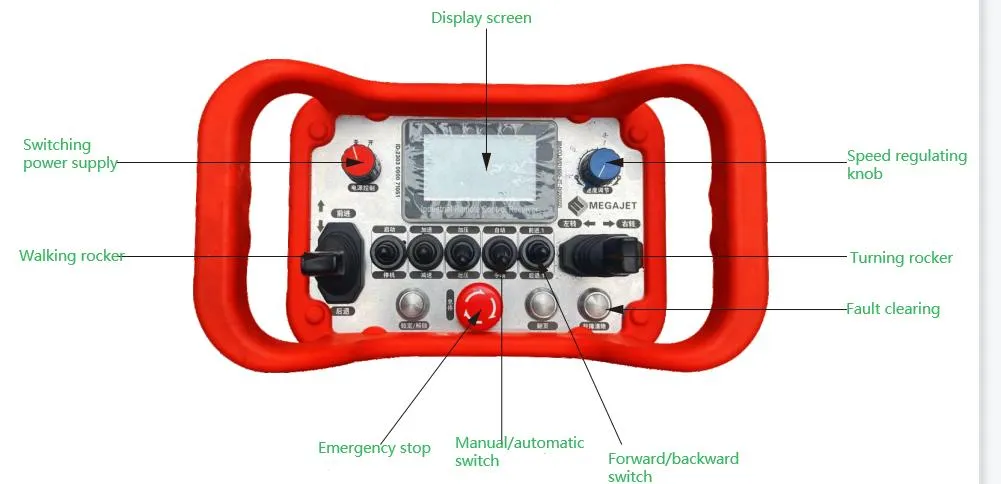

The machine's direction is managed via remote control, moving on a stable two-wheel system. A Brushless DC motor provides the necessary power, serving as an advanced alternative to traditional manual cleaning methods.

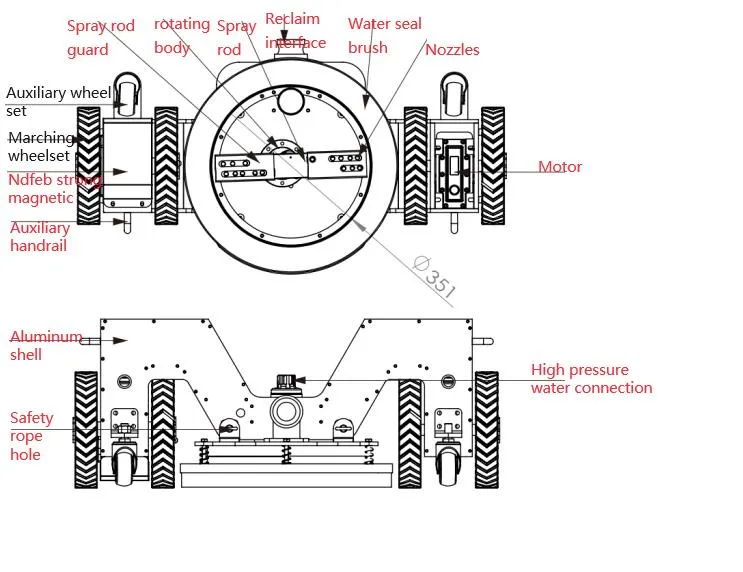

| NO | Name | Specification | Unit | Quantity |
|---|---|---|---|---|
| 1 | Ndfeb strong magnetic | ------- | Set | 2 |
| 2 | Marching wheelset | φ200mm | PC | 2 |
| 3 | Spray rod | Megajet 40K | PC | 1 |
| 4 | Nozzle | Megajet 40K | PC | 16 |
| 5 | Rotating body | Megajet 40K | Set | 1 |
| 6 | Water seal brush | ------- | Set | 1 |
| 7 | Brushless DC reducer motor | 48V 750W | Set | 2 |
| 8 | Power cord | 50 meters | PC | 1 |
| 9 | Signal receiver | ------- | Set | 1 |
| 10 | Wireless remote control | ------- | Set | 1 |
| 11 | Auxiliary handrail | ------- | Set | 1 |
| 12 | Aluminum shell | ------- | Set | 1 |
| 13 | Signal line | 50 meters | PC | 1 |
| NO | Model | MJ-330C |
|---|---|---|

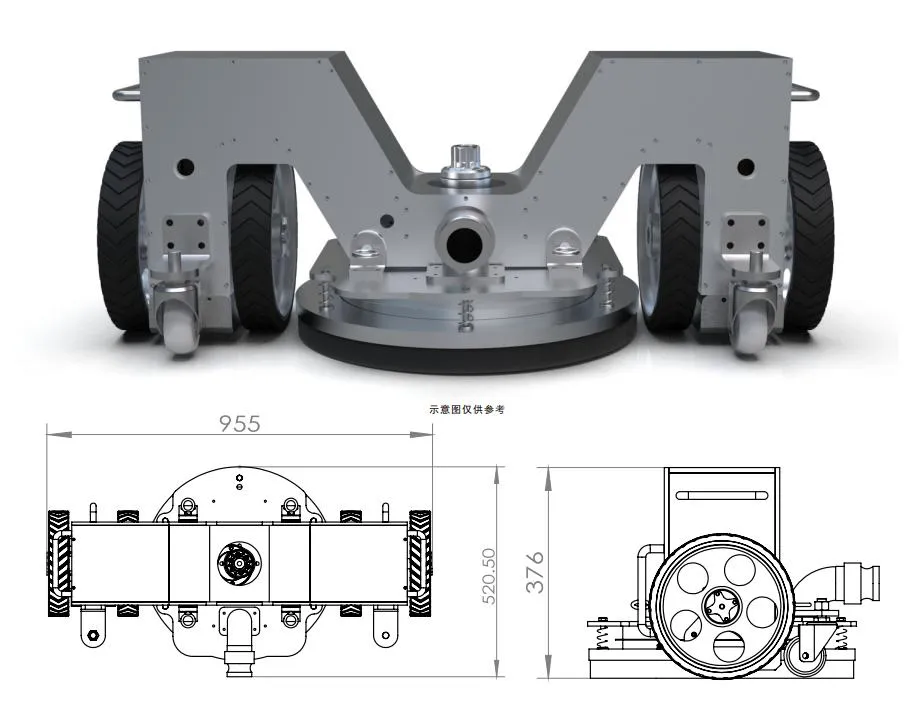

| 1 | Size | 955*520*376mm |
| 2 | Weight | 80KG |
| 3 | Cleaning width | 330mm |
| 4 | Rated power | 750W*2 |
| 5 | Maximum load | 100Kg |
| 6 | Maximum operating speed | 0-11M/Min |
| 7 | Rust removal efficiency | 30-50 m²/h |
| 8 | Maximum working flow | 45L/Min |
| 9 | Operating voltage | 48V |
| 10 | Level of protection | IP55 |
| 11 | Walking mode | Dual wheel independent drive |
| 12 | Control mode | Remote control |
| 13 | Remote control distance | 500m (Open space) |
