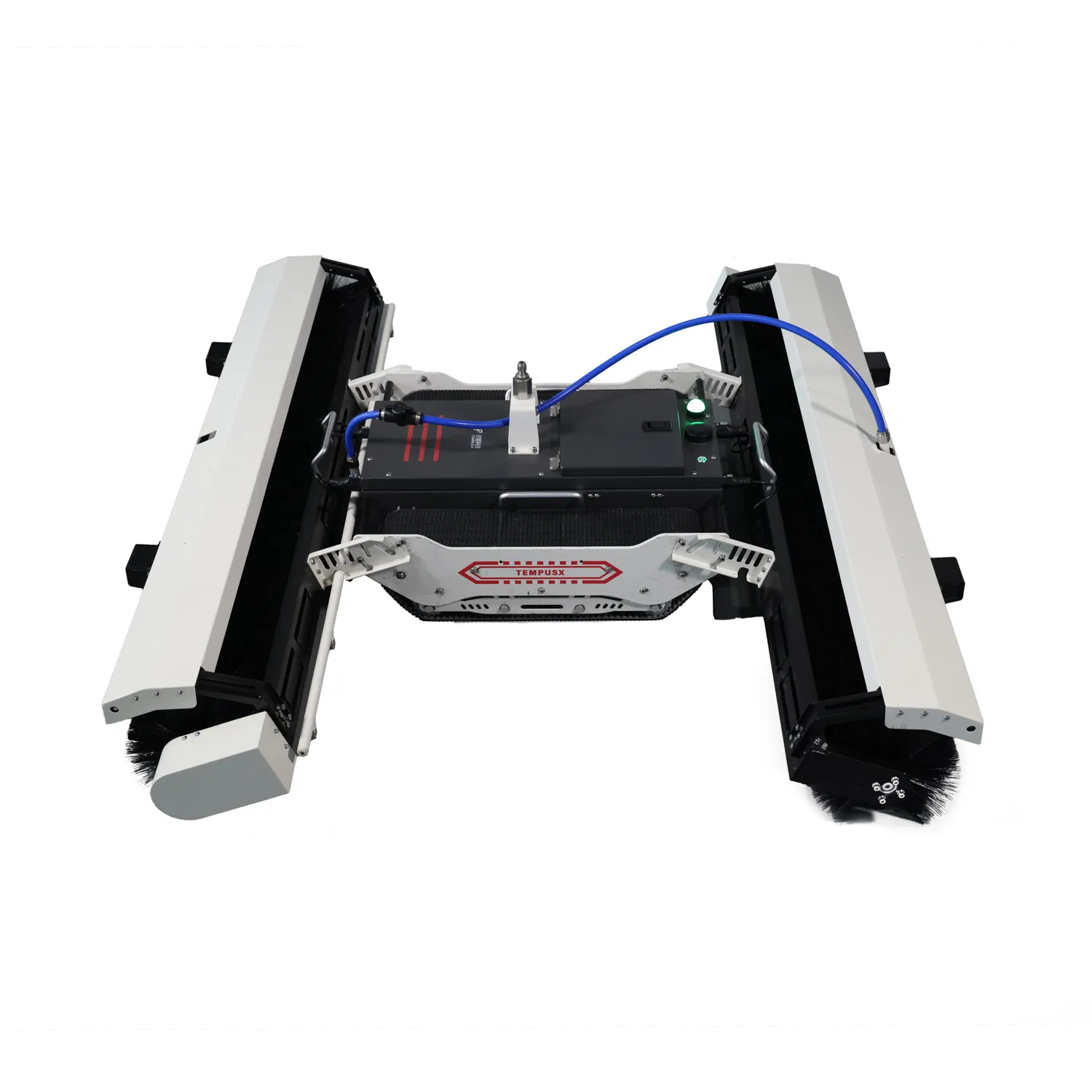

D1300 Crawler-Style Remote-Control Double Roller Brush Solar PV Panel Cleaner Cleaning Robot

1 / 5

D1300 Crawler-Style Remote-Control Double Roller Brush Solar PV Panel Cleaner Cleaning Robot

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Model NO.	D1300
Clean Type	Clean-In-Place
Cleaning Process	Dry Cleaning / Water Washing
Control	PLC
Fuel	Electric
Principle	Physical Cleaning
Style	Crawler Style
Roller Brush Component Size	1420mm
Brush Size	1300mm
Body Weight	20kg (Including Battery)
Total Weight	40kg
Battery Capacity	36V / 15ah
Battery Life	6h
Protection Class	IP65
Origin	China

Product Description

D Series Crawler-Style Remote-Control Solar PV Panel Cleaning Robot is designed for efficient operation and maintenance of industrial and commercial photovoltaic roofs, with a multi model matrix that flexibly adapts to various industrial and commercial roof scenarios and needs.

🔋

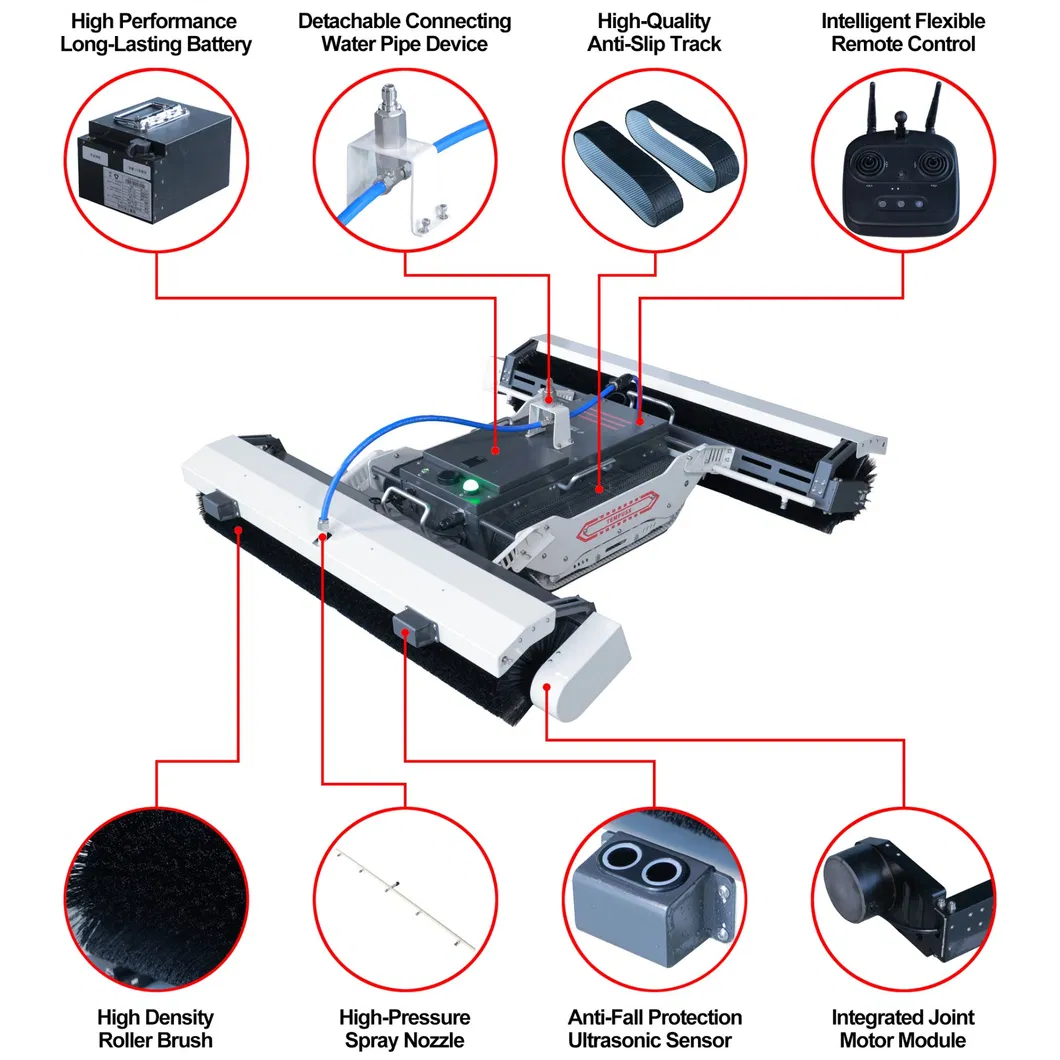

High Quality Battery Our battery uses high-quality cells (36V / 15Ah), supporting up to 3000 charge cycles. Equipped with two batteries, it ensures long-lasting battery life for large-scale continuous operations.

⚙️

High Performance Motor Adopts an integrated joint motor module (motor, driver, reducer, and encoder). Chassis speed reaches 1000mm/s, and roller brush speed reaches 330rpm.

🧼

High Efficiency Cleaning Features a double roller brush and quadruple cleaning system. The daily capacity for cleaned solar panels can reach 1~2 MW.

🛡️

Intelligent and Safety Equipped with a high-end remote control (up to 200m range) and edge anti-fall protection using ultrasonic detection.

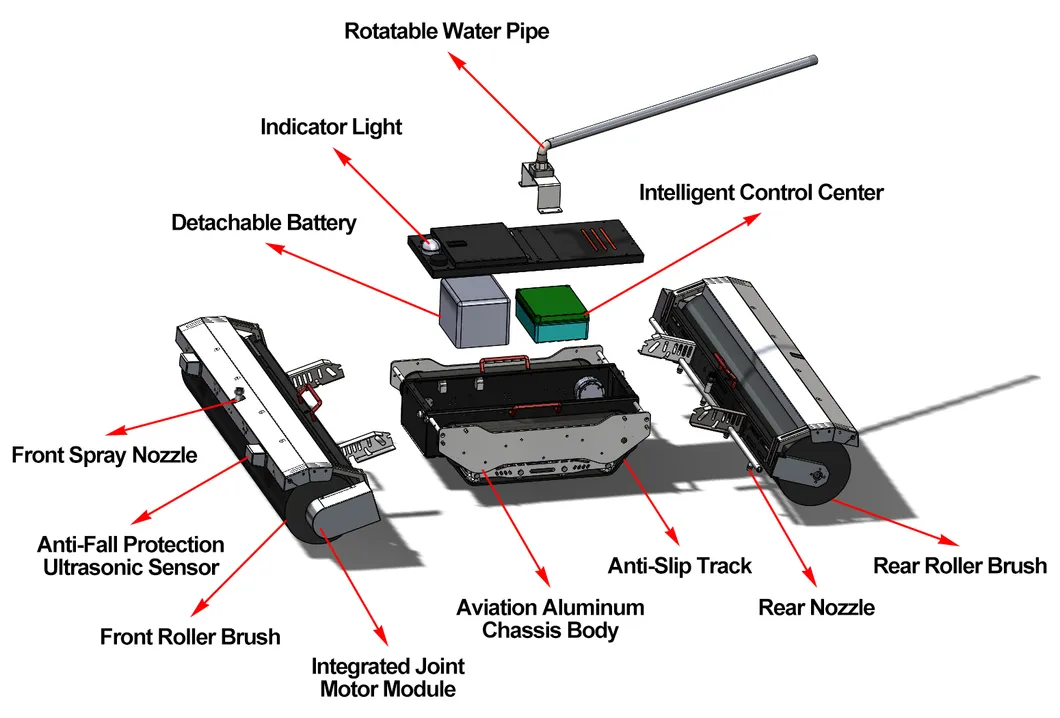

D1300 Exploded Diagram

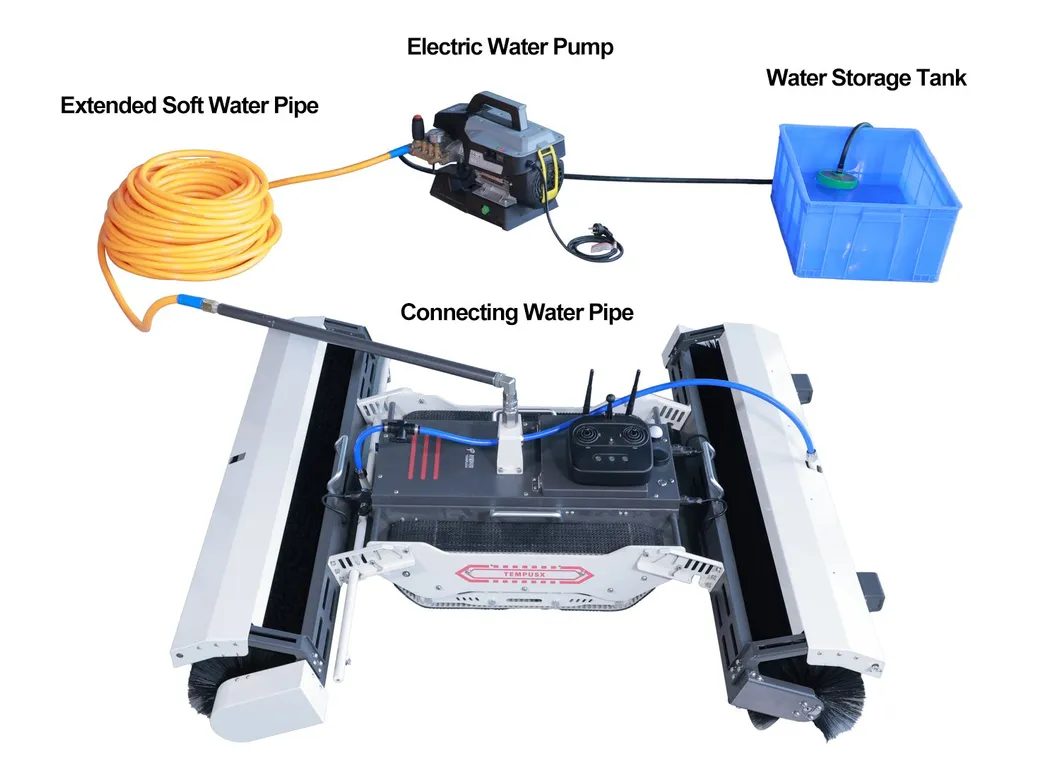

Connecting Water Pipe Diagram

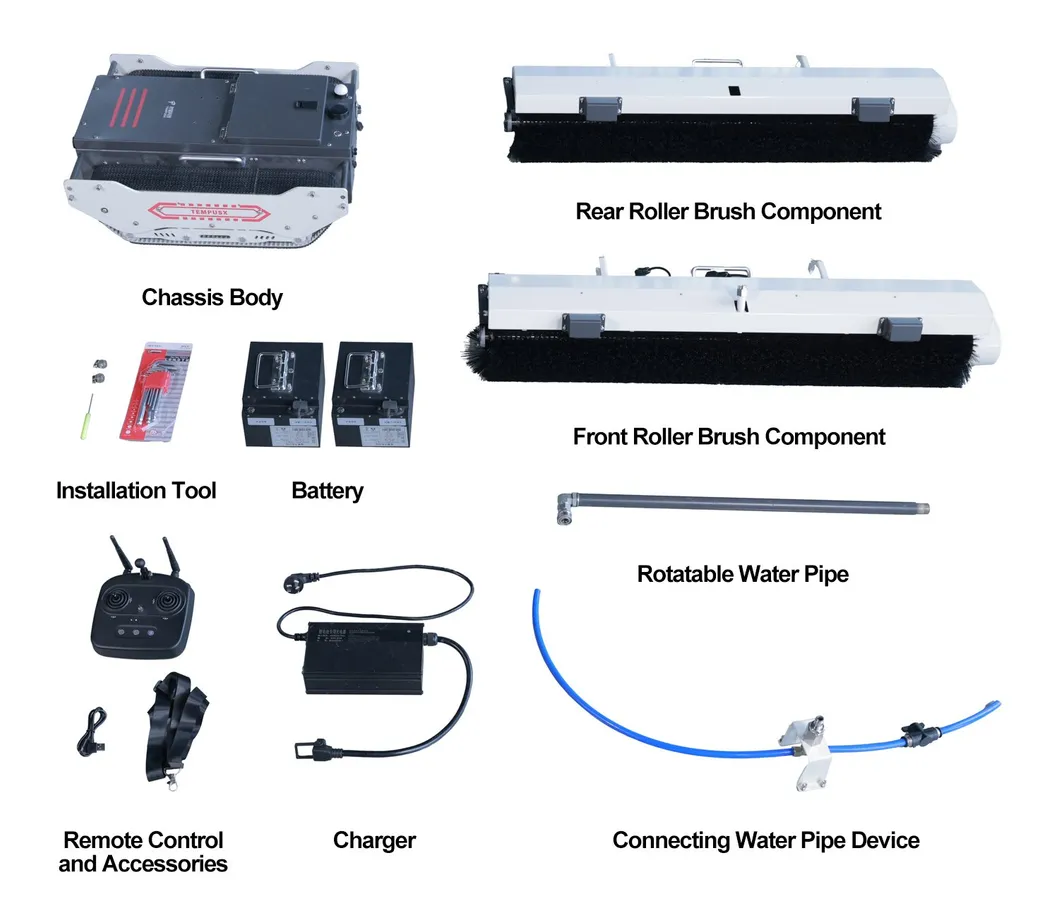

D1300 Standard Configuration List

Product Parameters

Model	D1000	D1300	D1300Pro
Body Size	600×490×220mm	600×490×220mm	600×530×220mm
Brush Size	1000mm	1300mm	1300mm
Total Weight	38kg	40kg	42kg
Battery Life	4h	6h	6h
Tilt Angle	≤10°	≤10°	≤20°
Protection	IP65	IP65	IP65
