Product Description

Overview

Model NO.

D1300

Clean Type

Clean-In-Place

Cleaning Process

Dry Cleaning / Water Washing

Control

PLC

Fuel

Electric

Style

Crawler Style

Brush Size

1300mm

Body Weight

20kg (Including Battery)

Battery Life

Protection Class

IP65

Origin

China

Capacity

5000 Units / Year

Product Description

D Series Track-Type Remote-Controlled Solar PV Panel Cleaning Robot is designed for efficient operation and maintenance of industrial and commercial photovoltaic roofs, with a multi model matrix that flexibly adapts to various industrial and commercial roof scenarios and needs.

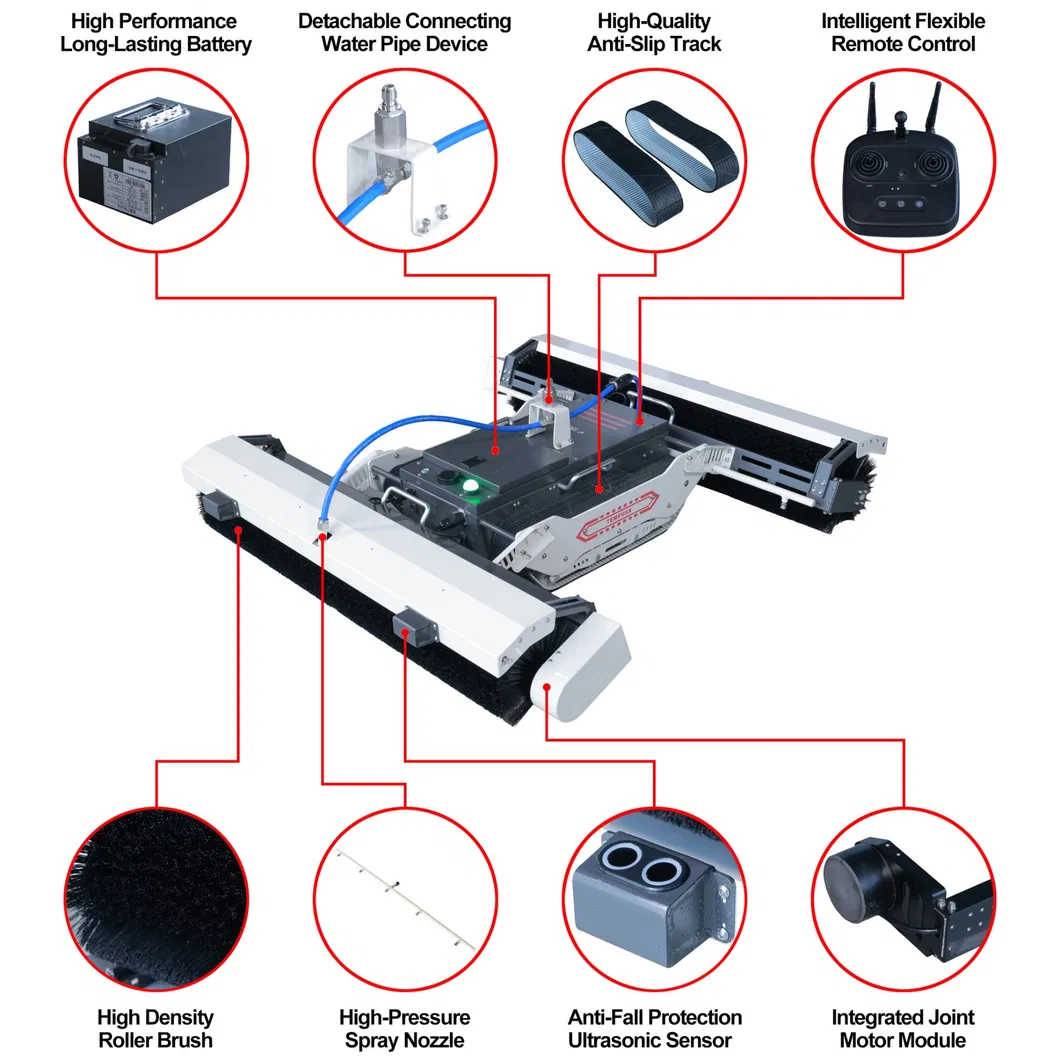

Product Advantages

High Quality Battery: Our battery uses the high-quality cell, with a capacity of 36V / 15Ah, it can be charged and discharged up to 3000 times. One battery can be used for 4 hours, and it takes only 1.5 hours to fully charge. D1300 is equipped with two batteries, which ensures long-lasting battery life.

High Performance Motor: Our machine adopts an integrated joint motor module, which includes a motor, driver, reducer, and encoder. The maximum running speed of the chassis can reach 1000mm/s, and the maximum rotation speed of the roller brush can reach 330rpm.

High Efficiency Cleaning: D1300 adds a rear roller brush and nozzle component. The quadruple cleaning system makes cleaning more efficient, and the daily capacity of cleaned solar panels can reach 1~2 MW.

Intelligent and Safety: Equipped with a high-end model airplane remote control (up to 200m) and edge anti-fall protection function via ultrasonic detection.

Flexible Deployment: Made of aviation aluminum material, modular and lightweight. It can operate on panels with a maximum tilt angle of 10°.

High Protection Class: Protection class up to IP65, effectively isolating dust and rainwater for operation in complex environments.

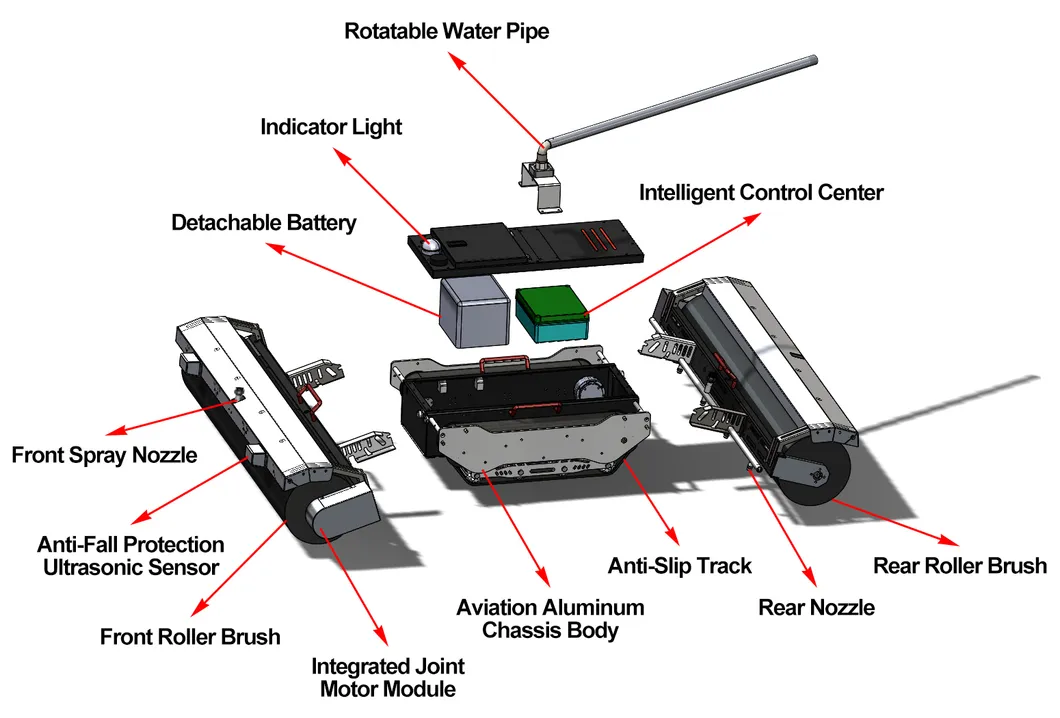

D1300 Exploded Diagram

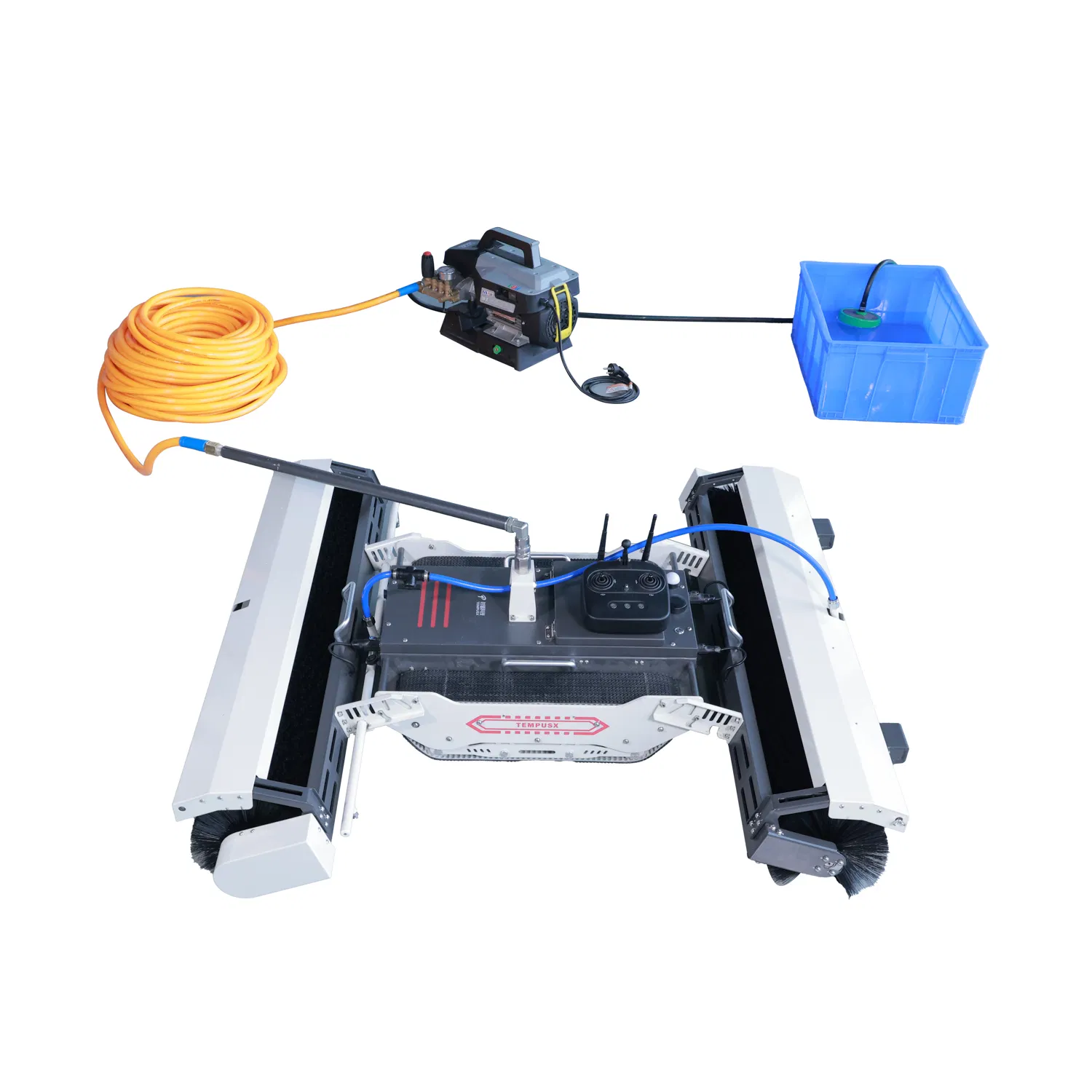

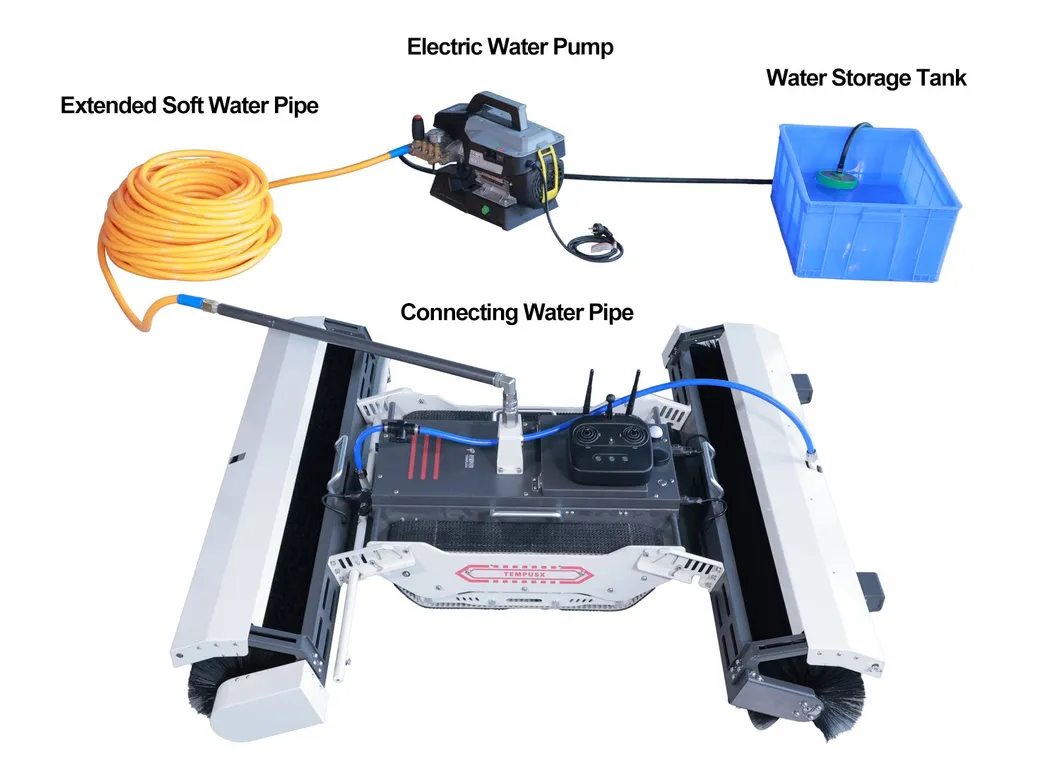

Connecting Water Pipe Diagram

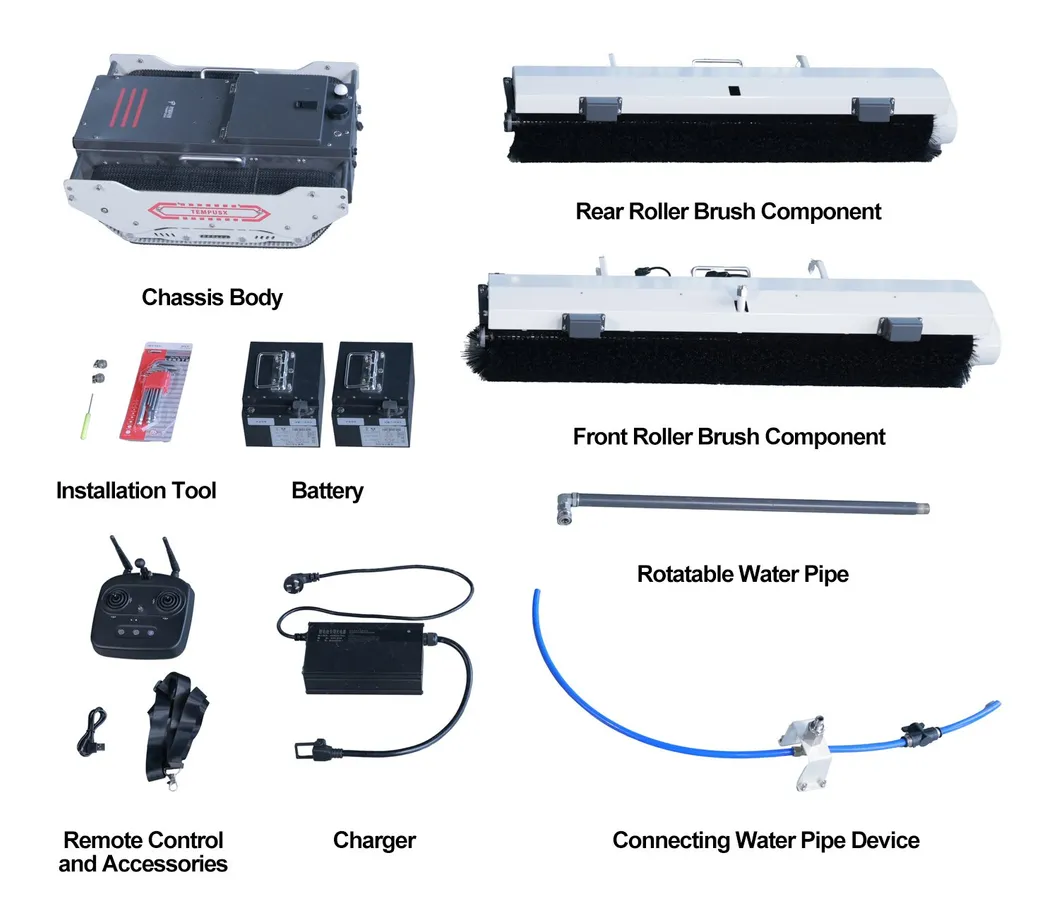

Standard Configuration List

Product Parameters

Model	D1000	D1000Pro	D1300	D1300Pro

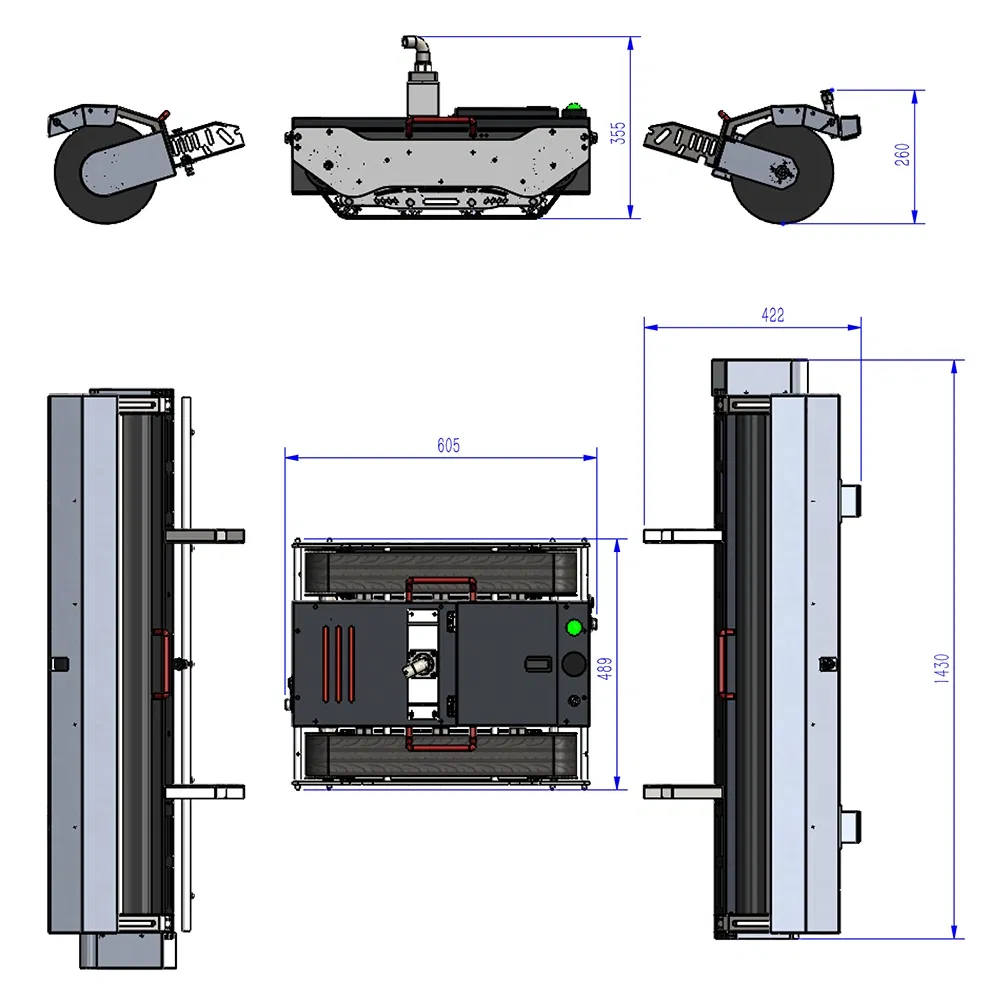

Body Size	600×490×220mm	600×530×220mm	600×490×220mm	600×530×220mm
Brush Component	1132mm	1132mm	1420mm	1420mm
Brush Size	1000mm	1000mm	1300mm	1300mm
Total Weight	38kg	40kg	40kg	42kg
Chassis Speed	1000mm/s	1000mm/s	1000mm/s	1000mm/s
Battery Config	1 piece	1 piece	2 pieces	2 pieces
Battery Life	4h	4h	6h	6h
Tilt Angle	≤10°	≤20°	≤10°	≤20°
Anti-Fall	Ultrasonic	Ultrasonic	Ultrasonic	Ultrasonic
Protection	IP65	IP65	IP65	IP65
