Basic Information
Model NO.
Soft tissue laser pen
Nature
Specialized Equipment
Usage Times
Non-Disposable
Product Parameters
Technical Specifications
Voltage: 100-230VAC
Amperage(max): 0.8A
Frequency: 50-60Hz
Battery: Li-Fe 3.2V 650mAh

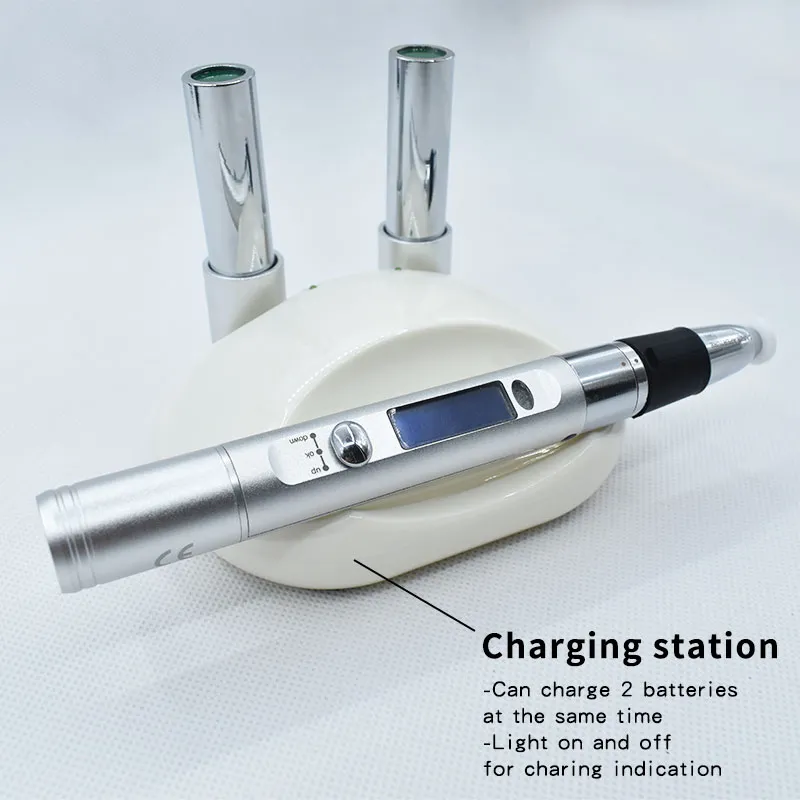

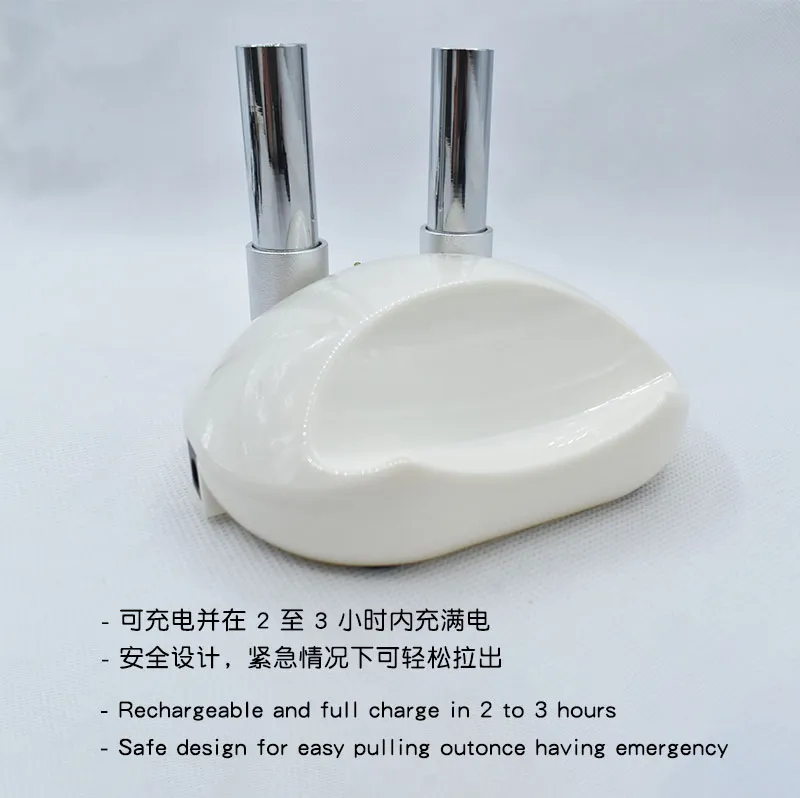

Recharge Time: 2 hours (fully discharged)
Safety: Discharge over current sensor and resettable circuit breaker
Medium: AlGanlnAs
Wavelength: 810nm±15nm
Output Power: 0-2.5 W MaxCW / 0-5 W peak power (Pulse model)
Power Accuracy: ±20%
Pulse Duration: Continuous | 0.1ms | 1ms
Pulse Interval: 0.2ms | 1ms
Aiming Beam: Laser diode, max 1mW, 650±10nm, Class II
Outer Packing Weight: 0.3KG

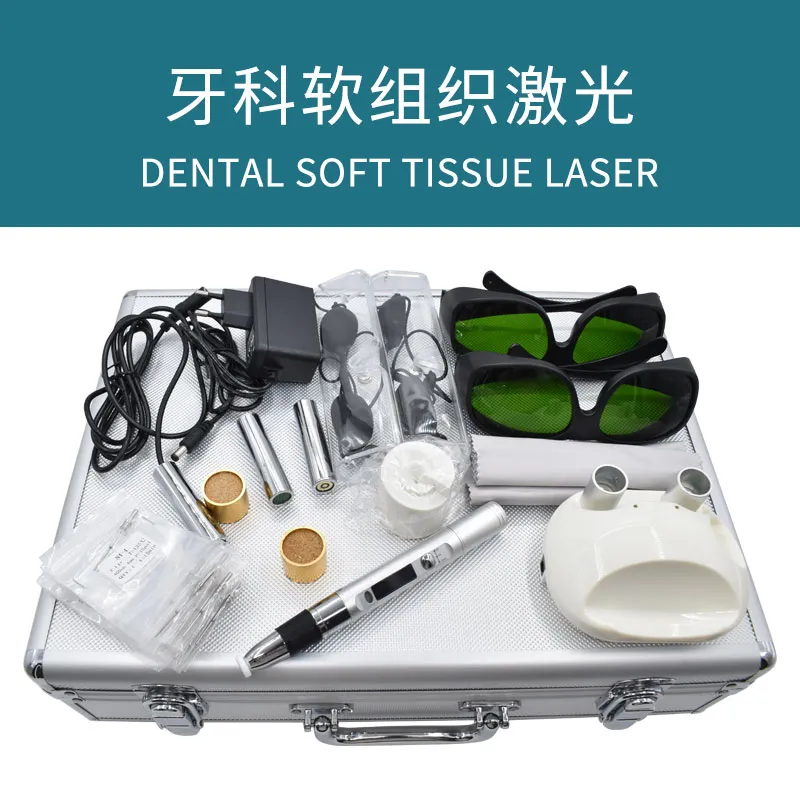

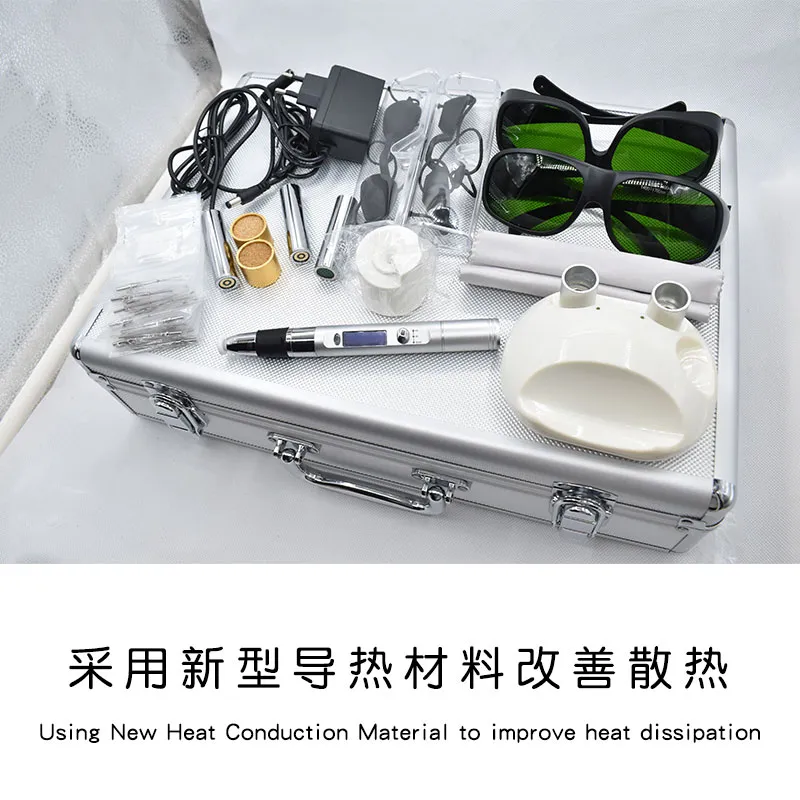

Aluminum Box Weight: 2.4KG

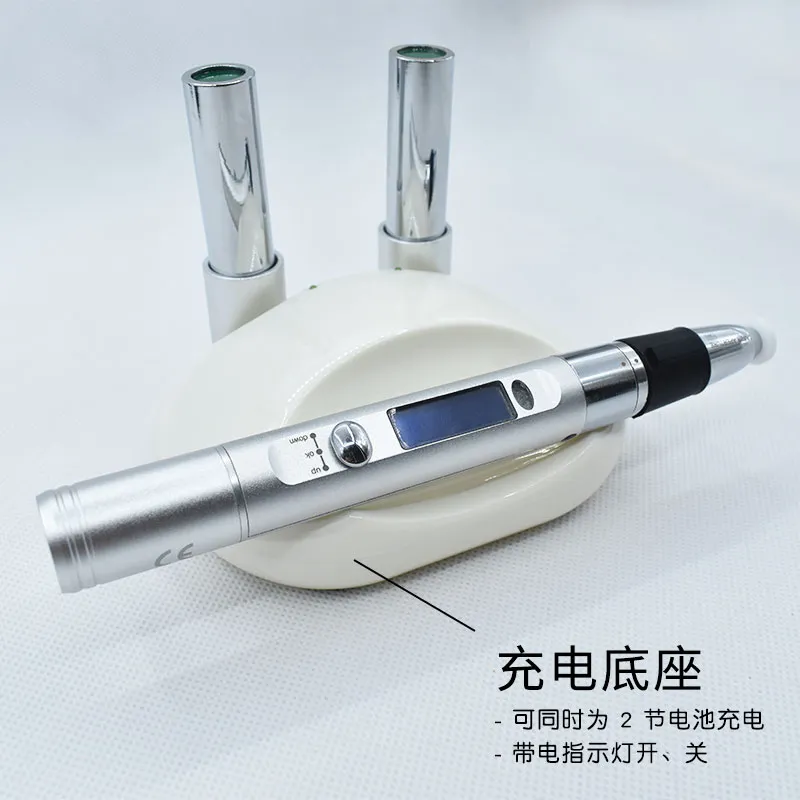

Product Display

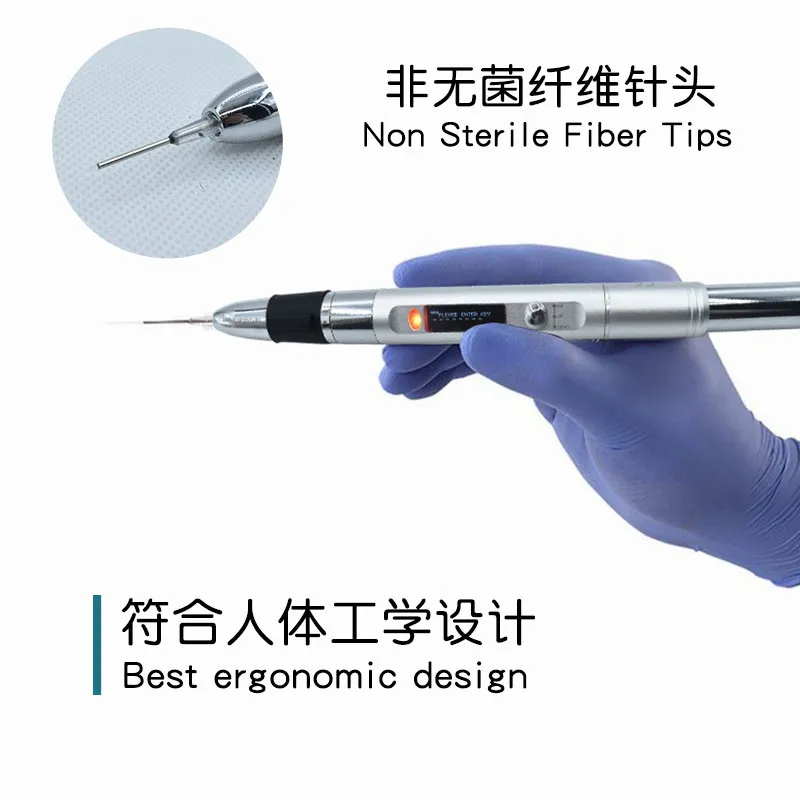

Kindly Reminder: We can also provide this unit with optic handpiece tube suitable for your fiber handpiece. Please inquire for more information.
Frequently Asked Questions
What is the wavelength of this soft tissue laser pen?
The device operates at a wavelength of 810nm ± 15nm, utilizing an AlGanlnAs medium for precise soft tissue procedures.
How long does the battery take to charge?
The Li-Fe 3.2V 650mAh battery requires approximately 2 hours to reach a full charge from a fully discharged state.
What is the peak power output in pulse mode?
The peak power output reaches up to 5W in pulse mode, while the continuous wave (CW) maximum output is 2.5W.
Is this laser pen portable?

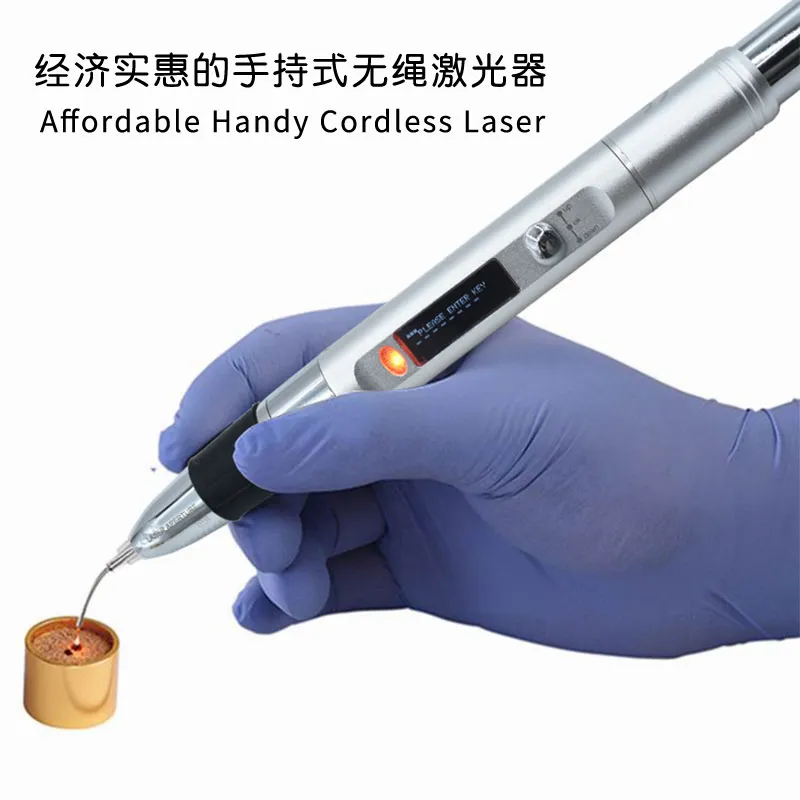

Yes, it is a wireless handheld device designed for maximum portability and ease of use in clinical environments.
Does the device include an aiming beam?

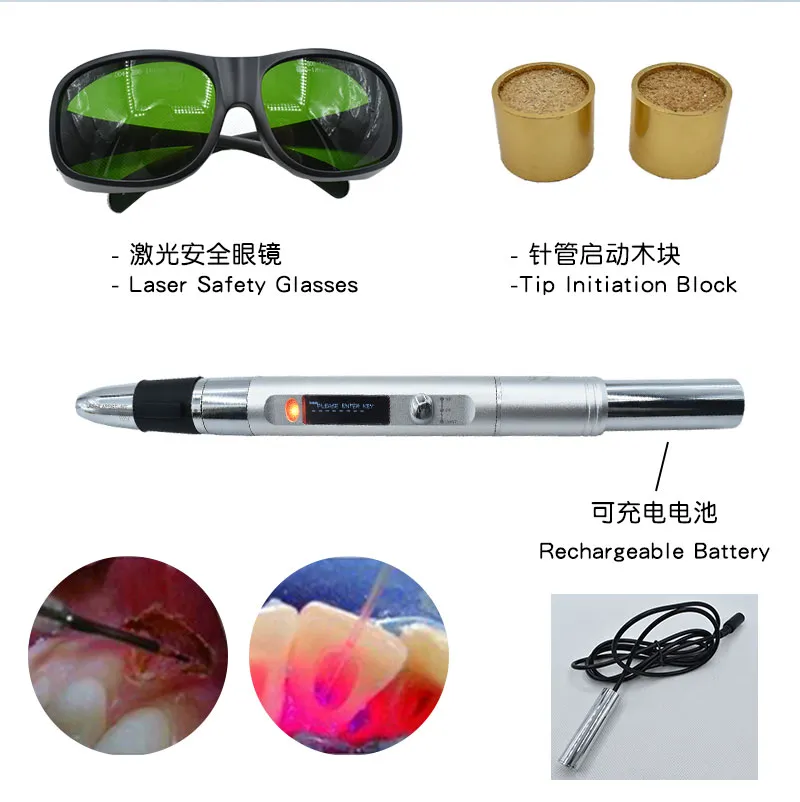

Yes, it features a Class II laser diode aiming beam with a wavelength of 650±10nm and a maximum power of 1mW.
What safety features are integrated into the unit?
The unit includes a discharge over-current sensor and a resettable circuit breaker to ensure safe operation.
