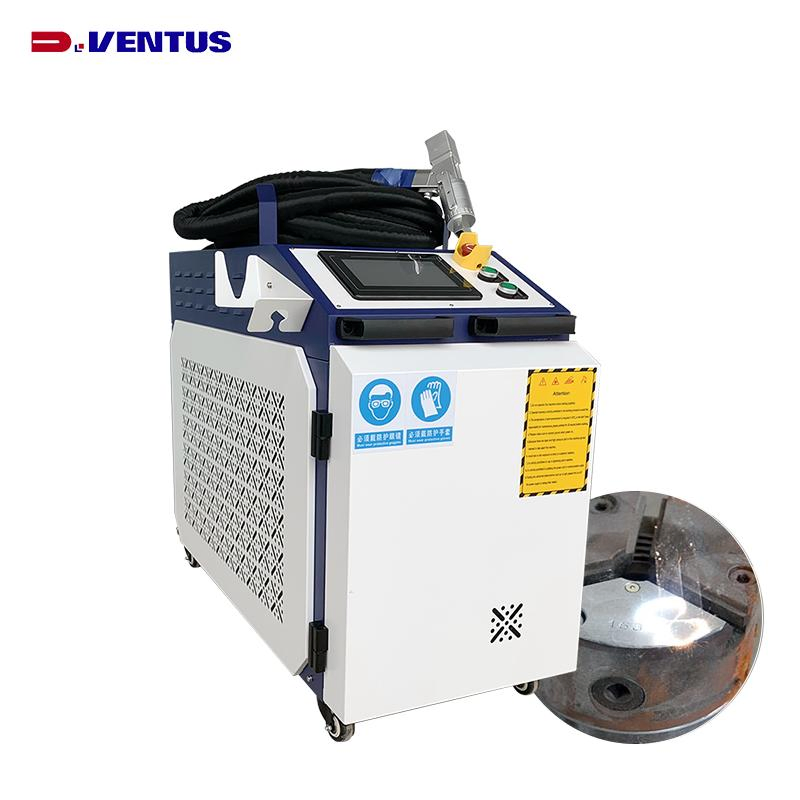

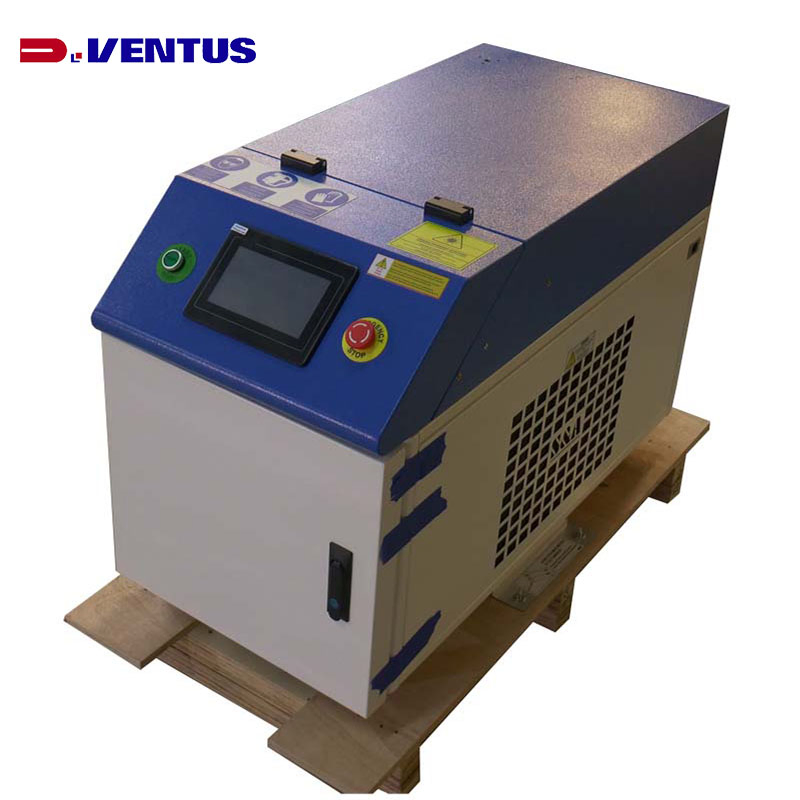

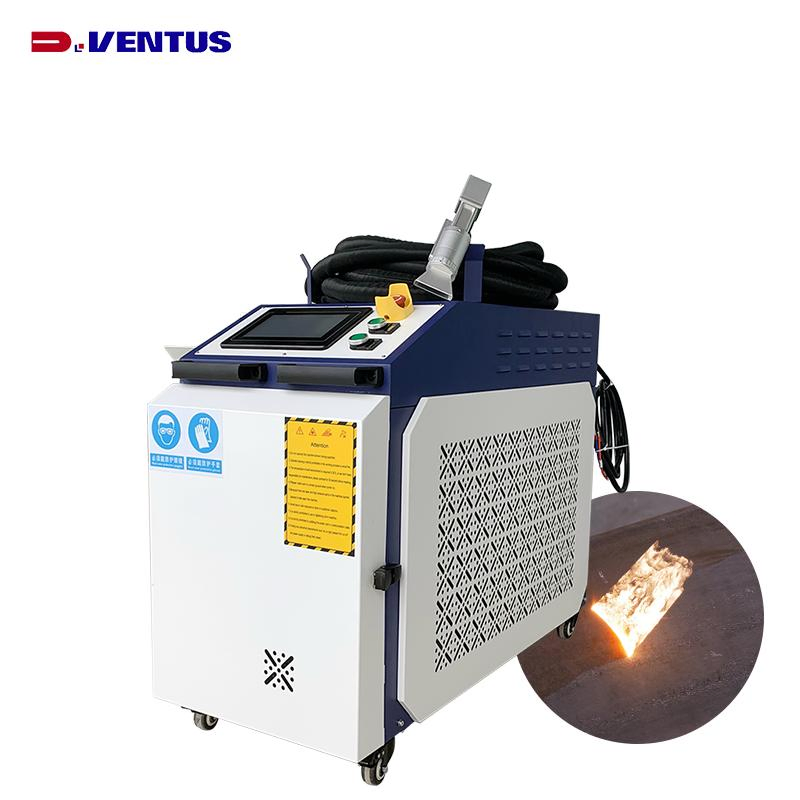

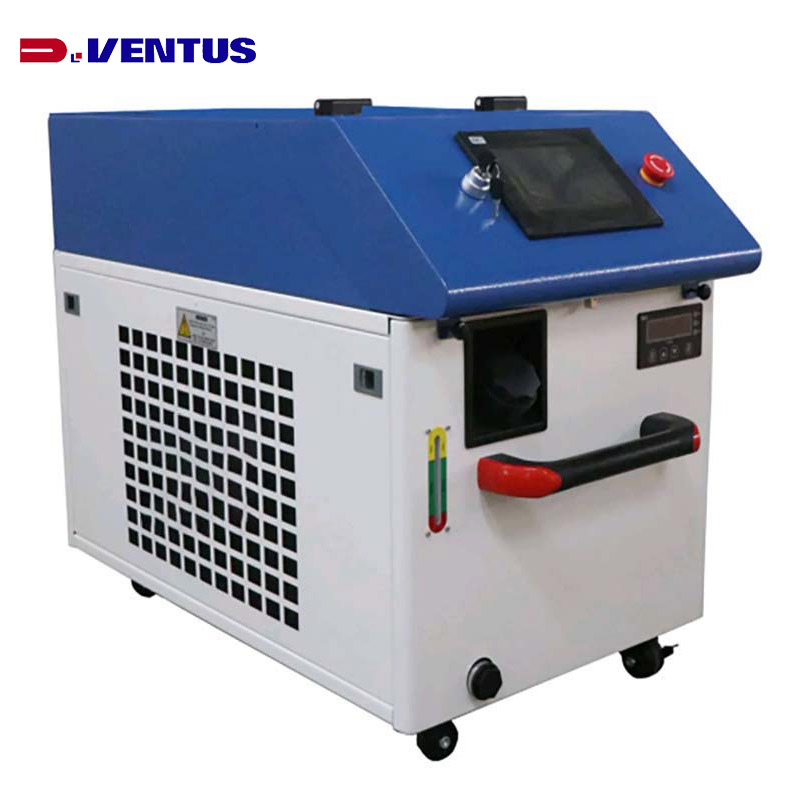

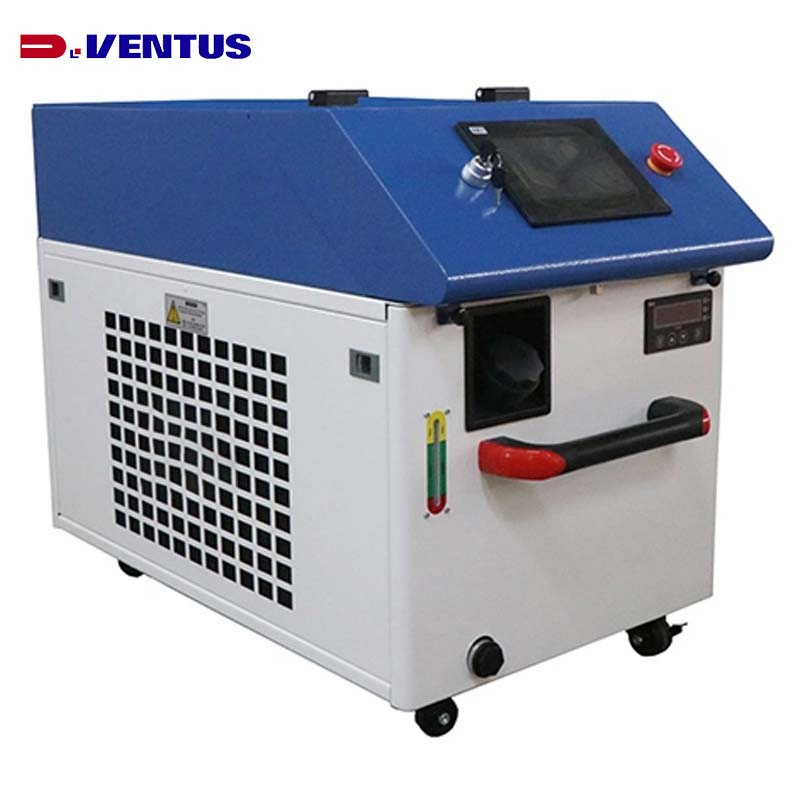

Fiber Laser Cleaning&Welding Machine Mini Laser Cleaner for Metal Surfaces

1 / 5

Fiber Laser Cleaning&Welding Machine Mini Laser Cleaner for Metal Surfaces

Customization:	Available
After-sales Service:	24 Hours Online Support and Overseas Available
Power:	1000W/1500W/2000W/3000W

Send Inquiry

Product Description

Basic Specifications

Model NO.

DV-LCS

Control Type

Automatic

Warranty

2 Years

Laser Type

Continuous / Constant Laser

Laser Power

1000W / 1500W / 2000W / 3000W

Cooling Mode

Water Cooling

Power Supply

220V/380V, 50-60Hz

Applied Materials

Stainless Steel, Aluminum, Steel, Galvanized Sheet

Cable Length

10m or Customized

Fiber Source

Max, Raycus, Jpt, IPG

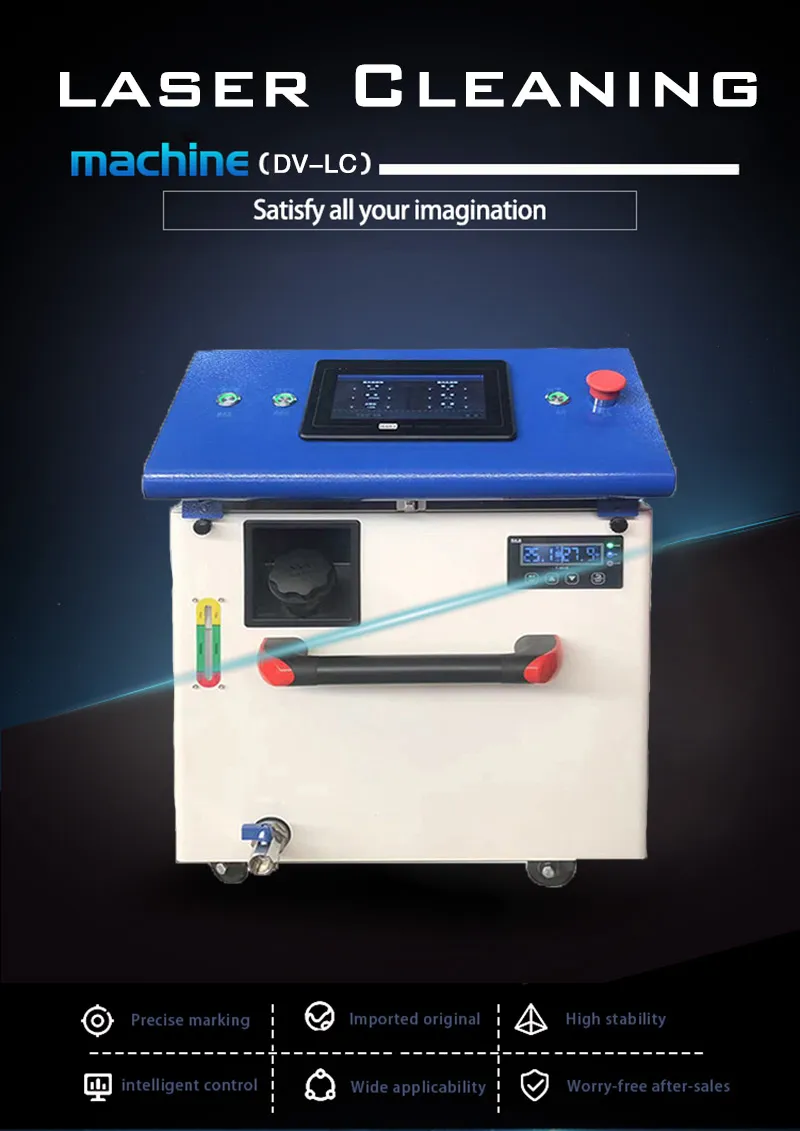

Mini Laser Cleaner for Metal Surfaces

Experience precision rust removal with our portable laser cleaning machine. Ideal for industrial use, this eco-friendly tool offers quality cleaning with a compact design. It provides an efficient solution for rust removal, paint stripping, and surface pretreatment.

Parameter	1000W	1500W	2000W
Laser Wavelength	1070±10nm
Fiber Diameter	50um
Pulse Width	Continuous laser
Total Power	<6KW	<8KW	<10KW
Dimension	1145x550x850mm
Scanning Width	0-300mm adjustable

Cleaning Capacity Reference

Surface Type	1000W Efficiency	1500W Efficiency	2000W Efficiency
Light rust (20um)	20m²/h	40m²/h	60m²/h
Paint (120um)	8m²/h	12m²/h	16m²/h
Heavy rust (100um)	5m²/h	8m²/h	10m²/h

🛠️ Application & Materials

Our portable laser systems are versatile and ideal for complex and irregular cleaning or welding processes. Common industries include:

Kitchen and Bathroom cabinets
Staircase elevators and shelves
Stainless steel door and window guardrails
Power distribution boxes
Stainless steel household appliances

Compatible Materials: Stainless steel, iron sheet, aluminum, copper, alloy, steel, and galvanized surfaces.

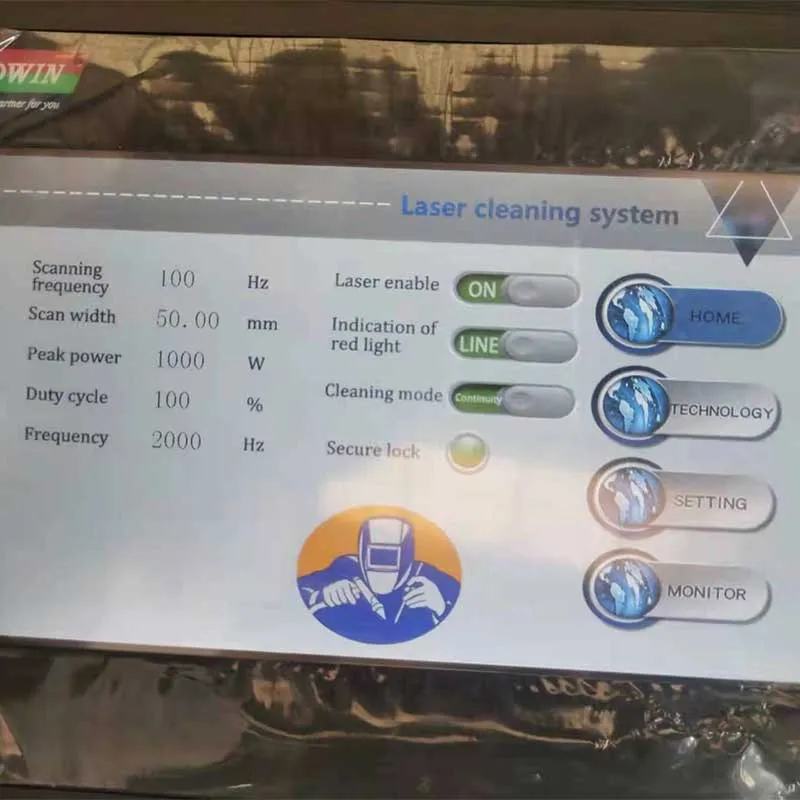

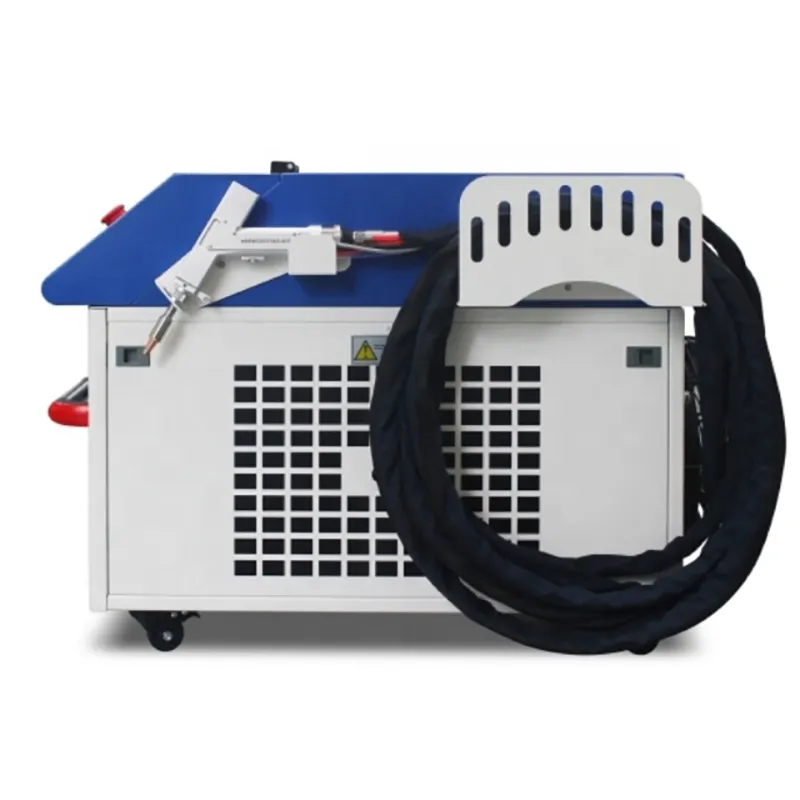

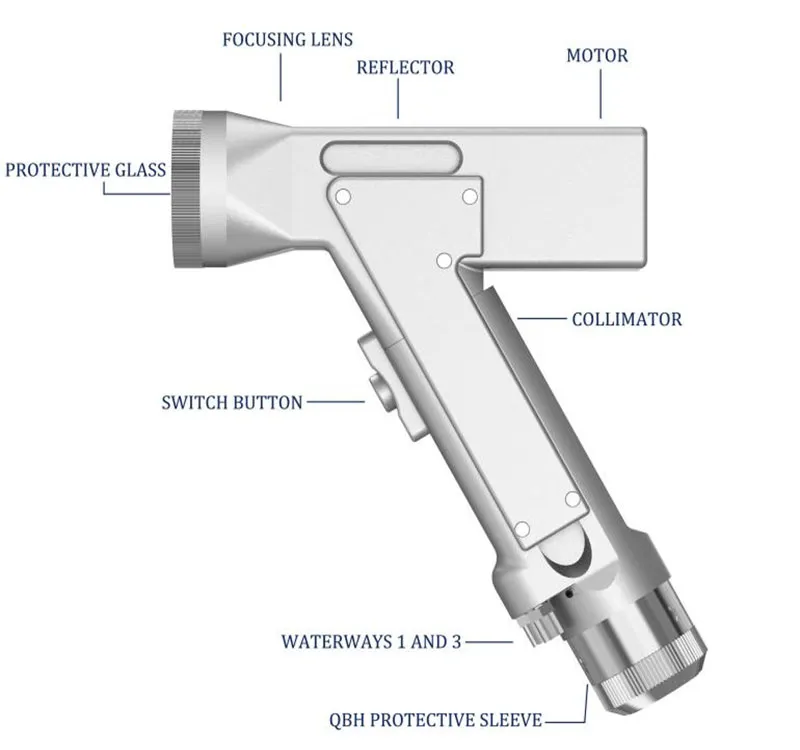

Components Display

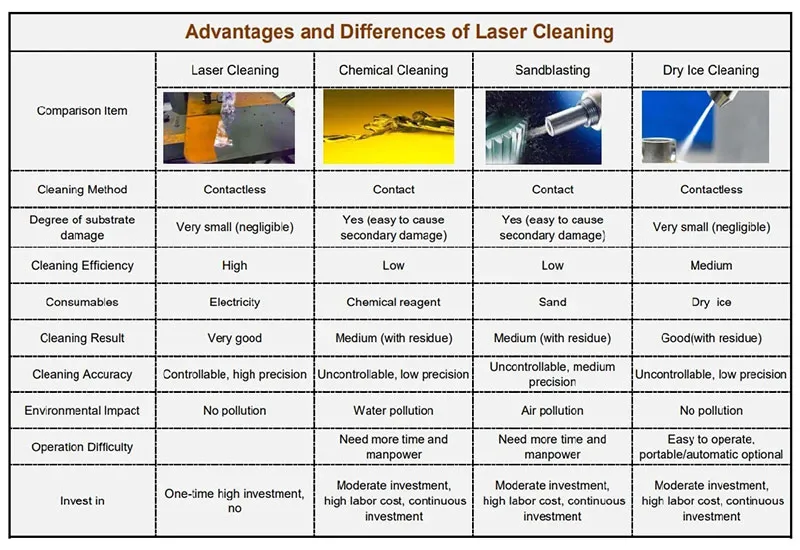

🌟 Features & Advantages

Non-contact cleaning: Does not damage the base of the parts.
Precise cleaning: Selective cleaning with precise position and size control.
Eco-friendly: No chemical cleaning fluid or consumables required.
Simple operation: Can be hand-held or integrated with a manipulator for automation.
High efficiency: Significant time savings compared to traditional methods.
Low maintenance: Stable laser system with minimal ongoing needs.

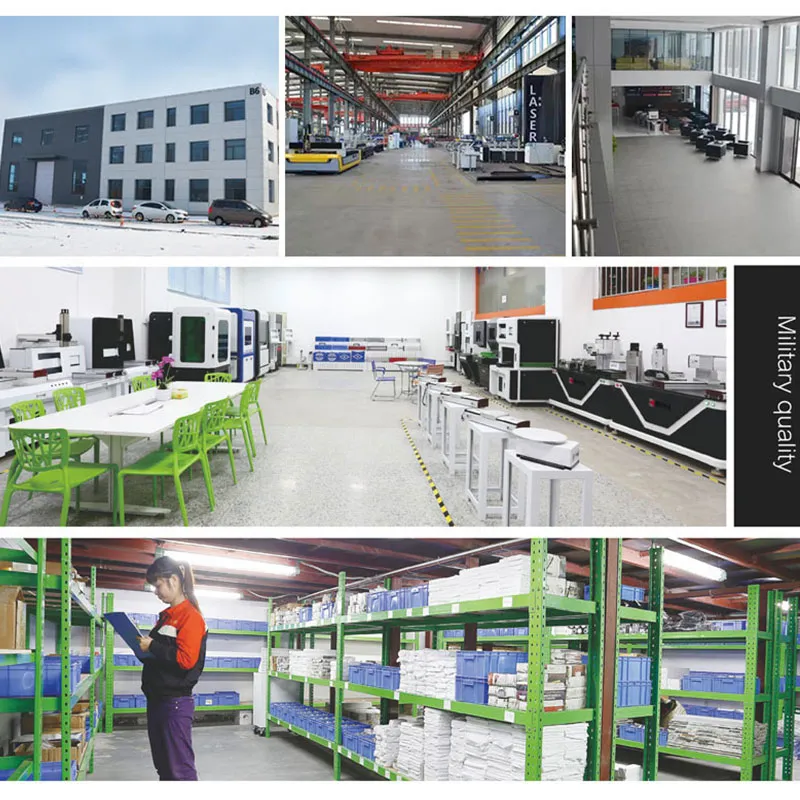

Manufacturing Quality & Support

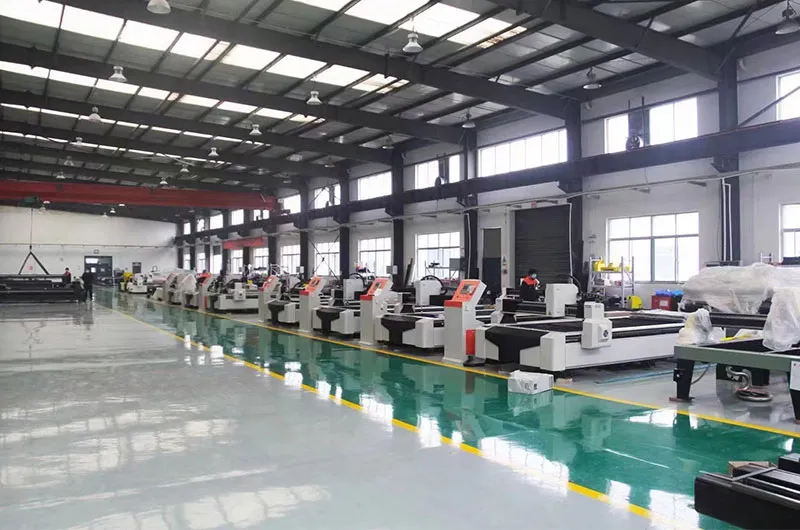

Our facility specializes in the development and manufacturing of CNC laser machines, including fiber laser cutting, cleaning, welding, and marking machines. All products are approved by SGS enterprise certification and CE Certifications.

🛡️ Warranty & After-Sales

2-Year Guarantee: Enjoy a 2-year warranty on the entire machine. If issues occur within 24 months under normal use, receive free spare parts.

Technical Support: 24/7 technical support via phone, email, or online messaging. English manuals and operation videos are provided.

Professional Services: Machines are thoroughly debugged before dispatch for immediate use. On-site training options are available.

Frequently Asked Questions (FAQ)

What materials can the laser cleaner handle?

It is highly effective on stainless steel, iron, aluminum, copper, alloys, and galvanized sheets for removing rust, paint, and oxides.

Does the laser cleaning process damage the base metal?

No, this is a non-contact cleaning method. It removes surface contaminants without affecting or damaging the underlying base material.

How long is the warranty period for this machine?

We provide a comprehensive 2-year warranty on the entire machine, with free spare parts provided for normal usage issues during this period.

Is the machine easy for a beginner to operate?

Yes, the machine is designed for ease of use. It comes with an English manual and operation videos. We also offer 24/7 technical support and training.

What power options are available for the laser cleaner?

We offer multiple power configurations including 1000W, 1500W, 2000W, and 3000W to suit different cleaning speed requirements.

What cooling system does the machine use?

The system utilizes an industrial water cooling unit to ensure stable performance during continuous operation.
