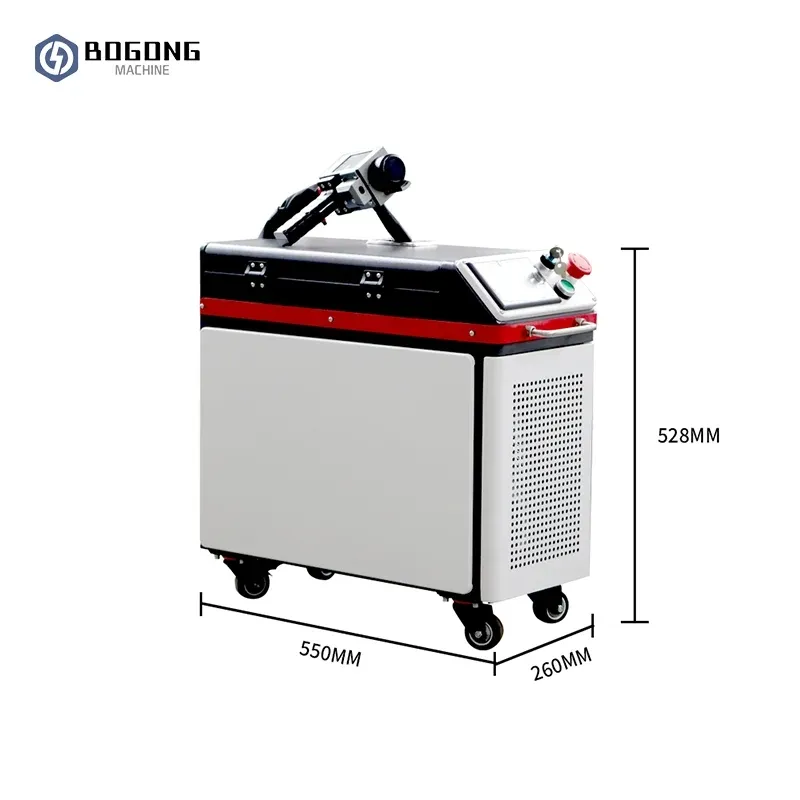

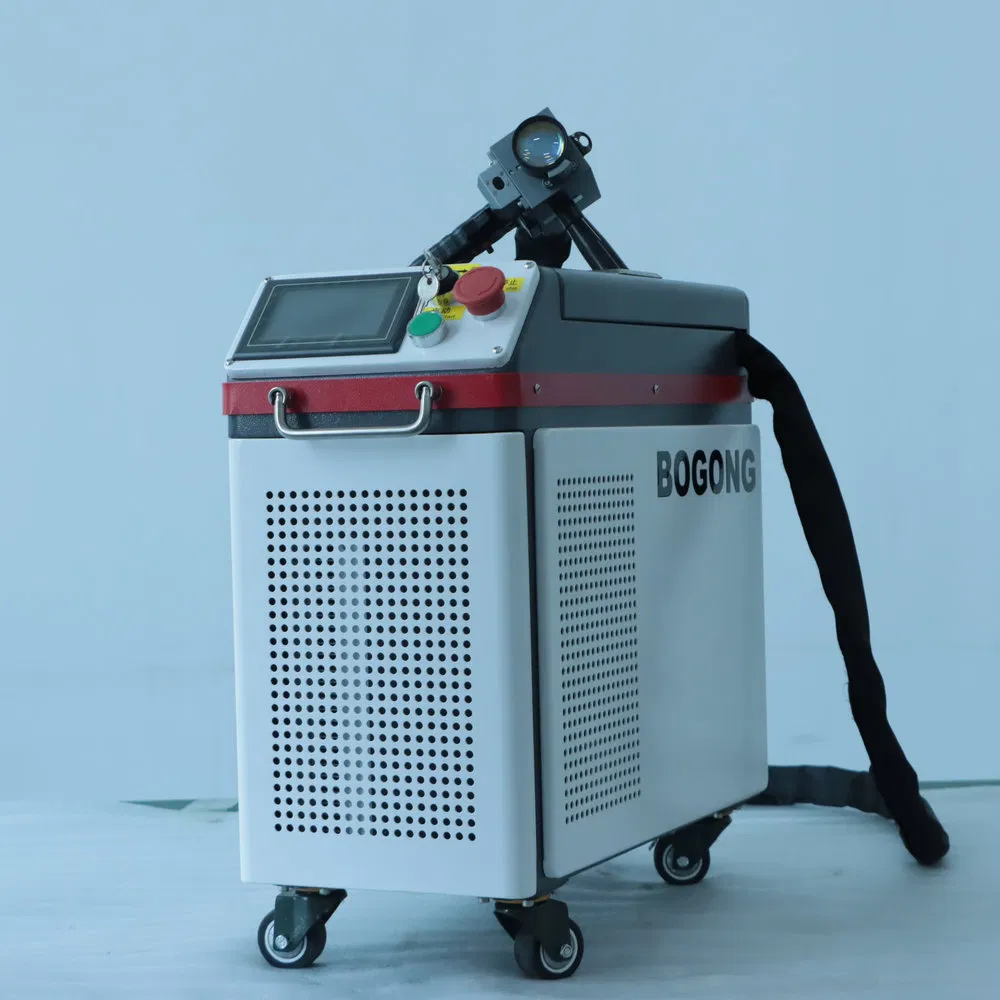

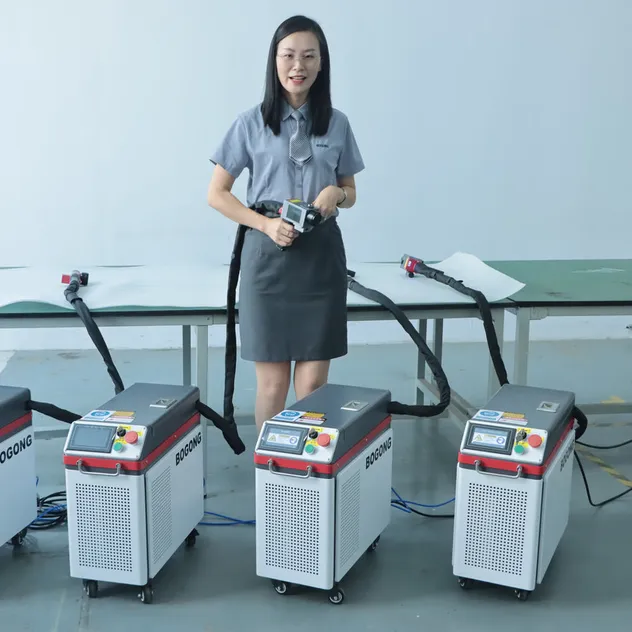

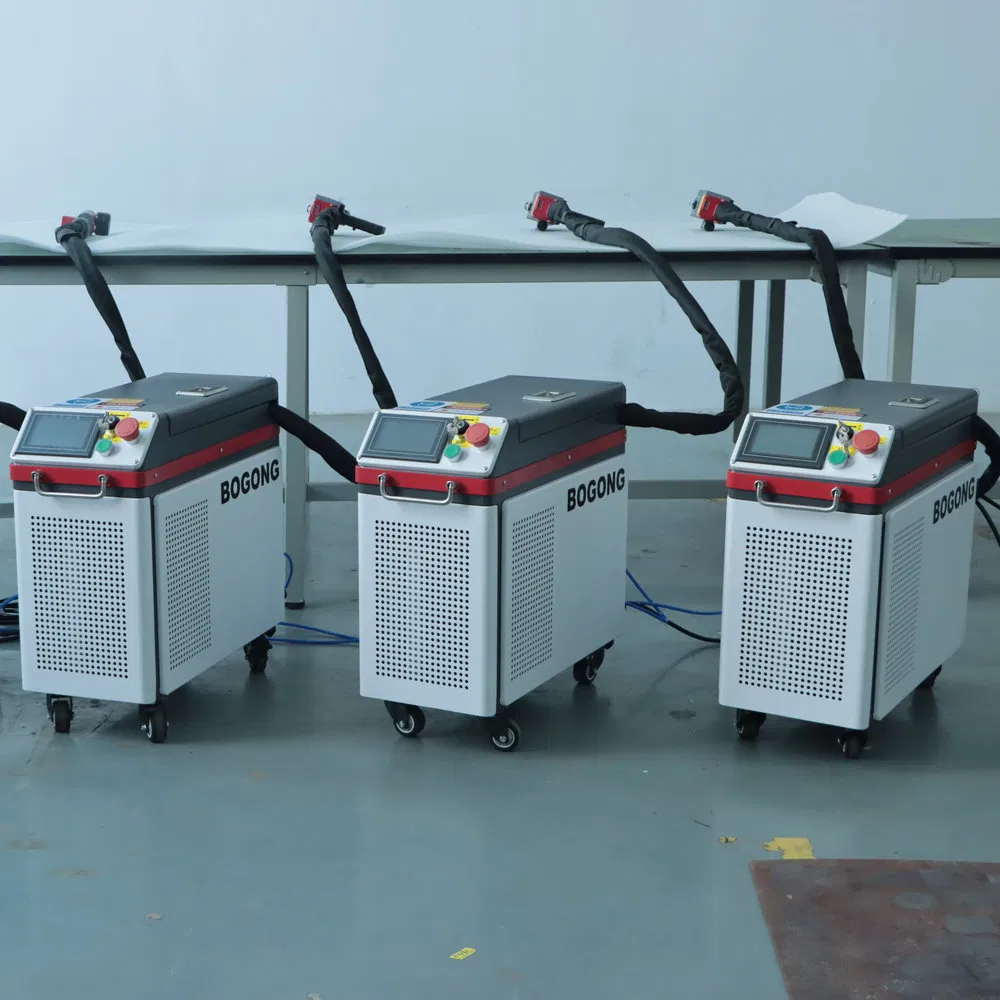

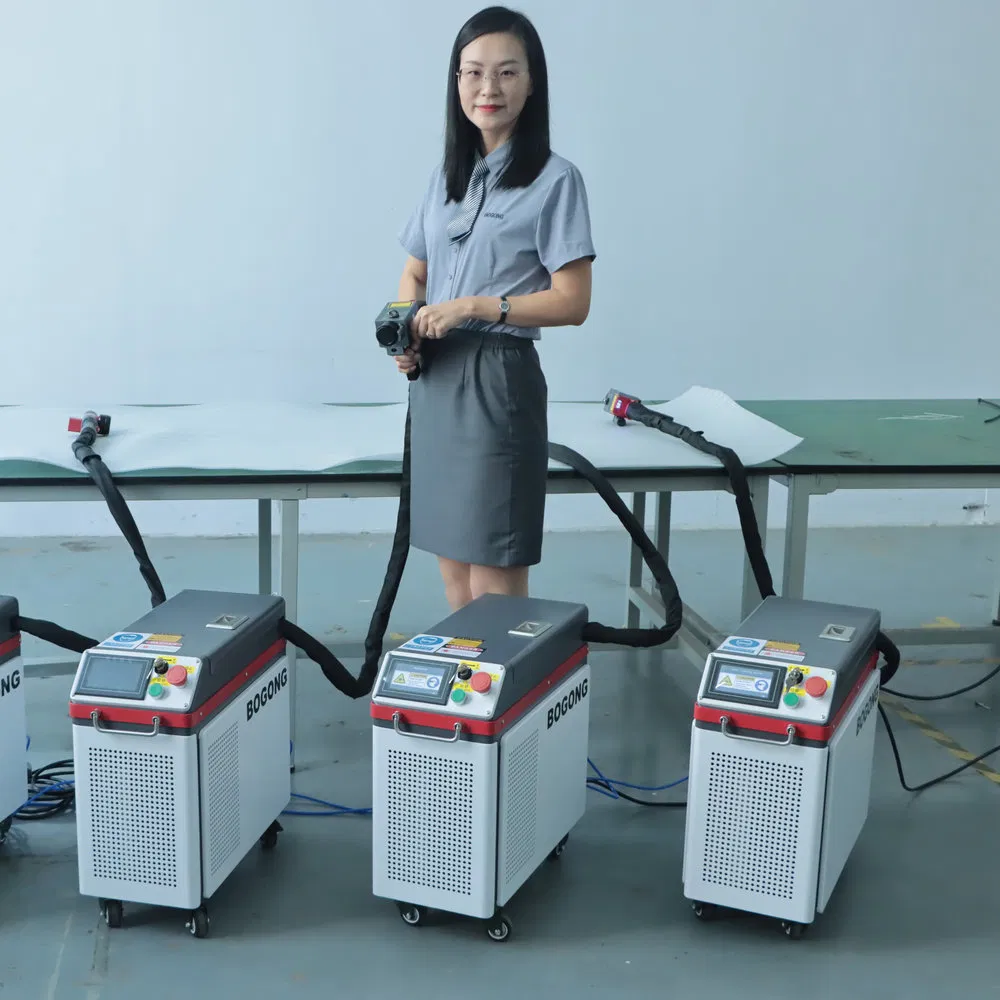

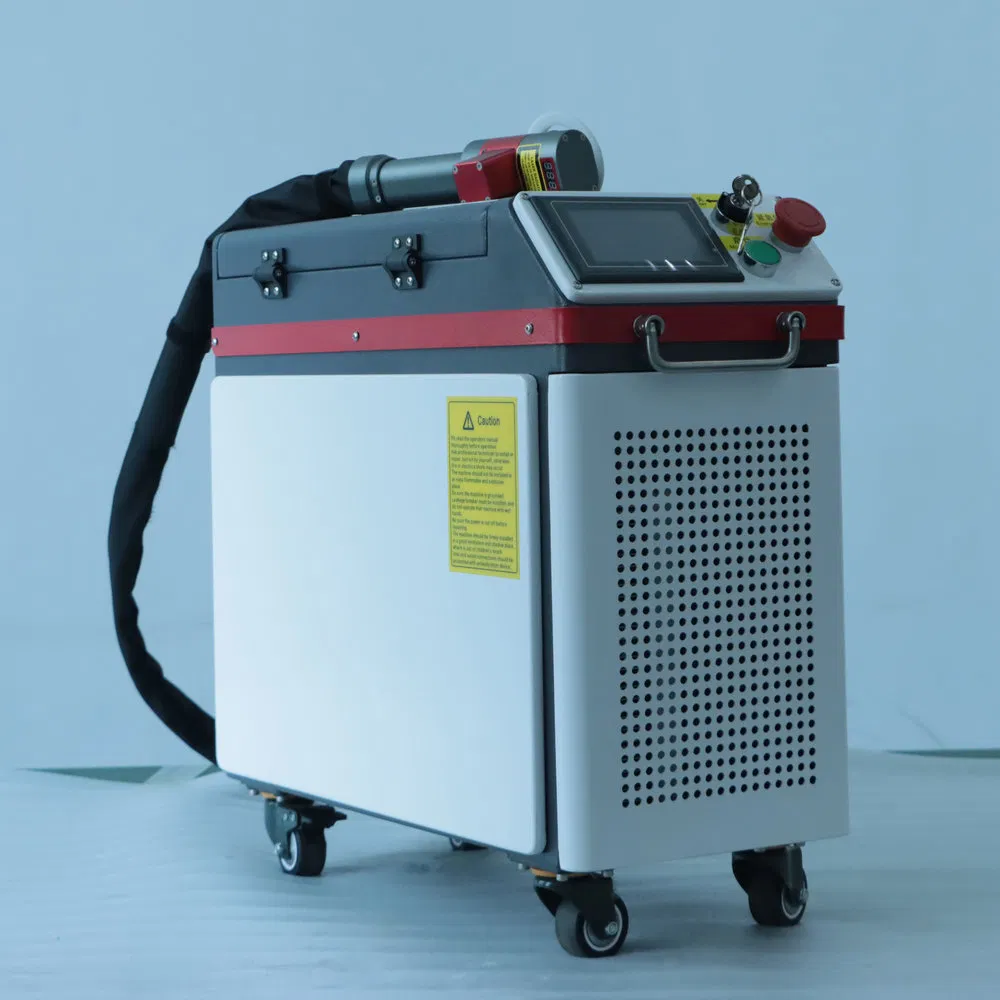

Excellent Heat Dissipation Pulsed Fiber Laser Cleaner for Paint Removal

Customization:	Available
After-sales Service:	Support
Power:	100W 200W 300W

ℹ

Basic Specifications

Model NO.	Pulsed Fiber Laser Cleaning Machine
Control Type	Automatic
Warranty	2 Years
Material Compatibility	Carbon Steel, Stainless Steel, Stone, Glass
Features	Fine Cleaning, Minimal Damage
Application	Automotive Manufacturing & Industrial Maintenance
Laser Mode	Pulsed
Pulse Width	Adjustable 10 to 500 Ns
Production Capacity	850 sets/Year

⚙

Product Description

PULSED FIBER LASER CLEANING TECHNOLOGY

The pulsed fiber laser cleaning machine is a revolutionary, non-contact surface treatment solution that utilizes high-energy laser pulses to instantly vaporize rust, paint, coatings, oil, oxides, and contaminants from metal and other material surfaces without causing substrate damage.

Powered by advanced fiber laser technology delivering precise nanosecond pulses, this equipment offers eco-friendly, chemical-free, and abrasive-free surface preparation with zero secondary pollution. It features adjustable laser power, intelligent scanning systems, and real-time monitoring capabilities.

Key Applications

Rust & Corrosion Removal: Eliminating oxidation layers from steel structures and machinery.
Paint & Coating Stripping: Removing old paint and protective films without damaging the base part.
Pre-Welding Surface Preparation: Cleaning welding seams to improve weld quality and strength.
Mold & Tool Maintenance: Cleaning injection molds to remove residues and carbon deposits.
Automotive Restoration: Processing car body panels, engine parts, and classic vehicle restoration.

📊

Technical Parameters

Parameter Item	Specifications
Power Content	100W / 200W / 300W
Power Supply Voltage	Single-phase 220V±10%, 50/60Hz AC
Working Environment Temperature	5℃ - 40℃
Working Environment Humidity	≤80%
Power Instability	<5%
Laser Working Mode	Pulse
Pulse Width	Adjustable from 10 to 500 ns
Maximum Single Pulse Energy	1.5 to 2 mJ / 5mJ / 15mJ
Power Adjustment Range	0 to 100% (gradually adjustable)
Frequency Adjustment Range	1 to 3000 kHz
Fiber Length	5m
Cooling Method	Air cooling

📸

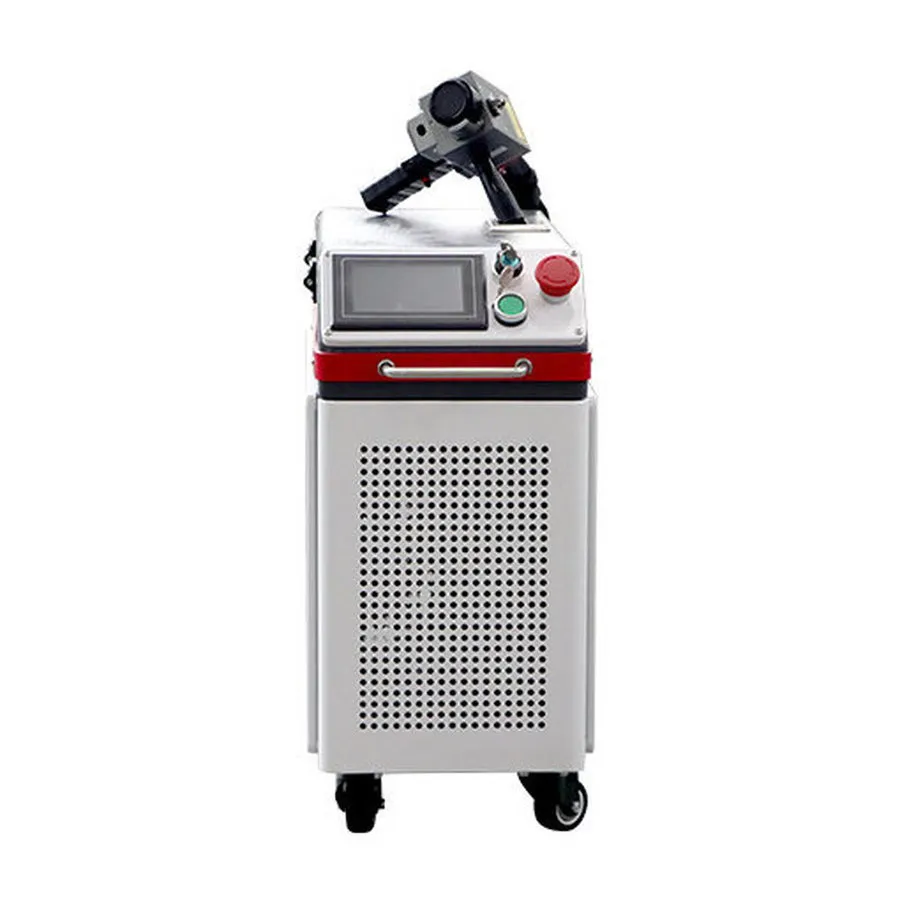

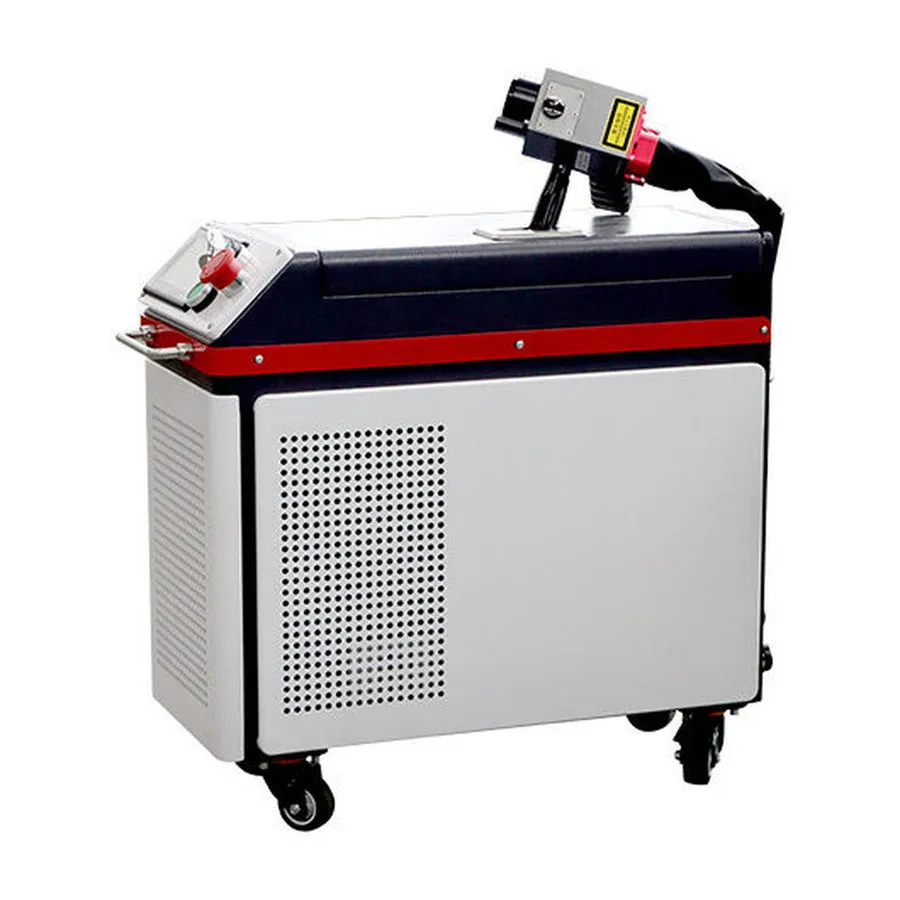

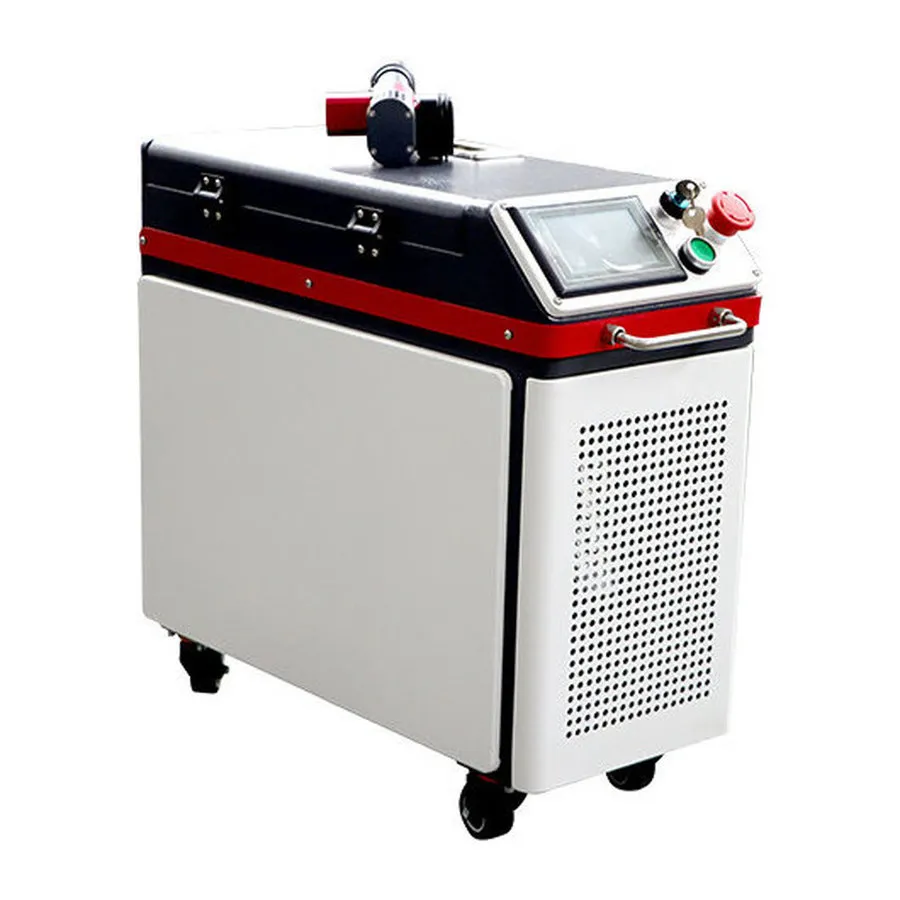

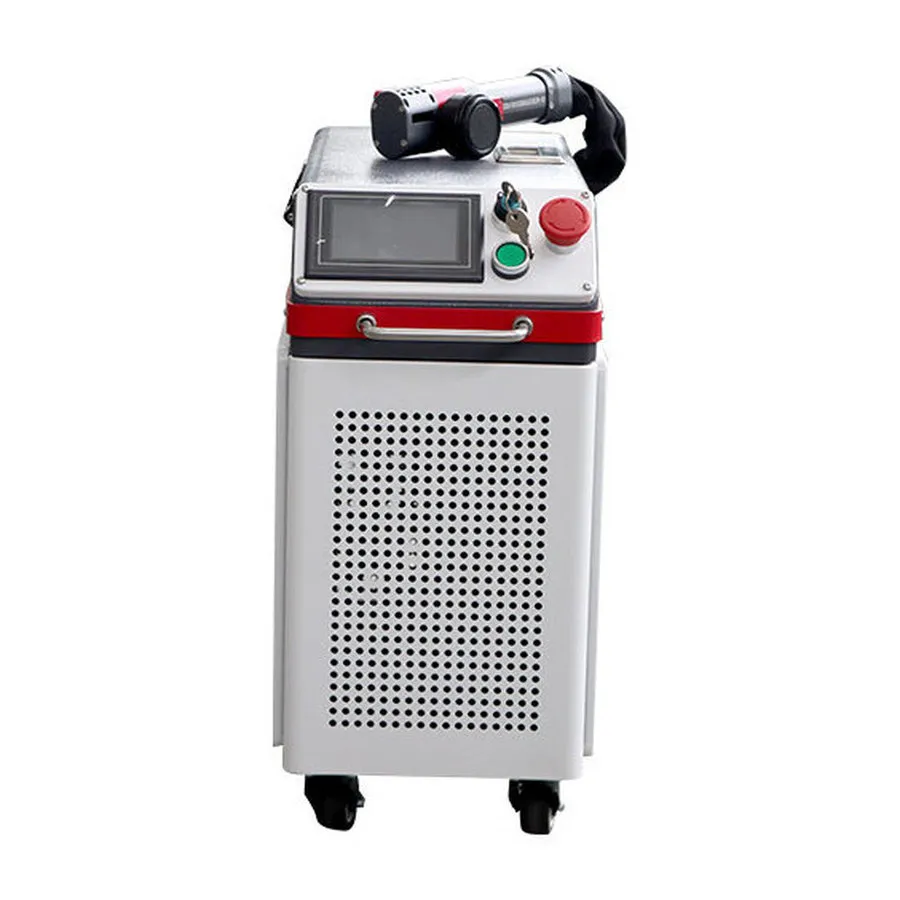

Detailed Product Gallery

Advanced Fiber Technology

Non-Contact Cleaning

Eco-Friendly Solution

Adjustable Parameters

▶

Operational Video

❓

Frequently Asked Questions

Q1: What materials can the pulsed laser cleaning machine be used on?

The machine is highly effective on carbon steel, stainless steel, aluminum, stone, glass, and various precision tooling materials.

Q2: Does the laser cleaning process damage the substrate?

No, it uses high-precision nanosecond pulses that selectively remove surface contaminants without causing thermal damage or mechanical wear to the base material.

Q3: What are the main power options available for this system?

The system comes in several power configurations, including 100W, 200W, and 300W models to suit different cleaning speed requirements.

Q4: Is the laser cleaning machine environmentally friendly?

Yes, it is a completely chemical-free process that produces no hazardous waste, consumes no water, and generates no toxic emissions, meeting strict environmental regulations.

Q5: Can the laser parameters be adjusted for specific tasks?

Absolutely. Users can customize pulse frequency, energy intensity, scanning speed, and spot size to optimize performance for different types of contamination.

Q6: What is the typical delivery time for an order?

Generally, it is 5-10 days if the goods are in stock. For customized or non-stock items, it usually takes 15-20 days depending on the quantity.
