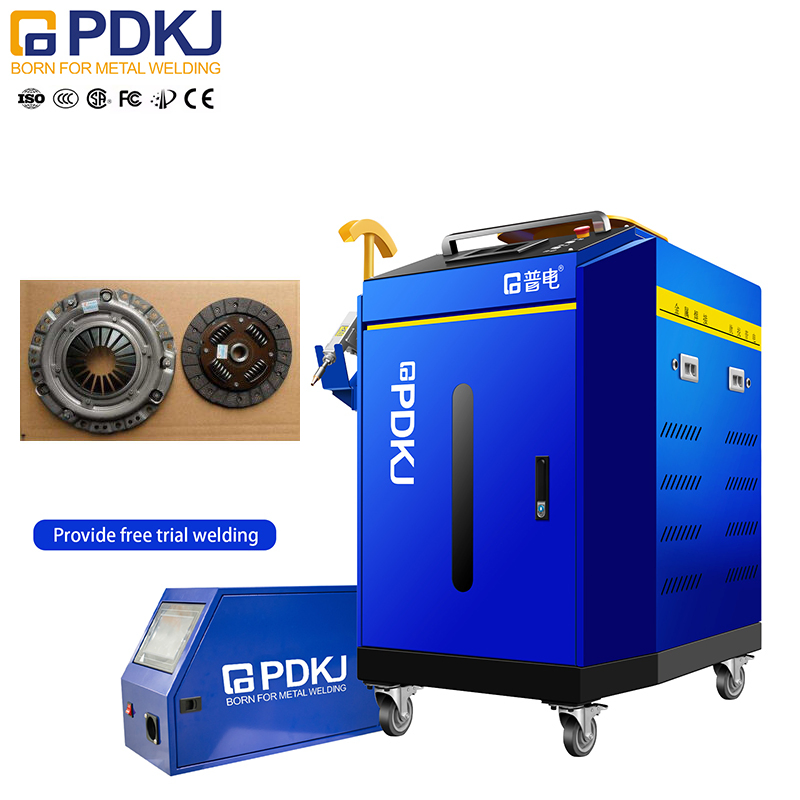

Pdkj Free Sample Laser Welding Handheld Fiber Laser Welding Machine for Brass

1 / 5

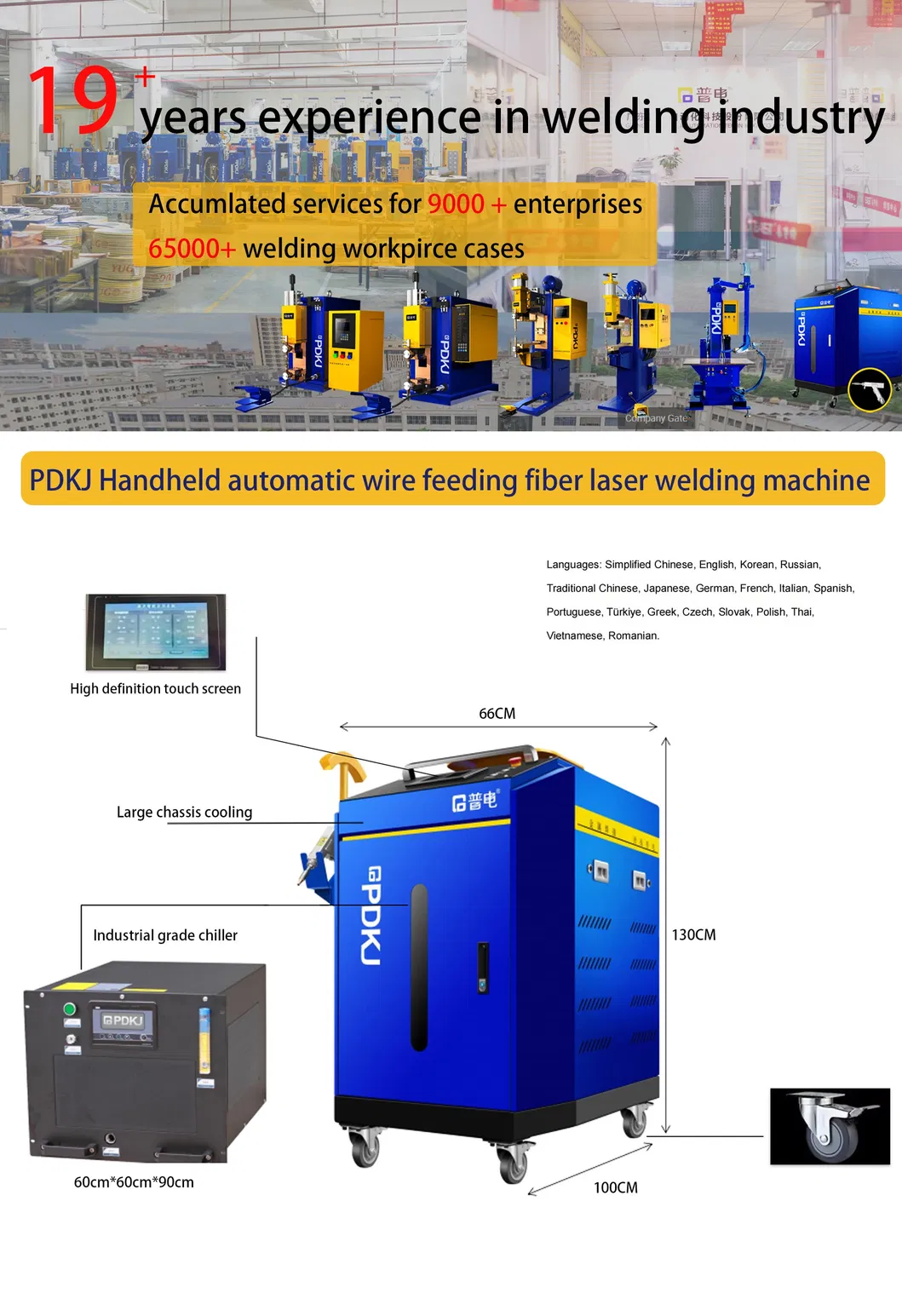

Pdkj Free Sample Laser Welding Handheld Fiber Laser Welding Machine for Brass

Application:	Welding
Technical Class:	Continuous Wave Laser
Control:	Manual

Send Inquiry

Product Description

Basic Information

Model NO.

LWM1500/LWM2000/LWM3000

Power Density

Heat Conduct Welding

Laser Classification

Optical Fiber Laser

Type

Optical Fiber Transmission Laser Welding Machine

Applicable Material

Stainless Steel, Galv. Sheet, All Metal Materials

Key Selling Points

Two Station Welding Workstation, 6-Axis Robot

Input Power

1500W-3000W

Certification

ISO, CE

Control Mode

Point to Point Control

Drive Mode

Electric

Product Description

The robot fiber laser welding workstation is an advanced equipment integrating robot technology, laser welding technology, and automation technology. The workstation is mainly composed of a robot, laser generator, laser transmission system, welding head, worktable, and control system.

The working principle is to control the movement trajectory of the welding head through the robot to focus the laser beam on the workpiece, achieving high-precision welding. By using fiber optic transmission, it eliminates the need for numerous mirrors found in traditional welding, significantly improving beam quality and welding stability.

Technical Parameters

Parameters	1500W	2000W	3000W
Protective gas	Argon/Nitrogen	Argon/Nitrogen	Argon/Nitrogen
Input power supply	220V	220V	380V
Laser wavelength	1064nm	1064nm	1080nm
Welding gap req.	<0.5mm	<0.5mm	<0.5mm
Aiming/Positioning	Infrared	Infrared	Infrared
SS Welding Capacity	0.2-4.0mm	0.2-5.0mm	0.2-7.0mm
Aluminum Welding	0.2-3.0mm	0.2-4.0mm	0.2-6.0mm
Welding speed	0-120cm/min	0-120cm/min	0-150cm/min

Core Advantages

Easy to operate and user-friendly interface.

High precision and superior welding quality.

Efficient production with 6-axis robot movement.

Automation for uninterrupted 24/7 production.

Significant labor cost savings and safety.

Strong versatility and high programmability.

Product Features

Selectable robot brands based on needs.

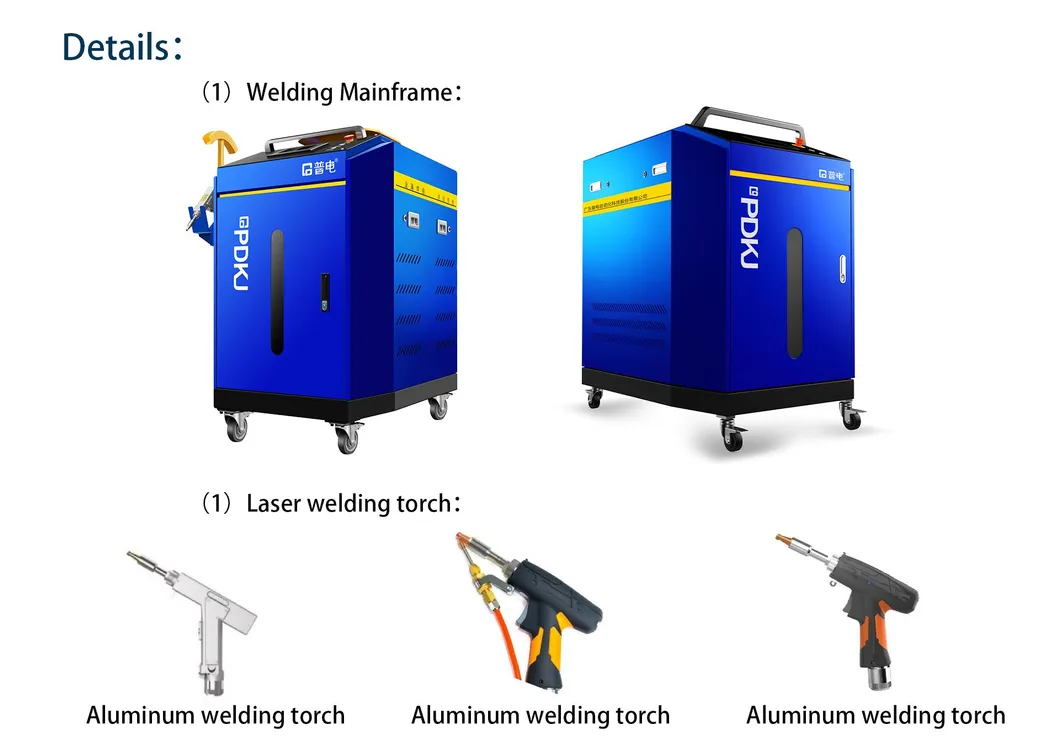

Versatile torches: handheld, industrial, or vibratory.
Power options: 1200W, 1500W, 2000W, 3000W.
Customized automation fixtures available.
Customizable loading/unloading automation.
Multi-station options for maximum efficiency.
Multi-robot welding collaboration support.
Non-contact welding seam tracking system.
Industrial dust collection and purification.
Configurable safety protection systems.
Independent cooling heat dissipation system.
CCD LCD monitor inspection system.

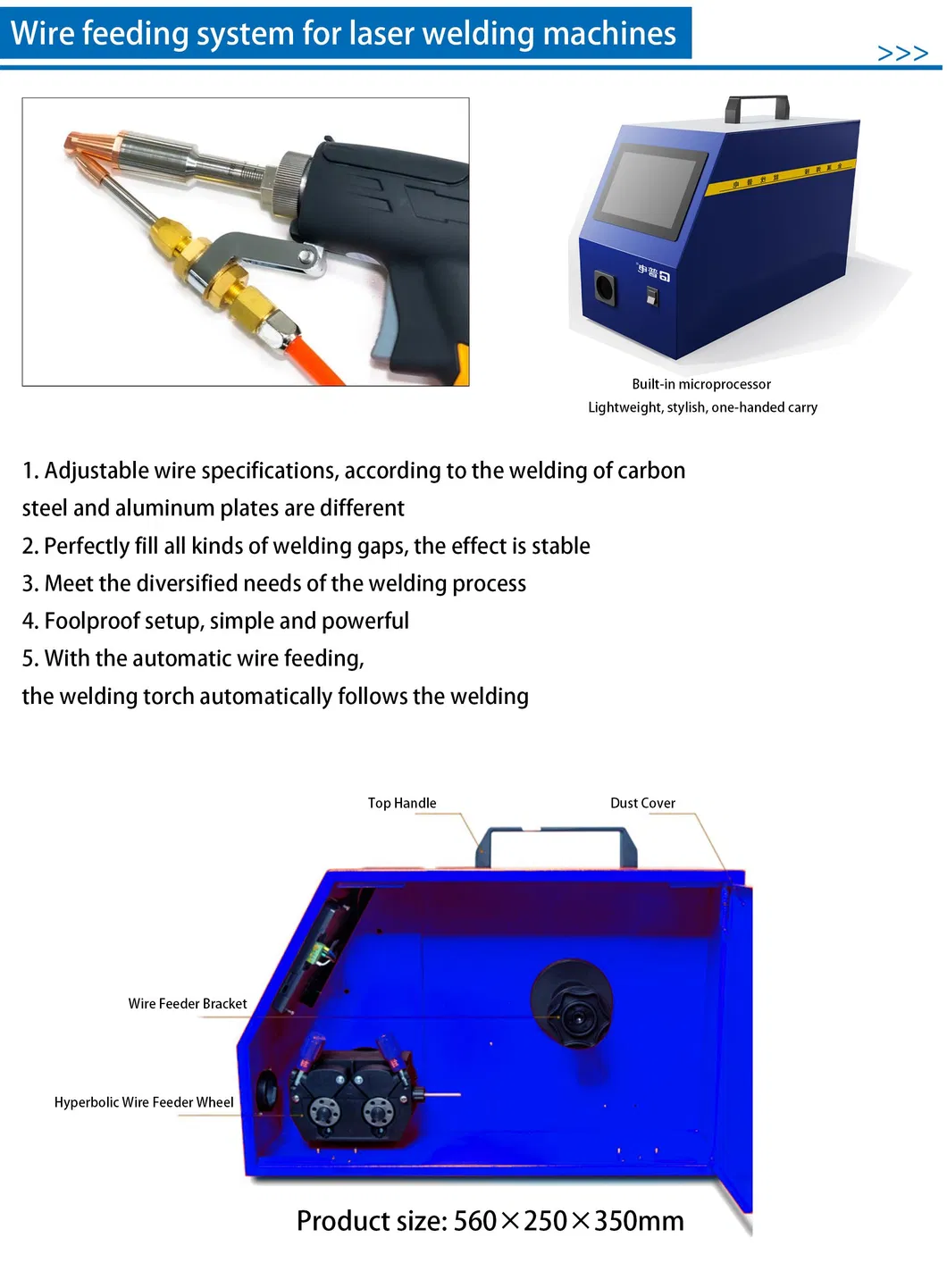

Standard automatic wire feeder included.
Positioners for complex angular welding.

Frequently Asked Questions

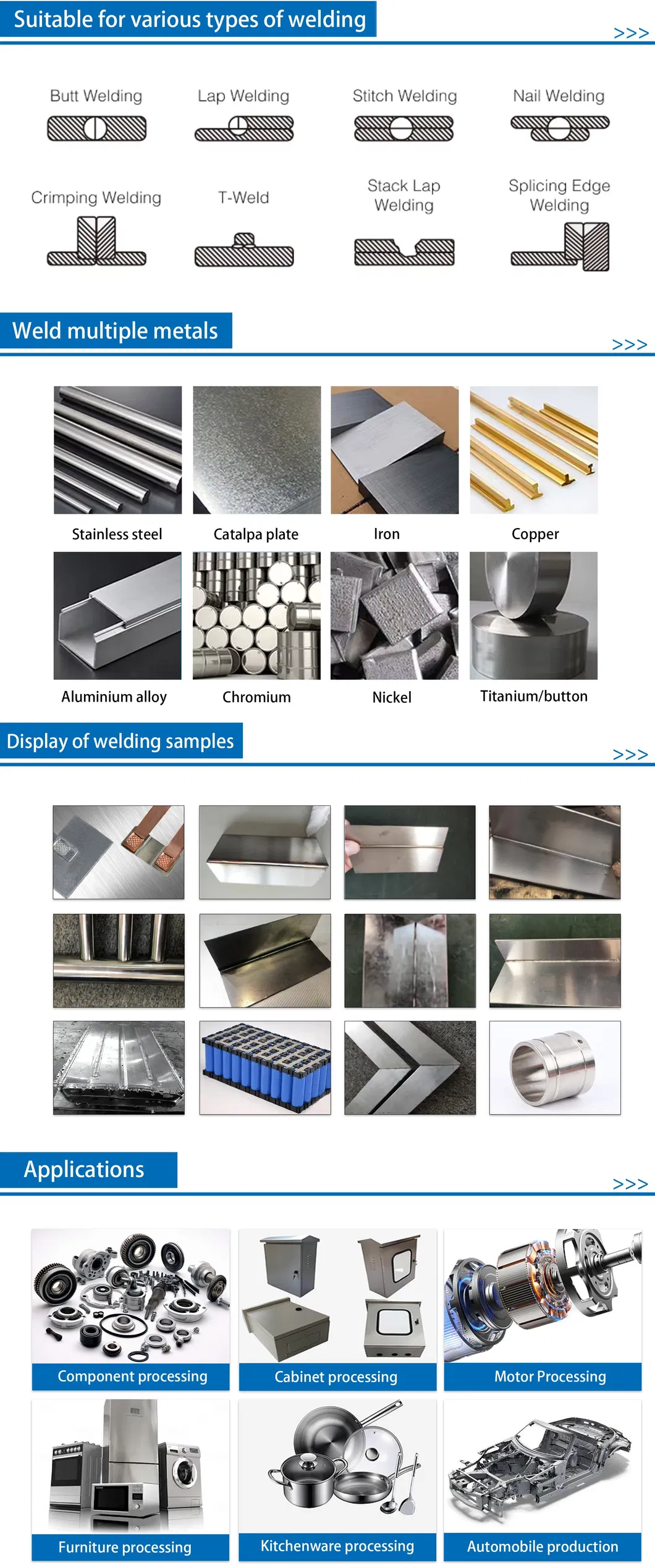

Q1: What materials can this robot laser welding workstation handle? A1: It is suitable for all metal materials, including stainless steel, galvanized sheets, carbon steel, and aluminum plates with various thickness capacities.

Q2: How does the fiber laser transmission improve welding quality? A2: Fiber optic transmission avoids the use of complex mirror systems, which reduces light loss and ensures a more stable, high-quality laser beam for precise welding.

Q3: Is the system compatible with automated production lines? A3: Yes, it supports 6-axis robot movement, customizable loading/unloading, and multi-station setups for seamless automated production.

Q4: What power options are available for different welding needs? A4: We offer several power ratings: 1500W, 2000W, and 3000W, allowing you to choose the right penetration depth for your specific material.

Q5: Does the machine come with an inspection system? A5: Yes, it offers an optional CCD LCD monitor inspection system and non-contact welding seam tracking for real-time monitoring.

Q6: What certifications does the equipment hold? A6: The equipment is fully certified with ISO and CE standards, ensuring international quality and safety compliance.
