Crawler Walking Photovoltaic Board Cleaning Remote Controlled Robot

1 / 5

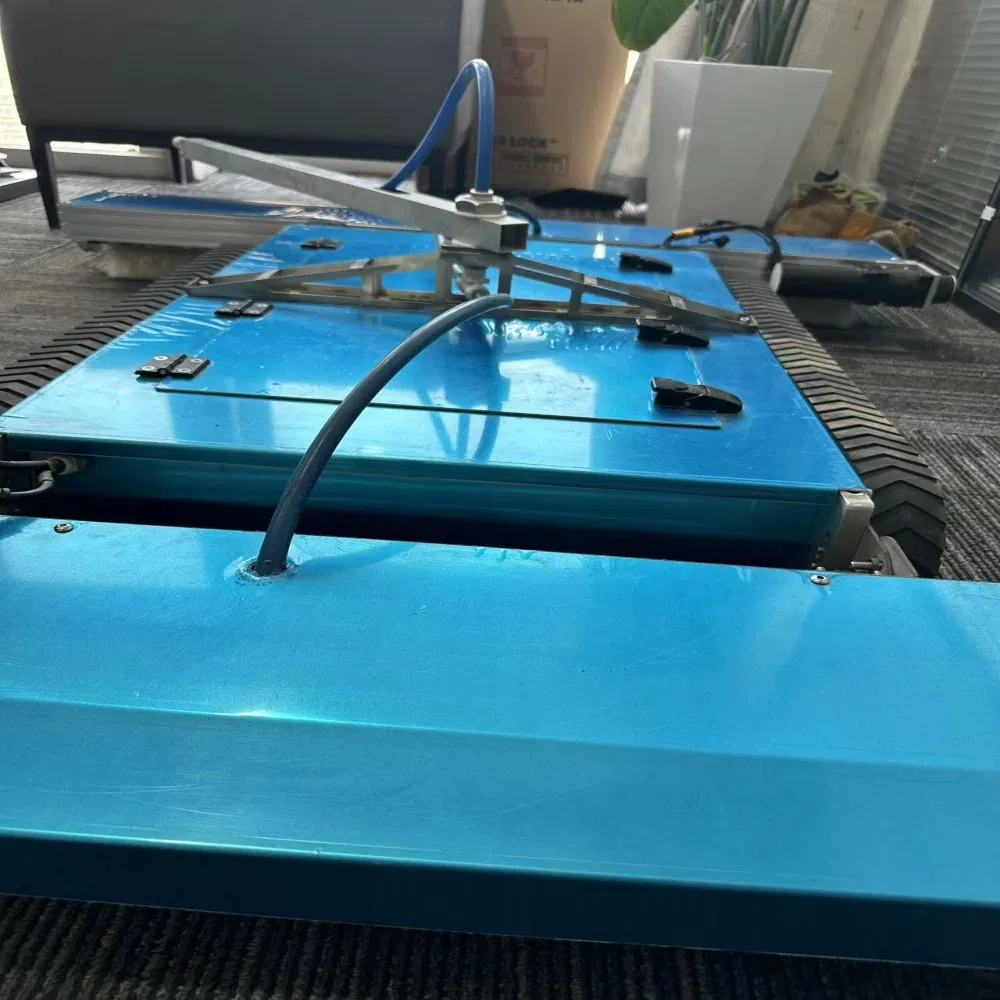

Crawler Walking Photovoltaic Board Cleaning Remote Controlled Robot

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	ZTBX	Clean Type	High Pressure Cleaning
Cleaning Process	Cold Water Cleaning	Control	PLC
Fuel	Electric	Endurance	6 Hours
Cleaning Type	Dry, Water	Working Angle	15°-30°
Working Temp	-20℃ to 80℃	Cleaning Speed	2.5 Hours Per Megawatt
HS Code	8479509090	Package	Wooden Case

Product Description

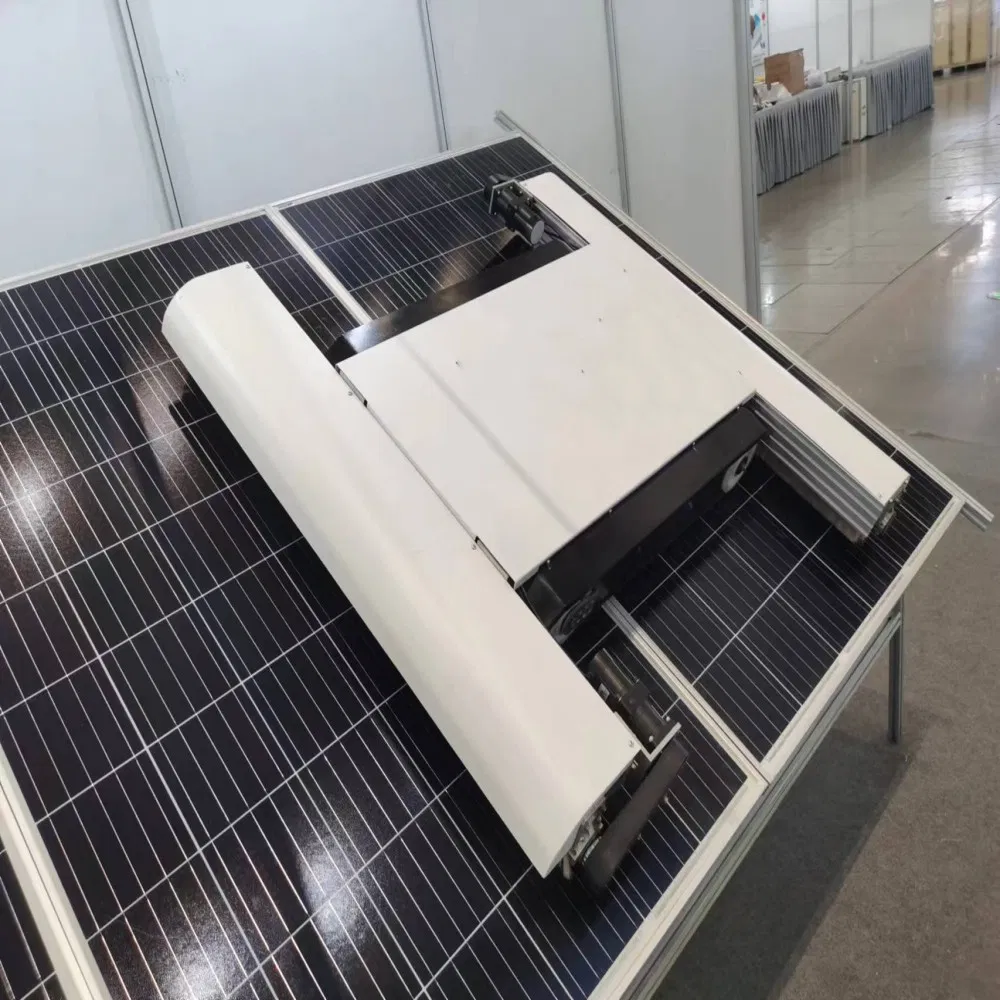

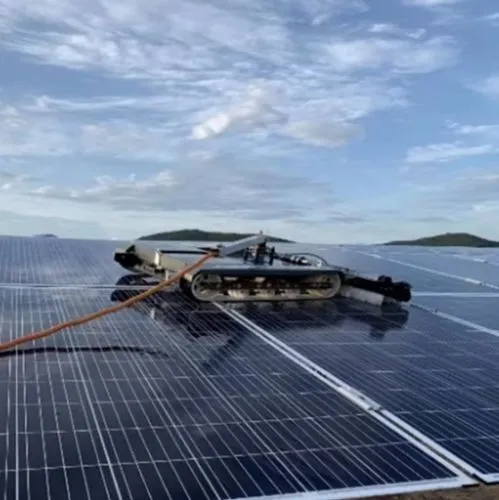

Solar Panel Cleaning Robot
The fully automatic solar panel cleaning robot consists of the robot body, data transmission system, positioning system, power system and battery, operation APP, and cloud platform monitoring system. It achieves unmanned and fully automatic cleaning work. It is widely used for cleaning photovoltaic panels in power plants, complementary agriculture, cement plants, and industrial production facilities.

Technical Parameters

Operating Voltage	24V
Idle Speed	250 rpm
Travel Speed	22m/min
Cleaning Width	1100mm
Power Supply Mode	Lithium battery (24V)*2
Brush Material	New nylon yarn
Equipment Weight	29kg (excluding battery)
Outline Dimension	12001000350mm

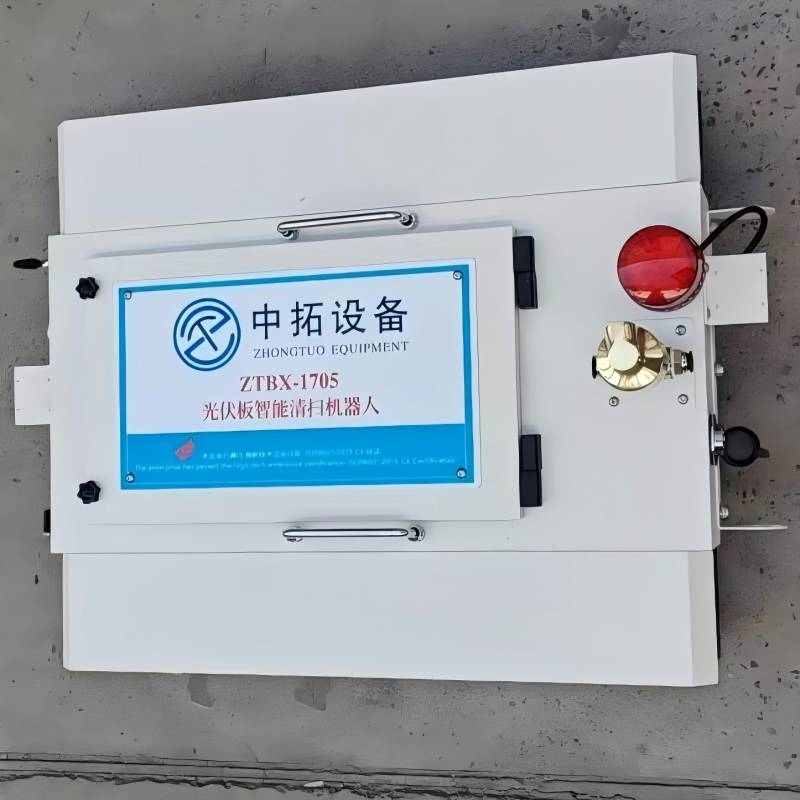

Product Details

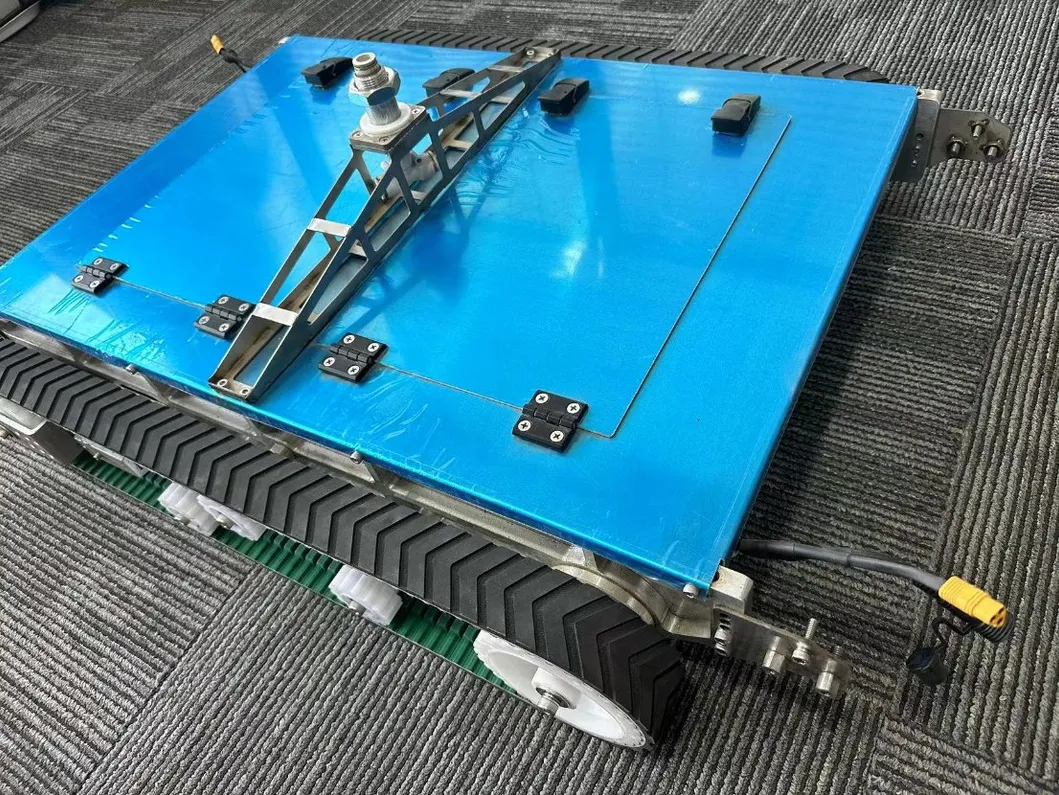

6063 aviation aluminum alloy body. Lightweight, high strength, will not damage solar panels.

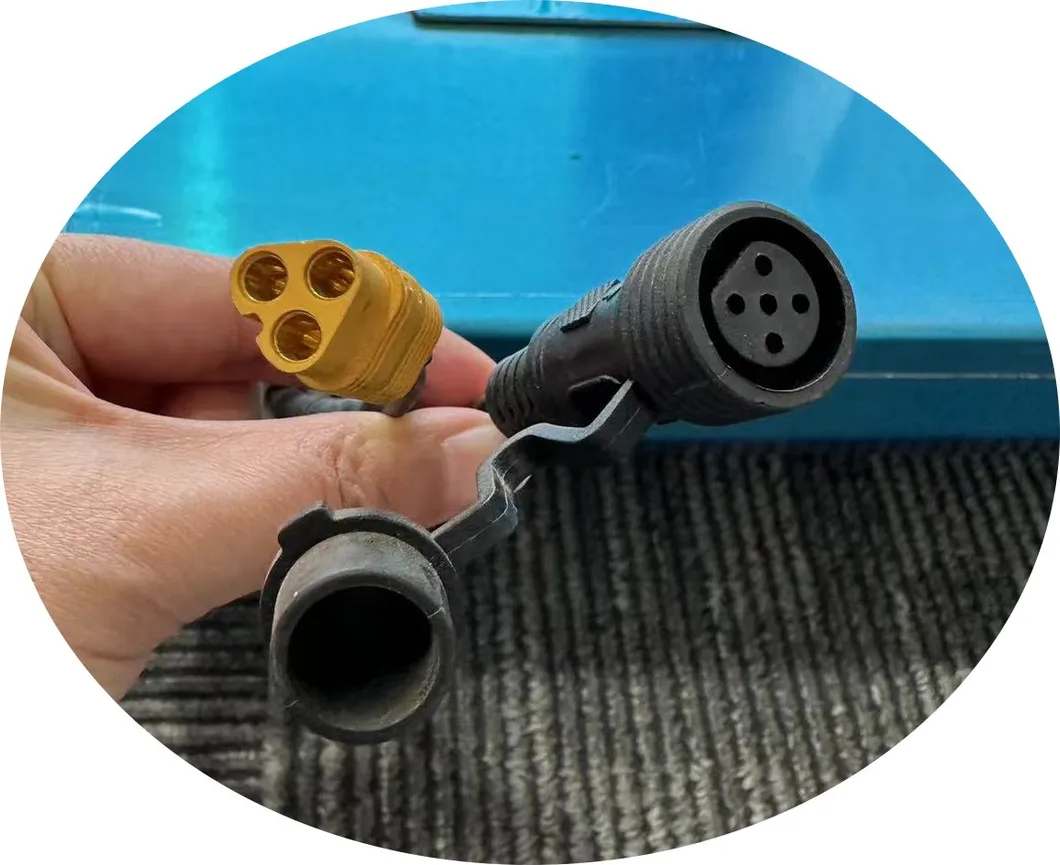

Intelligent PLC control DC geared motor with 24V26AH large capacity maintenance-free lithium battery.

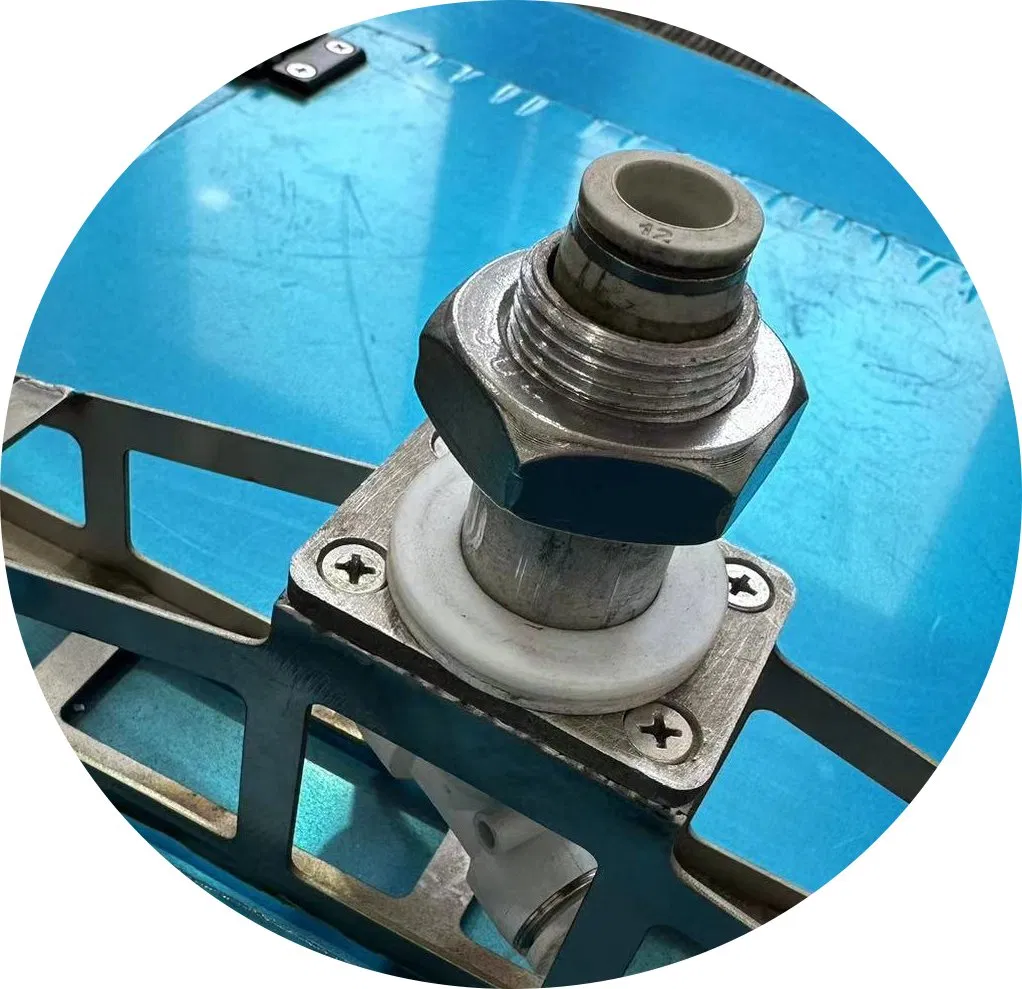

Supports both machine washing and dry cleaning, with intelligent control based on weather conditions.

Main Features & Advantages

Fully intelligent, automated, and unattended sweeping.
High cleaning efficiency reducing labor costs significantly.
Extremely small turning radius with no sweeping dead ends.
High-level waterproof, dustproof, and anti-fogging protection.
Remote real-time monitoring via mobile APP or web software.
Supports deep customization and high scalability.

Innovative Systems

Remote Control (250M): Uses imported radio frequency technology for stable signal and anti-interference up to 250 meters.

Intelligent Anti-fall System: Equipped with 4 high-precision sensors to detect edges automatically and prevent falling.

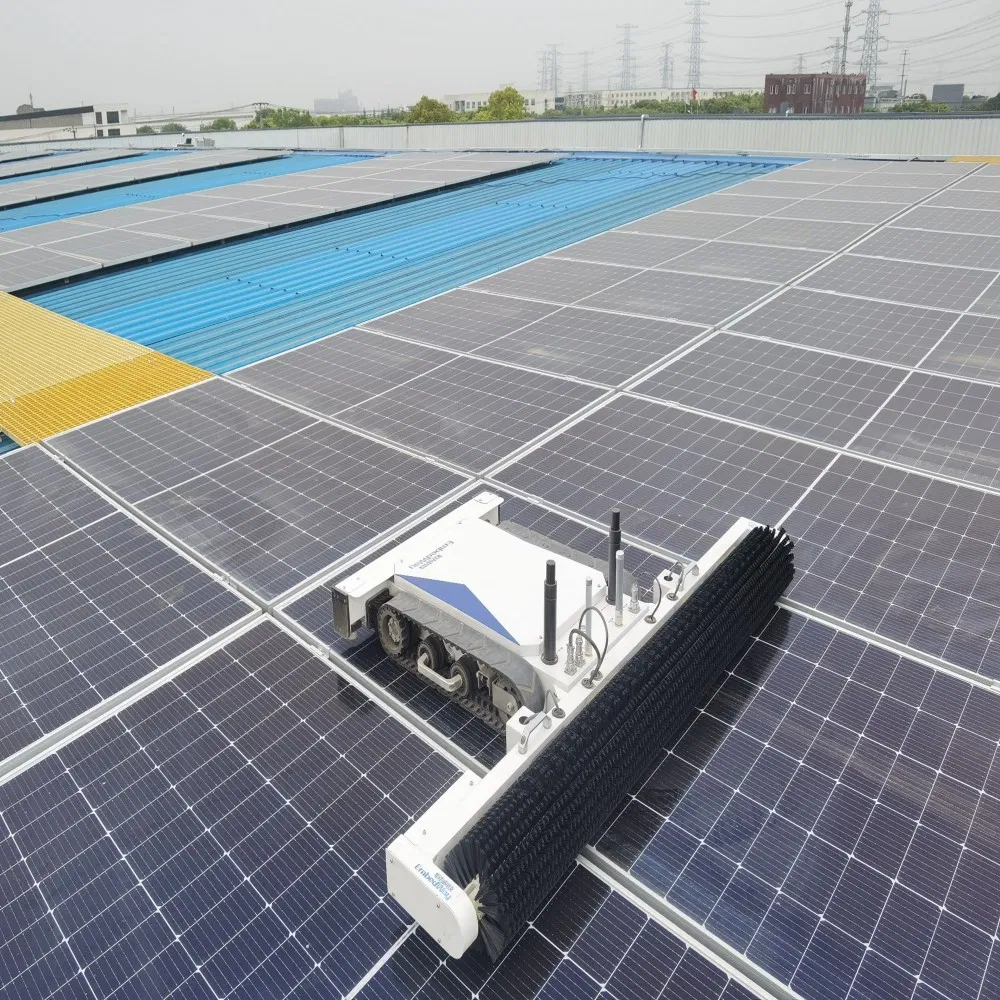

1100MM Roller Brushes: Soft nylon material ensures high efficiency (1.2MW/day) without damaging panel surfaces.

Work Scenes

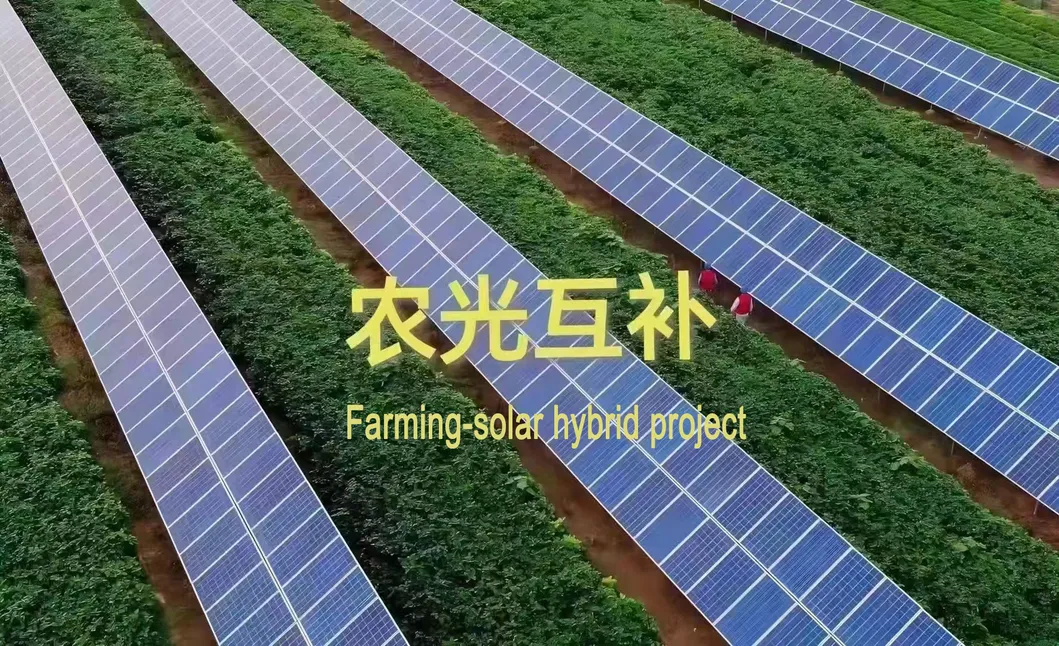

Farming-Solar Hybrid: Ensures plant growth and recovers 40% efficiency losses.

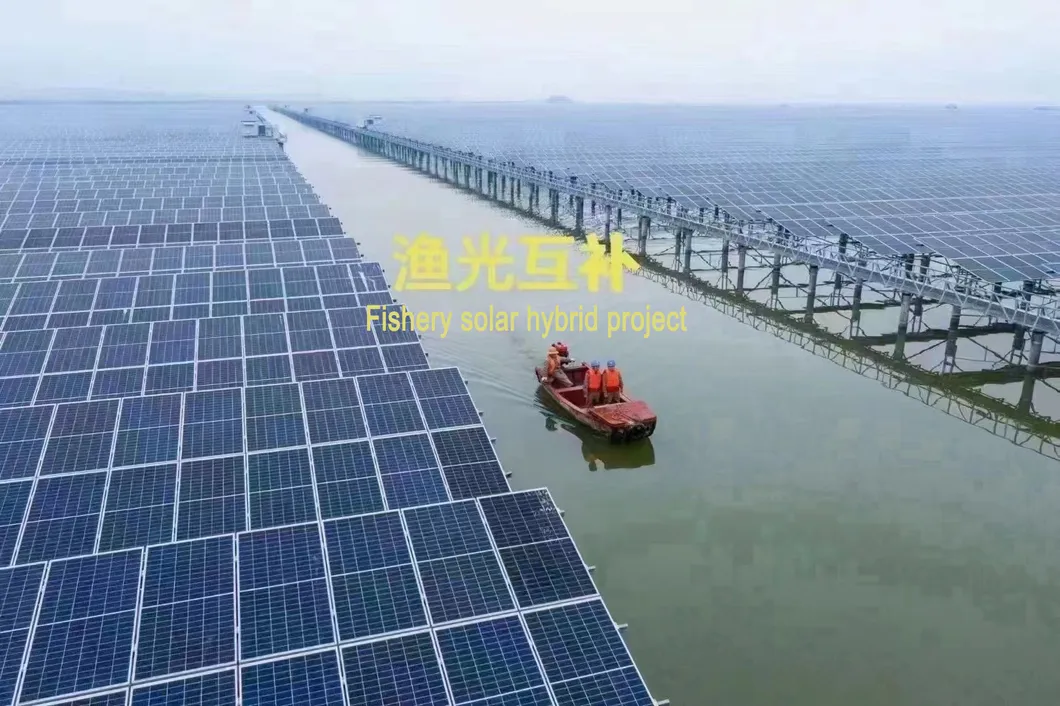

Fishery-Solar Hybrid: Unmanned automatic cleaning for water-based solar farms.

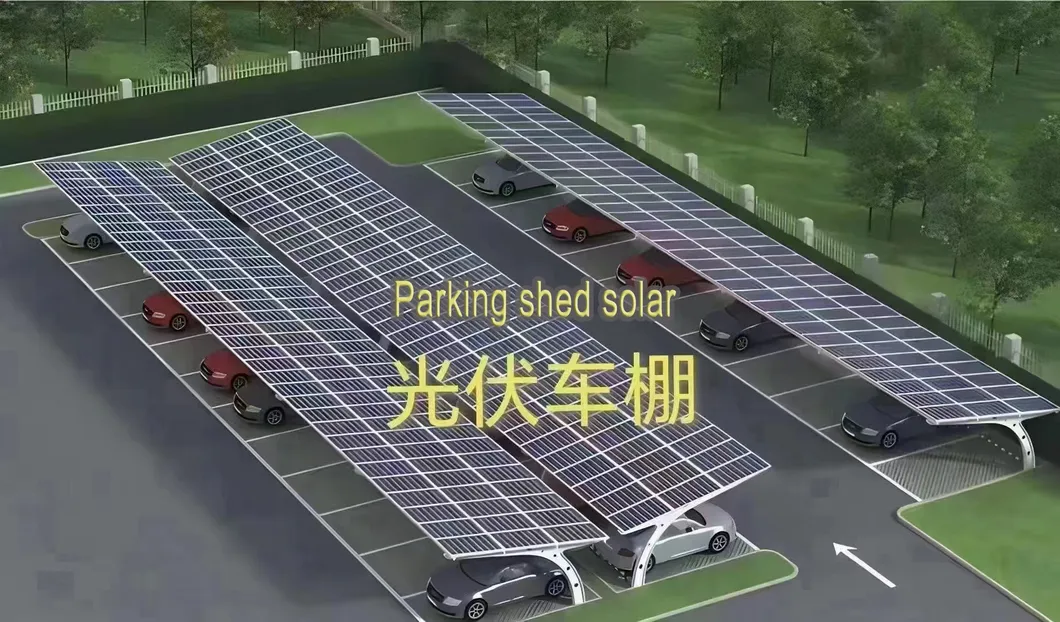

Parking Sheds: Ideal for hard-to-reach rooftop cleaning.

Packaging & Shipping

Packing List: Main unit, remote control, two lithium batteries (24/26Ah), two chargers, battery backpack, and spare tool accessory.

Certifications

Frequently Asked Questions

1. Will the robot hit walls or obstacles during operation?

Under normal circumstances, this will not happen. Manual operations are human-controlled, and the fully automatic system uses induction sensors to prevent collisions.

2. Can it operate on rainy days?

Fully automatic equipment can be operated on rainy days. However, human-operated cleaning is not recommended during rain to ensure personnel safety and prevent lightning hazards.

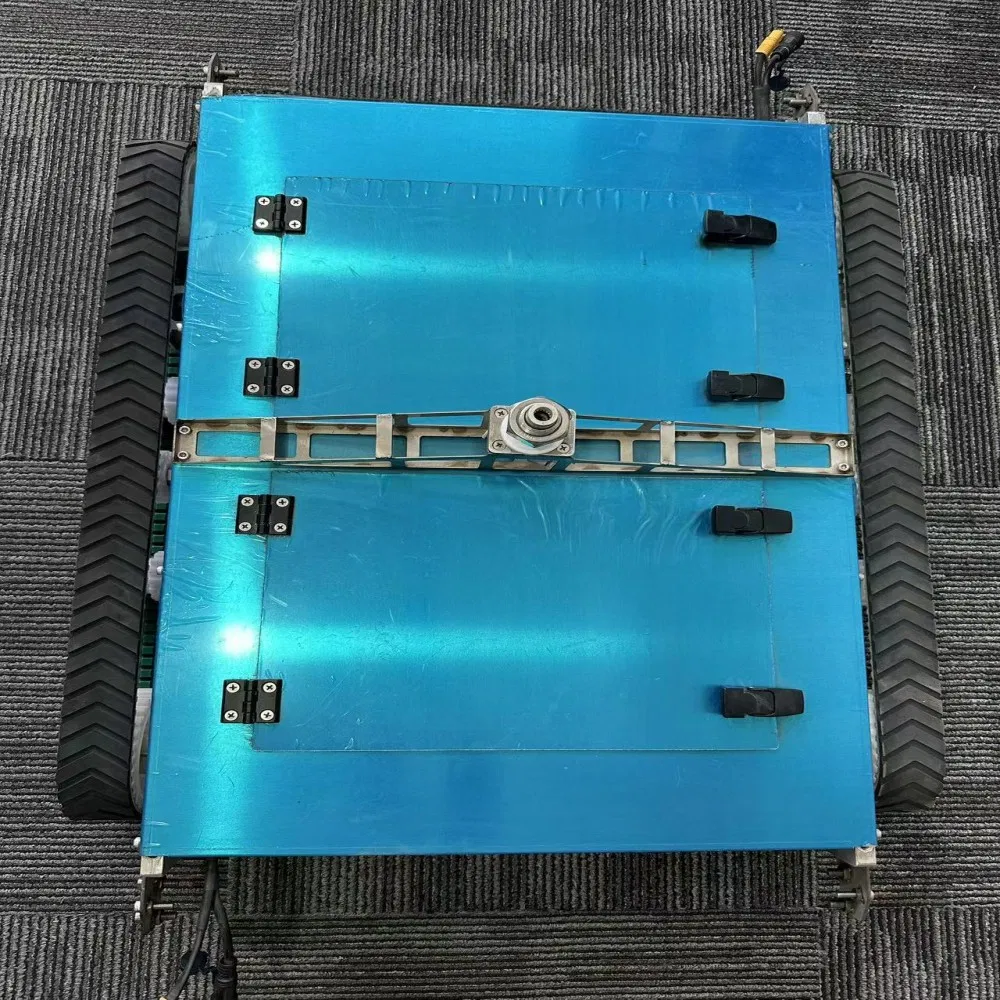

3. Why use crawler tracks instead of wheels?

The crawler chassis provides higher friction and stability, ensuring a better cleaning effect and the ability to handle various terrains on photovoltaic panels.

4. What are the main technical advantages?

Our robot is optimized for high-speed dry cleaning, offering the highest efficiency and cleanliness standards in the industry.

5. Does the robot damage the solar panels?

No. The robot uses 1100mm soft nylon brushes and a lightweight aviation aluminum body specifically designed to clean without causing any damage to the panel surface.

6. How is the cleaning monitored?

The equipment supports mobile APPs and web-based software for remote real-time monitoring of operating status and performance.
