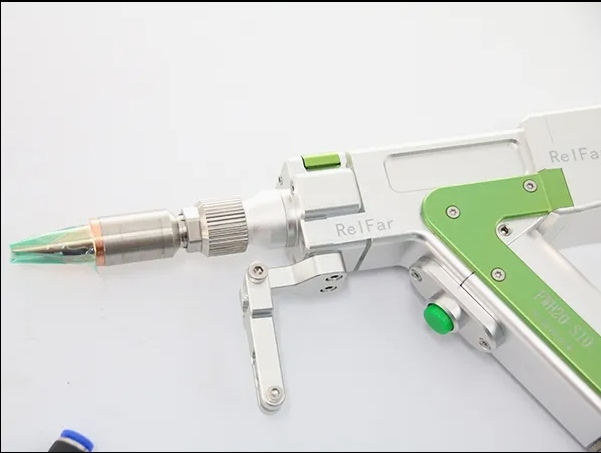

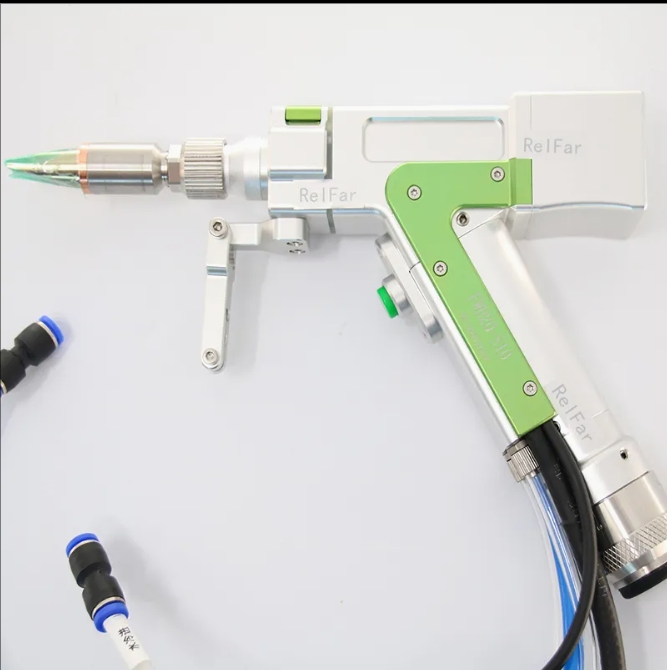

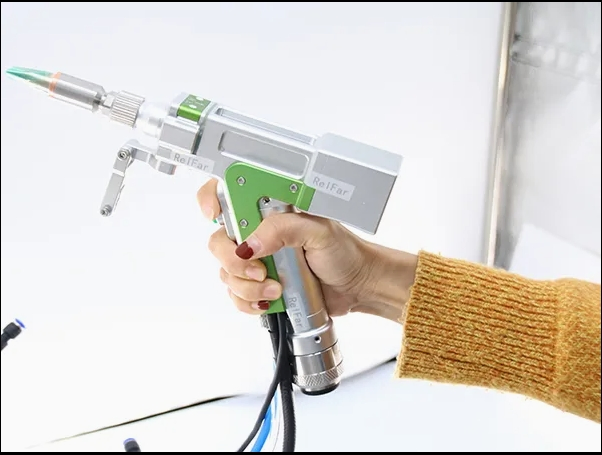

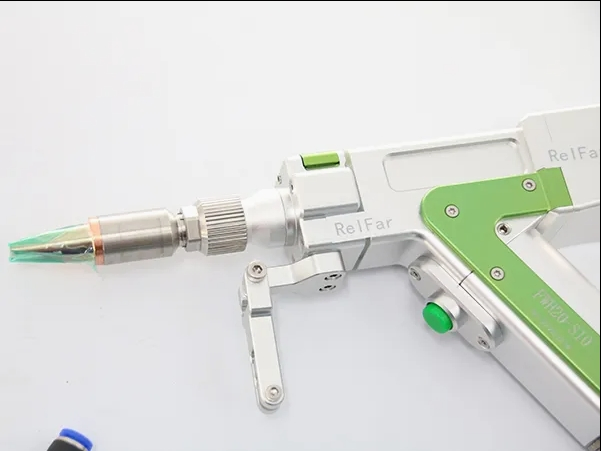

Relfar Handheld Laser Welding Gun
Relfar Handheld Laser Welding Gun
Relfar Handheld Laser Welding Gun
Relfar Handheld Laser Welding Gun
1 / 4
Relfar Handheld Laser Welding Gun
Relfar Handheld Laser Welding Gun
Relfar Handheld Laser Welding Gun
Relfar Handheld Laser Welding Gun

Relfar Handheld Laser Welding Gun

Customization: Available
After-sales Service: 7*24
Warranty: 1 Year
Send Inquiry

Product Description

ℹ️
Basic Information
Model NO.:FWH20-D10A FWH30-D10A
Type:Laser Welding Head
Laser Type:Laser Welding Head
Optical Interface:QBH
Wavelength:1070±20nm
Rated Power:≤3000W
Focal Length:Collimation 50mm / Focus 200mm
Weight:0.9kg
📋
Product Description
Integrating software and hardware R&D, our industrial laser core components focus on laser industrial technology, providing comprehensive solutions for intelligent laser manufacturing.

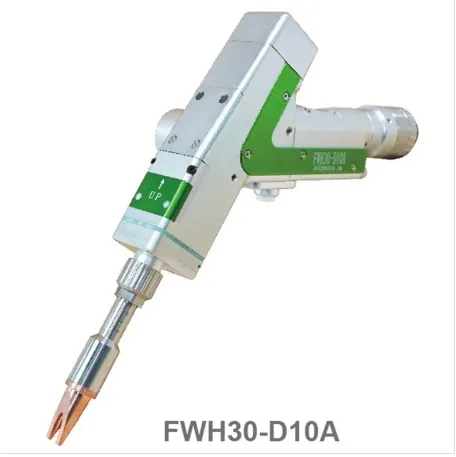

Double swing welding joint single wire feed
Double swing welding joint single wire feed two-in-one

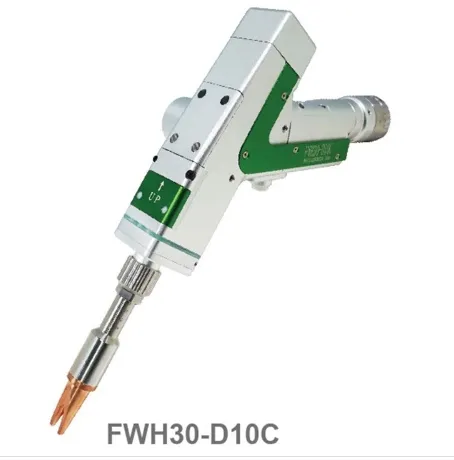

Double swing welding head double wire feed
Double swing welding head, double wire feed two-in-one

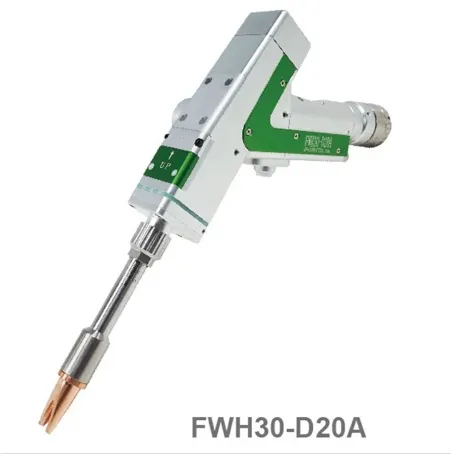

Double swing welding joint single wire feed four-in-one
Double swing welding joint single wire feed four-in-one

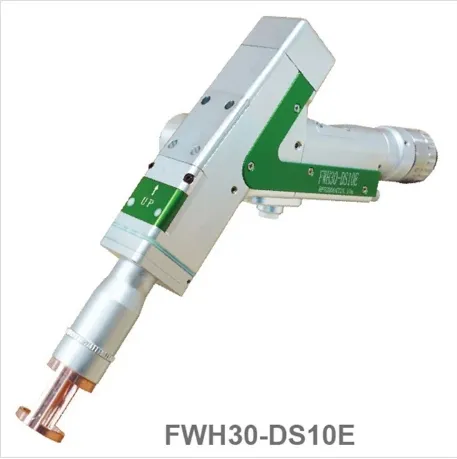

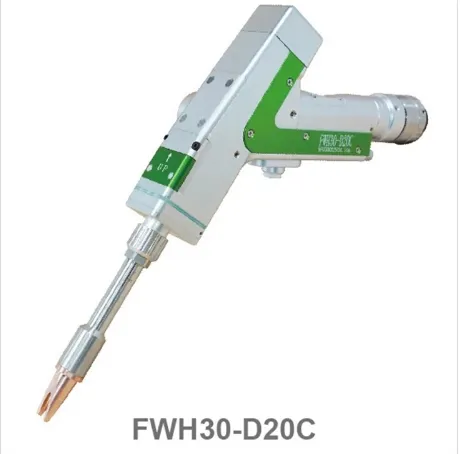

Handheld welding head Lithium battery welding head

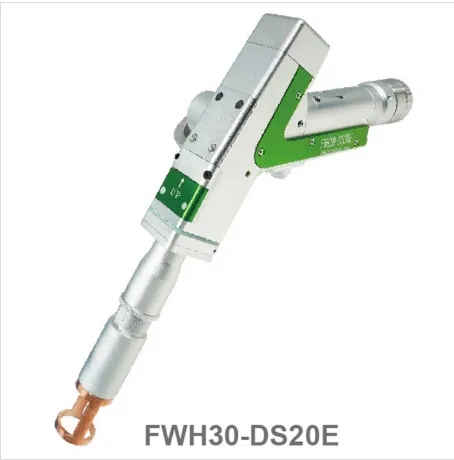

Dual wire feed five-in-one
Handheld lithium battery welding head dual wire feed five-in-one
⭐
Advantages of Double-Pendulum Head
✔Multiple patterns: Six patterns to choose from for various welding processes.
✔Easy to use: Operators can adjust modes according to their adaptability.
✔High tolerance: Better filling effect and stronger welding than single horizontal lines.
✔Automation ready: Dual-axis is highly suitable for simple automated production lines.
✔Simple adjustment: Adjust graphics directly in the system, faster than motor adjustments.

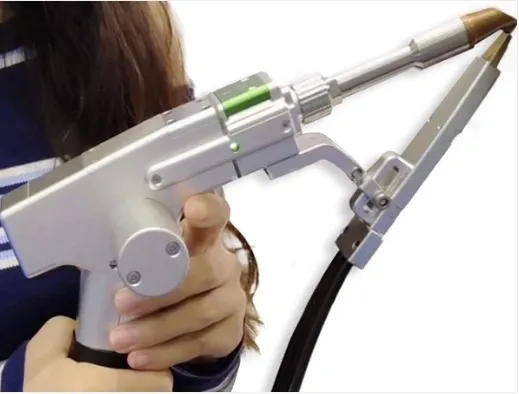

Head status

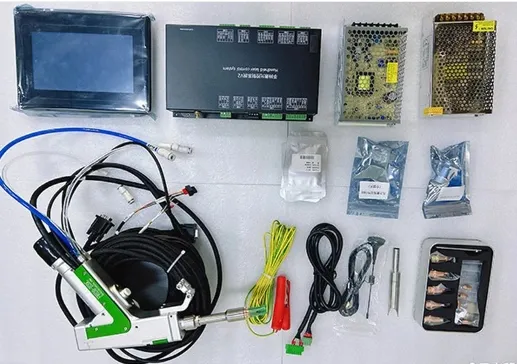

Double pendulum

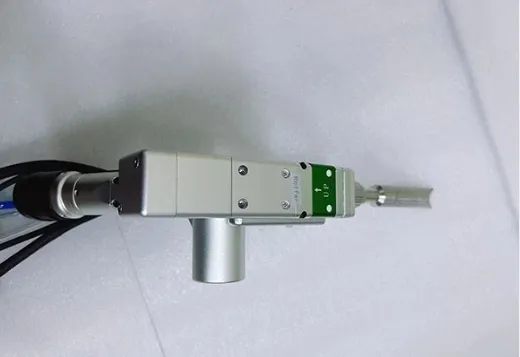

Cleaning head status

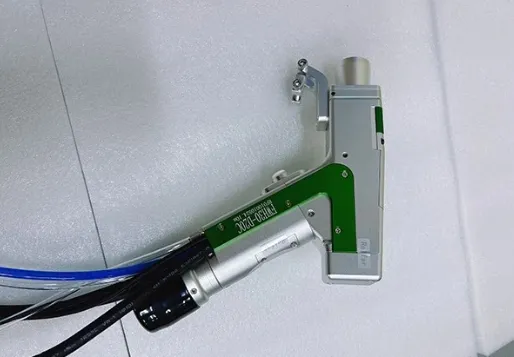

Weld cleaning status
📊
Technical Parameters

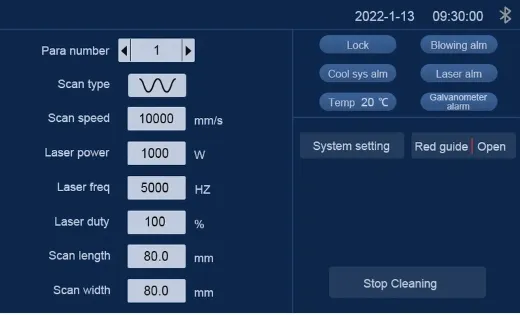

Cleaning software

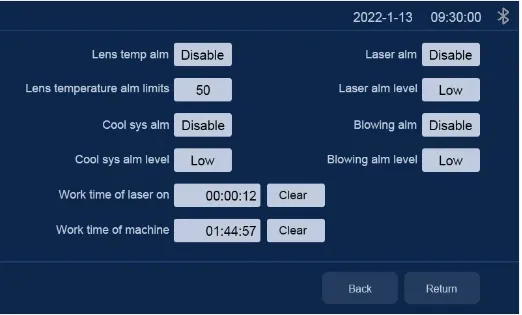

Settings

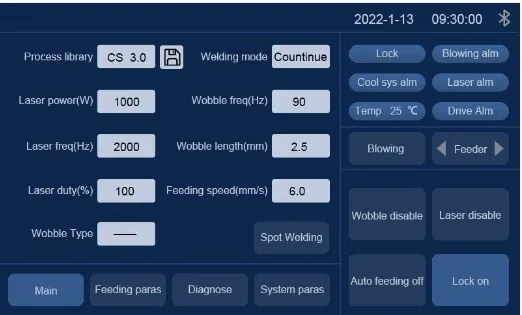

Welding software
Model FWH30-D10A FWH30-D10C FWH30-D20A FWH30-D20C
Optical Fiber InterfaceQBHQBHQBHQBH
Wavelength Range1070±20nm1070±20nm1070±20nm1070±20nm
Rated Power≤3000W≤3000W≤3000W≤3000W
Protection FunctionHaveHaveHaveHave
Collimation Focal Length50mm50mm50mm50mm
Focus Focal Length200mm200mm200mm200mm
Spot Adjustable Range0-8mm0-8mm0-8mm0-8mm
Auxiliary Gas≥0.1-1Mpa≥0.1-1Mpa≥0.1-1Mpa≥0.1-1Mpa
Effective Aperture16mm16mm16mm16mm
Swing TypeSix KindsSix KindsSix KindsSix Kinds
Weight0.9KG0.9KG0.9KG0.9KG
📜

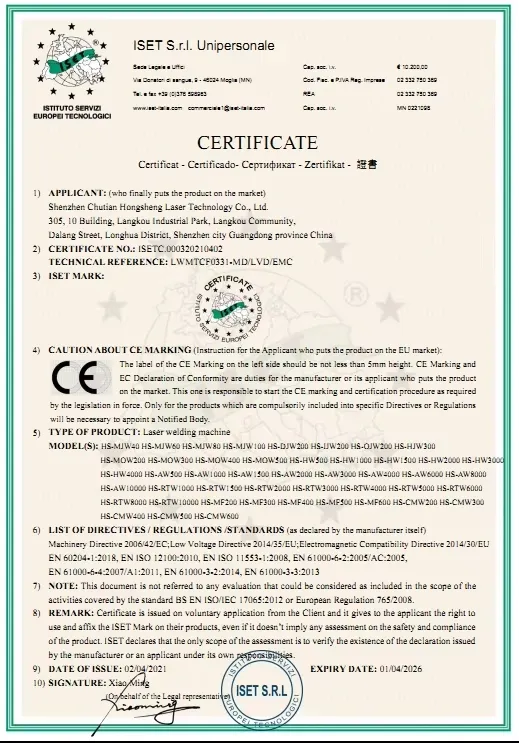

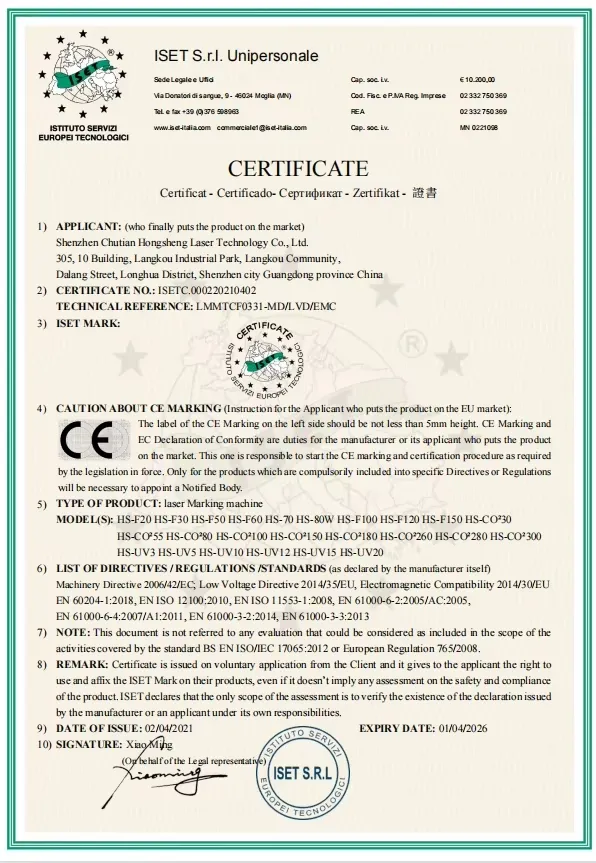

Certifications & Quality
Cert
Cert
Cert

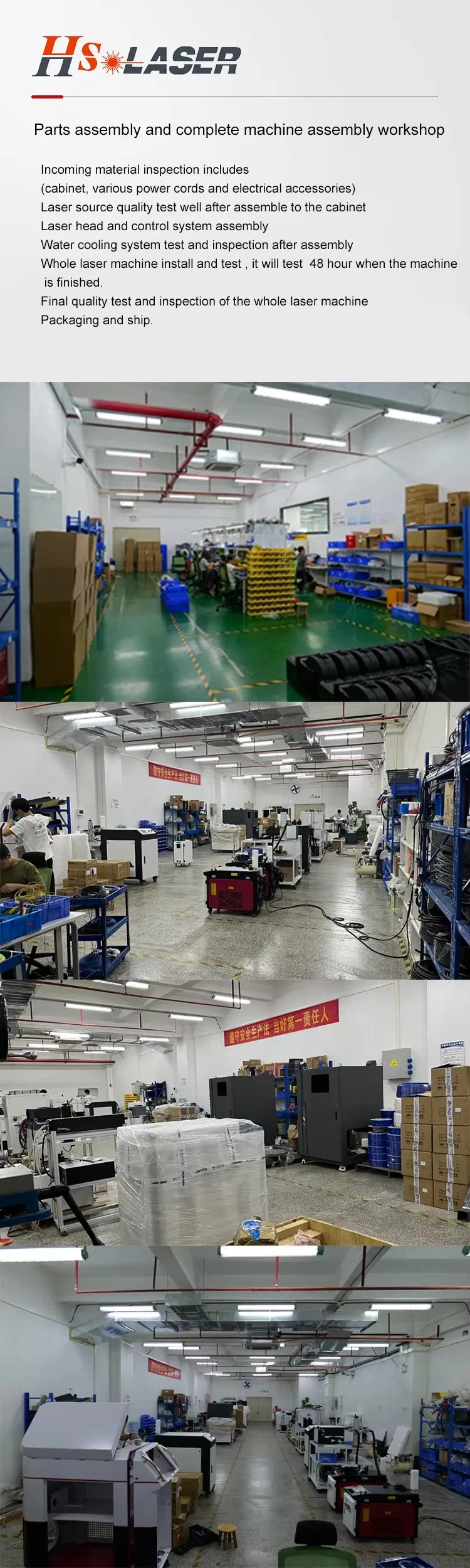

Manufacturing Workshop

Workshop
🚚
Packaging and Delivery

• Laser cleaning/welding machine orders (<10 sets): 10 to 15 working days.

• Laser cutting machine lead time: Minimum 25 working days.

• Shipping: Equipment under 100 kg is typically shipped via DHL, FedEx, or air freight. Heavy equipment is shipped via sea under DDP or CIF terms.

Delivery
❓
Frequently Asked Questions
1. What is the maximum laser power these heads can handle?
The rated power for the FWH30 series is up to 3000W, making it suitable for high-power industrial laser welding.
2. How many swing patterns are available?
There are six different swing patterns available, allowing for a wide variety of welding processes and improved fault tolerance.
3. Does the welding head have built-in protection?
Yes, the system is equipped with an intelligent protection function to ensure safe operation and longevity of the core components.
4. What is the weight of the handheld welding head?
The head is highly portable and lightweight, weighing only approximately 0.9kg, which reduces operator fatigue during extended use.
5. What is the typical lead time for a small order?
For orders of fewer than 10 sets, the standard lead time is between 10 to 15 working days.
6. Can this head be used for both welding and cleaning?
Yes, there are multi-in-one versions available that support both laser welding and laser cleaning modes via system status switching.
