Smart Anti-Falling Photovoltaic Clean Machine Equipment Dry & Wet Washing Solar Panel Cleaning Robot with Crawler-Rubber-Tracker for Commercial PV Module

Customization:	Available
After-sales Service:	1 Year
Automation:	Semi-automatic

⚙️

Basic Product Specifications

Model:RHINO700-EC6

Clean Type:Clean-In-Place

Process:Cold Water / Physical Cleaning

Control System:PLC with Remote Control

Style:Crawler Style

Power Supply:24V Lithium Battery

Endurance:≥4h

Certification:CE

🤖

Product Description

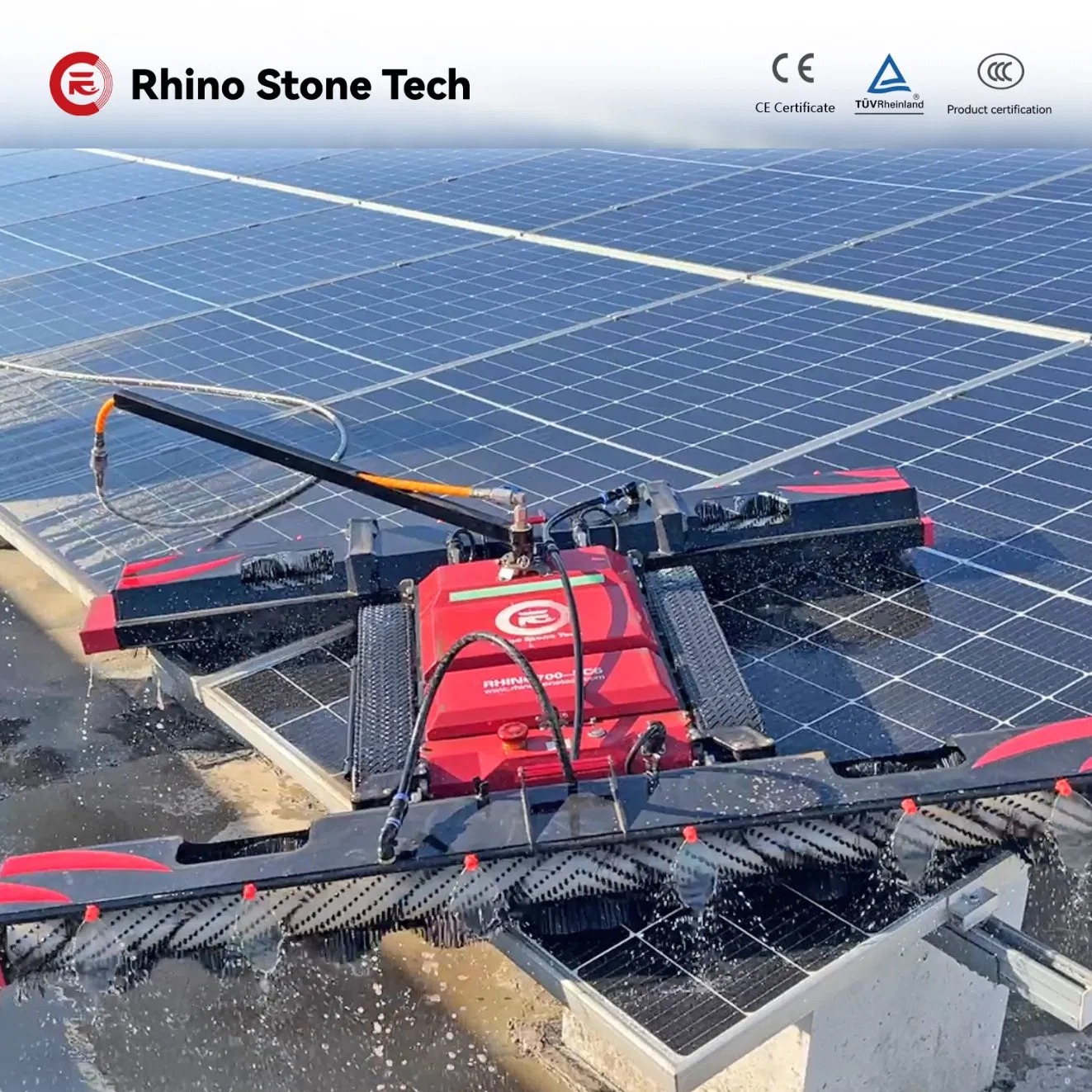

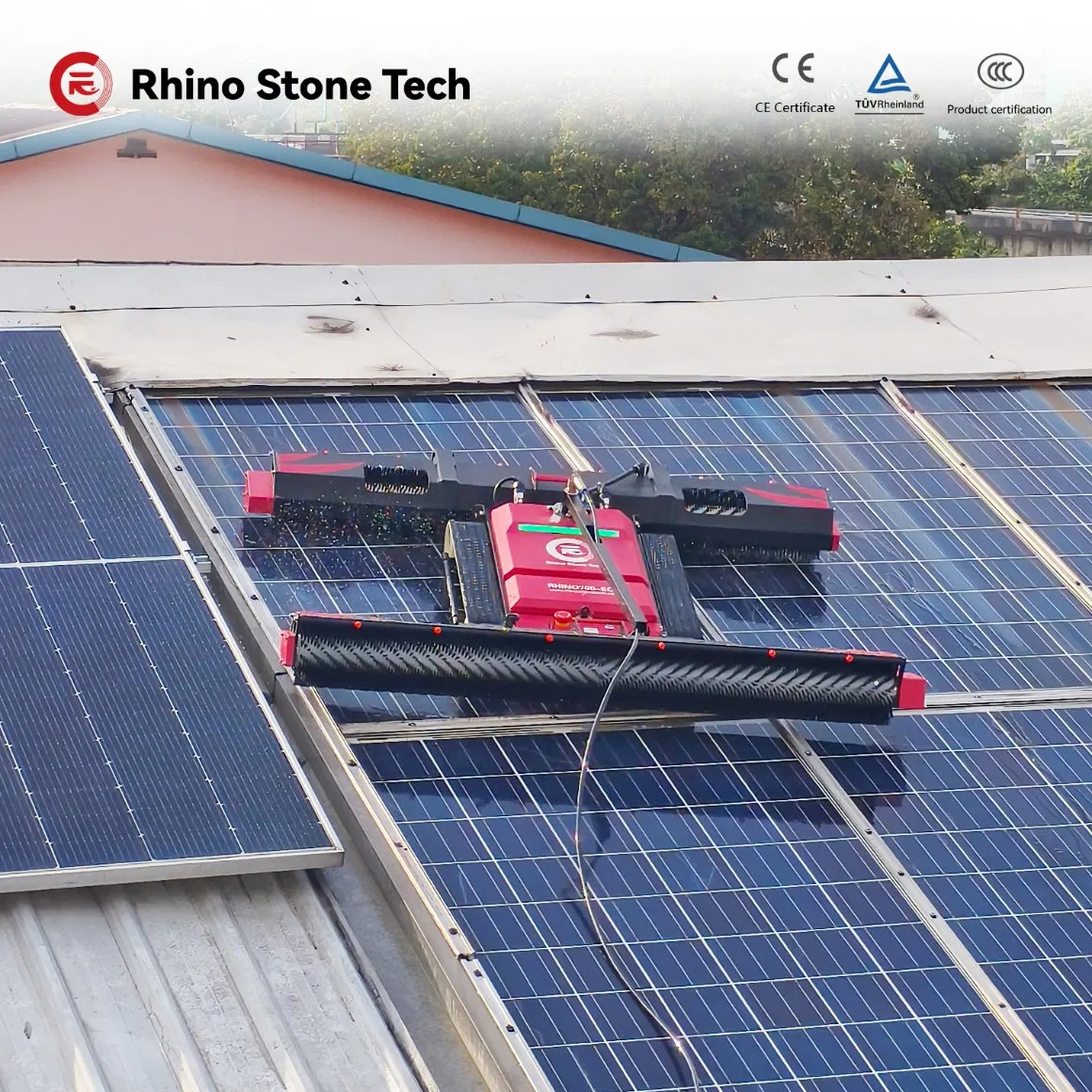

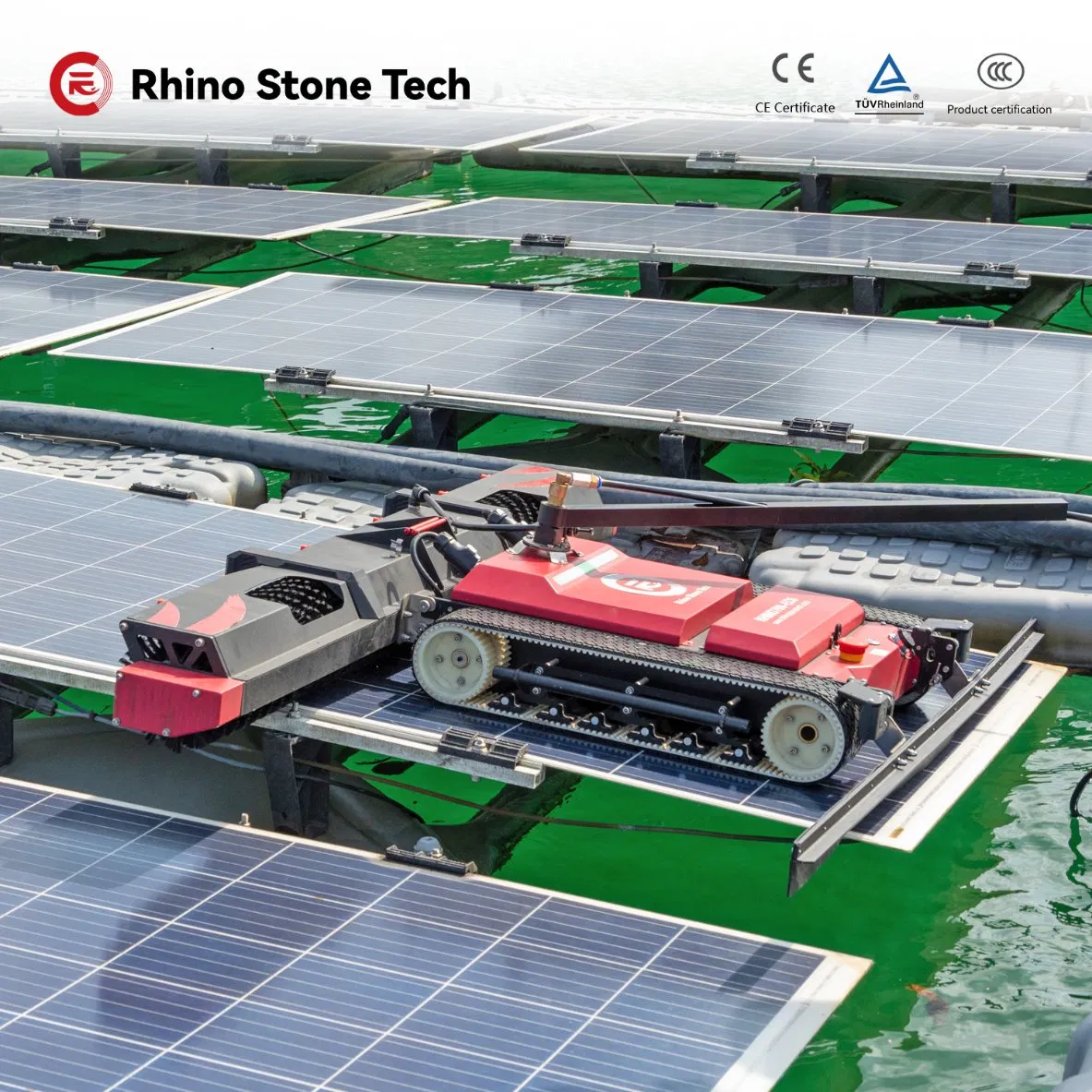

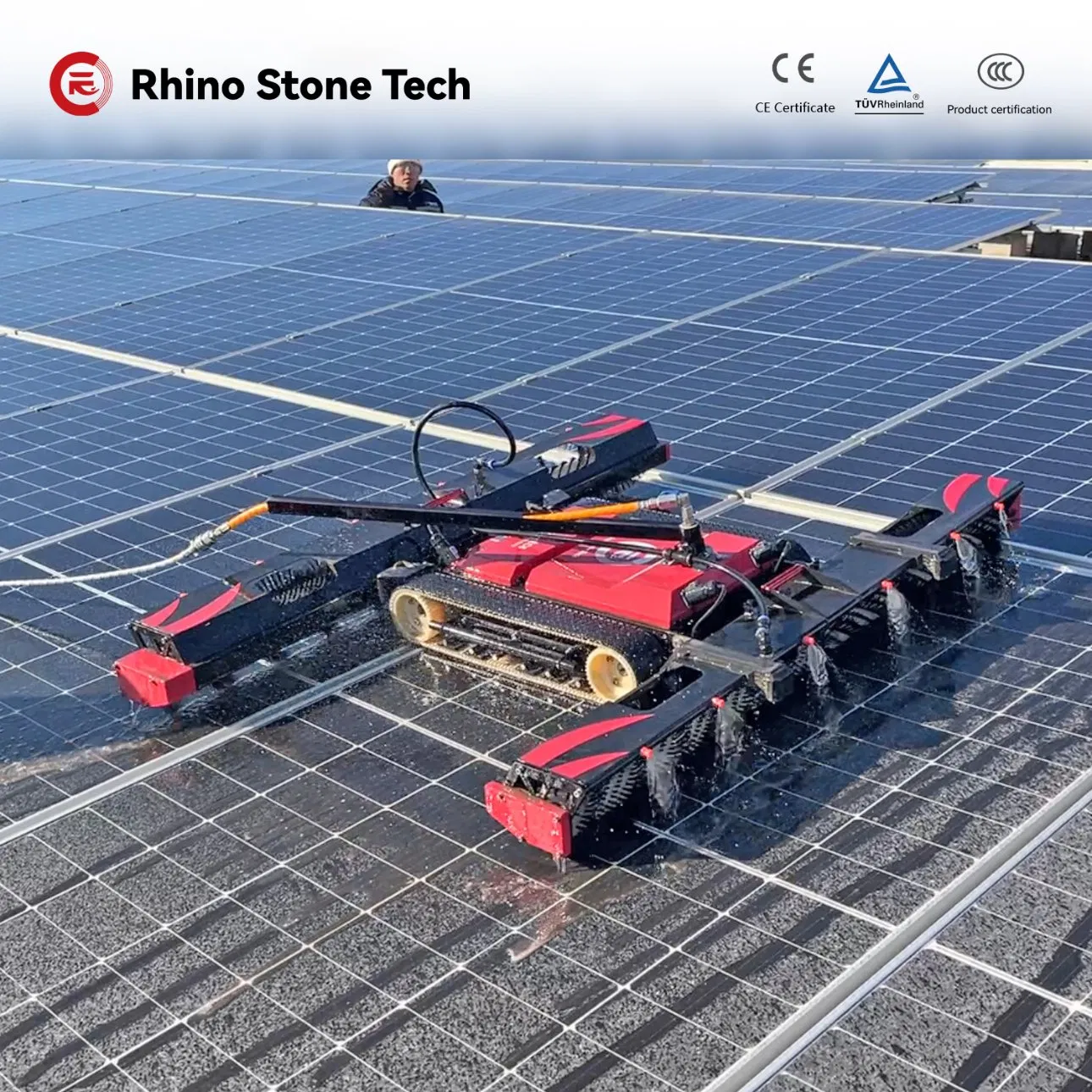

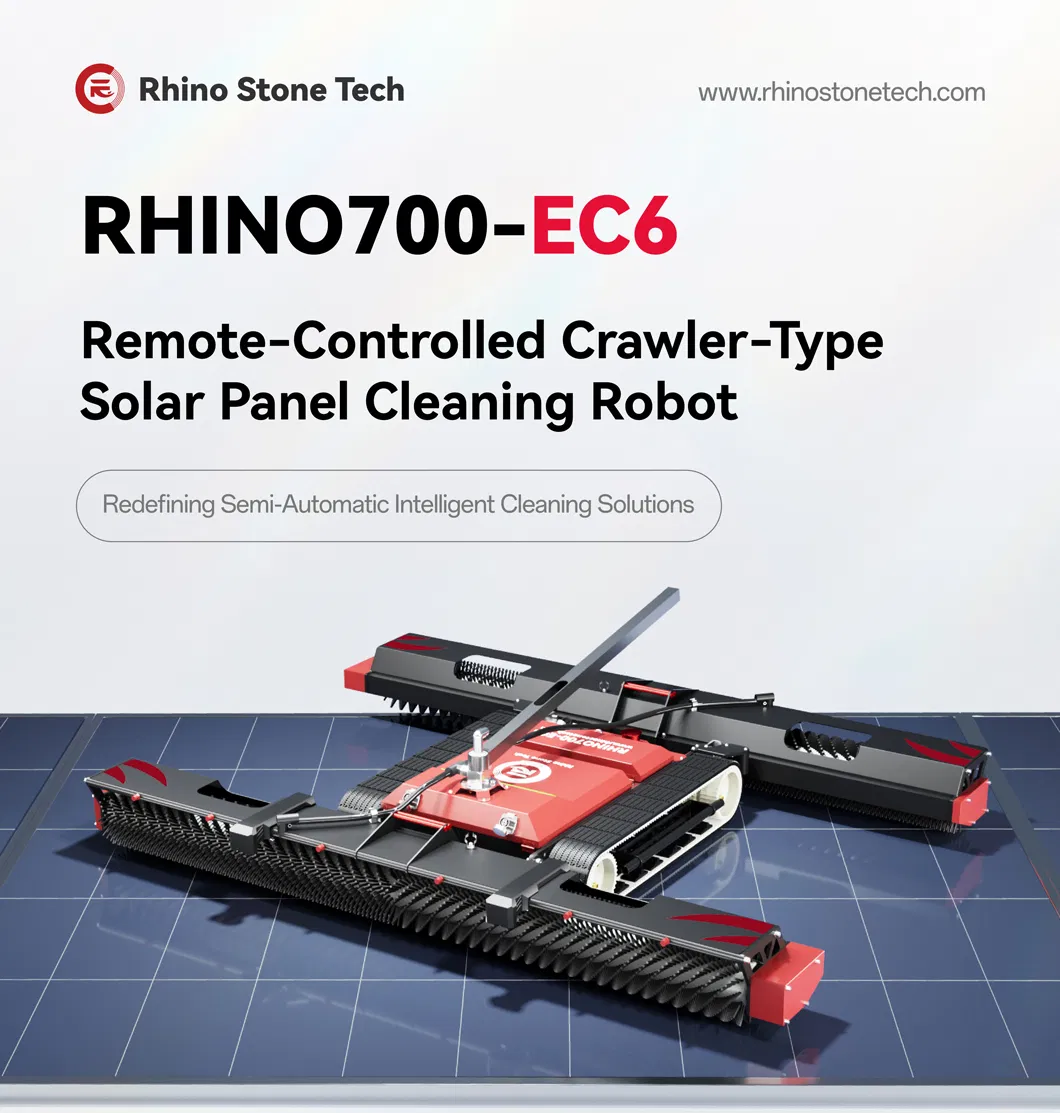

RHINO700-EC6 Remote-Controlled Crawler-Type Solar Cleaning Robot

The RHINO700-EC6 features a lightweight design equipped with dual adaptive ultra-wide floating roller brushes. It ensures thorough cleaning with no dead corners by closely fitting the module surface. The anti-fall system significantly enhances safety, enabling reliable operation across complex terrains. Delivers safer, more efficient, and hassle-free cleaning.

⭐

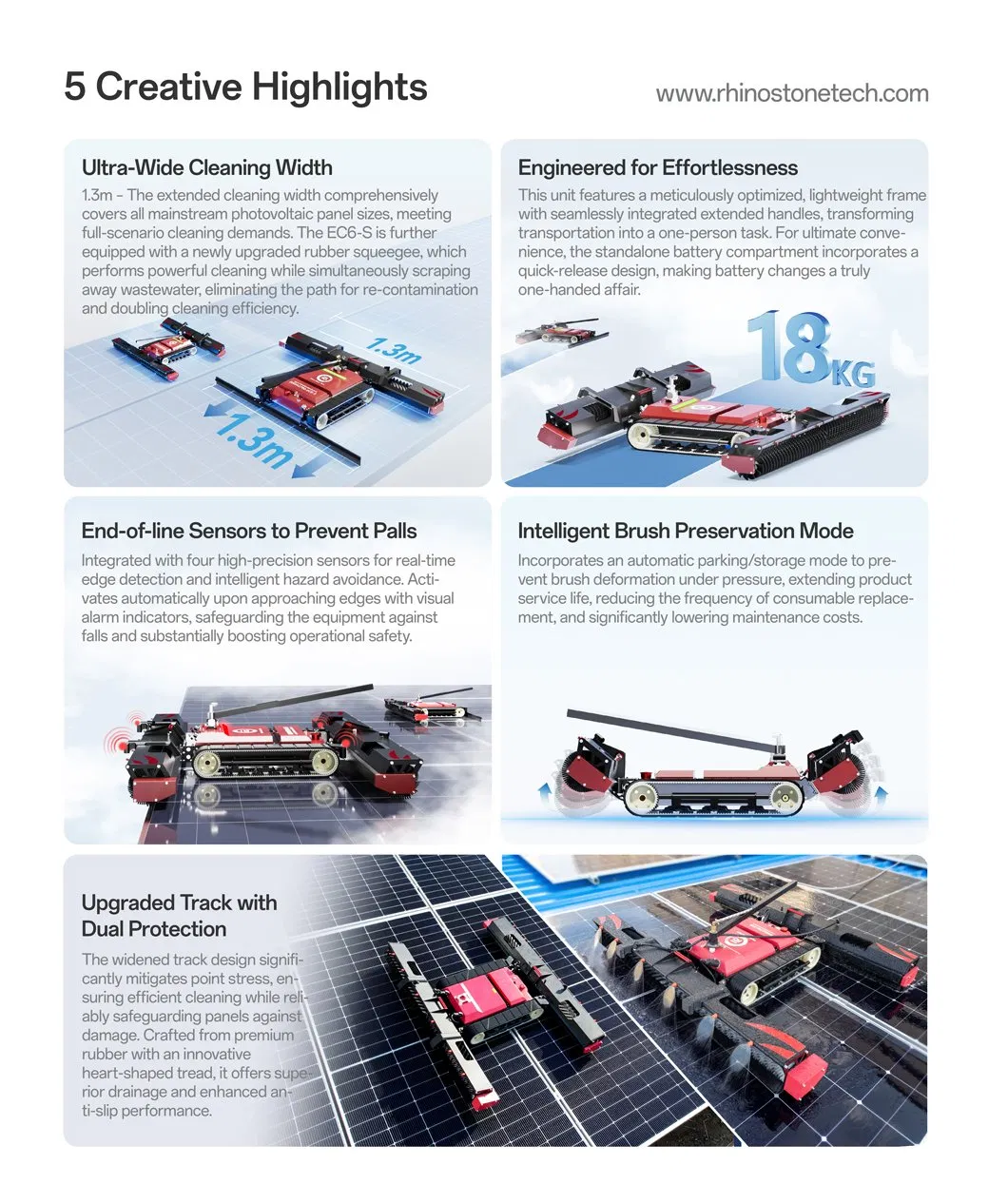

Key Creative Highlights

Ultra-Wide Cleaning Width (1.3m): Covers all mainstream photovoltaic panel sizes. Equipped with an upgraded rubber squeegee to scrape away wastewater and double efficiency.

Engineered for Effortlessness: Optimized lightweight frame with integrated handles and a quick-release battery compartment for easy one-person operation.

End-of-line Anti-Fall Sensors: Four high-precision sensors for real-time edge detection and visual alarms, safeguarding against equipment falls.

Intelligent Brush Preservation: Automatic parking mode prevents brush deformation under pressure, extending consumable life and lowering maintenance costs.

Upgraded Track Protection: Widened heart-shaped rubber tracks mitigate stress on panels while offering superior drainage and anti-slip performance.

📊

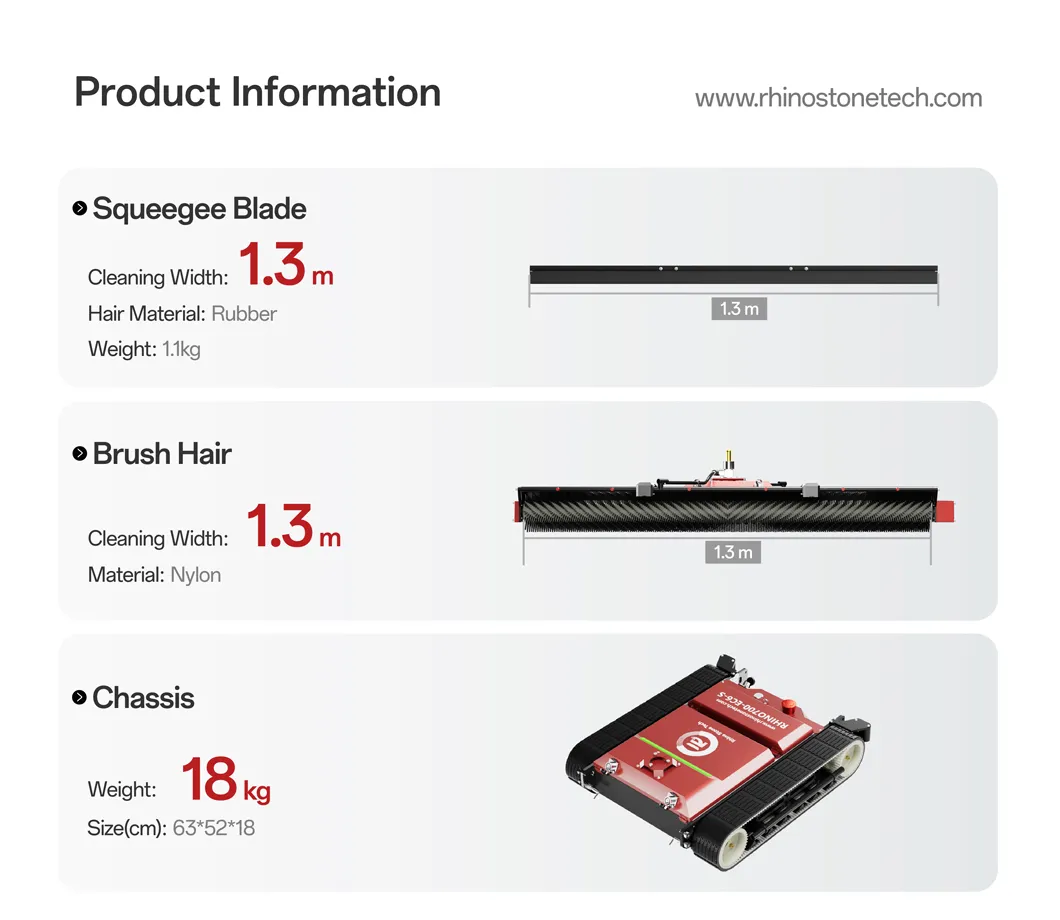

Technical Specifications

Parameter	Value
Working Mode	Dry Cleaning / Wet Cleaning
Travel Speed	≤ 0.4 m/s (Adjustable)
Wind Resistance	≤ Level 7
Operating Temp / Humidity	0ºC ~ 50ºC / 0 - 95%
Chassis Dimensions	63cm * 52cm * 18cm
Roller Brush Dimensions	140cm * 27cm * 19cm (Front & Rear)
Total Weight (Chassis + Brushes)	32.5kg
Battery	Portable Lithium Battery, 24V 30AH
Charging Time	8h (Standard) / 4h (Fast)

📦

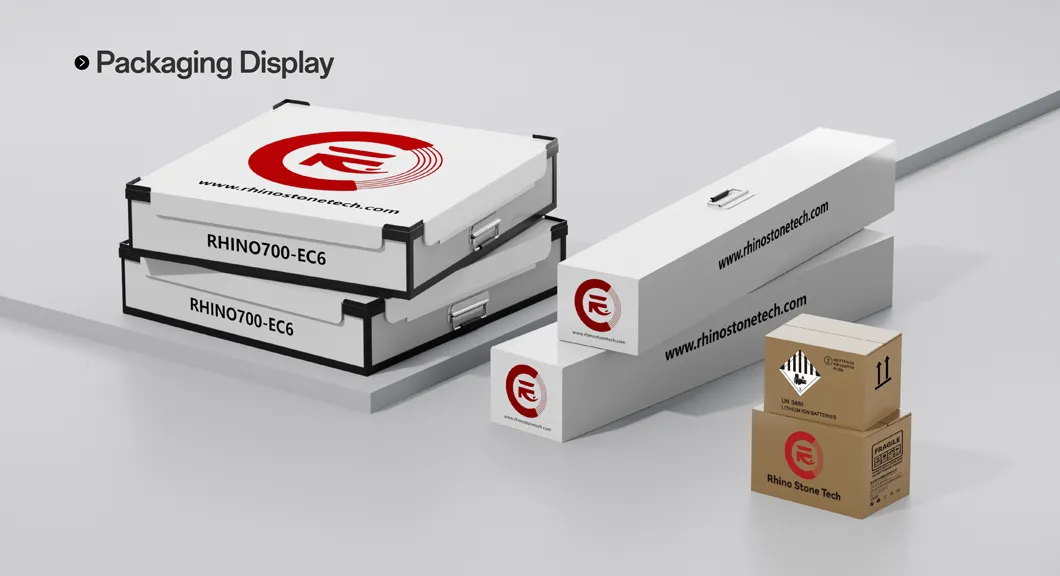

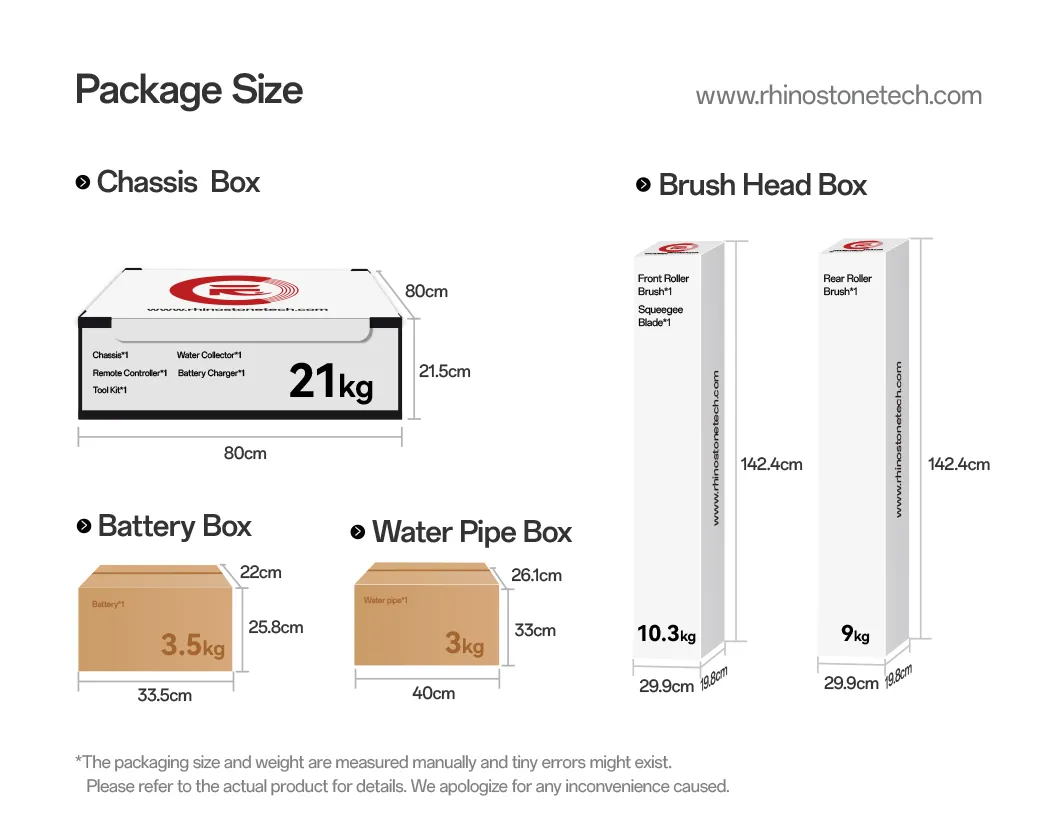

Packaging & Delivery

Package Size:150cm * 80cm * 30cm

Gross Weight:55.00kg

Lead Time:15 Days (1 Set)

🌍

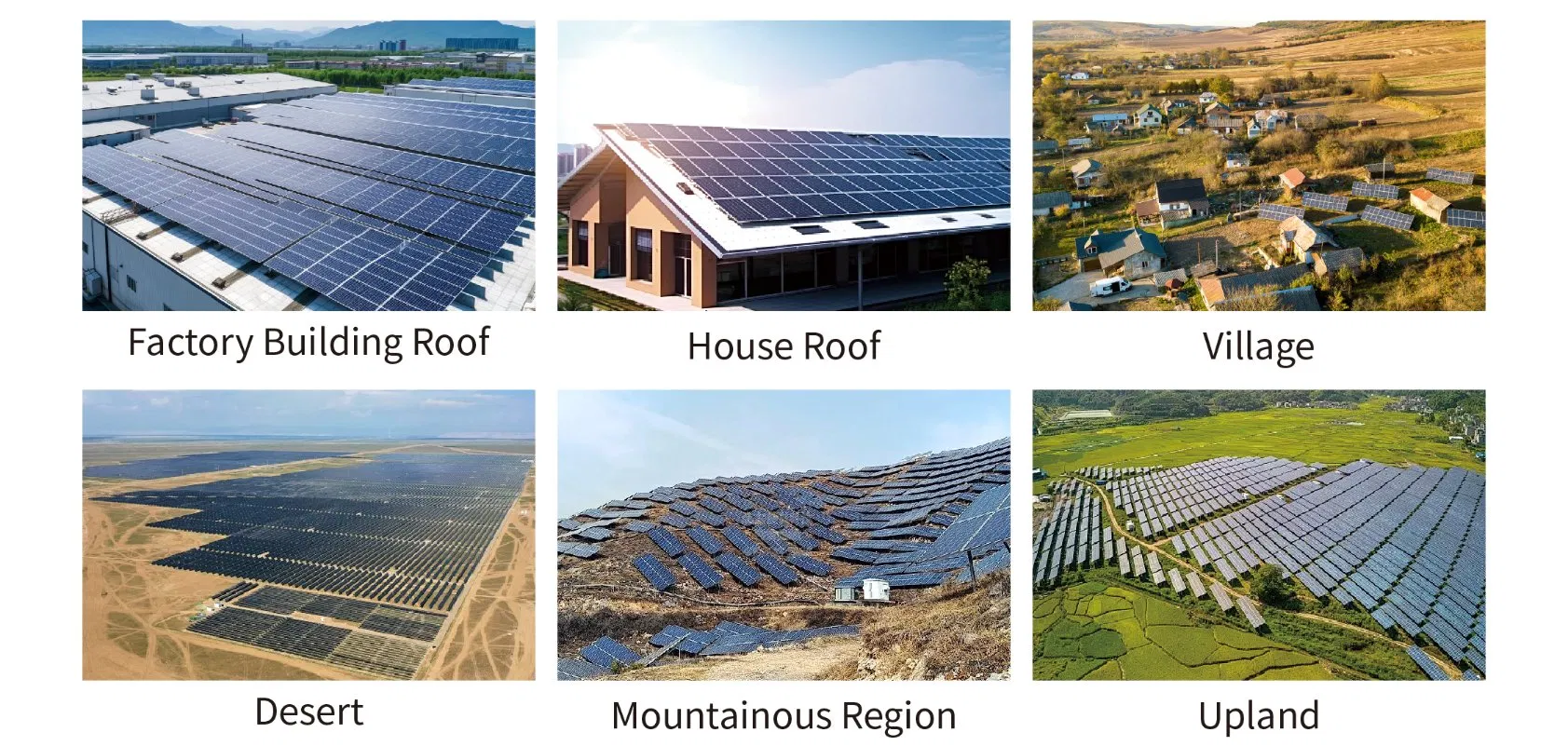

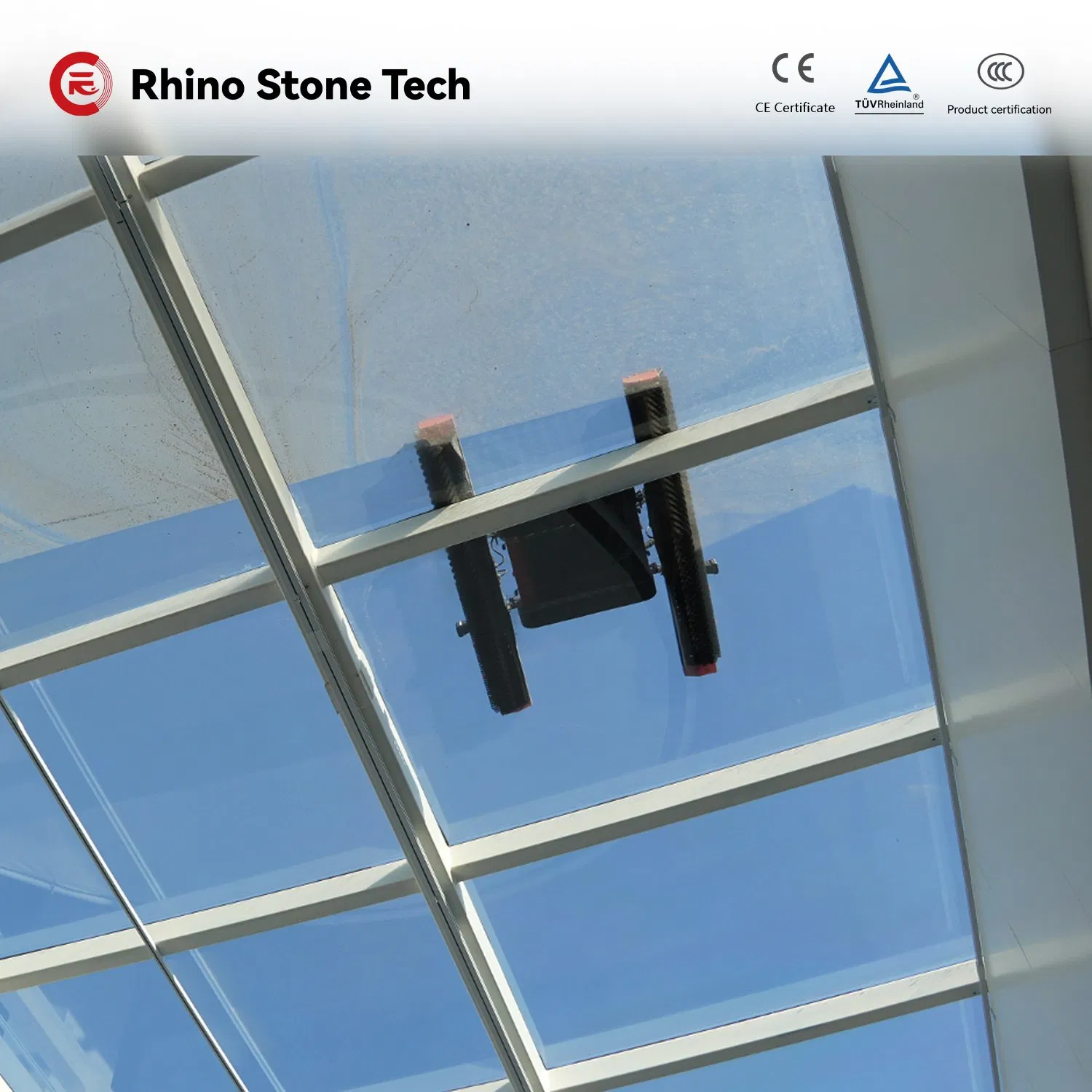

Applicable Environments

🏆

Why Choose Us

Rapid Response: Prompt and detailed technical feedback for all inquiries.

Expert Support: Tailored solutions and expert assistance for complex technical challenges.

Competitive Pricing: Transparent options that save time and budget without quality loss.

Quality Assurance: Multi-stage testing ensures reliability in challenging environments.

❓

Frequently Asked Questions

Q: Can this robot perform dry cleaning without water?

A: Yes, the RHINO700-EC6 is designed for both dry and wet cleaning modes, making it versatile for different weather conditions and dust types.

Q: What safety features prevent the robot from falling off the panels?

A: The robot is equipped with four high-precision anti-fall sensors that detect the edges of the solar panels in real-time, triggering automatic avoidance and alarms.

Q: How long can the robot operate on a single charge?

A: The high-capacity 24V lithium battery provides an endurance of at least 4 hours of continuous operation.

Q: Is the robot compatible with large-scale commercial solar modules?

A: Absolutely. With its 1.3m ultra-wide cleaning width, it is specifically engineered to cover all mainstream and large-format commercial photovoltaic panels.

Q: What is the warranty policy for this equipment?

A: We provide a comprehensive 12-month warranty on all products. Our technical team is available to support any operational or maintenance needs.

Q: How do you protect the brushes from deformation during storage?

A: The robot includes an intelligent "Parking Mode" which lifts or repositions the brushes when not in use to prevent them from deforming under the machine's weight.
