Solar Panel Cleaning Robot with Remote-Control Crawler Robotic Cleaner for Photovoltaic Washing

1 / 5

Solar Panel Cleaning Robot with Remote-Control Crawler Robotic Cleaner for Photovoltaic Washing

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

S-ZTG-3310-045

Clean Type

High Pressure Cleaning

Cleaning Process

Cold Water Cleaning

Control

PLC

Fuel

Electric

Principle

Electronic Cleaning

Remote Control

With Remote Control

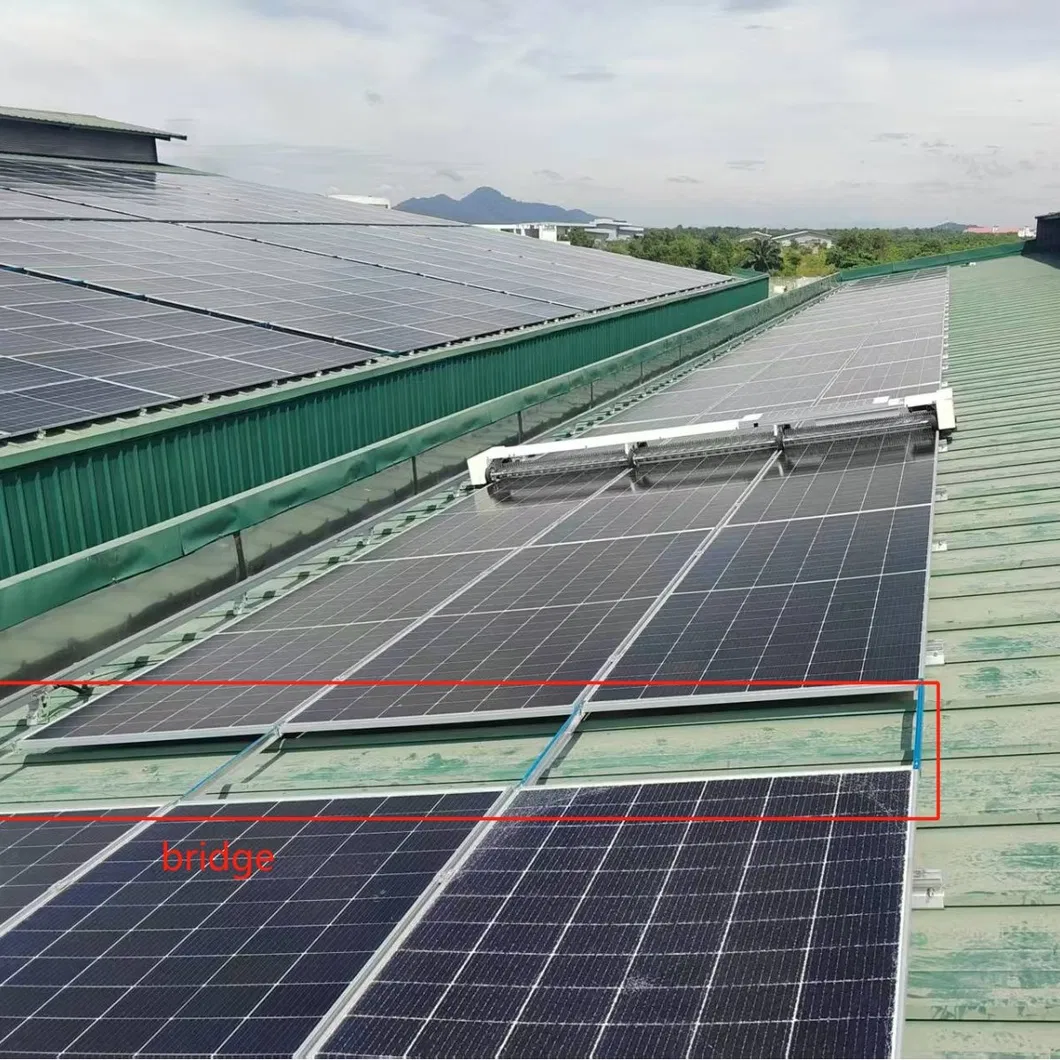

Crossing Ability

50cm

Application

Large Power Station/Roof Plant

HS Code

84795090

Production Capacity

1000 Sets Per Year

📝

Product Description

The Solar panel cleaning robot features two versatile control modes: automatic and manual. The manual mode supports intuitive remote control for precise maneuvering.

This advanced system can operate independently or collaboratively across a 4G network. Managers can remotely command multiple units through dedicated software, receiving real-time updates on working conditions and diagnostic data for seamless fleet management.

📸

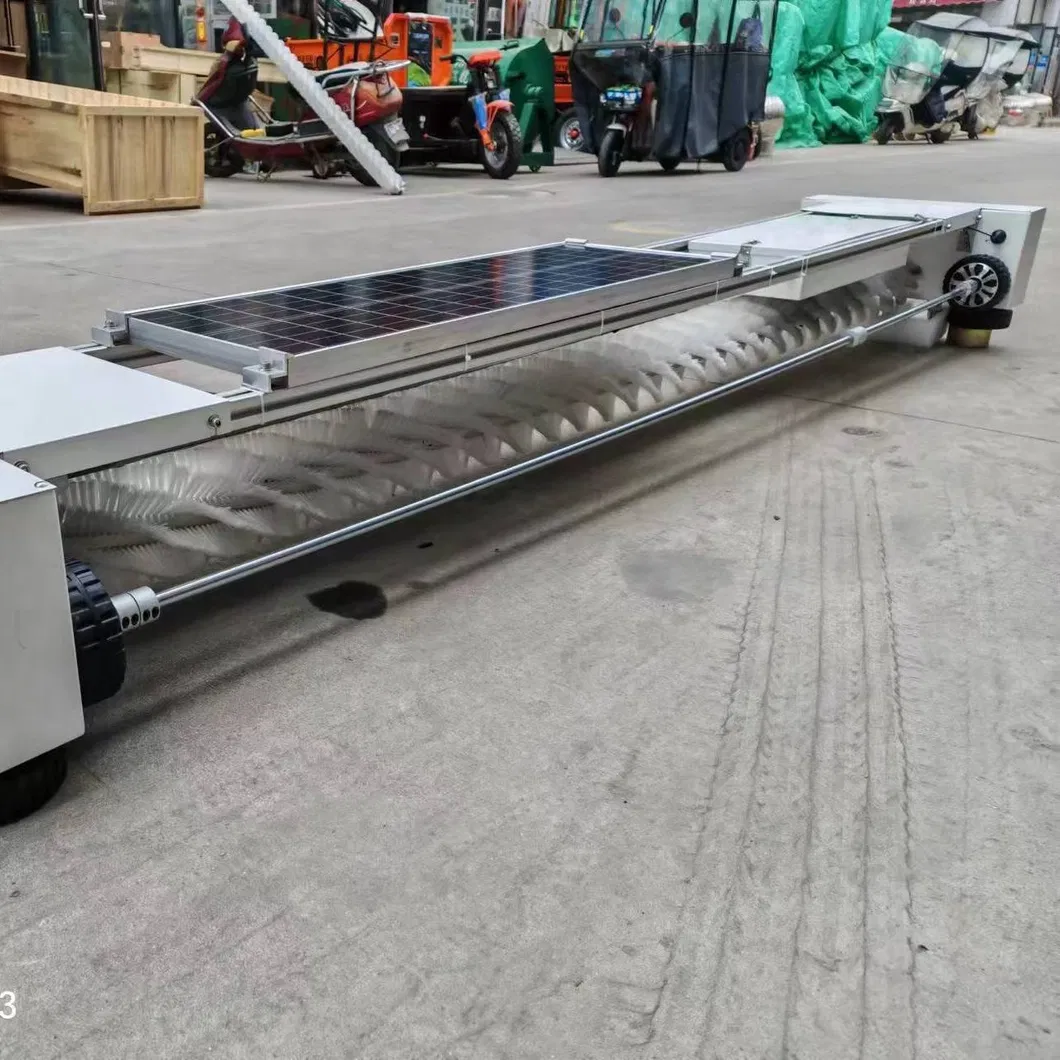

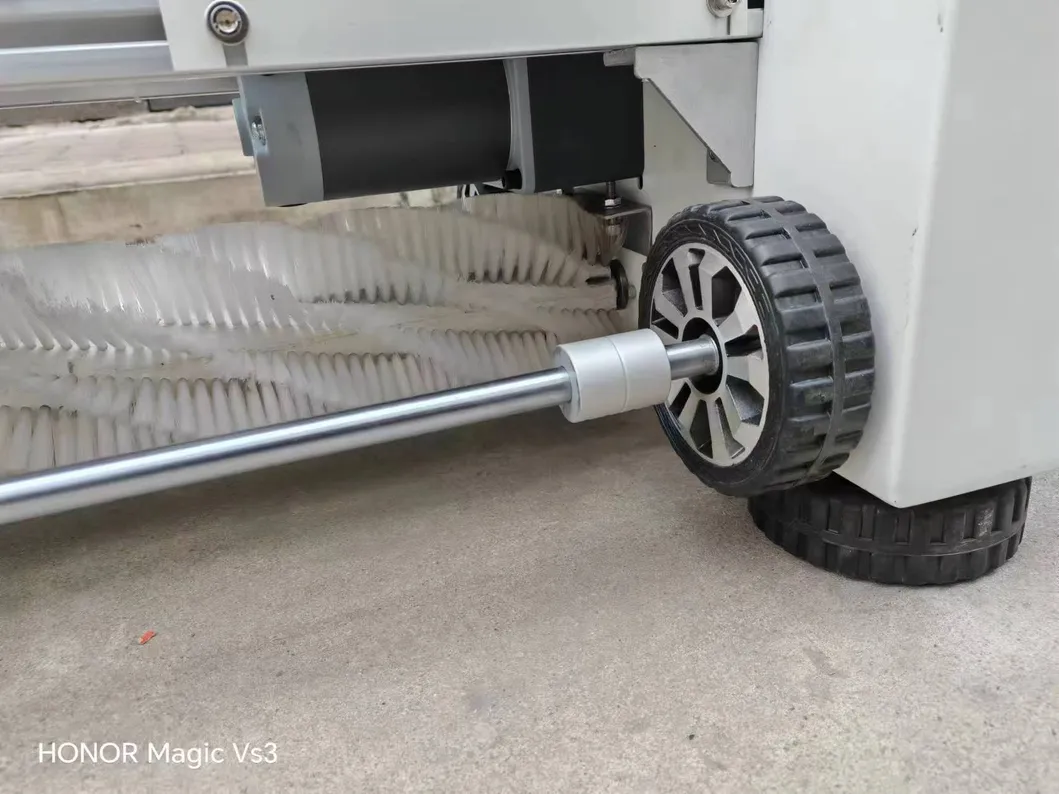

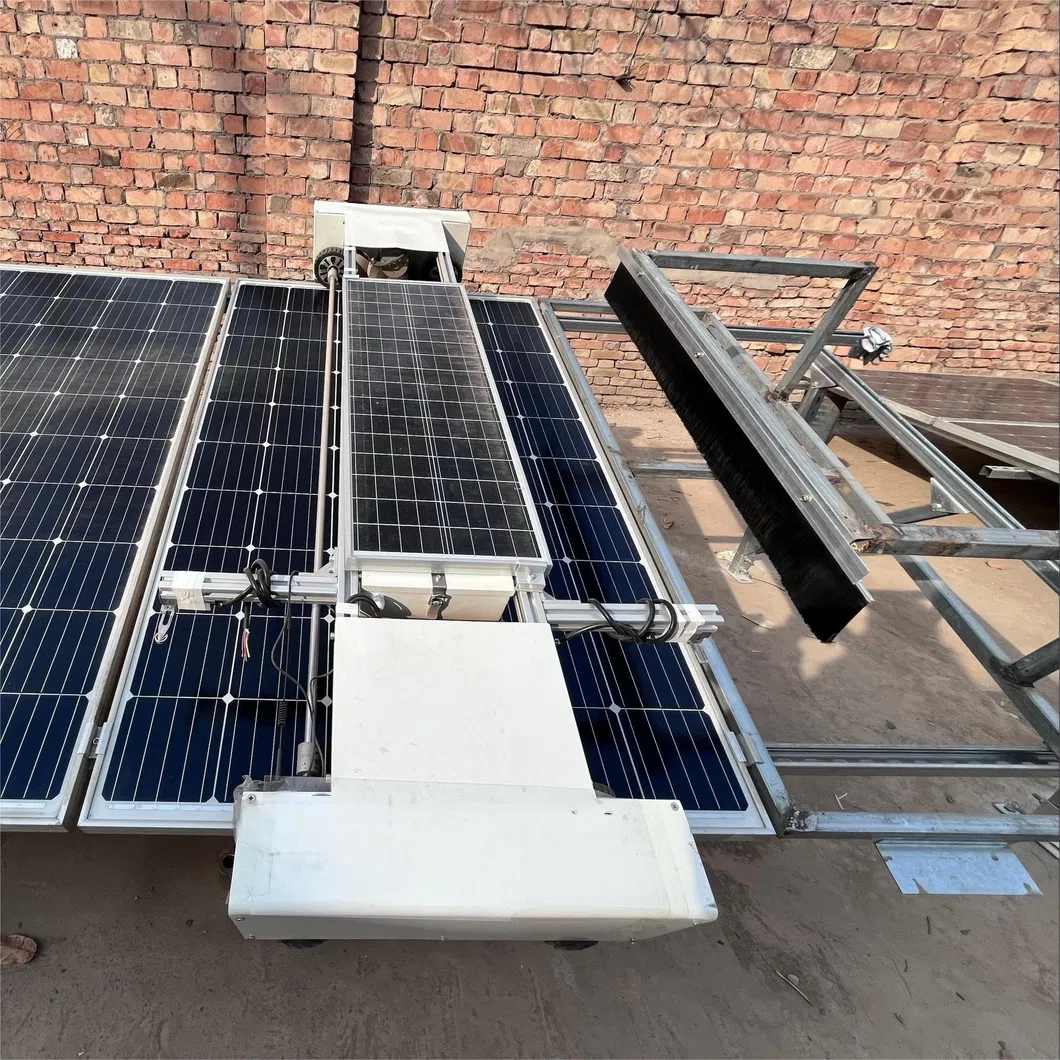

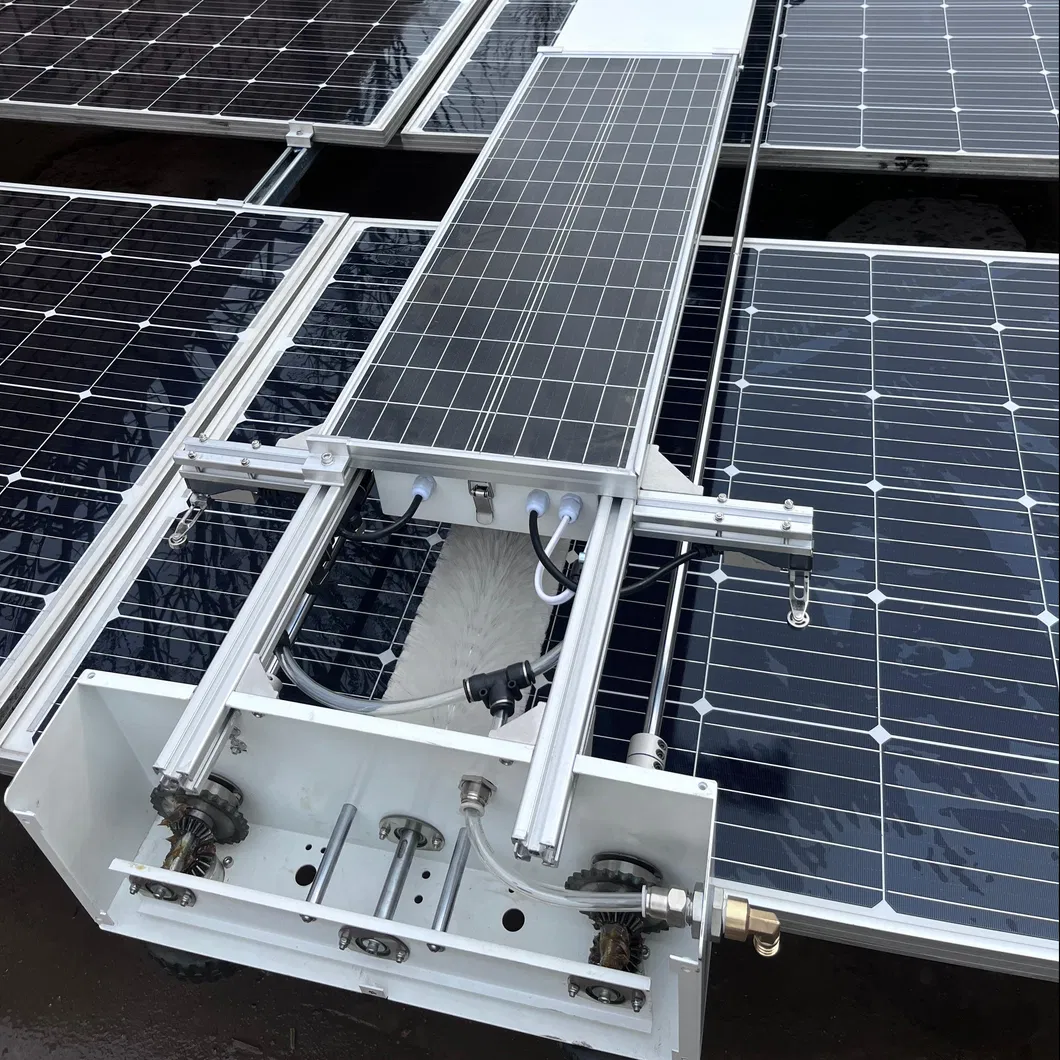

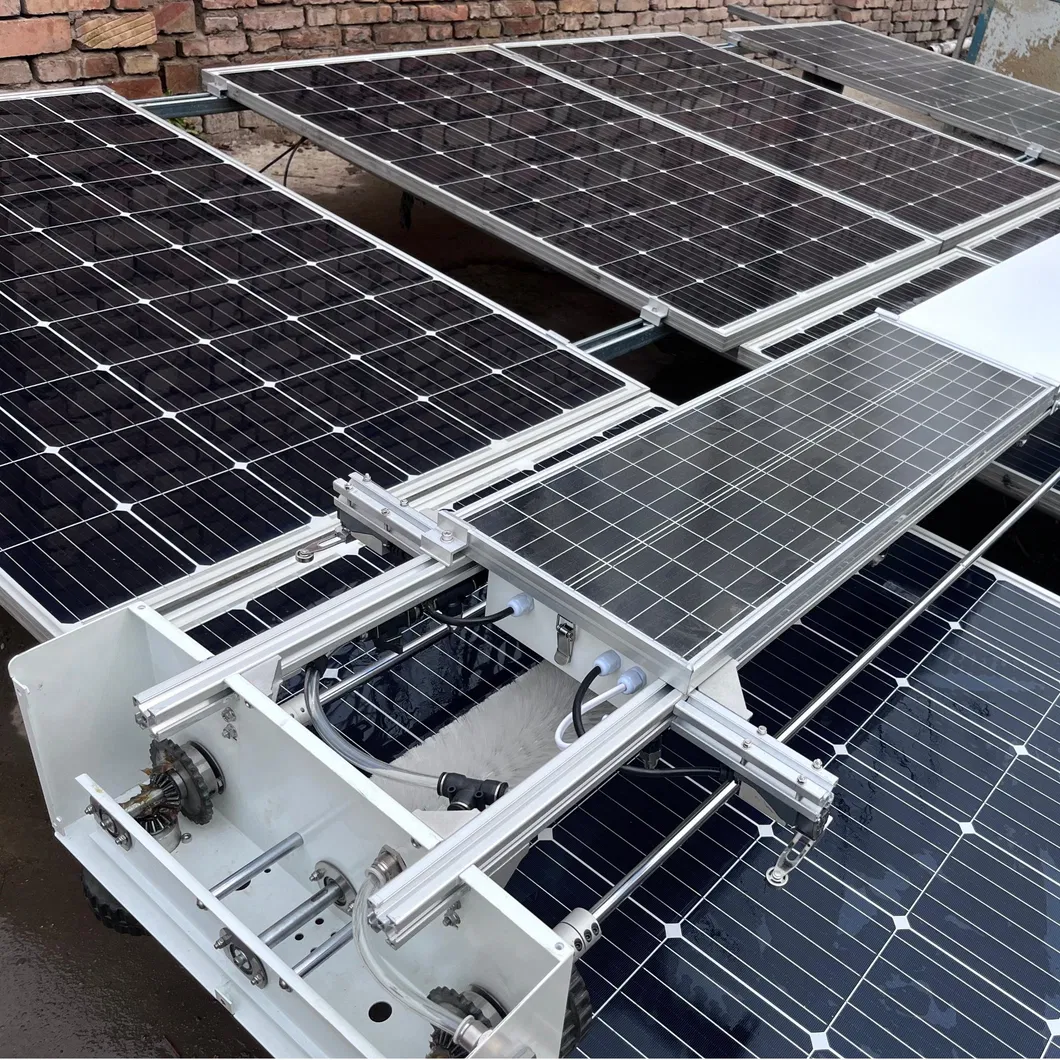

Detailed Photos

📊

Product Parameters

Product Model	ZTG-3310
Product Name	Remote control crawler photovoltaic cleaning robot
Standard Width	400 mm
Standard Height	215 mm
Power Mode	Lithium batteries, rechargeable photovoltaic panels
Battery Power	24V / 10A
Charging Time	4 hours
Cleaning Speed	14m / min
Max Distance	600 m
Network Access	4G
Operating Temp	-20 ~ 80ºC
Control Mode	Automatic, manual, remote control

⭐

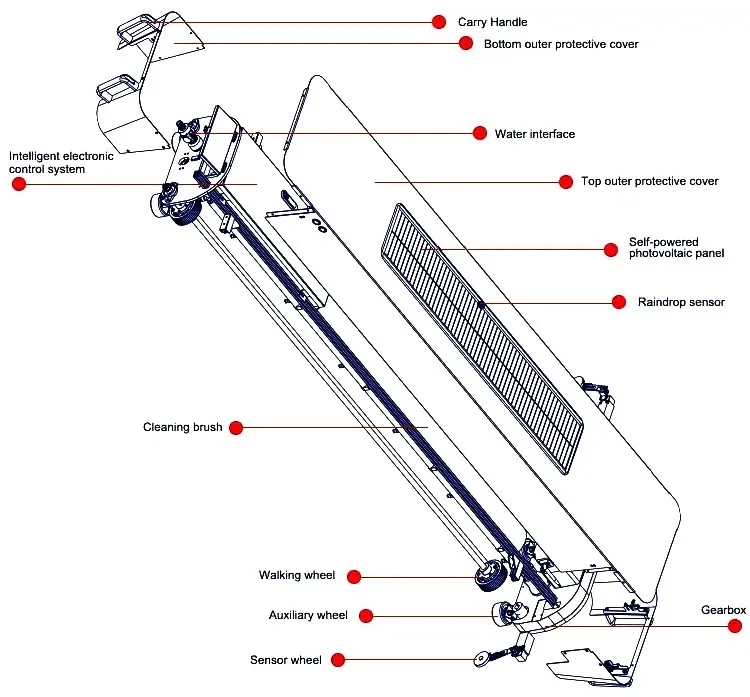

Our Advantages

✓ 1. High cleaning efficiency

✓ 2. High degree of intelligence

✓ 3. Self-powered with solar charging and storage devices

✓ 4. Strong adaptability for various terrains

✓ 5. Dual control modes: Automatic and remote manual

✓ 6. Customizable cleaning frequency and timing

✓ 7. Automatic speed stabilization for optimized quality

✓ 8. Superior waterproof, dustproof, and fogproof protection

✓ 9. Standardized components for easy maintenance

🌐

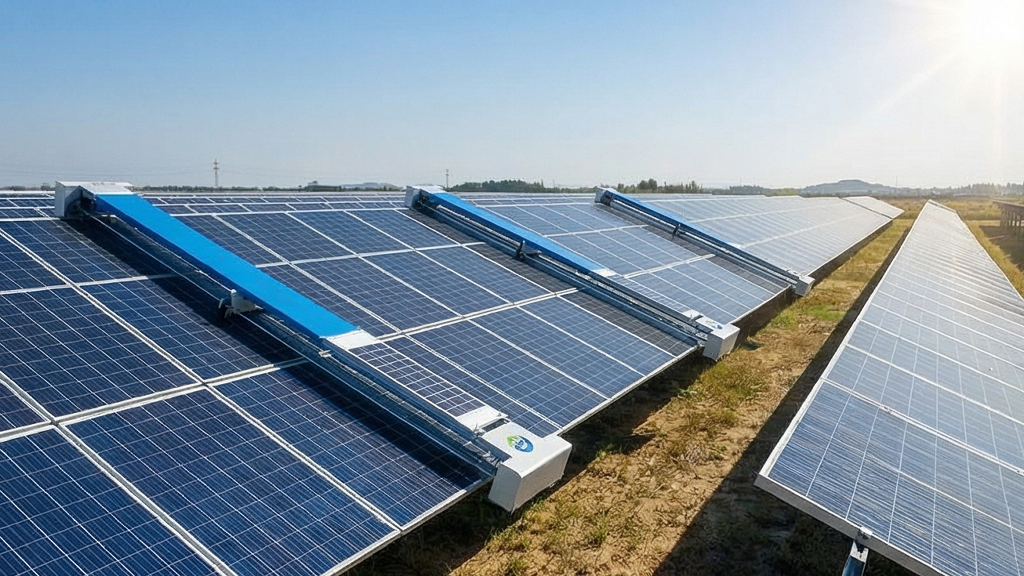

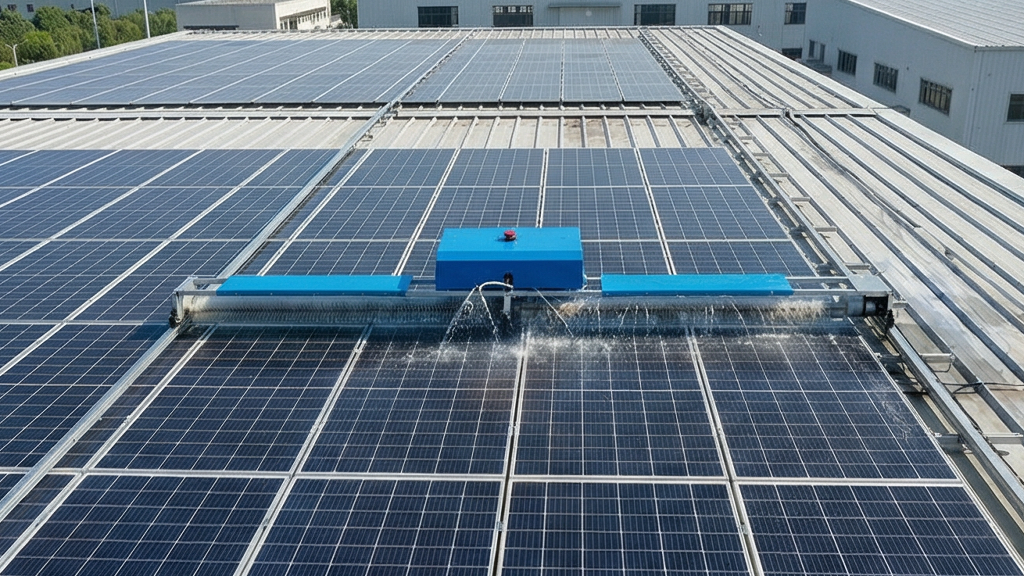

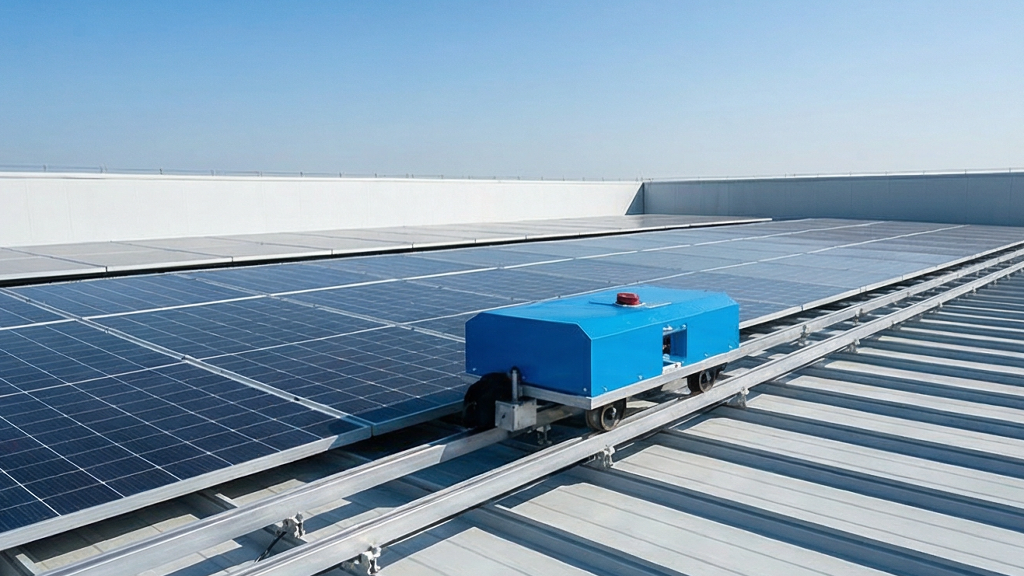

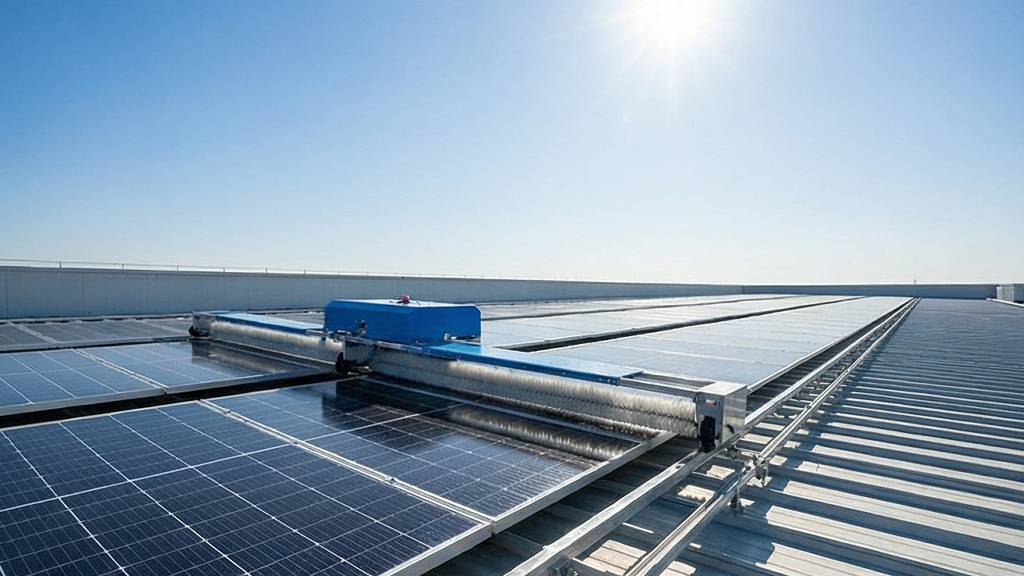

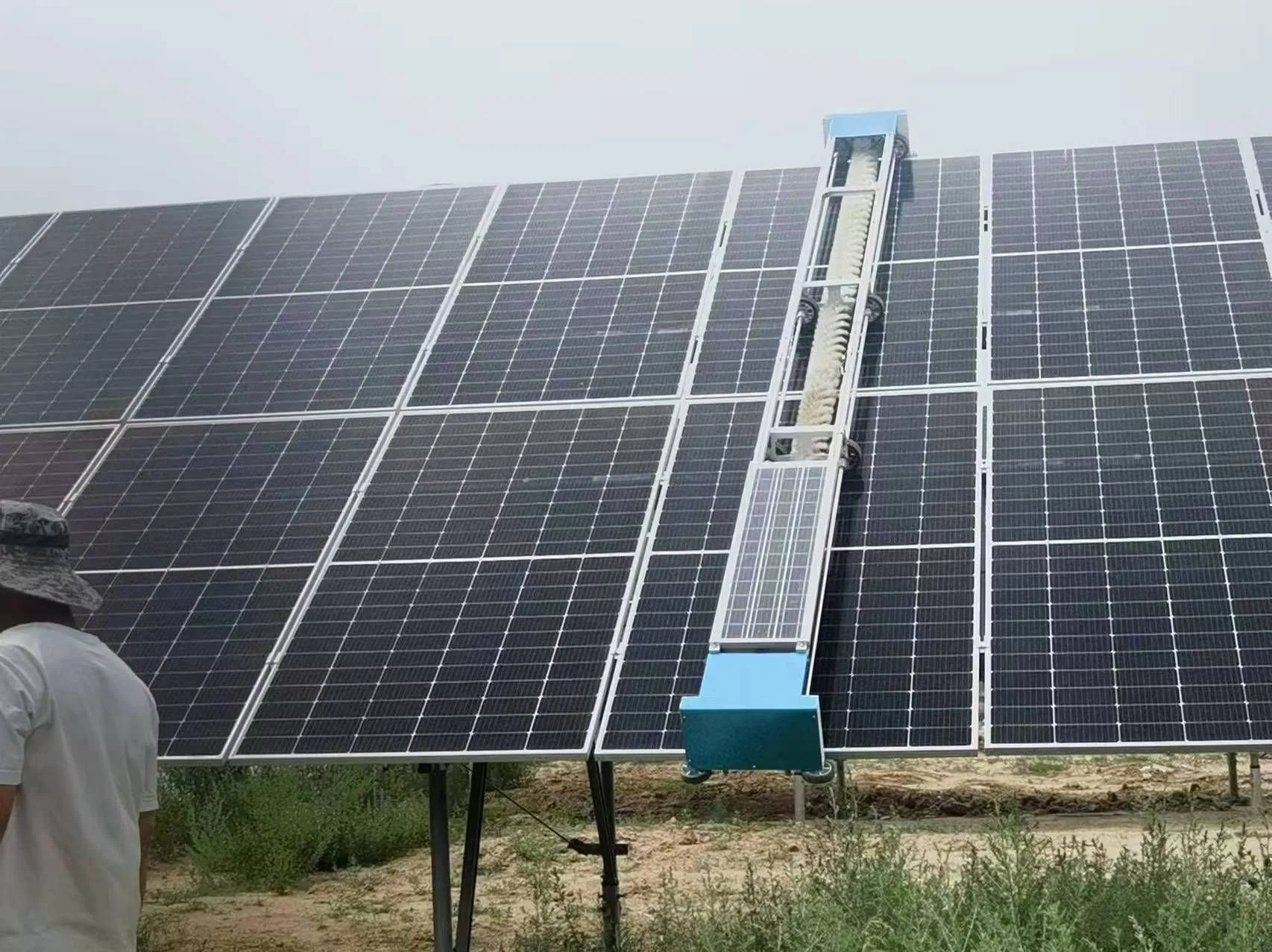

Application Cases

✨

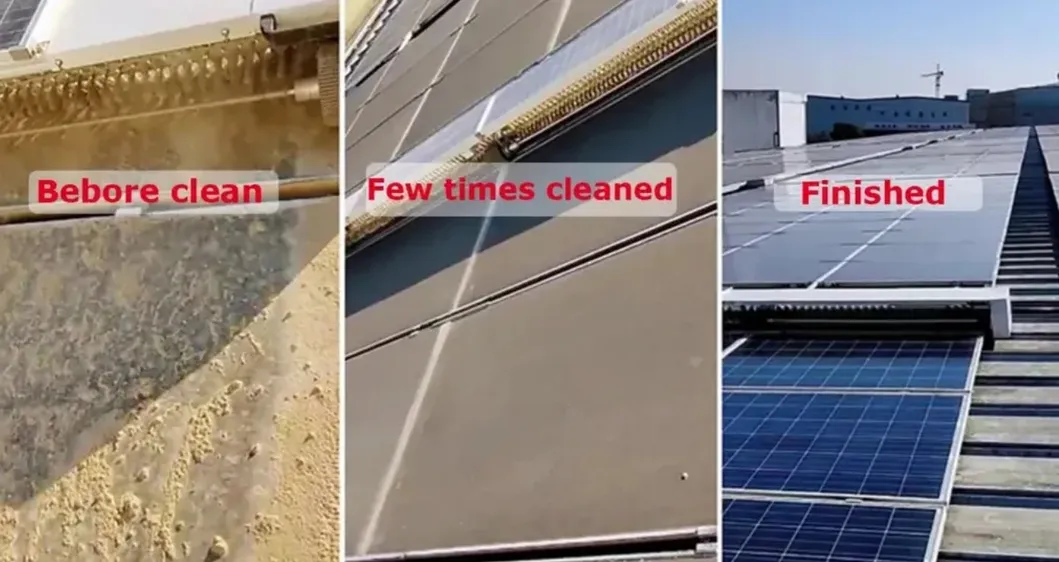

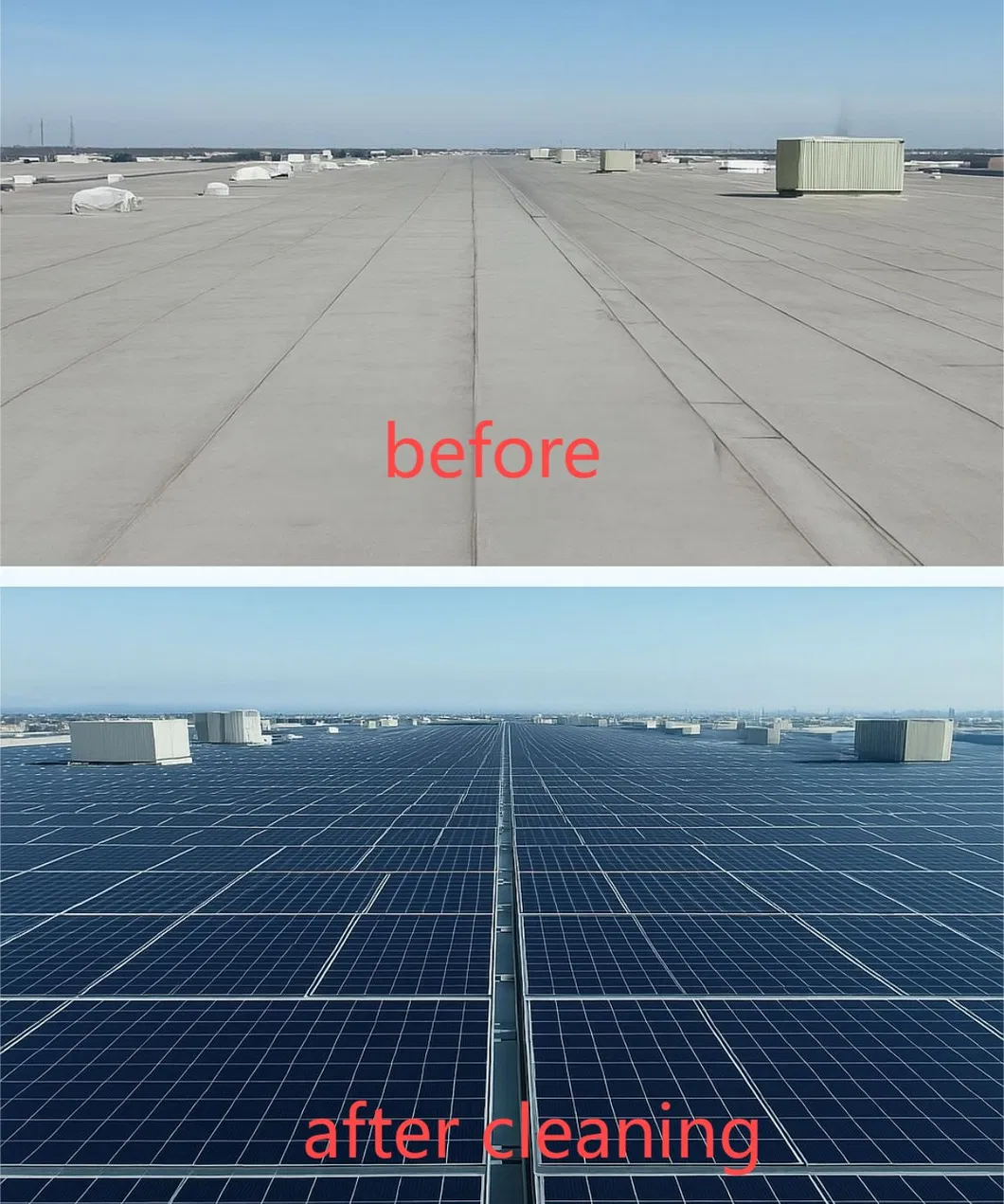

Cleaning Results

📦

Packaging & Shipping

Packaging Details:

1. Outer packaging: Standard sea export bakelite box.
2. Inner packaging: Stretch film and moisture-proof plastic film.
3. Customized options available.

Shipping Information:

Available ports include Tianjin, Qingdao, or Shanghai. We offer FOB, CIF, and DDU quotations via road, rail, air, or sea logistics.

❓

Frequently Asked Questions

1. Will the robot hit walls or obstacles during operation? Under normal circumstances, no. Manual operations are guided by the user, while the fully automatic system uses induction sensors to prevent collisions.

2. Can the equipment work on rainy days? Fully automatic equipment can operate in the rain. However, human-operated cleaning is discouraged during rainy weather to ensure operator safety from lightning and wet conditions.

3. Why are the robots designed as crawlers? Crawler tracks provide high cleaning friction and superior traction, which significantly improves the overall cleaning effect on solar panels.

4. What are the main advantages compared to peers? Our equipment is built to be more efficient, durable, and reliable. We focus on high-quality brush motors and robust intelligence systems for long-term performance.

5. Can debris like leaves be detected by the system? Large areas of debris will cause a noticeable drop in power generation monitoring. While small debris might not trigger alerts, the system tracks performance changes to help judge cleaning needs.

6. Is the robot easy to maintain? Yes, the components are standardized, making parts easy to replace and the system simple to install and debug across different terrains.
