| Model NO. | 200W |
|---|---|
| Control Type | Handheld |
| Warranty | 1 Year |
| Package Size | 830mm*380mm*700mm |
| Total Weight | 32kg |
| Packed Weight | 52kg |
| Type of Cooling | Air Cooling |
|---|---|
| Single Pulse Energy | 2mj/5mj |
| Peak Power | <900W |
| Transport Package | Non-Fumigation Wooden Box |

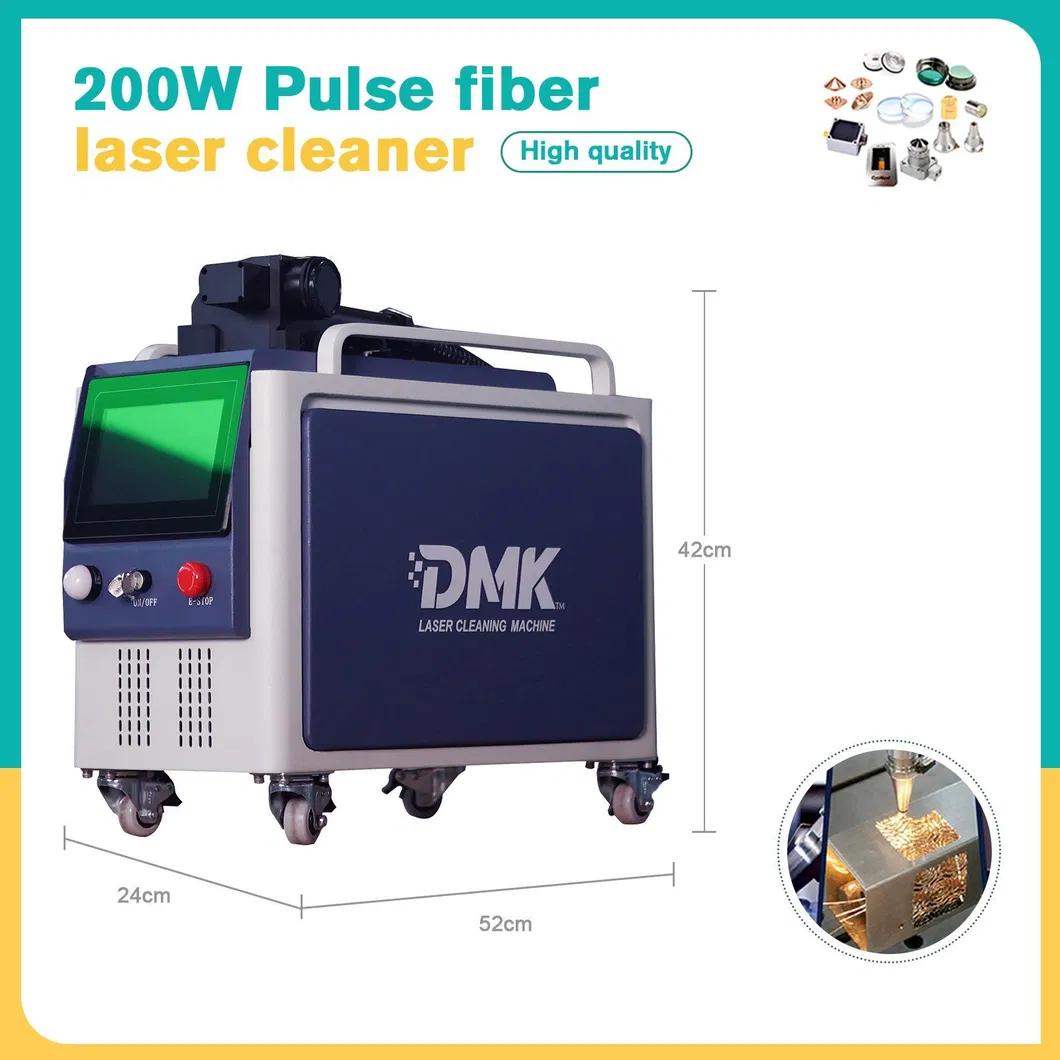

| Specification | 520mm*267mm*437mm |
| Origin | China |

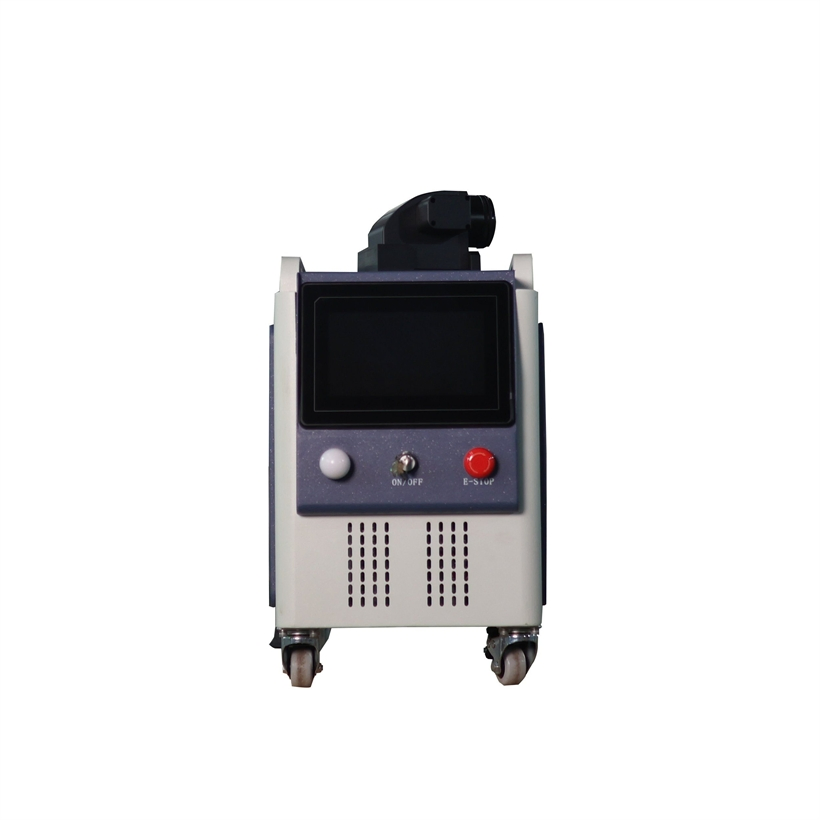

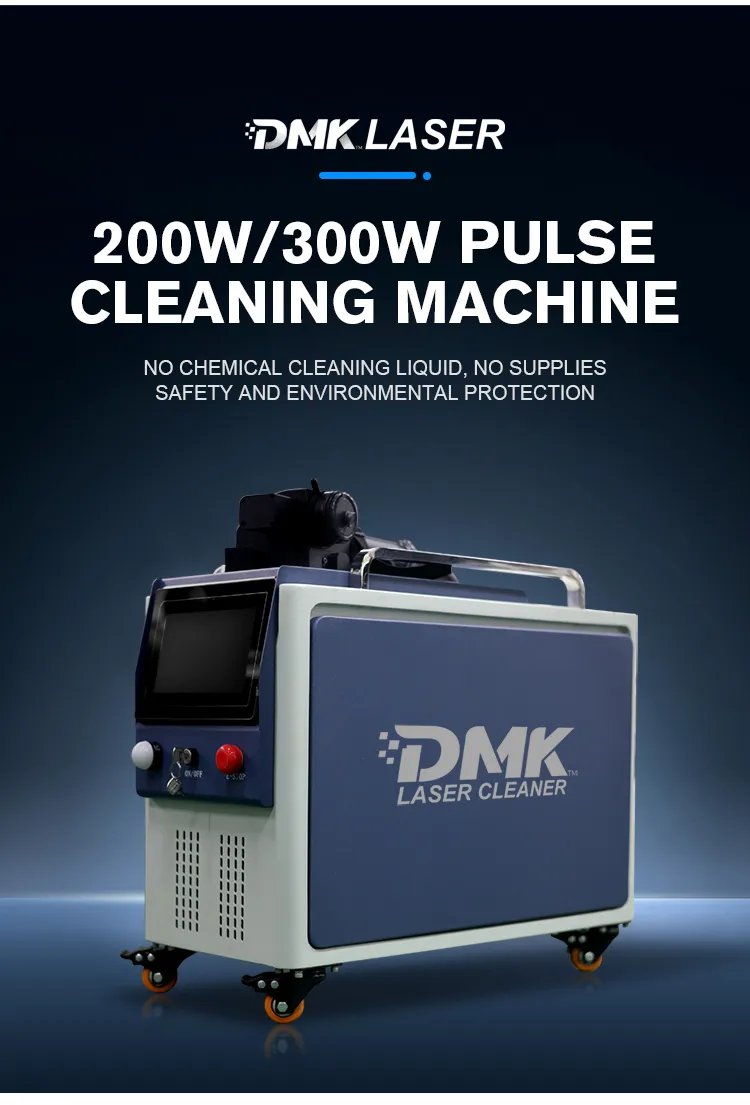

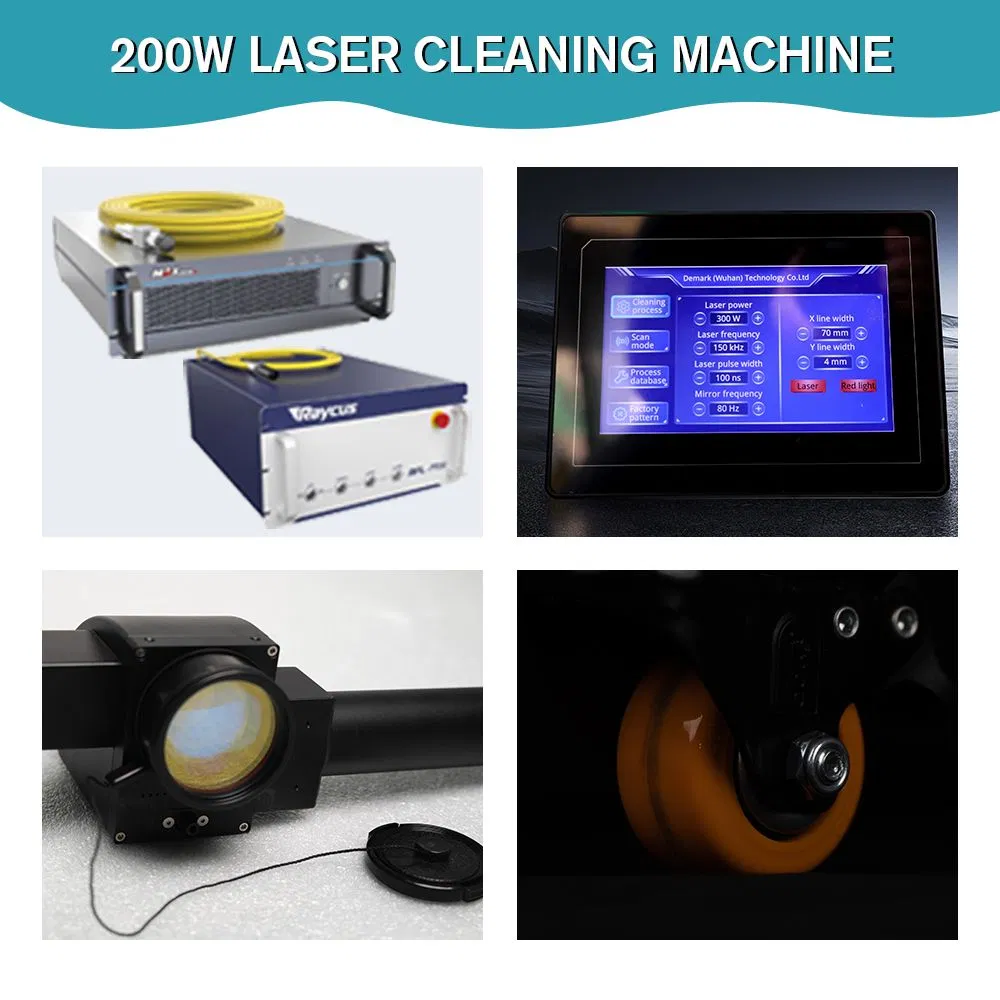

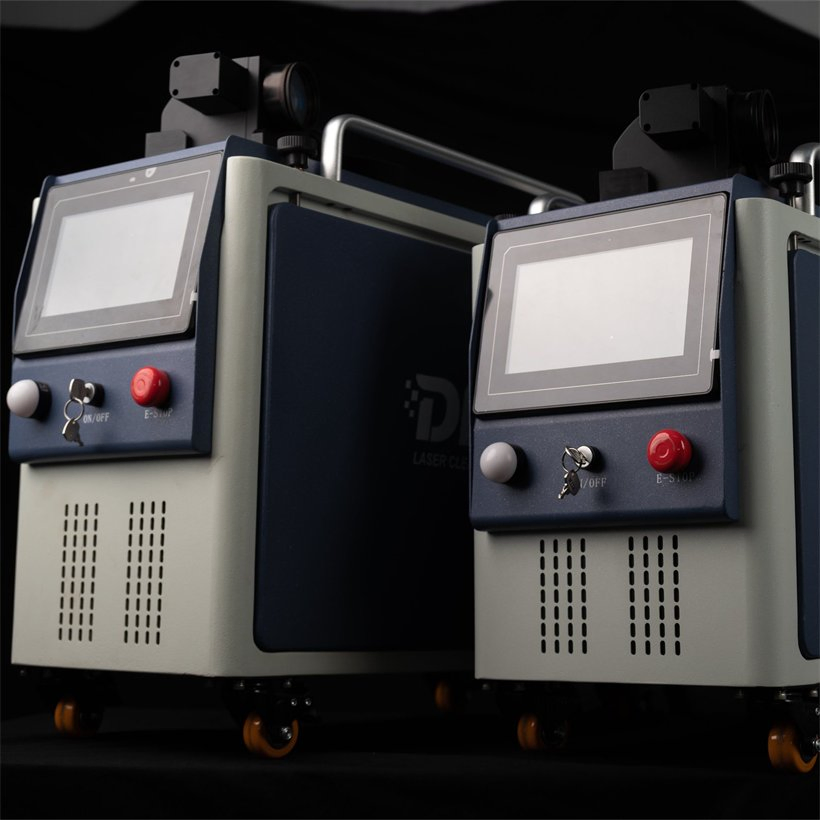

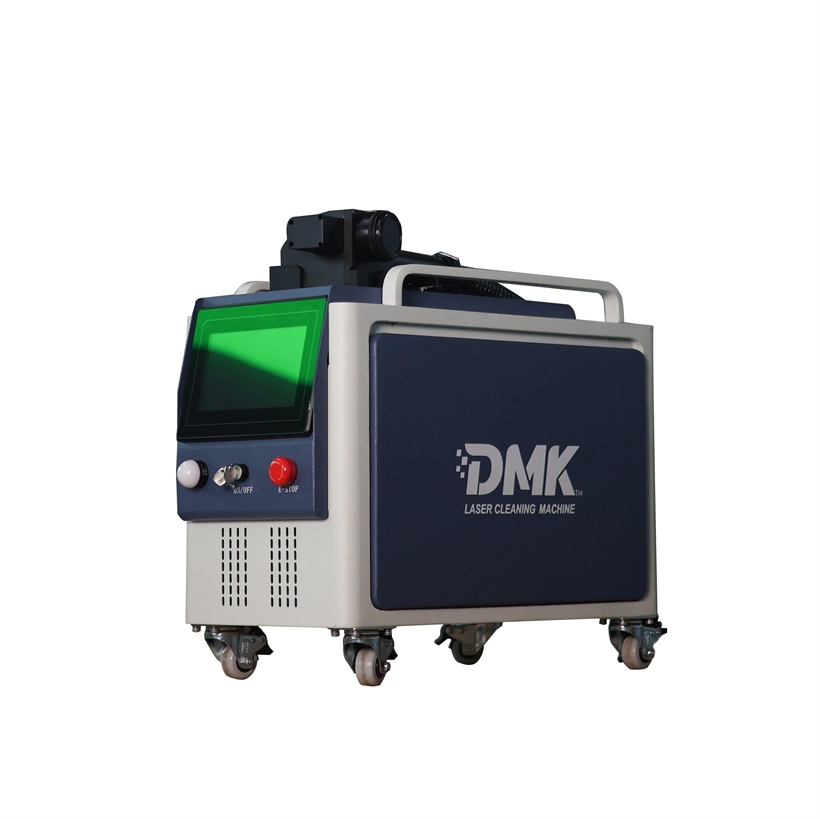

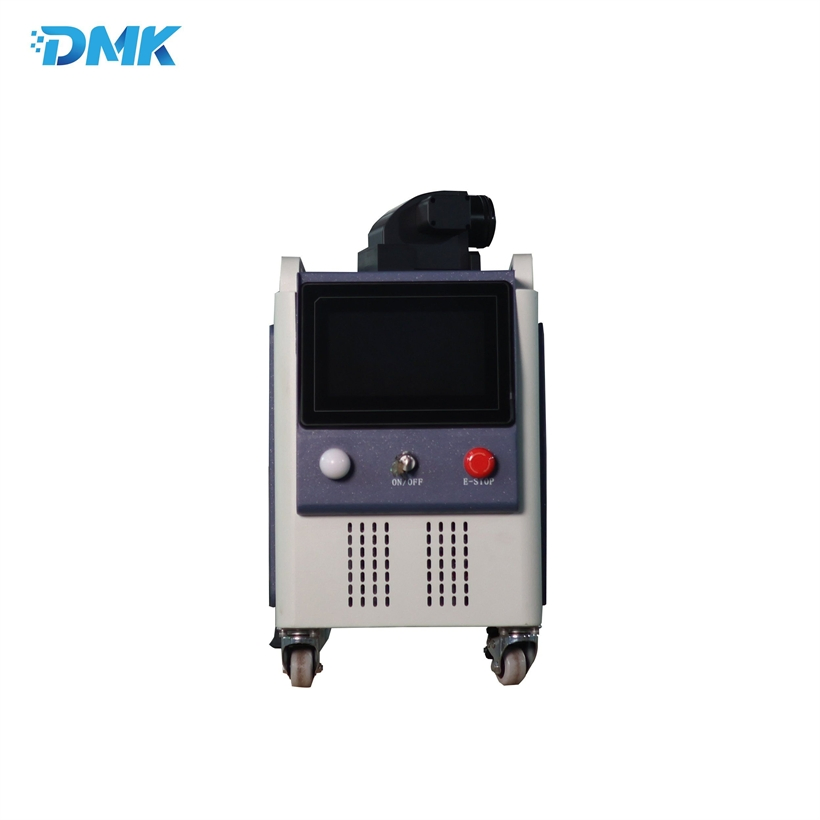

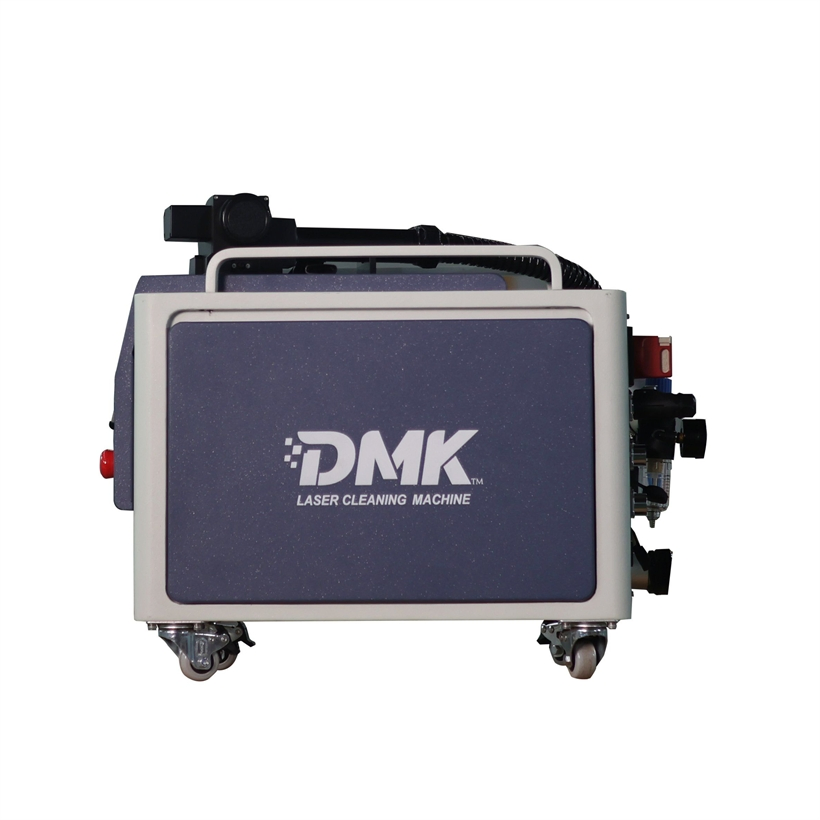

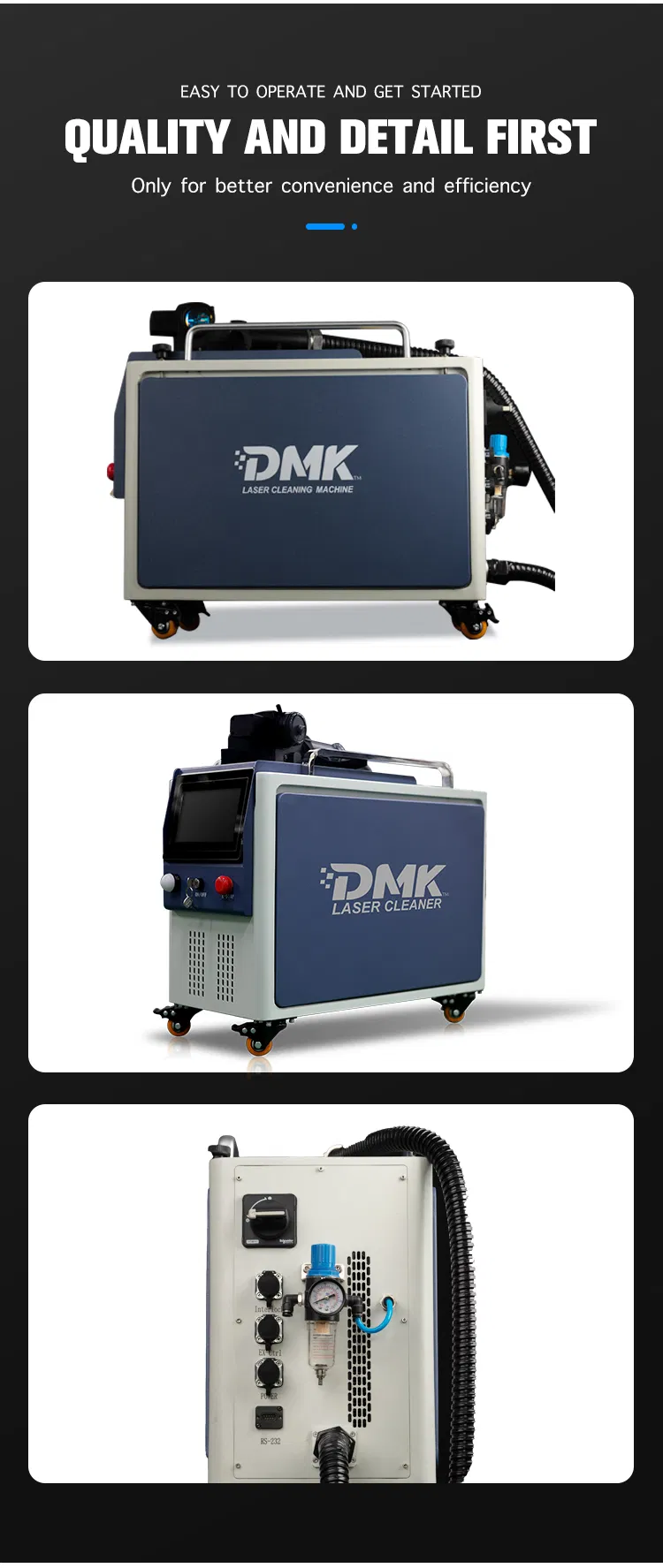

The 200W pulse fiber laser cleaning machine, with Raycus/MAX/JPT laser source, can be used to do rust remove, oil remove, oxide layer remove, paint remove, and so on.

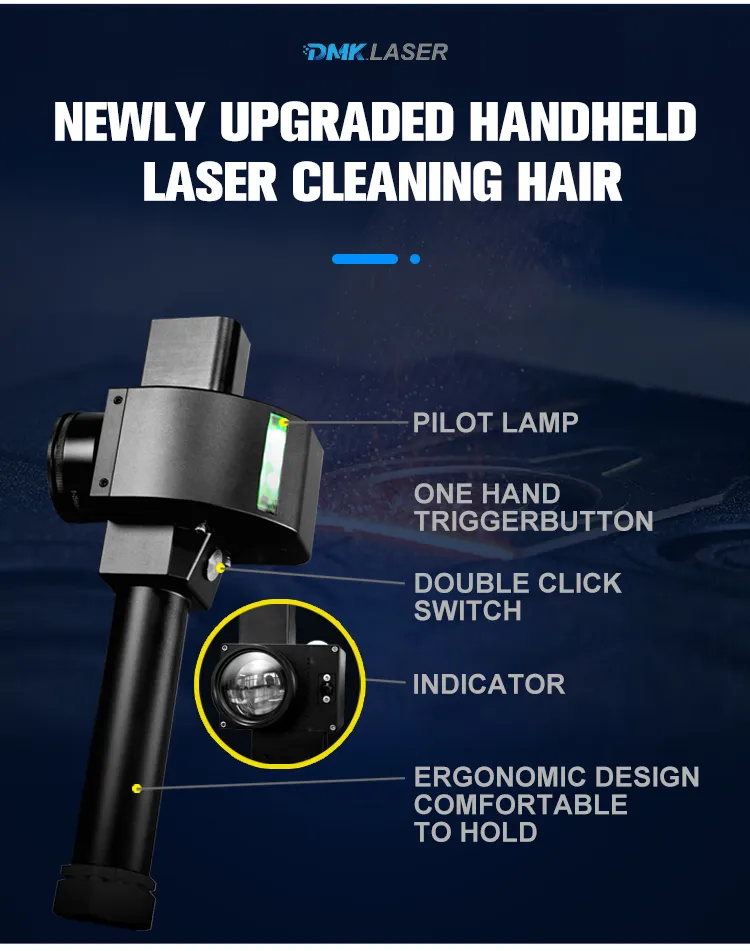

The laser head is small and light, weighing less than 1.2kg, equipped with auxiliary brackets and dust-proof protective mirrors, and can be widely used in various hand-held cleaning scenes. The laser beam quality of this equipment is high, which can easily meet various high-precision cleaning requirements.
| Model | DPL-200 | Paint (50um) | 11m/2h |
| Average laser power | 200W | Cooling | Air cooling |
| Scan width | 10-200mm | Rated voltage | 220V |
| Corrosion (50um) | 12m2/h | Equipment weight | 50KG |
| Pulse frequency | 10-50KHZ | Dimension | 520mm*267mm*437mm |
| Pulse length | 91-130ns | Cable length | 5/10M |
| Maximum single pulse energy | 10MJ | Oil (50um) | 15m/2h |

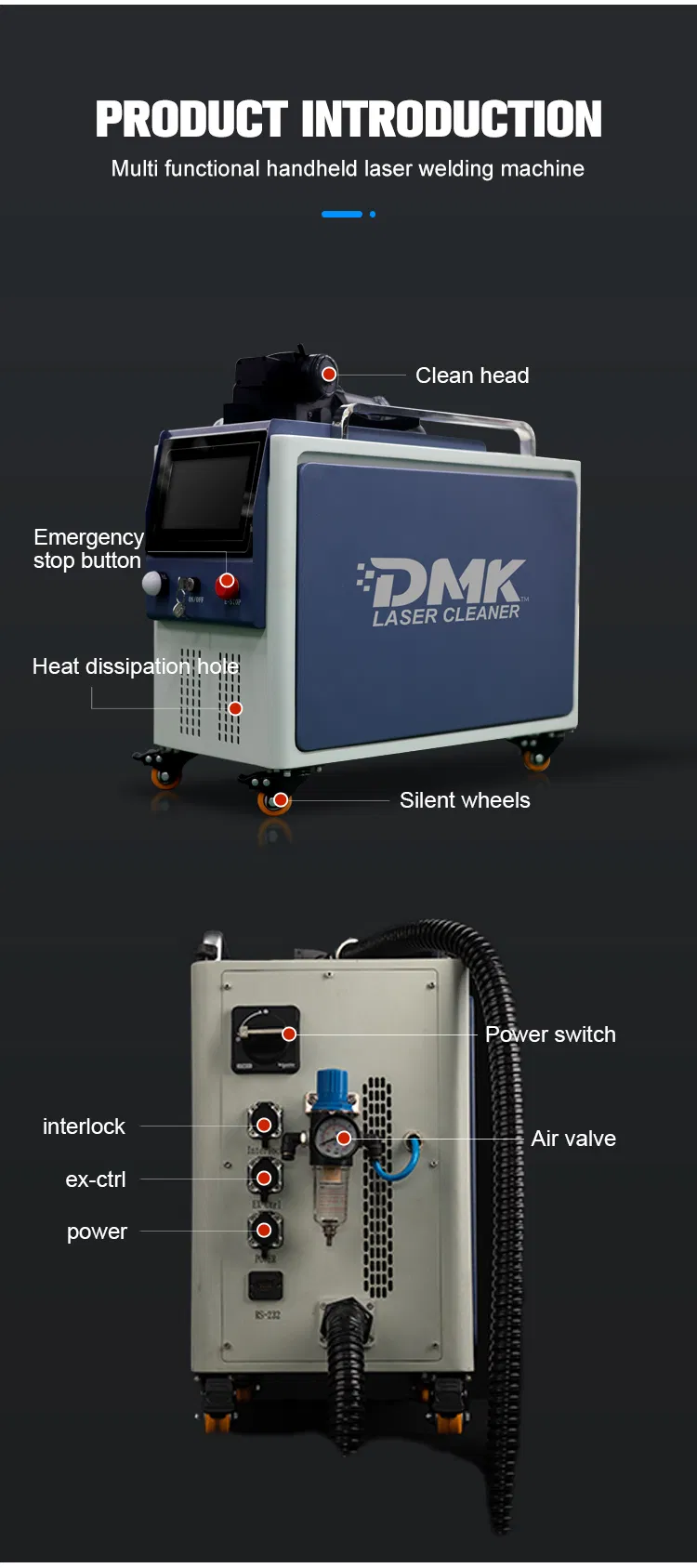

It is equipped with 200W/300W/500W handheld nanosecond pulsed fiber laser cleaning system. The equipment adopts the integrated design of water cooling and laser, and the transportation process is very convenient. It is easy to operate. Just turn on the power, take out the laser head from the storage cabinet, and select the appropriate cleaning mode to achieve cleaning.
| 1500W Portable Laser Welder | |
|---|---|
| Model | DHH-1500 |
| Laser Power | 1500W |
| Cooling | Air-cooled |
| Materials | Carbon steel, stainless steel, etc. |

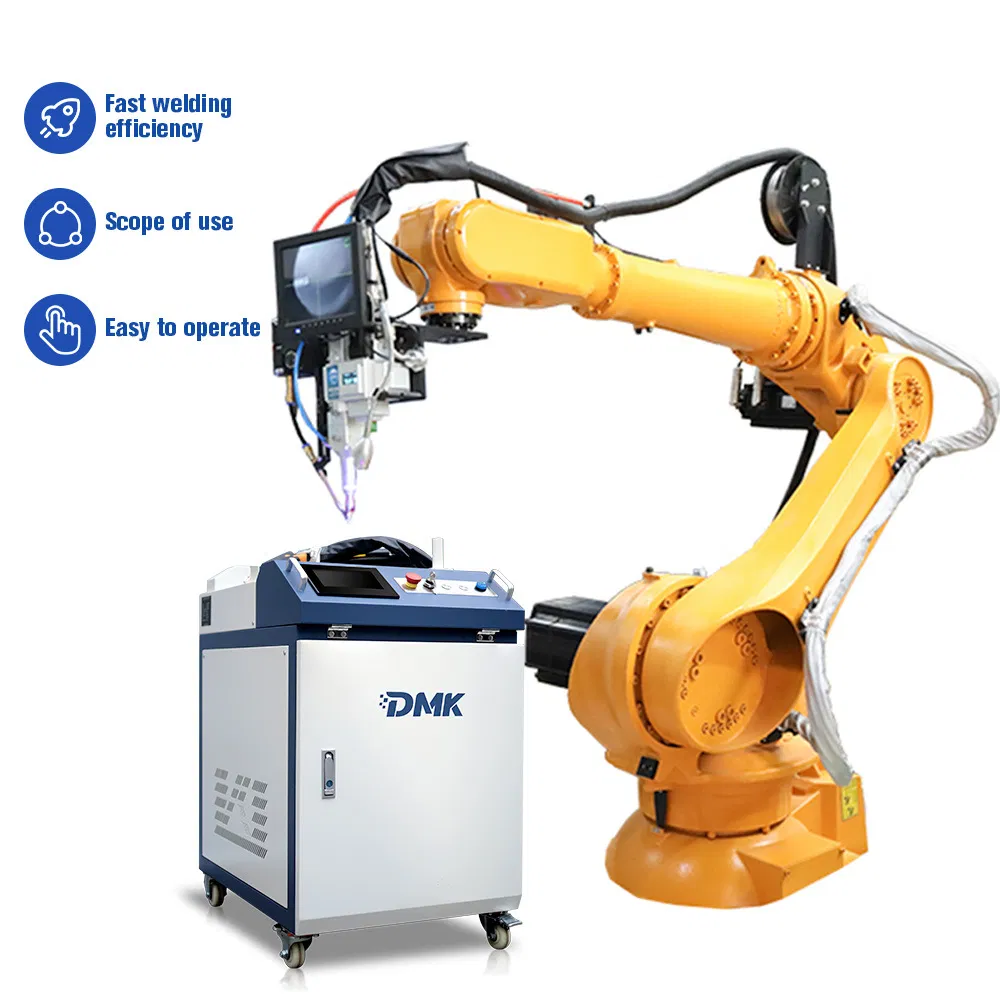

| Robot Laser Welding System | |
|---|---|
| Model | DHH-1500/2000/3000 |
| Laser Wavelength | 1080nm |
| Frequency | 50-5000HZ |
| Precision | Automatic CNC Industrial Arm |

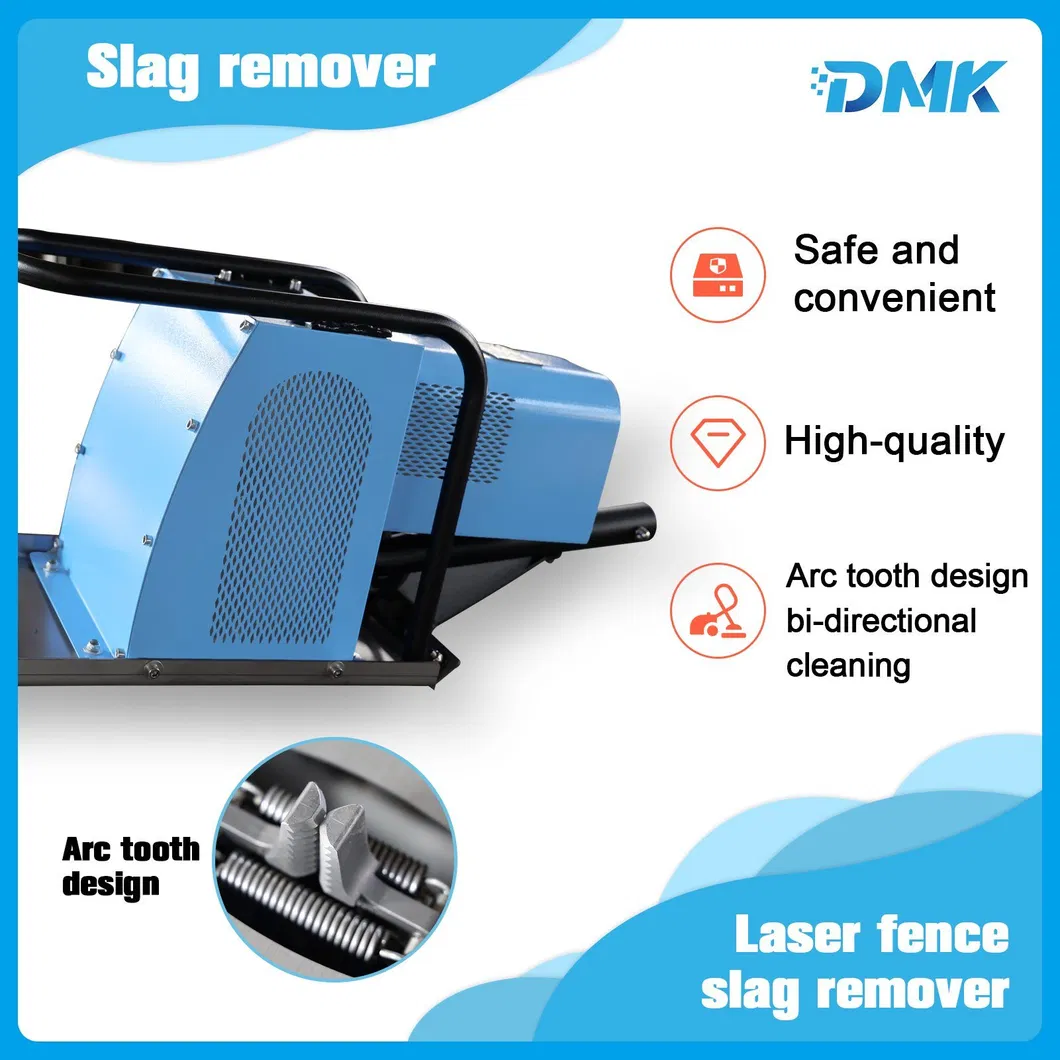

Fast speed: Several times faster than manual cleaning.
Safe operation: Long handle for single-person operation under the stage.
High flexibility: Easy line changes with extension rod.
Cost reduction: Save up to 75% compared to regular fence replacement.
