🔹 Basic Information
Application
Electrical & Electronics Industry
Motor Shafts
5 (X-Y-Z-R-B)
Production Capacity
2000 sets/Month
📦 Packaging & Delivery
Package Size
20.00cm * 15.00cm * 10.00cm
🛠️ Product Description

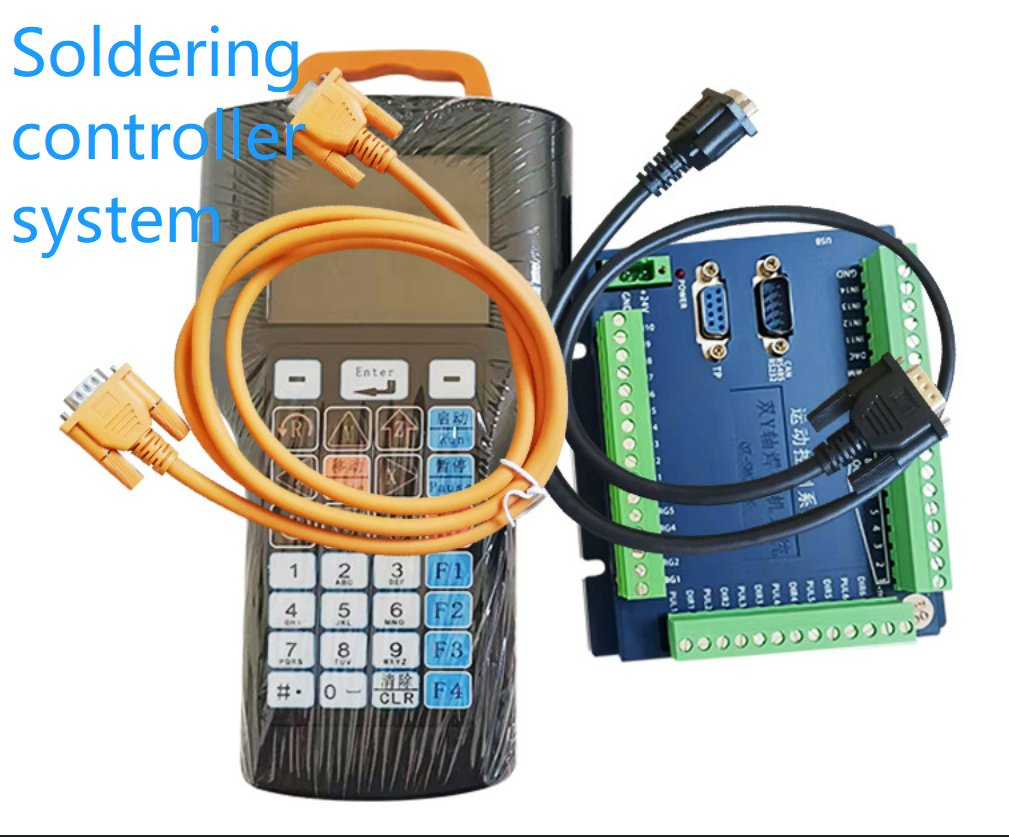

The BBA-QZSMC1305 intelligent tin soldering machine control system is a professional solution for the soldering industry. It features low cost, high condensation, and high degree of integration. This system is designed to meet various processing demands and is widely applied in the multi-axis automatic tin soldering machine field.

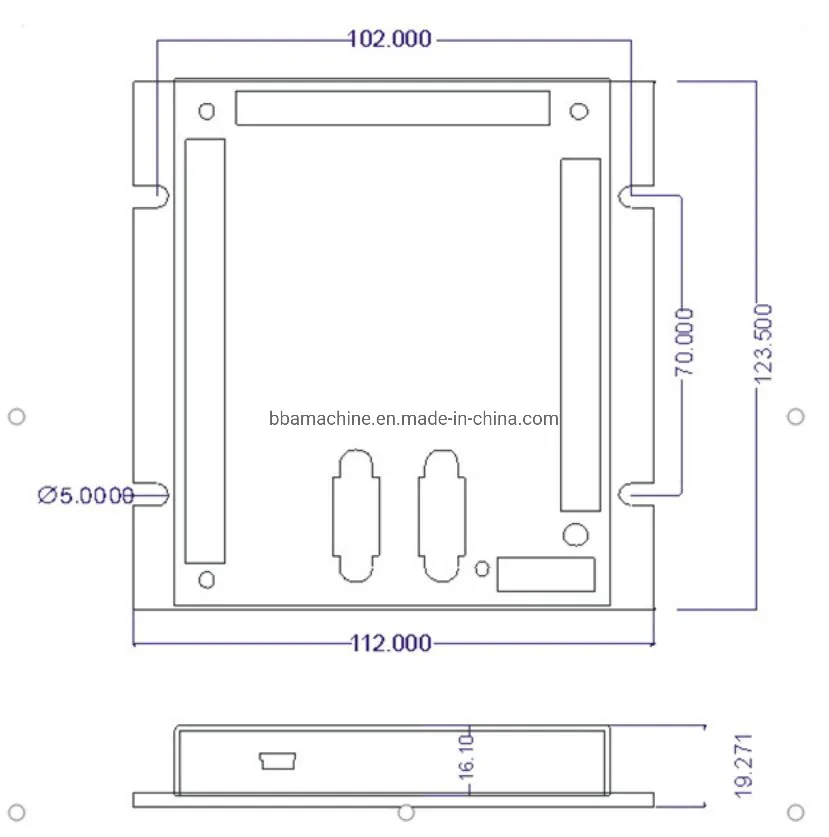

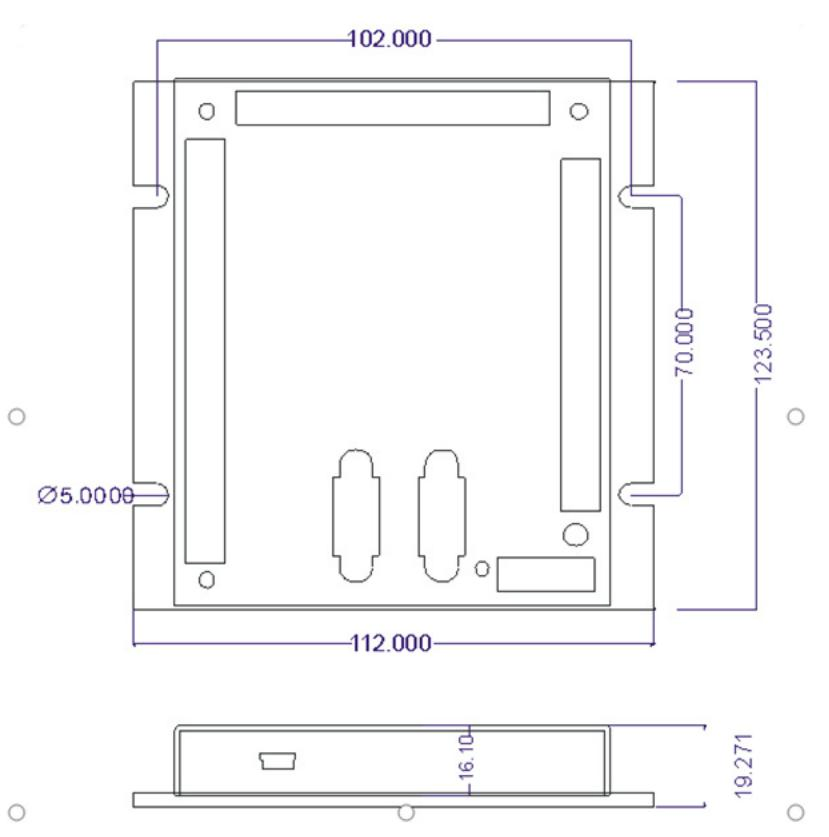

📏 Installation Size
⚙️ Functional Introduction

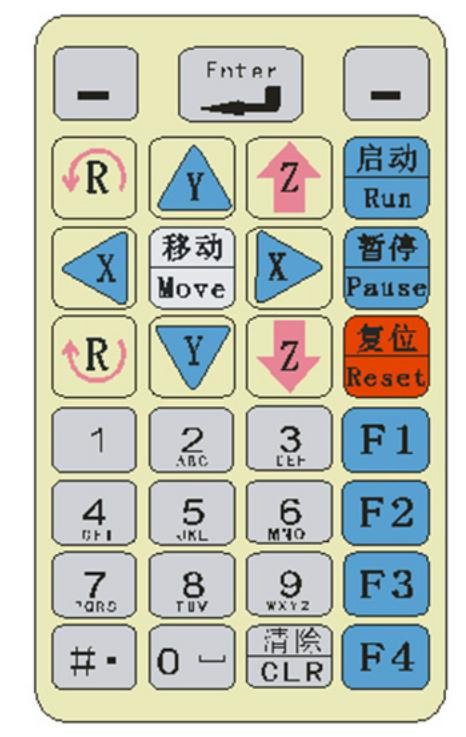

📺320*240 HD colored screen and English operation interface for convenient learning and usage.
⚡Optimized soldering processes including spot welding and drag welding; tin supply speed adjusts automatically with working speed.
📐Oblique angle gun access function allows customizable gun access angles.
🔄Tin shaking function (horizontal and vertical) to significantly upgrade welding quality.
🧹Professional cleaning functions at regular intervals or designated positions with adjustable tin compensation.
📍MARK point counterpoint function to revise errors caused by angle and position deviations.
📑Advanced logic functions: regional array copy, translational calculation, batch edition, and automatic reset.
💾Portable box saves several hundred processing files, supporting up to 8,000 commands per file for off-line operation.

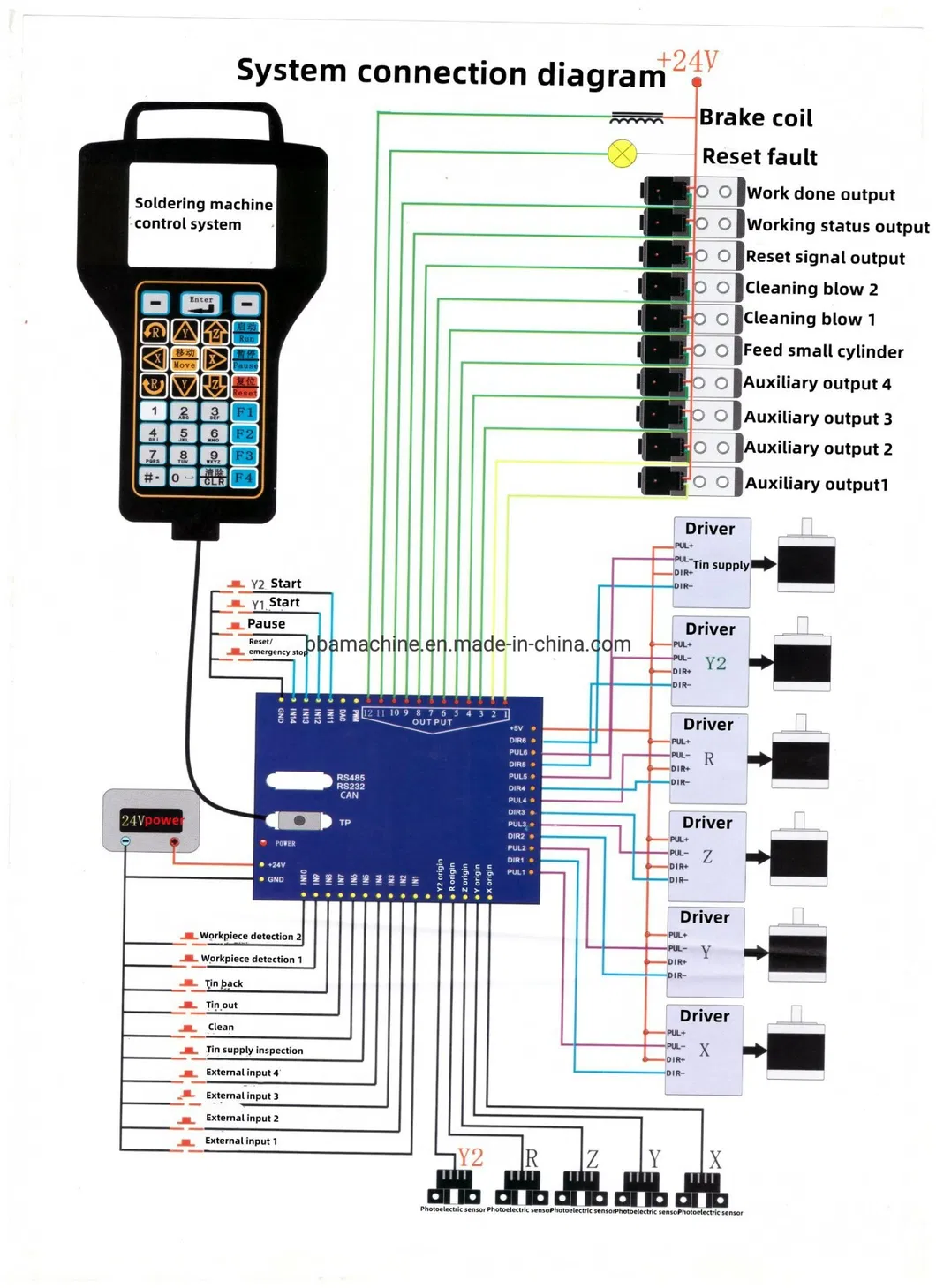

🔌 Hardware Features

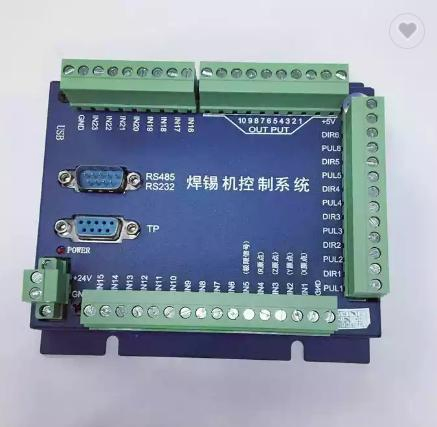

I/O Ports
8 Input / 4 General Output / 12 Pulse Output
Interface Model
DB44 Interface
Storage Capacity
16M Flash Chip
LCD Display
3.2" Color LCD
Humidity Range
40% - 80% (Working)
📋 List of Products
| Name of Fittings |
Category |
Qty' |
Introduction |

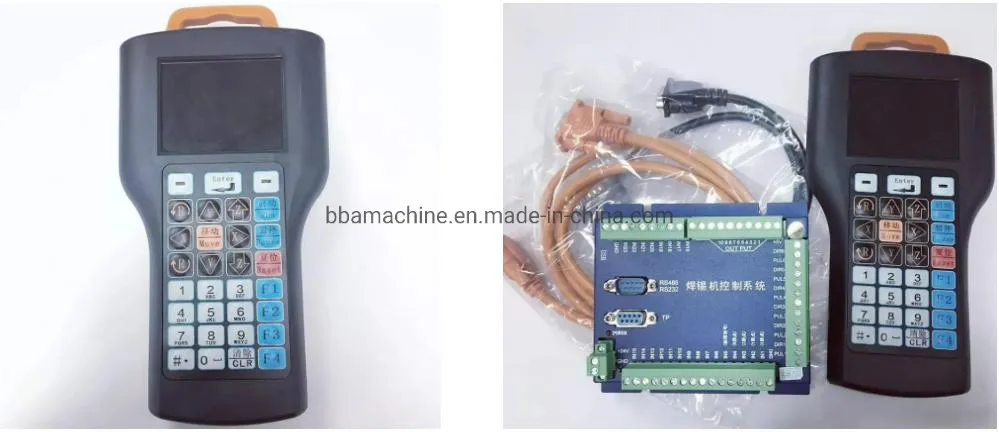

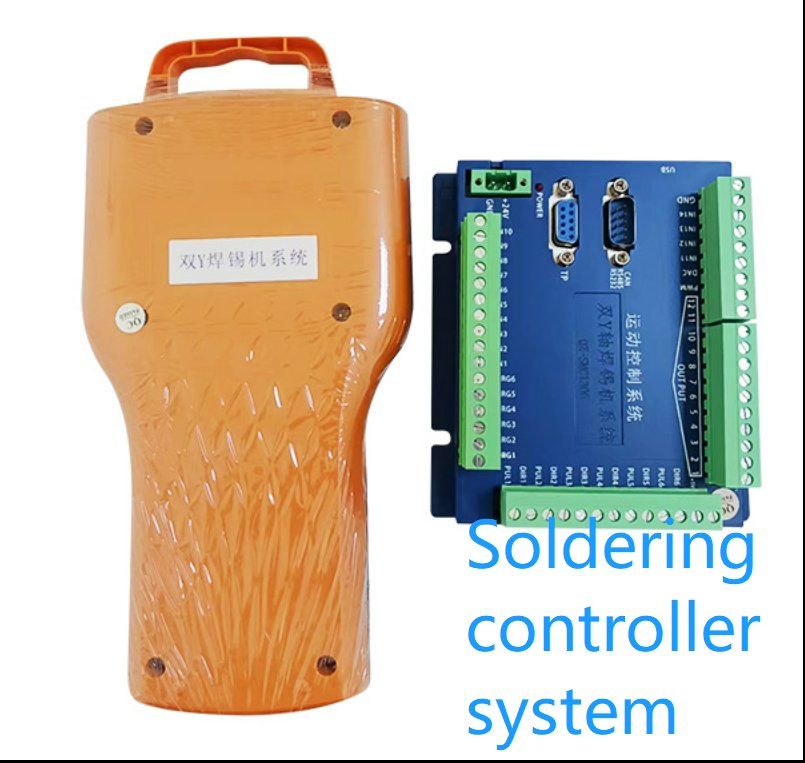

| Portable Box | Necessary | 1 | Operation instruction box |
| Controller | Necessary | 1 | Operation controller |
| Data Line | Necessary | 1 | Connection line |
| Lengthened Line | Necessary | 1 | Lengthened line of controller serial port |
❓ FAQ
1. How many axes does the BBA-QZSMC1305 controller support?
The system supports 5-axis control, specifically for X, Y, Z, R, and B coordinates.
2. Does the system support English operation?
Yes, the system is equipped with a 320*240 HD colored screen that features a full English operation interface.
3. Can the controller handle complex welding patterns?
Absolutely. It includes pre-prepared processes for both spot welding and drag welding, and features a "tin shaking" function to improve quality.
4. How is the soldering gun angle managed?
The system includes an oblique angle gun access function, allowing the user to set the specific gun access angle as required.
5. What is the storage capacity for processing files?
The hardware features 16M of memory and the portable handheld box can save several hundred files, with each file supporting up to 8,000 separate commands.
6. How does the system handle workpiece position errors?
It supports a MARK point counterpoint function which automatically revises errors caused by deviations in the angle or position of the workpiece.
