Basic Information
Model NO.:BBA-QZSMC1305
Control:Automatic
Application:Electrical & Electronics Industry
Interface Way:dB44
Pulse Frequency:200K
Motor Shafts:5 (X-Y-Z-R-B)
Rated Current:0.5A
File Format:Dxf, Plt
Origin:China
Capacity:2000 sets/Month
📦
Packaging & Delivery
Package Size:20.00cm * 15.00cm * 10.00cm
Gross Weight:5.000kg
🛠️

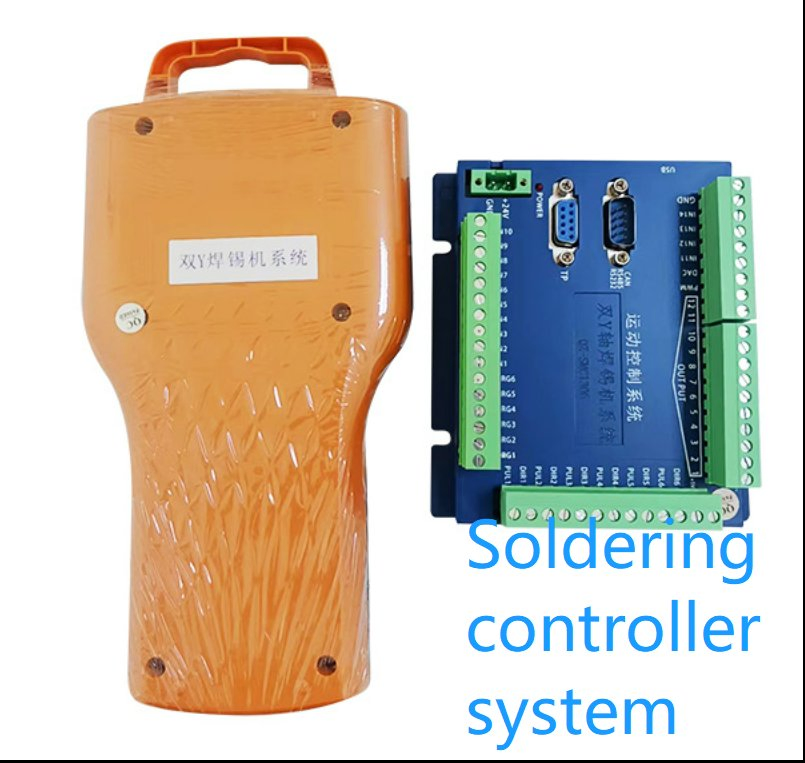

Product Description
The BBA-QZSMC1305 intelligent tin soldering machine control system is designed for the professional digital control of the tin soldering industry. It features low cost, high condensation, and high integration. The system offers perfect tin soldering processes to meet diverse processing demands and is widely applied in the multi-axis automatic tin soldering machine field.

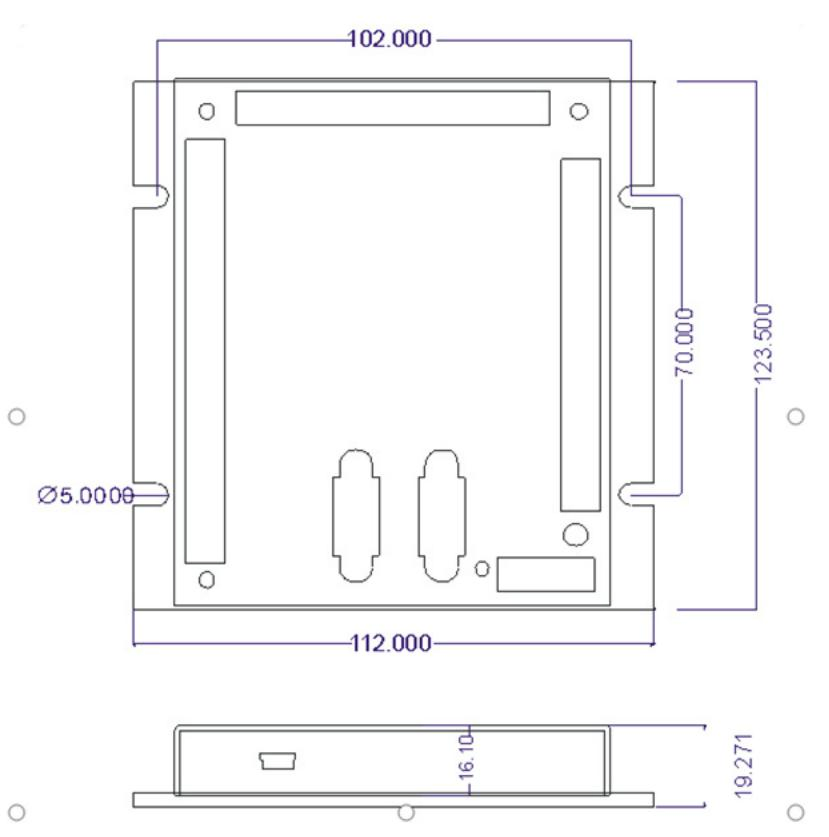

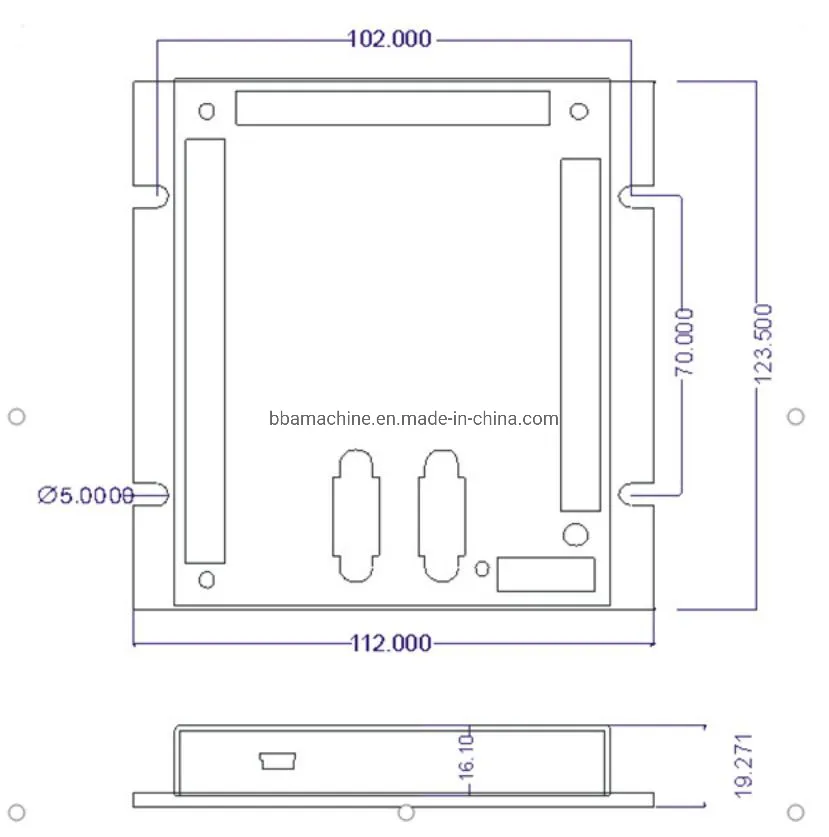

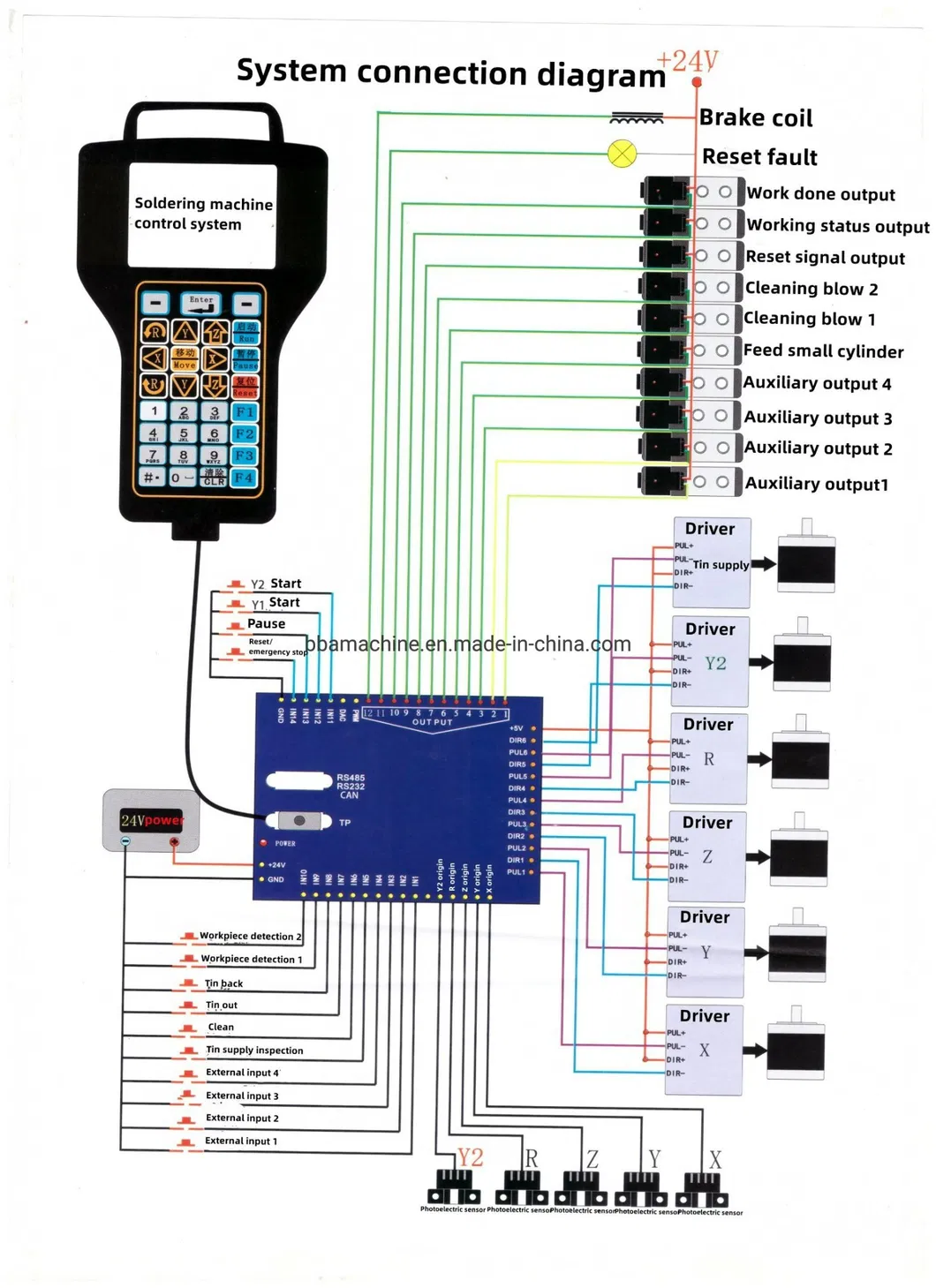

Installation Size
Functional Introduction
- 320*240 HD colored screen with English operation interface.
- Supports spot welding and drag welding; automatic tin supply adjustment.
- Oblique angle gun access function with customizable angles.
- Horizontal and vertical tin shaking function to upgrade welding quality.
- MARK point counterpoint function to revise error caused by workpiece deviation.
- Command displacement and regional array copy functions for efficient editing.
- Portable box supports saving several hundred processing files (up to 8,000 commands each).
- Hardware includes 4-gun tunnel control and 12-way high-speed pulse output.
Functional Features
Motor Axis:5 axis (XYZRB)
I/O Ports:8-way input, 12-way high-speed output
Working Voltage:24V DC
Storage Capacity:16M Flash
Display:3.2'' Colored LCD (320*240)
Operating Temp:-10°C to 60°C

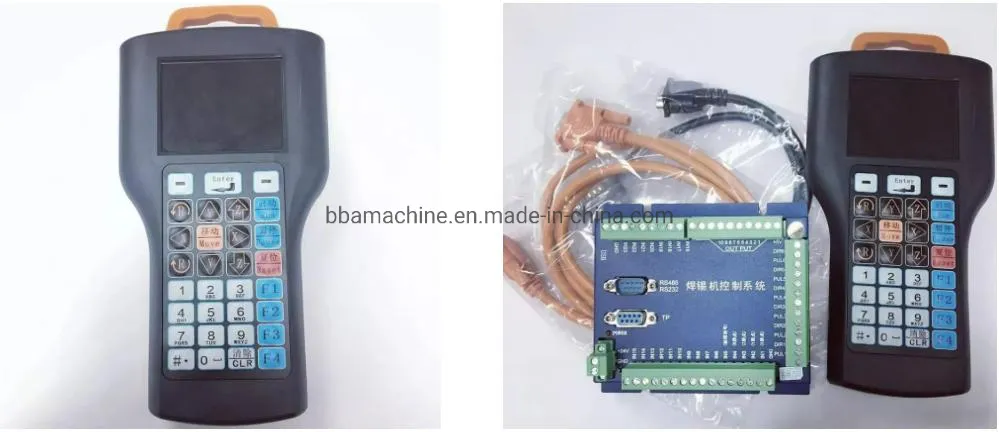

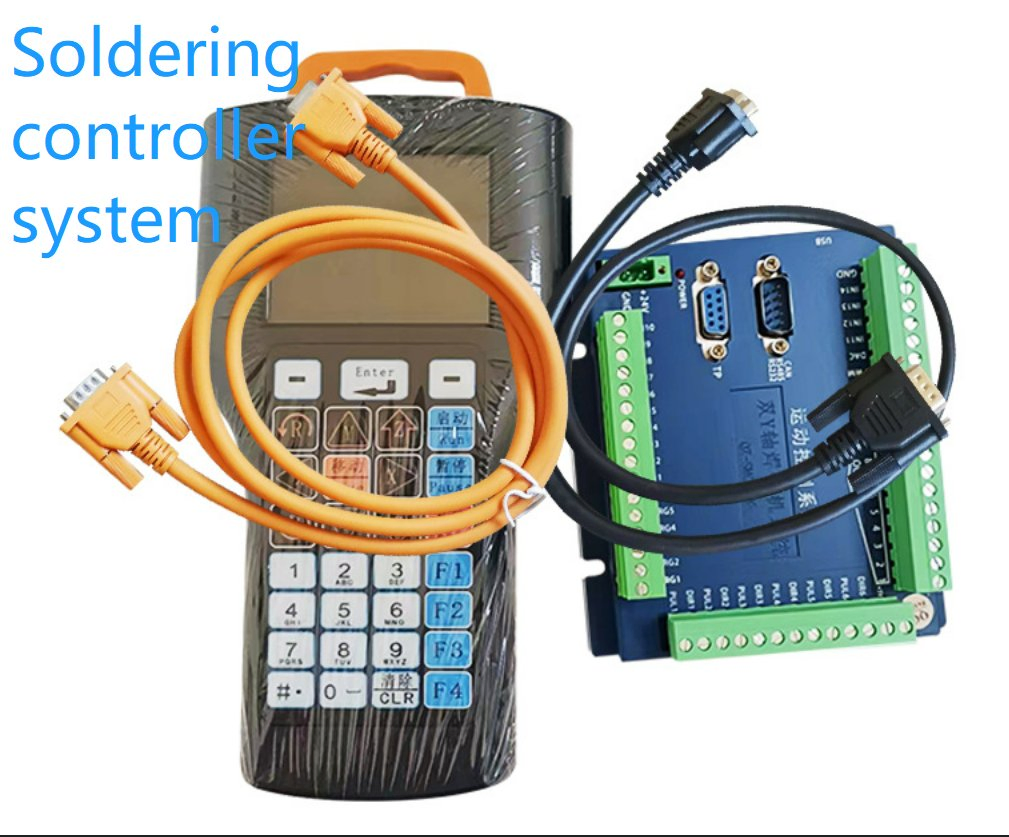

List of Products
| Name of Fittings |
Category |
Qty' |
Introduction |
| Portable box |
Necessary |
1 |

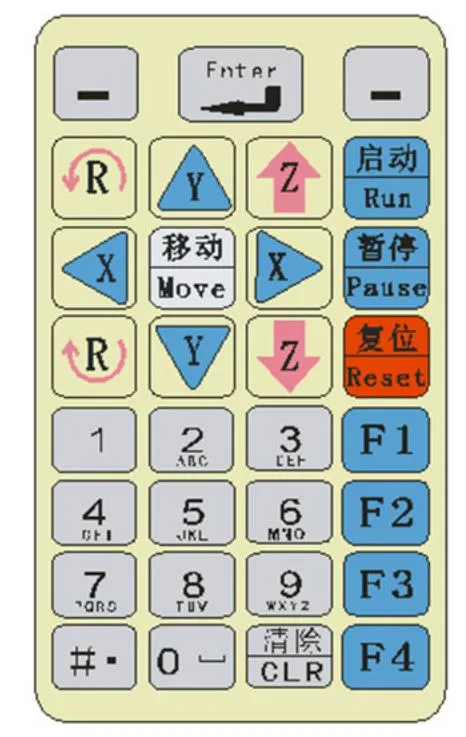

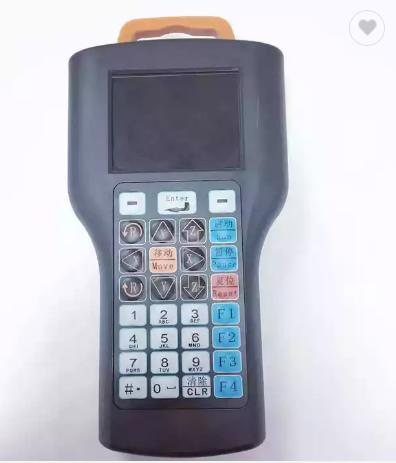

Operation instruction box |
| Controller |
Necessary |
1 |
Operation controller |
| Data line |
Necessary |
1 |
Connection line |
| Lengthened line |
Necessary |
1 |
Controller serial port line |
Frequently Asked Questions
1. What is the maximum pulse frequency of the BBA-QZSMC1305?
The system supports a high-speed pulse frequency of 200K for precise motor control.
2. How many axes does the controller support?
It supports a 5-axis motion control system, specifically configured for X, Y, Z, R, and B axes.
3. What file formats are compatible with this control system?
The controller supports standard industry file formats including Dxf and Plt for seamless design integration.
4. Does it support both spot and drag welding?
Yes, the system comes with specialized processes pre-configured for both spot welding and drag welding applications.
5. What is the capacity of the portable operation box?
The portable box can save several hundred processing files, with each file supporting up to 8,000 separate commands.
6. What is the required working voltage for the hardware?
The hardware operates on a standard 24V DC power supply.
