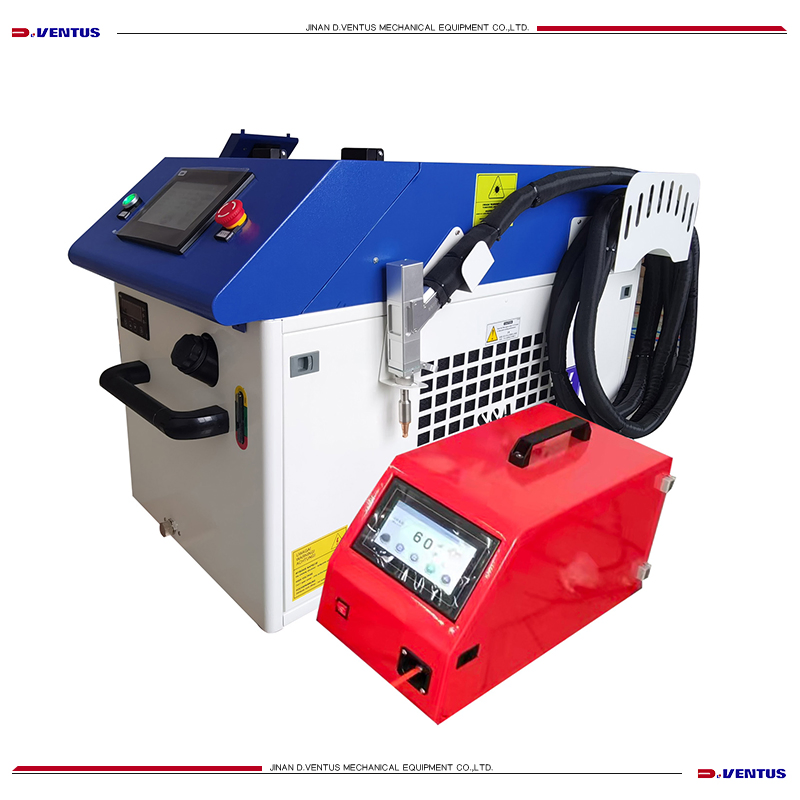

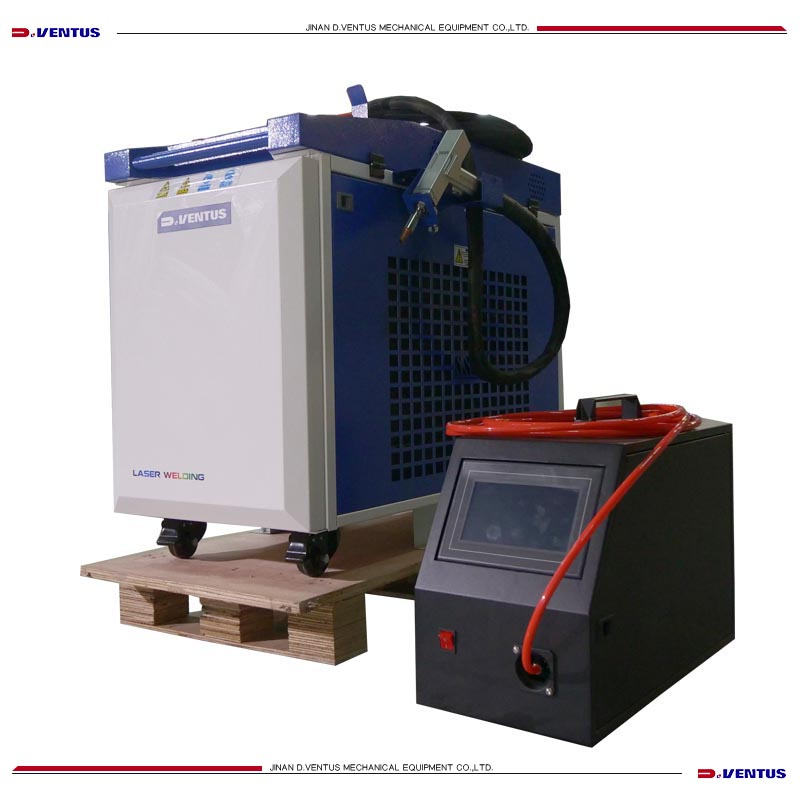

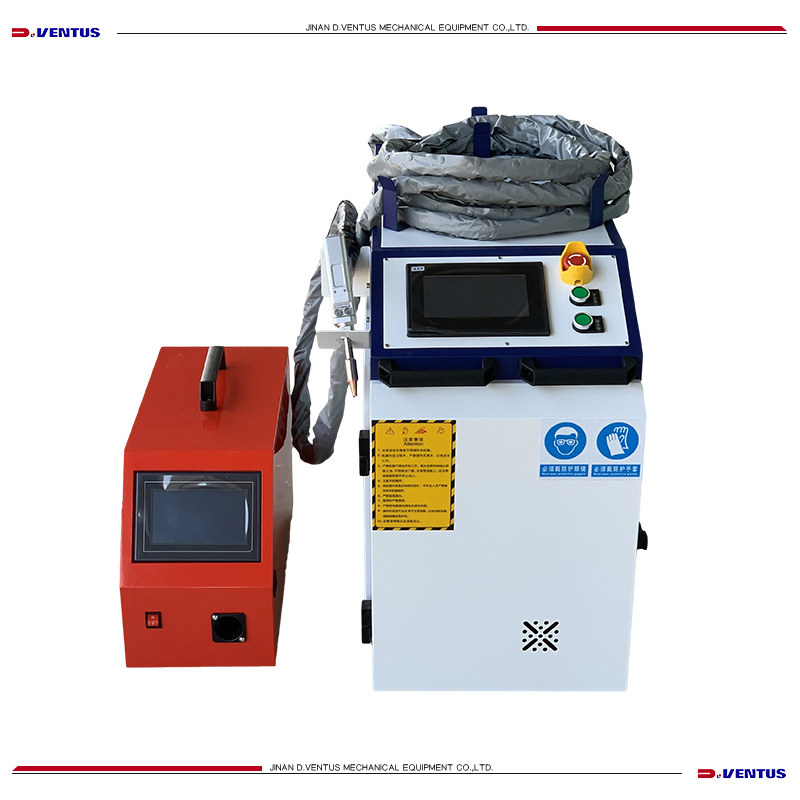

Robotic Fiber Laser Welding System

Customization:	Available
After-sales Service:	Online Support and Overseas Support Available
Warranty:	2 Years

Send Inquiry

Product Description

⚙️

Unleash the Power of Precision: The Smart Digital Control Small Hand-held Fiber Laser Welding Machine is Now Available at Factory Prices for Metal Tube Nipples. Experience unmatched accuracy and efficiency in metal welding like never before.

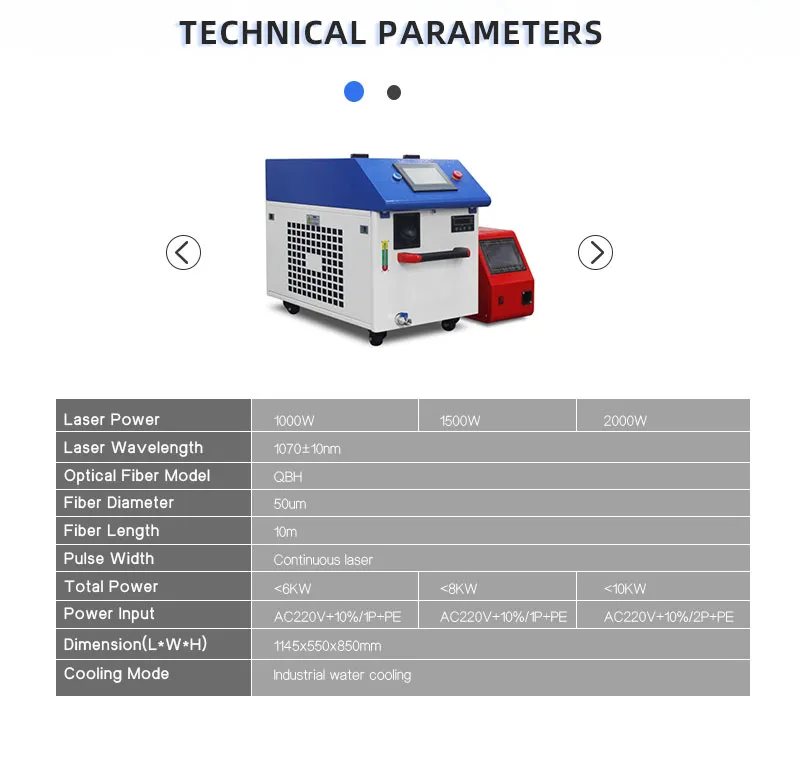

Technical Specifications

Model NO.

DV-LWS1500

Laser Type

Continuous Wave (CW) Fiber Laser

Laser Power

1000W / 1500W / 2000W / 3000W

Control System

Automatic Digital Control

Cooling Mode

Water Cooling

Wire Filling

With Wire Filler Machine

Power Supply

220V/380V, 50-60Hz

Cable Length

10m or Customized

Auxiliary Gas

Argon, Nitrogen

Welding Methods

Spot Welding, Stitch, Parallel, Vertical

Welding Capacity

Laser Power	Material	Max. Penetration Thickness	Max. Welding Thickness
1KW	SS/CS (Stainless/Carbon Steel)	3mm	4mm
1KW	AL/GI (Aluminum/Galvanized)	1mm	2mm
1.5KW	SS/CS	4mm	5mm
1.5KW	AL/GI	2mm	3mm
2KW	SS/CS	5mm	6mm
2KW	AL/GI	3mm	4mm

Sample & Application

Our versatile welding machine is ideal for intricate and irregular welding tasks in a variety of industries, including cabinetry, kitchen and bathroom fixtures, staircases, elevators, shelving, ovens, stainless steel doors and windows, guardrails, power distribution boxes, and household appliances. It is compatible with materials such as stainless steel, iron sheets, aluminum, copper, alloys, steel, and galvanized metals.

Global Reach & Reliability

Our products are renowned for their superior quality and reliability, earning accolades both domestically and internationally. We proudly export to countries across the globe, including the USA, Australia, Argentina, Mexico, Malaysia, Russia, Brazil, Vietnam, India, and more.

We are committed to providing round-the-clock online support to our global customers. Client satisfaction is our utmost priority. We offer comprehensive software upgrades and maintenance services within the warranty period, adhering to the highest industry standards.

Frequently Asked Questions

What materials can this laser welding machine work with?

The machine is compatible with a wide range of metals, including stainless steel, carbon steel, aluminum, iron sheets, copper, alloys, and galvanized sheets.

What is the maximum welding thickness for the 2000W model?

For Stainless Steel and Carbon Steel (SS/CS), the 2KW model can achieve a maximum welding thickness of up to 6mm. For Aluminum and Galvanized sheets (AL/GI), it supports up to 4mm.

Does the machine support automatic wire filling?

Yes, this machine comes equipped with an automatic wire filler machine to facilitate tasks that require gap filling during the welding process.

Is the machine easy to operate for beginners?

Absolutely. One of its primary selling points is that it is "Easy to Operate." It features smart digital control and a hand-held design, making it intuitive for various manual welding tasks.

What type of cooling system is required?

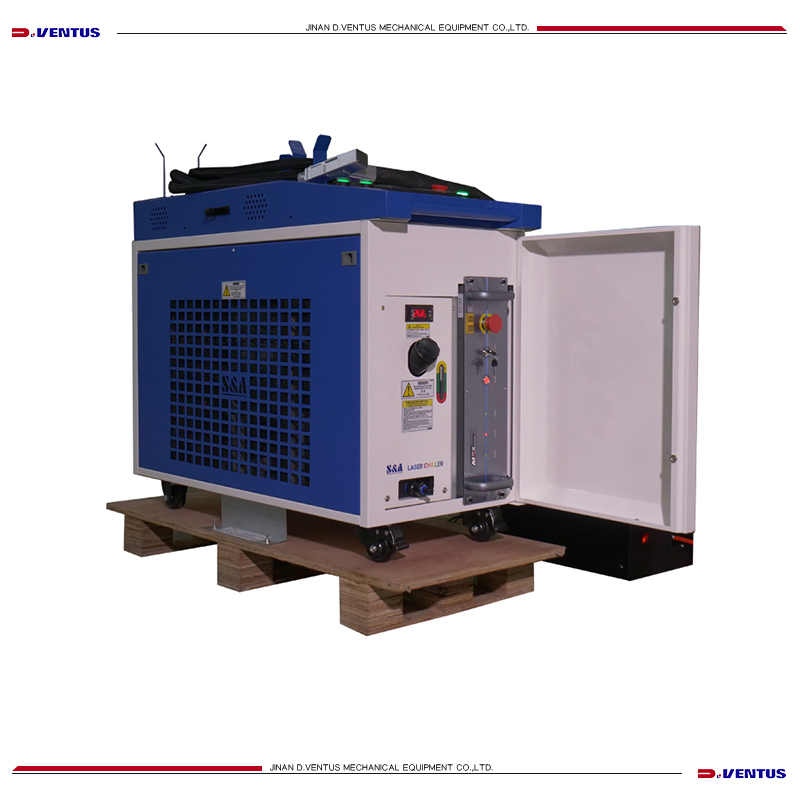

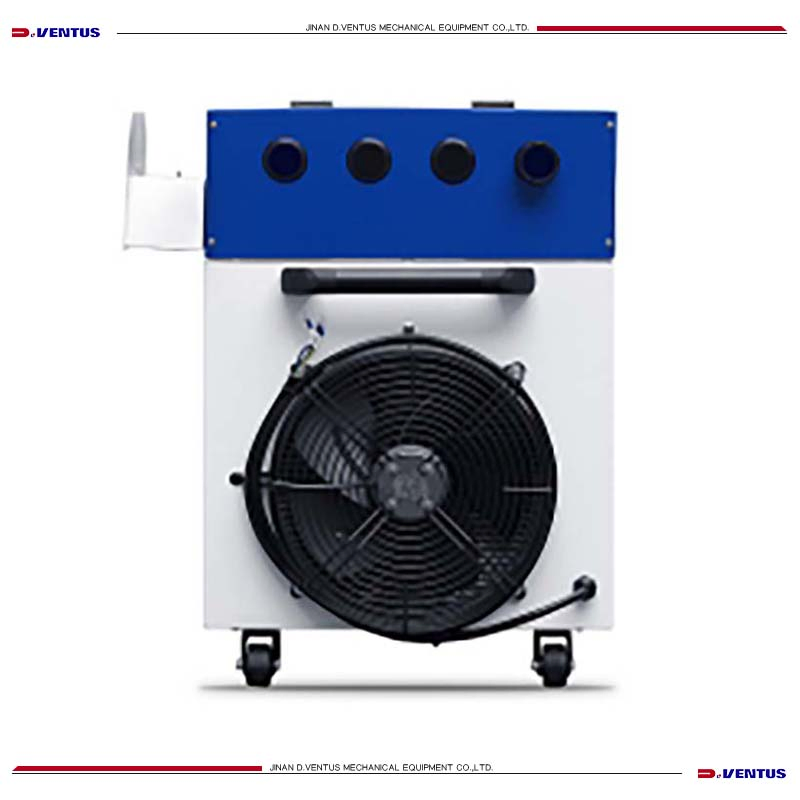

The system utilizes an integrated water cooling mode to ensure the laser source remains at a stable temperature during continuous operation.

What industries commonly use this hand-held laser welder?

It is widely used in the automotive industry, electronic industry, manufacturing of kitchenware, elevators, stainless steel furniture, and power distribution boxes.
