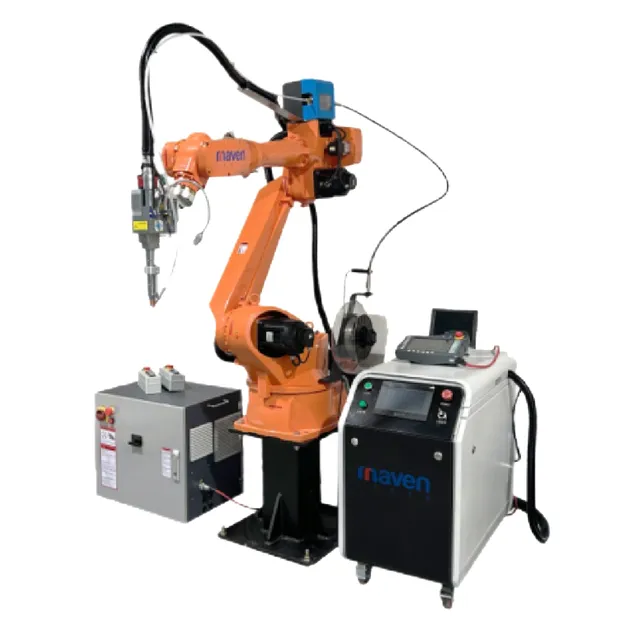

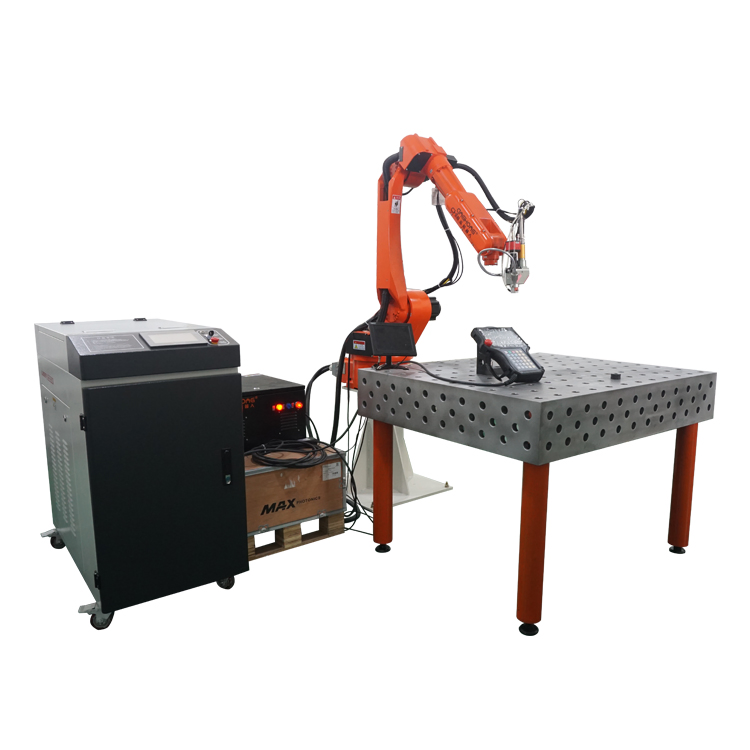

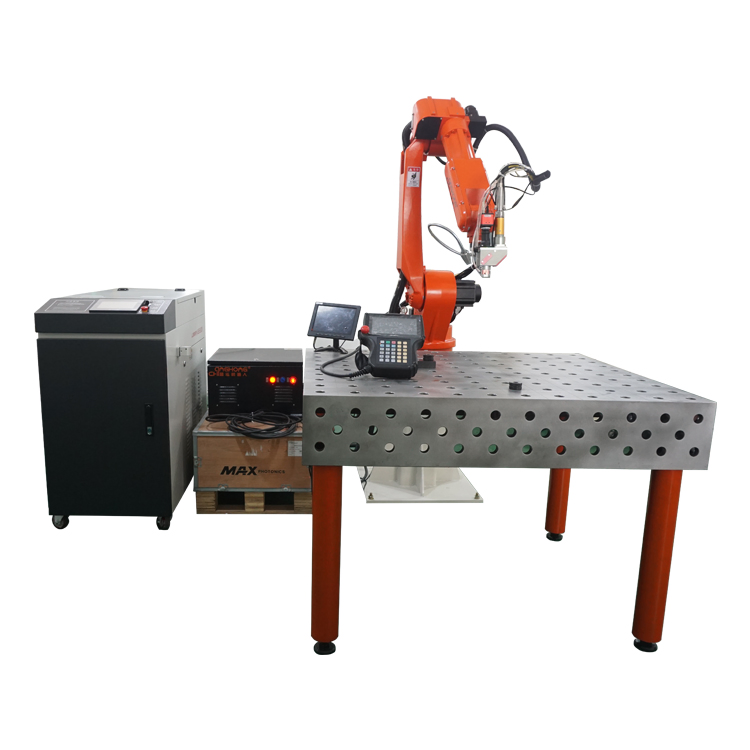

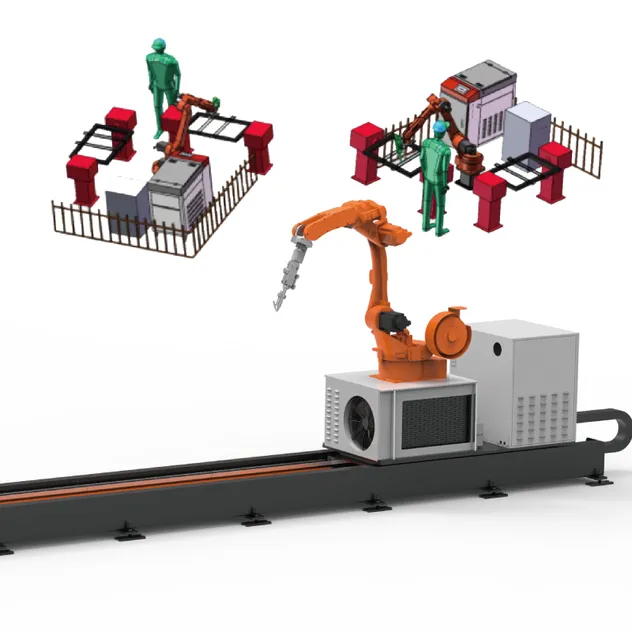

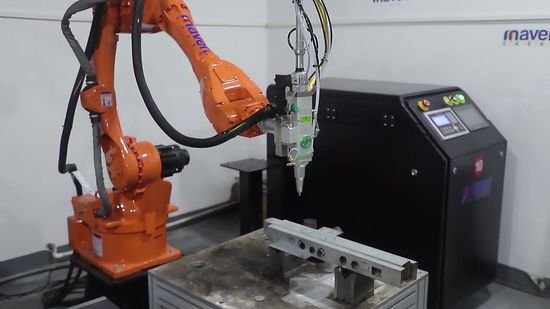

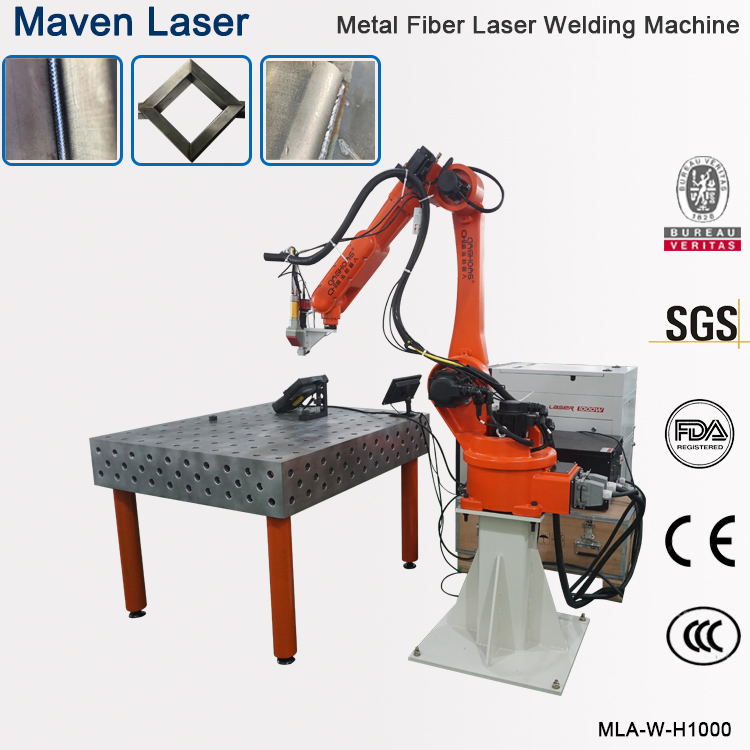

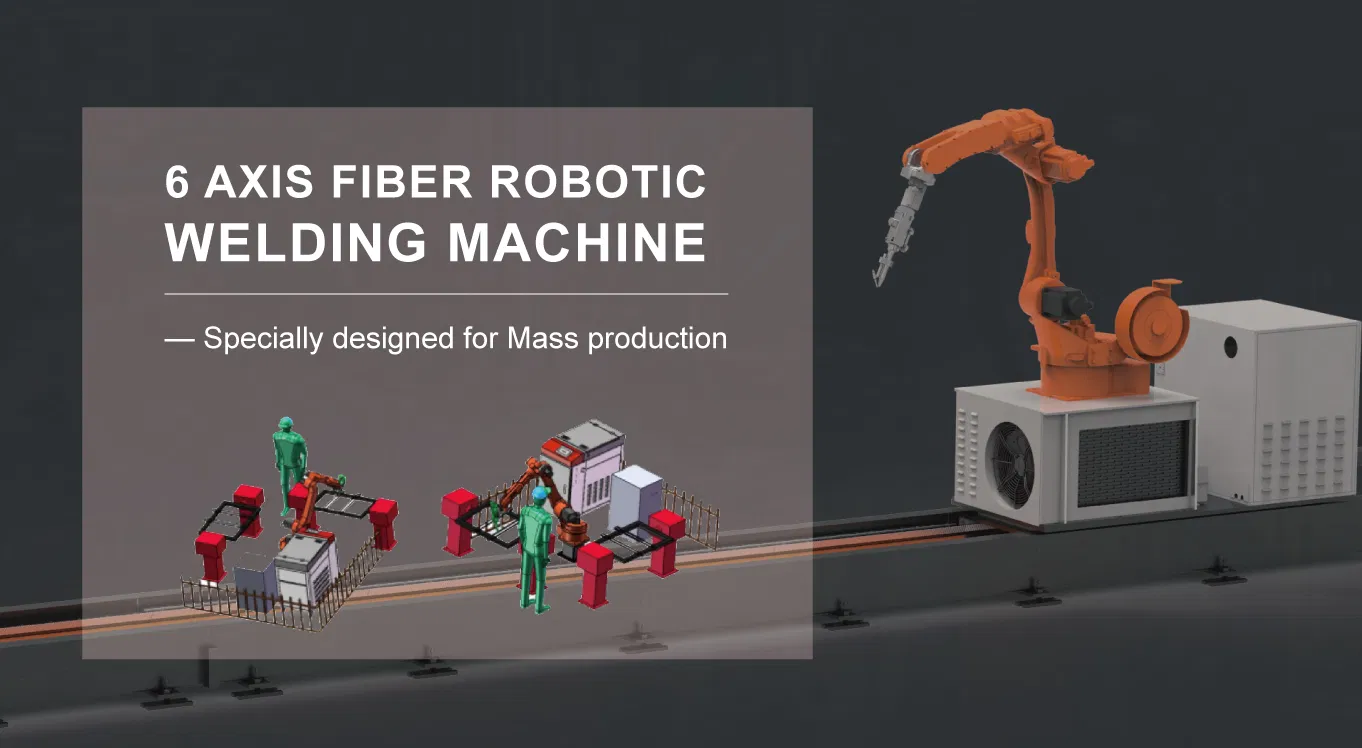

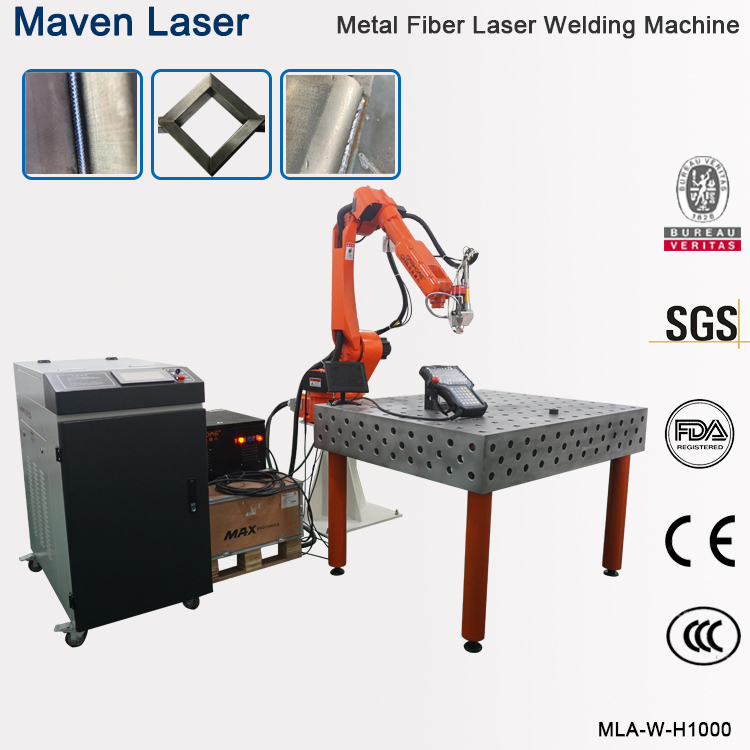

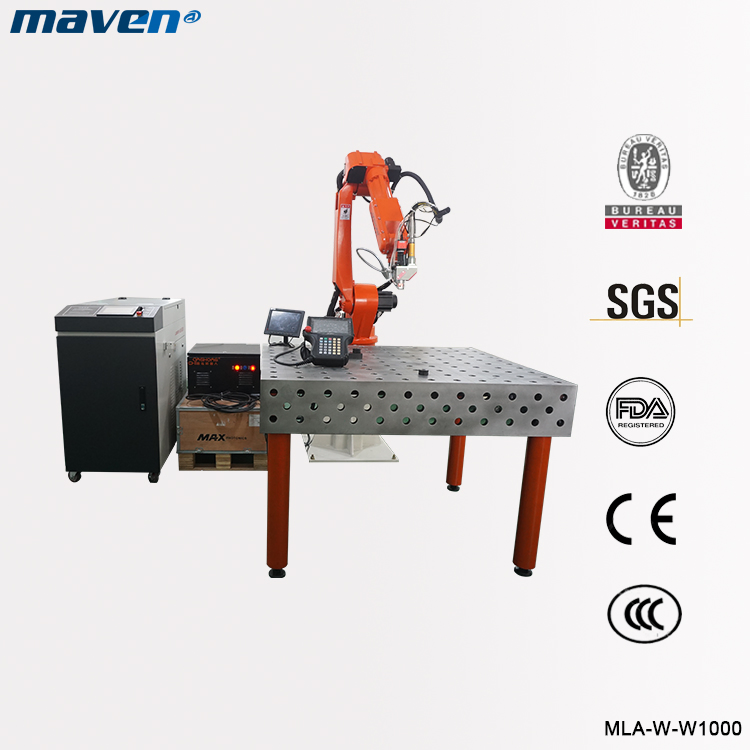

The robotic laser welding machine is a fiber laser that couples a high-energy laser beam with a robotic laser as the moving platform for welding. Any spatial trajectory can be welded. The multi-purpose laser welding machine can be programmed to weld parts that are difficult to access with ordinary laser welding machines, providing maximum welding flexibility. The laser beam can be split in time and energy, enabling simultaneous processing of multiple beams and improving welding productivity.
| Product Name | Robot Automatic Laser Welding Machine |
| Wavelength | 1070+/-10 nm |
| Laser Power | 1000W 1500W 2000W 3000W |
| Fiber Length | Standard 10m or Specify |
| Working Methods | CW/Pulse |
| Speed Range | 0-120 mm |
| Weld Thickness | 0.5-6 mm |
| Welding Gap Requirement | < 1 mm |
| Modulation Frequency | 20KHZ |
| Working Temperature | 15-35 ℃ |
| Power Supply | 220V/50HZ/30A |
| Chilling Methods | Water Chilled Inbuilt |
Auto body, auto steel plate, clutch plate, difficult and complex welding fields, microelectronic components, precision parts, high-grade digital components, fiber optic connectors, medical devices, large mold welding, injection molding and other welding.
