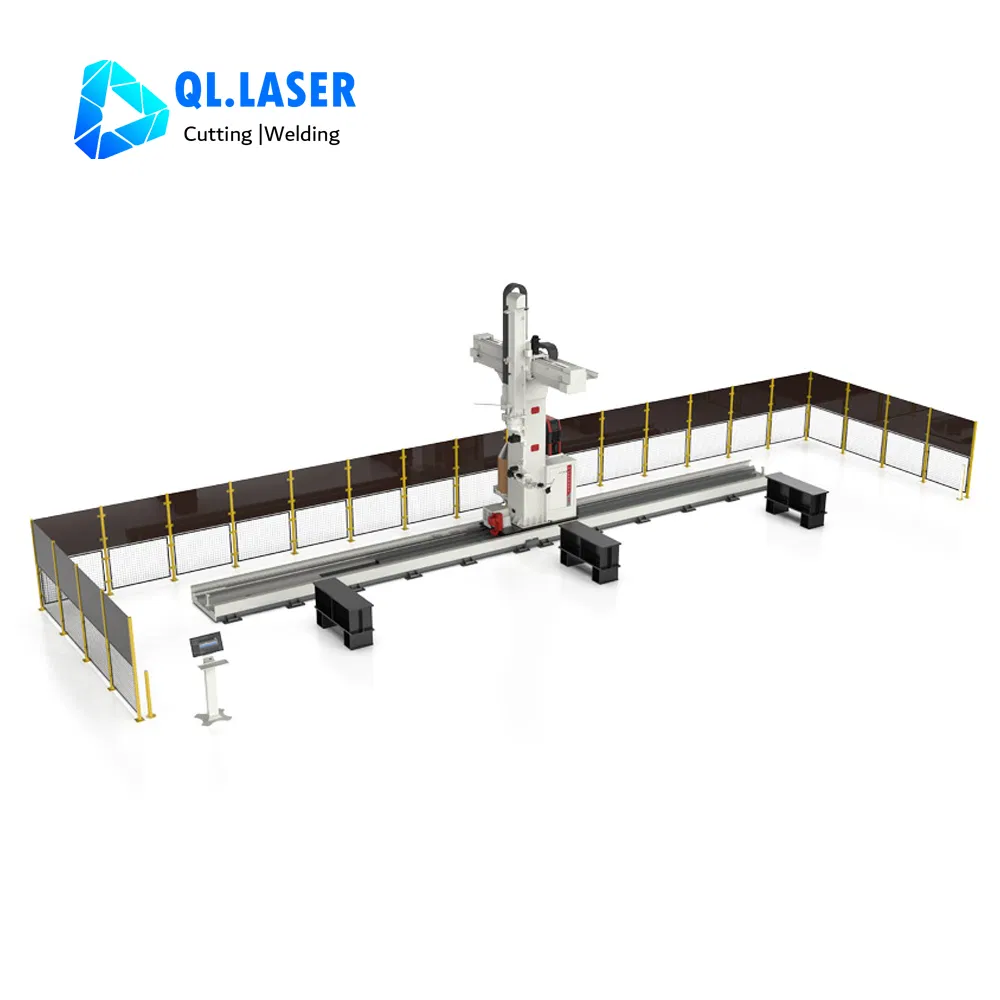

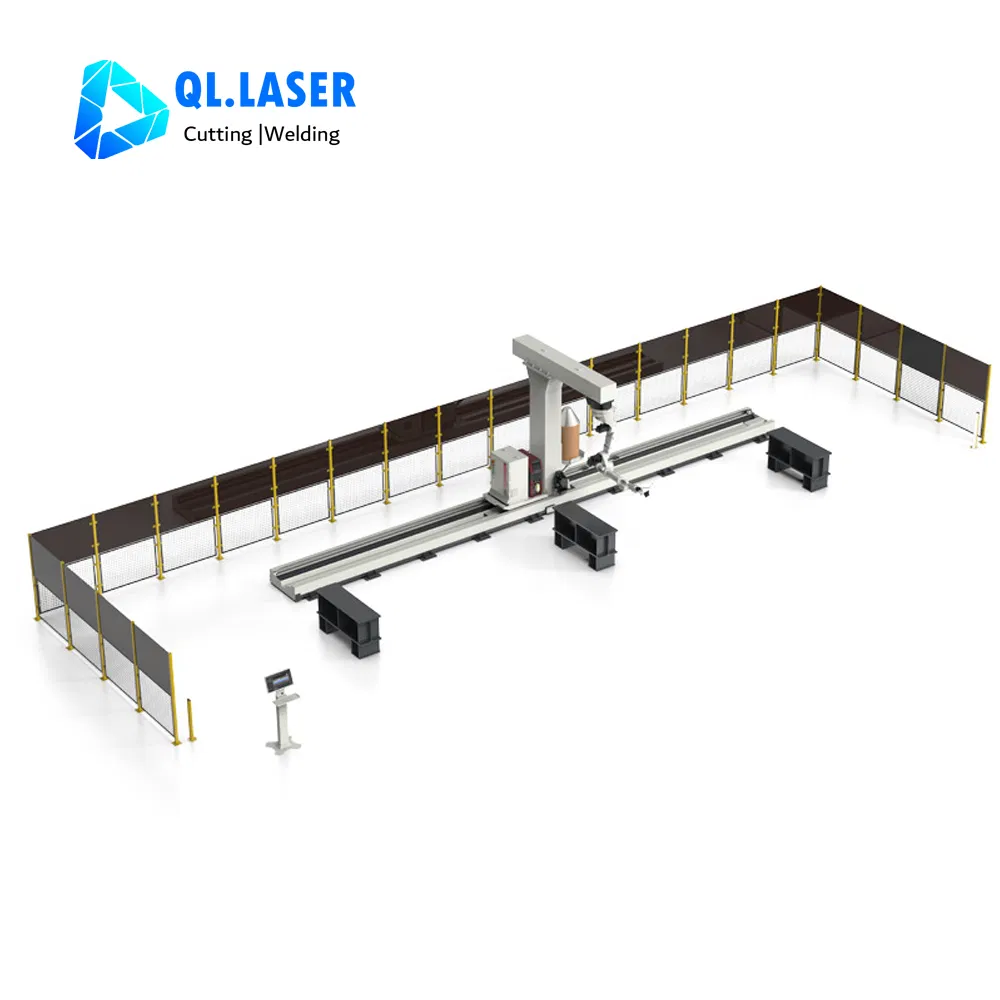

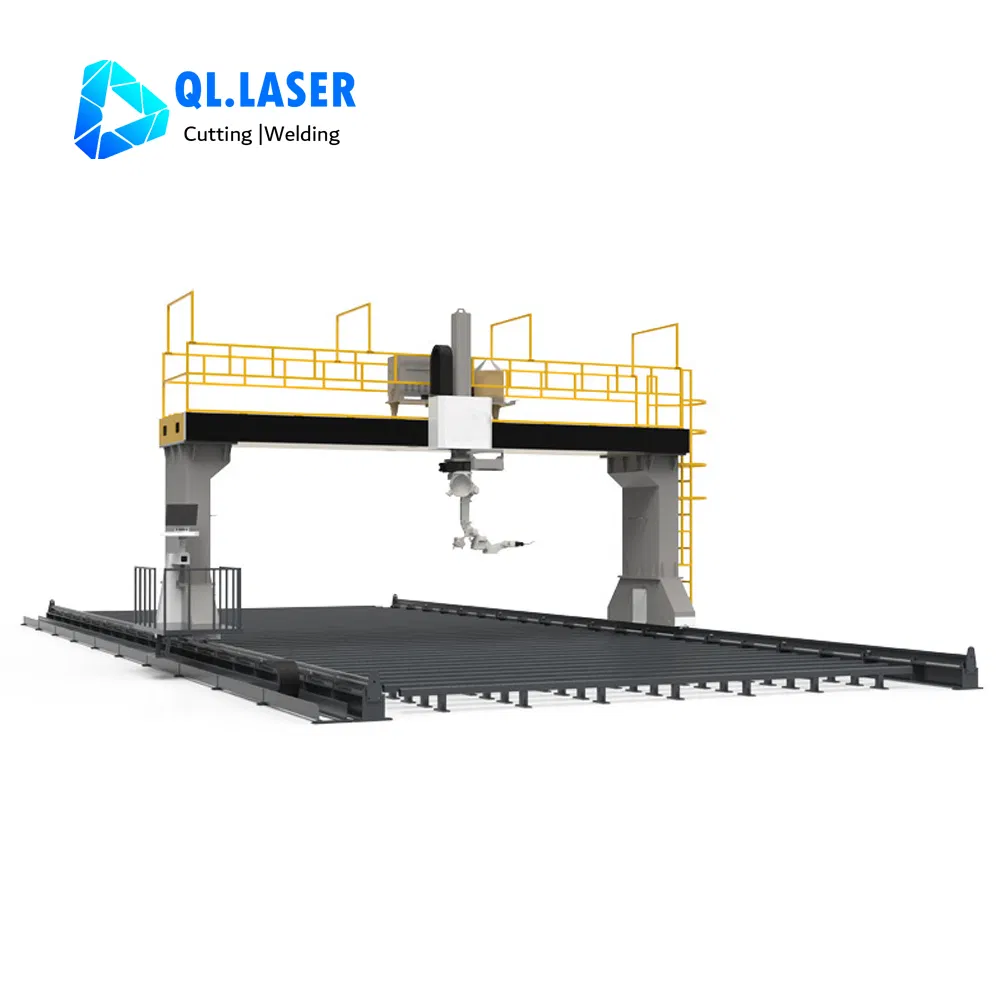

XB Series 9 axes Industrial Welding Robot Machine
Designed for H beam, Roof beams, Box columns, Bridge internal partitions and other structural components.
| Content | Parameter Range | Unit | Remarks |
|---|---|---|---|
| Degrees of Freedom (Axes) | 9 | / | / |
| Required Ambient Temperature | -10~45 | ºC | / |
| Maximum End Load | 6 | Kg | / |
| Recommended Floor Space | W3100*L14000*H1500 | mm | / |
| Peak Total Power | 45 | kW | / |
| Rated Input Voltage | 380+/-10% | V | Three-phase |
| Rated Input Frequency | 50 | Hz | / |

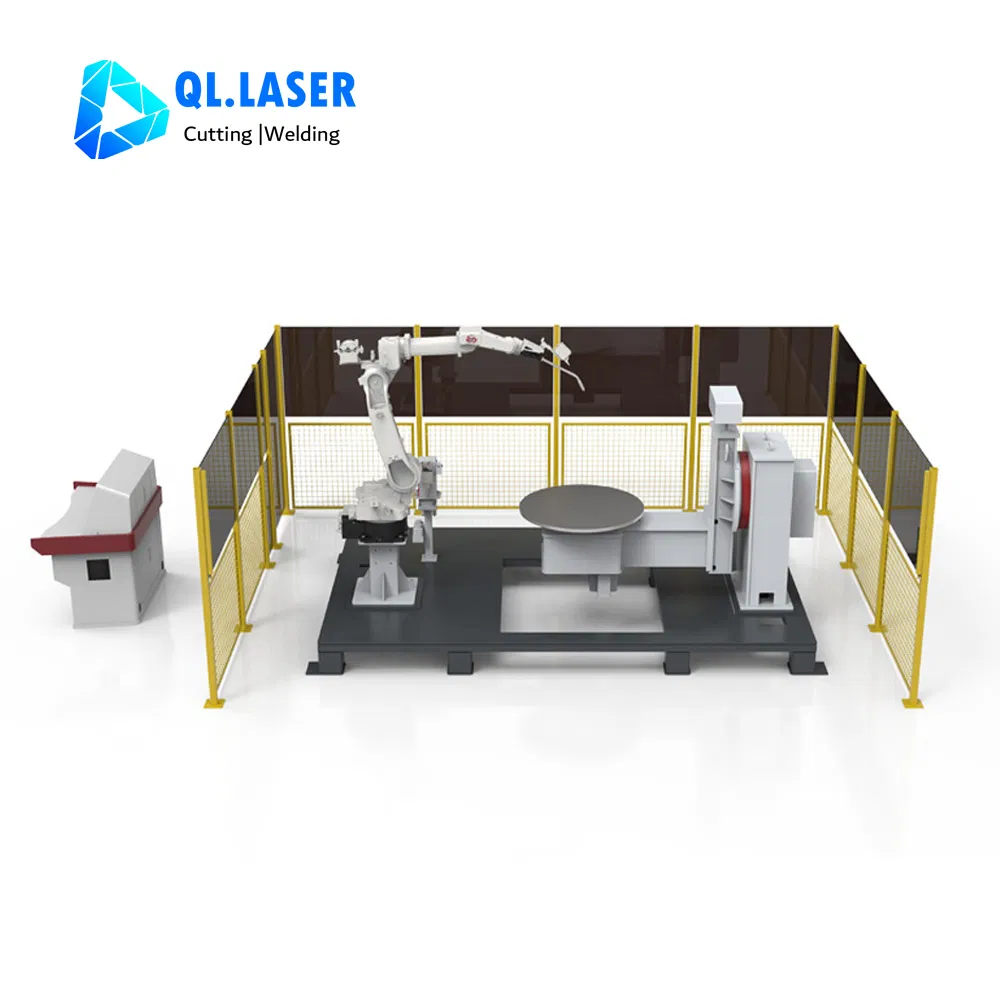

BW series with L Positioner

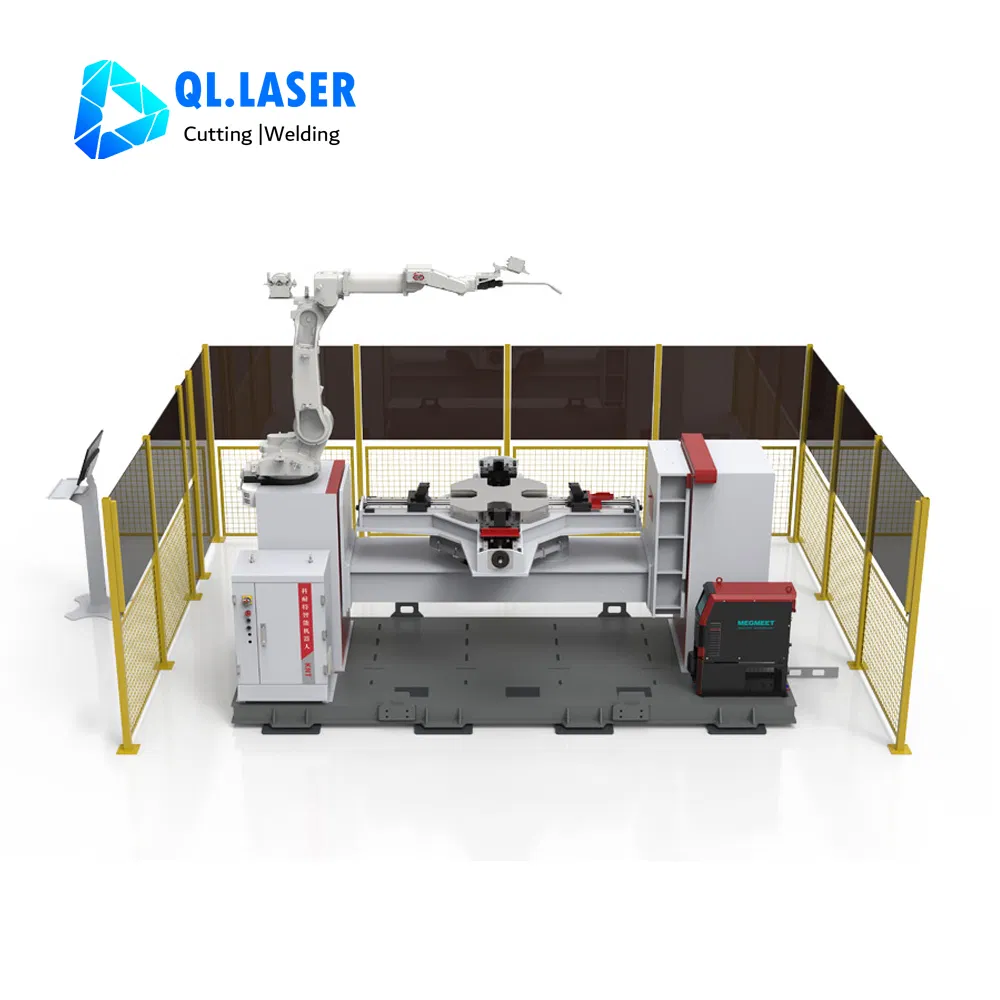

BW series with H Positioner

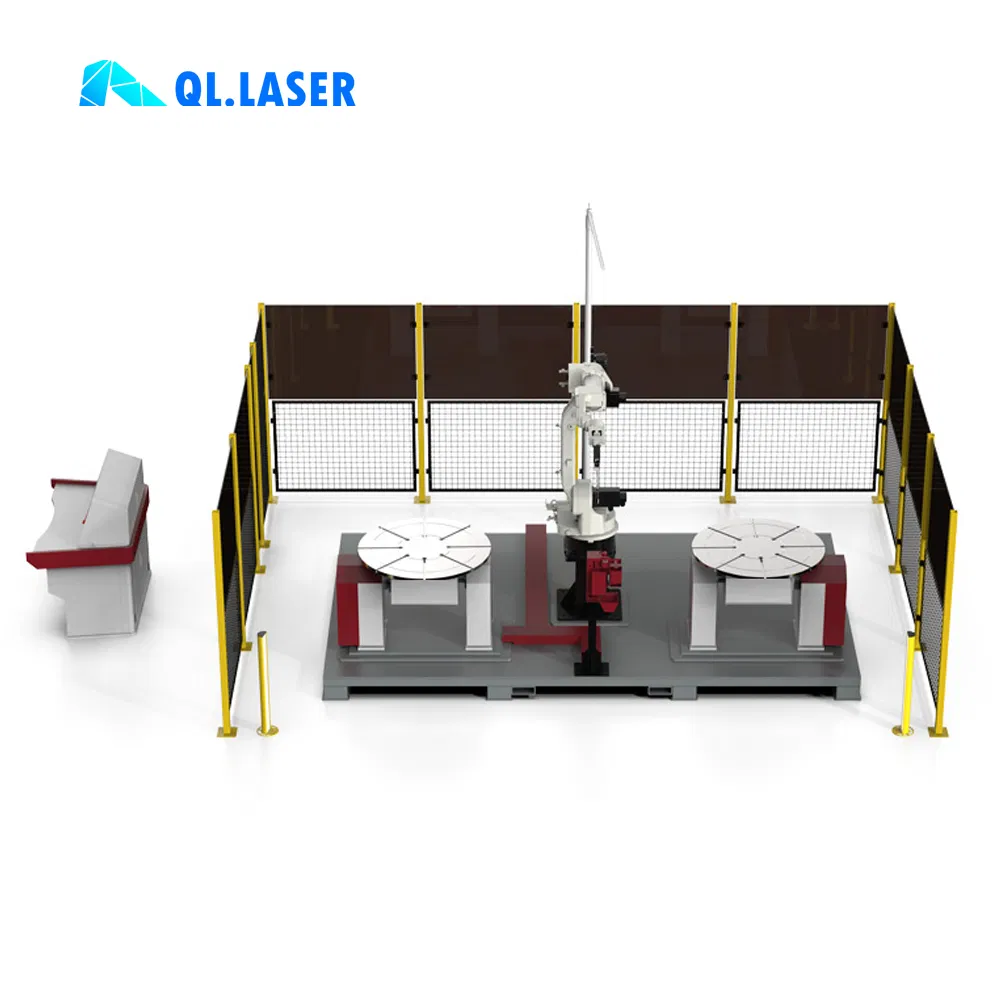

BW series with Dual Positioner

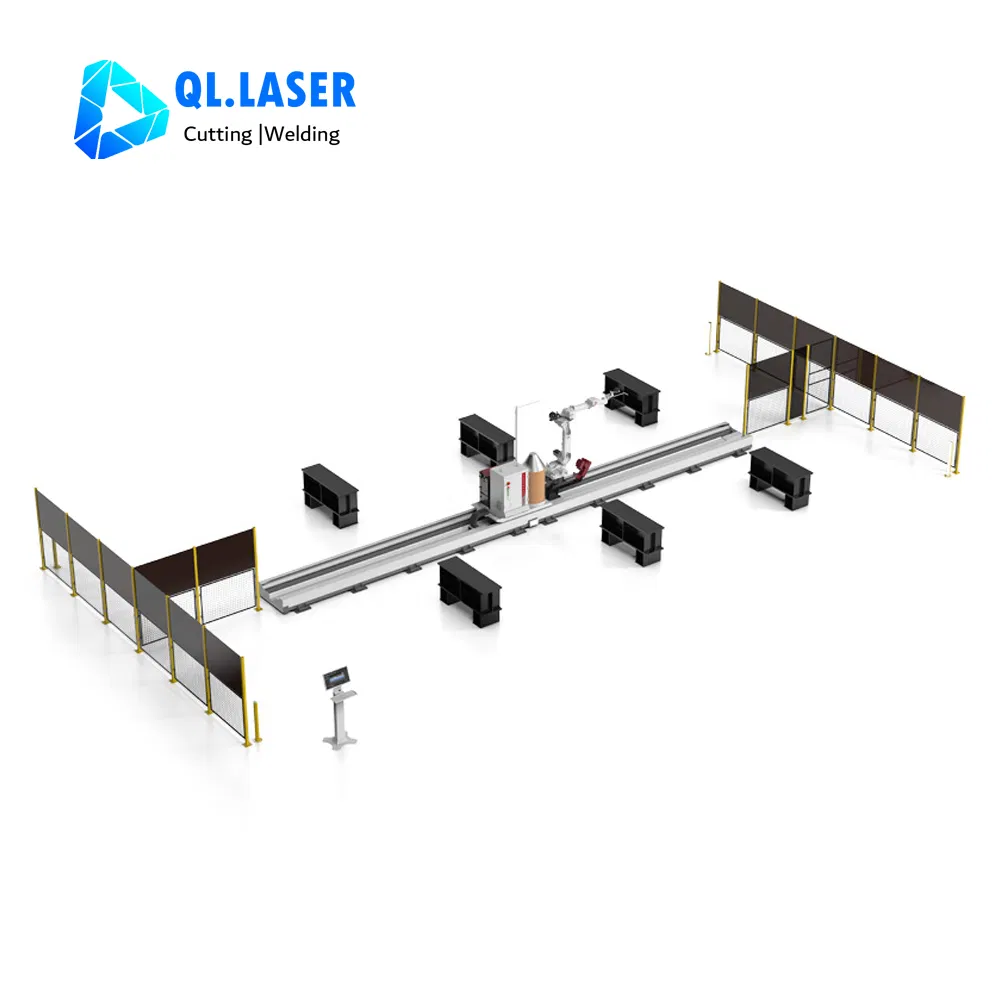

DG series track workstation

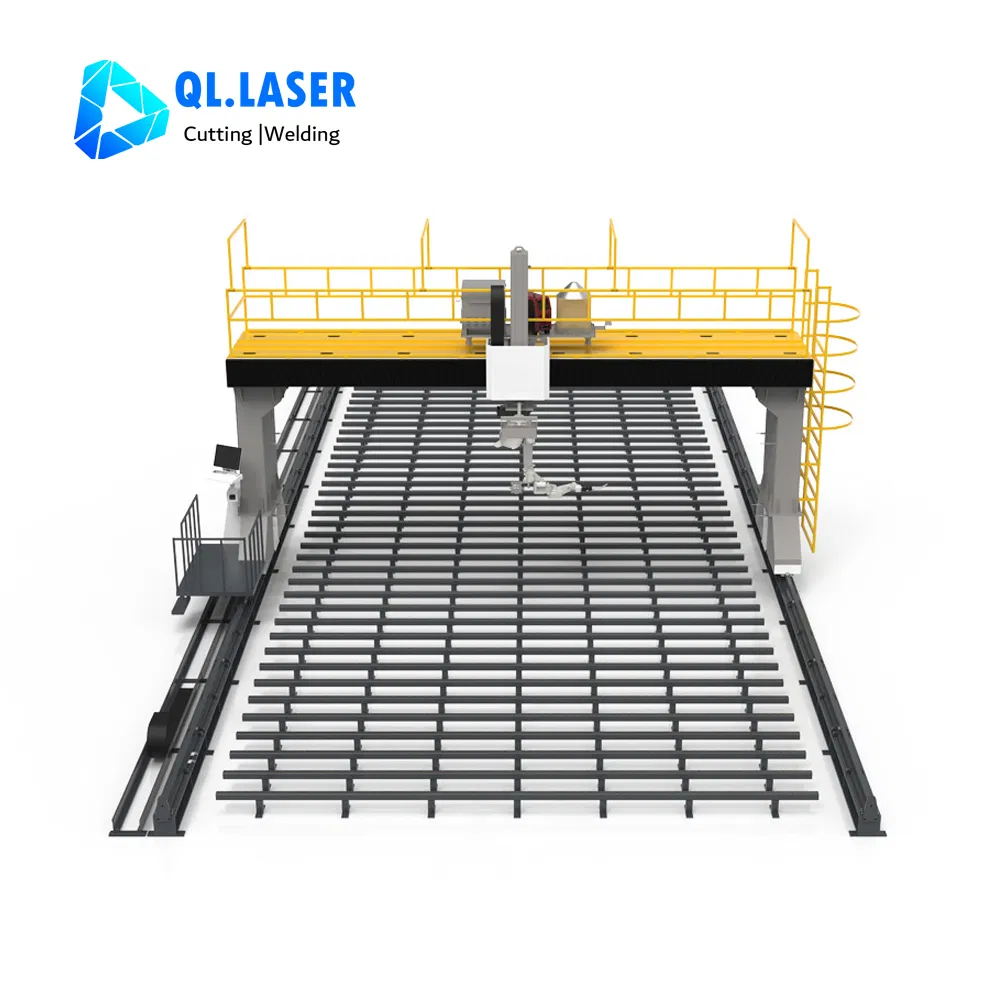

LM series gantry workstation
XB series welding workstation

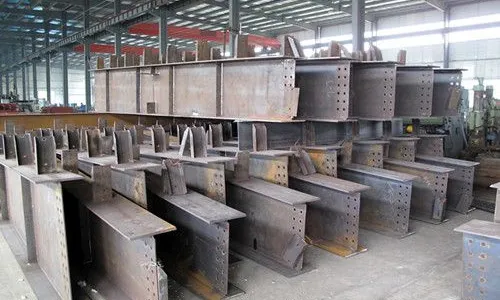

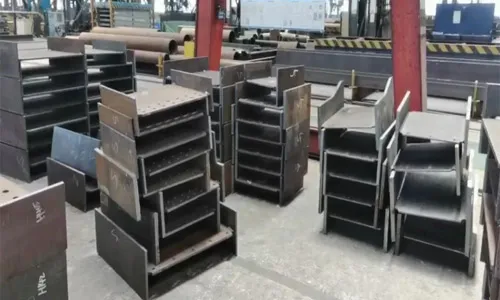

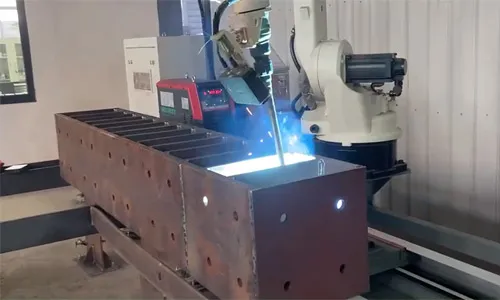

A: The XB Series is ideal for open components such as H-beams, roof beams, box columns, and various corner-welded structures commonly found in bridge and building partitions.

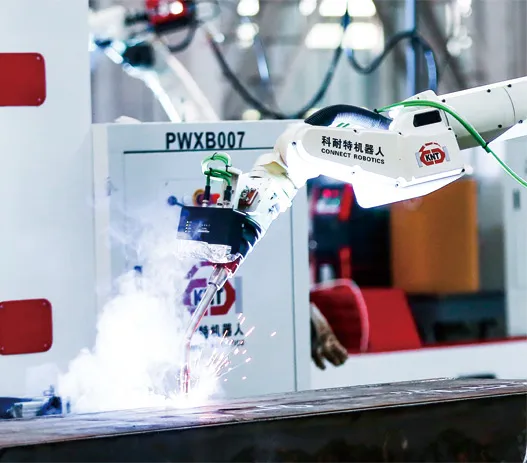

A: No. Thanks to our "No-Teaching, No-Programming" system, operators can learn to use the software in 1-2 days. The system extracts welding data directly from 3D models.

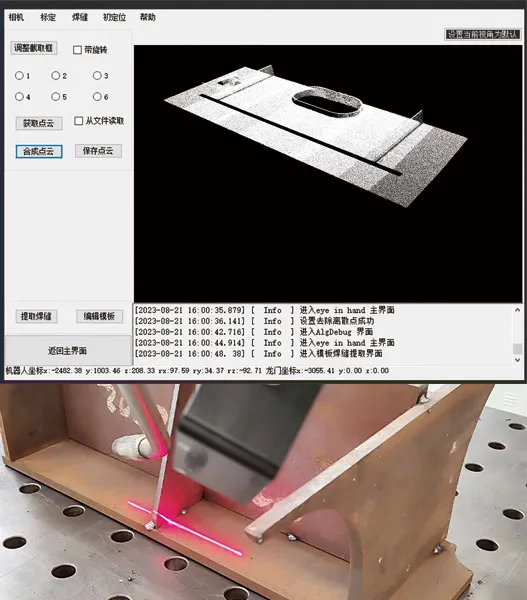

A: It uses a compound 3D camera and line laser guidance to actively collect seam information in real-time, correcting trajectories automatically with a ±0.5mm precision margin.
A: Yes. The system features a 7th axis and a long track, allowing for a large working area. Multiple work zones can be set up to handle large components or sections of smaller pieces simultaneously.

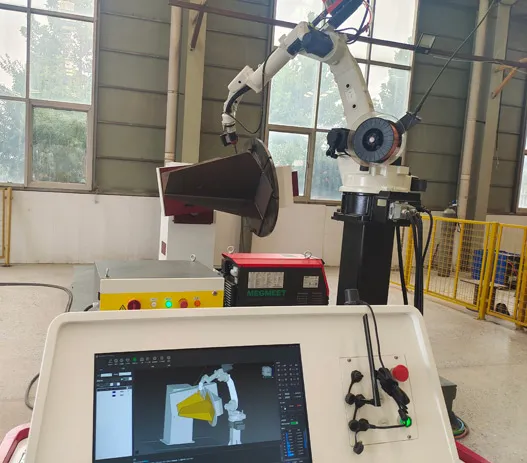

A: It is a 1:1 virtual replication of the physical object on the computer interface. Users can command the robot via the digital model, and the physical robot follows the movements precisely.

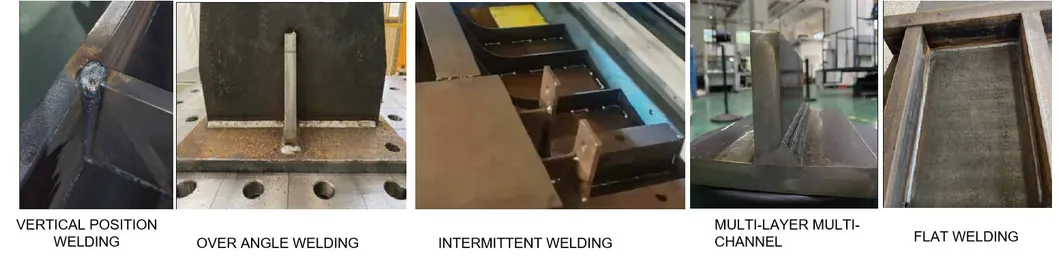

A: Yes, the built-in process library allows for one-click selection of complex commands, including multi-layer, multi-pass, and vertical corner welding.
