Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System
Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System
Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System
Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System
Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System
1 / 5
Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System
Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System
Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System
Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System
Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System

Industrial Welding Robot Cobot Welding Machine Weld Seam Tracking System

Customization: Available
Accuracy: ±0.02mm
Application: Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry
Send Inquiry

Product Description

Basic Information

Model NO.
DNP-FR20-W-6
Control Mode
Point to Point Control
Drive Mode
Electric
Type
Arc Welding Robot
Welding Speed
3000mm/S
Load
10kg
Temperature
-5-55ºC
IP Grade
IP58
Noise
<60dB
HS Code
8515319900

Product Description

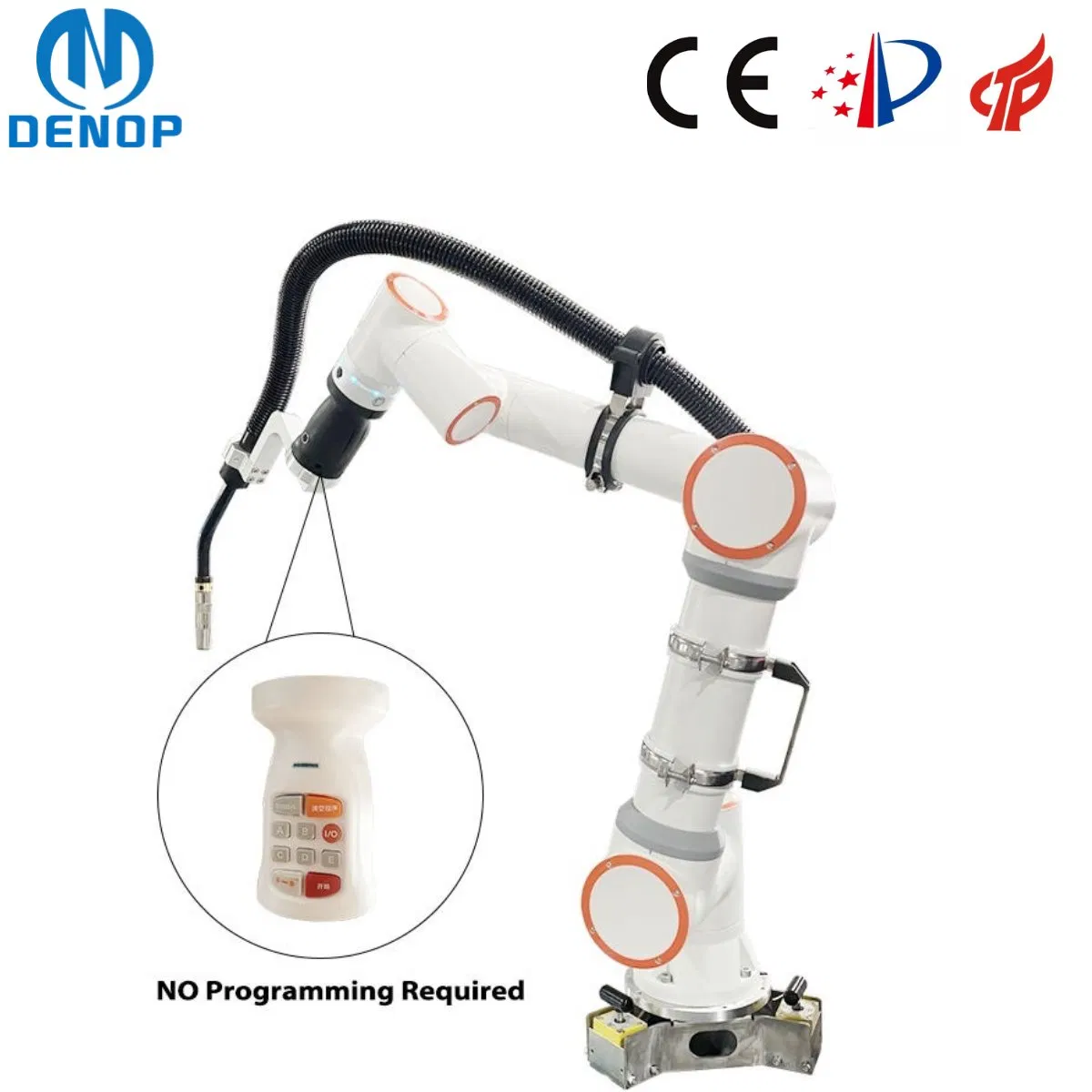

An Easy to Operate Collaborative Welding Robot

Our collaborative robots are designed for simplicity. Users can manually move the robot to record points and initiate the welding process without the need for complex teaching devices. These systems are fast, highly accurate, and offer flexible installation. They are portable and ideal for small batches, multiple product types, and long-term operations.

Technical Specification

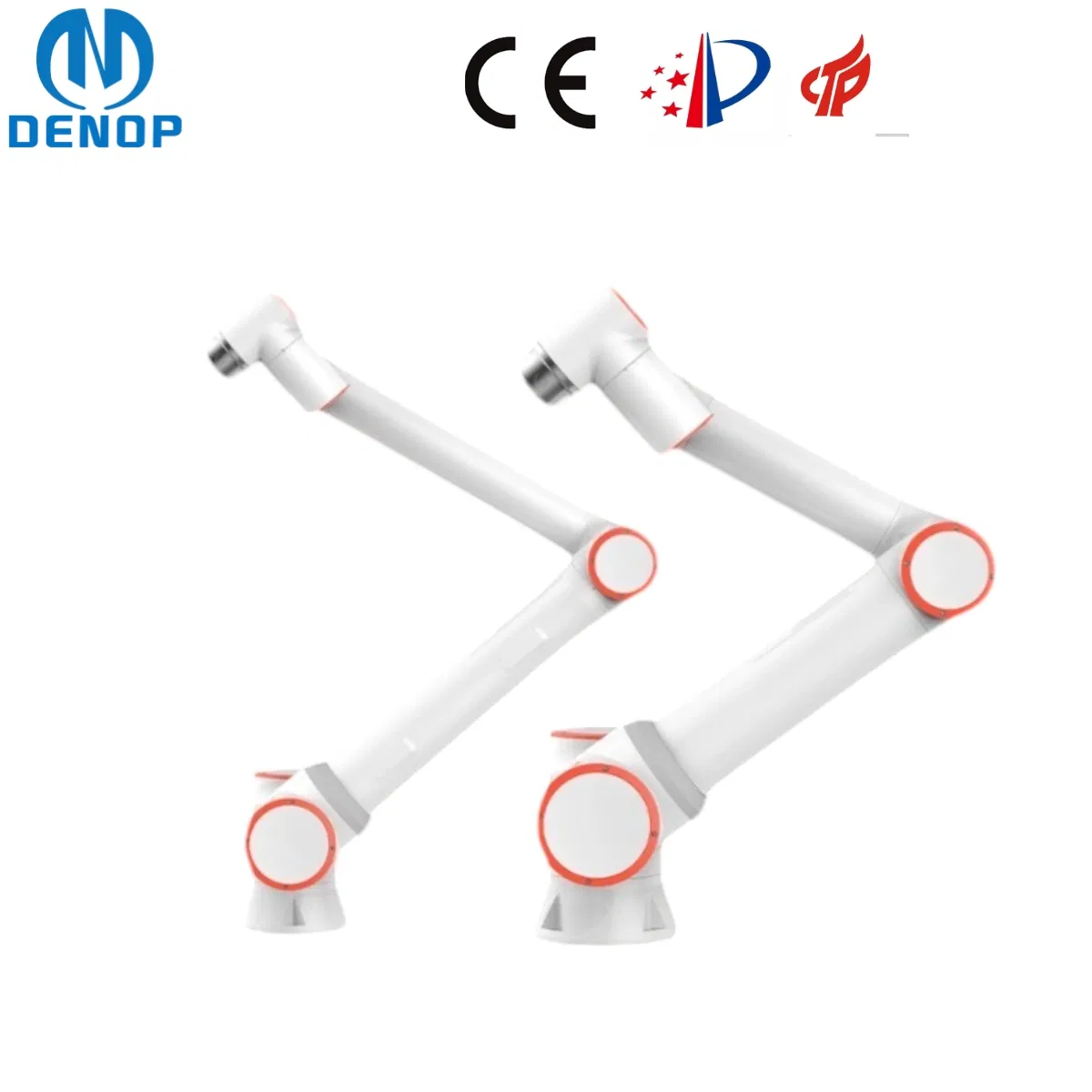

Parameter DNP-FR5 Parameter DNP-FR10
Working Radius922mmWorking Radius1400mm
Payload5KGPayload20kg
Accuracy±0.02mmAccuracy±0.05mm
Max Speed3000mm/sMax Speed3000mm/s
Power Rating260WPower Rating260W
ProtectionIP54ProtectionIP54
Control BusEtherCATControl BusEtherCAT

Product Display

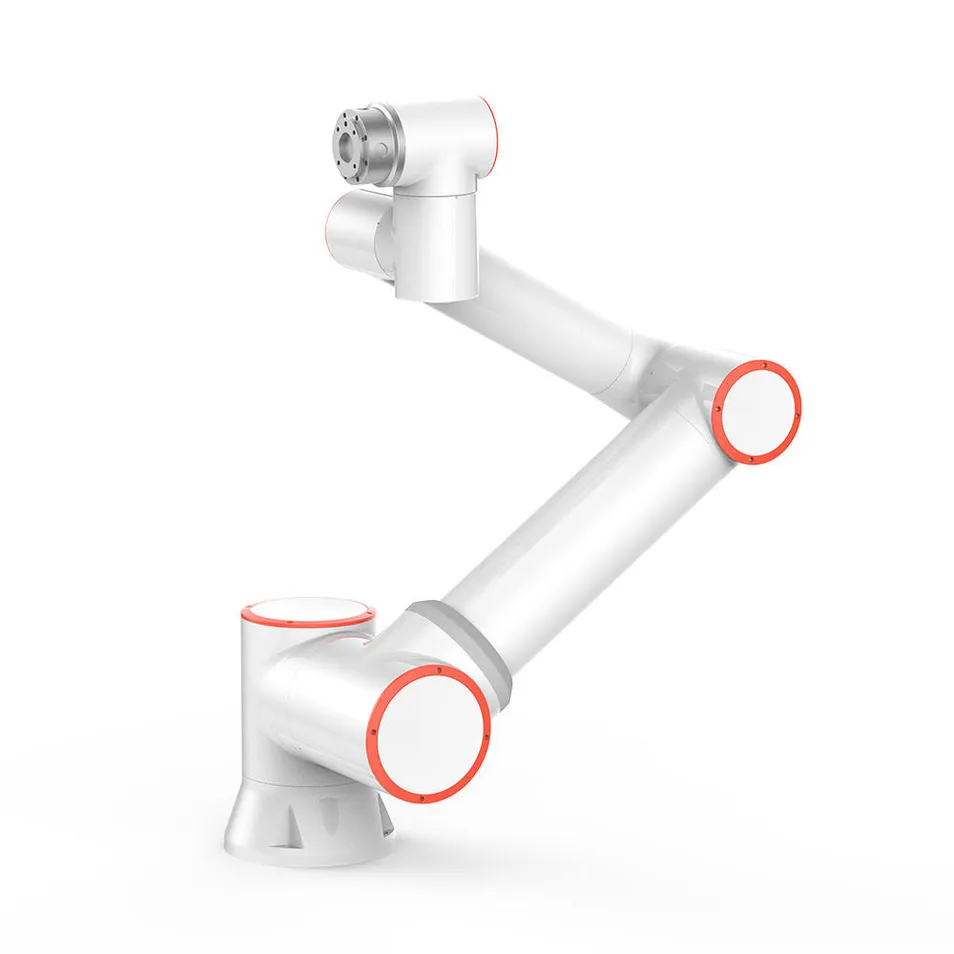

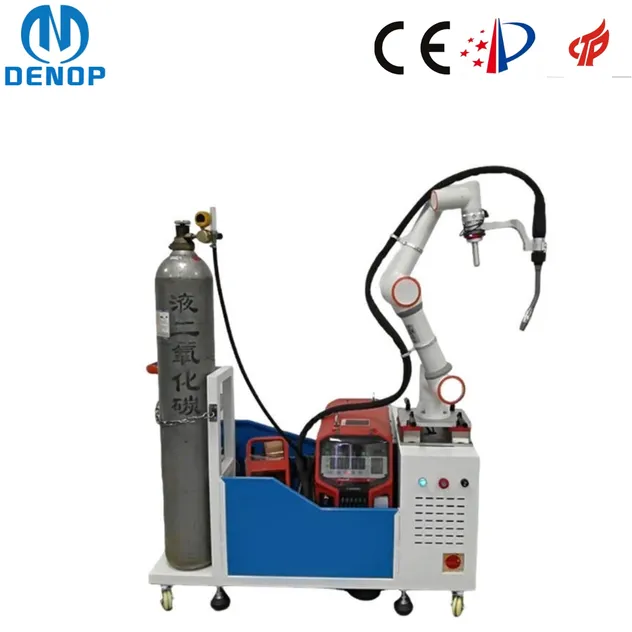

Welding Robot System

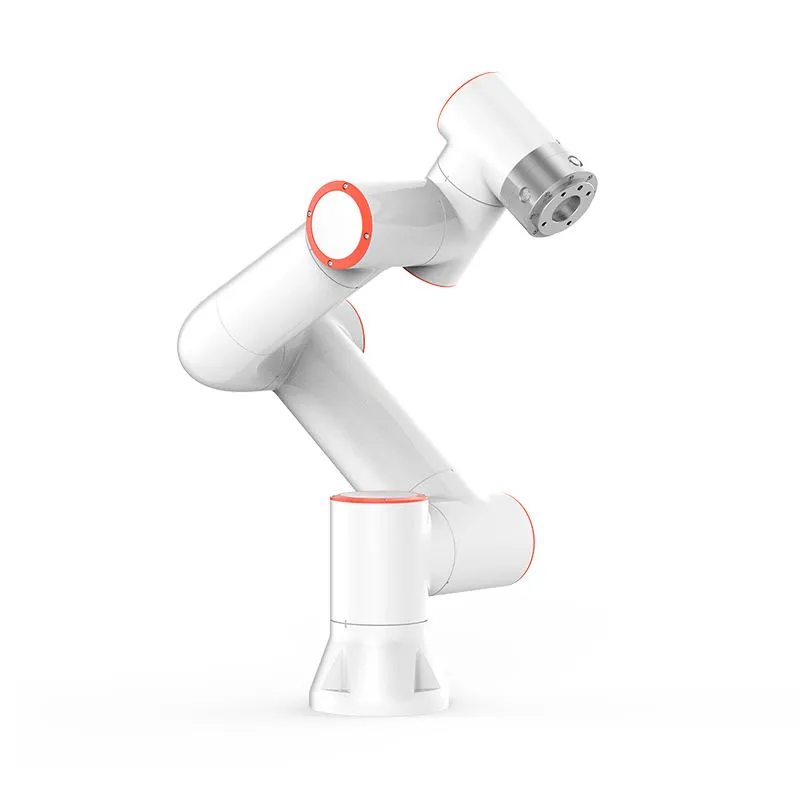

Robot Arm Detail

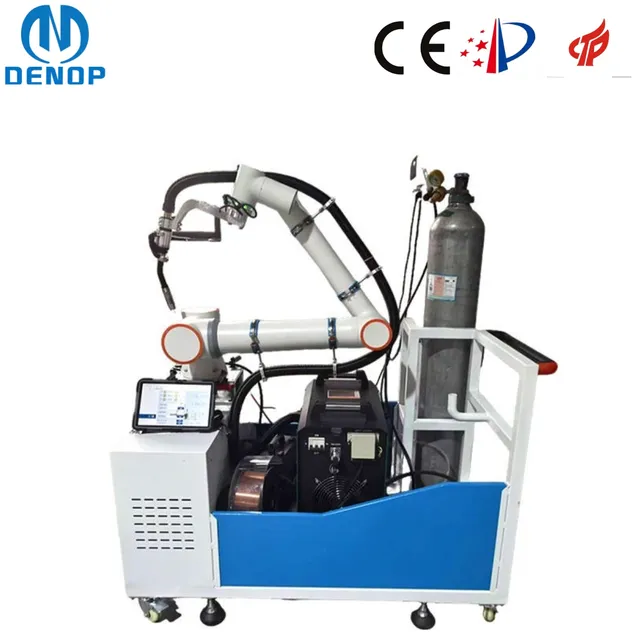

Welding Machine Integration

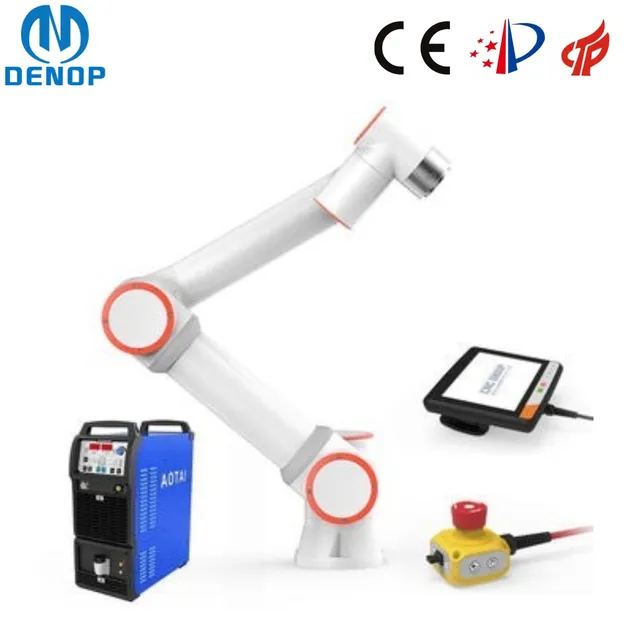

Welding Process Display
Industrial Solution

Packaging & Delivery

Package Size
1400.00cm * 900.00cm * 1300.00cm
Gross Weight
180.000kg
Package Type
Standard Wooden Package

Frequently Asked Questions

What is the standard lead time for orders?
Delivery usually takes approximately 30 days after the receipt of the deposit.
Do you provide international after-sales support?
Yes, we provide 24/7 remote technical assistance to support our customers worldwide.
Can the welding solutions be customized for specific materials?
Absolutely. We can recommend and tailor project solutions based on your specific material requirements.
What documentation is provided for international shipping?
We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
Is a teaching device required for operation?
No, these robots are designed to be "drag-and-teach," where you manually move the arm to set points.
How can I initiate a formal quote?
Please contact our sales team via email or phone with your specifications, and we will provide a detailed quote.
