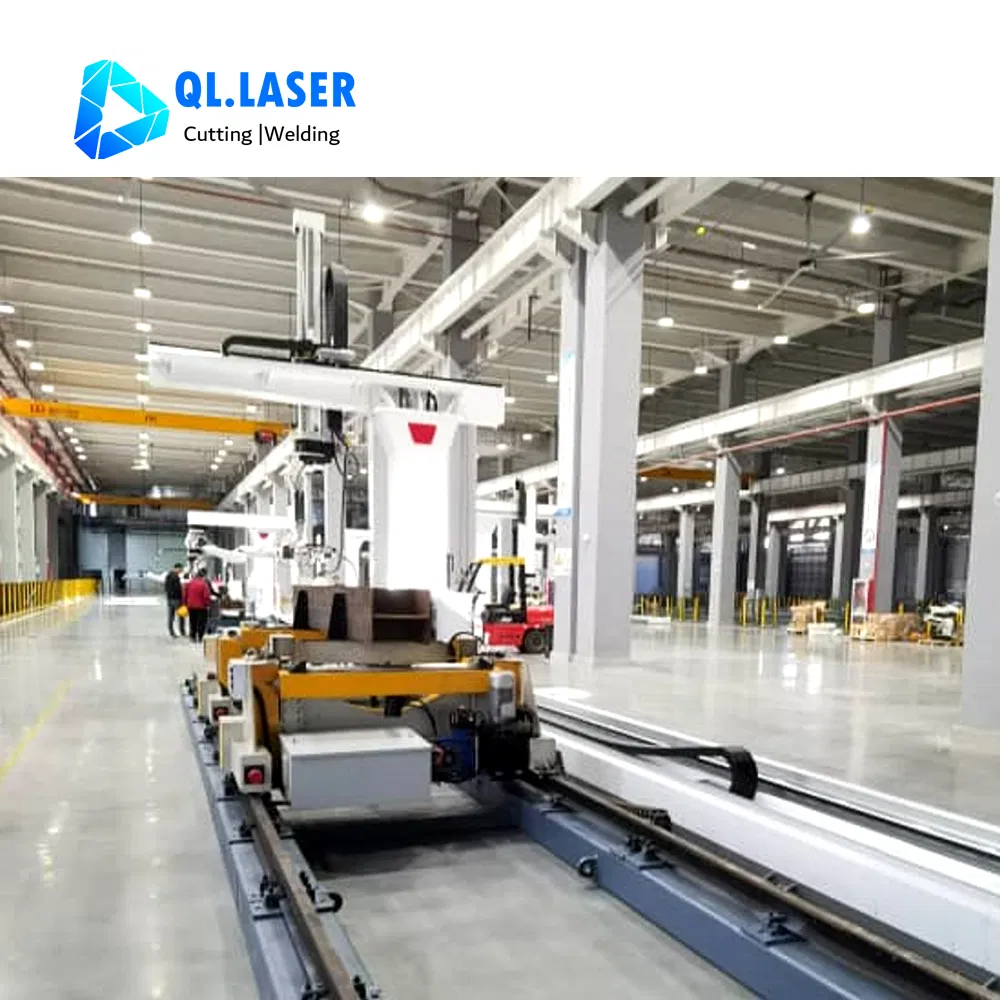

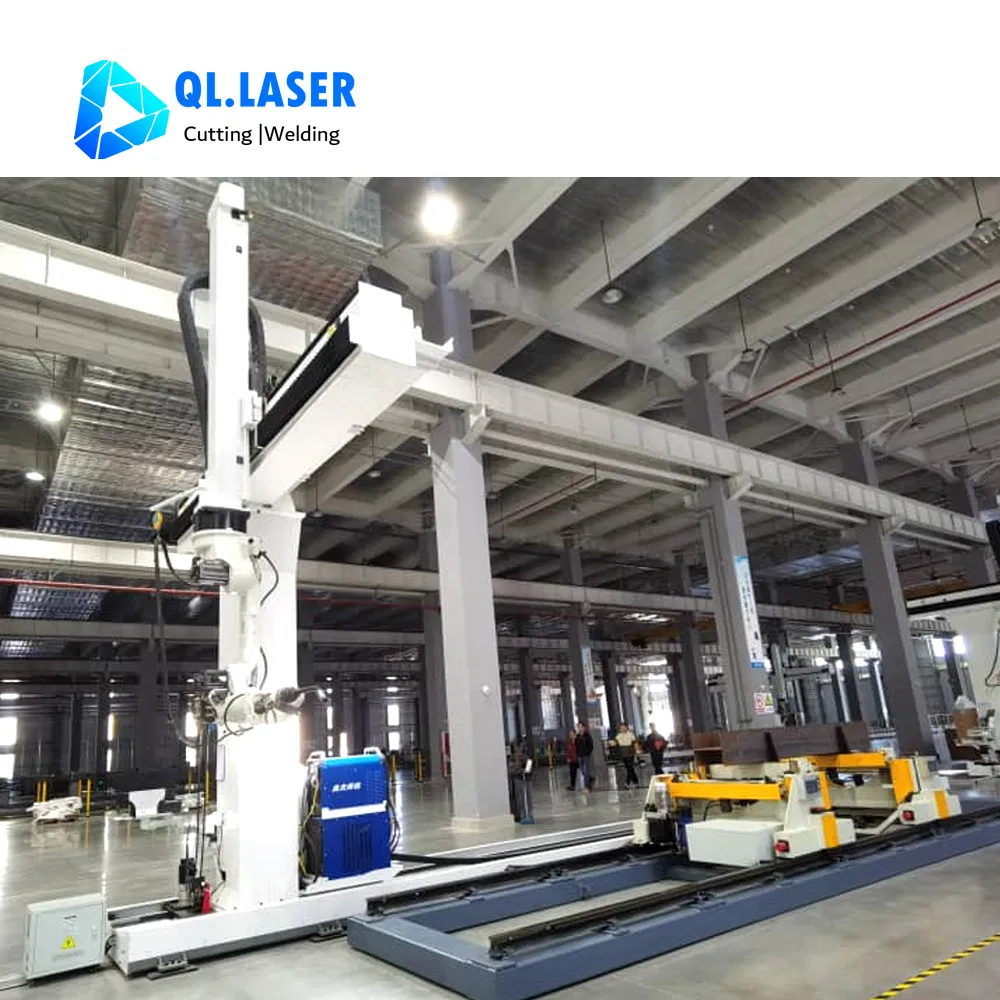

Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization
Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization
Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization
Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization
Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization
1 / 5
Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization
Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization
Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization
Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization
Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization

Intelligent Arc Welding Robot Workstation Laser Tracking System Supports Customization

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model XB
Control Mode Continuous Path Control
Drive Mode Electric
Type Arc Welding Robot
Welding Speed 0.5 m/min
Welding Power Aotai or Megmeet
Controller Bochu Fsweld2800/3800
Software Cypweld
Visual System Laser Suture Finder Bcw600p
Package Size 1100.00cm * 220.00cm * 250.00cm
Gross Weight 6500.000kg

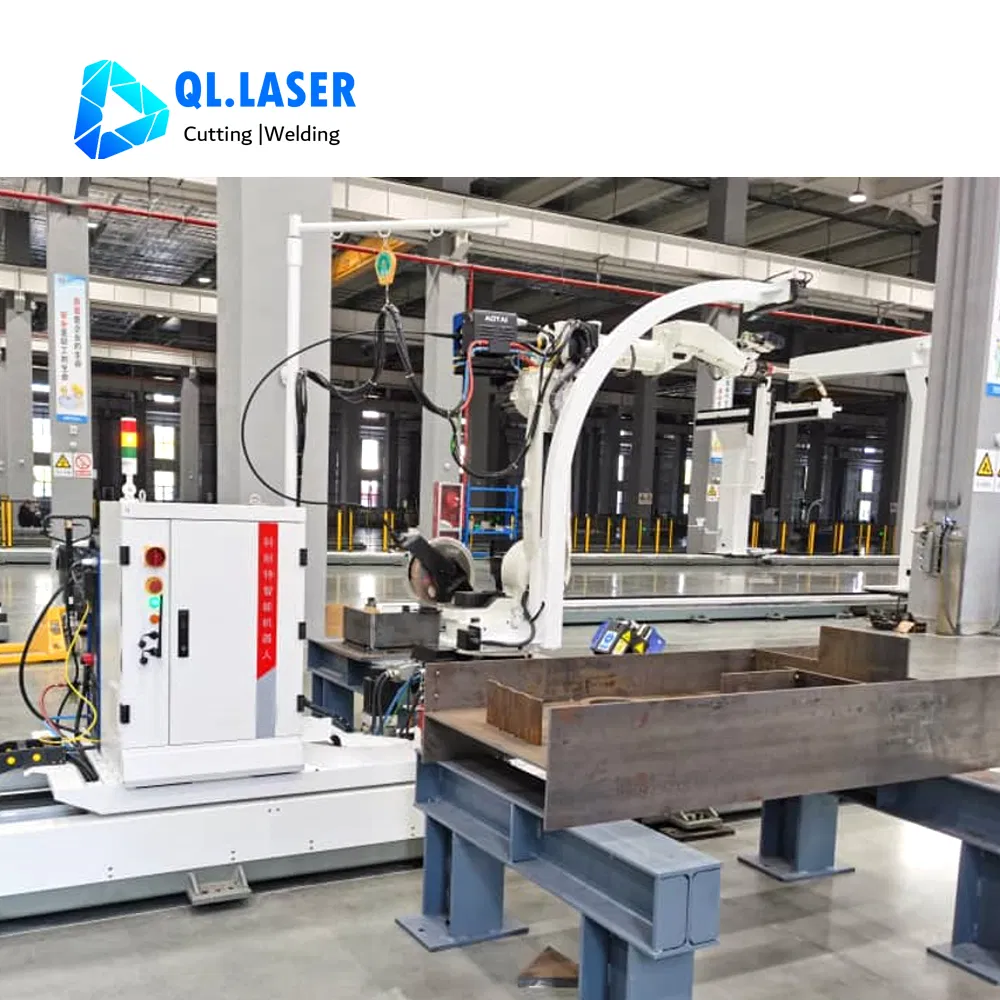

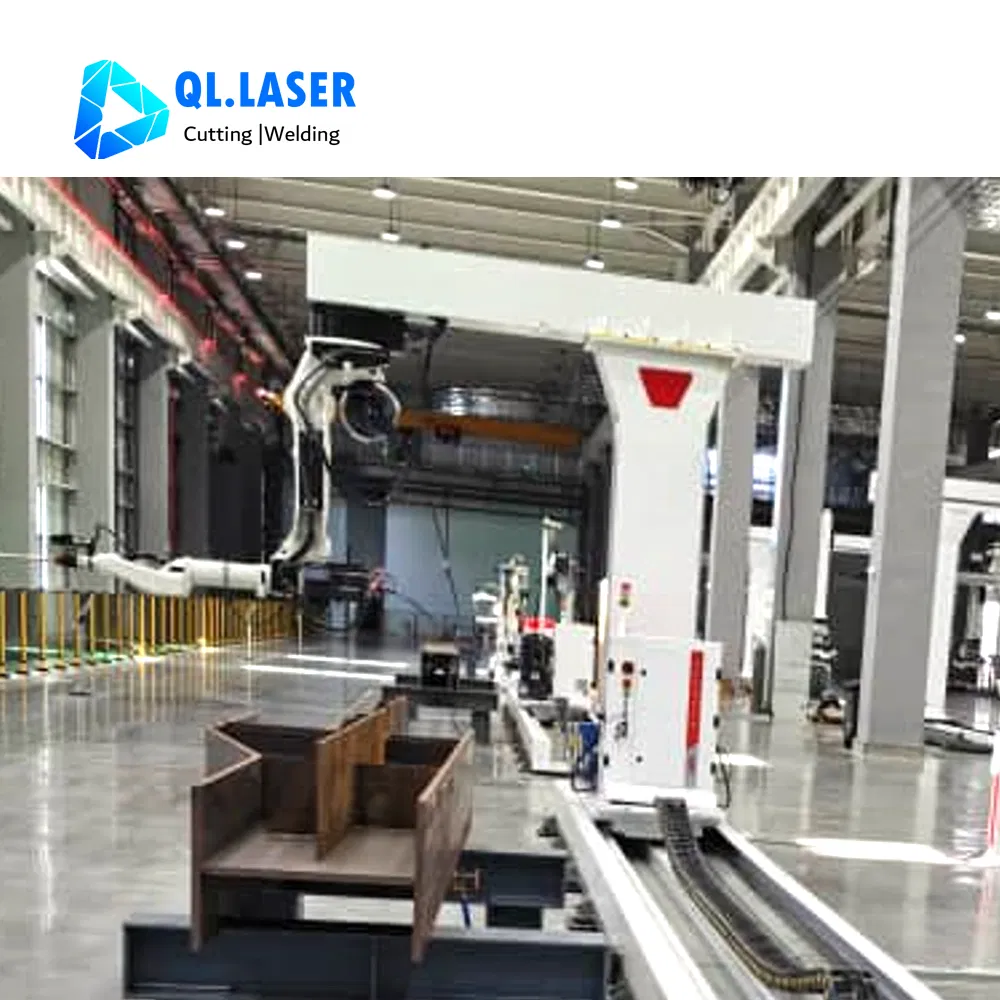

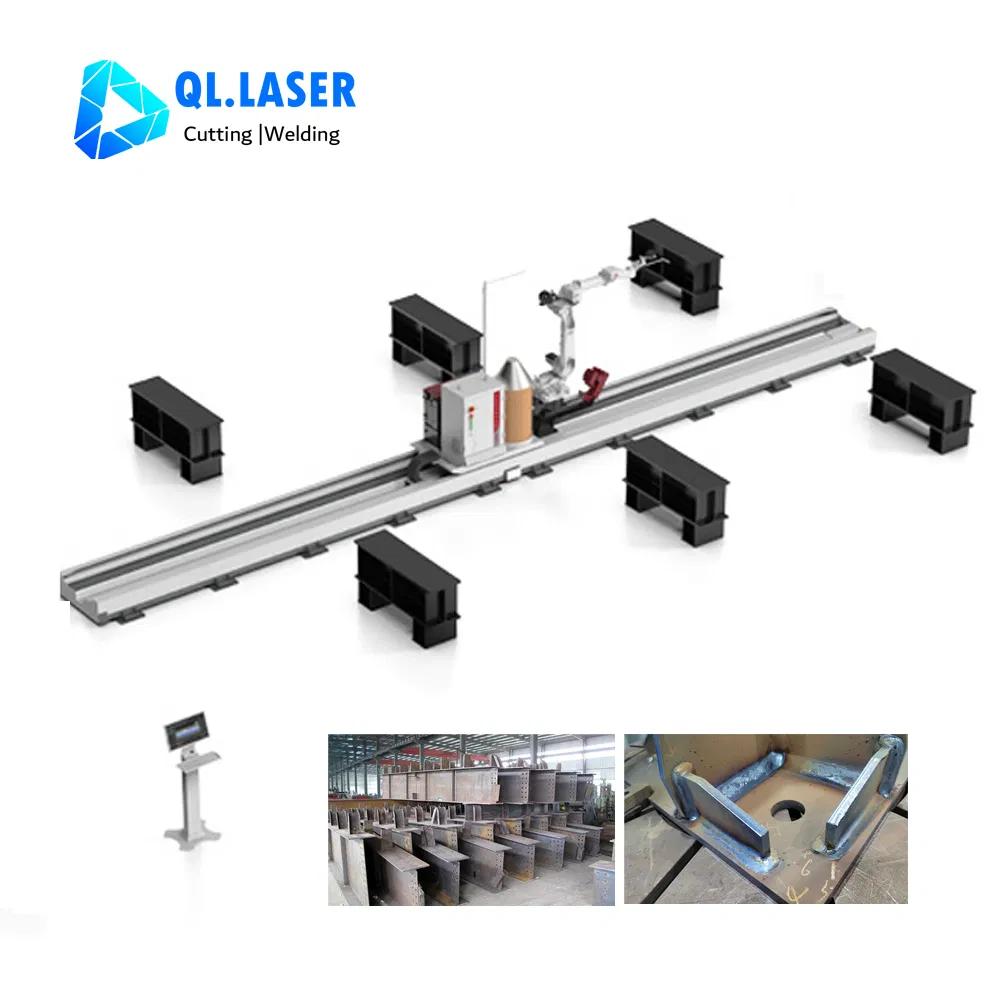

7-axis Rail Robot Welding Machine
⚙️
Broad Application: Specialized in welding open components such as H-beams, roof beams, box columns, and other corner welded components.
🚀
Extended Reach: Integrated 7th axis with robot and track follow-up control for a significantly larger working area.
📊
High Efficiency: Dual-side track setup allows simultaneous welding and handling, maximizing production output.
💡
Easy Operation: Foolproof software requires only 1-2 days of training; automated process reduces skill requirements for operators.
Product Parameters
Content Parameter Range Unit Remarks
Degrees of Freedom 7 Axes /
Ambient Temperature -10 ~ 45 ºC /
Maximum End Load 6 Kg /
Recommended Space W1200*L12000*H650 mm /
Peak Total Power 45 kW /
Input Voltage 380+/-10% V Three-phase
Core Technical Advantages

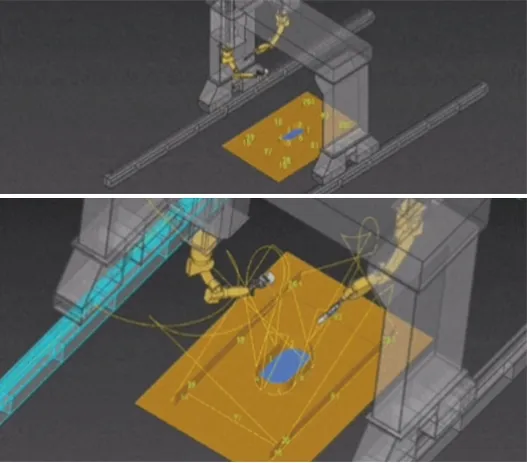

Integrated Drive Control

Robot Integrated Drive and Control

  • Built-in drive system eliminates traditional teaching.
  • Automatic motion trajectory planning.
  • Intelligent obstacle avoidance.
  • Collision detection and real-time monitoring.

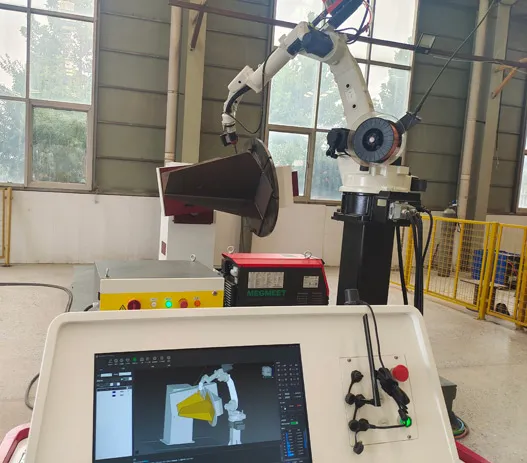

Digital Twin System

  • 1:1 physical replication (What You See Is What You Get).
  • Synchronized physical and virtual movements.
  • One-click command execution for scene-generated trajectories.
Digital Twin System

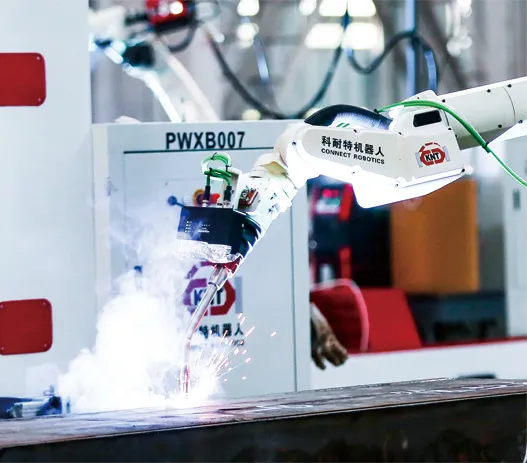

No-Programming Technology

No-Teaching, No-Programming

  • Automatic extraction of 3D model welding seam information.
  • Rapid deployment for corner and multi-layer welding.
  • Vision Guidance via line laser scanning.

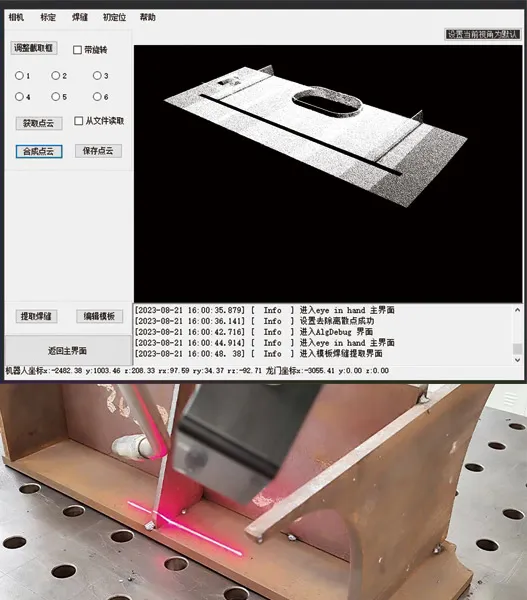

Visual Positioning & Tracking

  • 3D Camera Initial Positioning (±0.5mm accuracy).
  • Line Laser Guidance for real-time trajectory correction.
  • "Eye-in-Hand" system for complex working conditions.
Visual Positioning
Welding Samples & Types

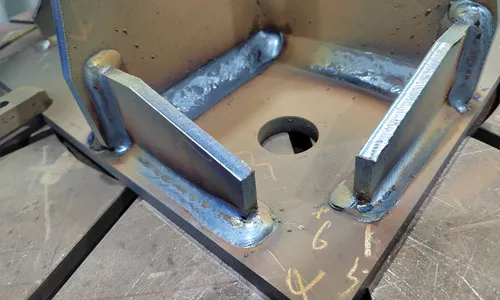

Sample 1

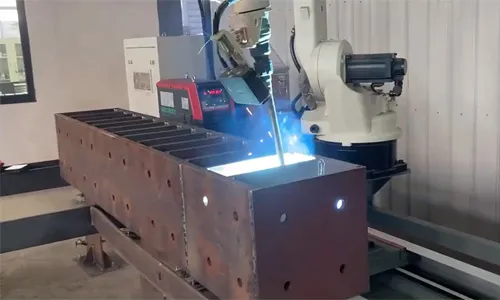

Sample 2

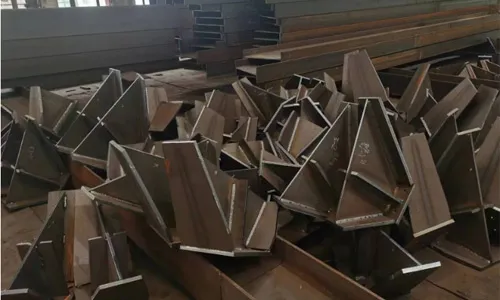

Sample 3

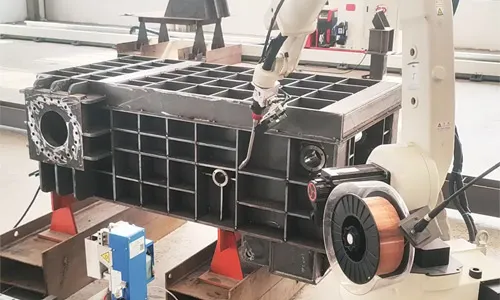

Sample 4

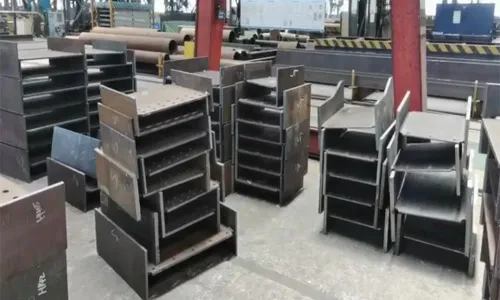

Sample 5

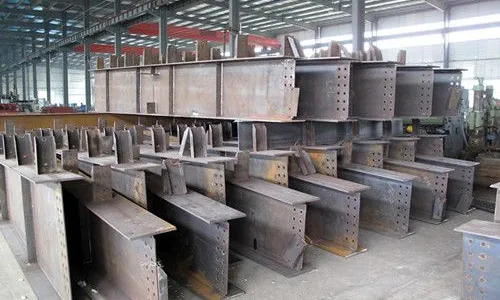

Sample 6

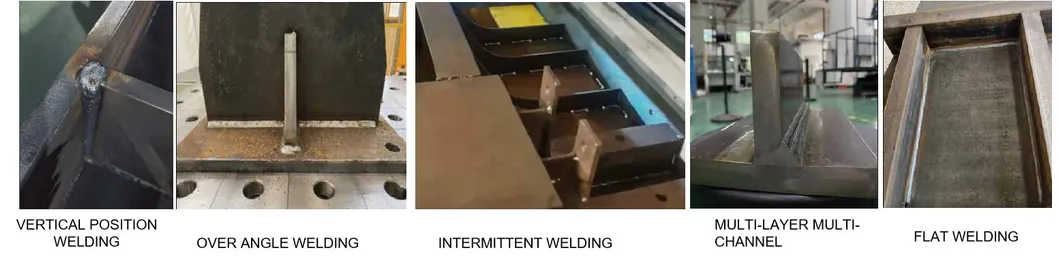

Robot Types Chart
Certifications
Certifications
Other Related Products

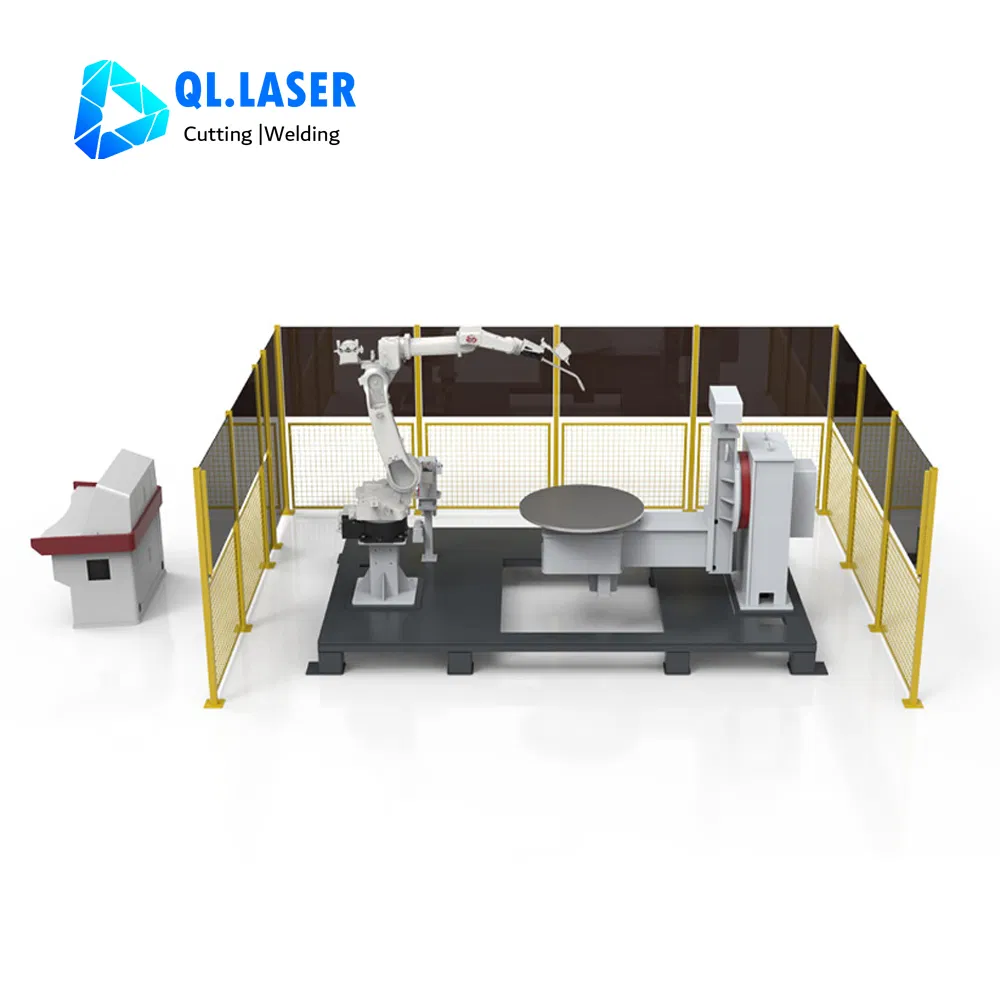

BW Series L Positioner

BW series Robot with L Positioner

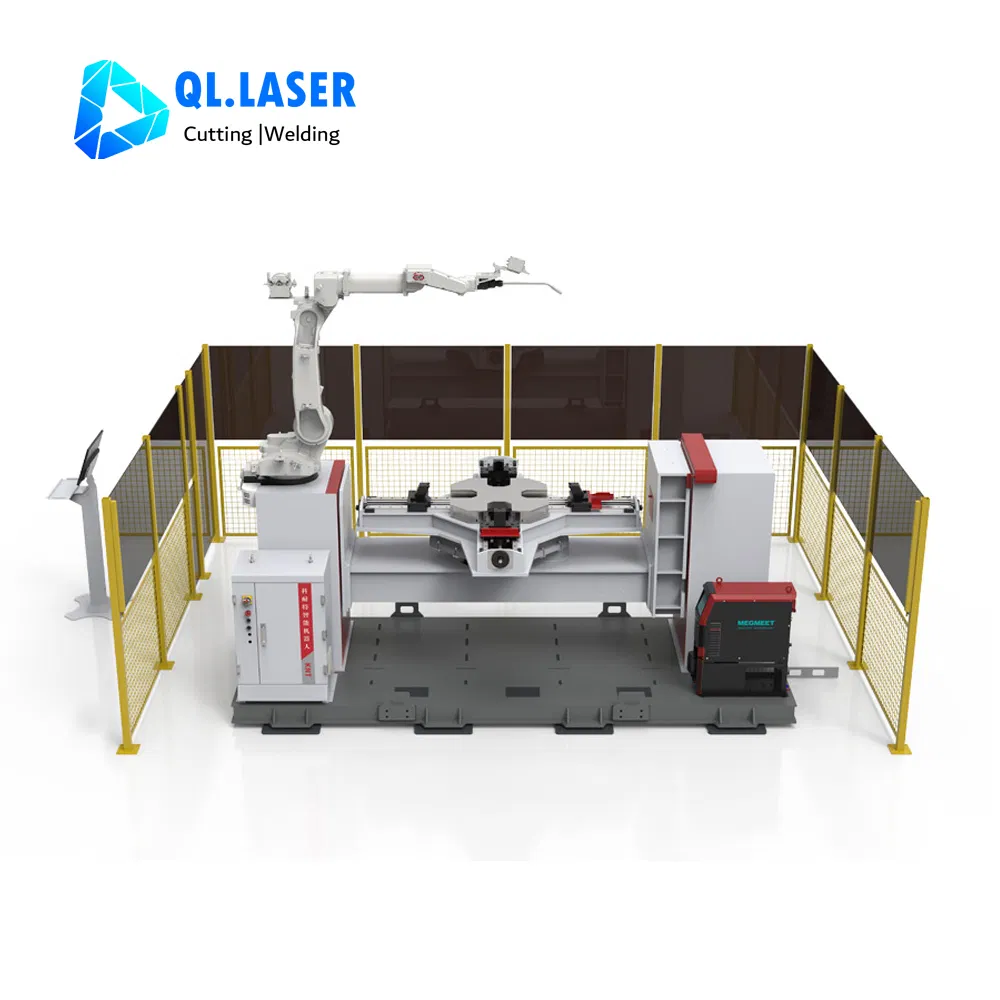

BW Series H Positioner

BW series Robot with H Positioner

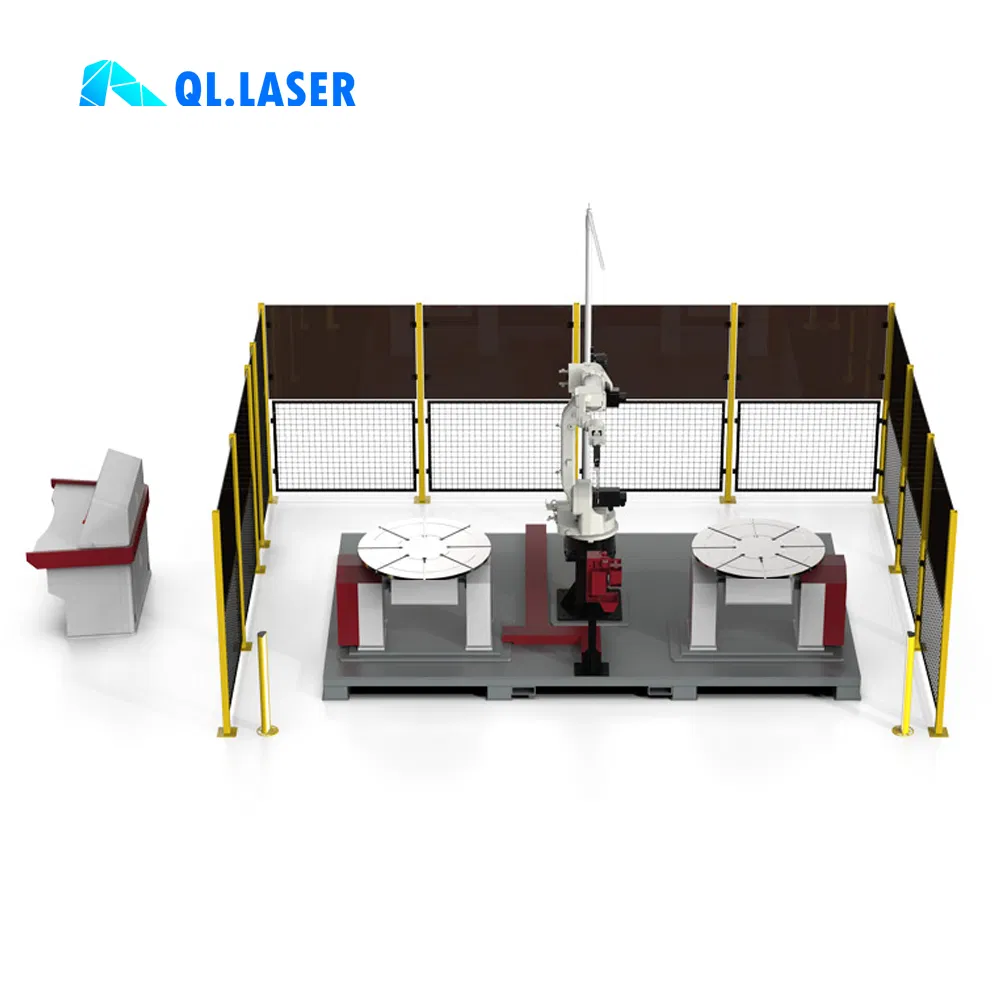

BW Series Dual Positioner

BW series Robot with Dual Positioner

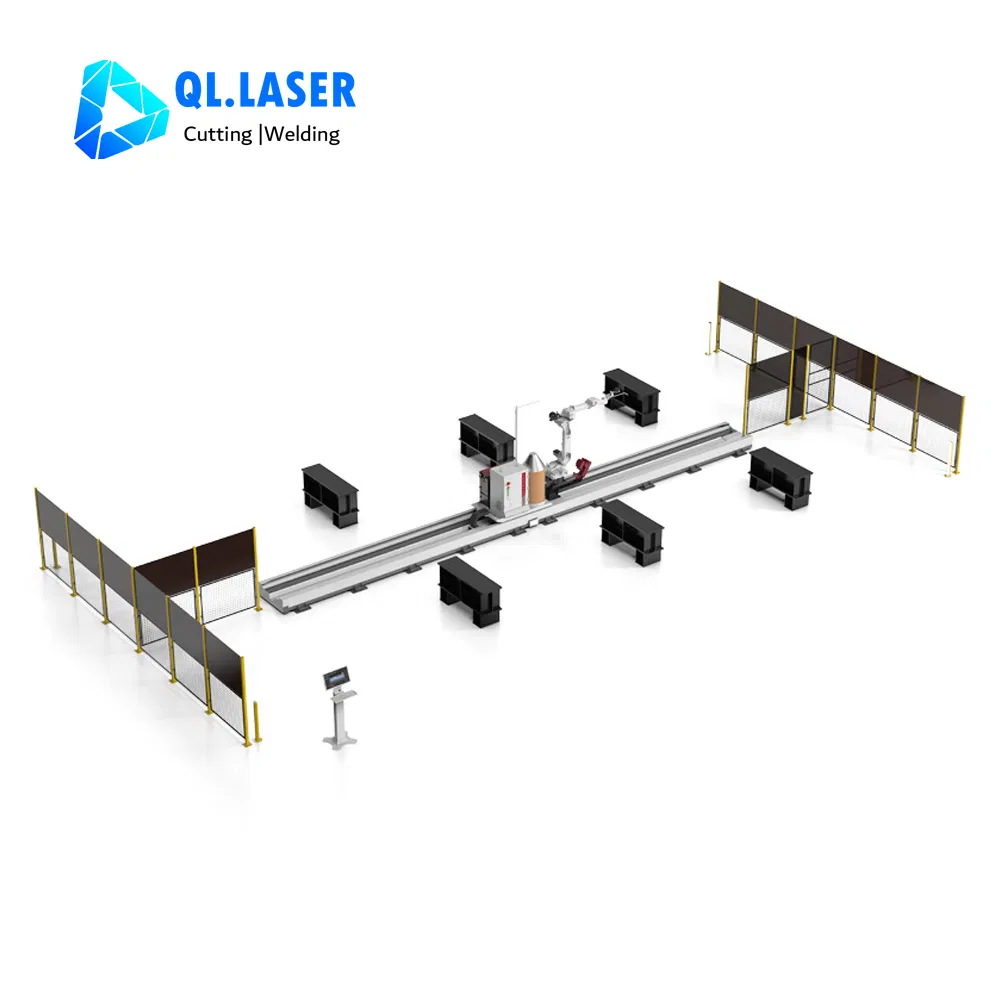

DG Series Track

DG series Track Robot Station

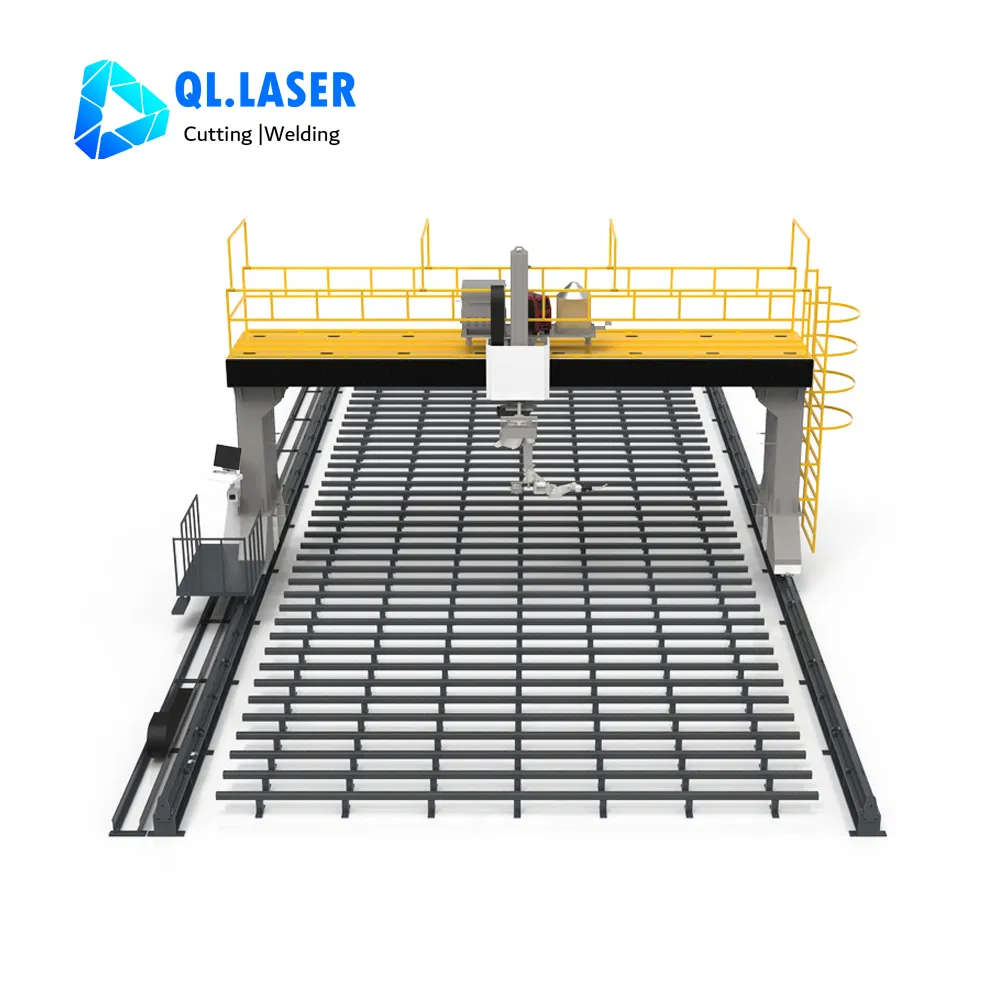

LM Series Gantry

LM series Gantry Robot Station

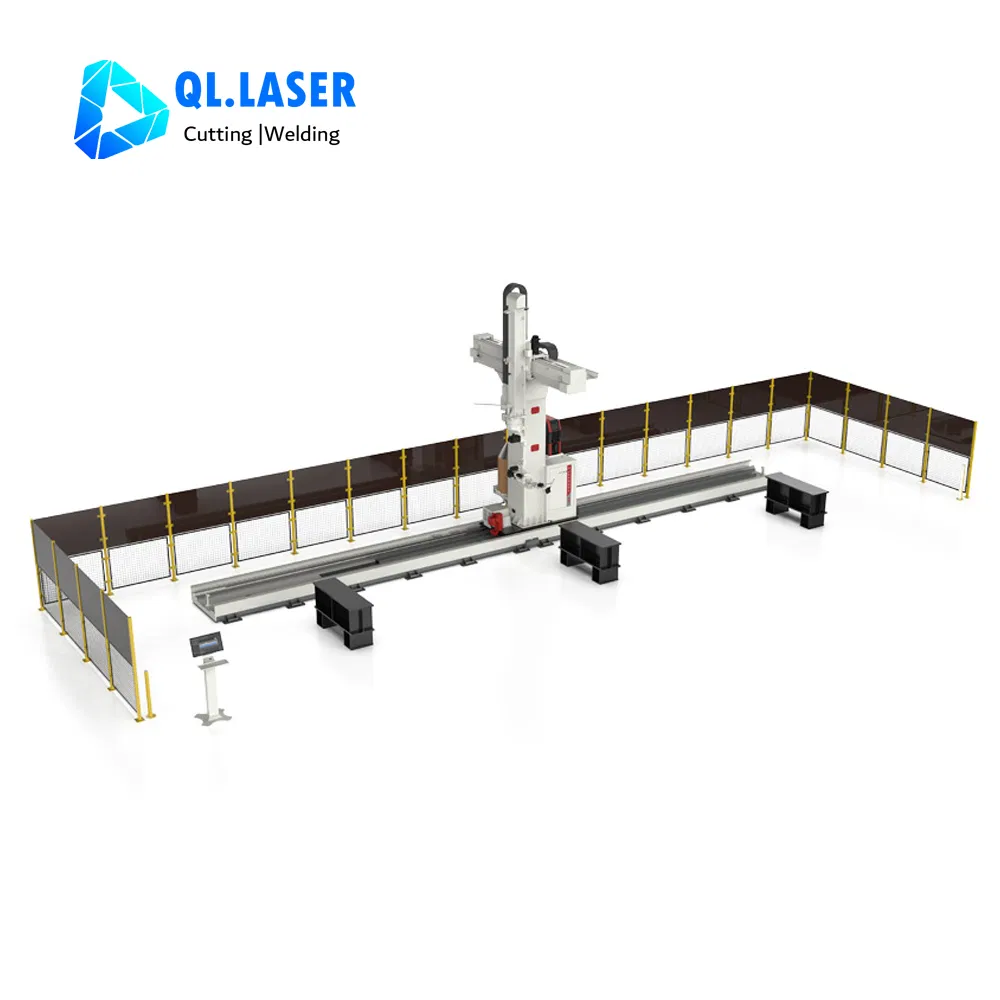

XB Series station

XB series Robot Welding Station

Frequently Asked Questions
Q1: What materials and components can this robot weld?
The system is designed for H-beams, roof beams, box columns, and various corner-welded steel components used in construction and infrastructure.
Q2: Do I need a professional programmer to operate this machine?
No. With our "No-Teaching, No-Programming" software, operators can easily manage the system by importing 3D models. Only 1-2 days of basic training are required.
Q3: How does the 7th axis improve productivity?
The 7th axis (track) allows the robot to cover a much larger working area. You can set up multiple work zones along the track, enabling continuous welding on one side while handling workpieces on the other.
Q4: How accurate is the visual positioning system?
The 3D camera and laser guidance system provide an accuracy margin of ±0.5mm, which fully meets industrial welding precision requirements even for large workpieces.
Q5: Can the robot handle variations in weld seam positions?
Yes, the line laser guidance module actively scans and processes weld seam info in real-time, automatically correcting the trajectory to compensate for any workpiece deviations.
Q6: What is the welding speed of the XB model?
The standard welding speed is approximately 0.5 meters per minute, which can vary slightly depending on the specific welding process and material thickness.
