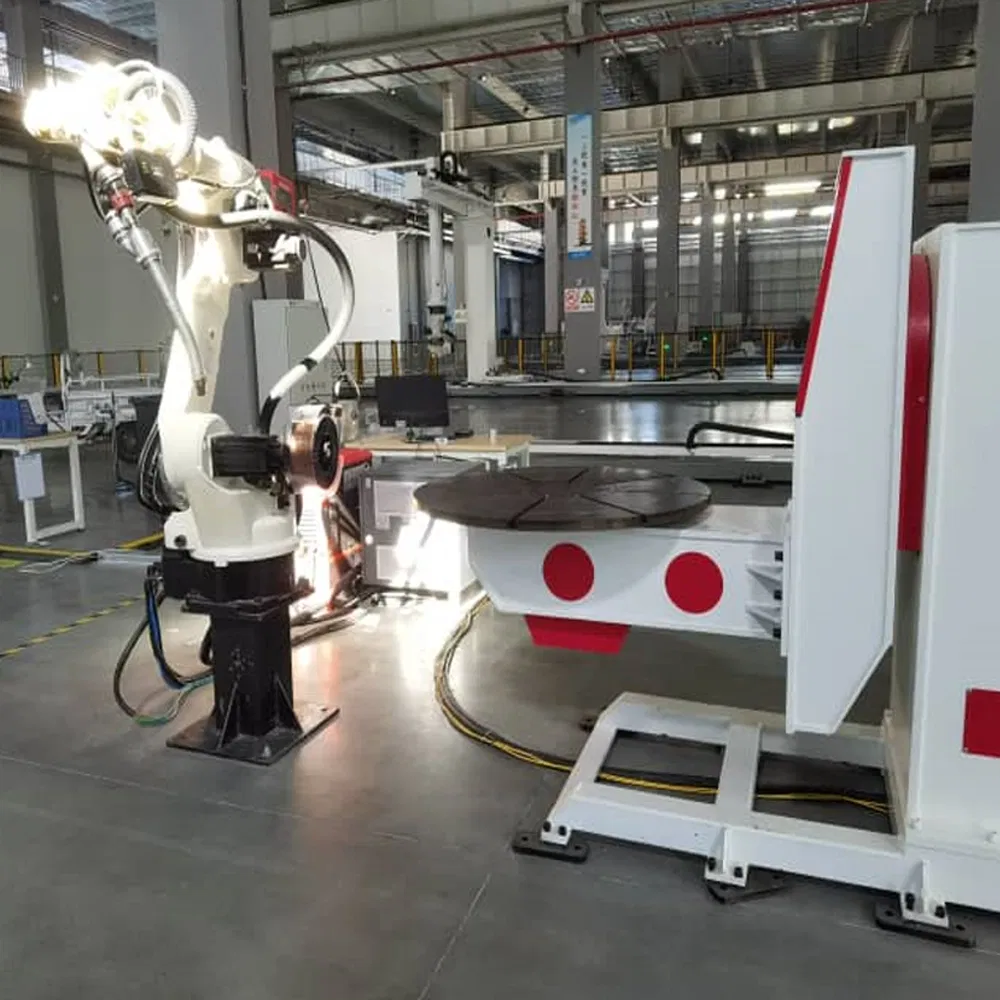

CE Certified 7-Axis Robot Welding Machine, Suitable for Iron Plate Welding

1 / 5

CE Certified 7-Axis Robot Welding Machine, Suitable for Iron Plate Welding

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Control Mode

Continuous Path Control

Drive Mode

Electric

Type

Arc Welding Robot

Welding Speed

0.5 m/min

Name

Robot Welding Machine

Welding Power

Aotai or Megmeet

Welding Gun

Trm

Controller

Bochu Fsweld2800/3800

Software

Cypweld

Robot System

Kuka or Knt

Welding Method

Mag

Visual System

Laser Suture Finder Bcw600p

Origin

China

Package Size: 1100.00cm * 220.00cm * 250.00cm

Gross Weight: 6500.000kg

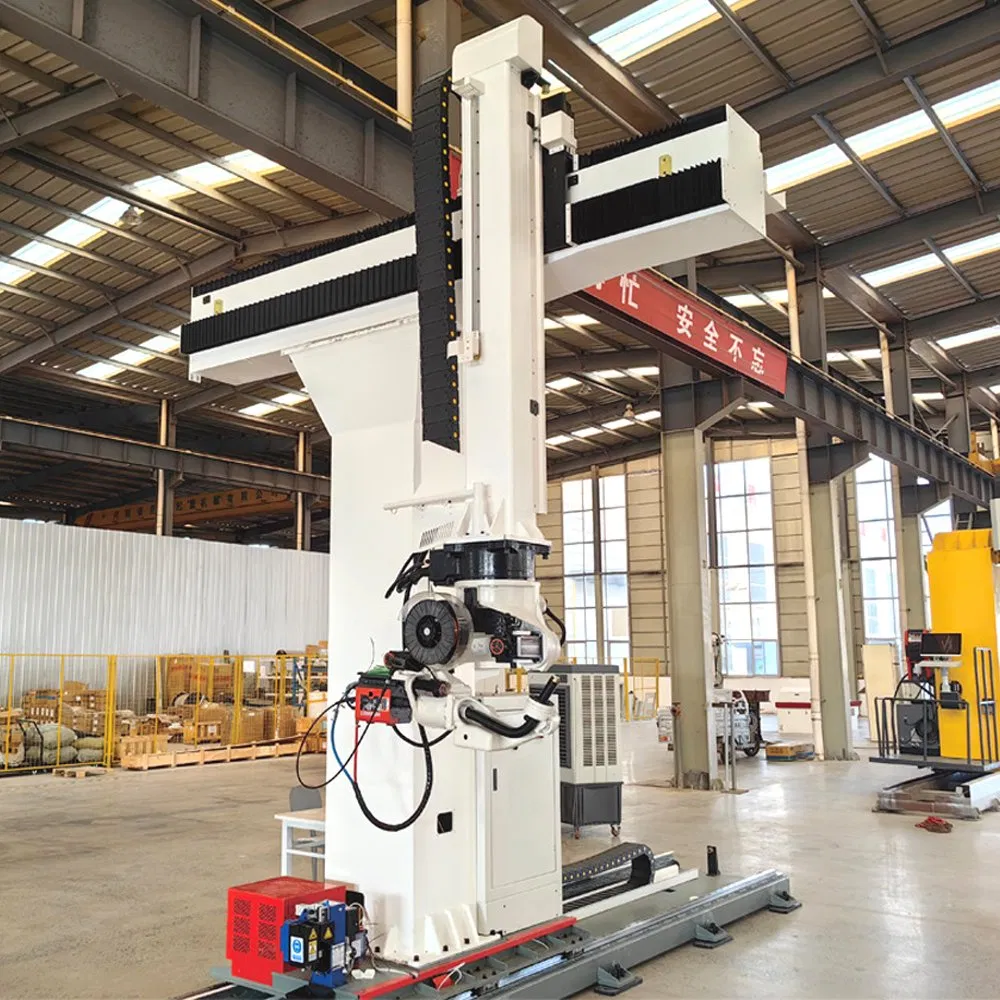

7-Axis Rail Robot Welding Machine for H-Beam

1Welding of open components such as H-beams, roof beams, box columns, and other corner welded components.

2Add a seventh axis, robot and track follow-up control, larger working area.

3Work areas can be set up on both sides of the track, and work areas can be arranged in sections for small piece welding.

4Welding and handling work can be carried out simultaneously, effectively improving production efficiency.

5Foolproof operation after 1-2 days of training. No manual intervention needed after loading.

Technical Specifications

Content	Parameter Range	Unit	Remarks
Degrees of Freedom (Axes)	7	/	/
Required Ambient Temperature	-10~45	ºC	/
Maximum End Load	6	Kg	/
Recommended Floor Space	W1200L12000H650	mm	/
Peak Total Power	45	kW	/
Rated Input Voltage	380+/-10%	V	Three-phase
Rated Input Frequency	50	Hz	/

Key Technologies & Advantages

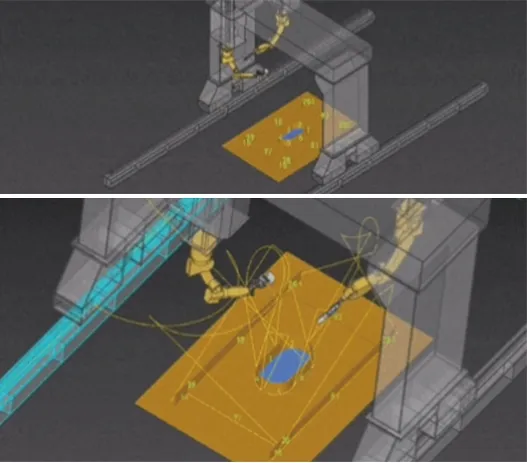

Robot Integrated Drive and Control System

Built-in drive system, revolutionizing traditional teaching.
Automatic motion trajectory planning.
Intelligent obstacle avoidance.
Collision detection and real-time monitoring.

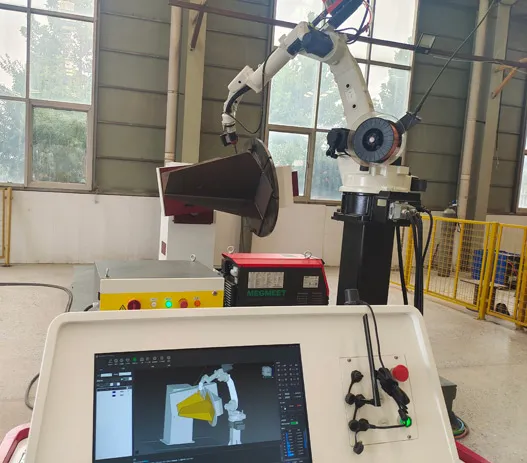

Digital Twin System

1:1 replication of physical objects (WYSIWYG).
Computer interface operation with real-time physical follow-up.
Scene-generated trajectory for one-click welding commands.

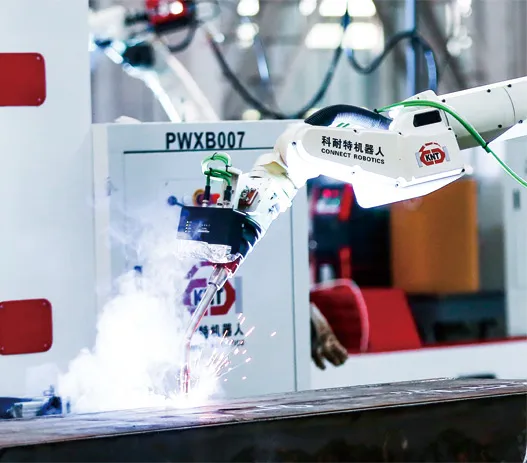

No-Teaching, No-Programming

Smart Extraction: Import 3D models to automatically recognize welding seams.
Rapid Deployment: One-click commands for corner, intermittent, and multi-layer welding.
Vision Guidance: Line laser scanning for rapid positioning.

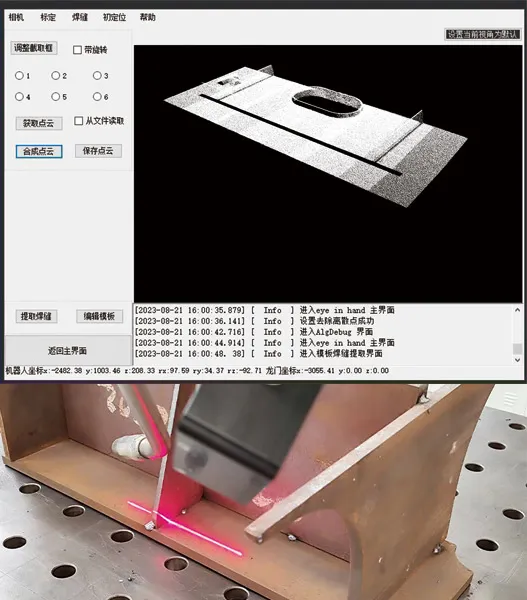

Visual Positioning and Tracking Module

3D Camera: 2m x 2m area capture with ±0.5mm accuracy.
Line Laser Guidance: Real-time seam analysis for trajectory correction.
Eye-in-Hand System: High-precision imaging for complex working conditions.

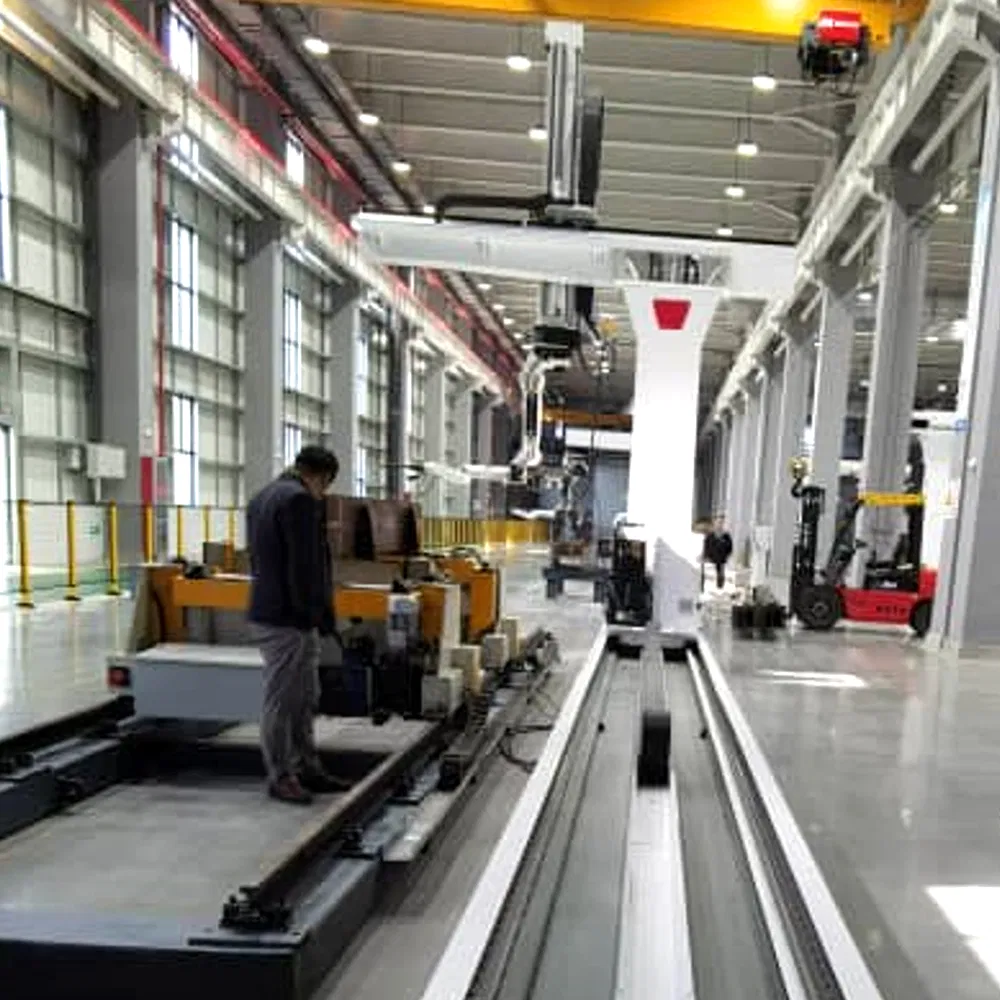

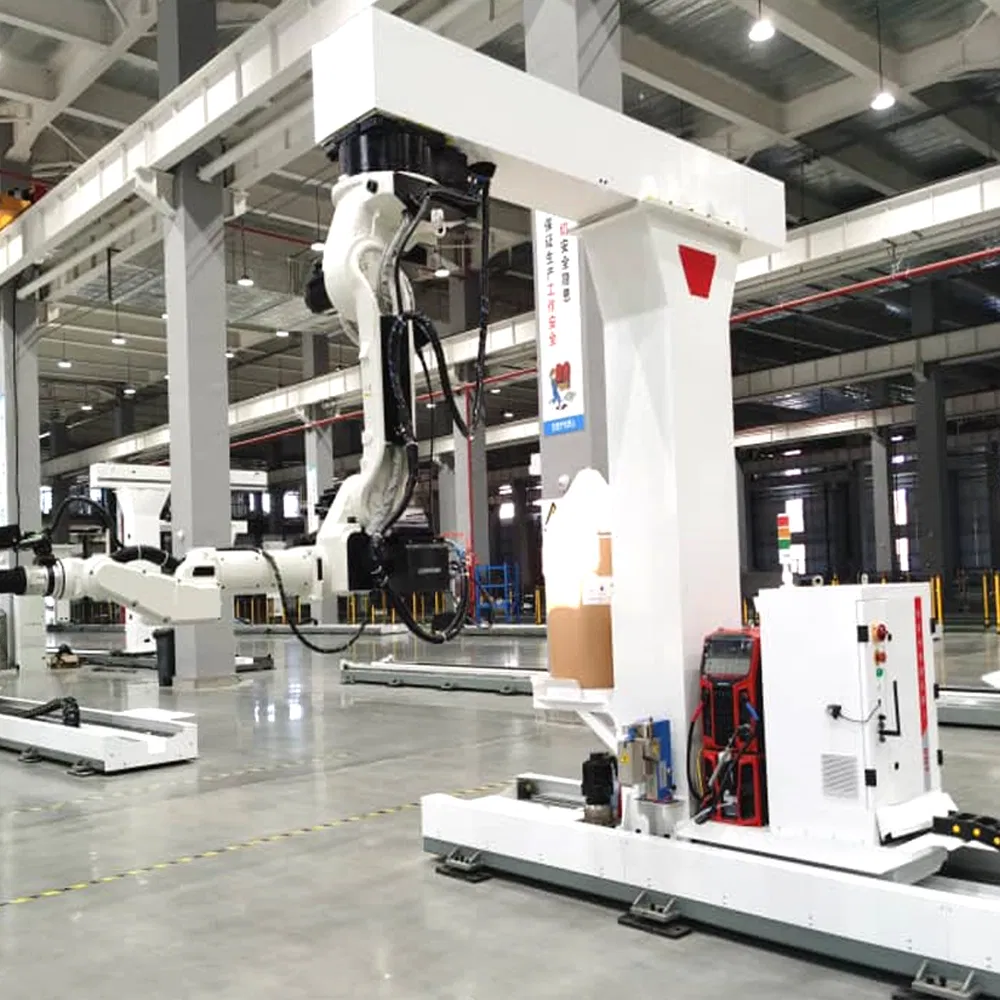

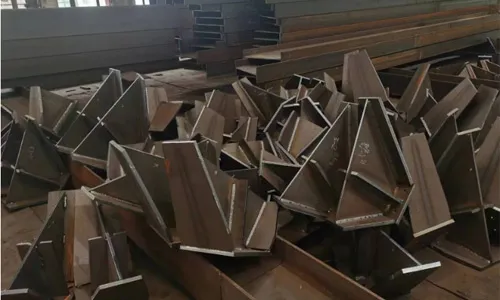

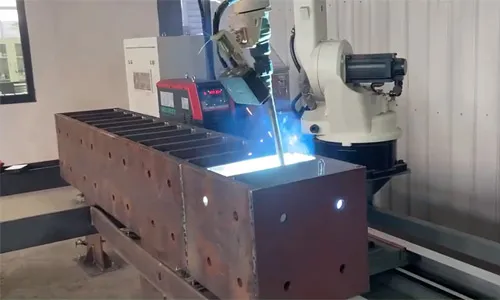

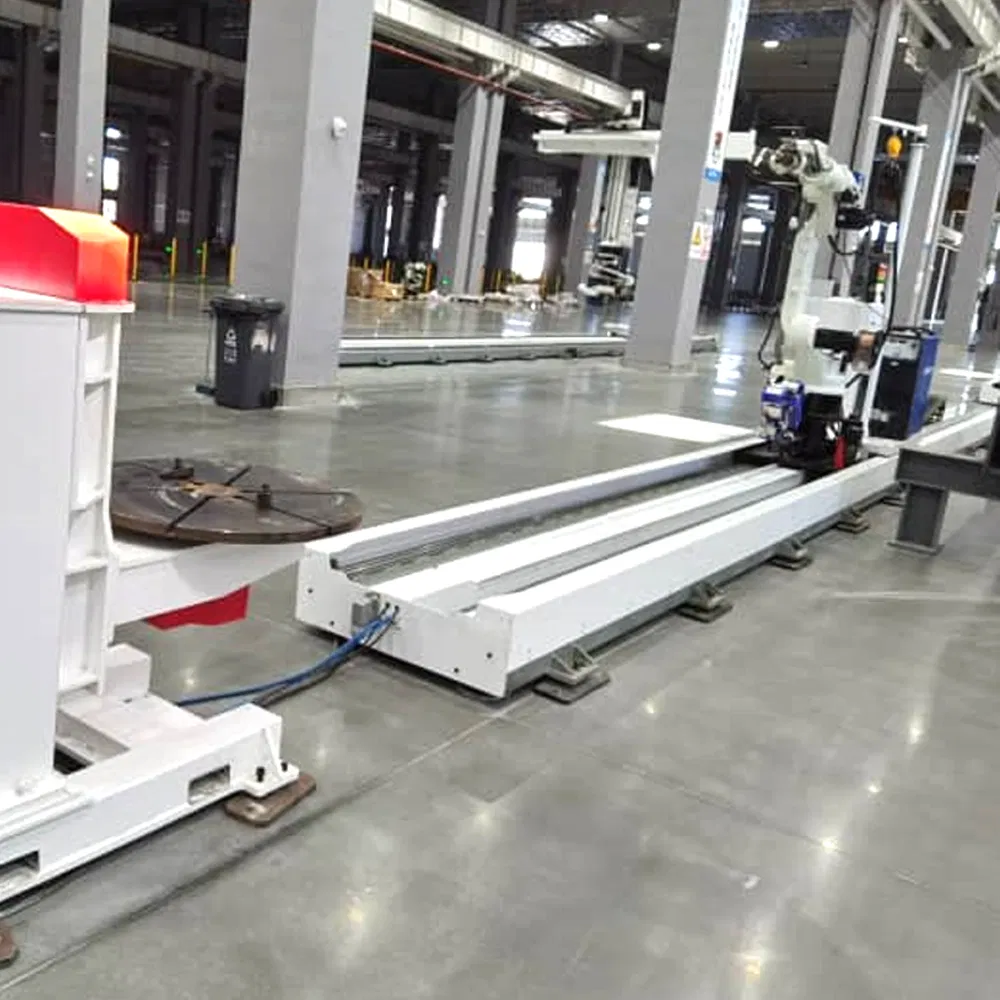

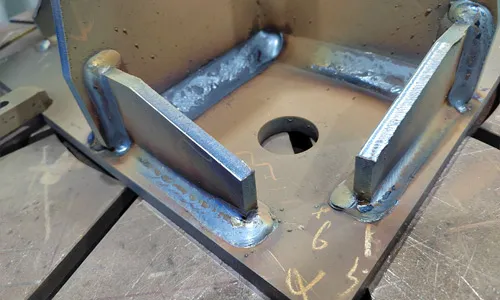

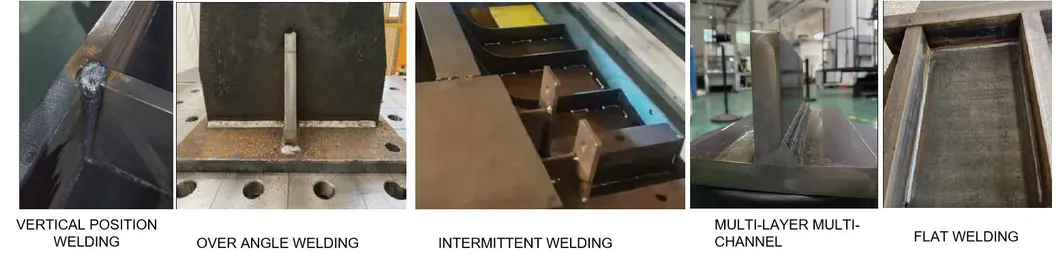

Welding Robot Samples

Related Robot Workstations

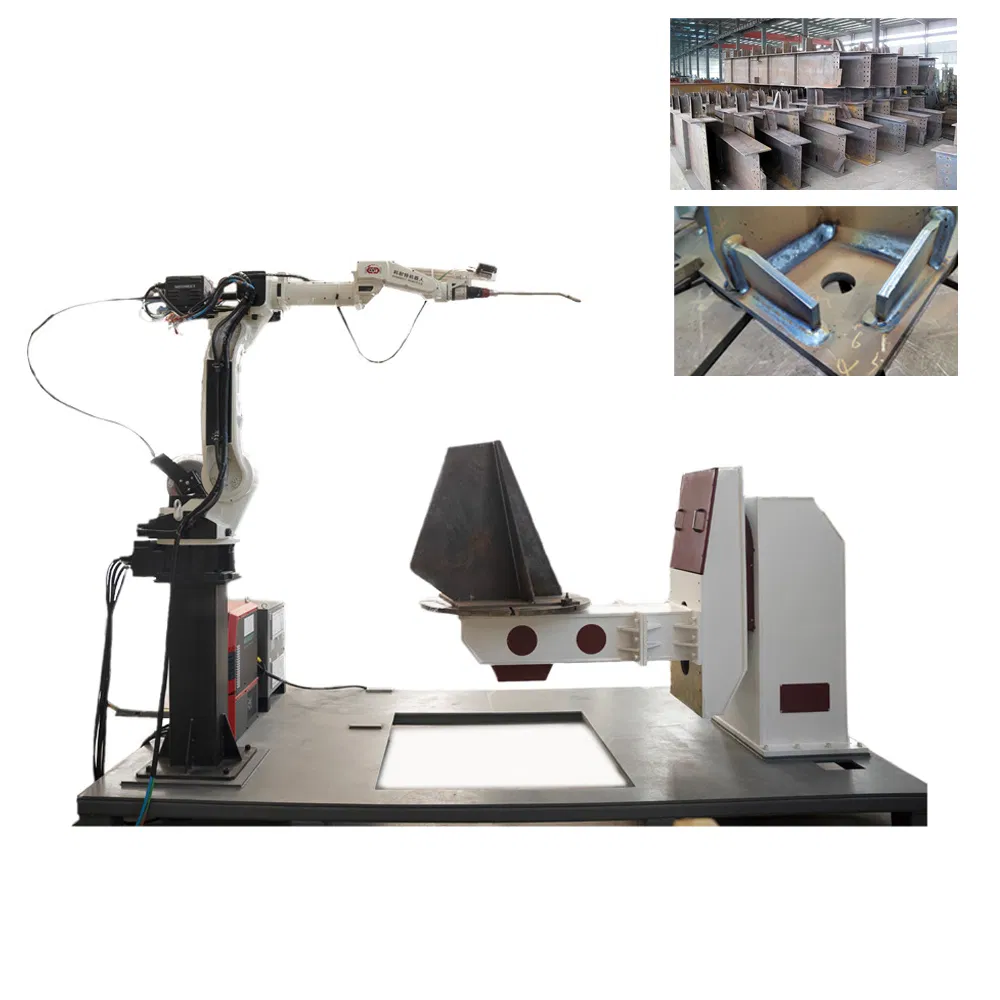

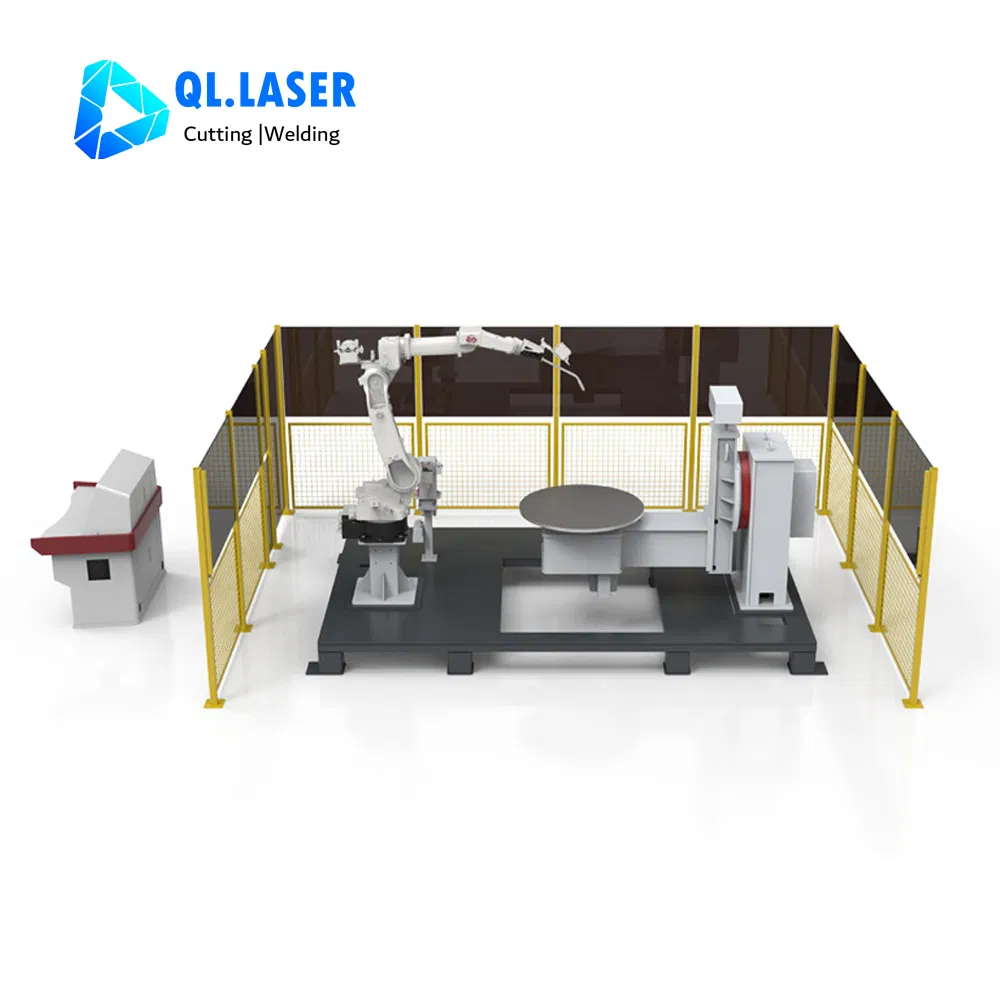

BW series (L Positioner)

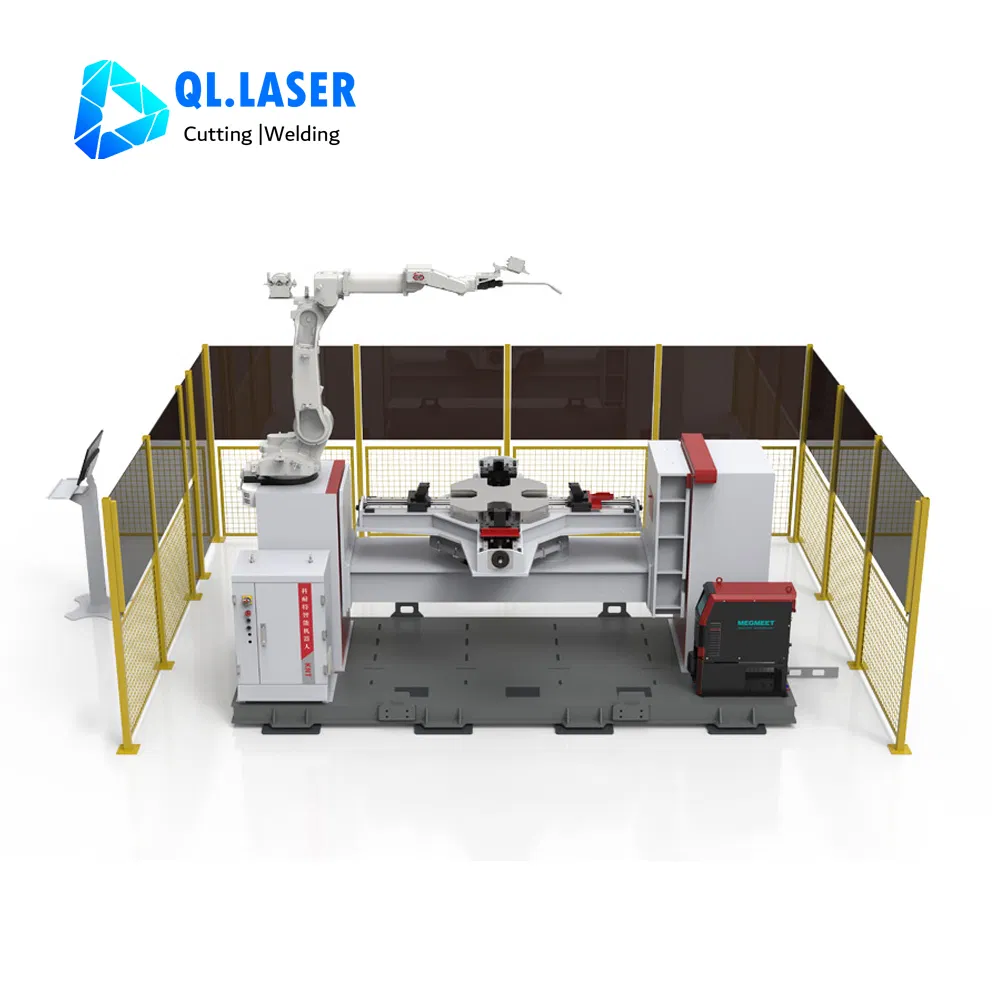

BW series (H Positioner)

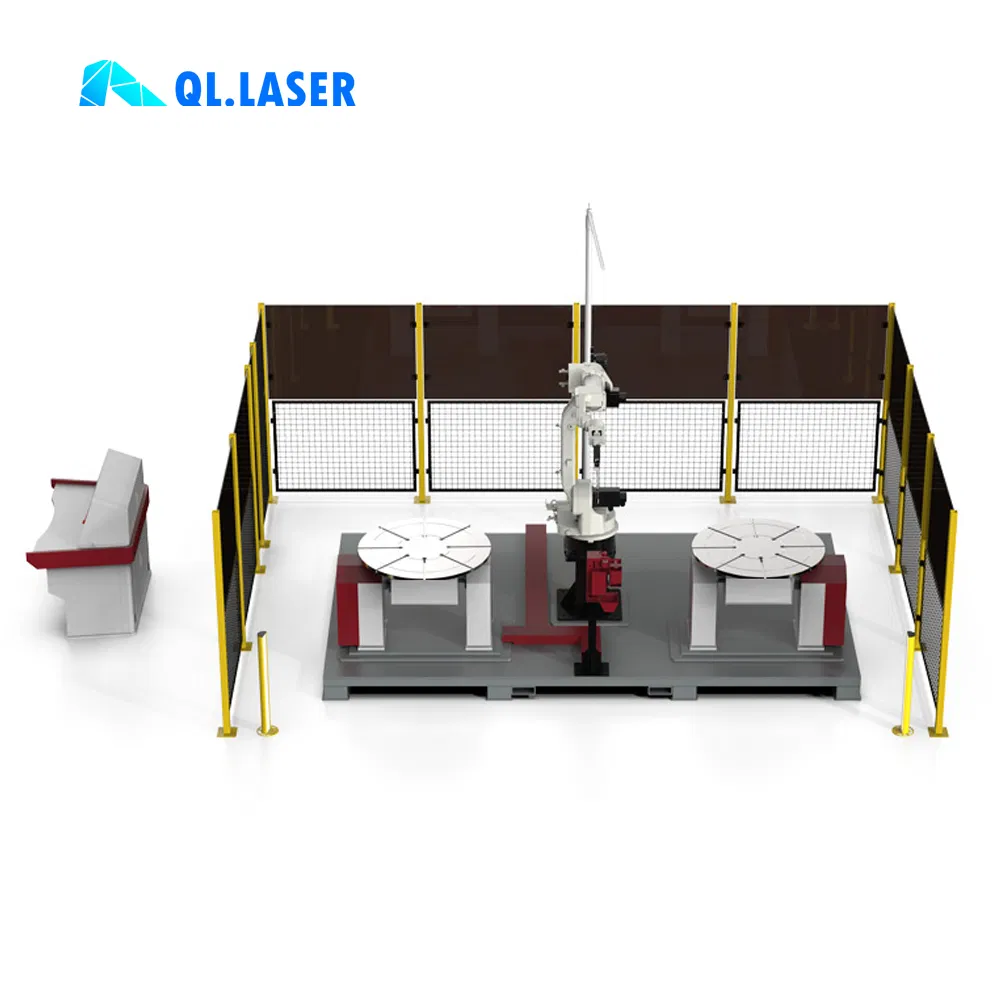

BW series (Dual Positioner)

Certifications

Frequently Asked Questions

What components can this 7-axis robot weld?

It is designed for open components such as H-beams, roof beams, box columns, and various corner-welded structures.

Is professional programming experience required to operate the machine?

No. The system features "No-Teaching" technology. Operators can get started after 1-2 days of training by importing 3D models for automatic path planning.

How accurate is the visual positioning system?

The 3D camera and line laser guidance provide a positioning accuracy within ±0.5mm, which fully meets industrial welding precision standards.

Can the robot avoid obstacles automatically?

Yes, the integrated software automatically plans trajectories to ensure intelligent obstacle avoidance and includes collision detection monitoring.

Does the system support complex multi-layer welding?

Yes, the built-in process library includes commands for multi-layer, multi-pass, and continuous edge welding that can be selected with a single click.
