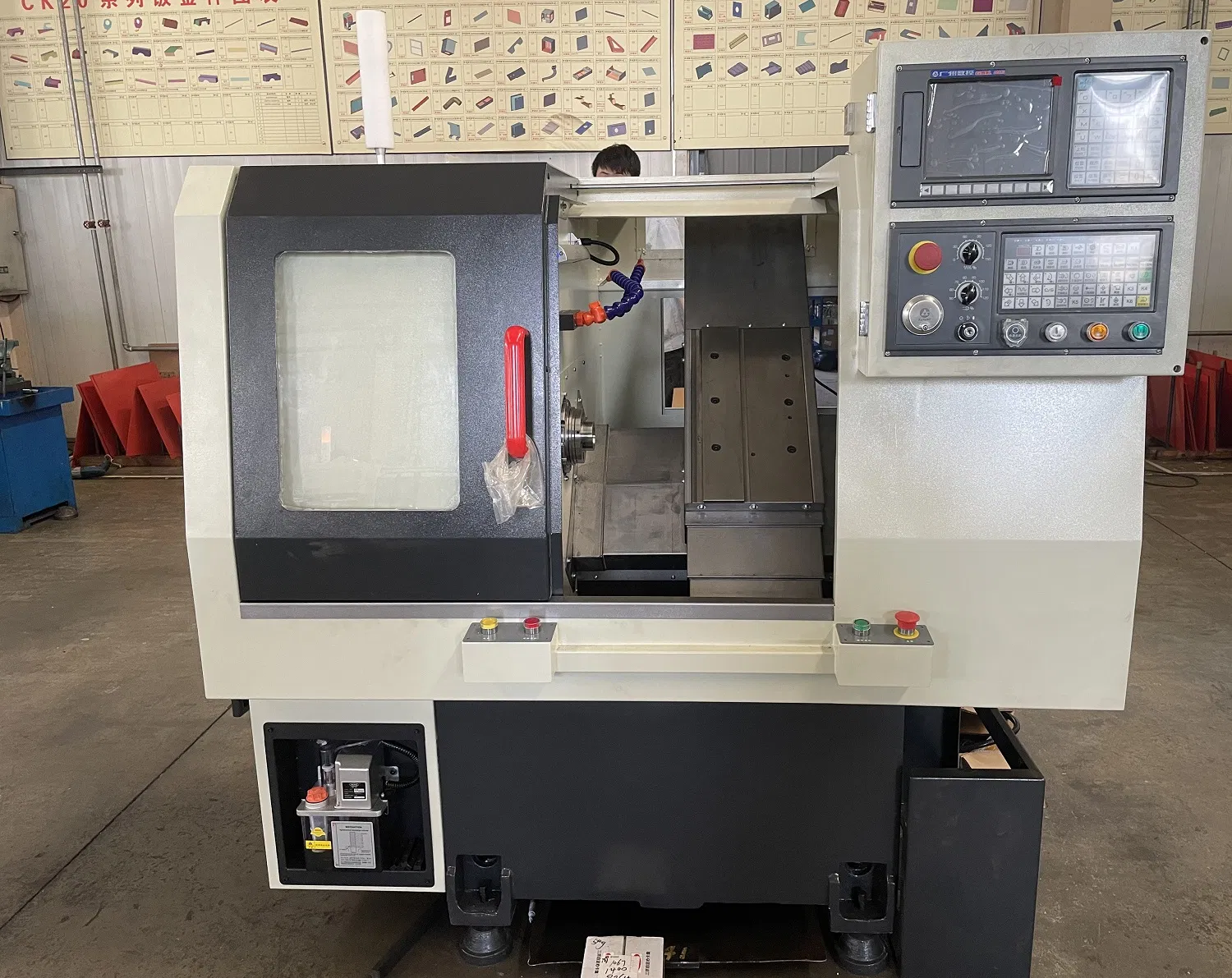

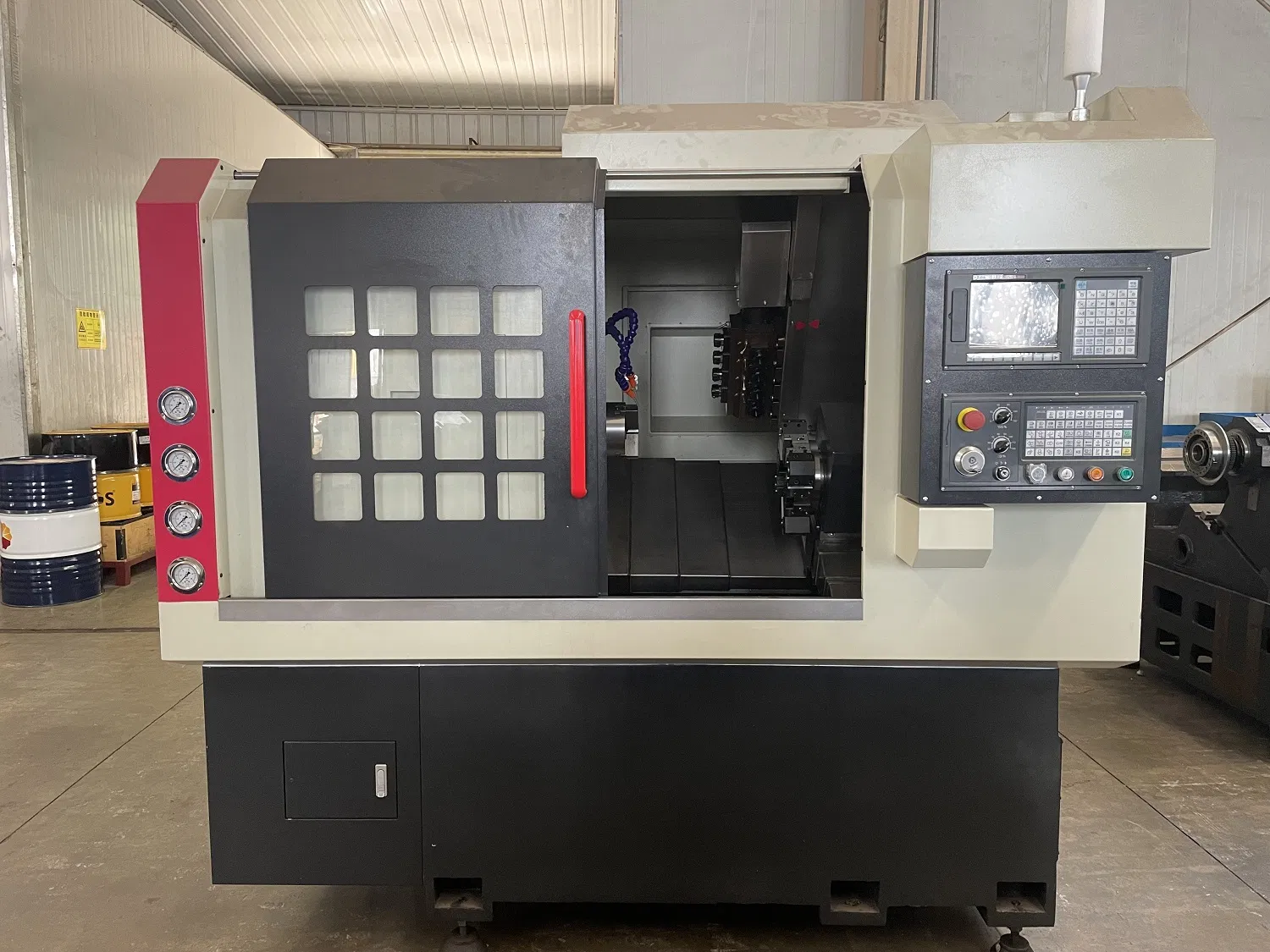

Metal CNC Lathe Machine Display Control System

1 / 5

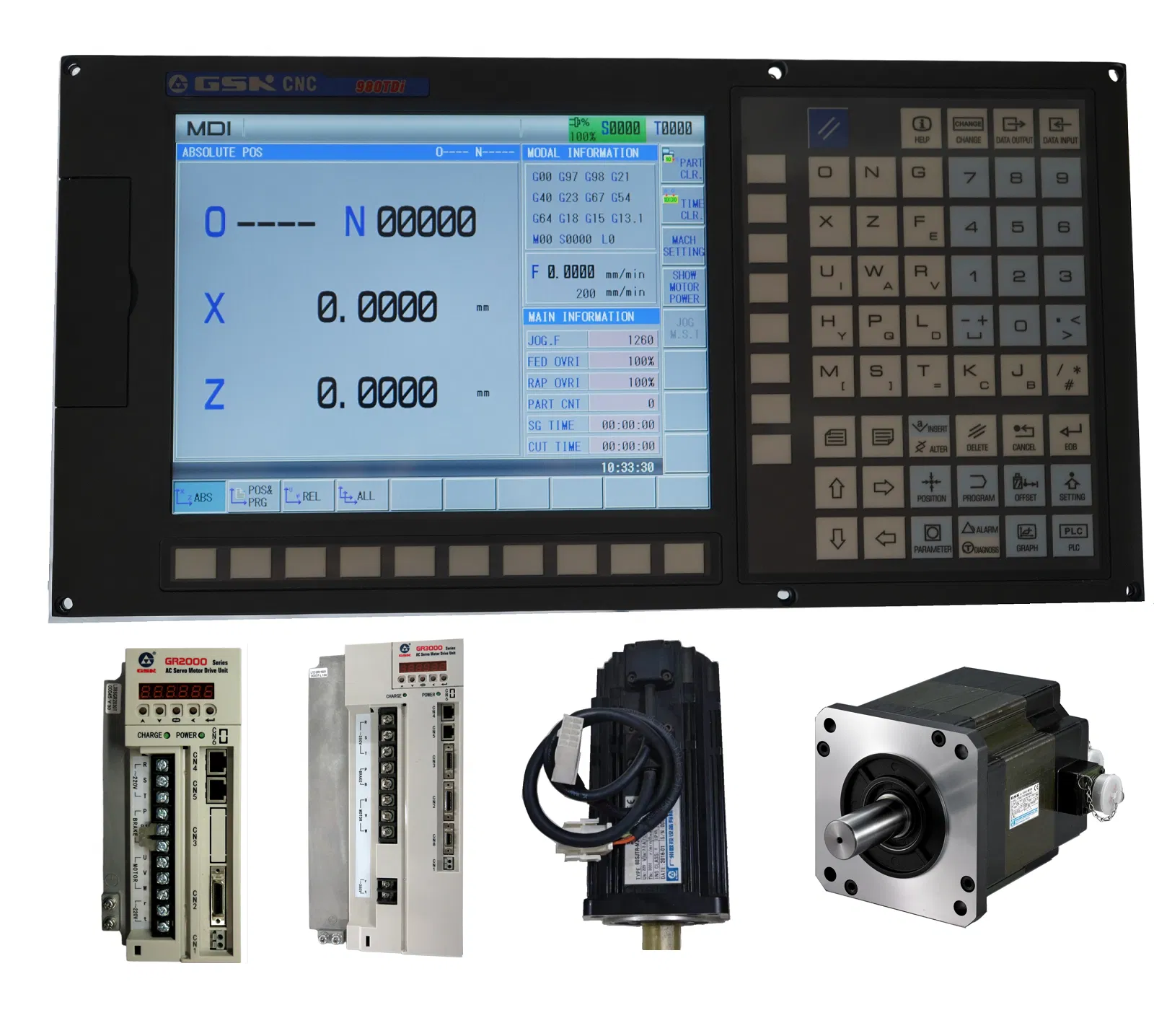

Metal CNC Lathe Machine Display Control System

Customization:	Available
After-sales Service:	1 year
Warranty:	1 year

Send Inquiry

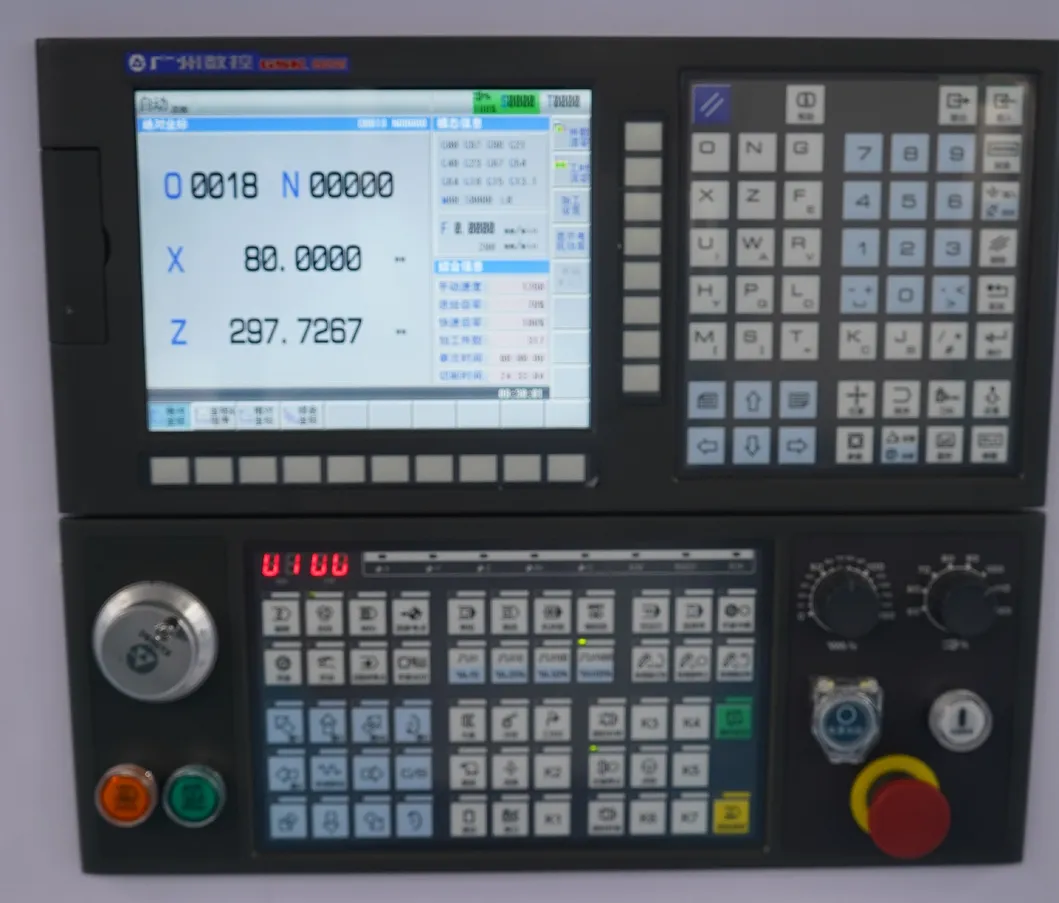

Product Description

Basic Information

Model NO.	GSK980TDi-H10CMC
Application	Metal Machining
Process Usage	Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Control Method	Closed-Loop Control
Numerical Control	CNC/MNC
Certification	CE, ISO 9001
Displayer	10.4-Inch Screen
Interface	RS232 & USB & Network

Product Description

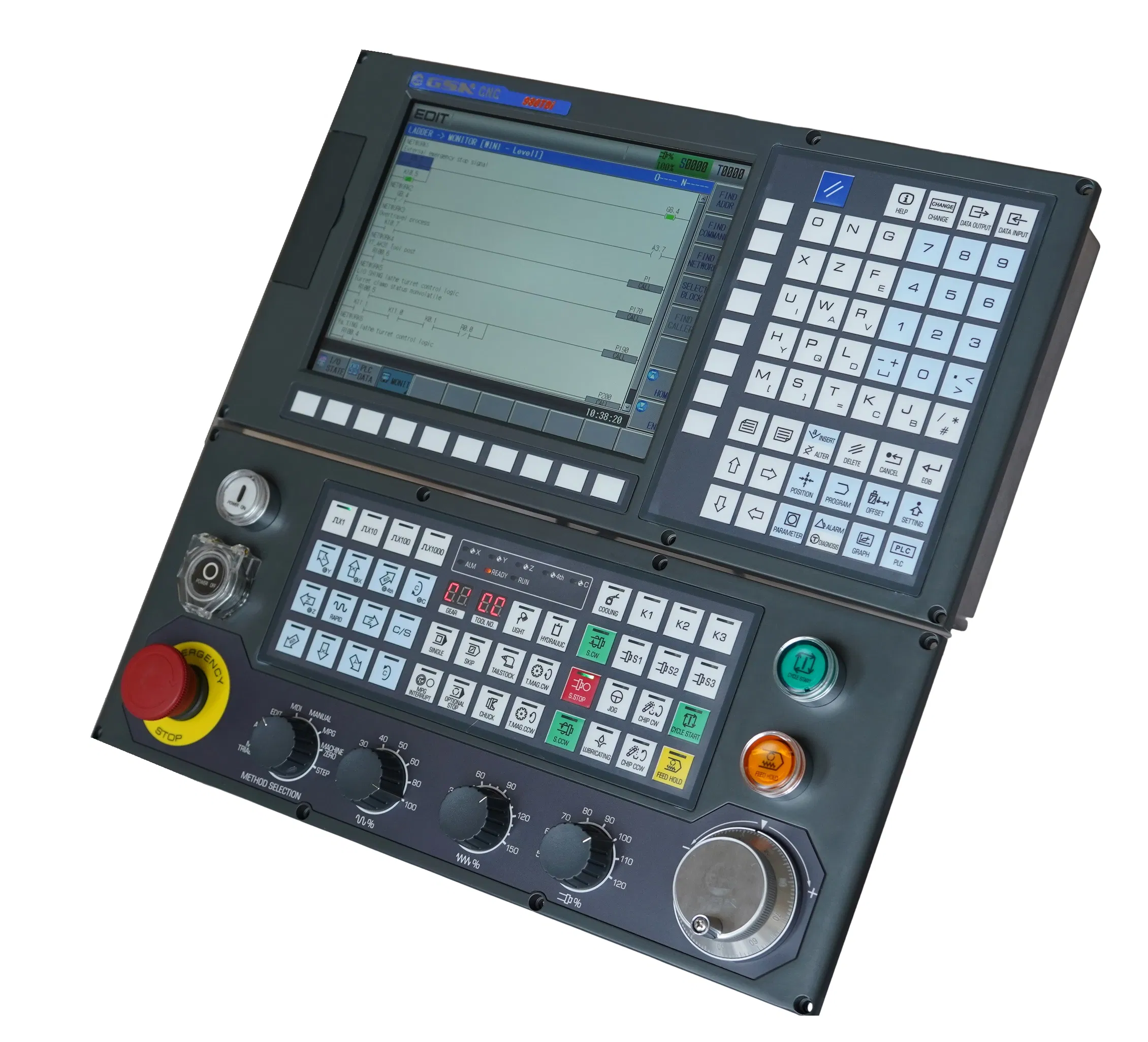

High-Performance CNC Controller Tailored for Precision Turning Machines.

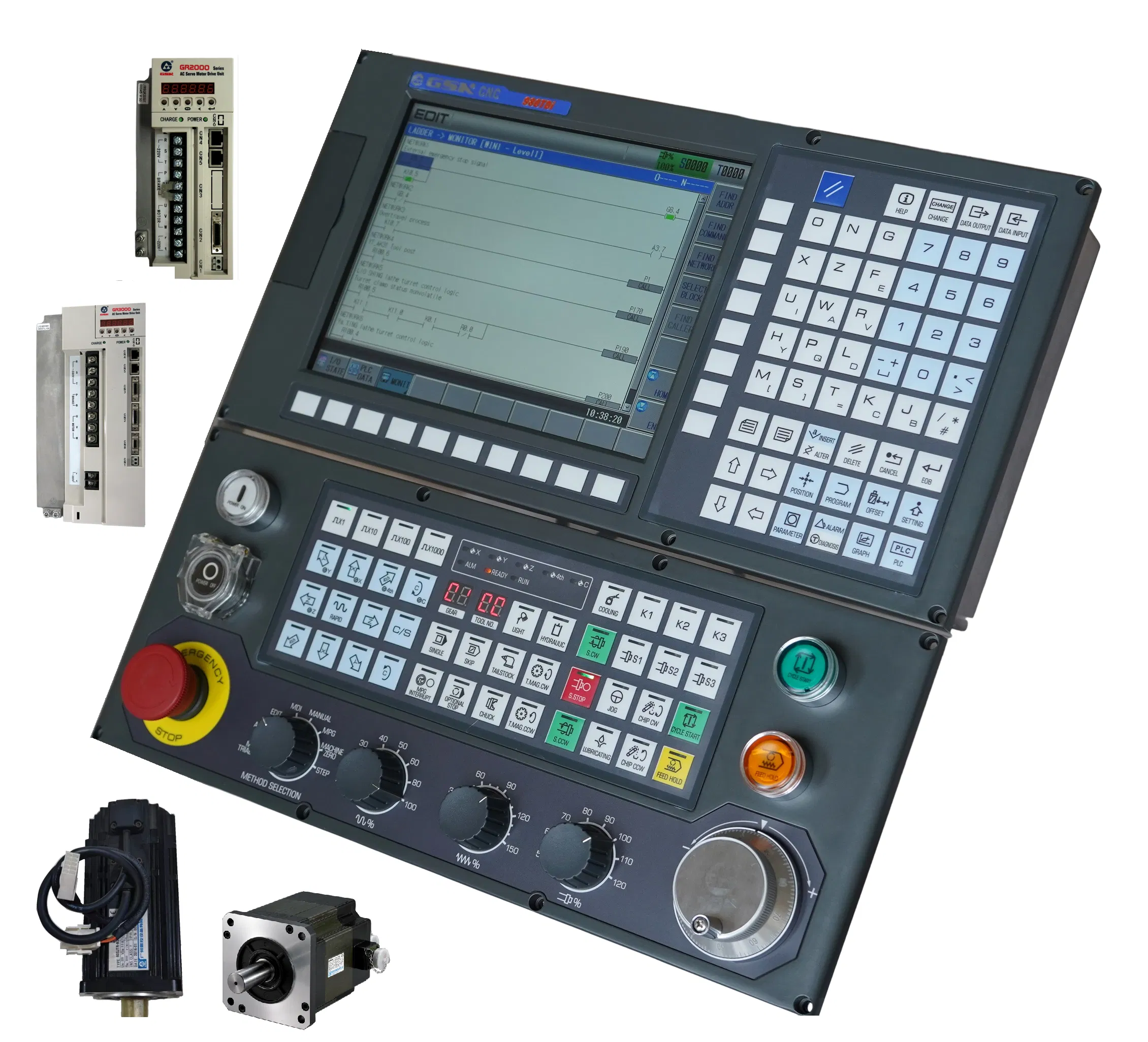

The GSK980TDi is an advanced product designed for the CNC Turning machine and Turning center market. Integrating the GSK-Link industry spot BUS, it features a BUS servo drive unit and a multi-core 23-bit absolute encoder servo motor. This combination delivers an extraordinary 0.1μm positional accuracy and seamless mechanical zero return.

Technical Features

Based on GSK-Link industrial field bus.
Least command increment: 0.1μm, maximum traverse rate: 100m/min.

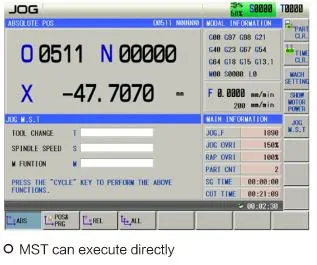

Support for turning, milling, and torque control.

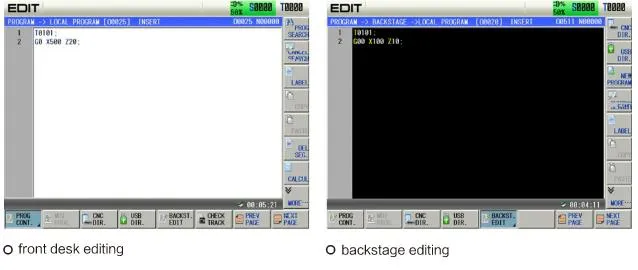

Real-time servo status monitoring and online parameter configuration.
Standard multi-turn 17-bit absolute encoder support.

High Speed & High Precision Control

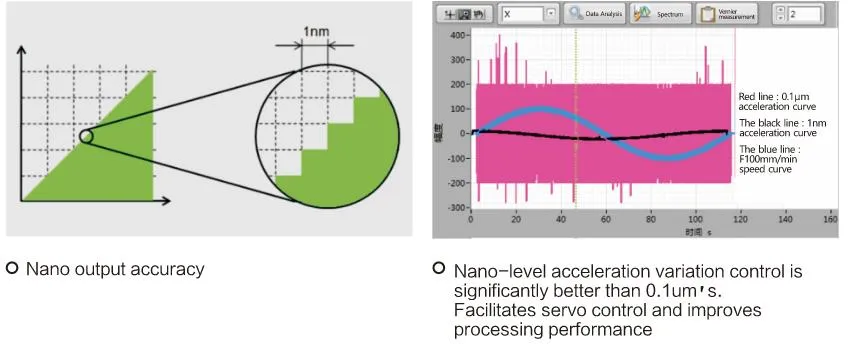

Leveraging high-resolution encoders (25-bit or higher), the system ensures nano-level interpolation. The output accuracy perfectly matches the servo motor's feedback, achieving unprecedented precision.

Oscillating Chip Break

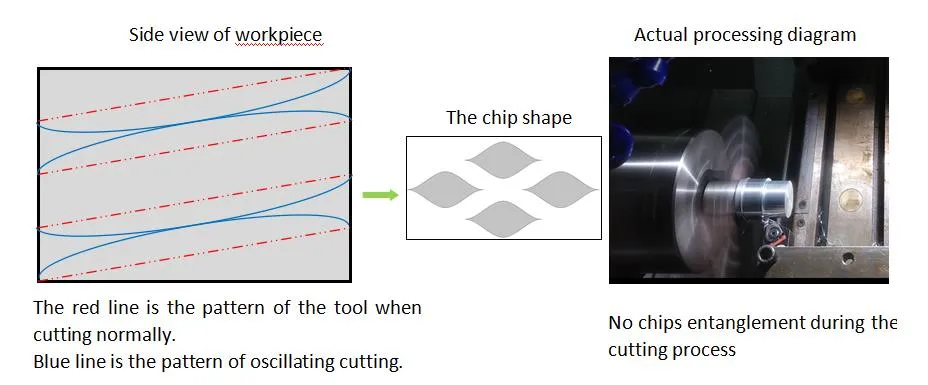

Induces tool oscillation along the cutting path to break continuous chips into manageable pieces, preventing tool breakage and material wrapping.

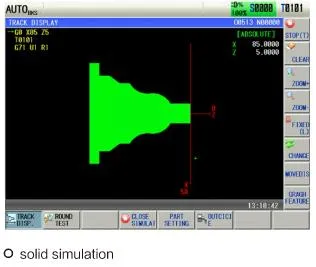

Complex Machining Support

Supports 5 feed axes and 2 analog spindles. Capable of rigid tapping, cylindrical interpolation, and polar coordinate interpolation for complex turning and milling needs.

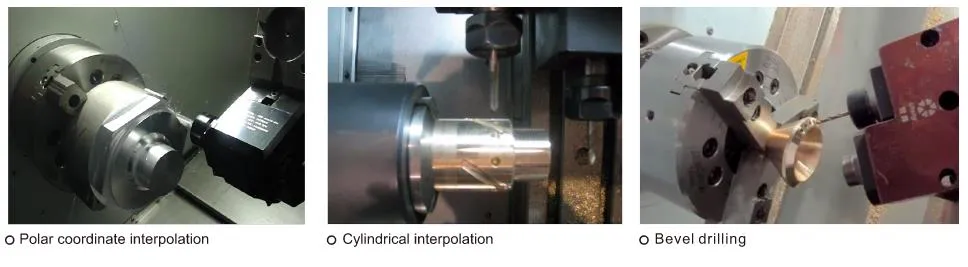

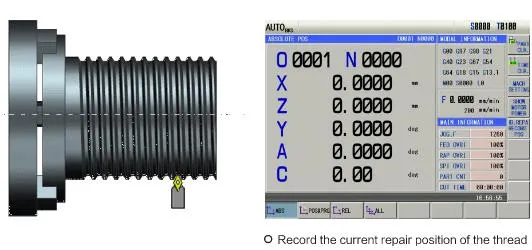

Thread Repair & Polygon Turning

Advanced functions for repairing damaged threads on large pipes and accelerating the processing of various polygons by synchronizing workpiece and tool axes.

Technical Specifications

Item	Specification Details
Controlled Axes	Max 5 axes (linkage 5 axes linear, 2 axes circular)
Feed Function	Rapid traverse: 0-100,000 mm/min; Cutting feedrate: 0-15,000 mm/min
Thread Cutting	Straight, taper, end, arc, and variable pitch threads; 1-99 threads
Spindle Function	0 rpm ~ 9999 rpm; Support for rigid/flexible tapping; 2 analog outputs
Tool Compensation	32 groups of length and wearing compensation; Tool life management
Communication	USB Flash Drive, RS232, LAN (Remote file transfer)
Dimensions	400 x 400 x 150mm (H-Type)

Manufacturing Excellence

We stand at the forefront of basic equipment industrial development, offering comprehensive solutions that encompass machine tool CNC systems, servo drives, and servo motors. Our unwavering efforts focus on advancing industry technological standards and fostering the growth of the global equipment manufacturing sector.

Frequently Asked Questions

What is the maximum positional accuracy of this CNC system?

The system utilizes the GSK-Link fieldbus and high-resolution absolute encoders to achieve a positional accuracy of 0.1μm.

Does the system support milling operations?

Yes, the system supports both turning and milling complex machining, including cylindrical and polar coordinate interpolation.

How are software updates handled?

The system supports easy software and PLC program upgrades via a standard USB flash disk interface.

What type of spindles can be used?

It supports up to 2 analog spindles and is compatible with servo spindles for rigid tapping and precise orientation.

Is there a diagnostic tool for troubleshooting?

Yes, the system includes a machine tool fault diagnosis function that visualizes input and output signals on structural drawings for easy maintenance.
