📊 Basic Specifications
Application
Metal Cutting & Processing
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Certification
CE, ISO 9001
Interface
RS232, USB, & Network
🛠️ Product Description

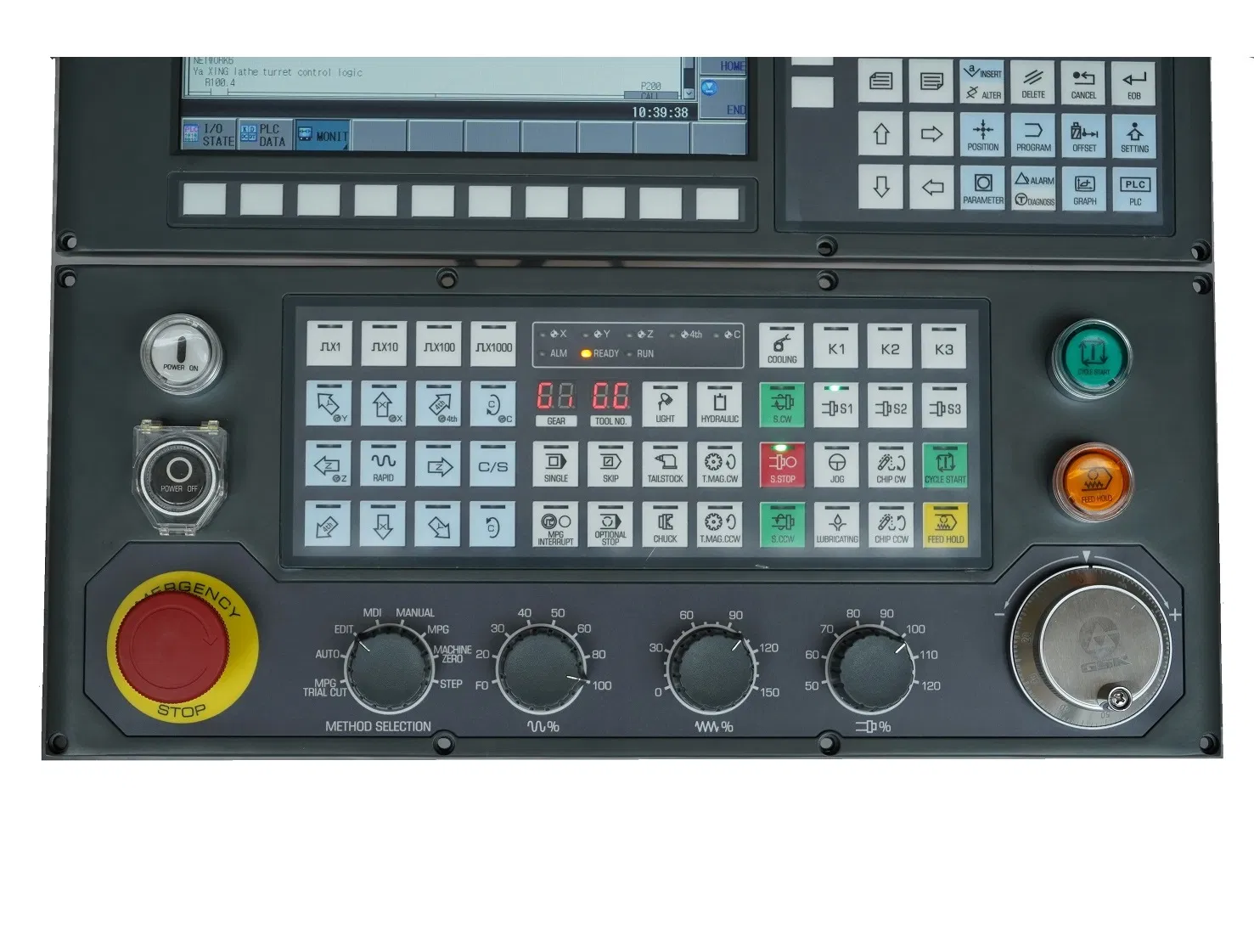

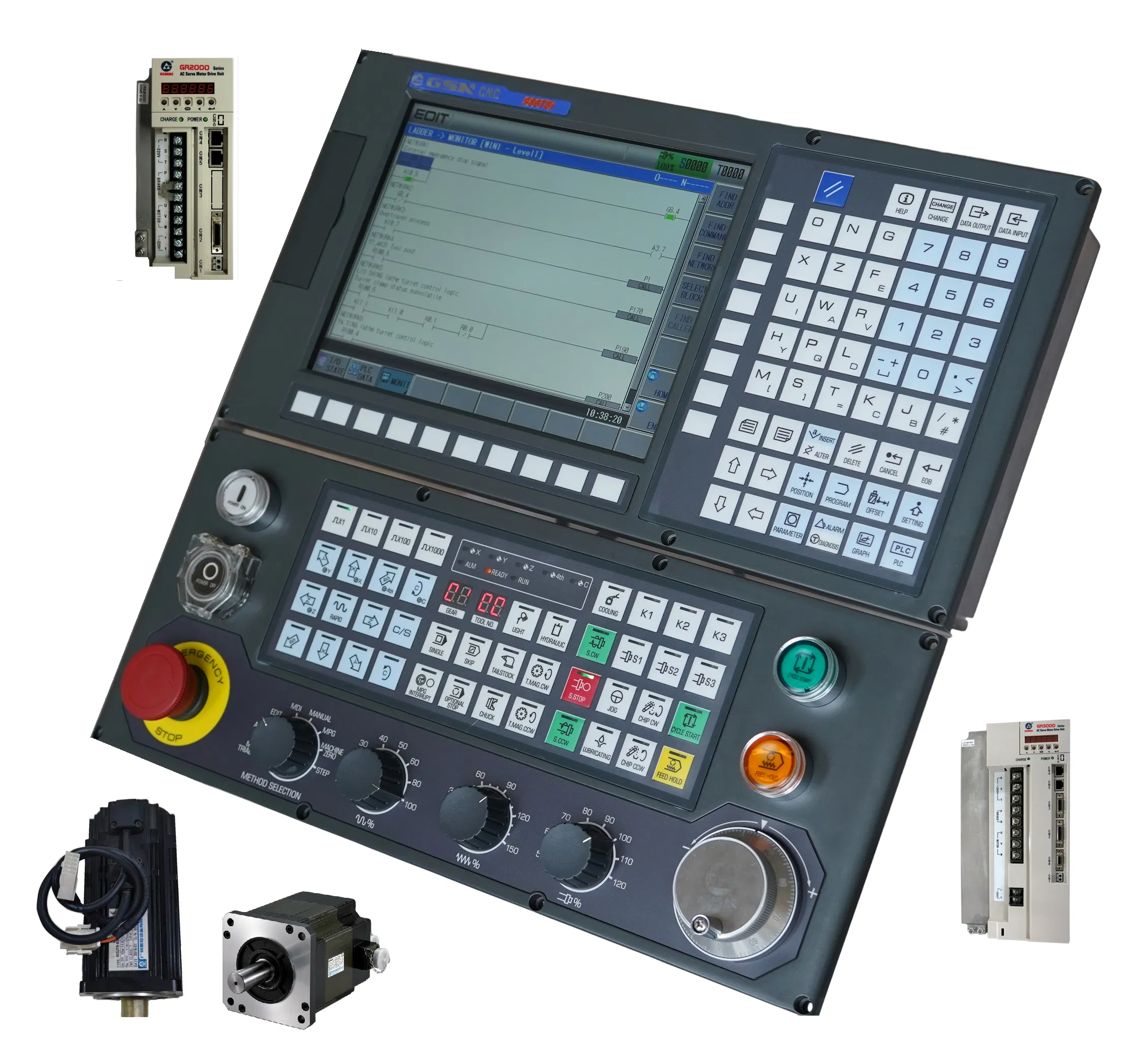

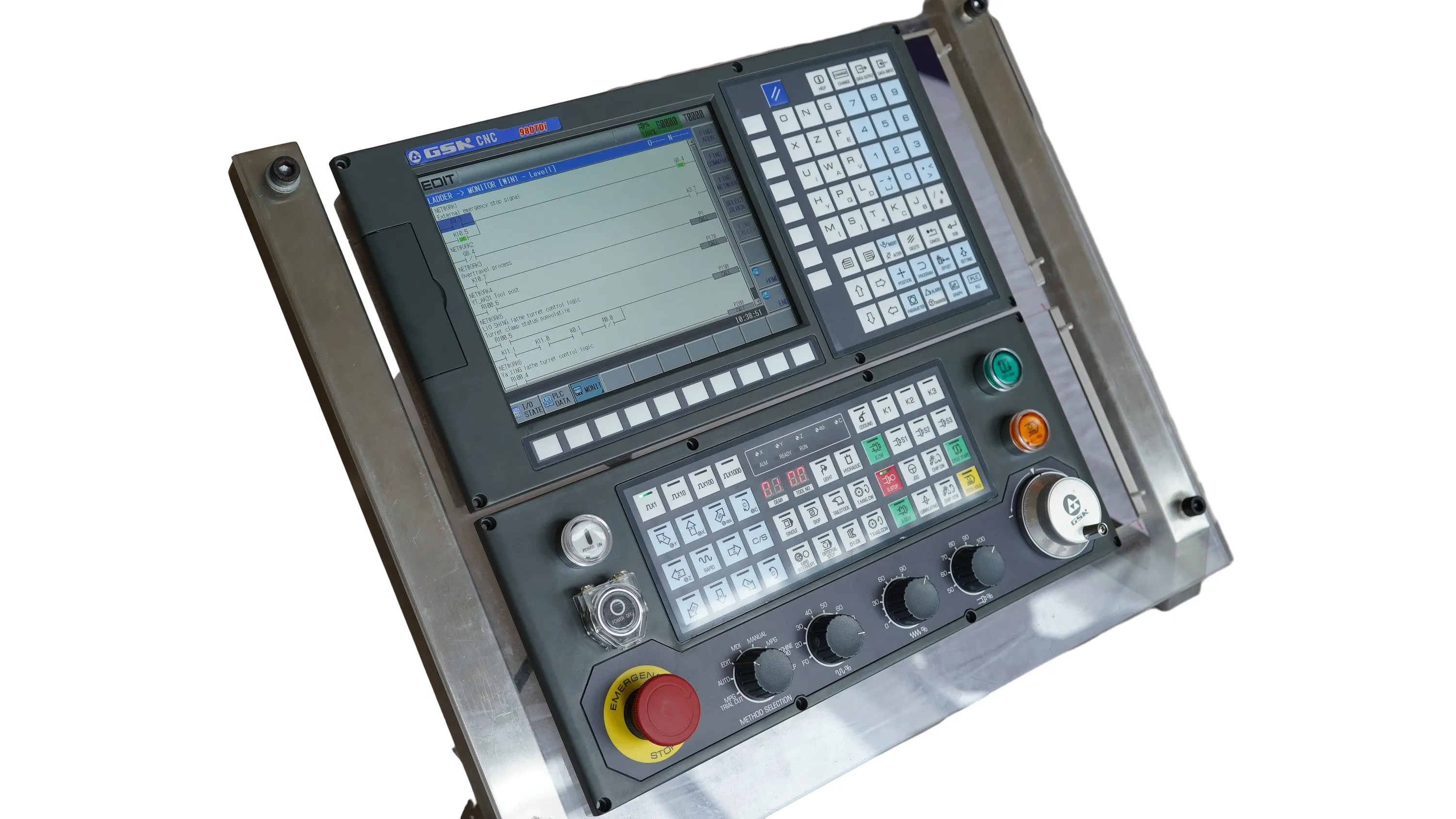

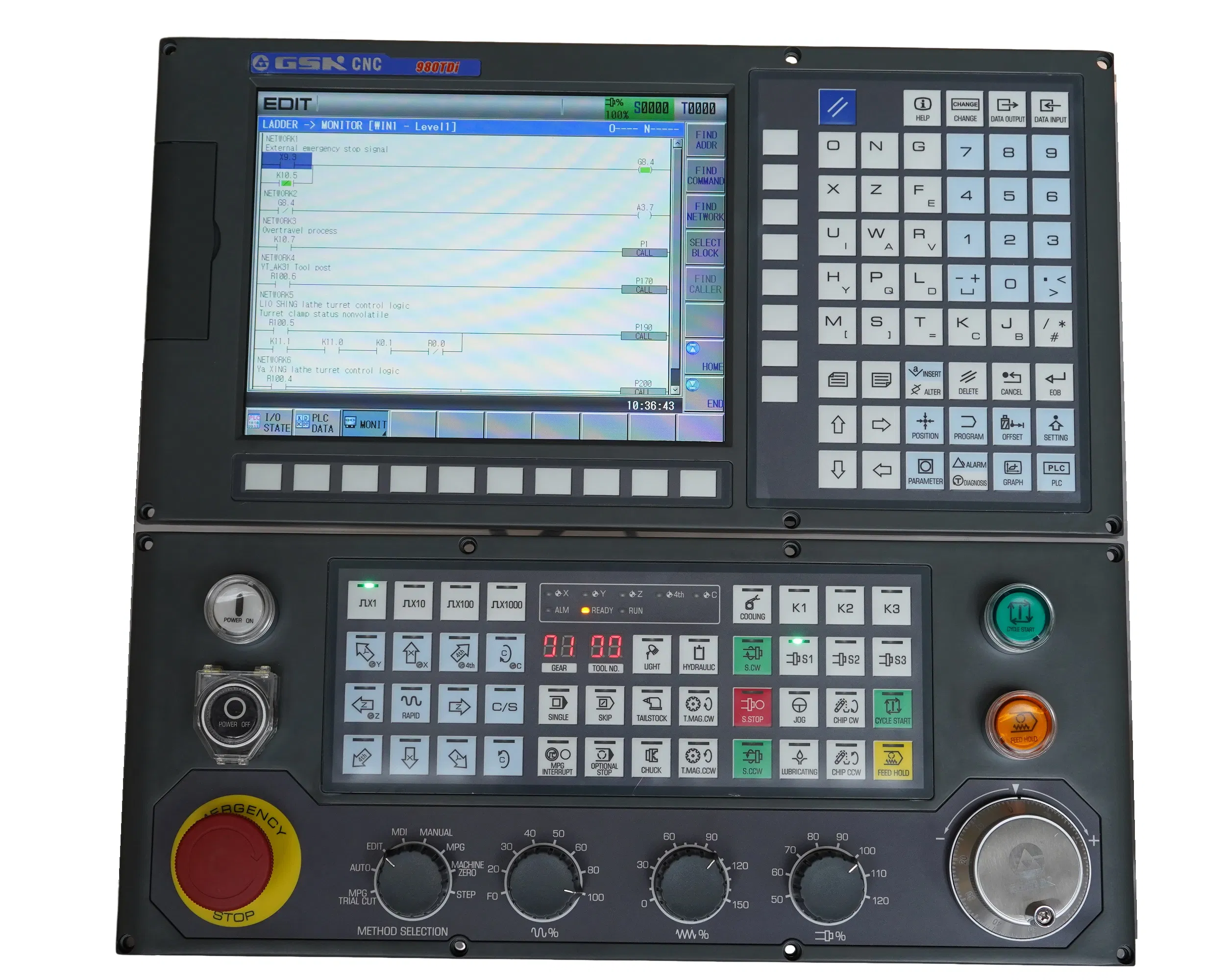

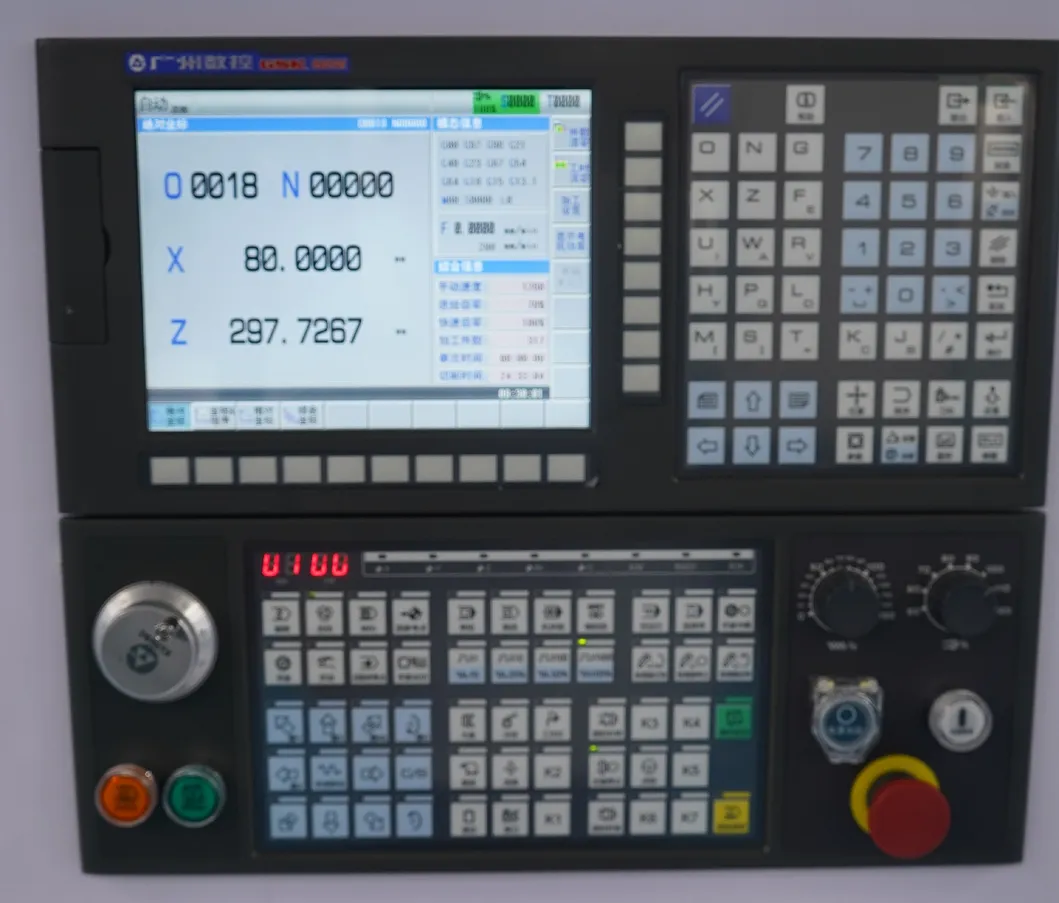

The 980TDi-H: High-Performance CNC Controller for Precision Turning Machines.

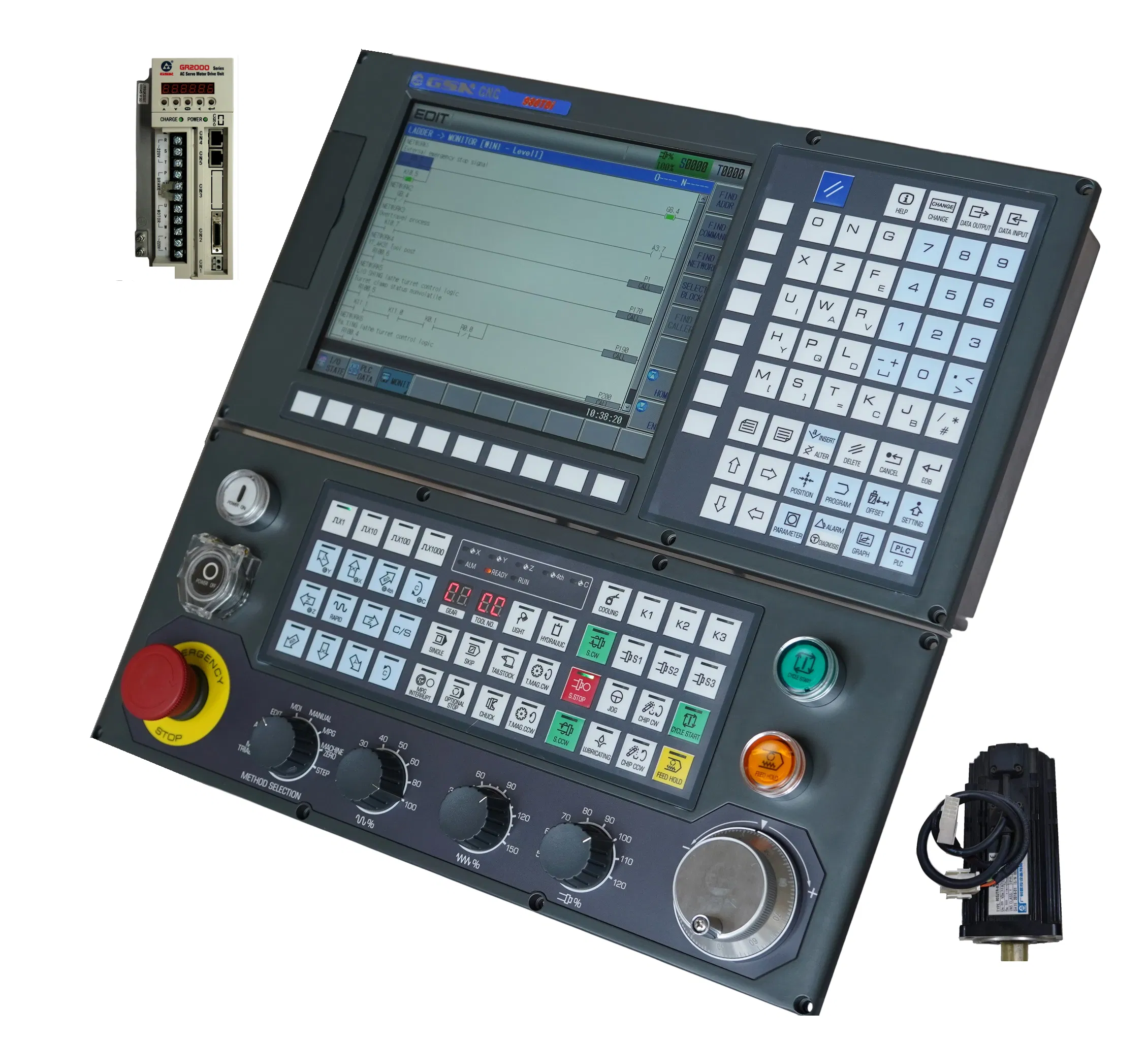

This system is designed specifically for the CNC Turning machine and Turning center market. Built on the industrial spot BUS, it incorporates a BUS servo drive unit and a multi-core 23-bit absolute encoder servo motor, delivering 0.1μm precision and seamless mechanical zero return.
Key Technical Features:
✔ Based on Link industrial field bus technology.
✔ Least command increment: 0.1μm, Max rate: 100m/min.
✔ Supports both turning and milling operations.
✔ Real-time servo status monitoring & online configuration.
✔ Supports torque control and non-stop mechanical zero return.
✔ Secondary development support for user-defined interfaces.
🚀 Advanced Machining Capabilities

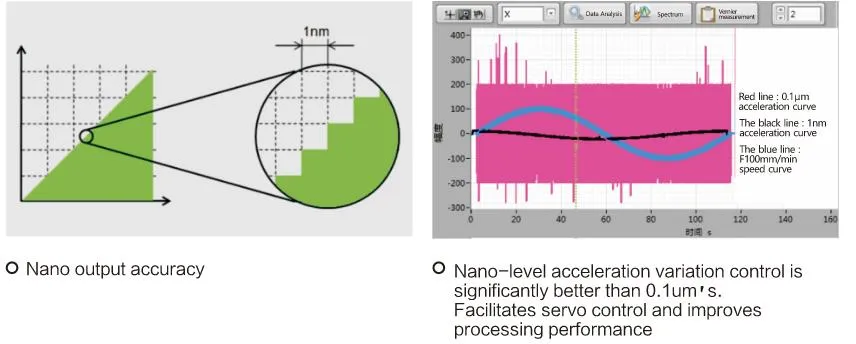

High Speed & Precision Control: Utilizing high-resolution encoders (25-bit or higher), the system achieves nano-level interpolation for precise machining results at high speeds.

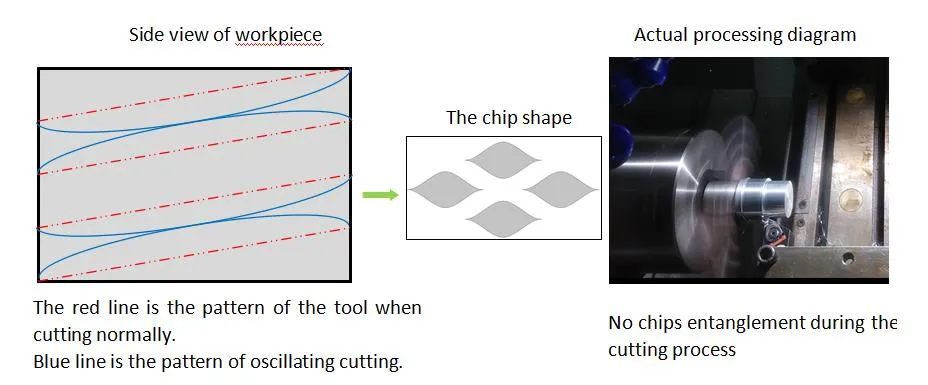

Oscillating Chip Break: Applies sine/cosine wave interference to the feed axis, breaking continuous chips to prevent entanglement with tools or workpieces.

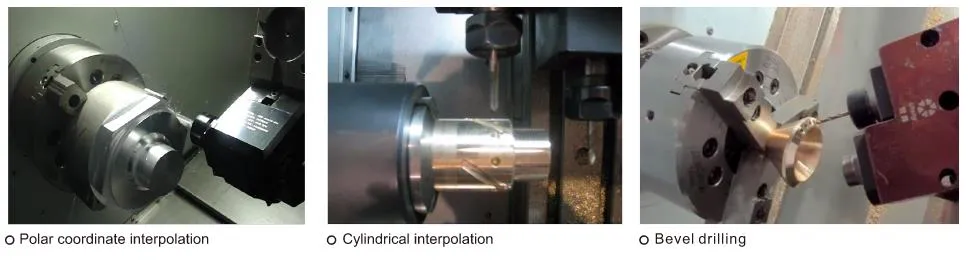

Complex Machining Support: Manages up to 5 feed axes and 2 analog spindles. Supports spindle orientation, rigid tapping, cylindrical interpolation, and polar coordinates.

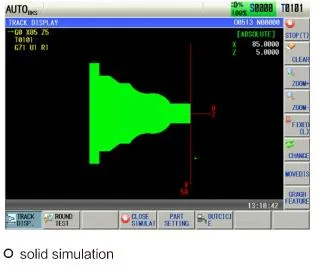

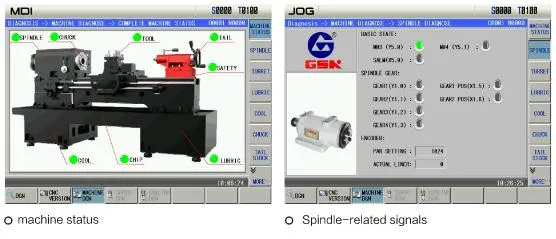

Graphical Simulation & Fault Diagnosis: Provides intuitive tool path visualization and a structural drawing display of I/O signals for efficient troubleshooting.
📋 Technical Specifications
| Item |
Specifications |
| Controlled Axes |
Max 5 axes (Linkage: 5 axes linear, 2 axes circular) |
| Feedrate |
Rapid: 0-100,000 mm/min; Cutting: 0-15,000 mm/min |
| Thread Types |
Straight, Taper, Arc, Variable pitch, Equal tip width variable lead |
| Spindle Function |
0 - 9999 rpm; Support for rigid tapping and analog output |
| Tool Compensation |
Length (32 groups), Wearing (32 groups), Radius (C type) |
| Program Memory |
64M, supports up to 10,000 programs |
| PLC Function |
Two-level refresh (8ms), 48 inputs / 38 outputs (extendable) |
| Communication |
USB, RS232, and LAN (Remote file transfer) |
❓ Frequently Asked Questions
What payment terms do you accept?
We can accept EXW and FOB terms for your convenience. Payments must be completed prior to shipment to ensure timely delivery.
How long does shipping typically take?
Most orders are dispatched within 3-7 working days after payment. Standard shipping usually takes 7-25 working days, though most items arrive within 2 weeks.
What is the control precision of the 980TDi system?
The system provides high-precision control with a least command increment of 0.1μm, utilizing 23-bit or higher absolute encoders.
Does this controller support milling as well as turning?
Yes, the 980TDi supports complex machining including turning, milling, and drilling with up to 5 feed axes and 2 analog spindles.
What should I do if the package is damaged upon arrival?
Please inspect the package immediately upon receipt. If there are any physical damages, contact us right away with detailed photos for assistance.
Is technical support available for troubleshooting?
Yes, our technicians are ready to provide professional advice and fault diagnosis support. The system also includes built-in diagnostic functions for easier maintenance.
