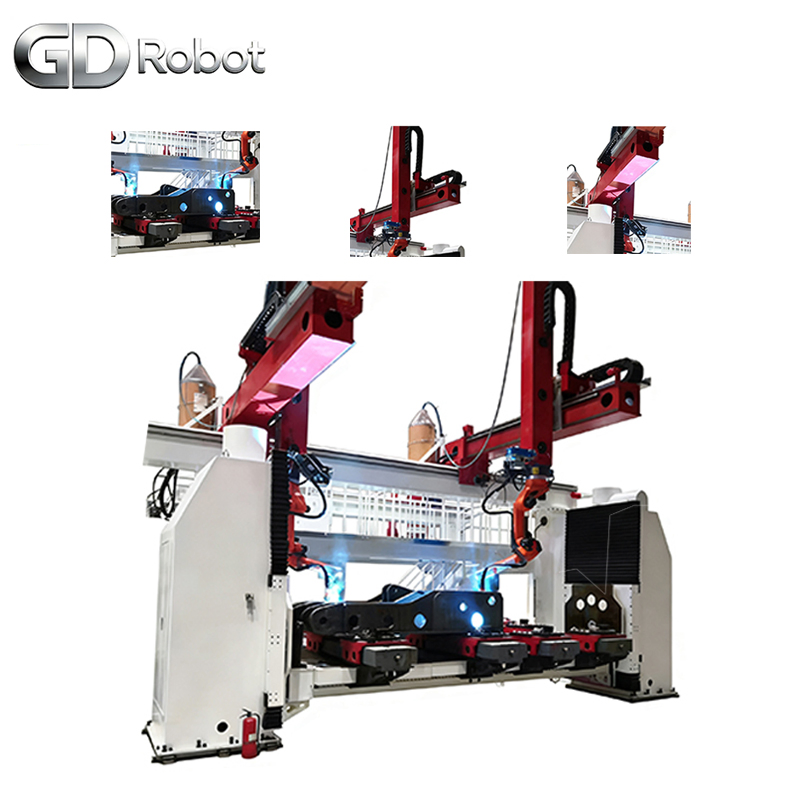

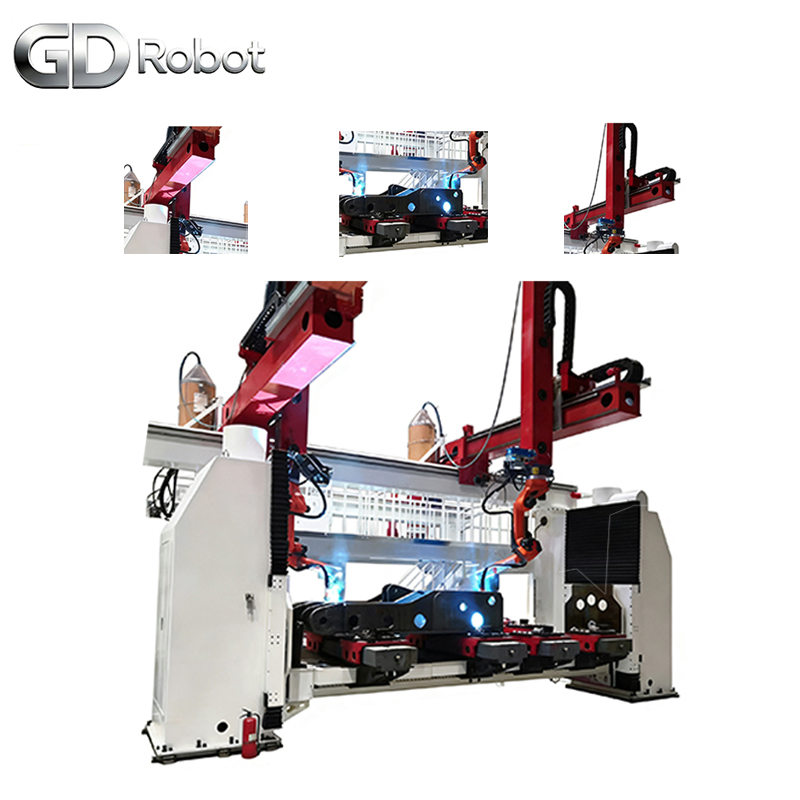

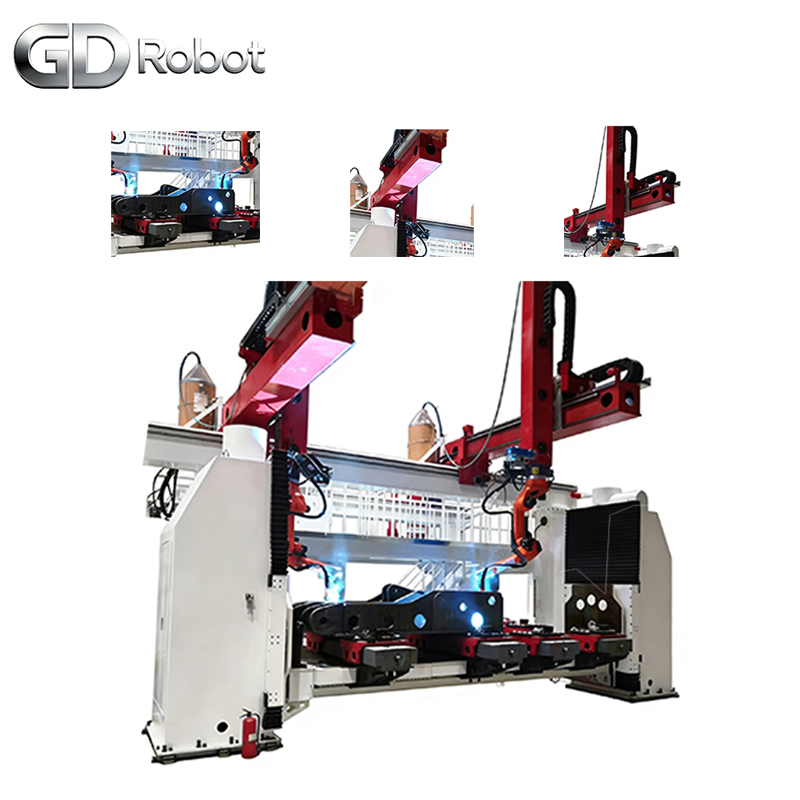

Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System
Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System
Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System
Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System
Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System
1 / 5
Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System
Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System
Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System
Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System
Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System

Energy Saving Overhead Hanging Linear Guide Rail for Intelligent Logistics Transmission System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.GD-SXW-D-X
Drive ModeServo Motor Drive
Installation MethodInverted Cantilever Gantry
Working Width Range3.3~3.5m
Working Height Range2.7m
Ground Rail Length12m (Customizable 6/18/24m)
Repeat Positioning Accuracy±0.05mm (Robot Body)
Welding Efficiency0.3~0.5m/Min
Power Supply Voltage380V/50Hz (3-Phase)
Protection ClassIP50
⚙️

Product Description

  • Built-in multiple safety protections: mechanical limit, software limit, anti-collision buffer and emergency stop circuit.
  • Low-noise and low-friction transmission structure with stable and smooth operation for long-term continuous work.
  • Customizable stroke supporting long-distance multi-station linkage operation to improve single robot coverage.
  • Surface anti-corrosion treatment resistant to dust, oil, and harsh industrial conditions.
  • Inverted structure optimizes stress distribution and reduces robot body load, prolonging equipment life.

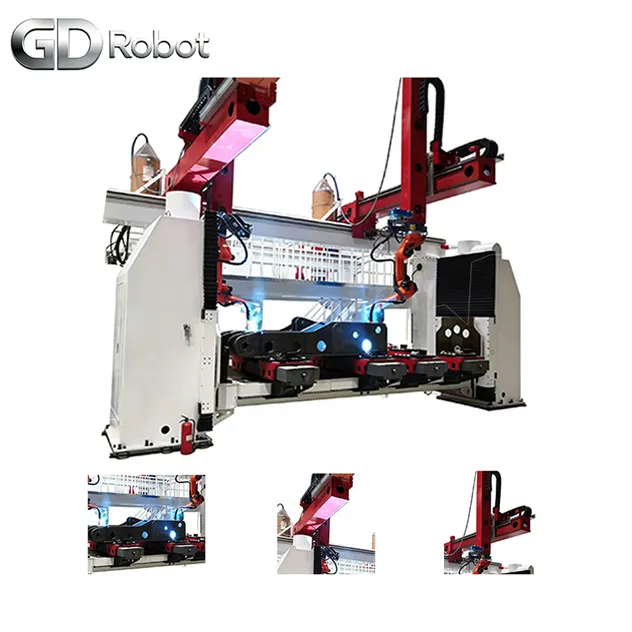

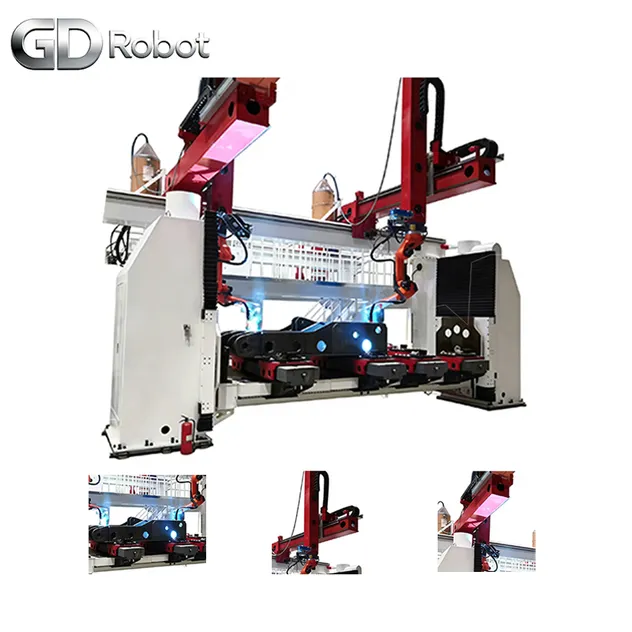

Linear Guide Rail 1

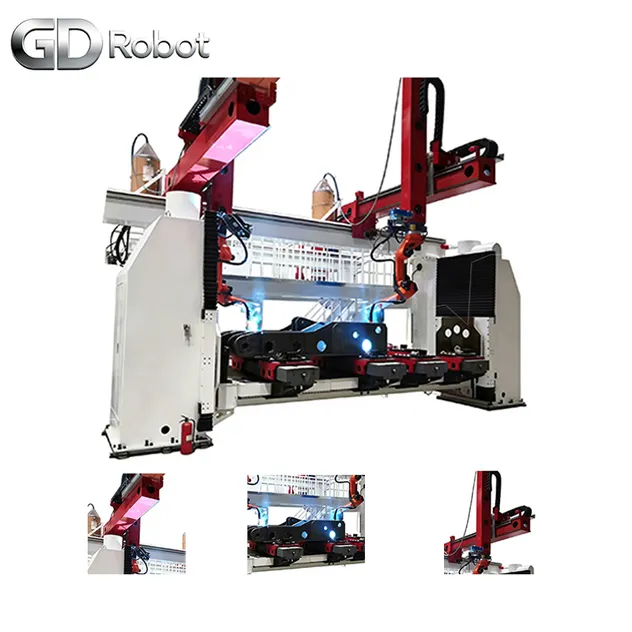

Linear Guide Rail 2
Linear Guide Rail 3
📋

Technical Specification

Item Specification Details
Axes Config6-axis robot + external axes (expandable to 7/8/9 axes)
Working RangeMax width: 3.3~3.5m; Max height: 2.7m; Customizable Rail
Repeatability±0.05mm (robot); Seam detection error: ±0.1mm
Control SystemTeach-free welding system with 3D vision seam tracking
Drive TypeServo motor drive (gear and rack transmission)
Core Advantages3D vision automatic tracking, thermal deformation compensation
ApplicationSteel structures, bridges, shipbuilding, and heavy industry
💎

Our Advantages

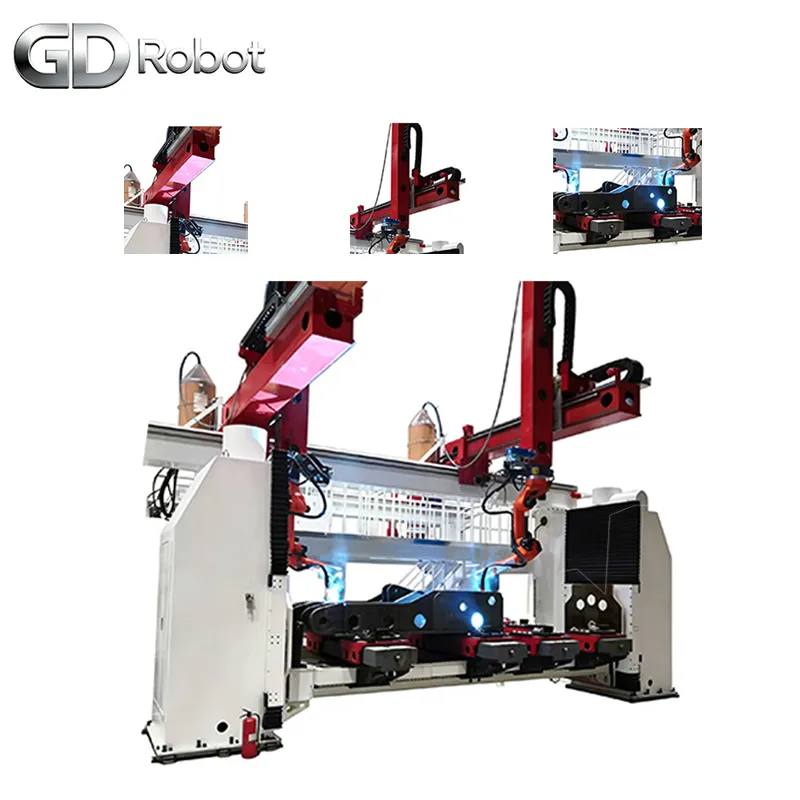

Advantage 1

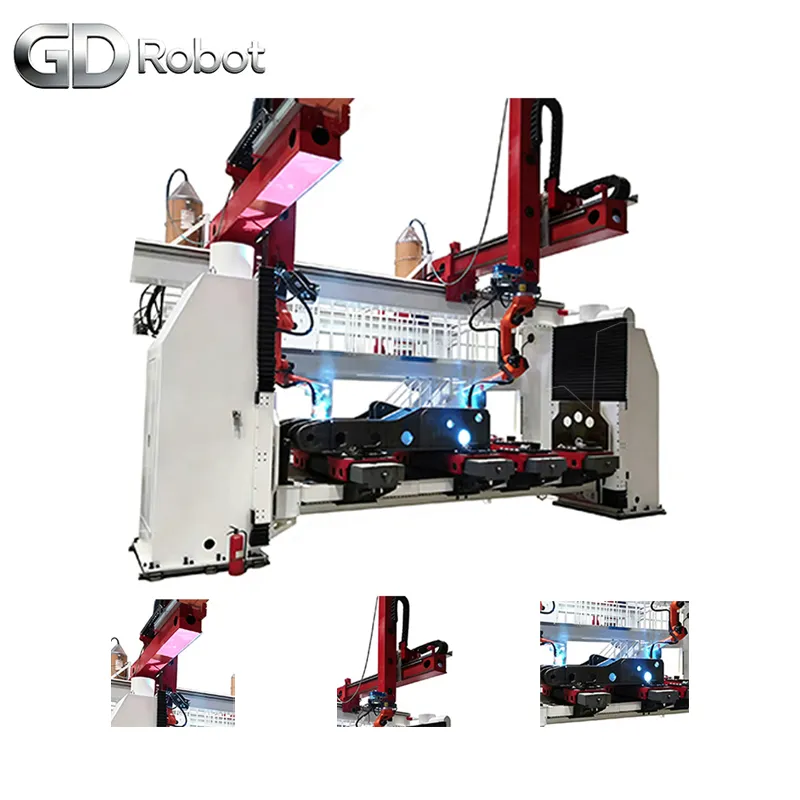

Advantage 2
  • Short installation and modular structure enables fast deployment.
  • High protection grade transmission system for high reliability in harsh environments.
  • Lightweight design with strong load capacity and lower energy consumption.
  • Supports multi-station switching for flexible production capability.
  • Compatible with mainstream robot brands with strong scalability.
🚀

Product Applications

App 1

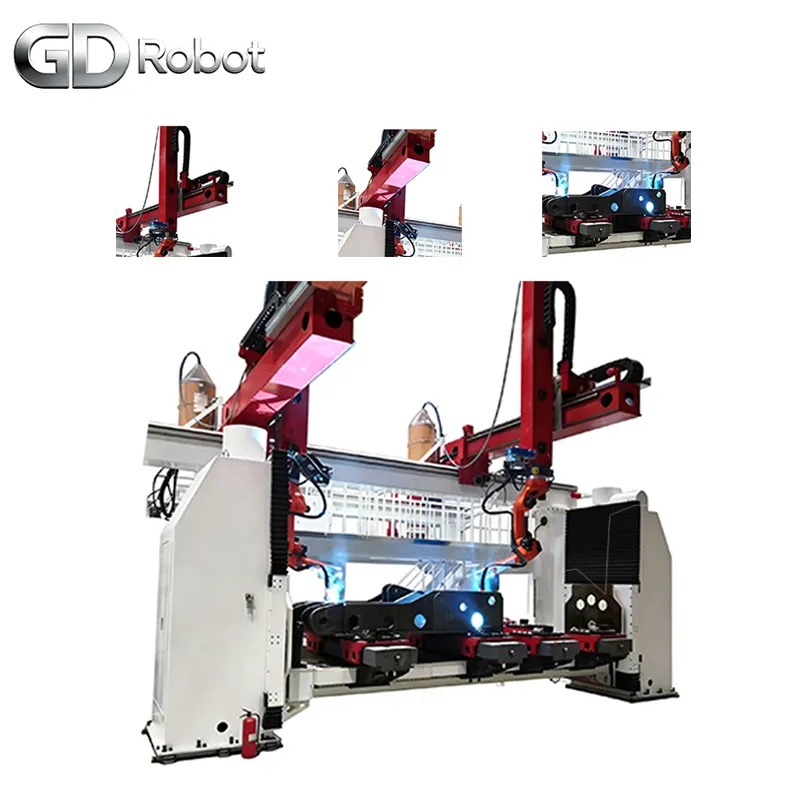

App 2
  • Aerospace: High-precision overhead motion for aircraft parts processing.
  • Clean Workshops: Special overhead rail for aseptic material transfer.
  • Automated Machining: Overhead layout for CNC machine linkage and 24h unmanned production.
  • Spraying: 360° dead-angle-free coating for large workpieces.
  • Heavy Industry: Dust-proof handling for high-temperature casting and chemical materials.
📦

Packing & Delivery

The equipment is disassembled and packed in modules, with overall wooden case or frame packaging, specifically designed for secure container transportation.

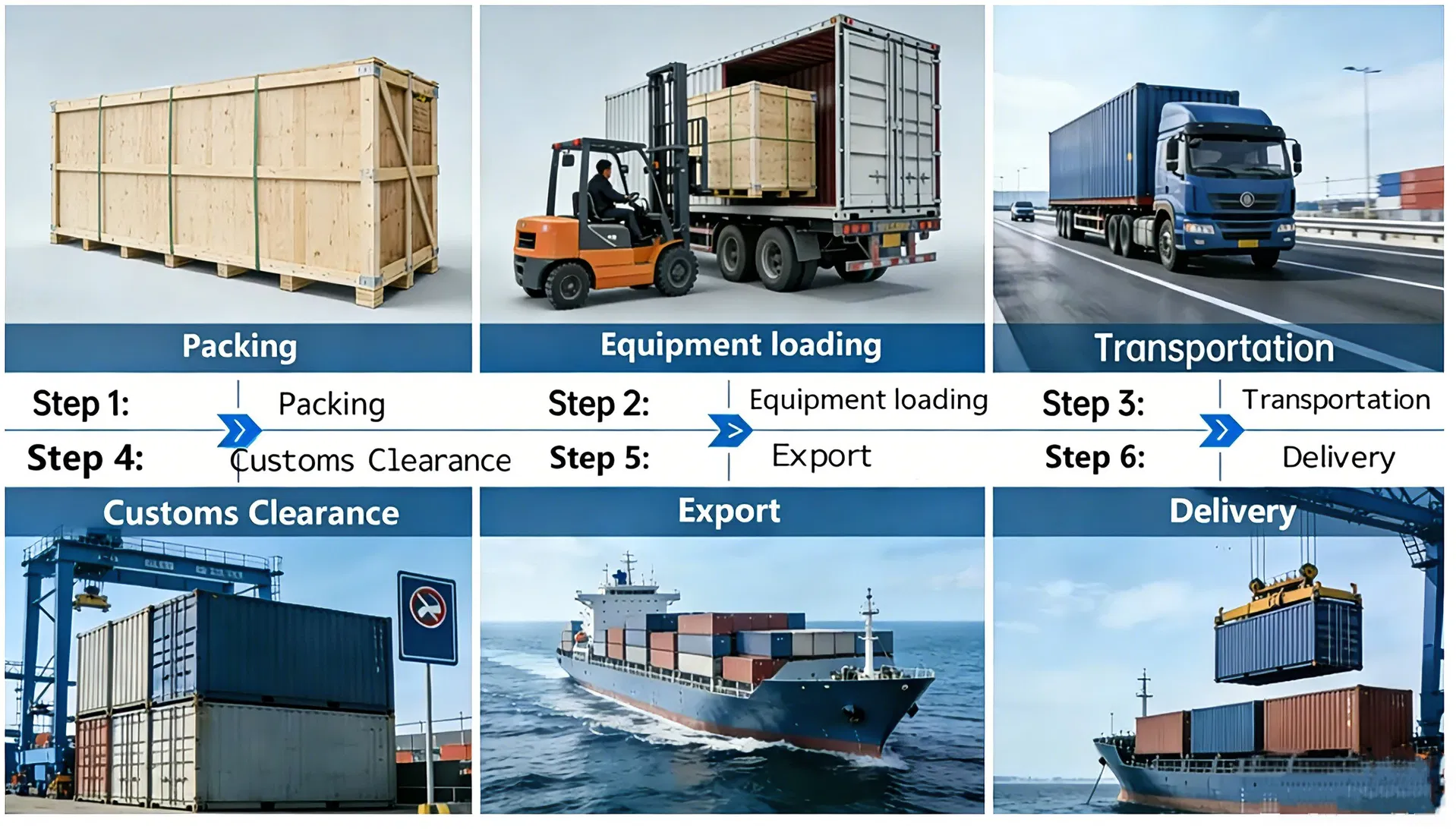

Packing Details
🔥

Related Solutions

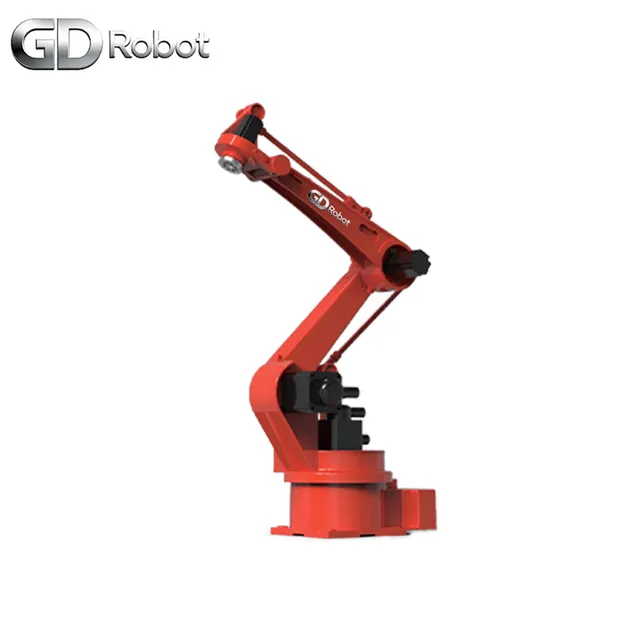

Solution 1
Solution 2

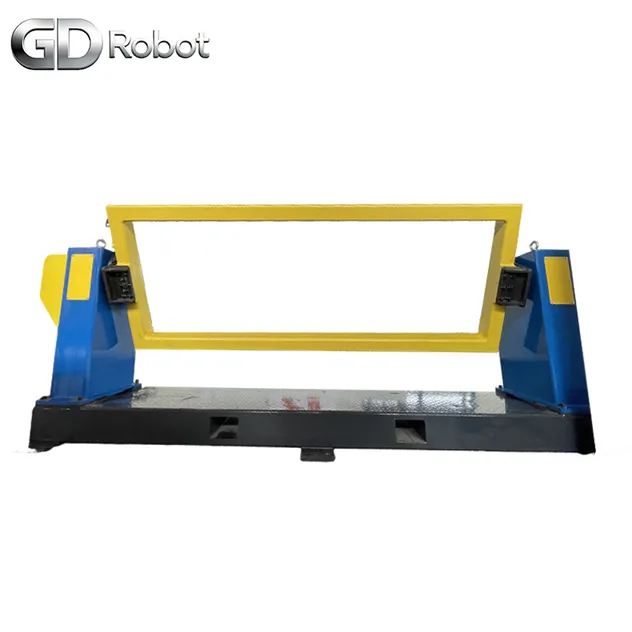

Solution 3
Solution 4
Solution 5
Solution 6
📜

Quality Certifications

Certification Banner
❓

Frequently Asked Questions

What exactly is an inverted gantry rail system?
An inverted rail is a track system mounted overhead or underneath a structure, where the robot or sliding components hang from it, saving valuable ground space and avoiding floor contamination.
Can the length of the ground or overhead rail be customized?
Yes, we offer fully customizable rail lengths, typically ranging from 6m to 24m or more, depending on your specific workstation layout and workpiece requirements.
How does the 3D vision seam tracking improve welding?
The 3D vision system automatically detects the weld seam position in real-time and compensates for thermal deformation, ensuring high precision (±0.1mm error) without manual programming.
Is the system suitable for heavy industrial environments?
Absolutely. The system features an IP50 protection class and surface anti-corrosion treatments, making it resistant to dust, oil, and the typical harsh conditions found in heavy industrial workshops.
What is the maintenance lifespan of the linear units?
With standard maintenance and lubrication, these high-quality units are designed for a service life of 10-15 years even under continuous industrial operation.
Can this system be integrated with other robot brands?
Yes, our linear motion units are highly scalable and compatible with most mainstream industrial robot brands, facilitating easy upgrades to existing production lines.
