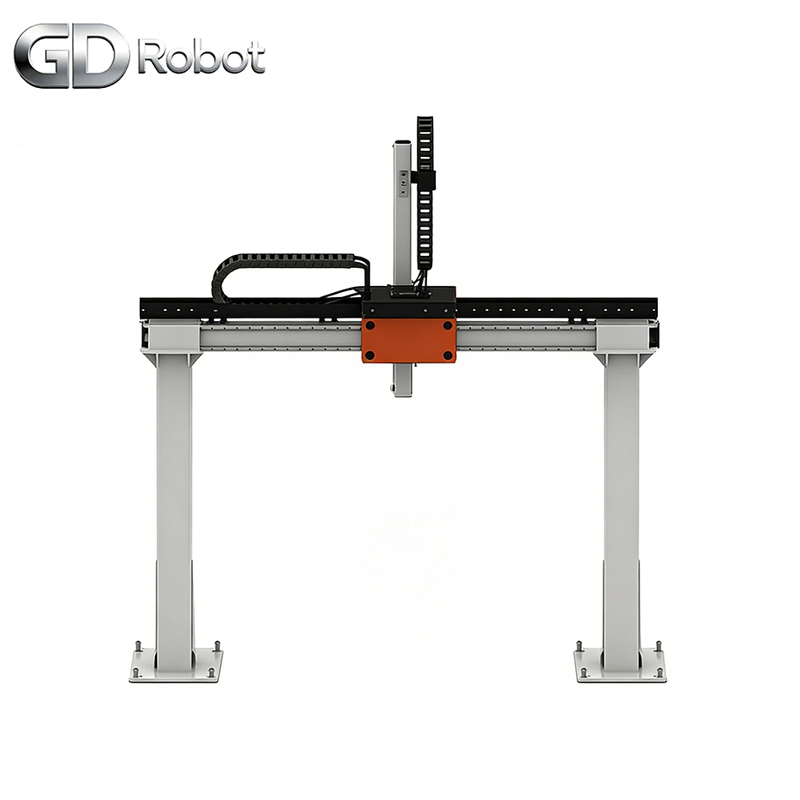

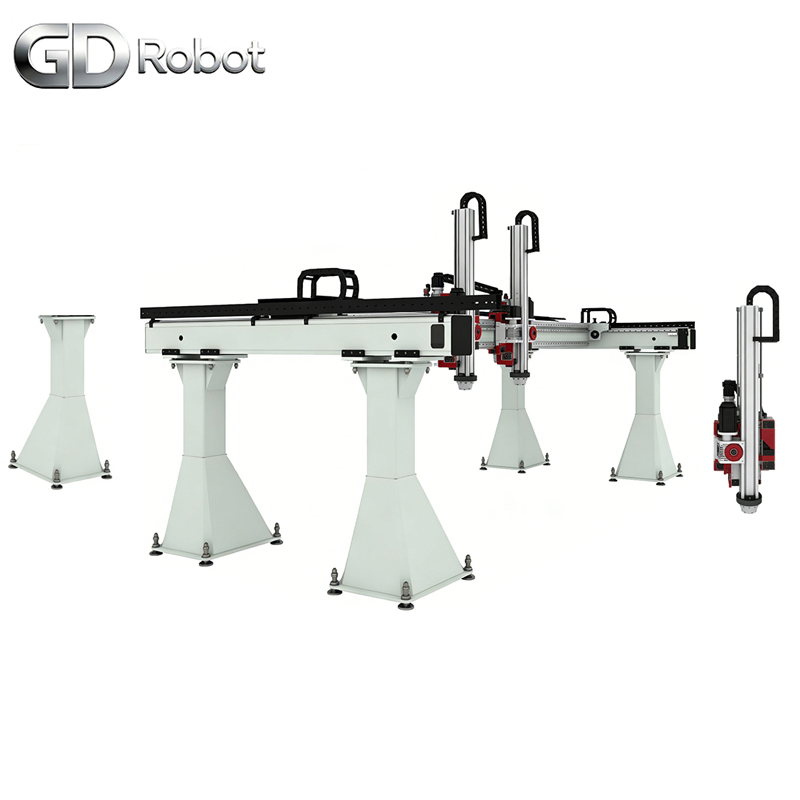

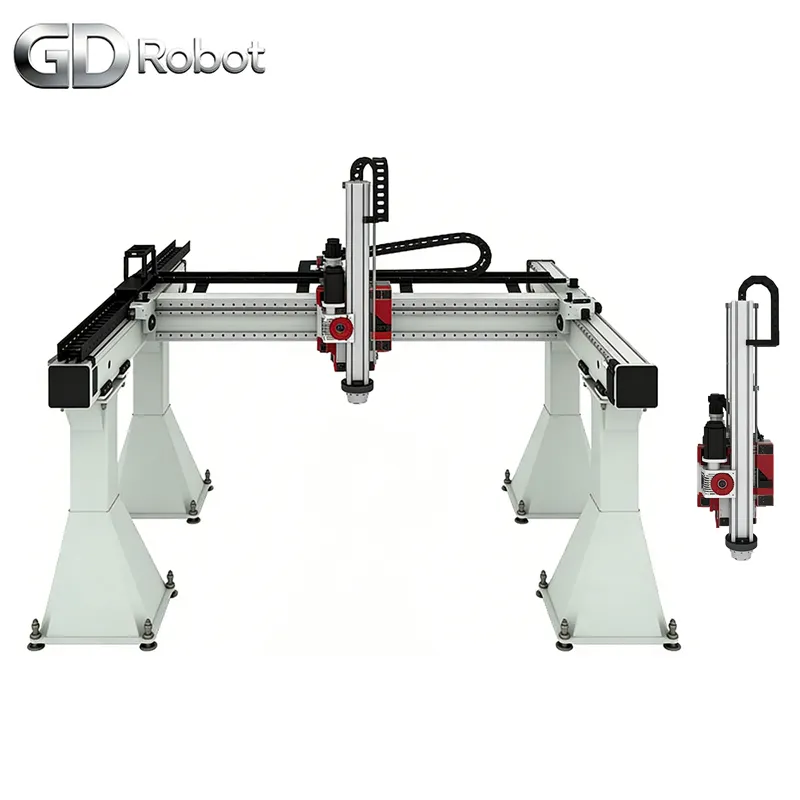

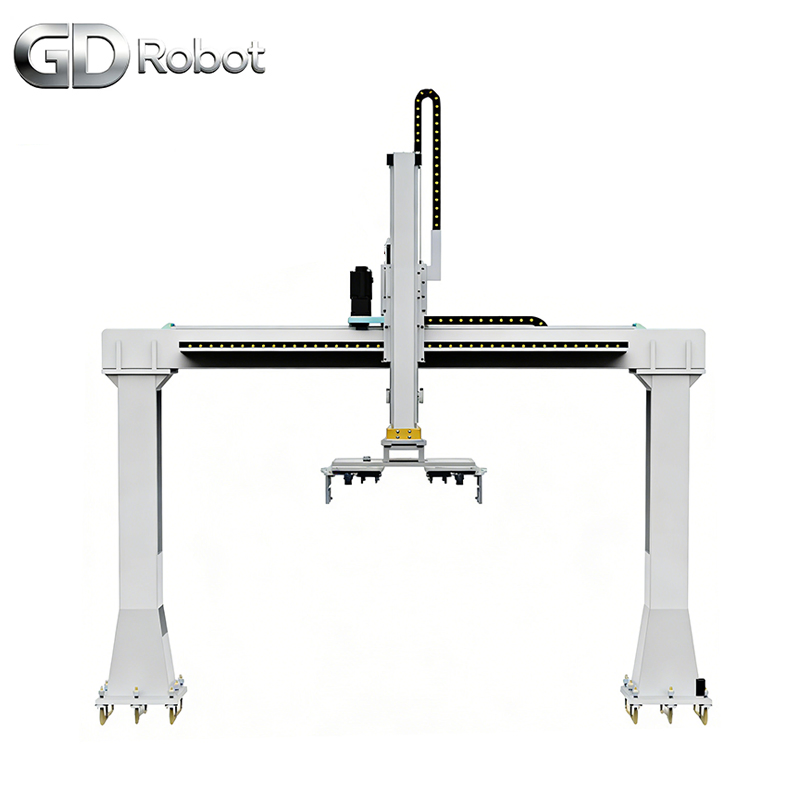

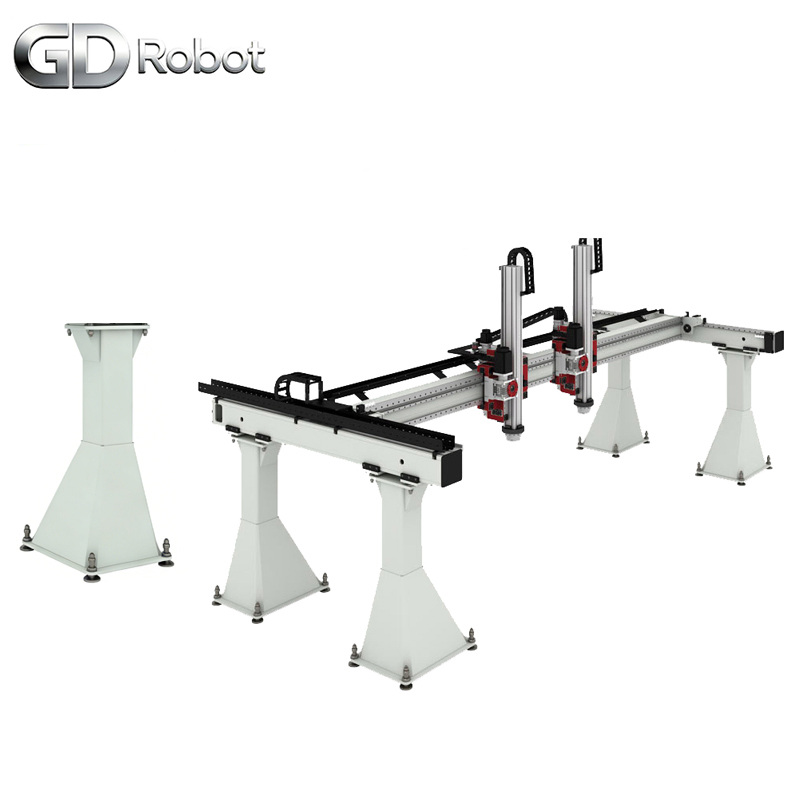

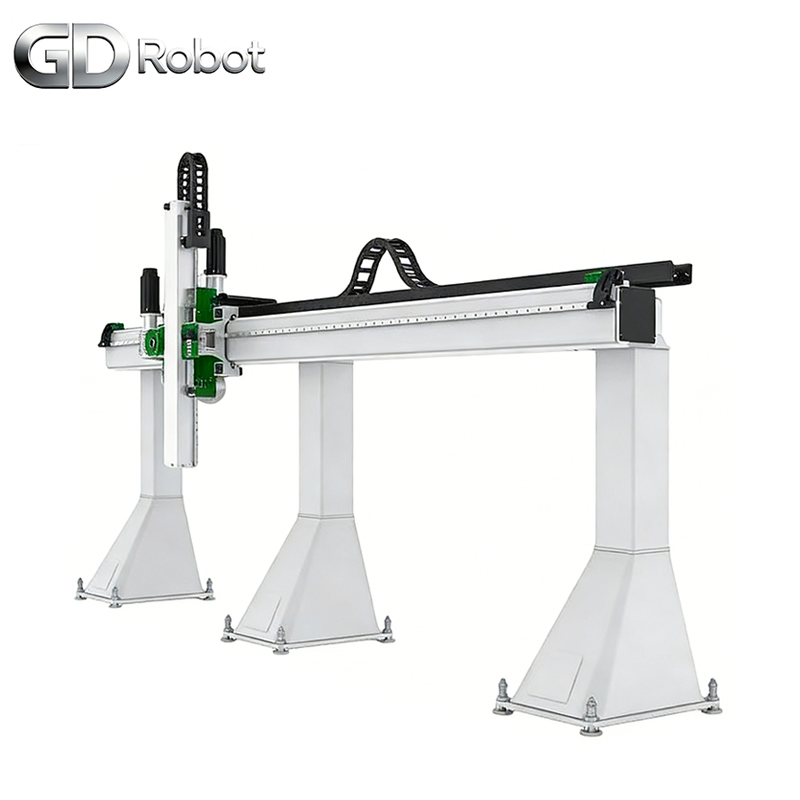

Gantry Robot for Automated Welding Application with Safety Certification and Reliable Mechanical Structure and Professional Technical Support

Application:	Automotive Industry, Metal Fabrication Industry
Control Mode:	Continuous Path Control
Degrees of Freedom:	3-Axis

Basic Specifications

Model:Truss / Gantry Robot

Drive Mode:Servo Motor + Reducer

Payload Capacity:20 Kg

Repeat Accuracy:+0.05 mm

X-Axis Speed:1.5 M/S

Z-Axis Speed:0.8 M/S

Beam Material:Q355b Square Tube / Aluminum Alloy

Control System:PLC + Motion Control Card

Certification:CE Compliant

HS Code:8479509090

Product Description

Modular steel gantry system designed for industrial robots, allowing flexible assembly and rapid deployment in automated production lines. Built with high-grade Q235 steel for maximum structural stability.

Material: Q235 Steel construction
Design: Modular 1m x 1m units
Load Capacity: 300kg per module support
Finish: Premium powder-coated surface

Technical Parameters

Parameter	Specification
Product Name	Gantry Truss Loading Robot
Payload	20kg
Repeat Accuracy	±0.05mm
Axes	2 / 3 Axis Options
Drive System	Servo Motor + Reducer
Protection	Dust-proof Cover + Safety Light Curtain
Dimension	10m × 1m × 3m (Customizable)
Annual Output	150-200 sets/year

Key Advantages

Modular design for rapid and flexible deployment
Durable, corrosion-resistant powder-coated finish
High structural load capacity optimized for industrial use
Seamless compatibility with various automation lines
Reduced structural vibration for precision tasks

Processing & Logistics

Our production involves precision laser cutting, welding, and advanced powder coating. Every unit undergoes strict quality inspection before shipping.

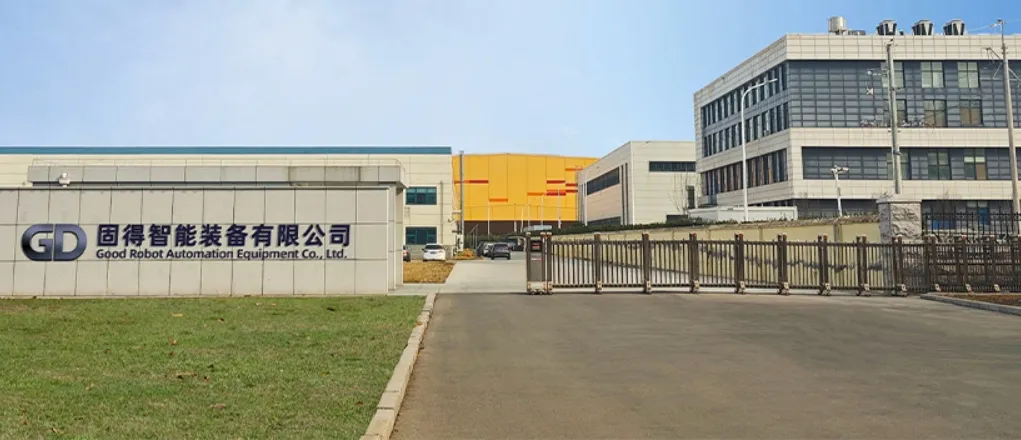

Manufacturing Capabilities

Specializing in the R&D and production of industrial robots, gantry systems, and linear guides. Our facilities produce over 60 sets of robot linear guides and 200 sets of gantry robot systems annually, serving industries from agricultural machinery to logistics and food processing.

Frequently Asked Questions

1. What is the payload capacity of the gantry robot? The standard payload capacity is 20kg, while the modular structure can support up to 300kg per module depending on the configuration.

2. What are the primary materials used in construction? The beams are typically made of Aluminum Alloy or Q355b Square Tube, while columns are constructed from Q235B steel plate for maximum durability.

3. Is the gantry system customizable for specific factory layouts? Yes, the dimensions (currently approx. 10m x 1m x 3m) and the number of axes (2 or 3 axis) can be fully customized to meet your specific requirements.

4. How accurate is the positioning of the robot? The system features a high-precision repeat positioning accuracy of +0.05 mm, making it ideal for precision welding and handling tasks.

5. What safety features are included? The system is equipped with a safety light curtain, emergency stop buttons, and safety door locks to ensure a secure working environment.

6. What type of control system does it use? It utilizes a PLC combined with a Motion Control Card, capable of supporting CNC linkage for complex automated operations.
