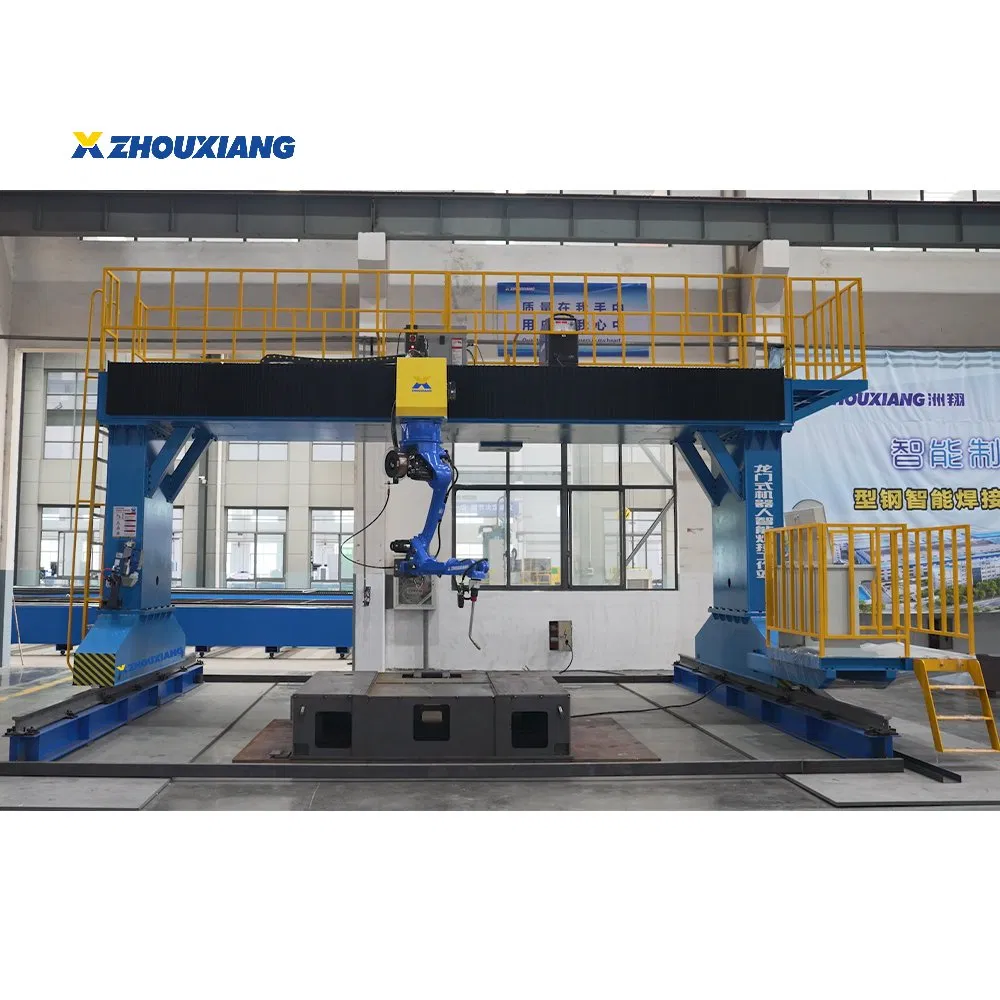

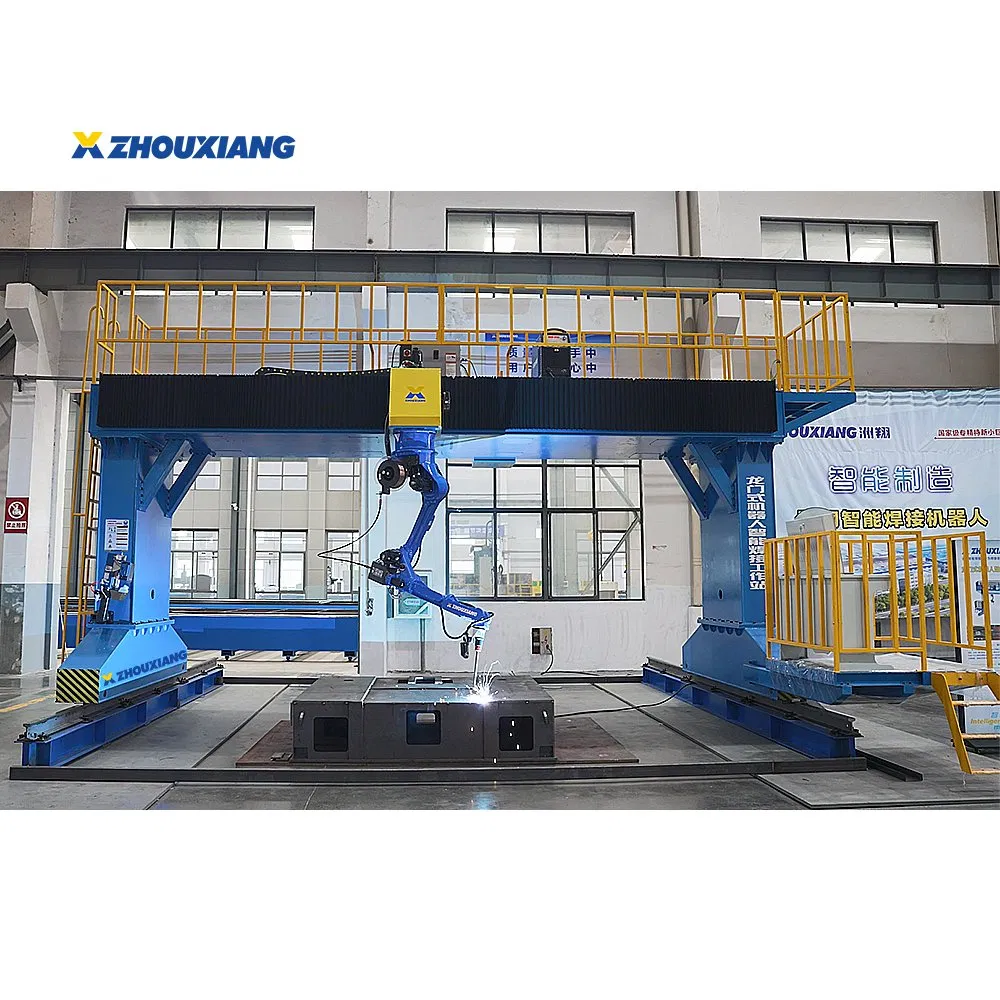

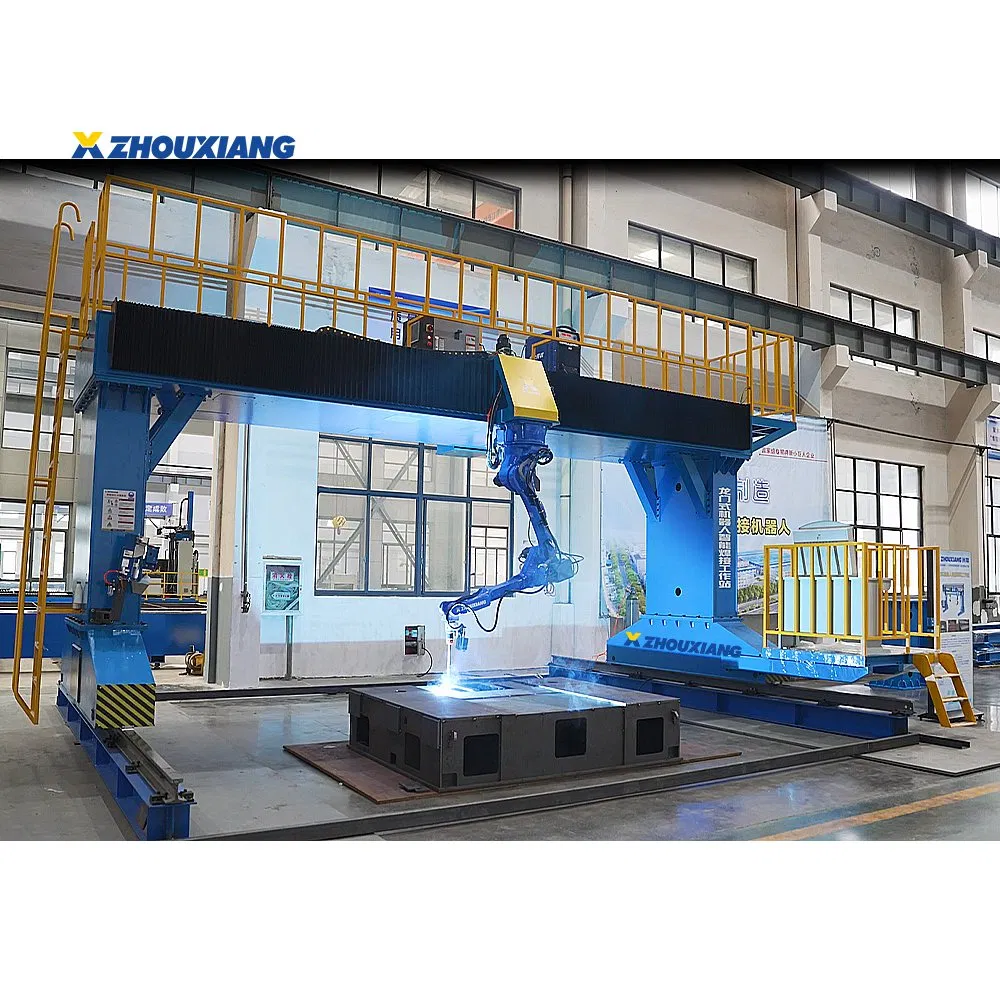

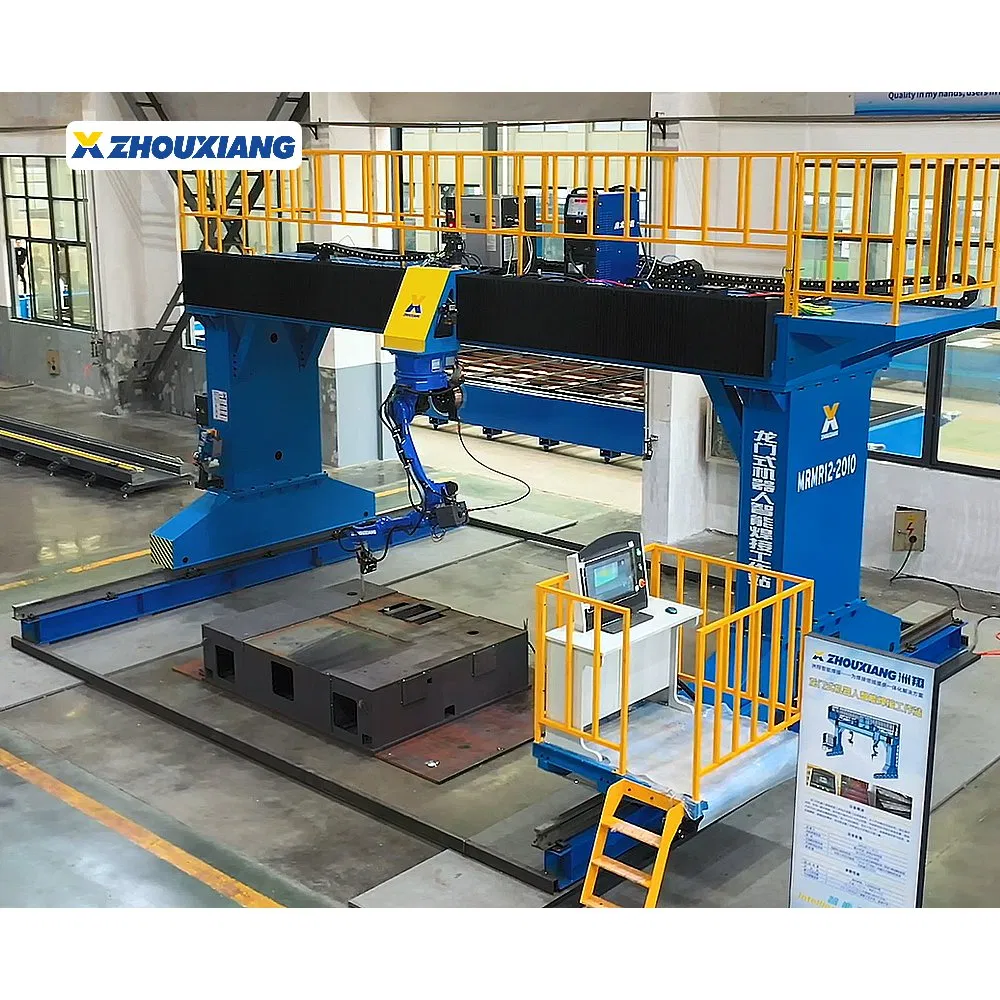

Heavy Duty Steel Structure Industrial Welding Automation Robot Workstation

Customization:	Available
Accuracy:	±0.05
Application:	Construction Industry, Metal Fabrication Industry, Shipbuilding Industry, Welding

Overview & Basic Info

Model NO.

Gantry Welding Robot

Control Mode

Continuous Path Control

Drive Mode

Electric

Type

Arc Welding Robot

Welding Speed

5 m/min

Max Work Piece Length

11m

Robot Model

M-10ID/10L(Fanuc)

Weld Seam Tracker

Cp350V

Certification

ISO, CE

HS Code

8468800000

Product Description

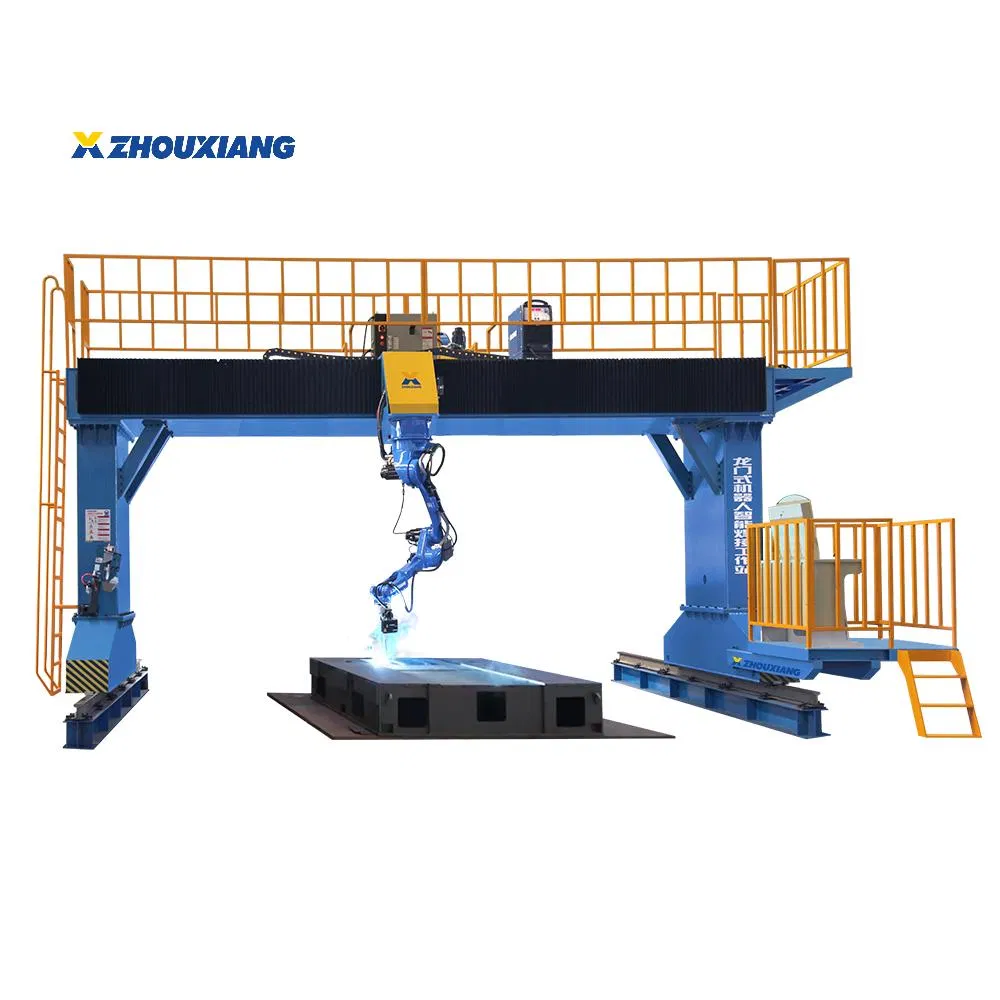

This equipment is a special welding robot for steel structures tailor-made for automated production in steel structure factories.

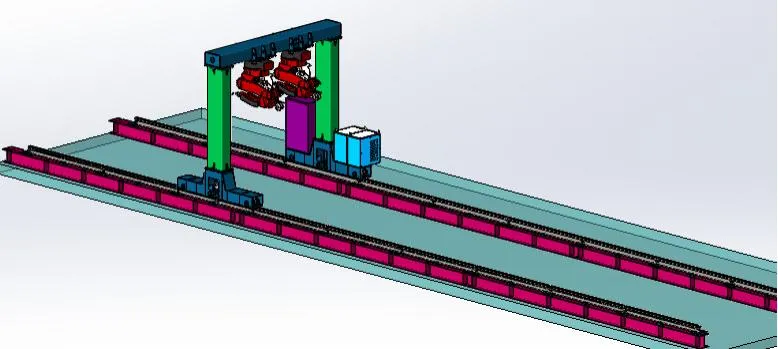

Gantry Components: Features a driving end frame, cross beam, and adjusting frame with box beam welding structure, stress-relieved for stability.
High Precision Driving: Utilizes AC servo drivers and motors to drive precision reducers through rack and pinion transmission.
Stable Operation: Equipped with horizontal guide wheels and eccentric shafts to ensure longitudinal straightness and parallelism.
Durable Rails: Moving guide rails are made of 38KG/M steel with precision-machined 45-steel racks.

Technical Parameters

Maximum Length Of Work Piece	11M
Flange Width	2.5M
Gantry moving rail gauge	2800 mm
Gantry moving motor power	2x0.75 kW
Gantry moving welding speed	100-1000 mm/min

Core Components

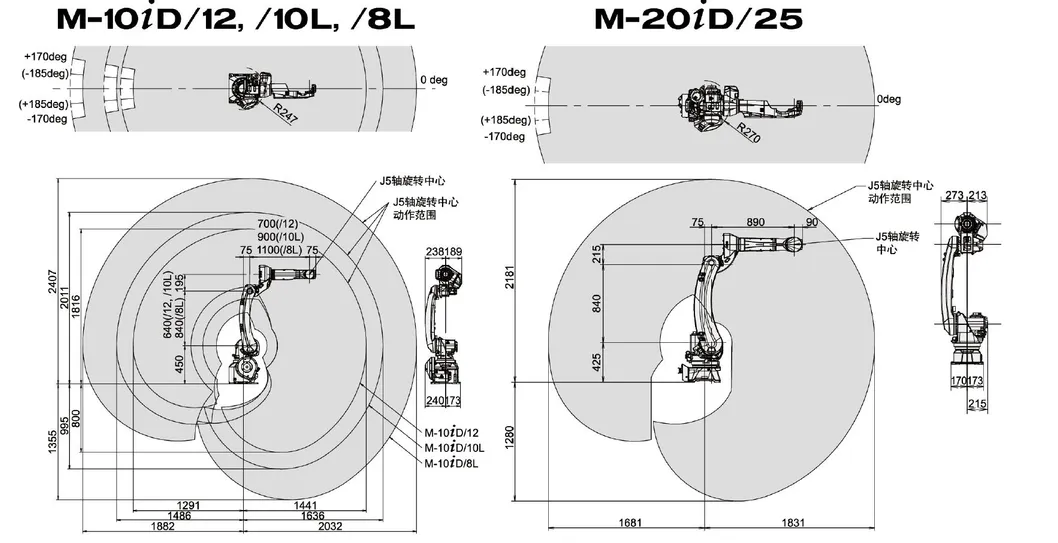

FANUC Welding Robot

High-performance welding robot integrated for precision operations.

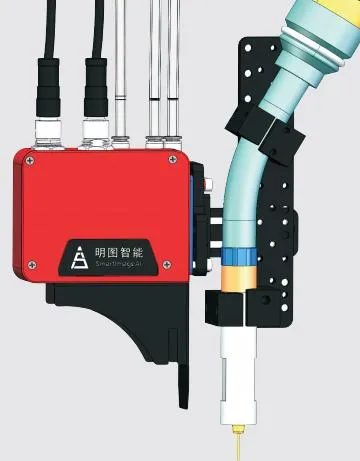

CP350V Laser Tracker

An intelligent line scanning welding seam sensor. It obtains contour information through line laser scanning to guide the robot automatically. Features include high integration, resistance to arc light/spatter, and compact size for high accessibility.

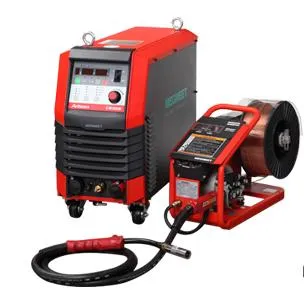

Welding Power Source

Utilizes the CM500 fully digital industrial heavy-duty intelligent welding machine. Ideal for CO2/MAG/MMA processes in rail transit, shipbuilding, and heavy steel structures.

Main Equipment & Facilities

Manufacturing Capabilities

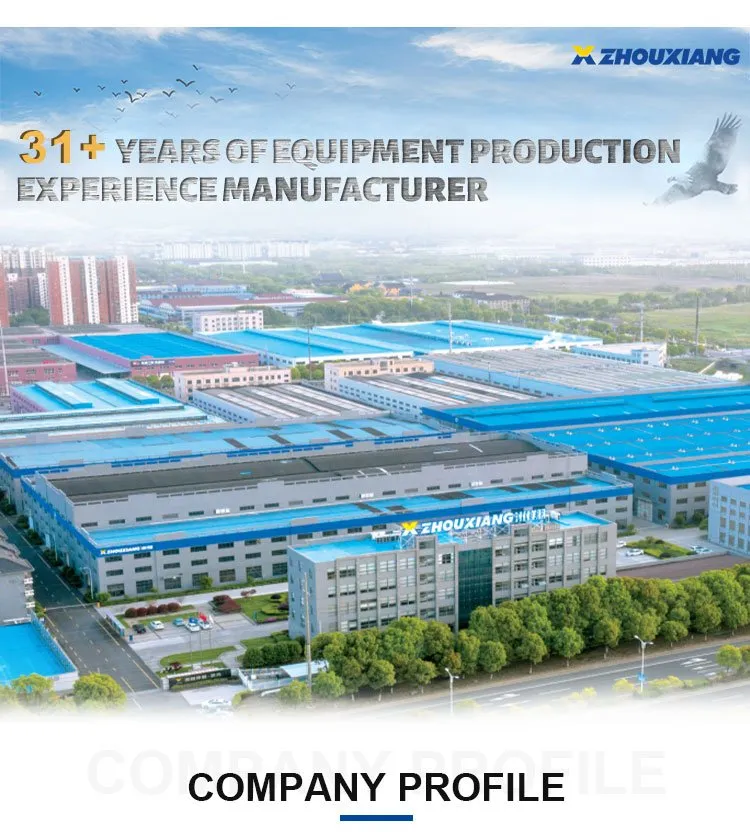

Founded in 1991, the facility covers 160,000 m2 with a dedicated team of 500 people, including over 100 engineering experts. The production line is certified to ISO9001 and CCC standards, serving global markets across Europe, America, and Southeast Asia.

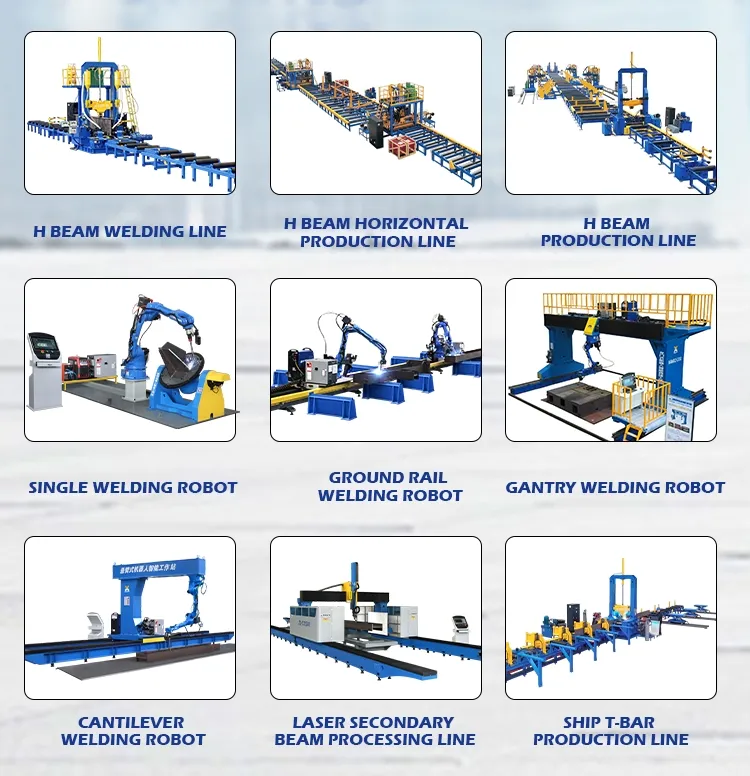

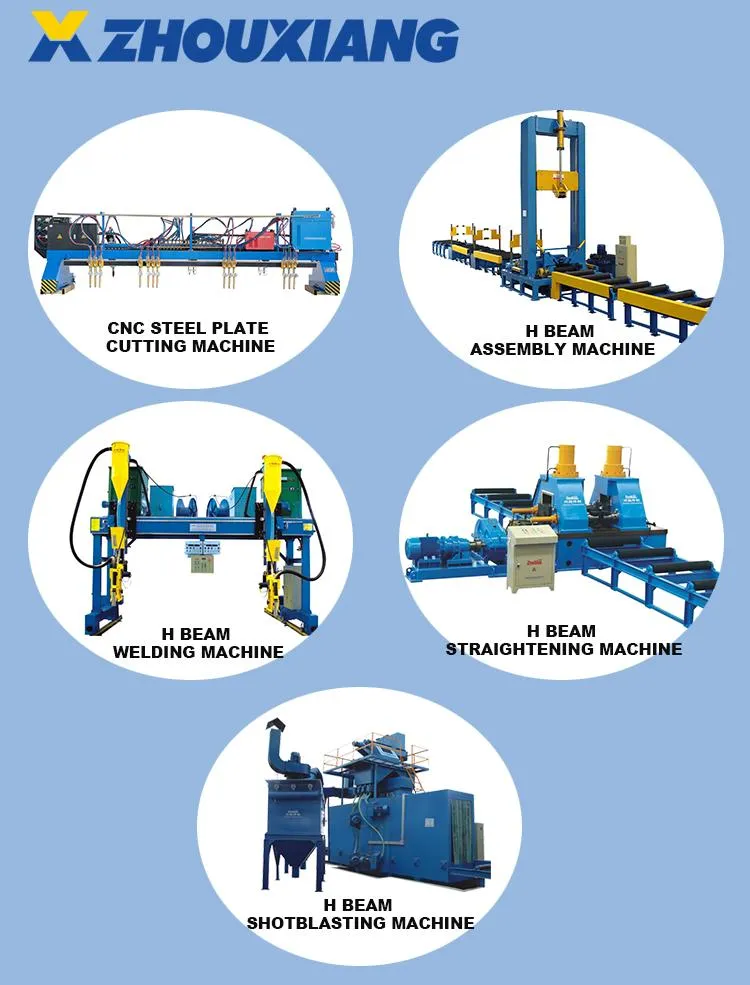

Main product ranges include CNC cutting machines, H-beam and box beam production lines, welding manipulators, milling machines, and fiber laser cutting systems.

Frequently Asked Questions

What is the maximum welding speed of this robot workstation?

The gantry moving welding speed ranges from 100 to 1000 mm/min, with a maximum general welding speed of 5 m/min.

Can this system handle large-scale steel structures?

Yes, it is specifically designed for workpieces up to 11 meters in length and flange widths of 2.5 meters.

How does the CP350V tracker improve welding quality?

The CP350V uses line laser scanning to identify weld seams in real-time, guiding the robot precisely while resisting interference from arc light and spatter.

Which robot brand is used in this equipment?

The system integrates high-quality Japanese FANUC welding robots, specifically the M-10ID/10L model.

What industries are suitable for this welding power source?

The integrated digital power source is ideal for heavy-duty carbon steel welding in rail transit, shipbuilding, steel structures, and container manufacturing.

Is the equipment certified for international use?

Yes, the products are certified to ISO and CE standards, ensuring compliance with international quality and safety requirements.
