| Model NO. | gantry robot weld |
| Control Mode | Point to Point Control |
| Drive Mode | Electric |
| Type | Arc Welding Robot |
| Welding Speed | 5 m/min |
| Maximum Length of Work Piece | 11m |
| Flange Width | 2.5m |
| Gantry Moving Rail Gauge | 2800 mm |
| Gantry Moving Motor Power | 2X0.75 Kw |
| Gantry Moving Welding Speed | 100-1000 mm/Min |
| Robot Model | M-10ID/10L(Fanuc) |
| Weld Seam Tracker Model | Cp350V |
| Welding Power Source Model | Megmeet Cm500/Custom |
| Certification | ISO, CE |
| After-Sales Service | 1 Year |
| Package Size | 2104.00cm * 753.00cm * 834.00cm |
| Package Gross Weight | 9950.000kg |

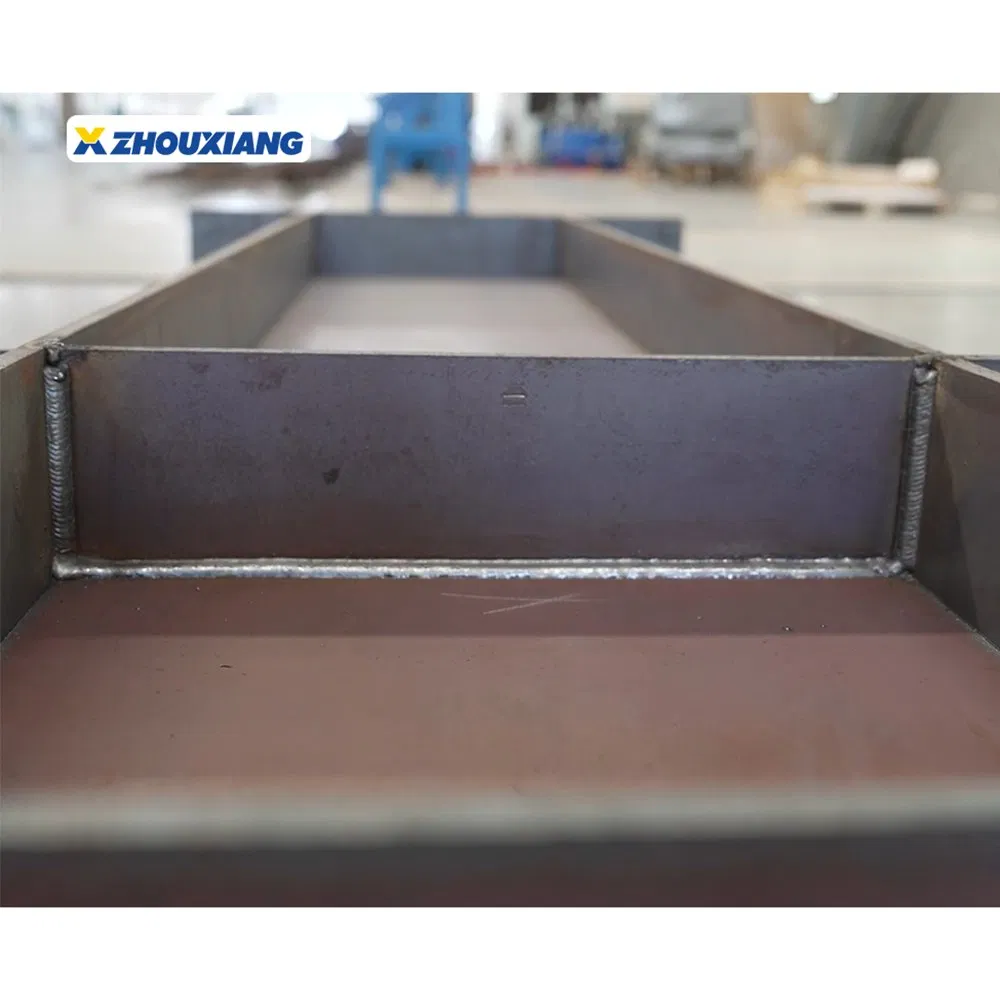

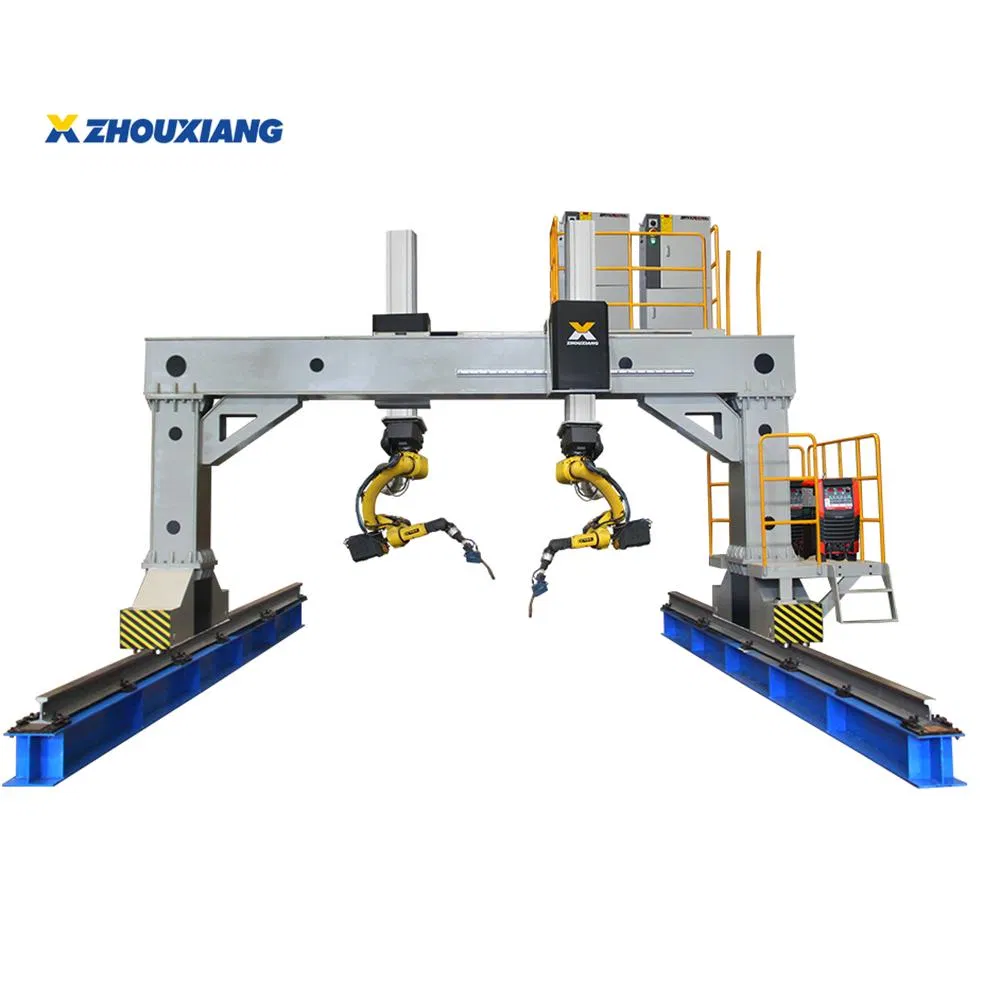

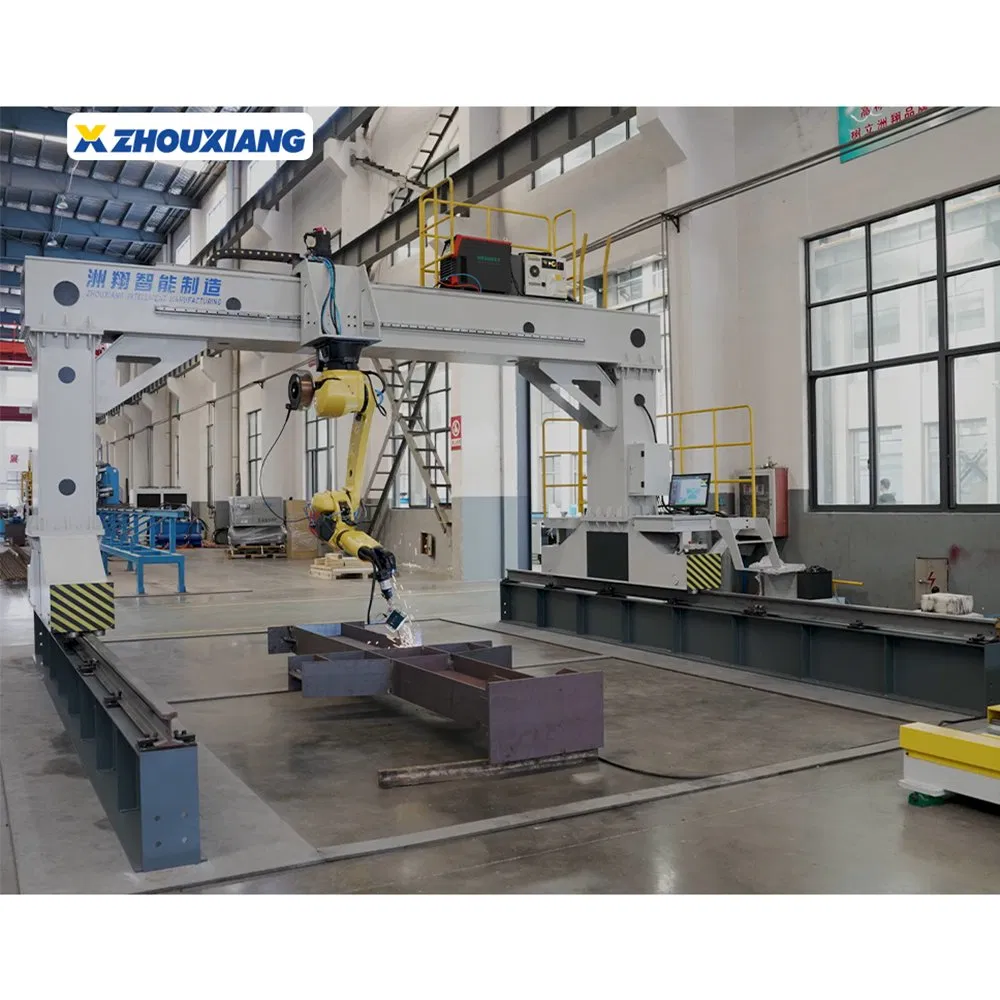

This equipment is a special welding robot for steel structures tailor-made for automated production in steel structure factories.

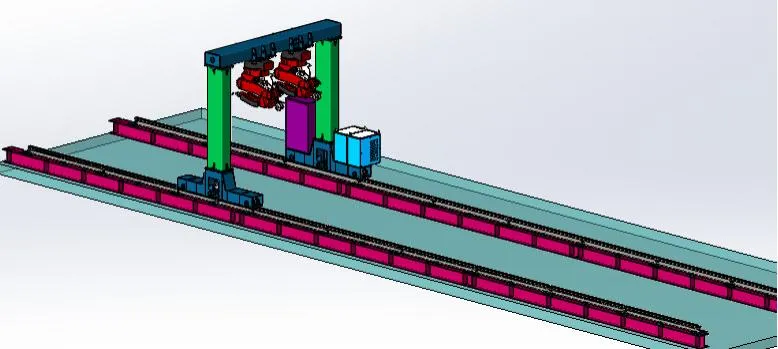

1. The equipment is mainly composed of guide rail parts, gantry parts, robot adjustment parts, electric control box parts, and welding power supply parts.
2. The gantry components consist of a driving end frame, a cross beam, and an adjusting frame. These adopt box beam welding structures with stress relief treatment for high stability and a compact appearance.
3. The machine utilizes a Japanese Panasonic AC servo driver and motor to drive a Japanese SHIMPO reducer. Rack and pinion transmission, combined with eccentric shaft guide wheels, ensures accuracy during operation.
4. The moving guide rails are made of 38KG/M steel with precision-machined racks (45 steel). Bilateral drive methods ensure longitudinal straightness and parallelism.
| Maximum Length Of Work Piece | 11M |
| Flange Width | 2.5M |
| Gantry moving rail gauge | 2800 mm |
| Gantry moving motor power | 2x0.75 kW |
| Gantry moving welding speed | 100-1000 mm/min |

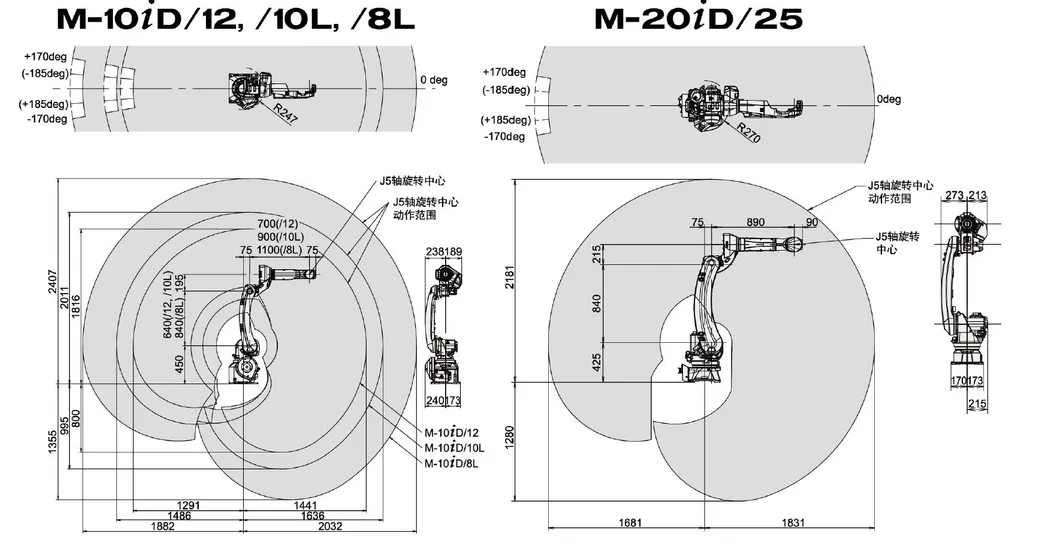

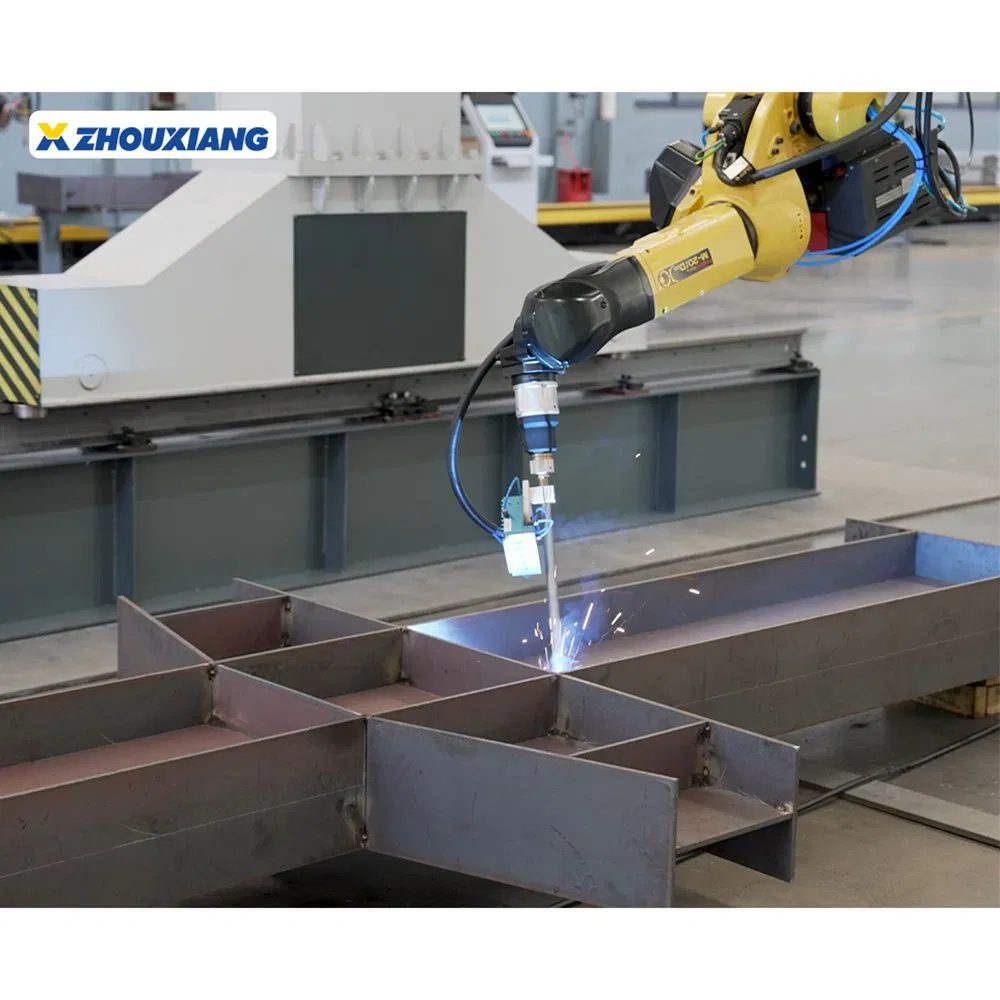

Utilizes Japanese FANUC welding robots for high precision and durability.

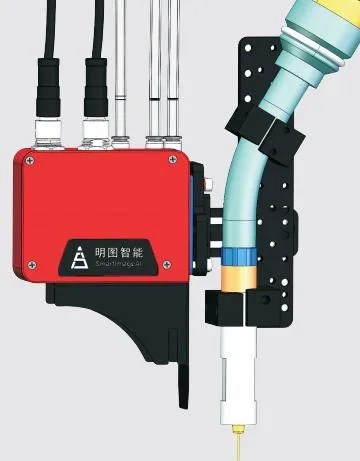

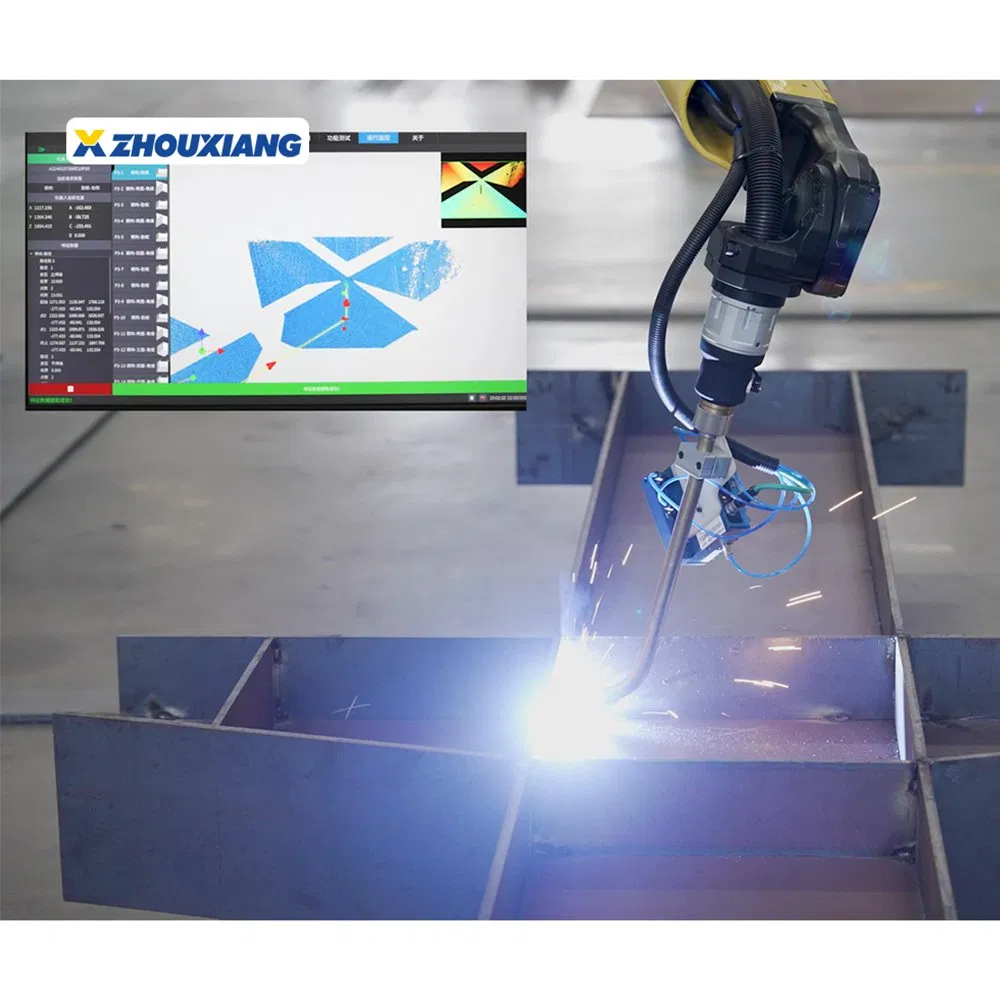

The CP350V is an intelligent line scanning welding seam sensor. It obtains contour information via laser scanning to guide the robot automatically. It features high integration, arc light resistance, and spatter resistance, operating without an external computer.

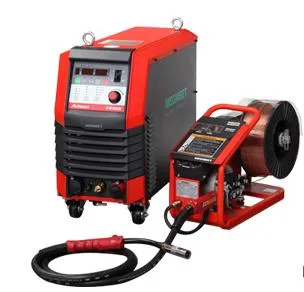

Using Megmeet CM500: a fully digital industrial heavy-duty CO2/MAG/MMA intelligent welding machine. It is designed for harsh environments and heavy load operations in industries like shipbuilding and steel structures.

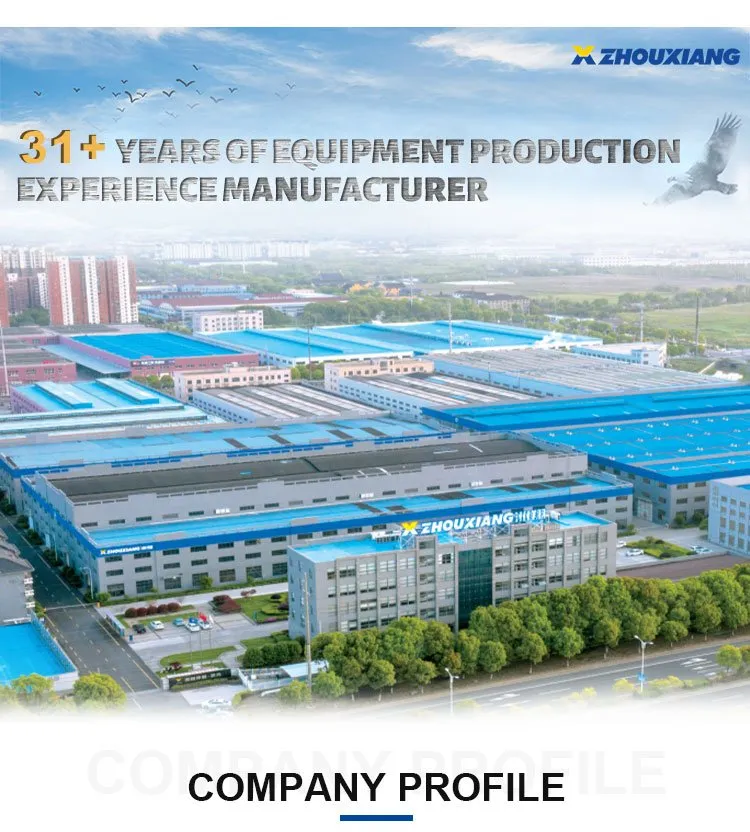

Founded in 1991, our company covers an area of 160,000 m2 with over 500 staff members, including more than 100 engineering and technical personnel. We are certified to ISO9001 and many products hold CCC certification. Our solutions are sold globally across Europe, America, Southeast Asia, and the Middle East.

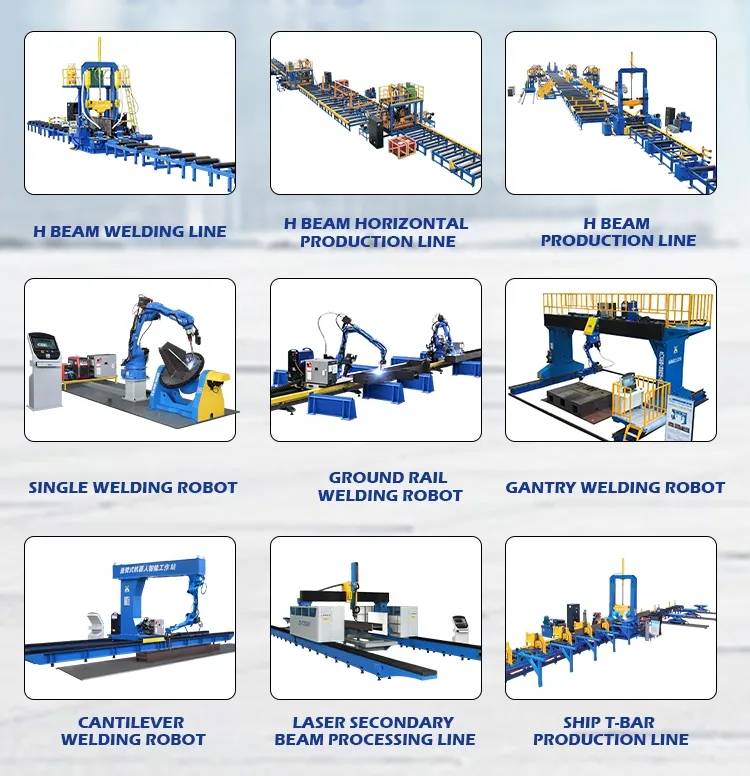

Our main products include CNC cutting machines, H-beam and box beam production lines, welding manipulators, rotators, positioners, milling machines, shot blasting machines, and fiber laser cutting machines.
