Customization: Available
Accuracy: �0.1 mm
Application: Construction Industry, Metal Fabrication Industry, Shipbuilding Industry, Welding
Send Inquiry

Product Description

i

Basic Information

Model NO. gantry robot weld Control Mode Continuous Path Control
Drive Mode Electric Type Arc Welding Robot
Welding Speed 5 m/min Maximum Length of Work Piece 11m
Flange Width 2.5m Gantry Moving Rail Gauge 2800 mm
Motor Power 2X0.75 Kw Robot Model M-10ID/10L(Fanuc)
Weld Seam Tracker Cp350V Welding Power Source Megmeet Cm500/Custom
Certification ISO, CE Warranty 1 Year
✓

Product Description

Automatic Welding Robot

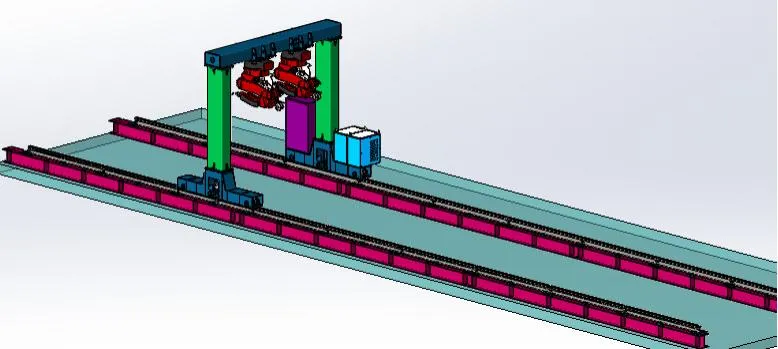

Welding Robot Details

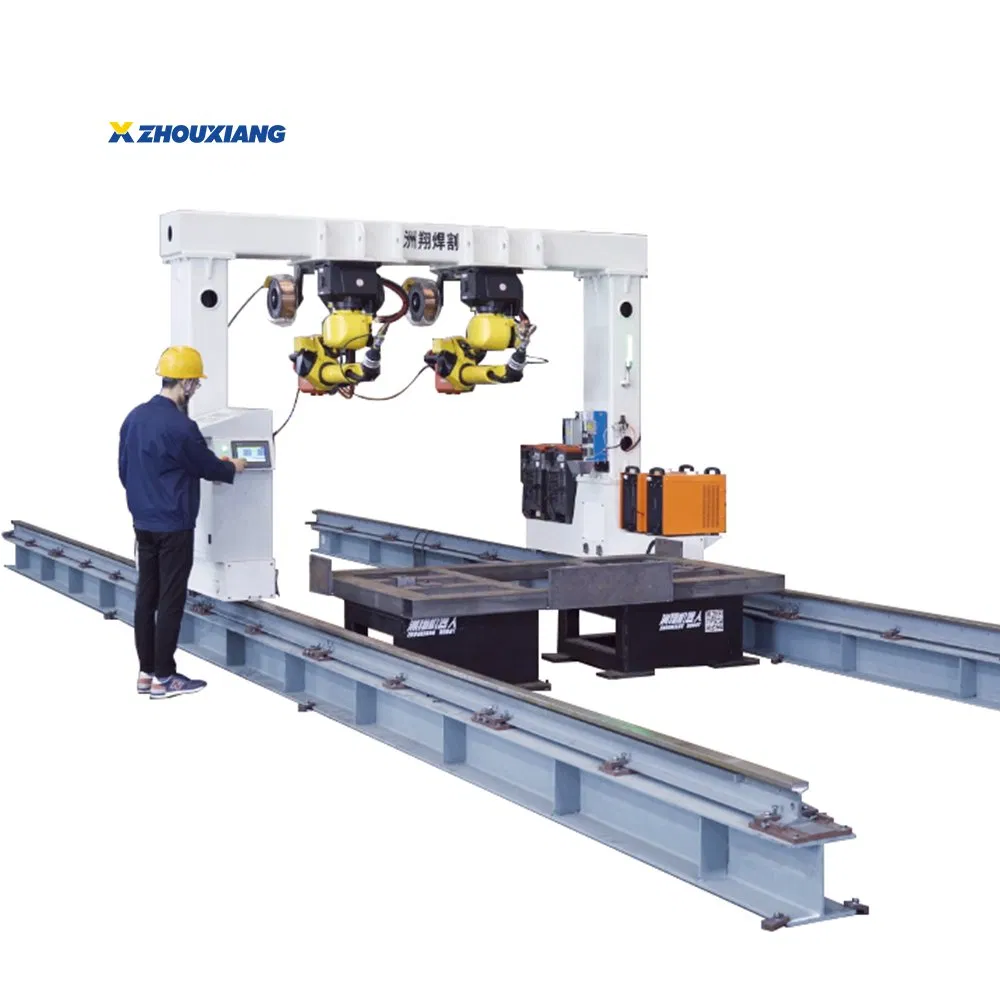

This equipment is a special welding robot for steel structures tailor-made for automated production in steel structure factories.
  • ● The equipment is mainly composed of: guide rail parts, gantry parts, robot adjustment parts, electric control box parts, and welding power supply parts.
  • ● Gantry components consist of a driving end frame, a cross beam, and an adjusting frame with box beam welding structure, undergoing stress relief treatment for beautiful appearance and compact structure.
  • ● Bilateral drive method using AC servo drivers and motors with rack and pinion transmission ensures high stability and accuracy.
  • ● Moving guide rails (38KG/M) equipped with precision-machined racks for longitudinal straightness and parallelism.
⚙

Technical Parameters

Maximum Length Of Work Piece11M
Flange Width2.5M
Gantry Moving Rail Gauge2800 mm
Gantry Moving Motor Power2x0.75 kW
Gantry Moving Welding Speed100-1000 mm/min

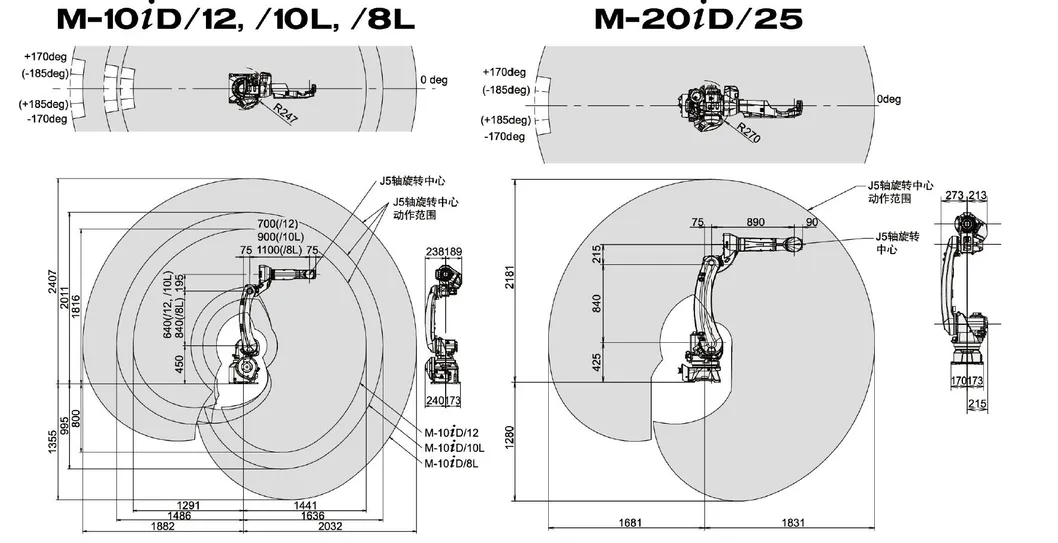

Welding Robot Parameters
★

Core Components

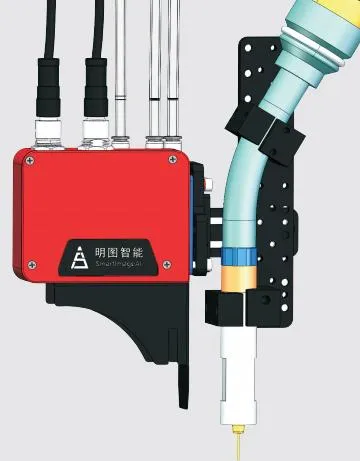

CP350V Laser Tracker

CP350V is an intelligent line scanning welding seam sensor. It obtains contour information through laser scanning to guide the robot for automatic welding. Highly integrated, resistant to arc light and spatter, and requires no external computer for processing.

CP350V laser tracker

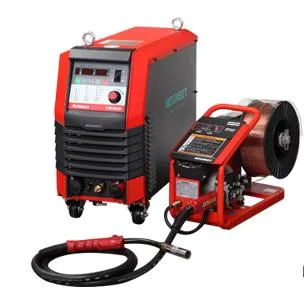

Welding Power Source

Welding Power Source

Equipped with a fully digital industrial heavy-duty CO2/MAG/MMA intelligent welding machine. Suitable for carbon steel welding in rail transit, shipbuilding, steel structures, and heavy machinery industries.

▦

Industrial Solutions

The product range includes CNC cutting machines, H beam production lines, box beam production lines, welding manipulators, rotators, positioners, and fiber laser cutting machines.

Product Range 1
Industry Applications
Production Facility
Workshop View
Machine Assembly
Equipment Showcase
Heavy Machinery
Factory Floor
?

Frequently Asked Questions

What is the maximum welding speed of the gantry robot?
The system offers a maximum welding speed of 5 m/min, with gantry moving welding speeds adjustable between 100-1000 mm/min.
Which robot model is utilized in this equipment?
This equipment uses the high-performance Japanese FANUC M-10ID/10L robot model.
How does the laser tracker improve the welding process?
The CP350V laser tracker uses line laser scanning to obtain seam contours, allowing the robot to automatically adjust and complete welds with high accuracy while resisting arc light and spatter.
What industries are suitable for this welding robot?
It is ideal for steel structure factories, rail transit, shipbuilding, automobile manufacturing, and heavy industrial machinery applications.
What kind of drive system does the gantry use?
The gantry utilizes a bilateral drive method featuring Japanese Panasonic AC servo drivers and motors combined with high-precision rack and pinion transmission.
What materials can the welding power source handle?
The Megmeet CM500 power source is a fully digital intelligent machine widely used for various carbon steel welding tasks in heavy-load environments.
