Basic Specifications
| Model NO. | GD-SXW-D-X |
| Drive Mode | Servo Motor Drive |
| Installation | Inverted Cantilever Gantry |
| Working Width | 3.3~3.5m |
| Working Height | 2.7m |
| Rail Length | 12m (Customizable) |
| Positioning Accuracy | ±0.05mm |
| Welding Efficiency | 0.3~0.5m/Min |
| Power Supply | 380V/50Hz (3-Phase) |
| Protection Class | IP50 |
| Certification | ISO9001 |
Product Description

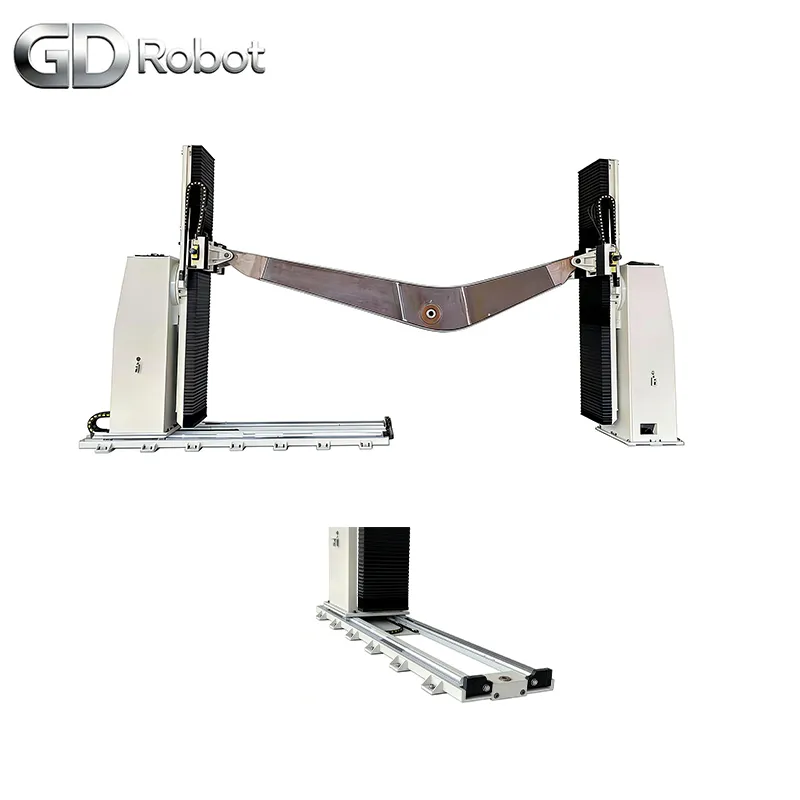

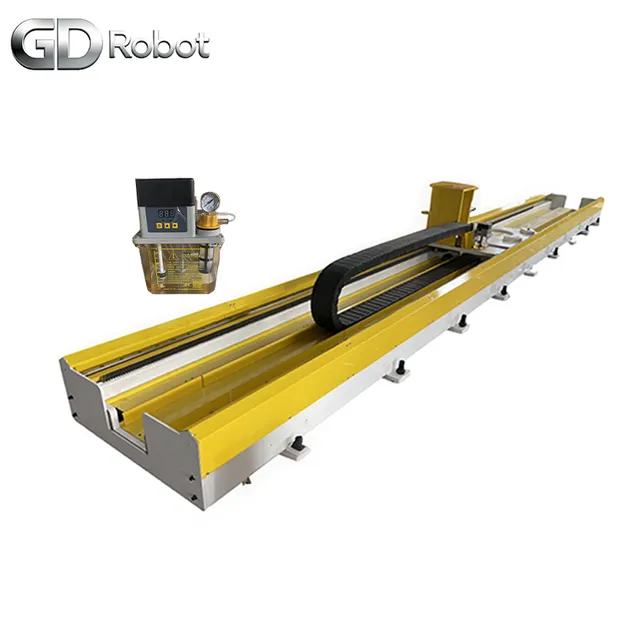

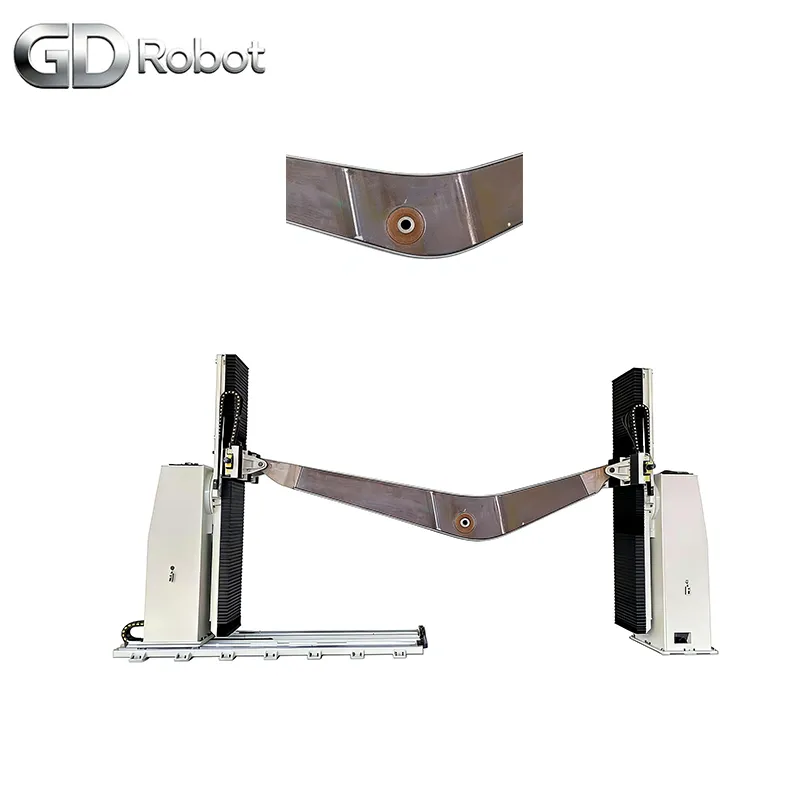

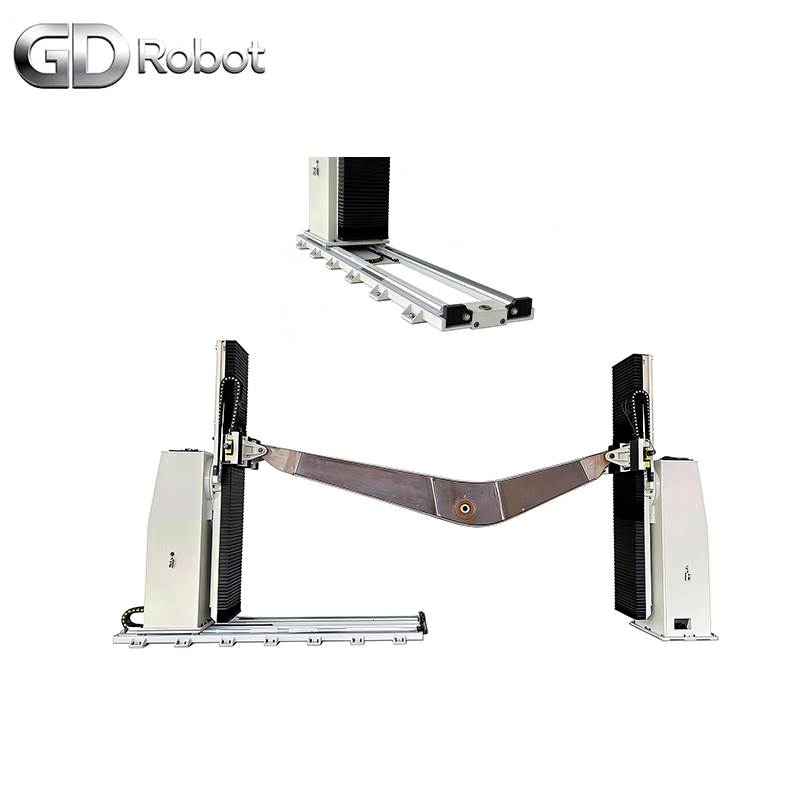

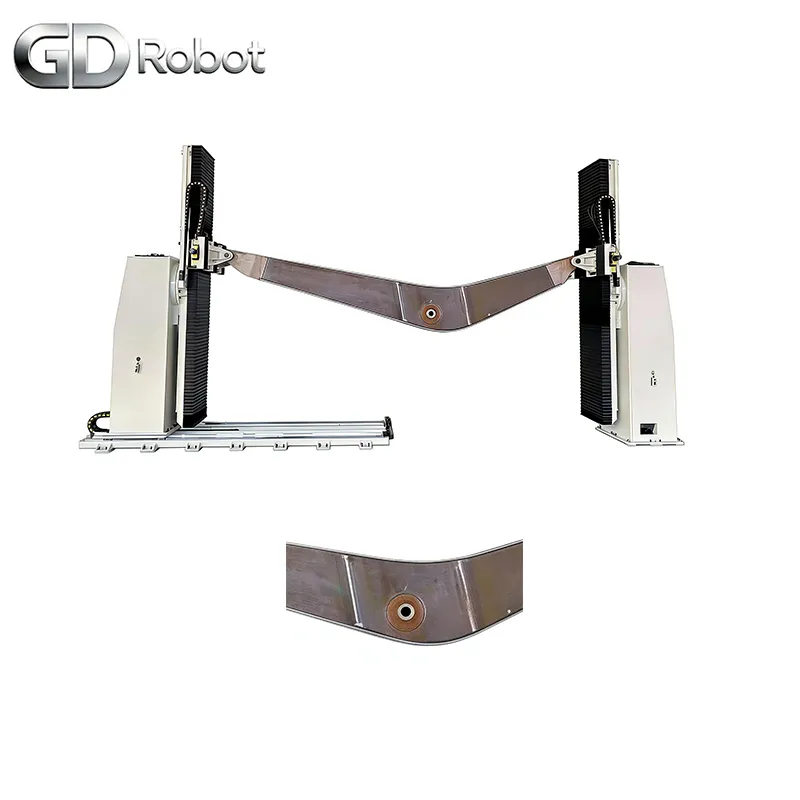

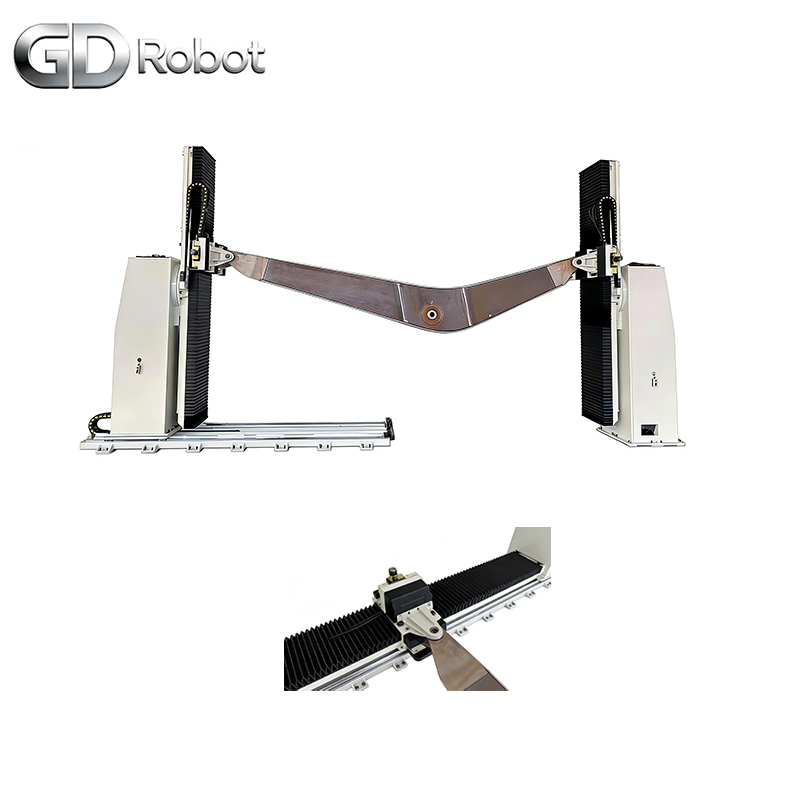

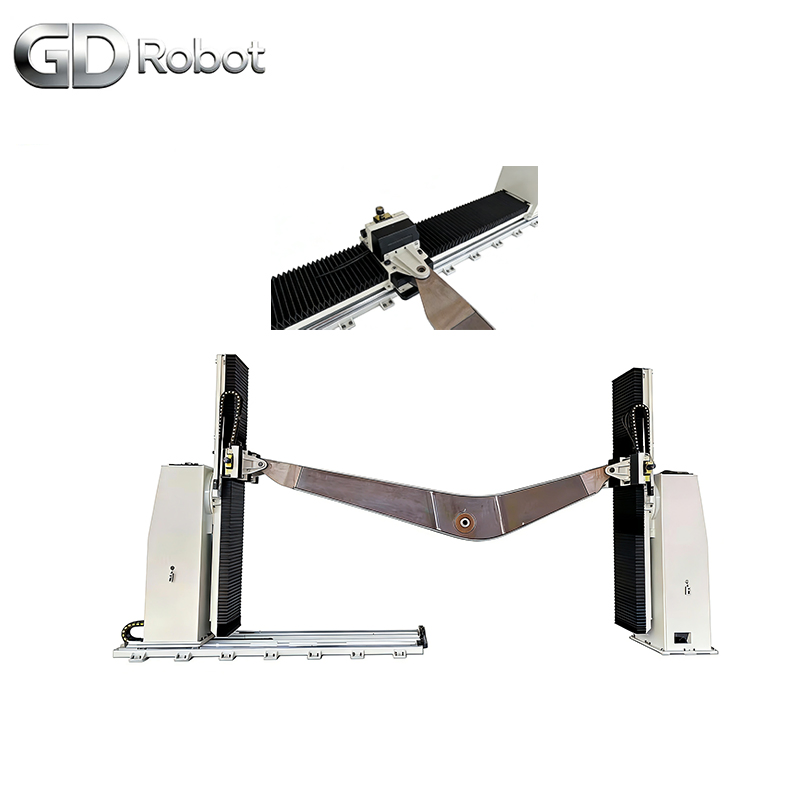

The inverted floor rail conveyor system is a highly efficient and stable automated conveying solution, widely used in machining, automotive manufacturing, welding lines, and other industrial applications. Featuring an inverted structure, the rail is installed at ground level or lower positions, allowing workpieces to move smoothly with high precision.
As a direct manufacturer, we provide full OEM customization services, including structural design, size adjustment, load capacity configuration, and complete production line integration.
Technical Specification
| Item | Details |
|---|
| Axes | 6-axis robot + external axes (expandable to 7/8/9 axes) |
| Control System | Teach-free welding system with 3D vision seam tracking |
| Application Scenarios | Welding of H-beams, rib plates, brackets in steel structure, shipbuilding, and heavy industry. |
| Core Advantages | Teaching-free programming, automatic seam tracking, thermal deformation compensation. |
| Drive Type | Servo motor drive (gear and rack transmission) |
Our Advantages
- Factory direct supply with competitive pricing
- OEM/ODM customization available
- Stable operation with high load capacity
- Labor-saving and efficiency improvement
- Easily integrated with robots and CNC machines
- Long service life with low maintenance cost
Product Applications
- Automotive parts production
- Construction machinery
- CNC machining automation
- Robotic welding lines
- Assembly systems
Product Category
- Inverted floor rail

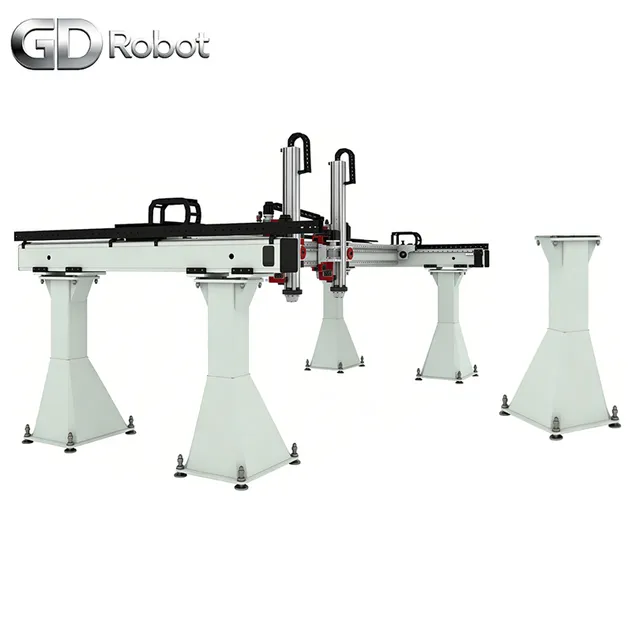

- Gantry robot transfer
- Roller conveyor line
- Chain plate conveyor
- Intelligent solutions
Packing & Delivery
The equipment is disassembled and packed in modules, with overall wooden case / frame packaging, suitable for container transportation.
Manufacturing Excellence

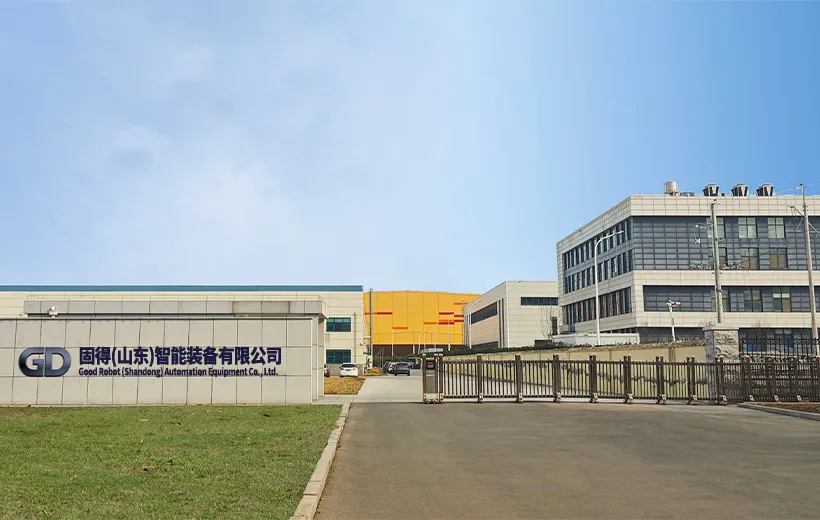

Established in 2018, we are a high-tech enterprise specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. We provide customers with customized automation solutions across various industrial fields including welding, palletizing handling, metal processing, bending, and spraying.
With a strong production capacity, we produce more than 60 sets of robot linear guides, over 1,000 welding positioners, and more than 200 sets of gantry robot systems annually. We offer customized production as well as OEM/ODM services for global industrial needs.
FAQ
Q1: Do you support customization?
A1: Yes, we offer full OEM/ODM services including size, load capacity, and structural design tailored to your specific requirements.
Q2: What is the estimated delivery time?
A2: Usually, the delivery time is between 20–40 days, depending on the project complexity and customization needs.
Q3: Do you provide installation and technical support?
A3: Yes, we provide comprehensive remote technical support and can arrange for on-site engineer services if necessary.
Q4: Can this system be integrated with existing CNC machines?
A4: Absolutely. Our systems are designed for high compatibility and can be integrated with various industrial robots and CNC machines.
Q5: What is the Minimum Order Quantity (MOQ)?
A5: The minimum order quantity is 1 set. We cater to both small workshop needs and large-scale industrial projects.
Q6: What certifications do your products hold?
A6: Our production processes and management systems are ISO9001 certified to ensure consistent quality.
