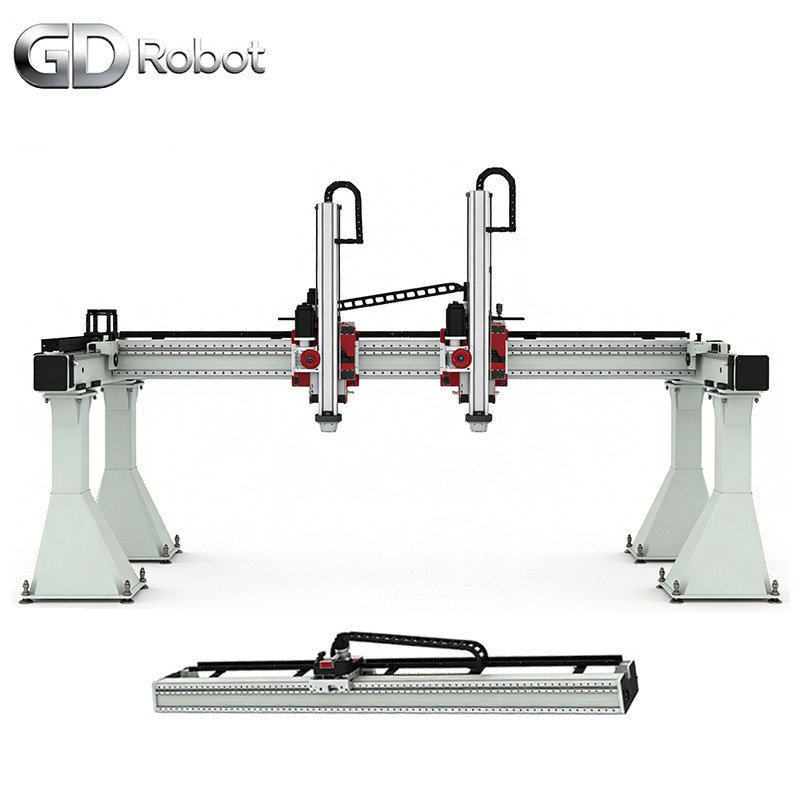

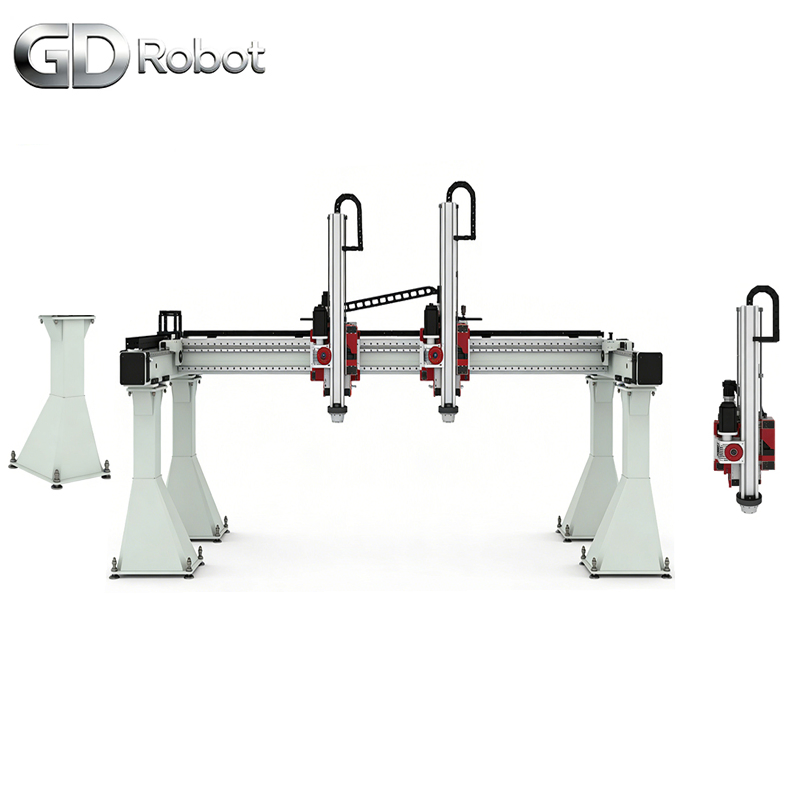

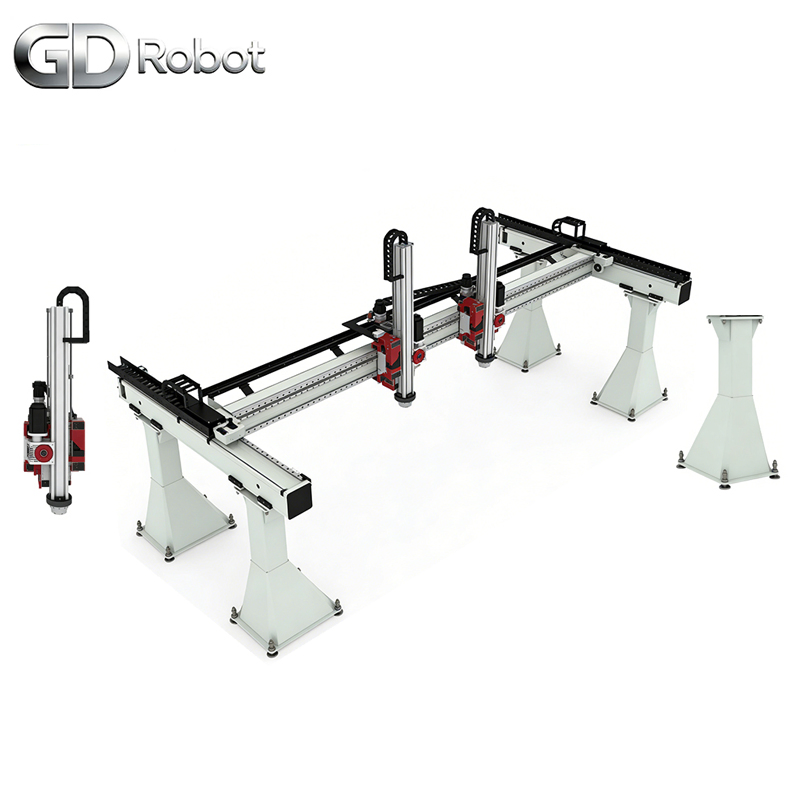

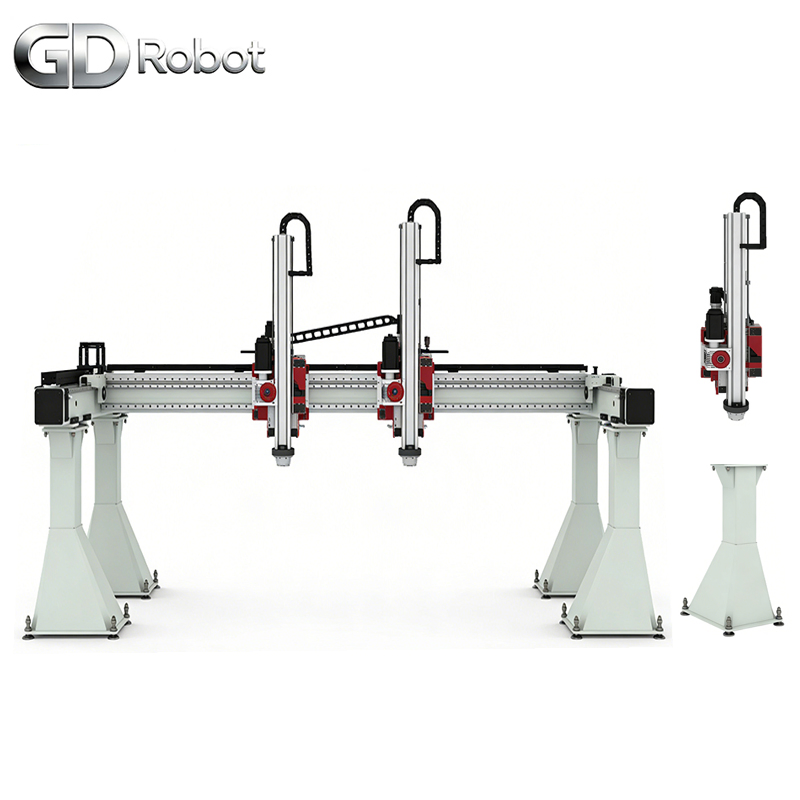

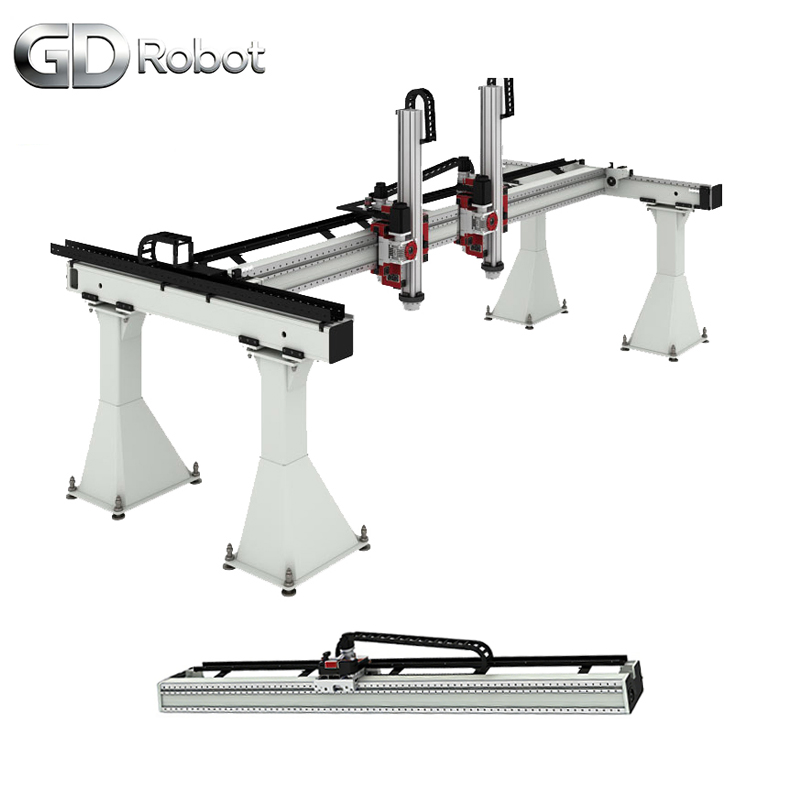

High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry
High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry
High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry
High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry
High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry
1 / 5
High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry
High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry
High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry
High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry
High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry

High-Rigidity Heavy-Duty Truss Integrated Truss Manipulator for Automated Welding and Assembly in Automotive Industry

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
truss
Drive Mode
Servo Motor + Reducer
Type
Gantry Robot
Payload Capacity
20 Kg
Accuracy
+0.05 mm
X-Axis Speed
1.5 M/S
Z-Axis Speed
0.8 M/S
Acceleration
2 M/S2
Control System
PLC + Motion Control Card
Beam Material
Q355b / Aluminum Profile
Origin
China
Capacity
200 Sets/Year

Product Description

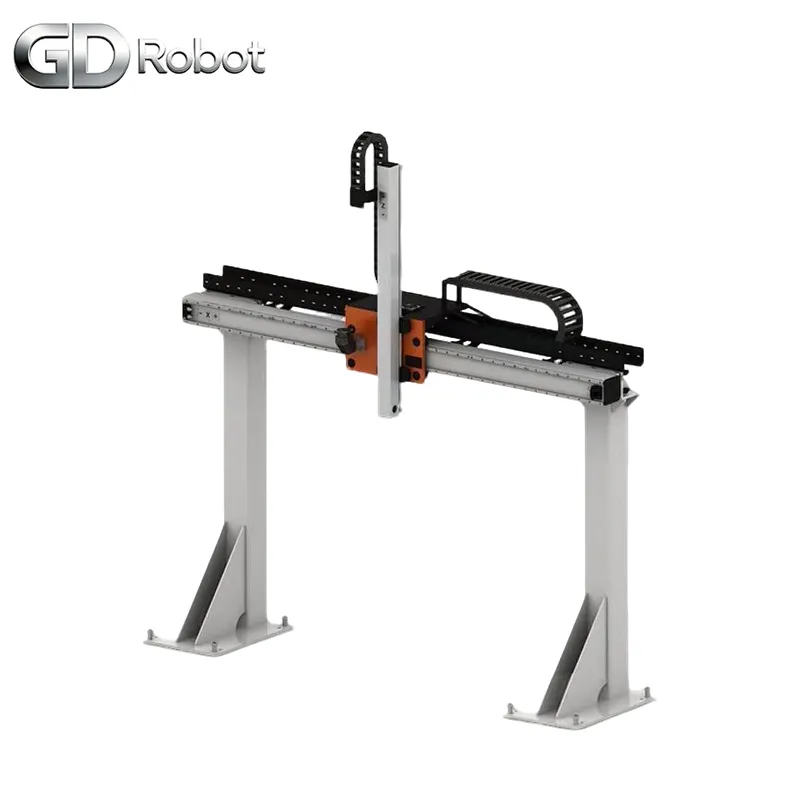

Truss Manipulator
Product Introduction

Heavy-duty steel gantry frame providing robust support for industrial robots and automated assembly lines. Designed for long-term stability and precision.

Key Advantages
  • • High structural rigidity
  • • Corrosion and wear-resistant
  • • Supports heavy robotic loads
  • • Modular and easy to install
  • • Compatible with automated production lines

Technical Specification

Parameter Specification Details
Product NameGantry Truss Loading Robot
Payload20kg
Repeat Accuracy±0.05mm
Axes2/3 Axis
Max SpeedX:1.5m/s, Z:0.8m/s
DriveServo Motor + Reducer
MaterialAluminum Beam + Q235B Column
ControlPLC + Motion Card (CNC Linkage)
Dimension10m × 1m × 3m (Customizable)
Processing Procedure
  • Laser cutting and welding
  • Professional powder coating
  • High-precision drilling
  • Modular assembly preparation
  • Strict quality inspection
Product Cases
  • Enhanced stability for large industrial robots
  • Improved precision in automated assembly
  • Automated welding in automotive industry
  • Efficient palletizing & handling solutions

Packing & Logistics

Packing

Professional Facilities

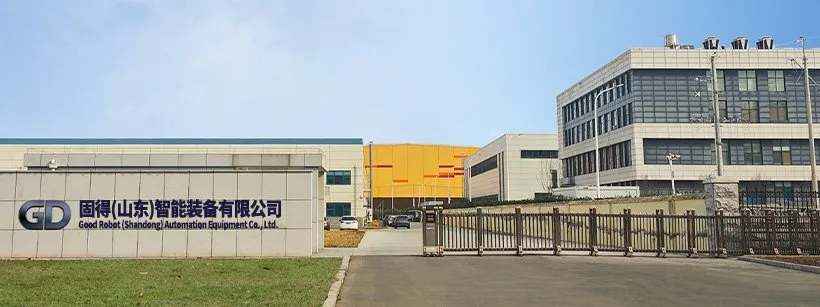

Facility

Specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. Providing customized automation solutions for welding, palletizing, metal processing, and spraying.

Production Line
Application 1
Application 2
Application 3
Project 1
Project 2

Frequently Asked Questions

What is a robot truss?
It is a gantry linear robot mainly used for automatic loading, unloading, and handling within industrial production lines.
What is the difference between a truss robot and a 6-axis robot?
A truss robot features a longer stroke, higher speed, and larger load capacity for linear movements, while a 6-axis robot offers more multi-directional flexibility.
What is the typical repeat positioning accuracy?
Standard accuracy is ±0.05–±0.2 mm. High-precision configurations can reach up to ±0.02 mm.
Can the robotic gripper be replaced?
Yes, our systems support quick replacement of pneumatic, electric, and suction-based grippers to suit different workpieces.
Is the maintenance of the gantry system complicated?
No, it is designed for industrial durability. Maintenance mainly involves regular lubrication and periodic inspection of fasteners and limit switches.
Is customization available for specific dimensions?
Yes, the beam length, height, and payload capacity can be fully customized based on your factory layout and production requirements.
