Mobo Robot
1 / 5

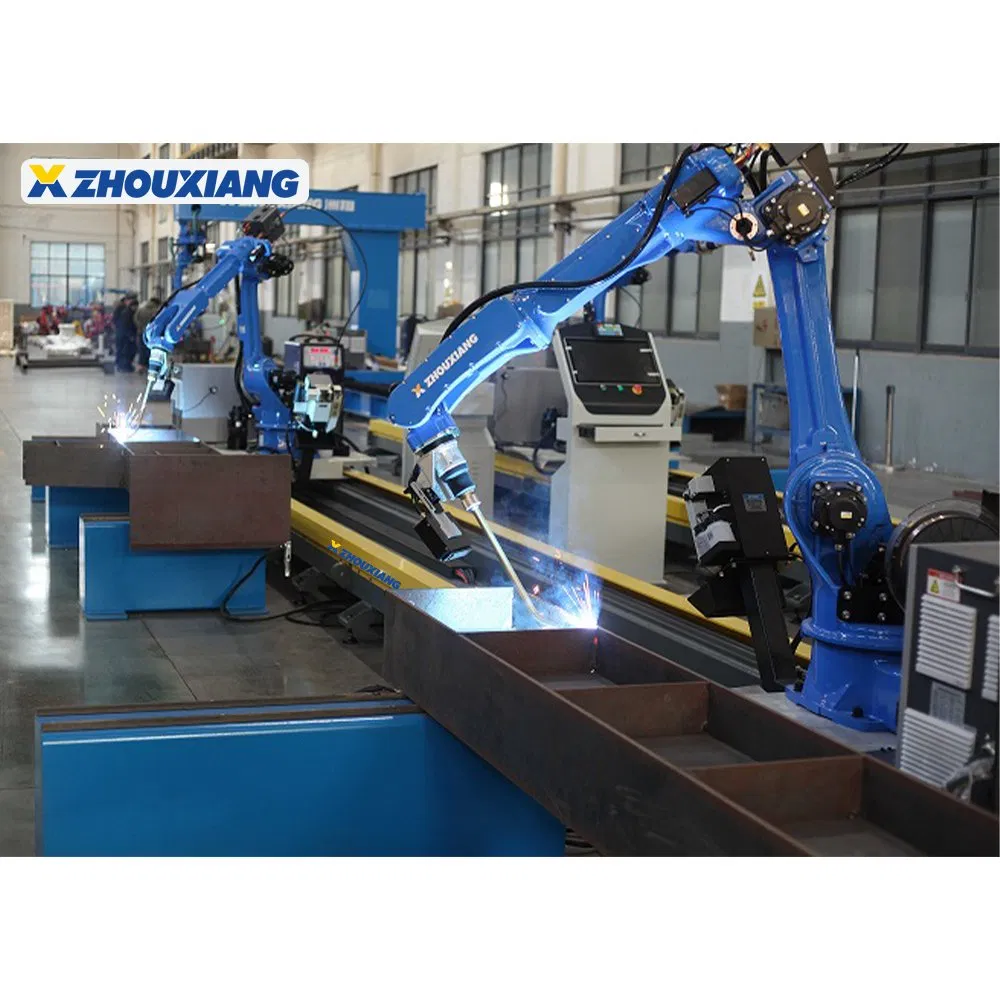

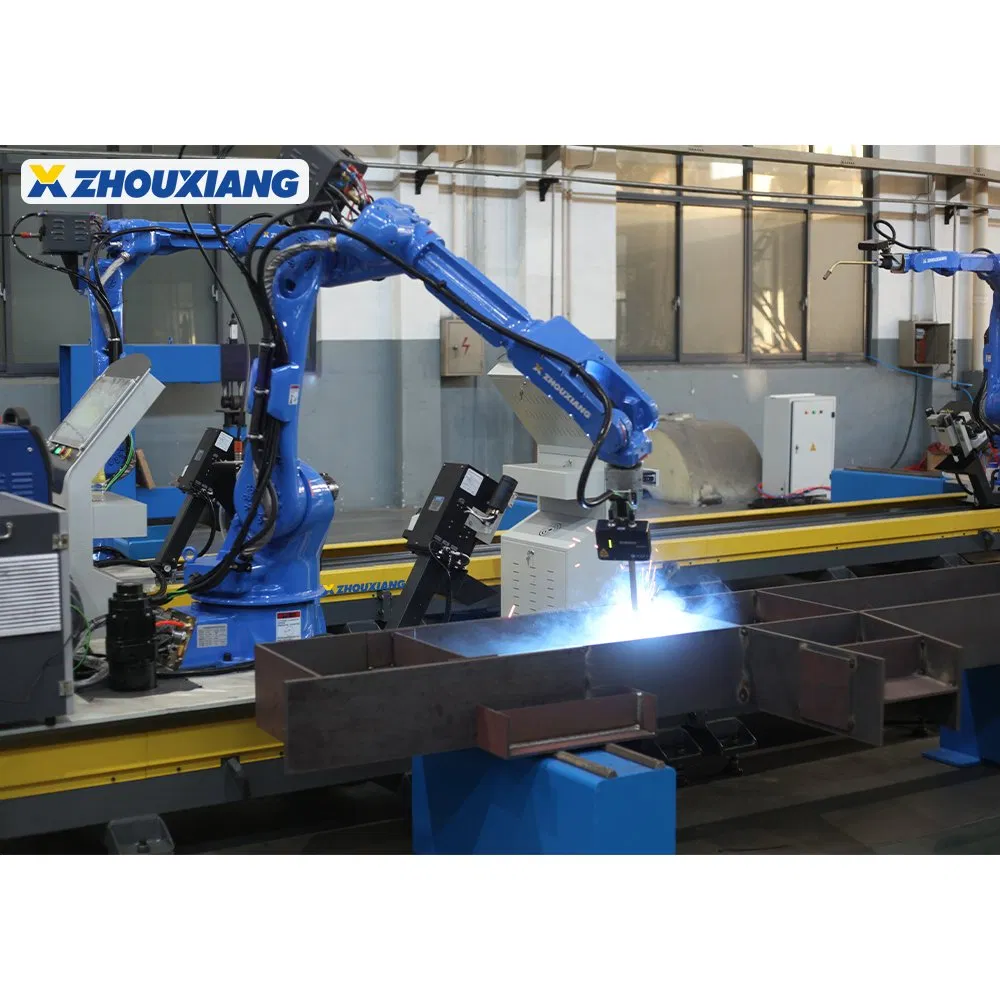

Unique appearance, hollow structure arms and wrists, built-in welding cables, and compact structure. Suitable for welding operations in narrow spaces. Lightweight, dust-proof, and drip-proof with high safety features. Equipped with a body cover for various harsh environments. Large workspace, fast running speed, and high repeat positioning accuracy.
| Parameter | Specification |
|---|---|
| Robot | 1 set of intelligent robot |
| Welding Power Source | Optional high-performance welding machine and accessories |
| Welding System | Teaching-free offline programming software, line laser tracking |

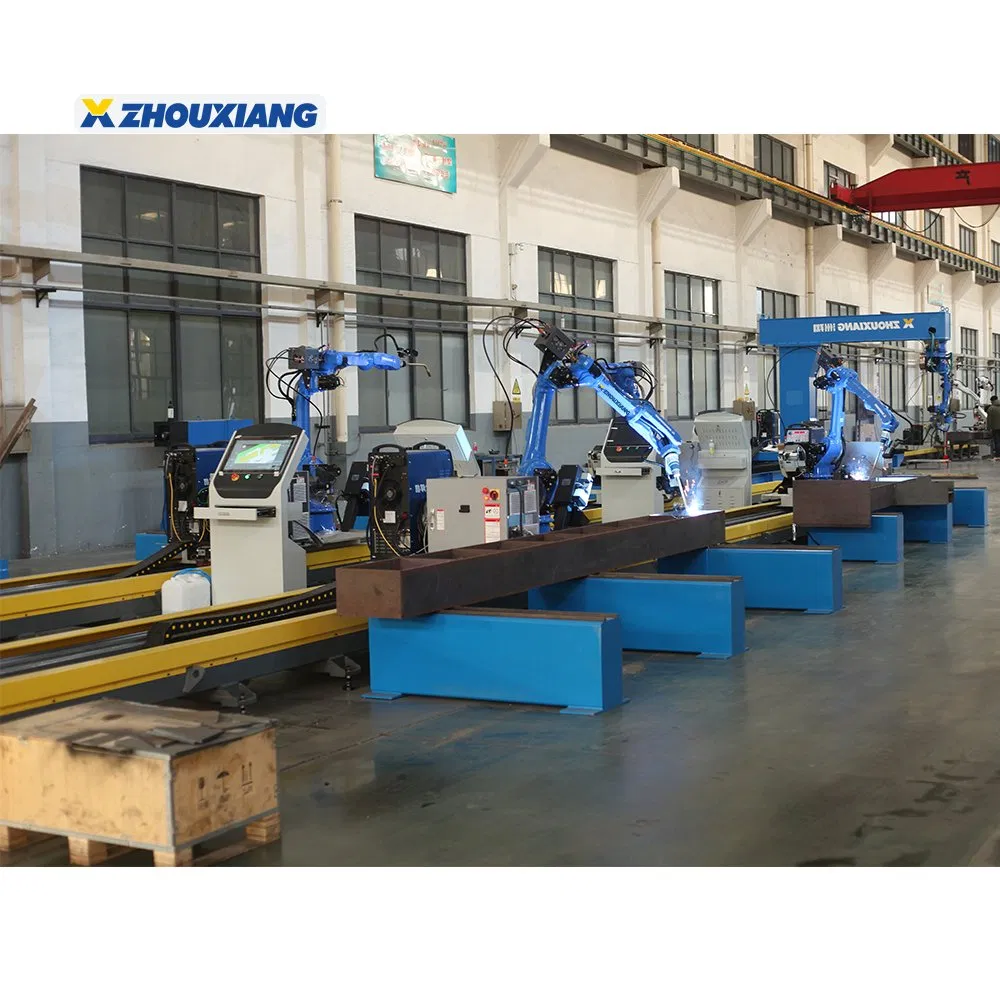

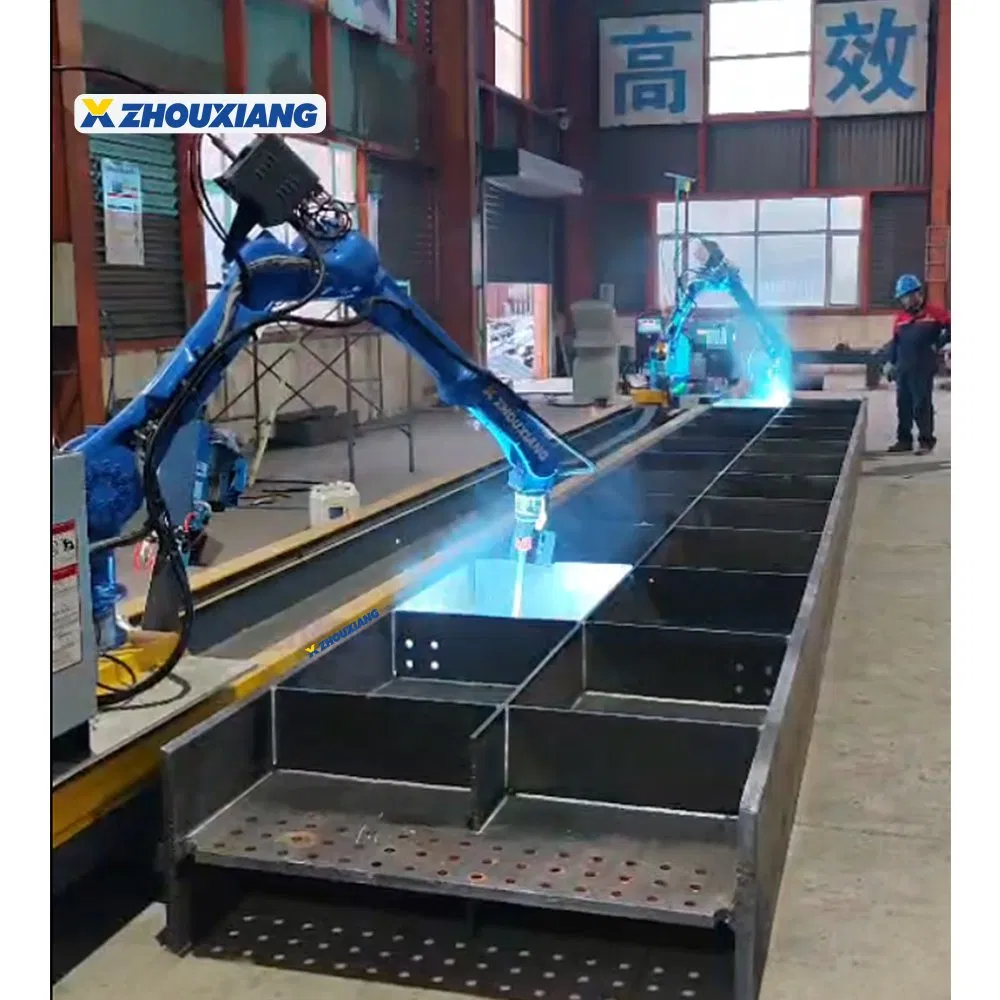

| Applicable Scenarios | H-shaped main beams, secondary beams, gusset plates, corbel parts, and structural steel units. |

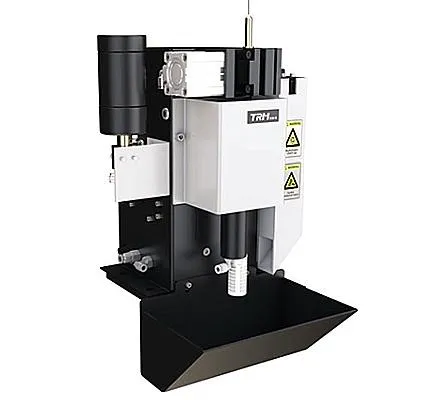

| Gun Cleaning System | SC220A gun cleaning system |

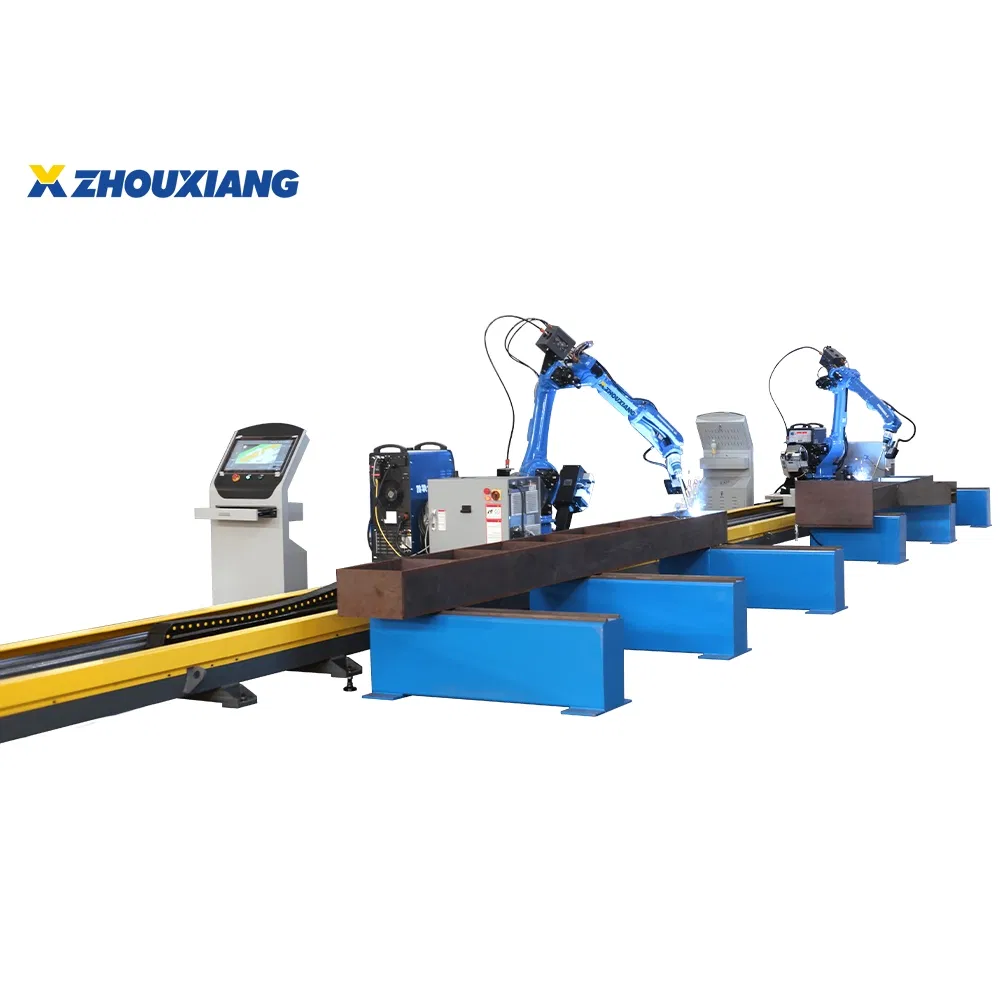

| Ground Rail Length | 6 meters (optional according to user requirements) |
| Model | ZXR12-2010 | ZXR10W-1440-D |
|---|---|---|
| Number of axes | 6 axes | 6 axes |
| Movement radius | 2010mm | 1440mm |
| Payload | 12KG | 10KG |
| Repeat positioning accuracy | ±0.05 | ±0.05 |
| Robot weight | 313KG | 210KG |

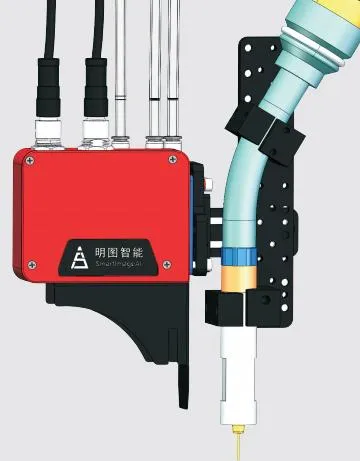

An intelligent line scanning welding seam sensor. It obtains contour information through line laser scanning and guides the robot automatically. Features high integration, arc light resistance, and spatter resistance. No external computer needed for image processing.

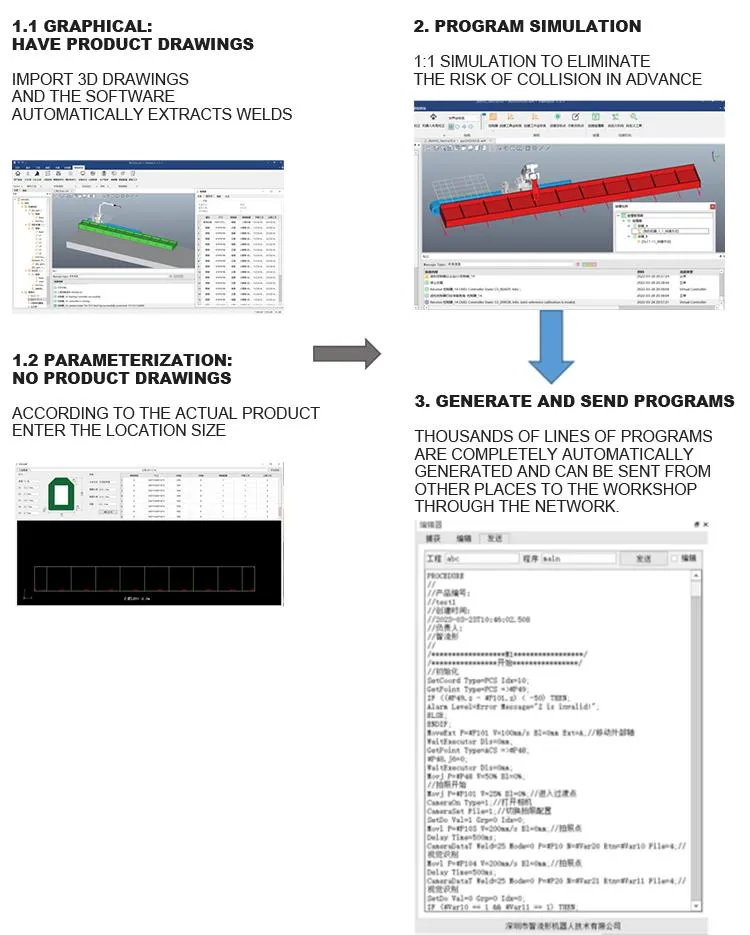

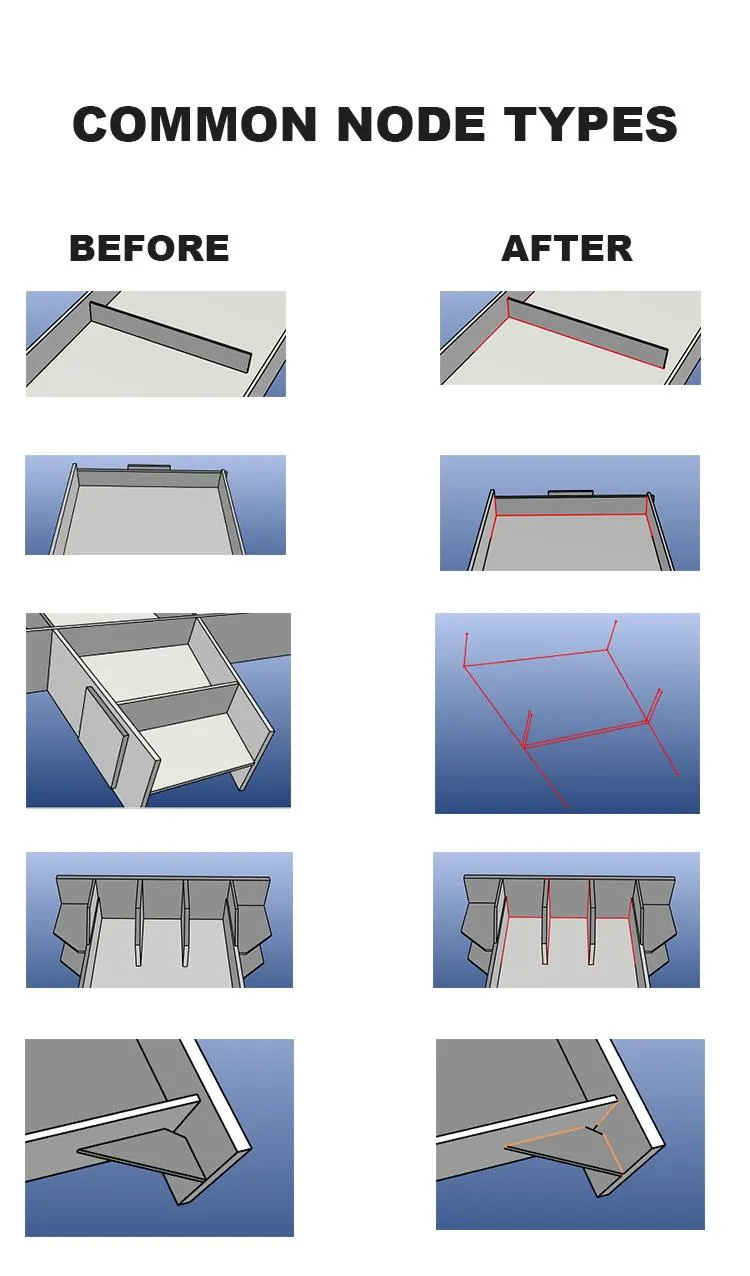

Advanced software for automatic weld extraction from 3D drawings without manual marking. Includes a high-performance 3D simulation engine to verify movements and avoid collisions.
Established in 1991, specializing in heavy-duty welding equipment. Our facilities cover 160,000 m² with advanced engineering expertise. Products are ISO9001 and CCC certified, serving markets across Europe, America, Southeast Asia, and the Middle East. Our product range includes CNC cutting machines, H-beam production lines, welding manipulators, rotators, and fiber laser cutting machines.
