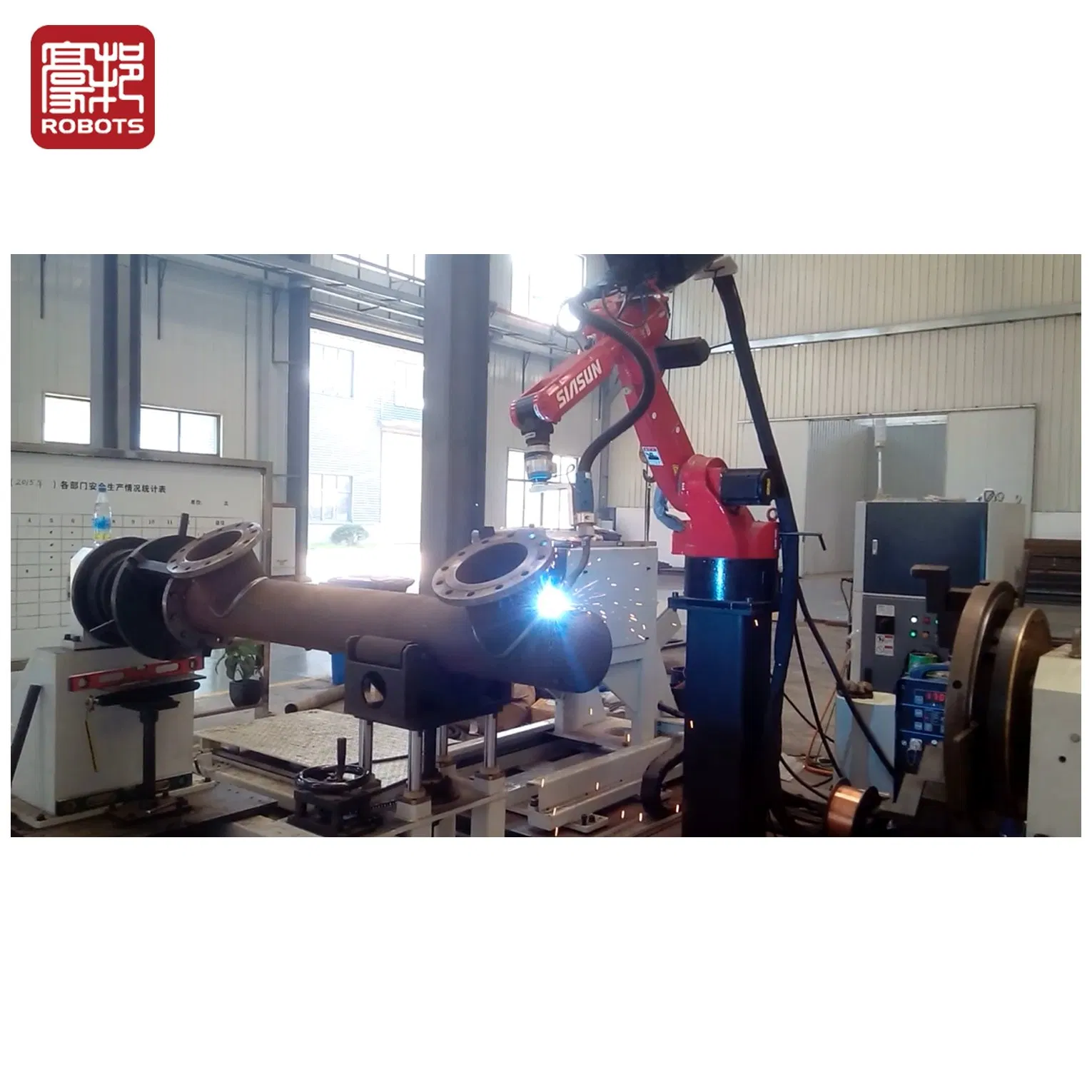

Intelligent Pipe TIG Welding Robot (can be customized)
Intelligent Pipe TIG Welding Robot (can be customized)
Intelligent Pipe TIG Welding Robot (can be customized)
Intelligent Pipe TIG Welding Robot (can be customized)
Intelligent Pipe TIG Welding Robot (can be customized)
1 / 5
Intelligent Pipe TIG Welding Robot (can be customized)
Intelligent Pipe TIG Welding Robot (can be customized)
Intelligent Pipe TIG Welding Robot (can be customized)
Intelligent Pipe TIG Welding Robot (can be customized)
Intelligent Pipe TIG Welding Robot (can be customized)

Intelligent Pipe TIG Welding Robot (can be customized)

Customization: Available
Type: Plasma
Control Mode: Automatic
Send Inquiry

Product Description

Technical Specifications
Model NO.
PWM-1
Voltage
AC380V
Warranty
1 Year
Industry
Heating
Welding Wire
1.2mm
Transport Package
Sea Worthy Packing
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Gross Weight
50.000kg
Product Overview

The equipment is suitable for welding a variety of pipe, adapt to a variety of weld seam (butt weld seam, angle weld seam, etc.). For angled weld pipe with a length ≤500, the positioner can be turned over 45° for welding. The equipment is easy to operate, flexible and versatile, and the weld seam is even and beautiful.

Equipment specifications Parameters
Length of main pipe ≤12 meters
Pipe diameter DN80-DN400
Length of branch pipe ≤800mm
Welding with branch pipe maximum Caliber ≤ DN300
Radius of gyration ≤ 800mm
Core Features & Advantages
🔘 No manual instruction required with 3D visual scanning system for precise scanning of welds.

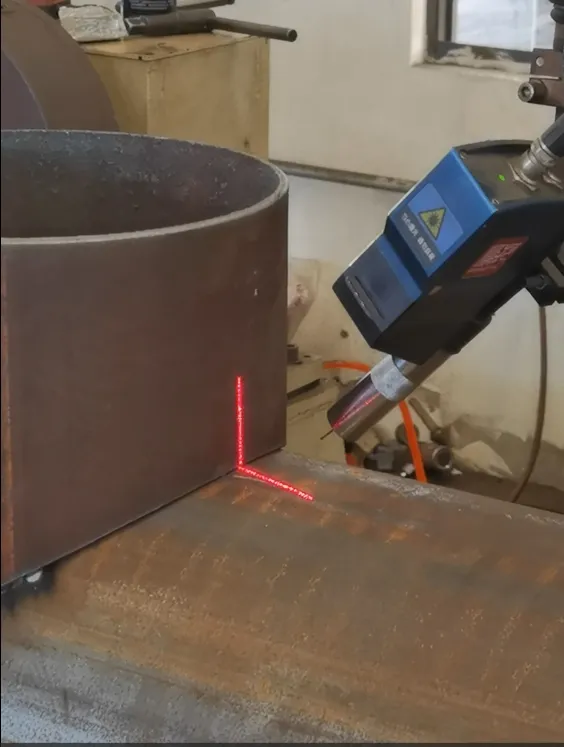

Welding System 1

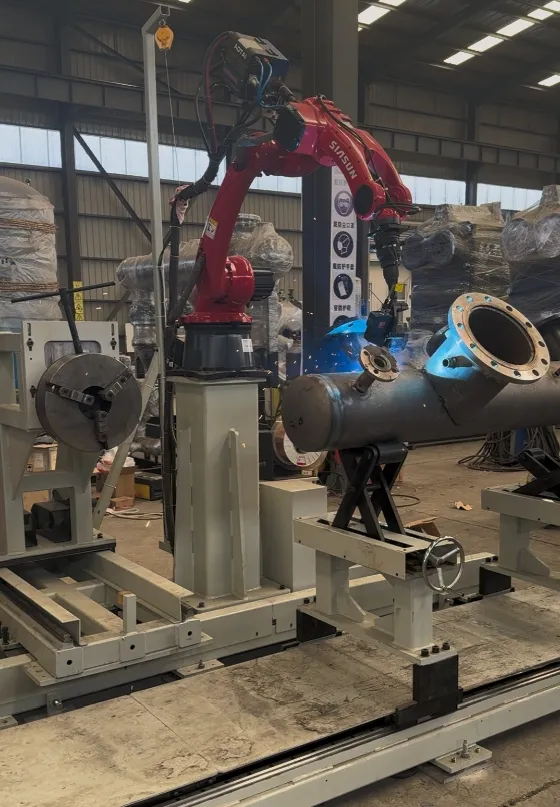

Welding System 2
🔘 The welding gun angle is adjustable, can adapt to a variety of weld seam (butt weld seam, angle weld seam, etc.).
🔘 Electric adjustment of welding gun position, saving time and effort, convenient and quick.
🔘 The welding gun has a swing function, the swing parameter can be controlled, and the adaptability is wide.

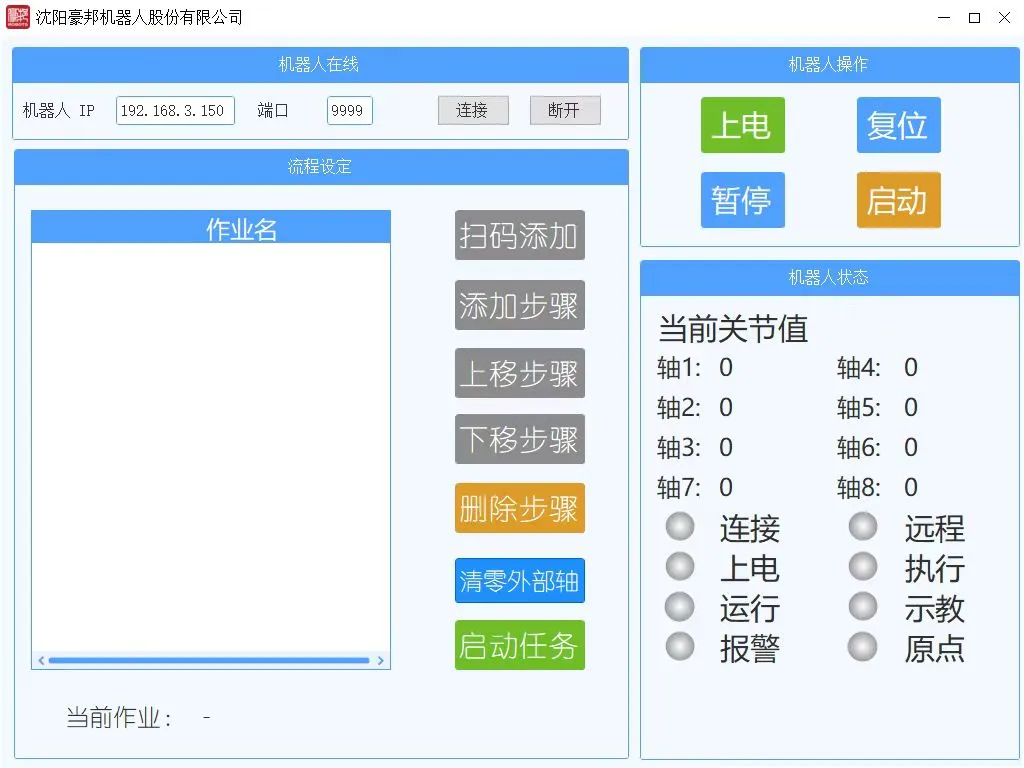

Control Interface
🔘 Configure the double-axis positioner, the positioner can flip the angle to realize the "ship type" welding seam.
🔘 Upper computer control with user-friendly operation interface; Configure industrial remote control for wireless operation.
🔘 Welding parameter preset function allows for easy reuse of specifications for future workpieces.
🔘 Integrated seam tracking function effectively copes with height deviations and fluctuations.

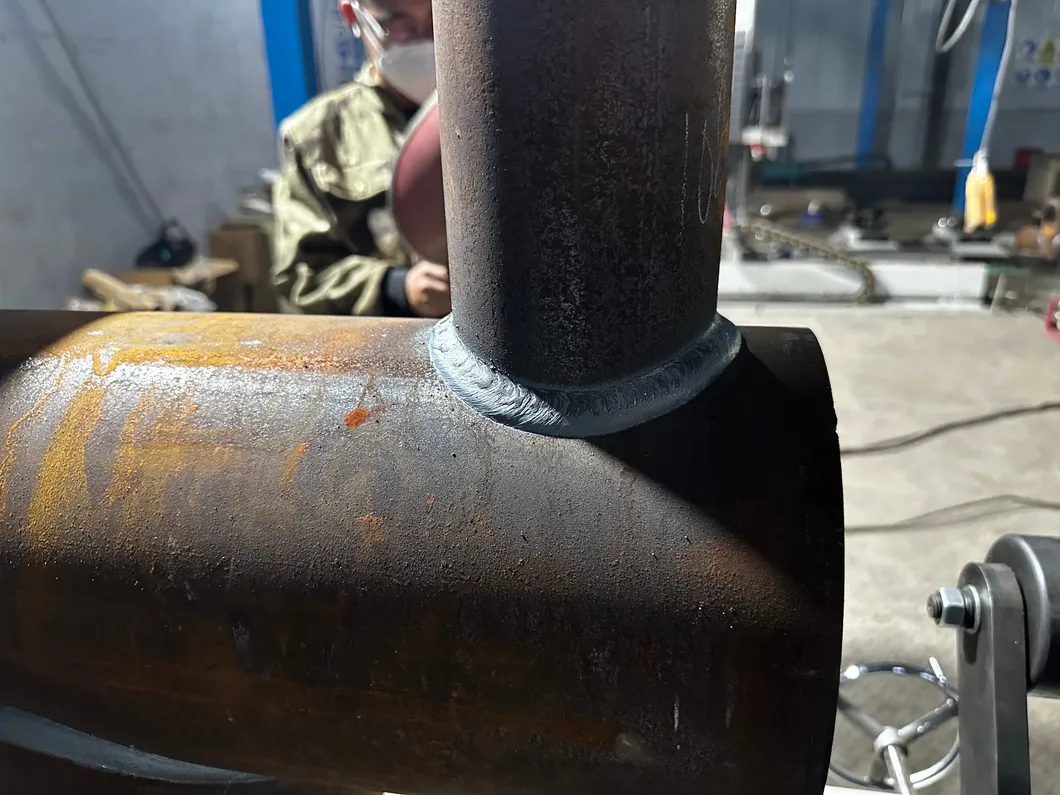

Application 1
Application 2
Frequently Asked Questions
Are you a dealer or a factory?
We are a manufacturer with a professional production facility. Customers are warmly welcome to visit us and discuss technical requirements.
What is the warranty period for this equipment?
We provide a standard warranty period of one year, starting from the completion of mechanical debugging at the buyer's facility.
Which export ports do you typically use?
We can utilize any major Chinese port. Commonly, we use Dalian port, but other ports can be appointed according to your preference.
Can the equipment handle different pipe diameters?
Yes, the system is designed for DN80-DN400 pipe diameters and can be further customized to meet specific industrial welding requirements.
Is special training required to operate the robot?
The system features a user-friendly interface and wireless remote control, making it easy to operate. We provide guidance to ensure your team can manage the equipment efficiently.
How does the system prevent welding defects?
It includes a gas pressure detection system that alarms and stops welding if pressure is too low, plus a seam tracking function to handle height fluctuations automatically.
