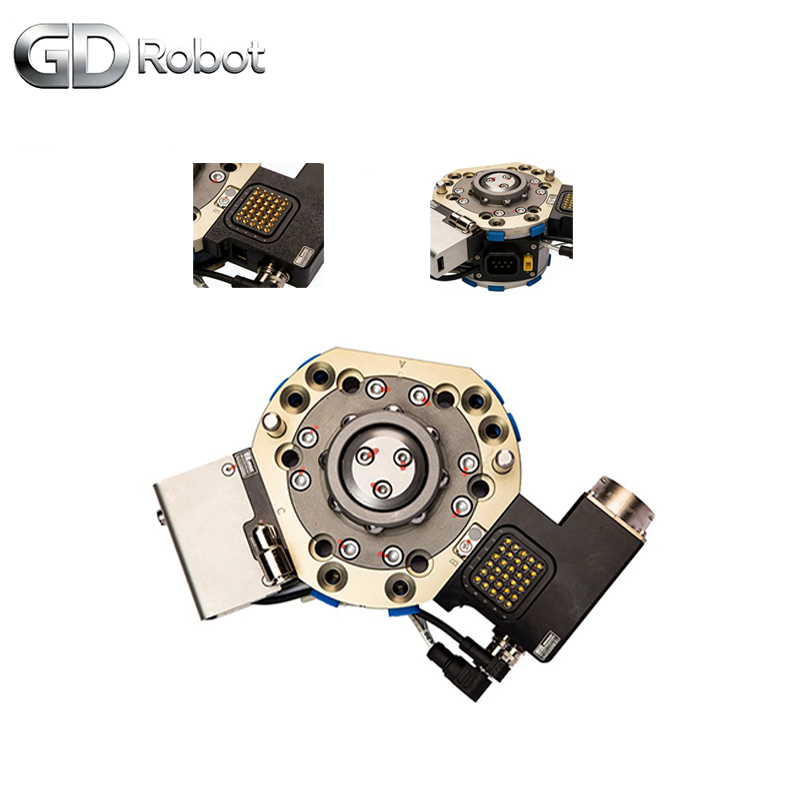

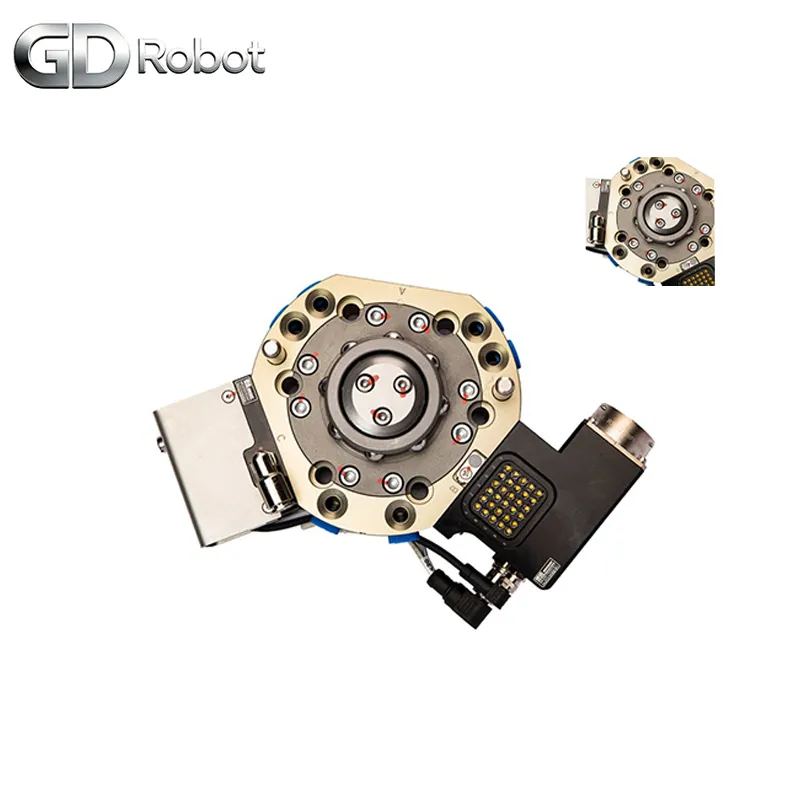

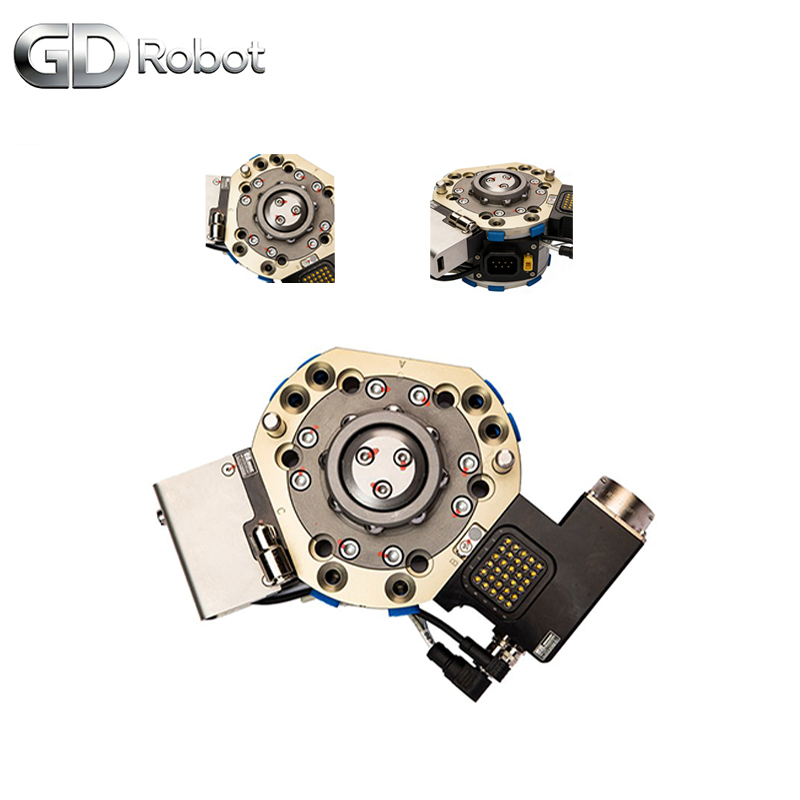

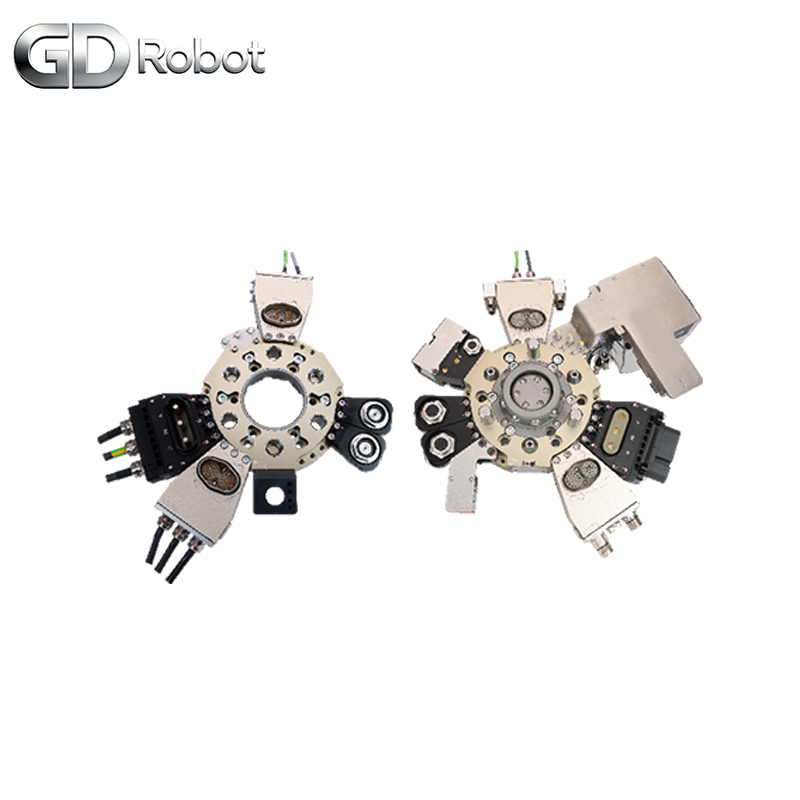

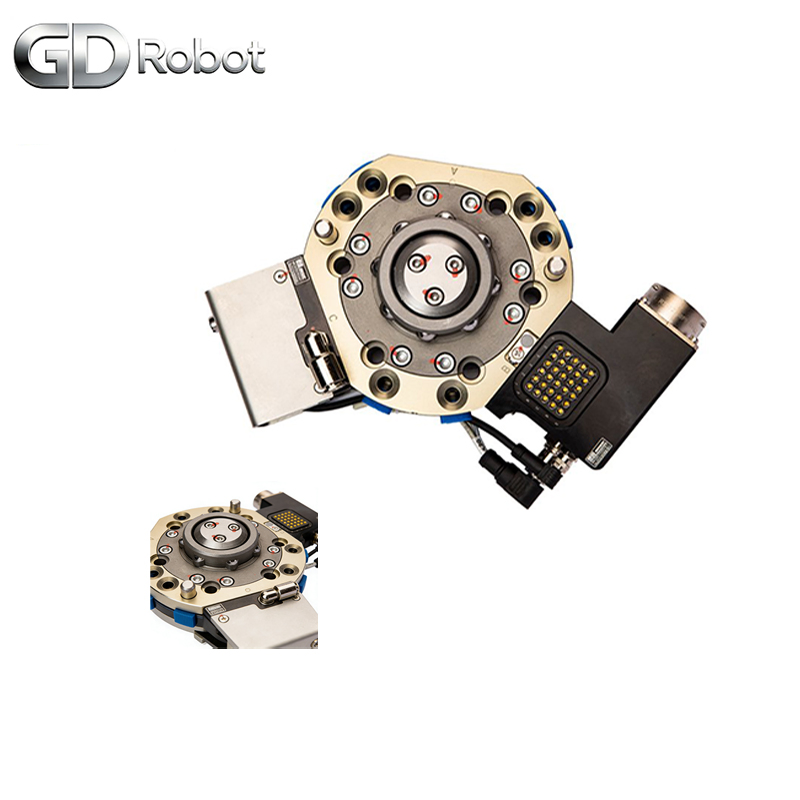

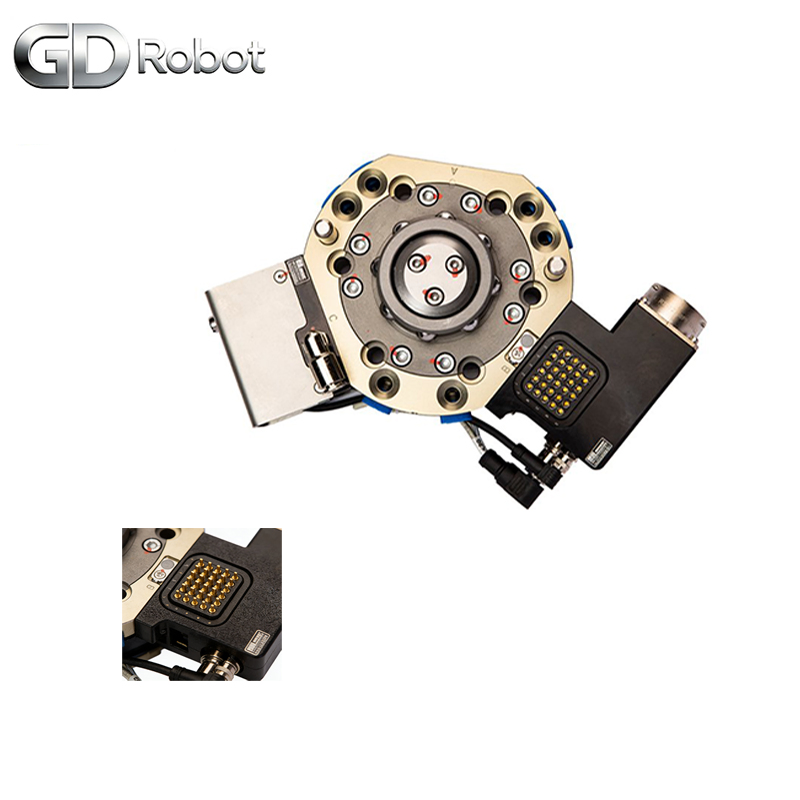

The automatic quick change disk is a key component for intelligent manufacturing and flexible production. It realizes fast switching between different tools, fixtures, and execution modules on robot arms. Widely matched with welding robots, industrial robots, bending machines, and various machine tools.
Adopts a self-locking design to ensure safe operation during high-speed movement. It has strong load capacity for heavy fixtures and welding tools. High compatibility allows it to adapt to different brands of robots and machines.
| Parameter | GD-120 (Light-duty) | GD-2060 (Heavy-duty) |
|---|---|---|
| Rated Load | 120 kg | 2060 kg |
| Repeat Positioning Accuracy | ±0.02 mm | ±0.03 mm |
| Working Air Pressure | 0.45–0.8 MPa | 0.5–0.9 MPa |
| Protection Grade | IP65 | IP67 |
| Locking Mechanism | Pneumatic ball locking | Pneumatic pin locking |
| Robot Flange Compatibility | ISO9409-80 / 100 | ISO9409-200 / 250 |
| Net Weight | 3.5 kg | 32 kg |

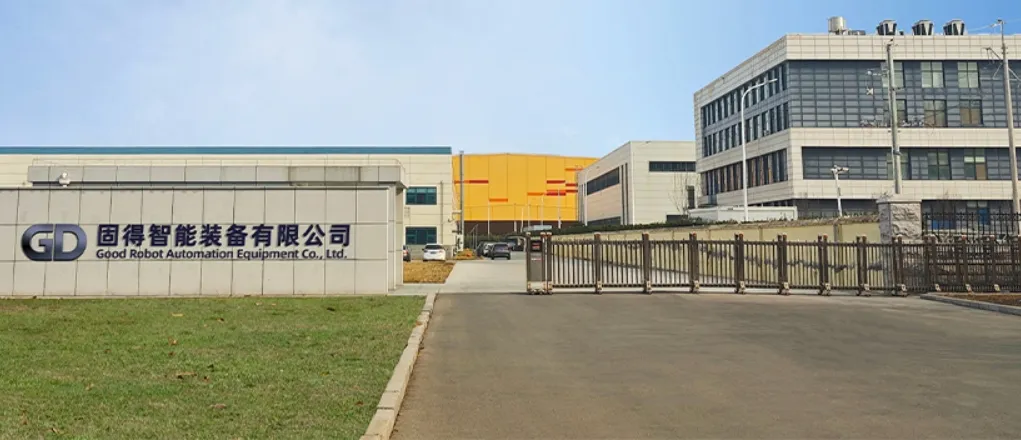

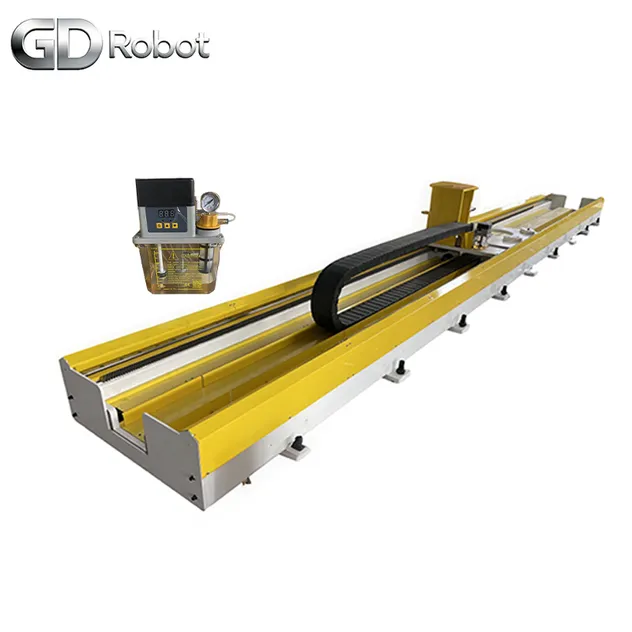

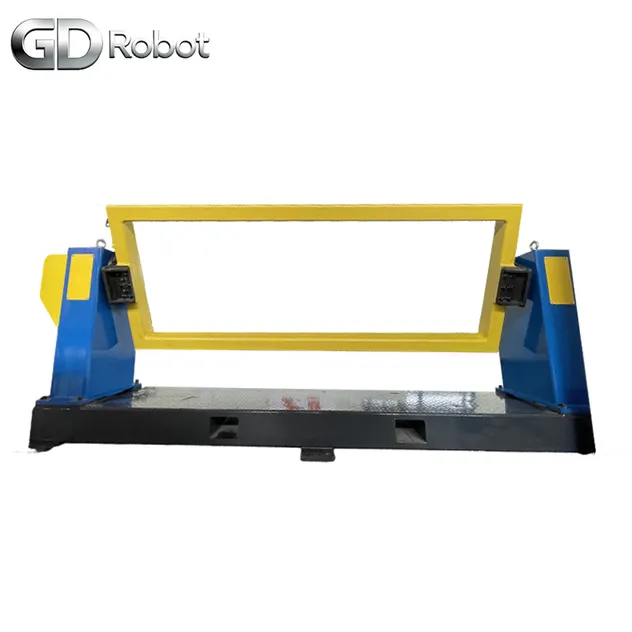

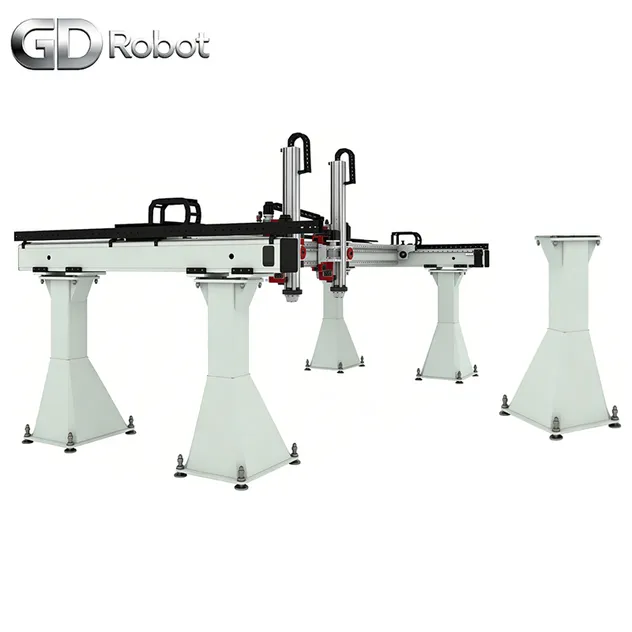

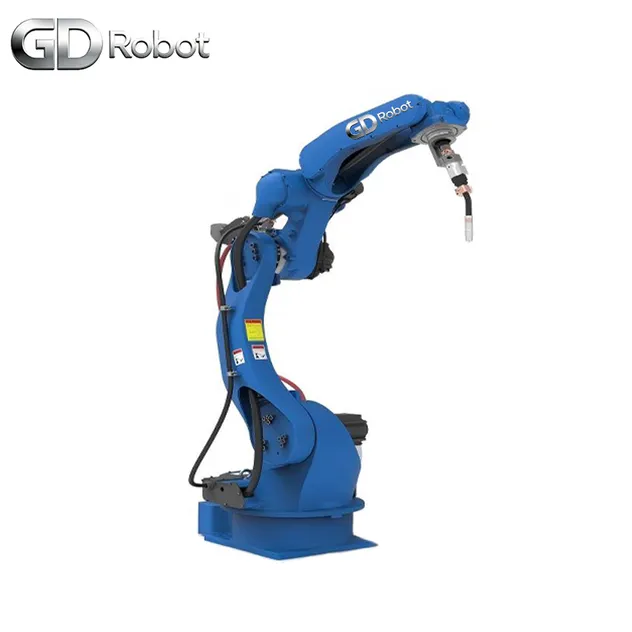

Established in 2018, the company is a high-tech enterprise specializing in the R&D and production of industrial robots, gantry robots, robot linear guides, and welding positioners. The business covers a wide range of industrial fields, including welding, palletizing handling, metal processing, bending, and spraying.
As a core manufacturing base with strong production capacity, we produce more than 60 sets of robot linear guides and over 1,000 welding positioners annually. We provide over 50 types of automation solutions and offer customized production as well as OEM/ODM services for global customers.
