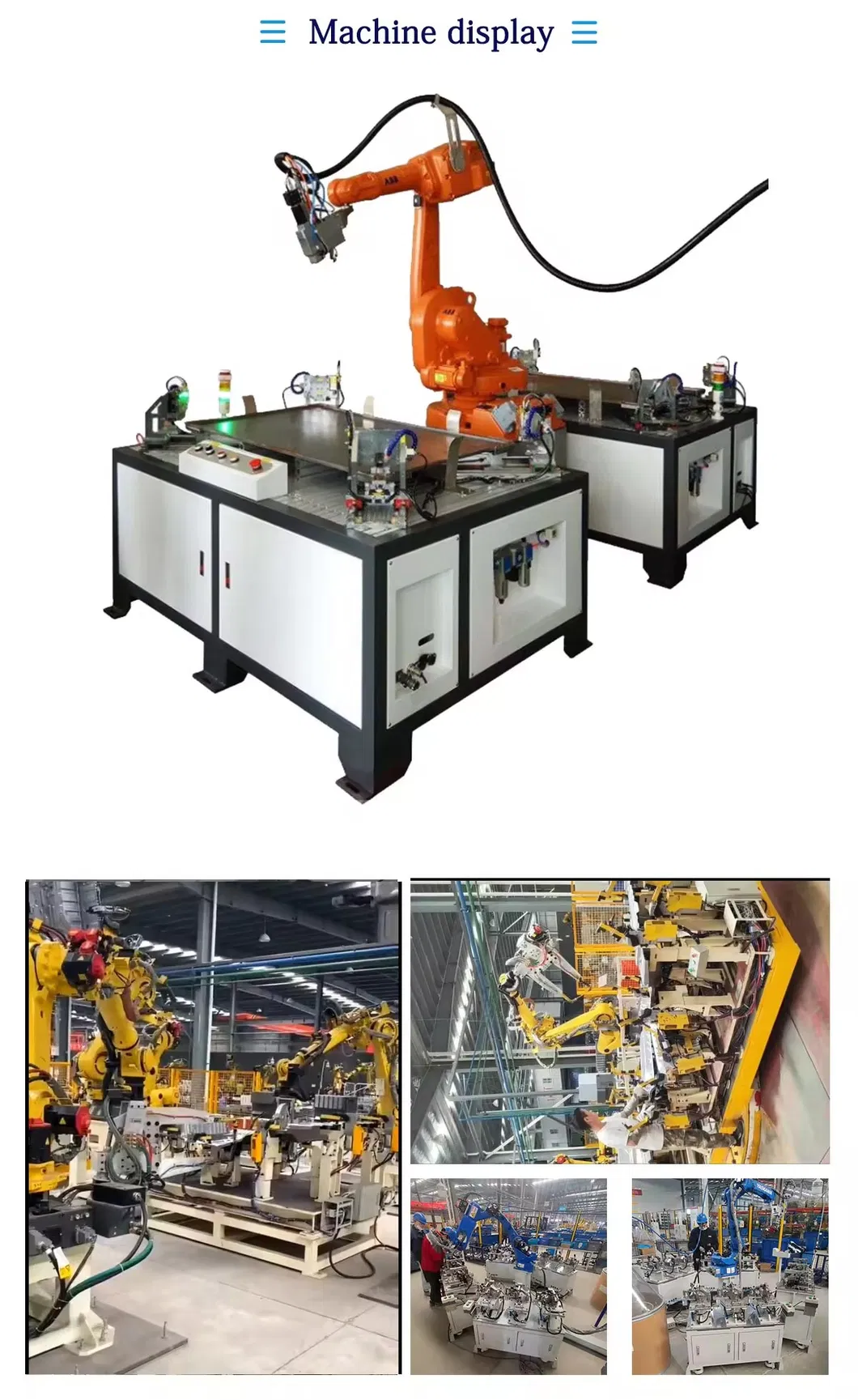

Dual station, uninterrupted Versatility, consistent welding

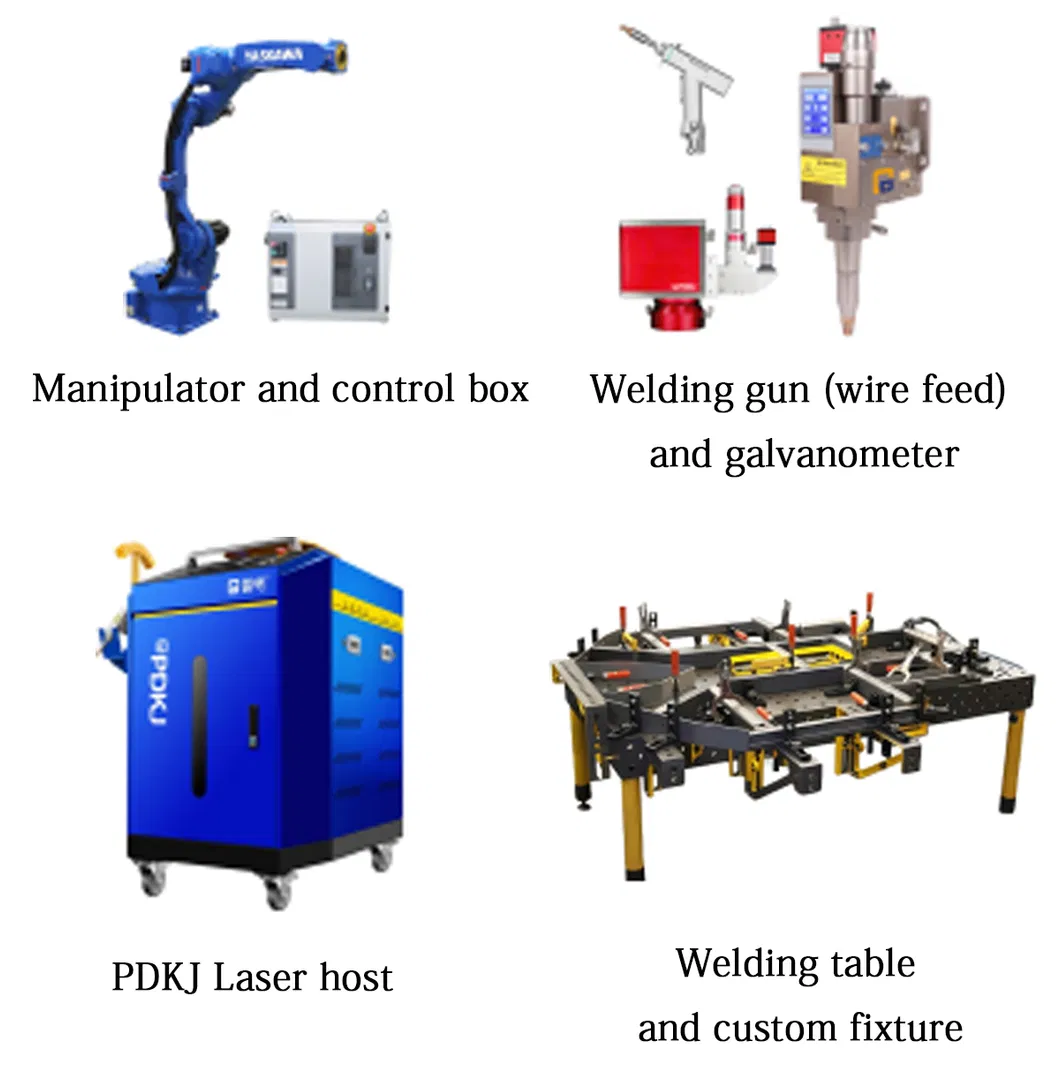

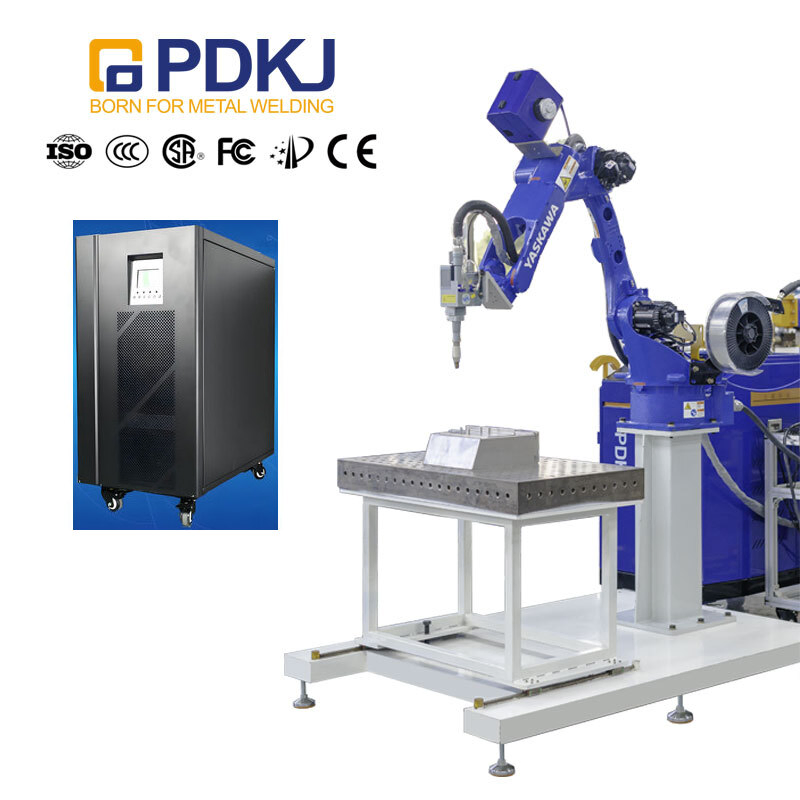

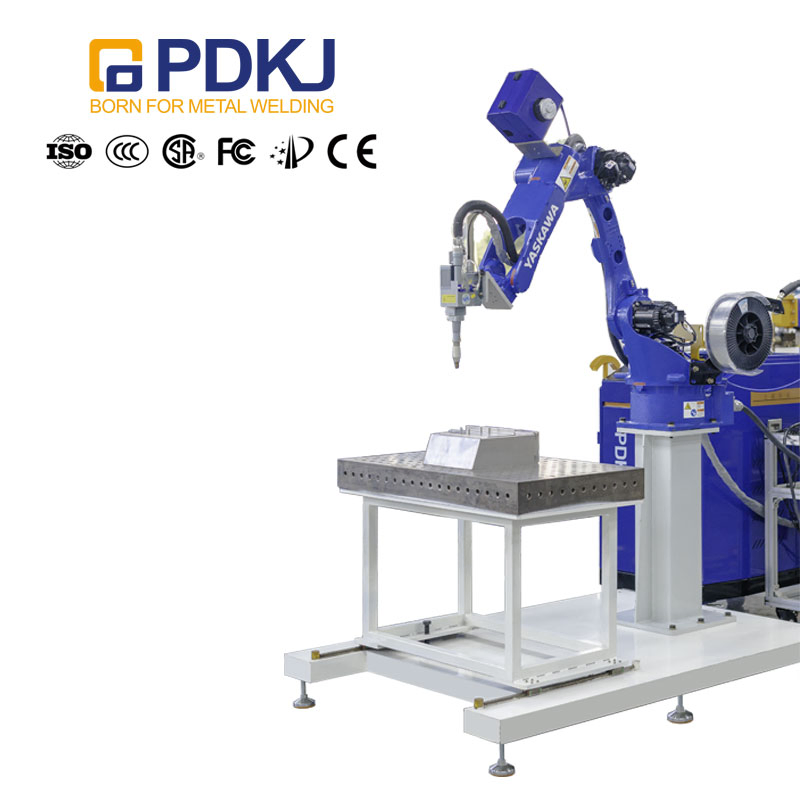

The robot fiber laser welding workstation integrates robot technology, laser welding technology, and automation technology. It is composed of a robot, laser generator, transmission system, welding head, and control system. By controlling the movement trajectory through the robot, the laser beam focuses on the workpiece to achieve high-precision welding.
No professional welders needed. Trainees can complete repetitive trajectory positioning and control welding time/strength with high precision.
Finer welding control improves product consistency and reduces defect rates caused by manual errors.
Robots complete large volumes of work in short periods, significantly improving speed and reducing costs.
Uninterrupted production with reduced downtime and minimal manual supervision required.
| Parameter Name | LWM1500 | LWM2000 | LWM3000 |
|---|---|---|---|
| Input Power | 220V / 1500W | 220V / 2000W | 380V / 3000W |
| Automatic Wire Feeding | Yes | Yes | Yes |
| Laser Wavelength | 1064nm | 1064nm | 1080nm |
| Welding Speed | 0-120cm/Min | 0-120cm/Min | 0-120cm/Min |
| Stainless Steel Capacity | 0.2-4.0mm | 0.2-5.0mm | 0.2-7.0mm |
| Aluminum Capacity | 0.2-3.0mm | 0.2-4.0mm | 0.2-6.0mm |
Selected stable and cost-effective solutions including high repeatability and IP54 ratings for harsh environments.

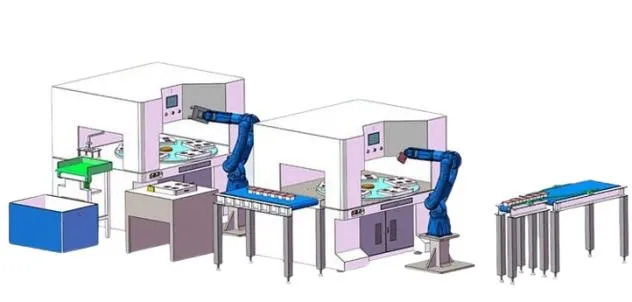

Custom automation fixtures with advanced identification technology ensure exact positioning and stability during use.
Equipped with safety light grids, guardrails, and CCD LCD monitor inspection systems for real-time troubleshooting.
Extensive experience in production lines for automobile radiators, copper wire terminals, wire mesh welding, and chassis automation.
