Product Description
High Power ▪ High Precision ▪ High Efficiency

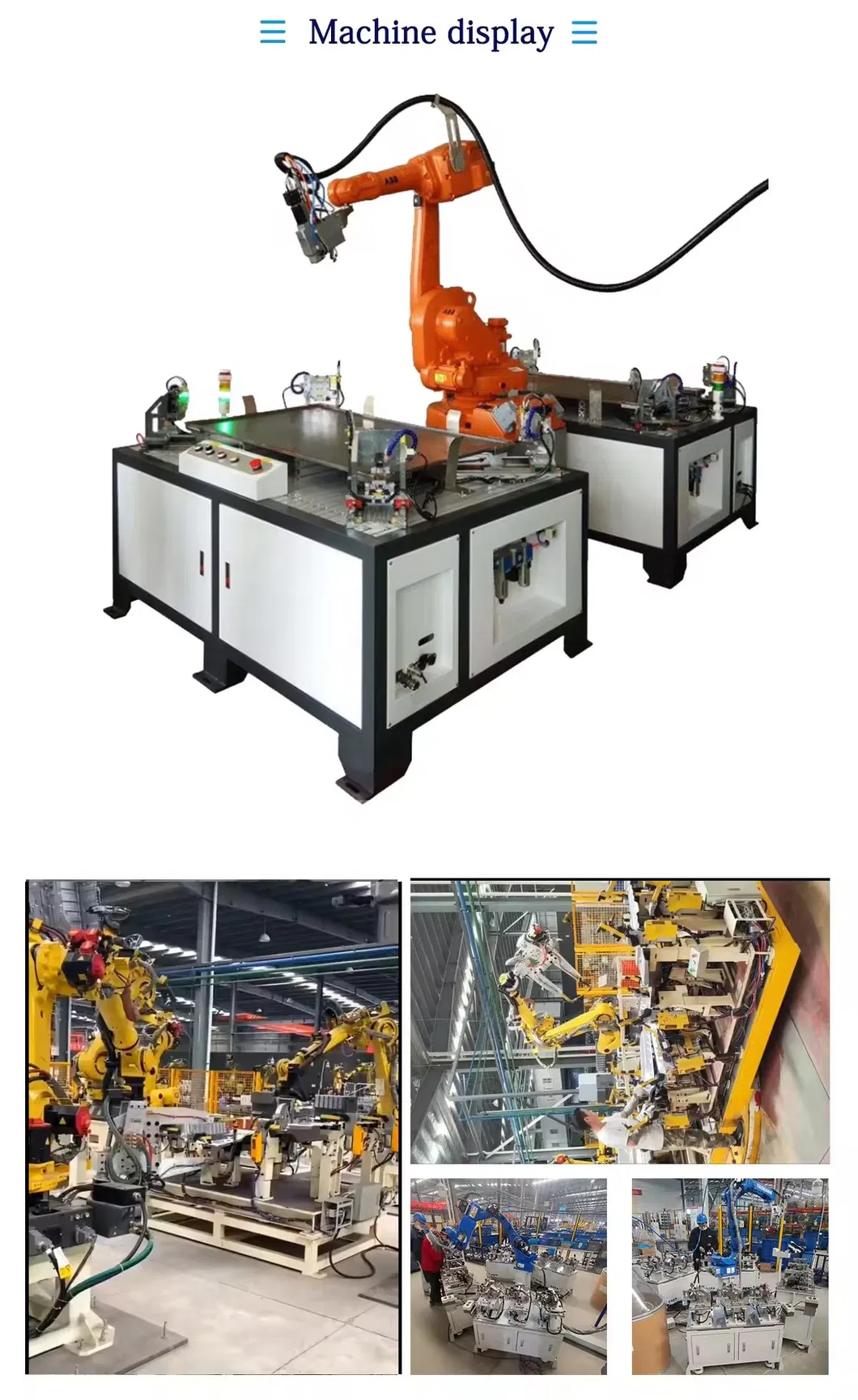

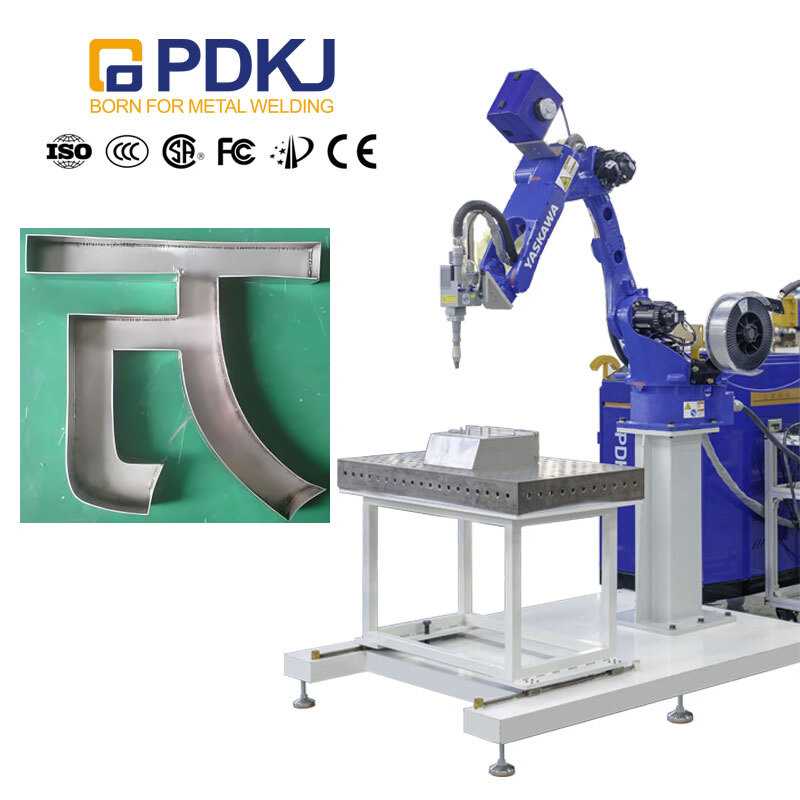

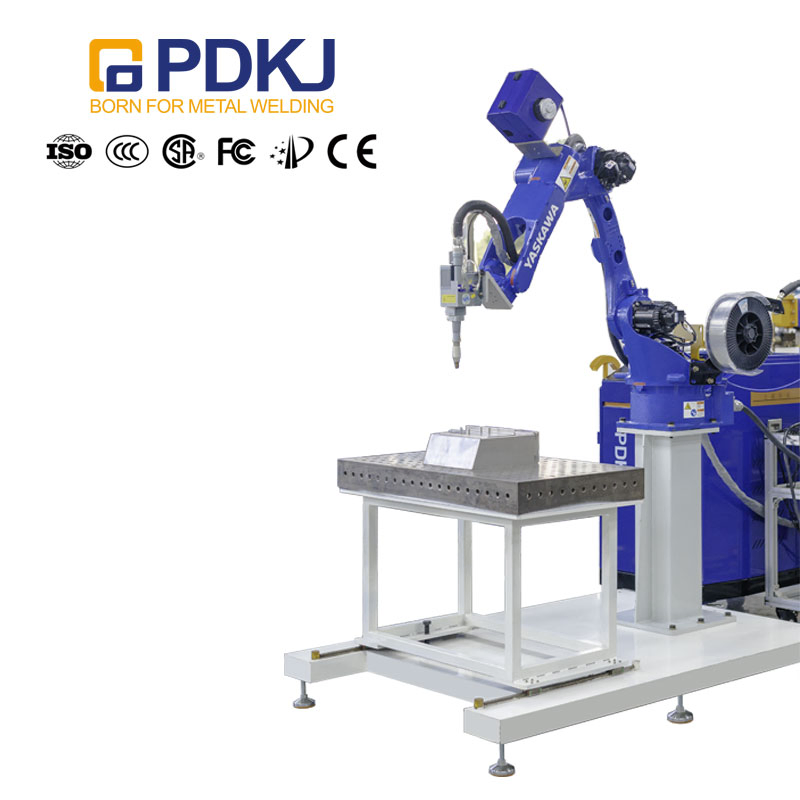

Robotic Fiber Laser Welding Workstation
Dual station, uninterrupted versatility, consistent welding results

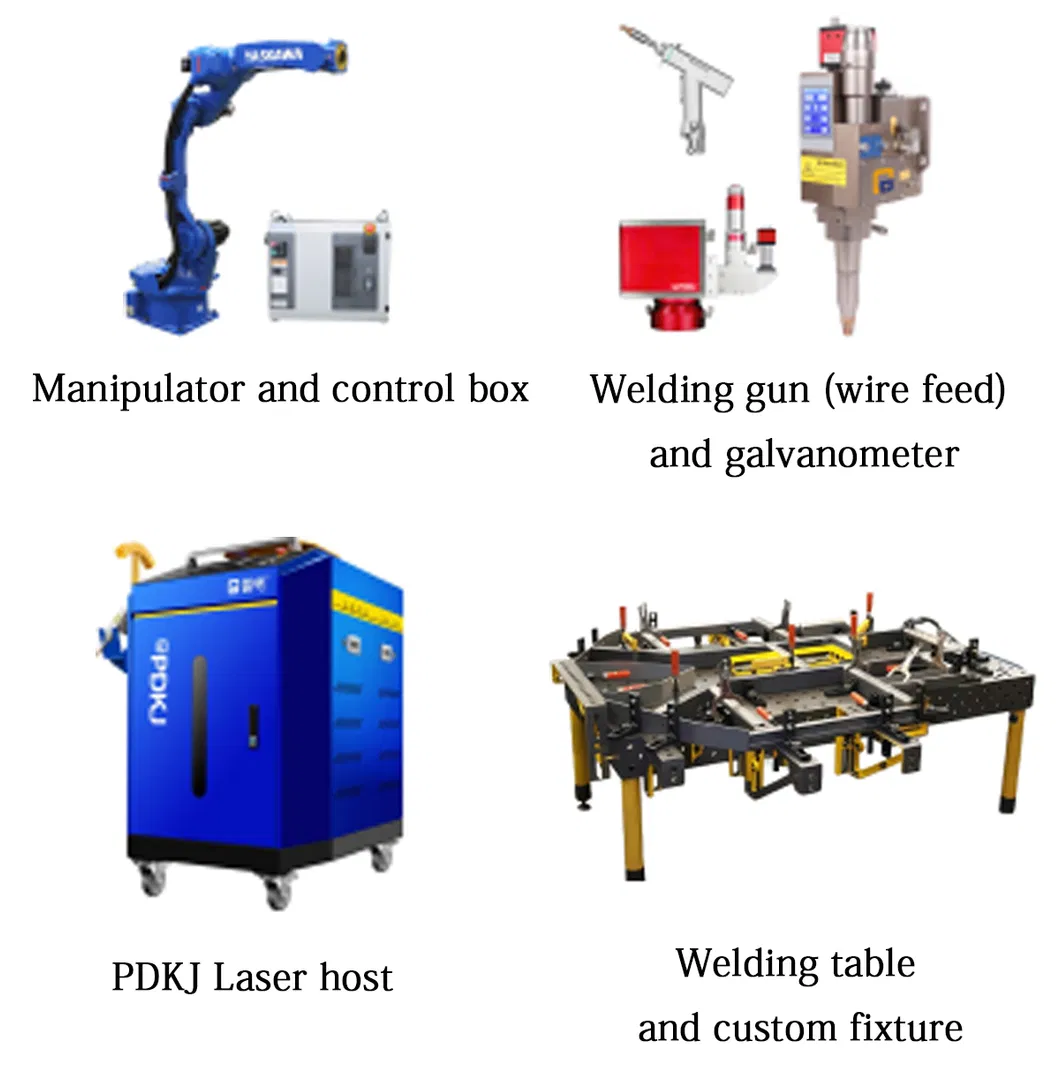

The robotic fiber laser welding workstation is an advanced integrated system featuring high-precision robot technology and fiber laser power. By controlling the movement trajectory of the welding head through a 6-axis robot, it focuses the laser beam with extreme accuracy. The use of fiber optic transmission ensures superior beam quality and welding stability compared to traditional mirror-based systems.
Core Advantages
1. Easy to Operate
No need for professional welders. Novice trainees can handle repetitive trajectory positioning and high-precision control of welding parameters after simple training.
2. High Precision & Quality
Fine laser beam control achieves uniform weld seams, significantly reducing defect rates and improving product consistency.
3. Efficient Production
High-speed robot movement completes large-scale welding tasks in short periods, reducing labor costs and boosting output.
4. Automation & Continuous Workflow
Features dual-station setups allowing uninterrupted production—weld on one side while loading on the other.
Technical Specifications & Features
• Flexible Robot Options: Choose from various 6-axis robots based on repeatability needs and environmental conditions (IP54).
• Advanced Torches: Compatible with industrial welding torches, vibrating mirrors, and removable handheld torches.
• Power Range: Available in 1200W, 1500W, 2000W, and 3000W fiber laser sources.
• Smart Systems: Optional non-contact welding seam tracking and CCD LCD monitor inspection for real-time quality control.
• Safety First: Equipped with safety light grids, emergency stops, and optional protective guardrails or welding booths.
| Parameter |
LWM1500 |
LWM2000 |
LWM3000 |
| Input Power | 220V / 1500W | 220V / 2000W | 380V / 3000W |
| Auto Wire Feeding | Yes | Yes | Yes |
| Laser Wavelength | 1064nm | 1064nm | 1080nm |
| Overall Power | 2500W | 3000W | 4500W |
| Welding Speed | 0-120cm/Min | 0-120cm/Min | 0-120cm/Min |
| Capacity (Stainless) | 0.2-4.0mm | 0.2-5.0mm | 0.2-7.0mm |

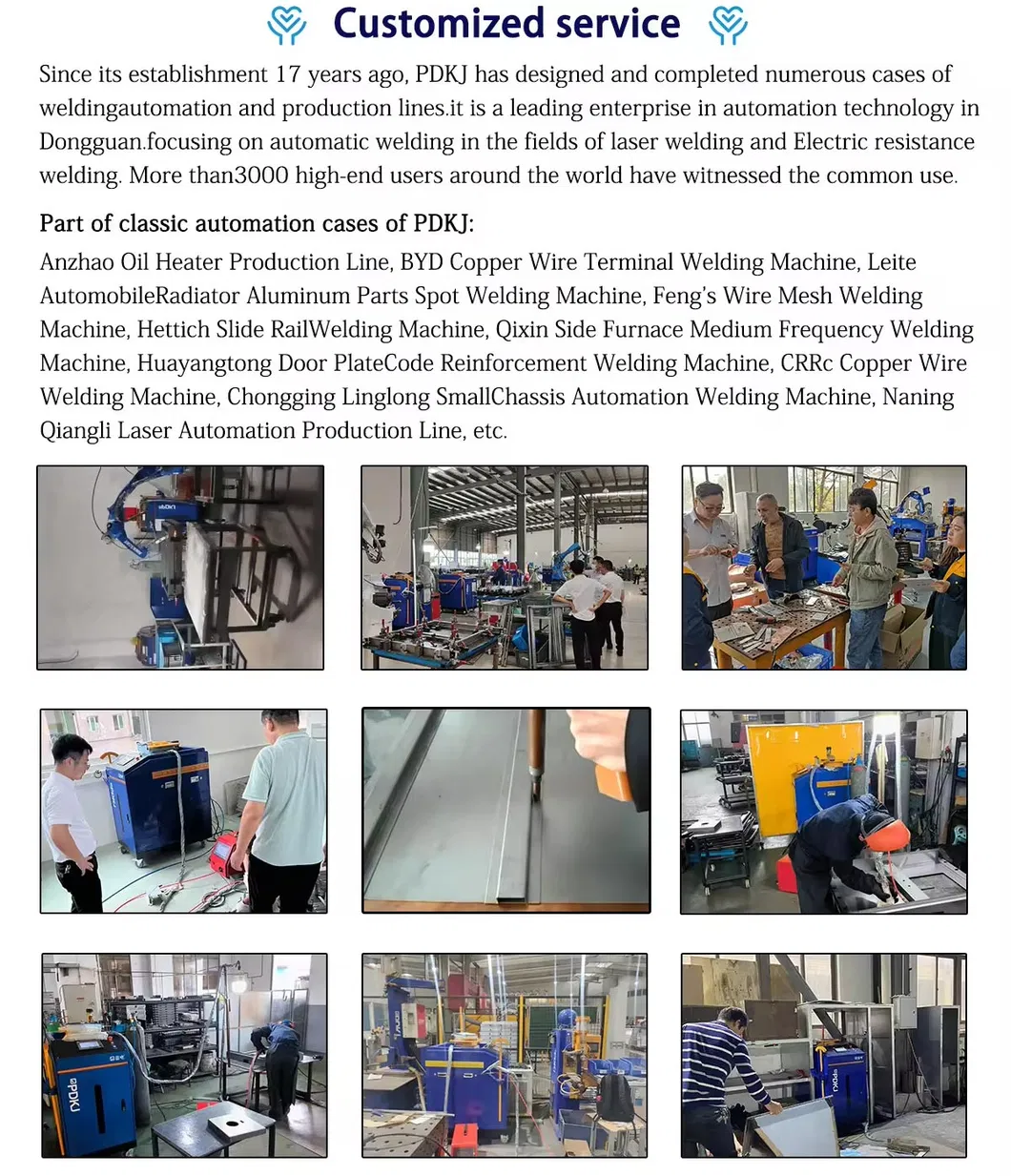

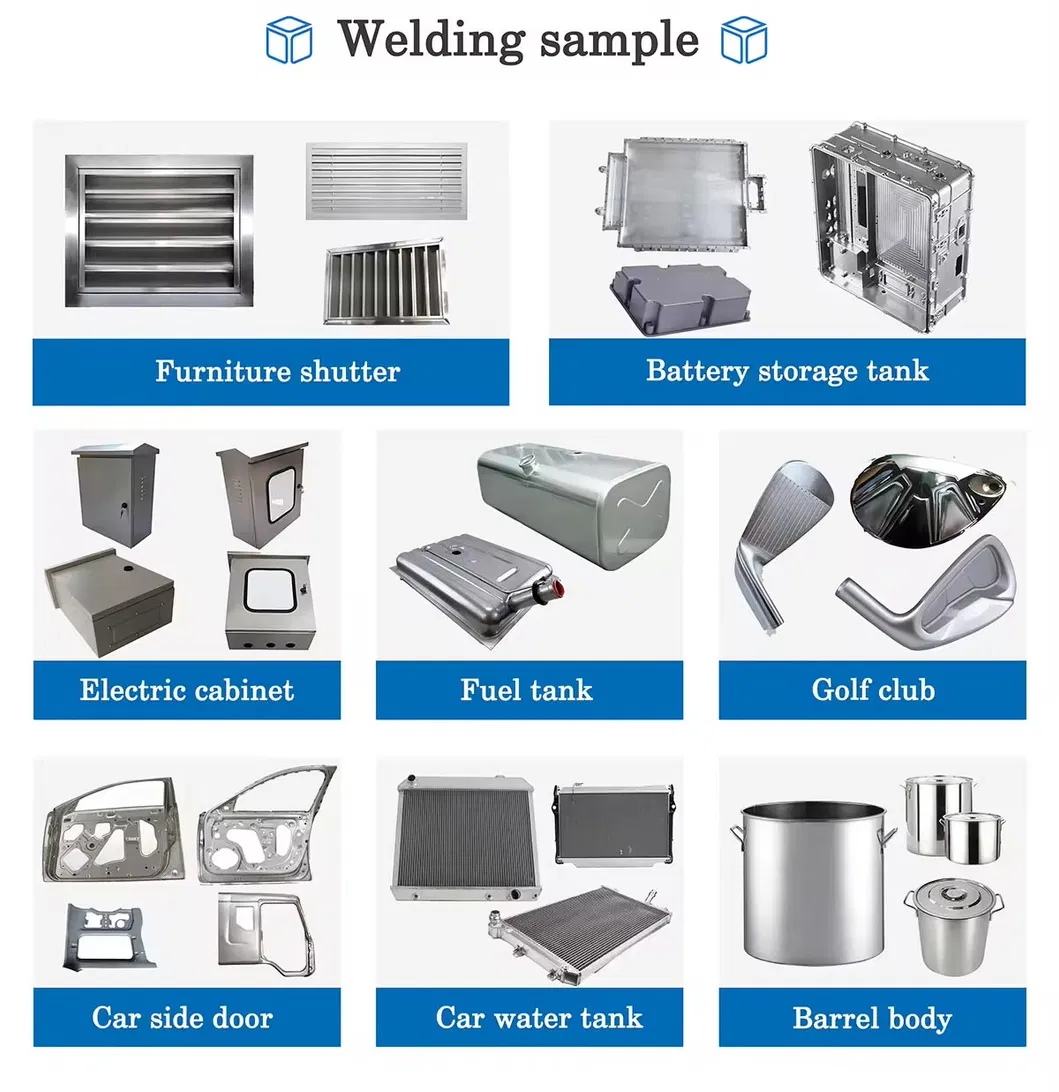

Application Cases & Automated Solutions

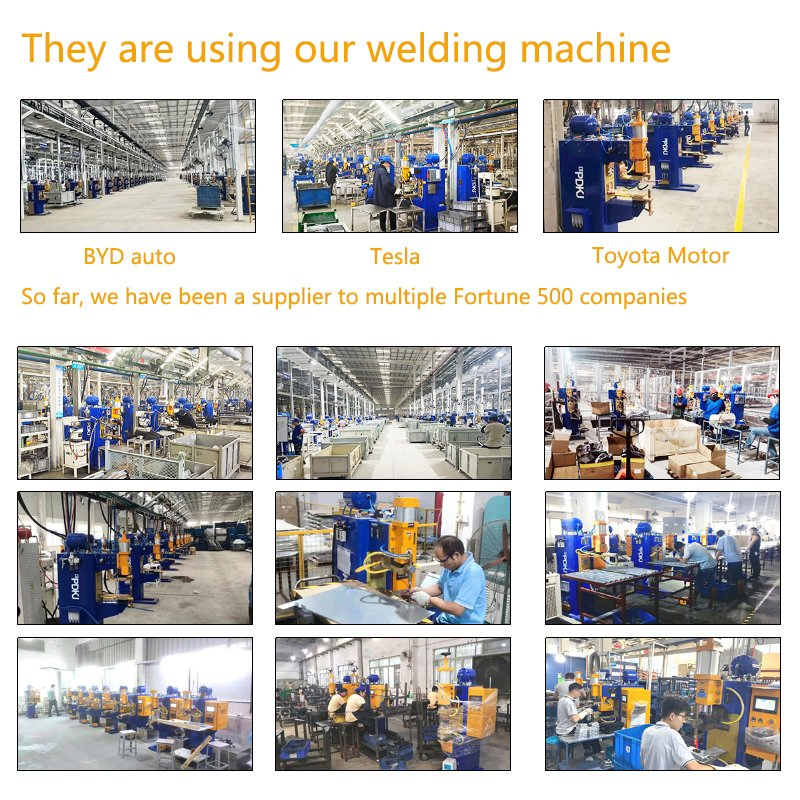

With 18 years of experience, our solutions cover production lines for oil heaters, copper wire terminals, radiator aluminum parts, and chassis automation.
Frequently Asked Questions
How do we install the machine?
For simple machines, we provide English manuals, operation videos, and online guidance. For complex systems, engineers can be dispatched for on-site assistance and training.
Can the machine work continuously for a long time?
Yes, it is designed for continuous operation. However, the water circulation cooling system must operate normally to avoid overheating and ensure long-term stability.
What is the lifespan and maintenance requirement?
Lifespan depends on the environment. We recommend regular cleaning, tightening components, and inspecting electrical connections to extend equipment life.
What happens if the machine is damaged during the warranty period?
Our engineers will first diagnose via online video. Damaged parts will be shipped for free replacement. If unresolved, on-site repair can be negotiated.
Can the welding speed be adjusted?
Yes, our machines support flexible adjustment of welding speed to suit different process requirements and material characteristics.
What types of welding processes are supported?
The system supports single-spot welding, multiple-spot welding (simultaneous), and continuous-spot welding for maximum production efficiency.
