Customization: Available
Accuracy: �0.1 mm
Application: Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry, Welding
Send Inquiry

Product Description

📊 Basic Information
Model: Ground Rail Welding Robot
Control Mode: Point to Point
Drive Mode: Electric
Type: Arc Welding Robot
Welding Speed: 10 m/min
Cleaning System: SC220A System
Rail Length: 6 Meters (Optional)
Certification: ISO, CE
HS Code: 8468800000
Capacity: 50 sets/Month
📦 Packaging & Delivery
Package Size: 1534cm * 390cm * 457cm
Gross Weight: 3200.000kg
🤖 Product Description

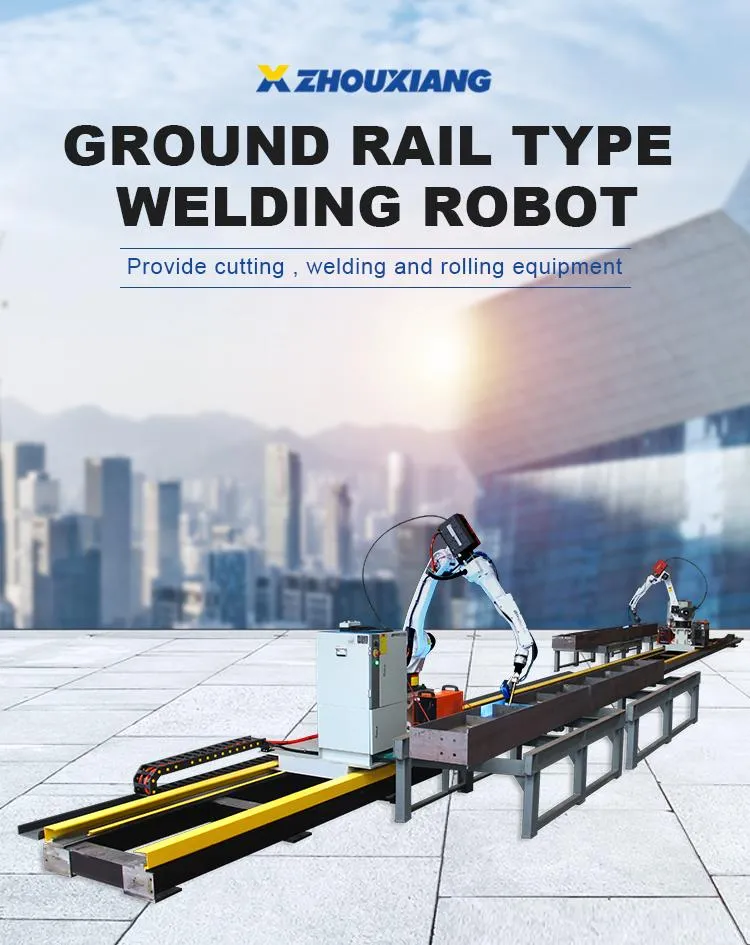

Automatic Welding Robot Workstation

Unique appearance, hollow structure arms and wrists, built-in welding cables, and compact structure make this system ideal for welding operations in narrow spaces. It is lightweight, dust-proof, and drip-proof, ensuring high safety and reliability in various harsh conditions. With a large environmental working space, fast running speed, and high repeat positioning accuracy, it is perfectly suited for high-quality welding applications.

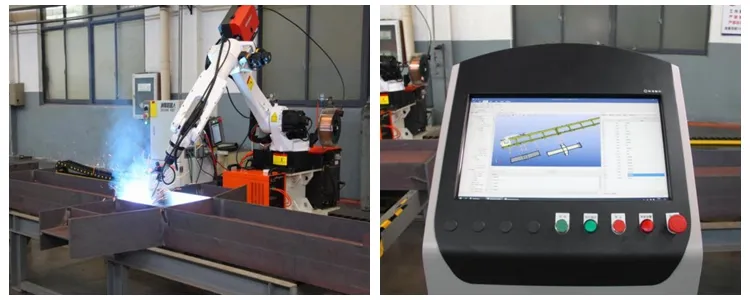

Welding Robot Features
⚙️ Product Parameters
Parameter Specification
Optional Welding Power SourceAotai or Megmeet welding machine and accessories
Welding SystemTeaching-free offline programming software, line laser tracking
Applicable ScenariosGusset plates, corbel parts, H-shaped main/secondary beams, ship bridges, steel columns
Gun Cleaning SystemSC220A system
Ground Rail Length6 meters (customizable)
📐 Robot Models Technical Data
Model ZXR12-2010 ZXR10W-1440-D
Number of axes6 axes6 axes
Movement radius2010mm1440mm
Payload12KG10KG
Protection levelIP56 / IP67IP56 / IP67
Robot weight313KG210KG
Repeat positioning accuracy±0.05mm±0.05mm
🔍 Key Components

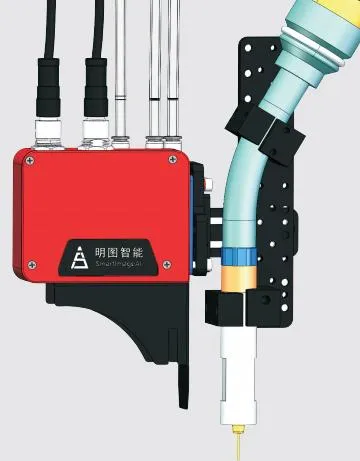

Laser Tracker

CP350V Laser Tracker: Intelligent line scanning sensor for weld identification. Guiding the robot automatically without an external computer.

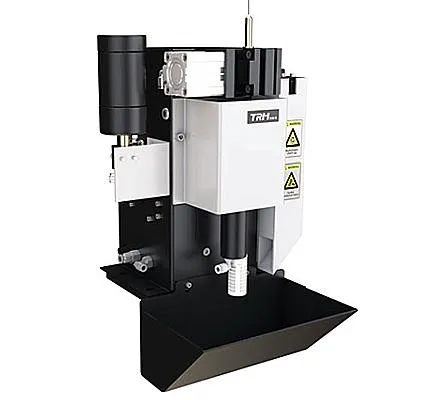

Gun Cleaning System

Gun Cleaning System: Automatically cleans welding slag, cuts wires, and protects the nozzle to extend service life and maintain quality.

💻 Robot Welding Software Advantages
✔️
Supports teaching-free operation for sandwich panels, truss beams, and bridge partitions.
✔️
Automatically extracts target weld positions by importing 3D drawings.
✔️
Automatic execution of zero return, position finding, welding, and counting.
✔️
1:1 simulation of movements to avoid collisions and interference.
✔️
Digital twin technology for real-time tracking of voltage, current, and speed.

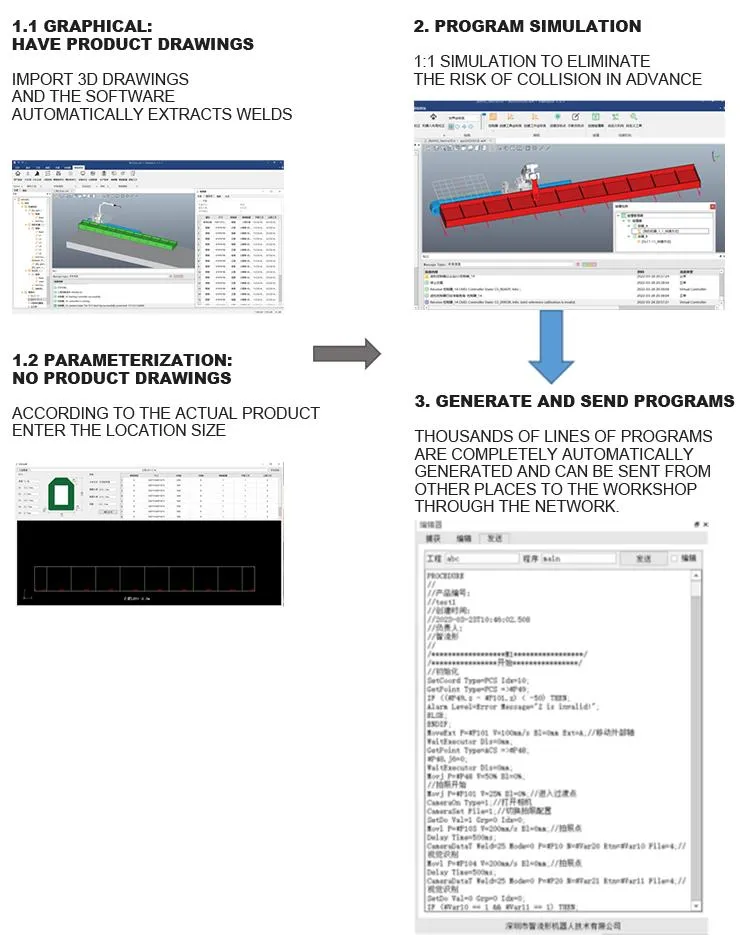

Software Process 1

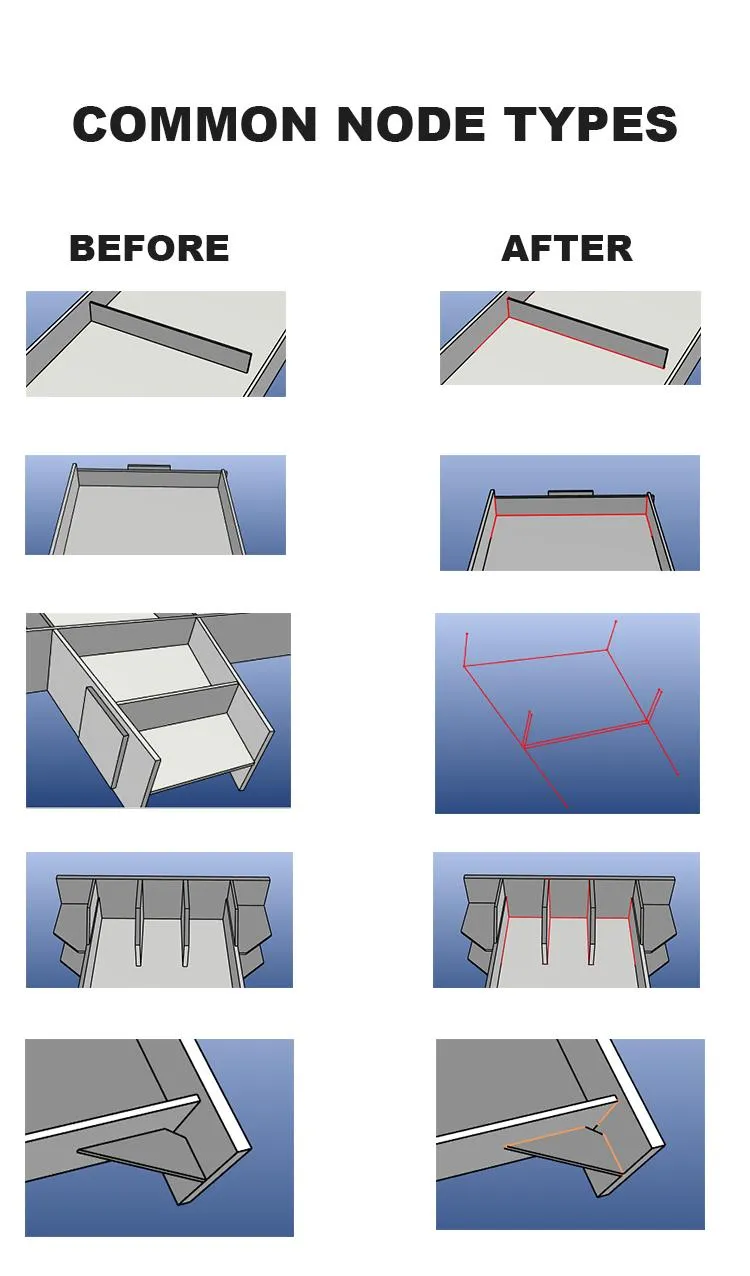

Software Process 2
📷 Gallery & Applications

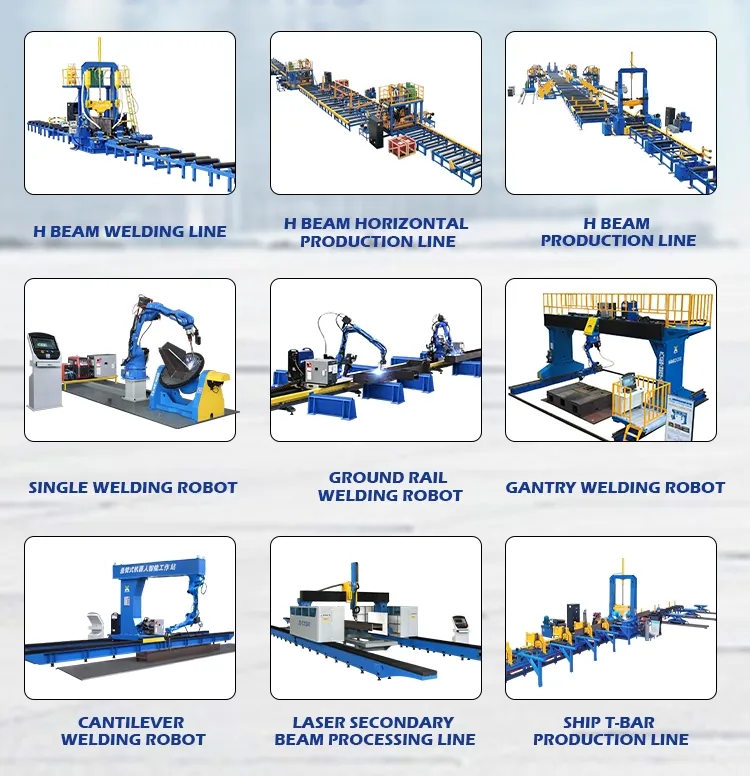

Main Products Gallery
Customer Installations

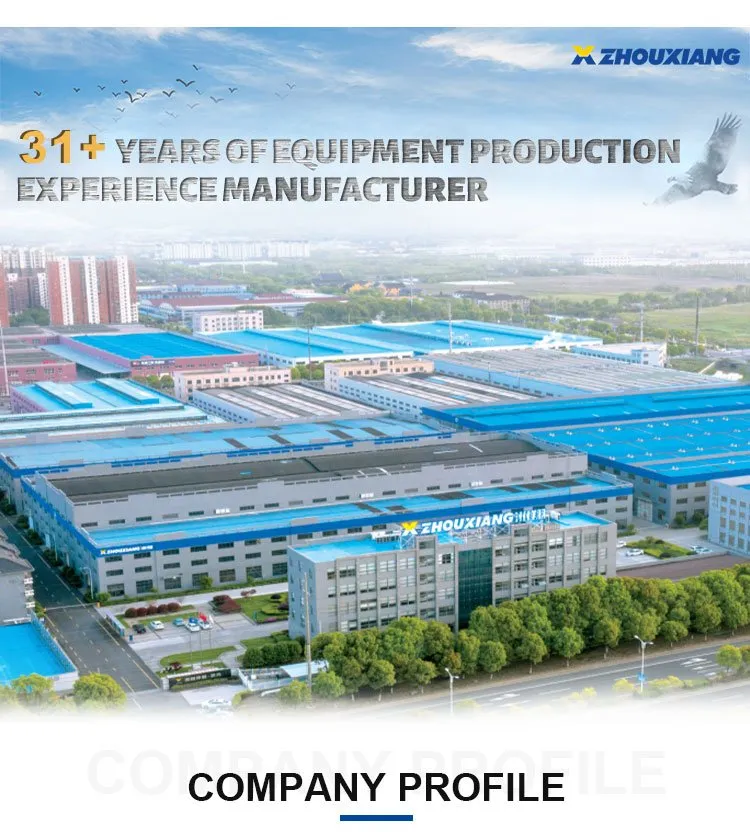

Facility Overview
Welding Process
Technical Details
❓ Frequently Asked Questions
What are the benefits of the hollow structure arm?
The hollow structure allows welding cables to be built-in, preventing tangling even during 360° rotation. This makes it more flexible for welding in narrow spaces and harsh environments.
How does the teaching-free software work?
The software automatically extracts weld positions from 3D drawings. This reduces manual workload and allows for 1:1 simulation to prevent collisions before actual work begins.
What is the purpose of the SC220A gun cleaning station?
It automatically removes welding slag, cuts wires, and protects the nozzle. This maintains consistent welding quality and extends the service life of the consumables.
Can the robot weld different types of steel?
Yes, the robot is suitable for various materials including carbon steel, stainless steel, and aluminum using gas shielded, argon arc, or laser welding.
What is Digital Twin technology in this context?
It allows for real-time monitoring of the robot's trajectory, welding voltage, current, and speed, providing a virtual representation of the production information.
What scenarios are best suited for this welding robot?
It is ideal for H-shaped main beams, secondary beams, bridge partitions, corbel parts, and other steel structures used in construction and shipbuilding.
