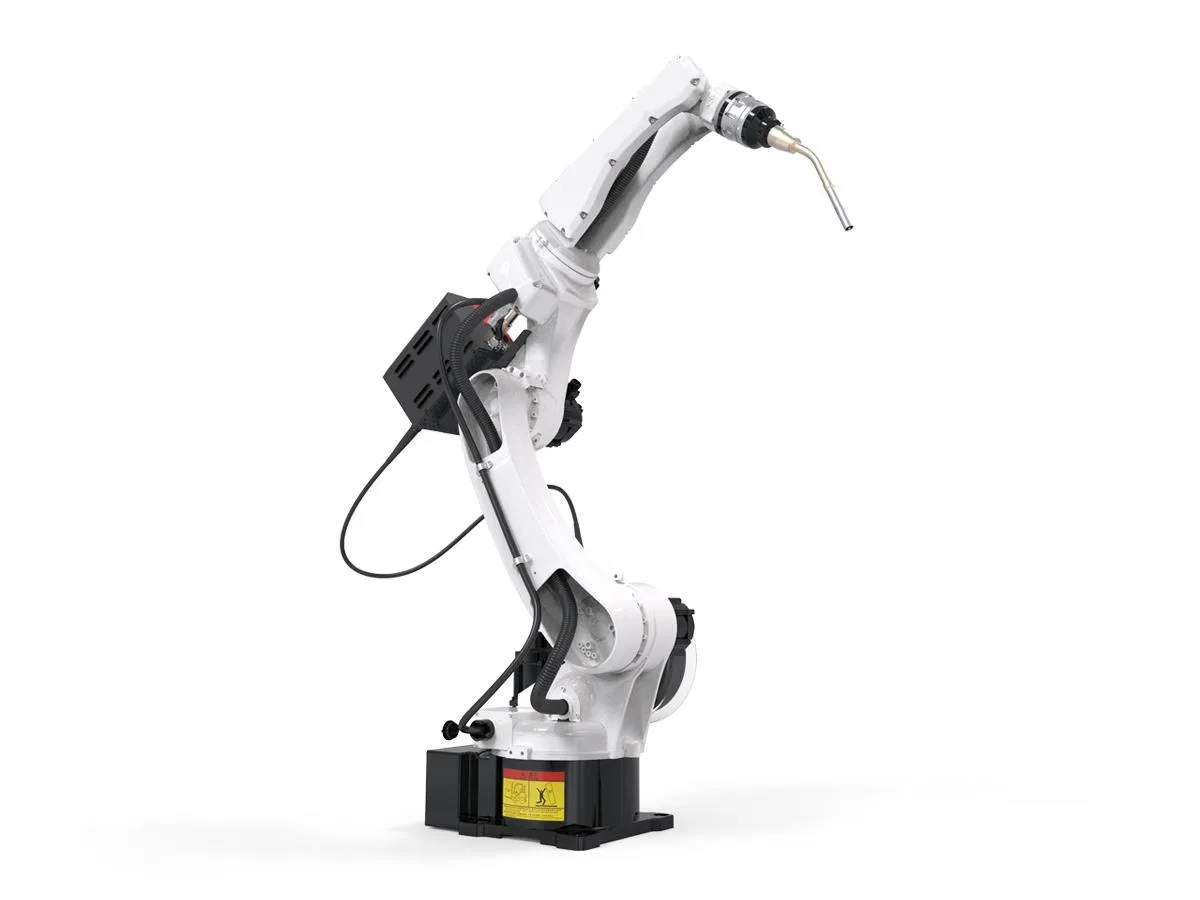

CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding

Customization:	Available
Accuracy:	�0.1 mm
Application:	Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry

01

Product Overview

Model NO.

SGWL-CNC-2R

Control Mode

Continuous Path Control

Type

MIG Welding Robot

Welding Speed

0.5 m/min

Materials

Stainless Steel, Carbon Steel, Copper, Aluminum

Accuracy

±0.05mm

Protection Level

IP65

Control Type

CNC Fully Automatic

Voltage

220/380V 1/3 Phase

Wire Diameter

0.8mm, 1.0mm, 1.2mm, 1.6 mm

02

Product Description

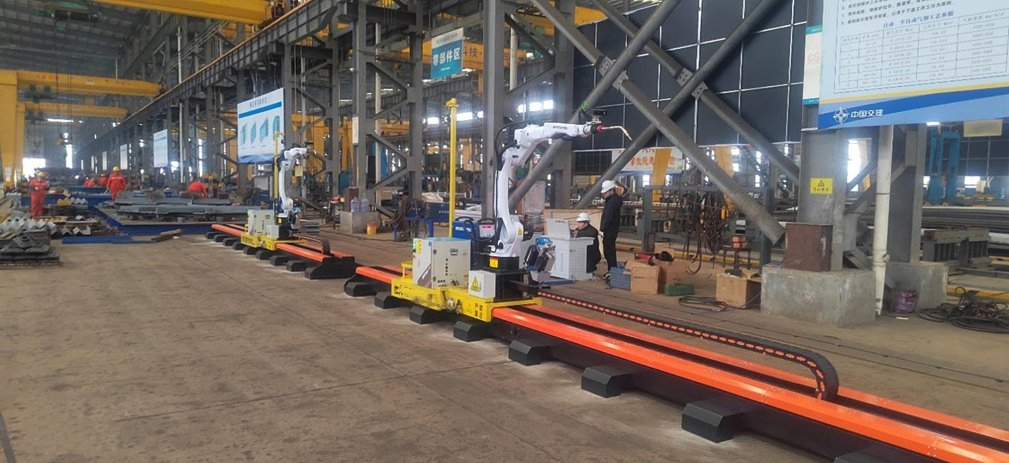

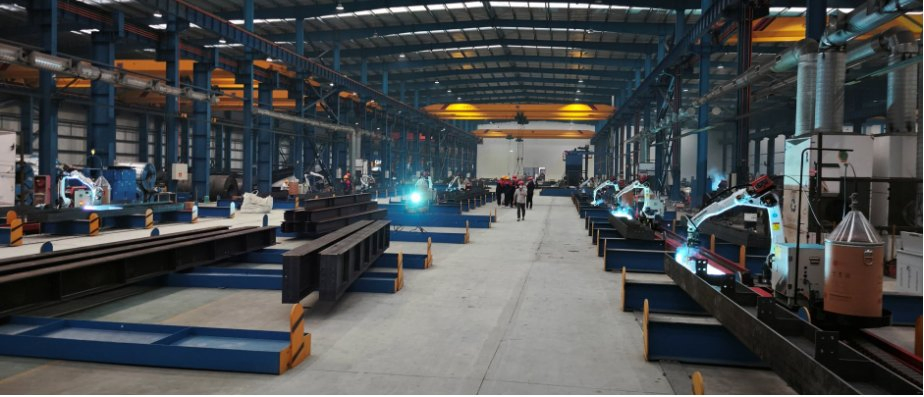

The ground rail welding robot provides a data link from design to automated welding production, enabling fully automatic welding of small batches and multiple varieties of steel structures. It supports seamless welding connections with mainstream 3D design software such as Tekla and Solidworks, automatically calculating welds using workpiece models. Advanced three-dimensional vision technology identifies and locates starting/ending positions and wrapping angles, completing trajectory planning without manual teaching.

03

Technical Parameters

Category	Specifications (Model: GR-WL500)
7 Axis Welding Robot	Arm span: 2000mm (customizable)
	Camera: 3D, High and low viewing distance functions
	Walking rail: Standard 9M & 12M (customizable)
	Dual-machine collaborative welding supported
	Repeatable positioning accuracy: ±0.05mm
	Voltage: 3 Phase 380V
Control System	Support TCP and camera hand-eye automatic calibration
	Control servo: EtherCAT bus servo
	Operating mode: Teaching, Online, Remote
	Gas flow: 15-20L/min

04

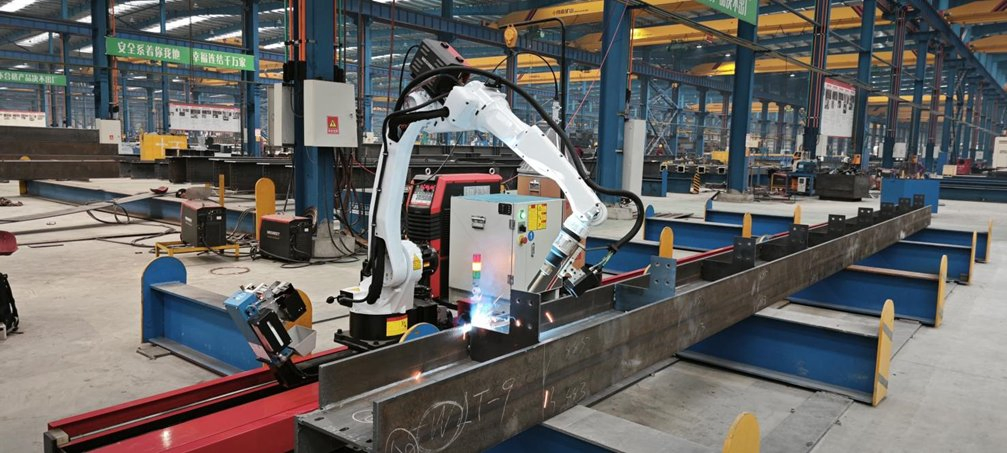

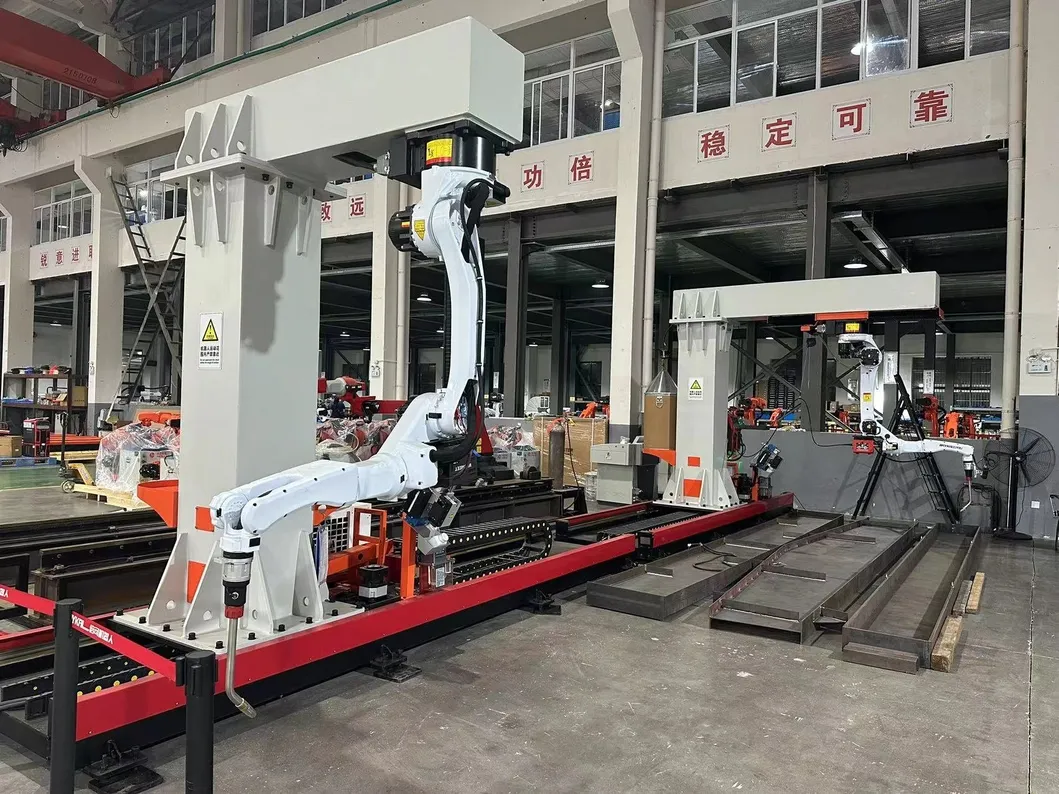

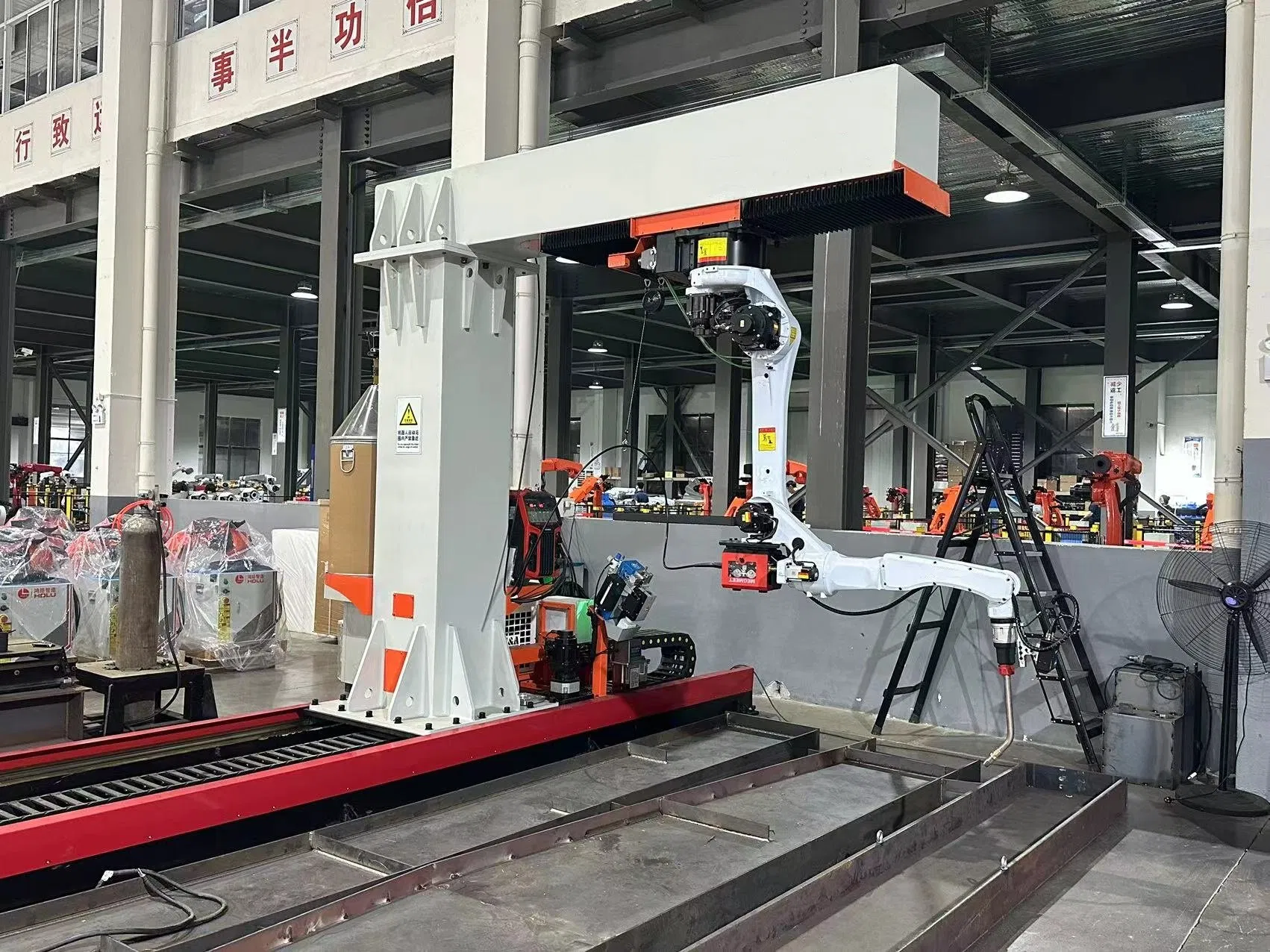

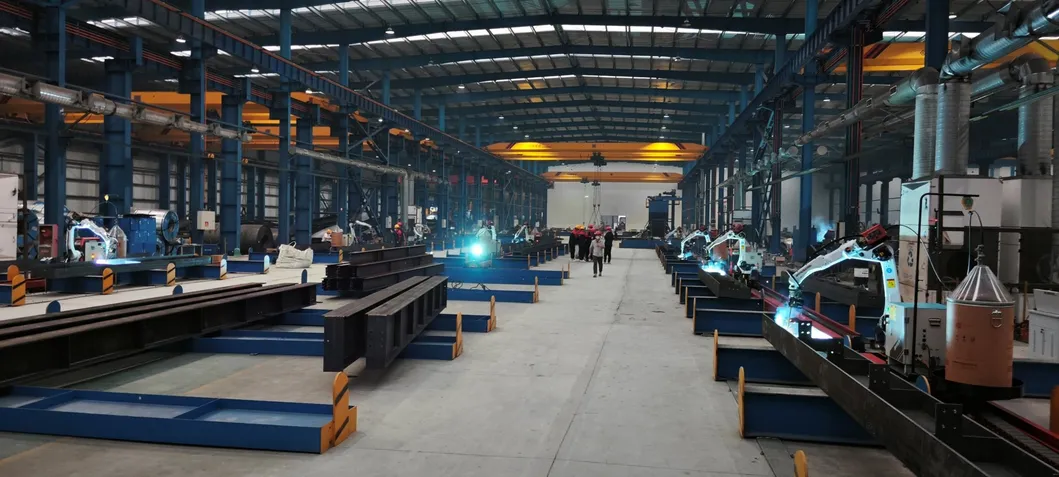

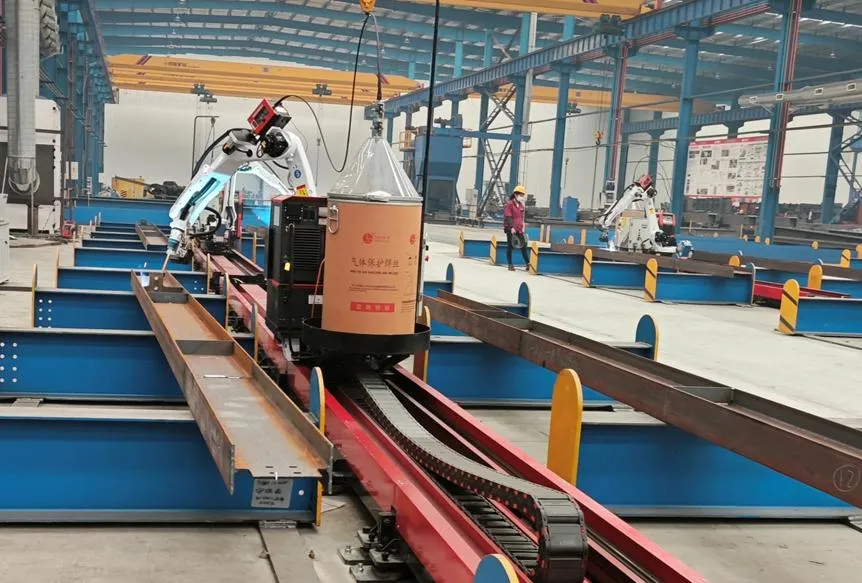

Detailed Photos

05

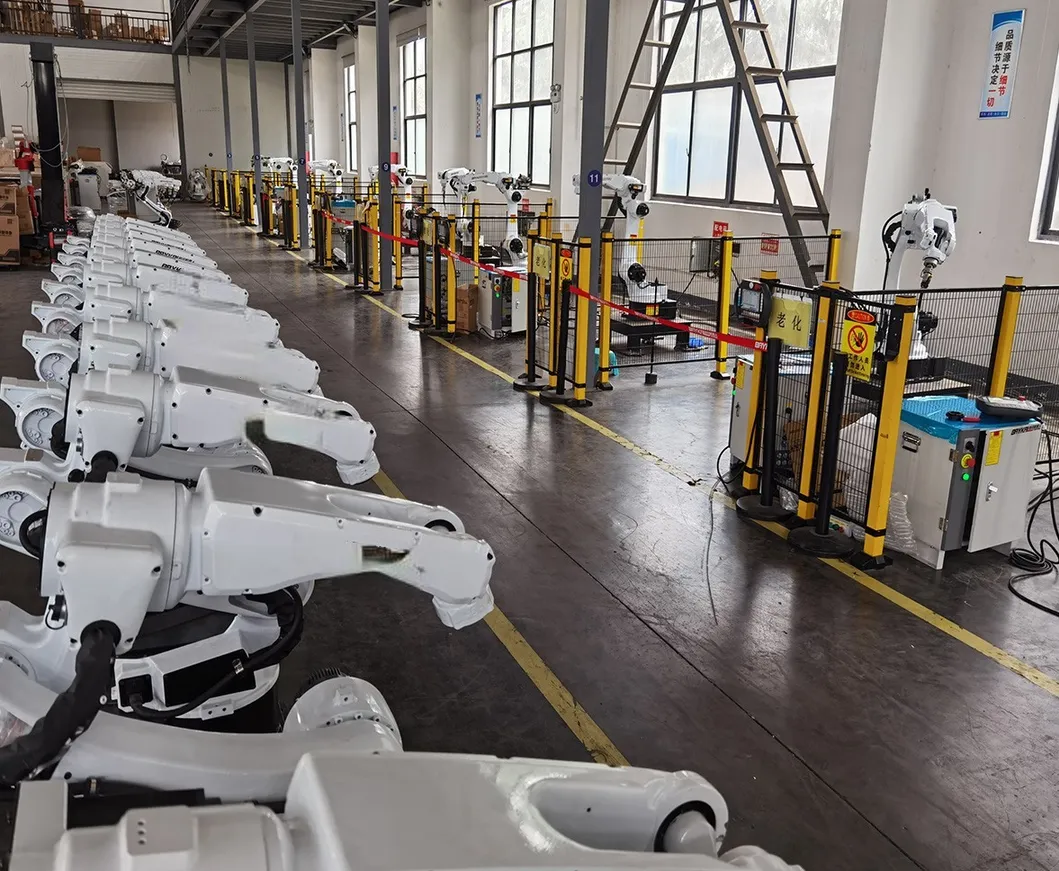

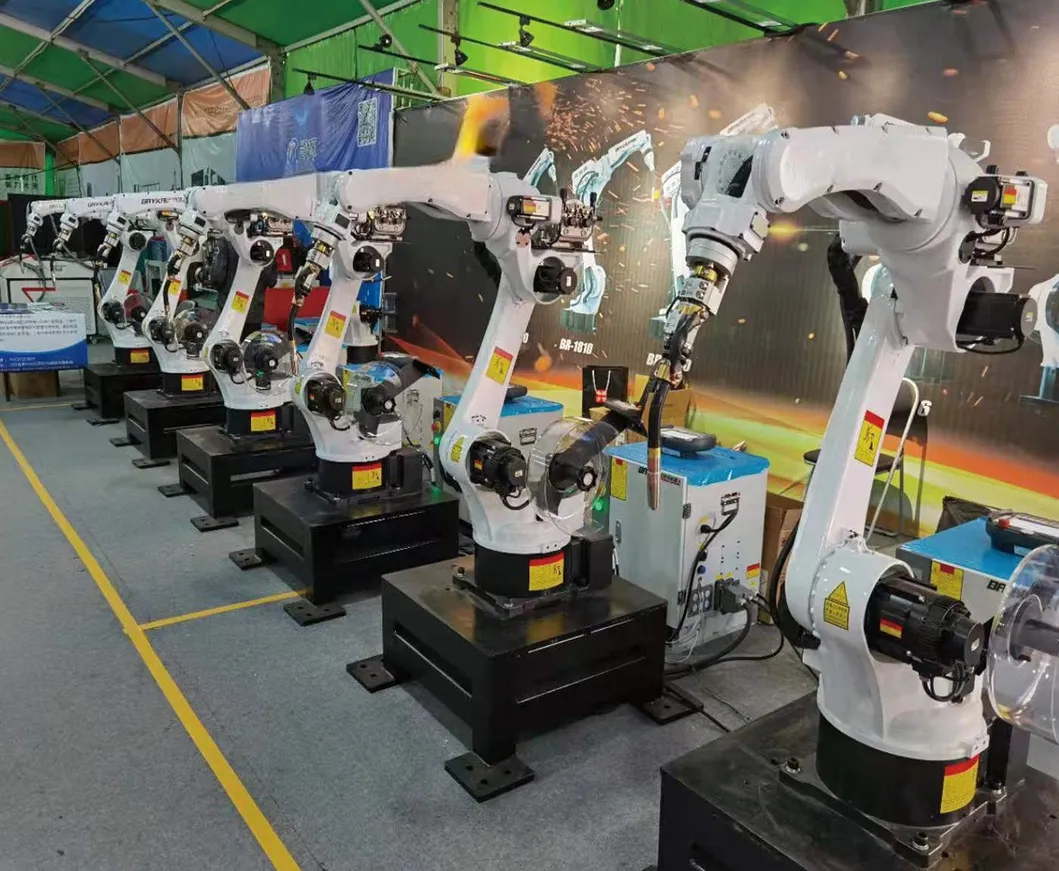

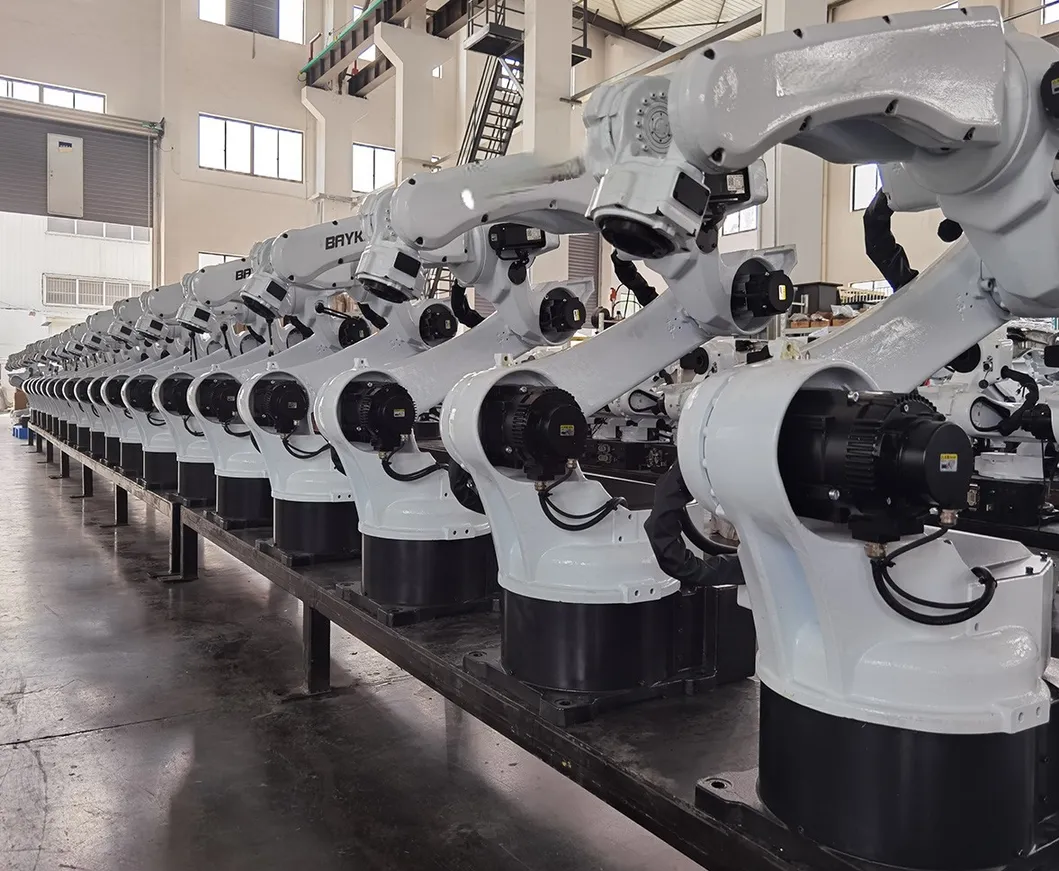

Company Capabilities

Our group integrates R&D, manufacturing, and trade within the metal processing industry. Our products range from CNC drilling and milling to advanced fiber laser cutting and robotic welding systems. These solutions are widely applied in power towers, steel structures, petrochemicals, and the construction industry globally across 100+ countries.

06

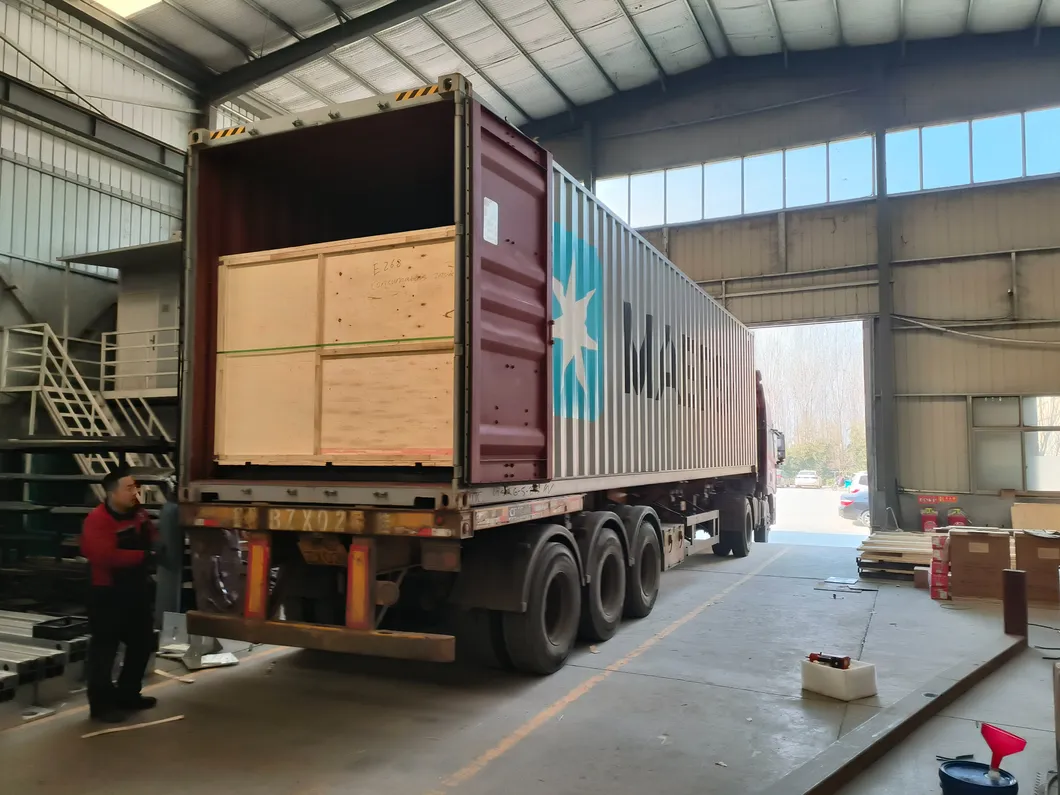

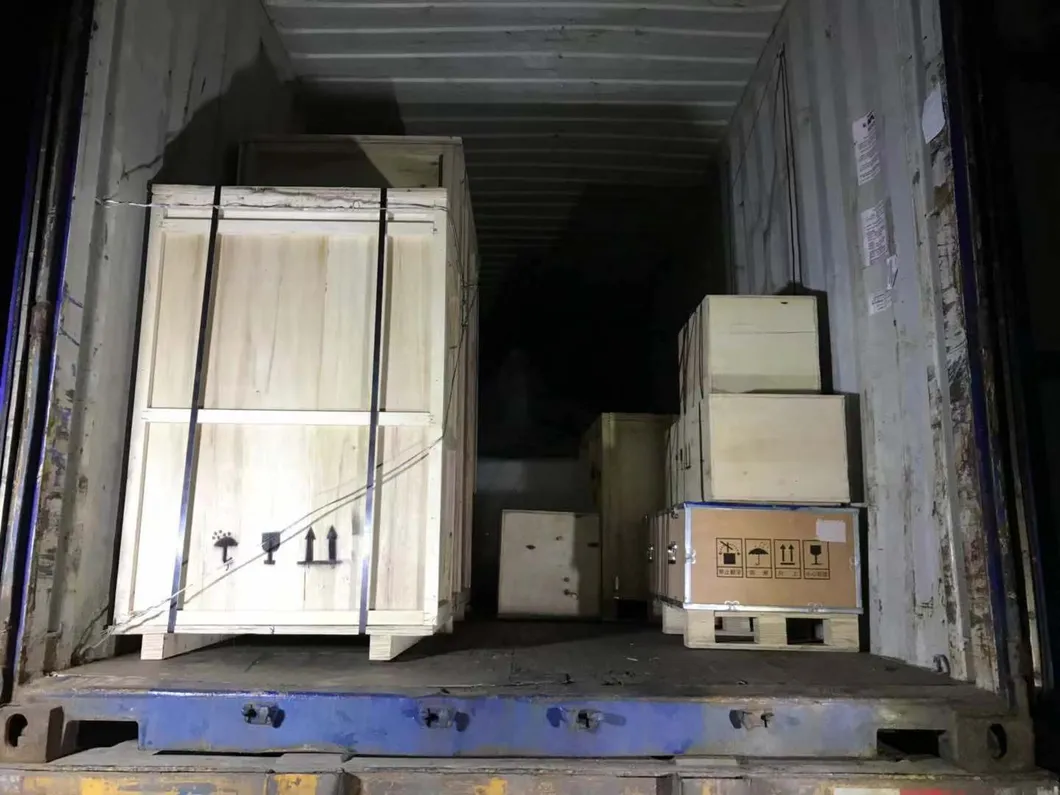

Packaging & Shipping

Machines are packed in robust wooden boxes or vacuum-sealed to ensure they remain moisture-proof, rust-proof, and shock-proof during sea transportation or multi-modal transit.

07

Service & Support

Warranty Support
1-year free warranty with timely solutions and technical assistance.

Regular Maintenance
Scheduled follow-ups and equipment archiving for optimal performance.

Online Response
Fast response within 1 hour during working hours for any technical queries.

Overseas Service
On-site installation, professional training, and maintenance services available globally.

?

Frequently Asked Questions

What types of metal can this robot weld?

The robot is highly versatile and can weld Stainless Steel, Carbon Steel, Copper, and Aluminum using MIG, MAG, TIG, or CO2 welding processes.

Does this machine require manual programming for new workpieces?

No. Using 3D vision and seamless integration with design software like Tekla and Solidworks, the system automatically plans the trajectory and calculates welds without manual teaching.

What is the positioning accuracy of the robotic arm?

The system offers a high repeatable positioning accuracy of ±0.05mm, ensuring consistent quality for industrial-grade welding tasks.

What are the standard lengths for the ground walking rail?

The standard lengths are 9 meters and 12 meters, but the rail length can be fully customized to suit your specific production floor requirements.

How is the machine protected during international shipping?

We use reinforced wooden boxes or vacuum packaging. All shipments are designed to be moisture-proof, rust-proof, and shock-proof for sea and multi-modal transportation.

Is technical training provided for new operators?

Yes, we provide user-friendly English manuals, video guides, and can offer on-site overseas installation and training services for your team.
