Basic Information
Product Description
Please note: Slight differences may exist between the actual product and the images shown. Our commitment to quality ensures that every workstation meets the highest standards of performance and reliability.

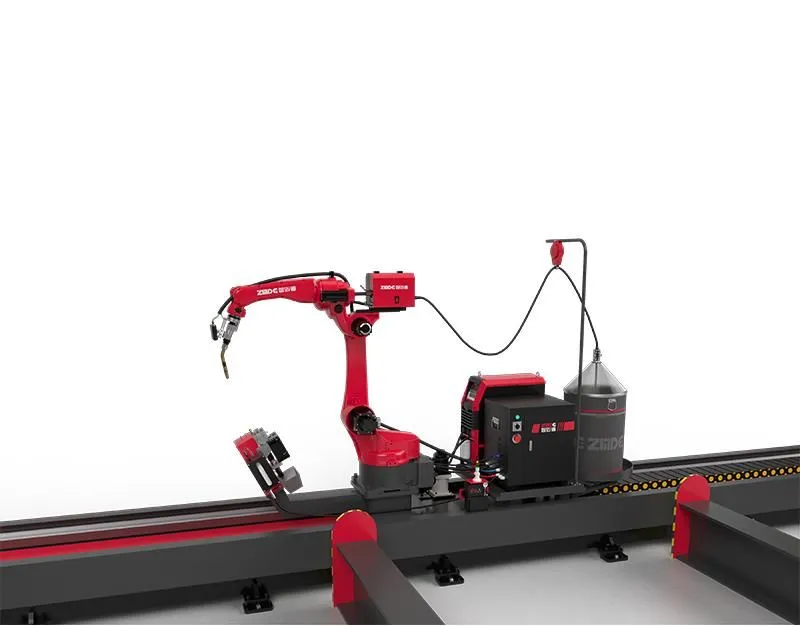

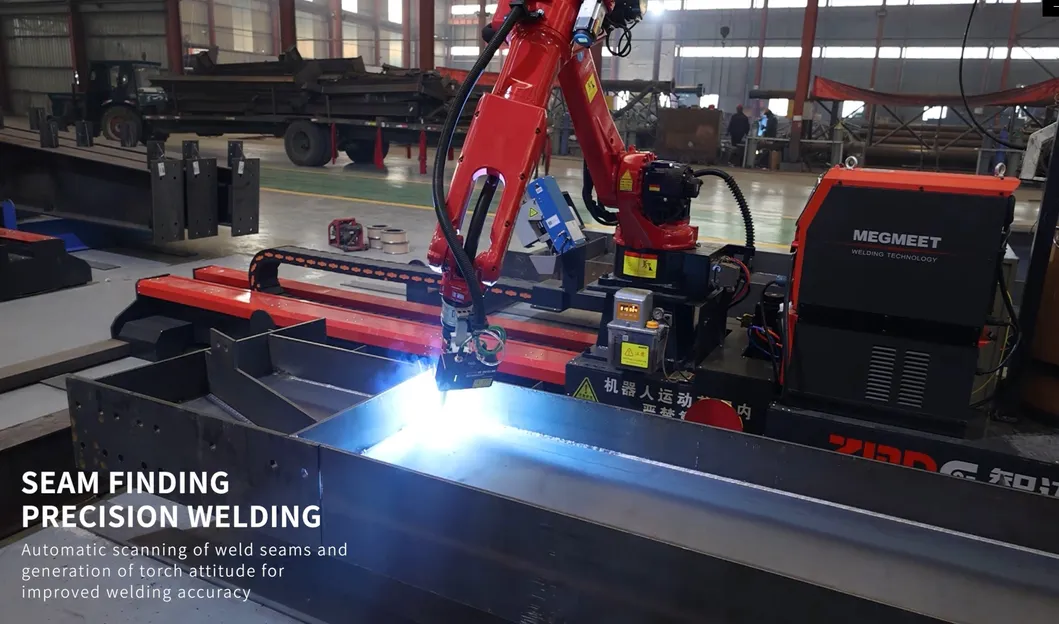

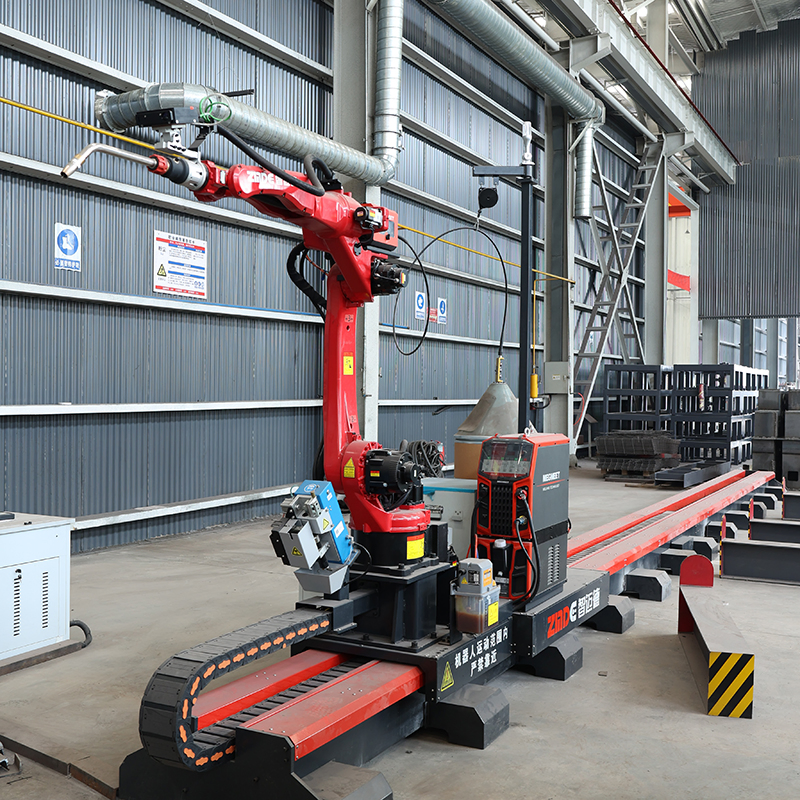

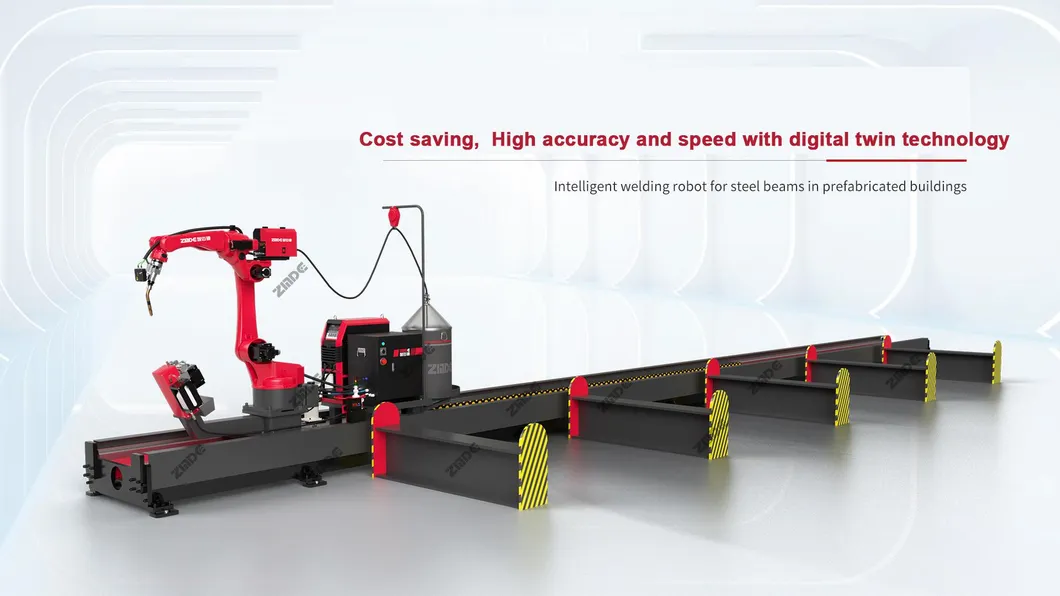

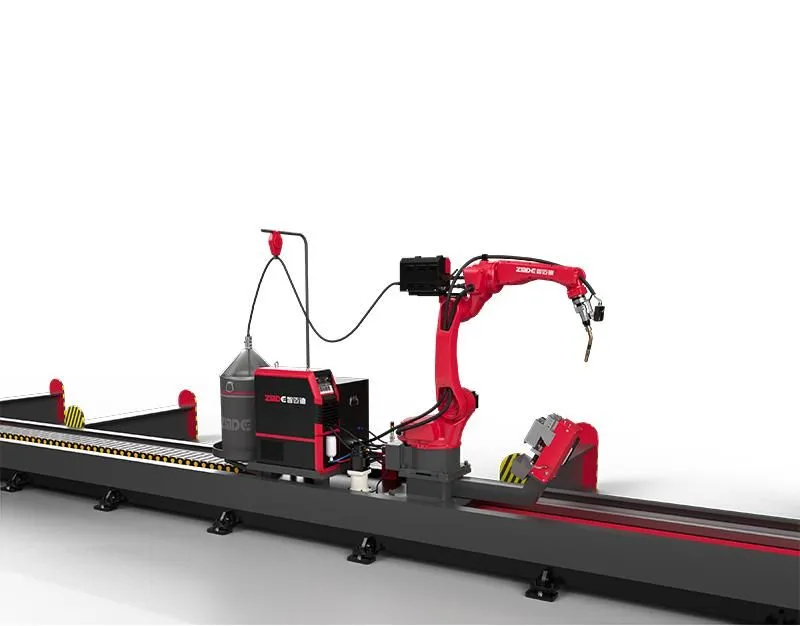

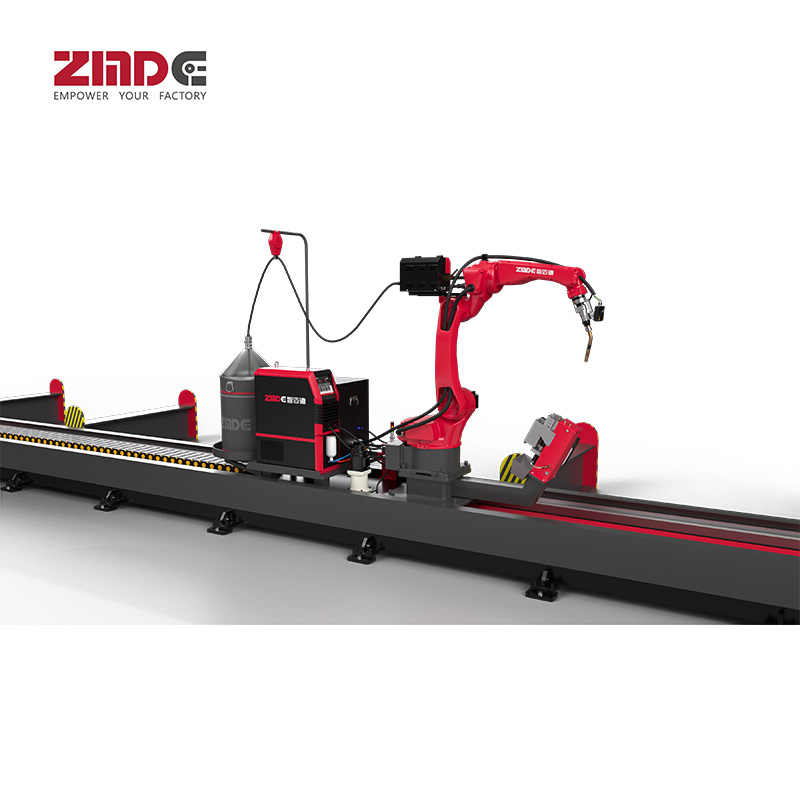

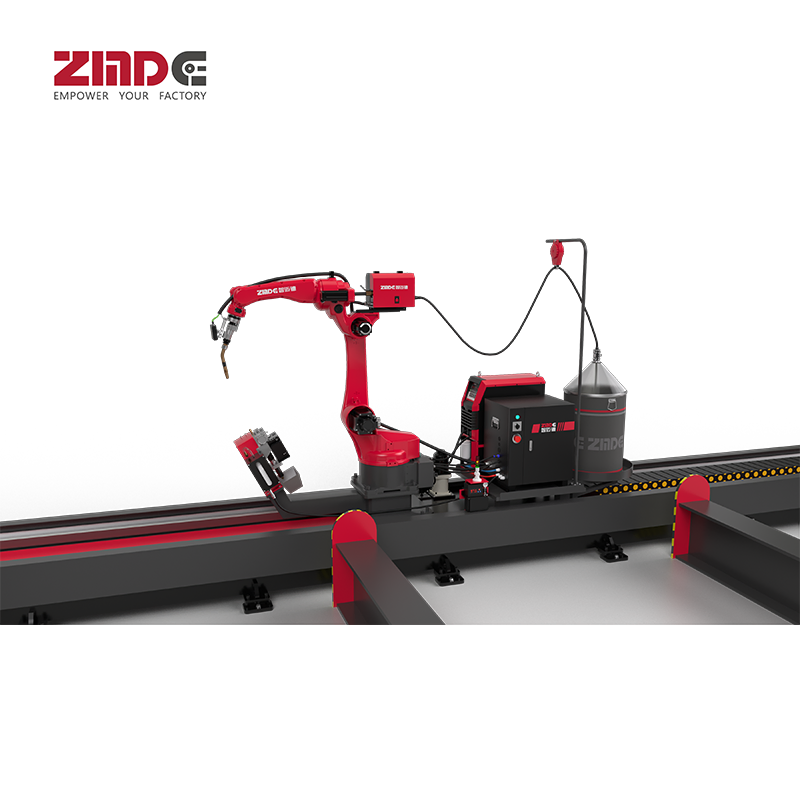

Main Function: Weld identification and precision welding of H/T beam accessory plates.
Applicable Industry: Steel structure industry, assembly building, bridge engineering, shipyard, and more.
Technical Parameters
| Model: ZMD-2010A-GG-12DG | |||
|---|---|---|---|
| Conditions of use | 0-45ºC, 20-80%RH | Type | Vertical joint 6 degrees of freedom |
| Max Reach Range | 1598mm | Protection class | Comparable to IP65 |
| Installation | Ground level | Positional repeatability | ±0.08mm |
| Max load weight | 6KG | Body weight | 168KG |
| Axis | Range of action | Maximum speed |
|---|---|---|
| J1 | ±170° | 259.3°/S |
| J2 | +64° -130° | 160°/S |
| J3 | ±75° | 296.3°/S |
| J4 | ±150° | 294.1°/S |
| J5 | +130° -105° | 294.1°/S |
| J6 | ±220° | 426.7°/S |

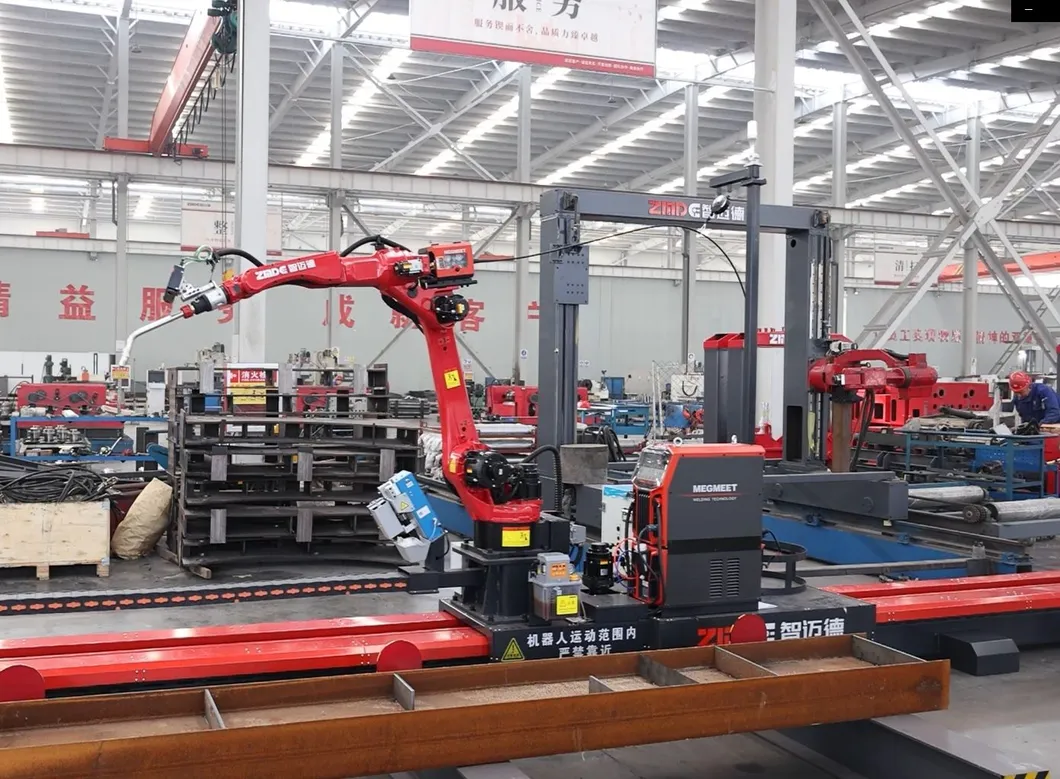

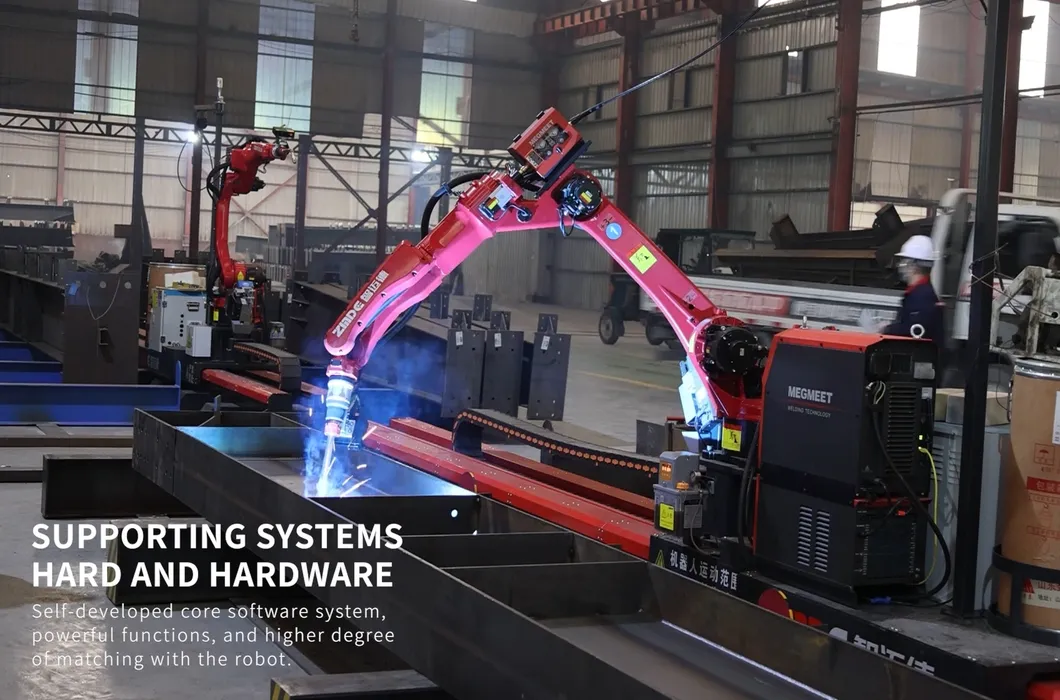

Key Advantages
About Us
Founded in 2013, we are a pioneering high-tech enterprise specializing in the R&D, manufacturing, and service of intelligent assembly building equipment. Recognized as a national small giant enterprise, we excel in steel structure assembly building intelligent industrial mother machines and industrial IoT applications.
Our state-of-the-art facility spans 32,000 square meters, housing the Research Institute of Artificial Intelligence for Assembled Buildings. We focus on cutting-edge core technologies in AI, Intelligent Buildings, and Industrial IoT, with dedicated bases for the production of intelligent industrial mother machines for steel beams and walls.
